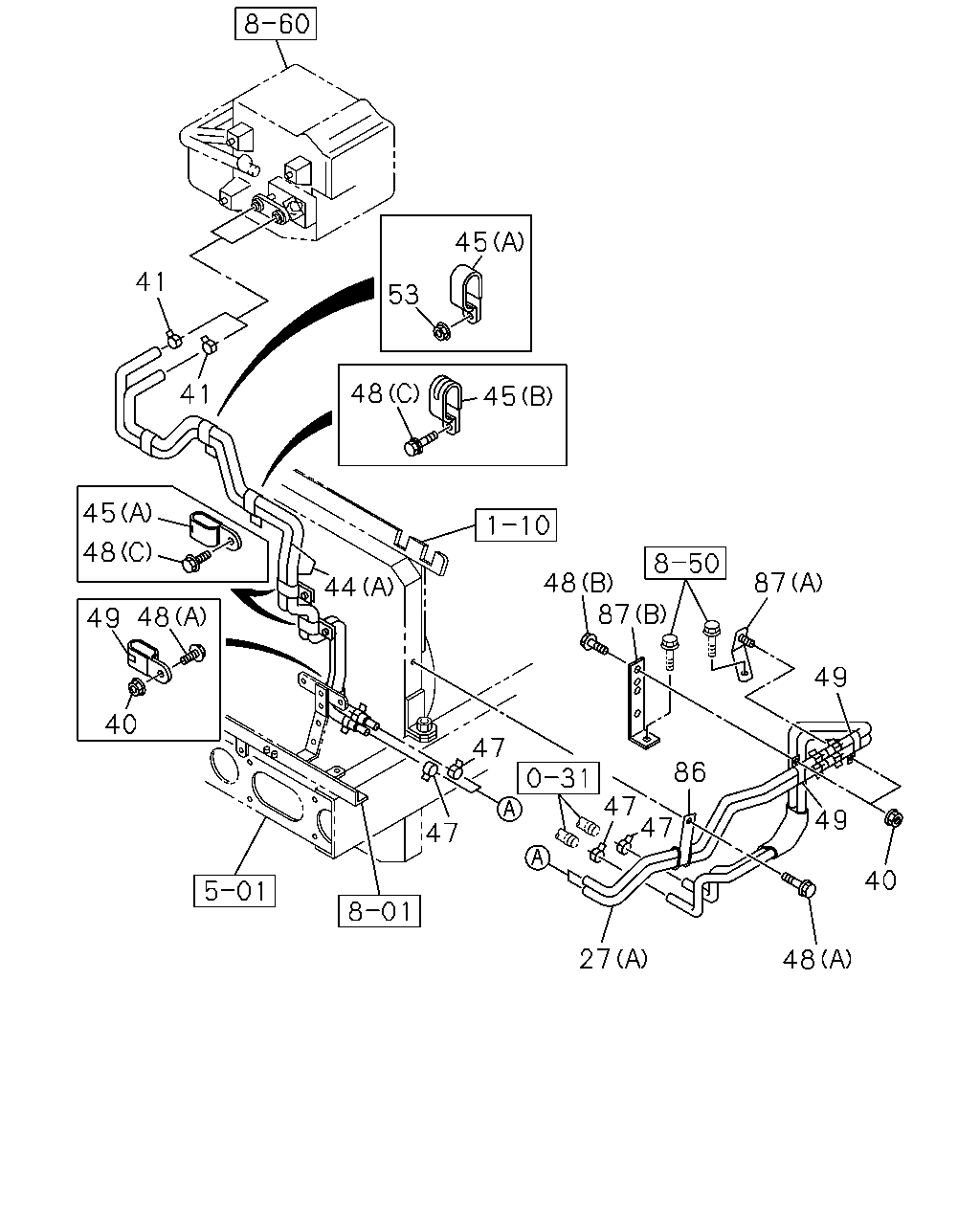

8-45 — HEATER PIPING (#63554) — 60 parça

41 53 45 41 48 45 44 45 48 47 48 87 87 49 47 49 40 88 47 49 87 40 48 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83565-802-3	01	1	1008-
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL-B2(Q4T) (B)	1-83565-839-1	01	1	1008-
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	1008-1104
41	CLAMP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	02	1	1105-
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-98192-079-0	01	1	1110-
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (B)	8-98198-665-0	01	1	1110-
44	HOSE; WATER,HTR,INL ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98052-676-1	01	1	1008-1104
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98052-676-1	01	1	1105-1109
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-98052-676-2	01	1	1110-
44	HOSE; WATER,HTR,INL ENGINE CONTROL-B2(Q4T) (B)	8-98052-678-1	01	1	1008-1104
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (B)	8-98052-678-1	01	1	1105-1109
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B)	8-98052-678-2	01	1	1110-
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	1008-1104
45	CLIP; WATER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) WO/SCREW	1-09701-143-1	01	1	1105-
45	CLIP; WATER PIPE (A)	1-09701-238-0	03	1	1008-1104
45	CLIP; WATER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	03	1	1105-
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	1008-
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1008-1104
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1105-
48	BOLT; CLIP FIX ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
48	BOLT; CLIP FIX ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	1008-
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-1104
53	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1105-
87	BRACKET; HTR HOSE CLIP (B)	1-82698-358-0	01	1	1008-
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	1008-
87	BRACKET; HTR HOSE CLIP ENGINE CONTROL-B2(Q4T) (C)	1-83573-315-0	01	1	1008-
88	STAY; WATER HOSE ENGINE CONTROL-B2(Q4T)	1-83573-291-1	01	1	1008-

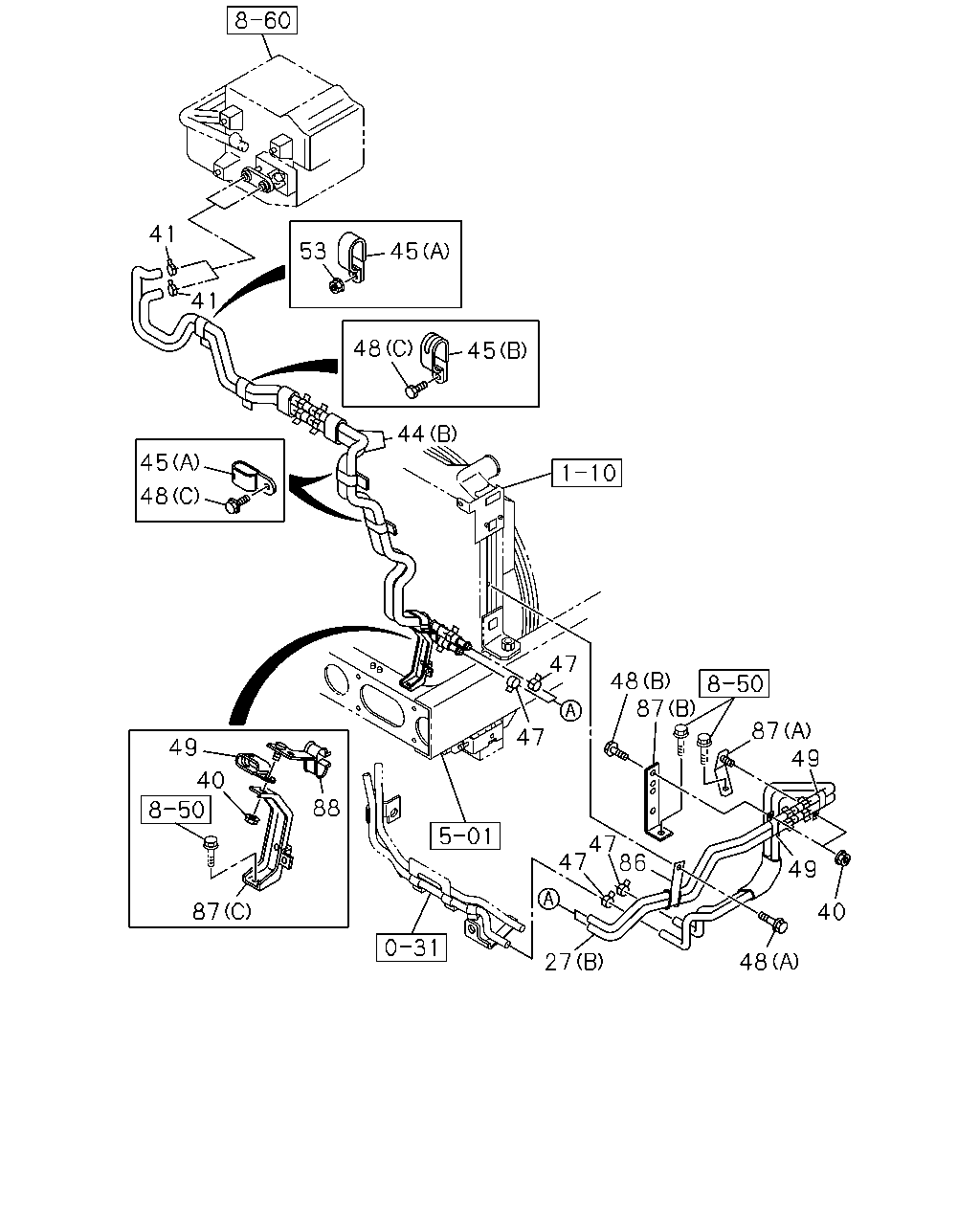

45 41 53 48 41 45 45 48 87 48 87 44 48 49 49 40 47 86 47 47 49 47 40 27 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL COMMON RAIL(Q4R) (A)	1-83565-802-3	01	1	1008-
27	HOSE; WATER,HTR UNIT TO WATER PIPE ENGINE CONTROL-B2(Q4T) (B)	1-83565-839-1	01	1	1008-
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	1008-1104
41	CLAMP; WATER HOSE,HTR AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	02	1	1105-
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-98192-079-0	01	1	1110-
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> (B)	8-98198-665-0	01	1	1110-
44	HOSE; WATER,HTR,INL ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98052-676-1	01	1	1008-1104
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) (A)	8-98052-676-1	01	1	1105-1109
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL COMMON RAIL(Q4R) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-98052-676-2	01	1	1110-
44	HOSE; WATER,HTR,INL ENGINE CONTROL-B2(Q4T) (B)	8-98052-678-1	01	1	1008-1104
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) (B)	8-98052-678-1	01	1	1105-1109
44	HOSE; WATER,HTR,INL AIR CONDITIONER MANUAL CONTROL(C60) ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B)	8-98052-678-2	01	1	1110-
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	1008-1104
45	CLIP; WATER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) WO/SCREW	1-09701-143-1	01	1	1105-
45	CLIP; WATER PIPE (A)	1-09701-238-0	03	1	1008-1104
45	CLIP; WATER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	03	1	1105-
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	1008-
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	1008-
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1008-1104
48	BOLT; CLIP FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	1105-
48	BOLT; CLIP FIX ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
48	BOLT; CLIP FIX ENGINE CONTROL-B2(Q4T) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	1008-
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	1008-1104
53	NUT; HOSE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	1105-
86	CLIP; HTR HOSE	1-83573-076-0	01	1	1008-
87	BRACKET; HTR HOSE CLIP (B)	1-82698-358-0	01	1	1008-
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	1008-
87	BRACKET; HTR HOSE CLIP ENGINE CONTROL-B2(Q4T) (C)	1-83573-315-0	01	1	1008-
