Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#63552) — 203 parça

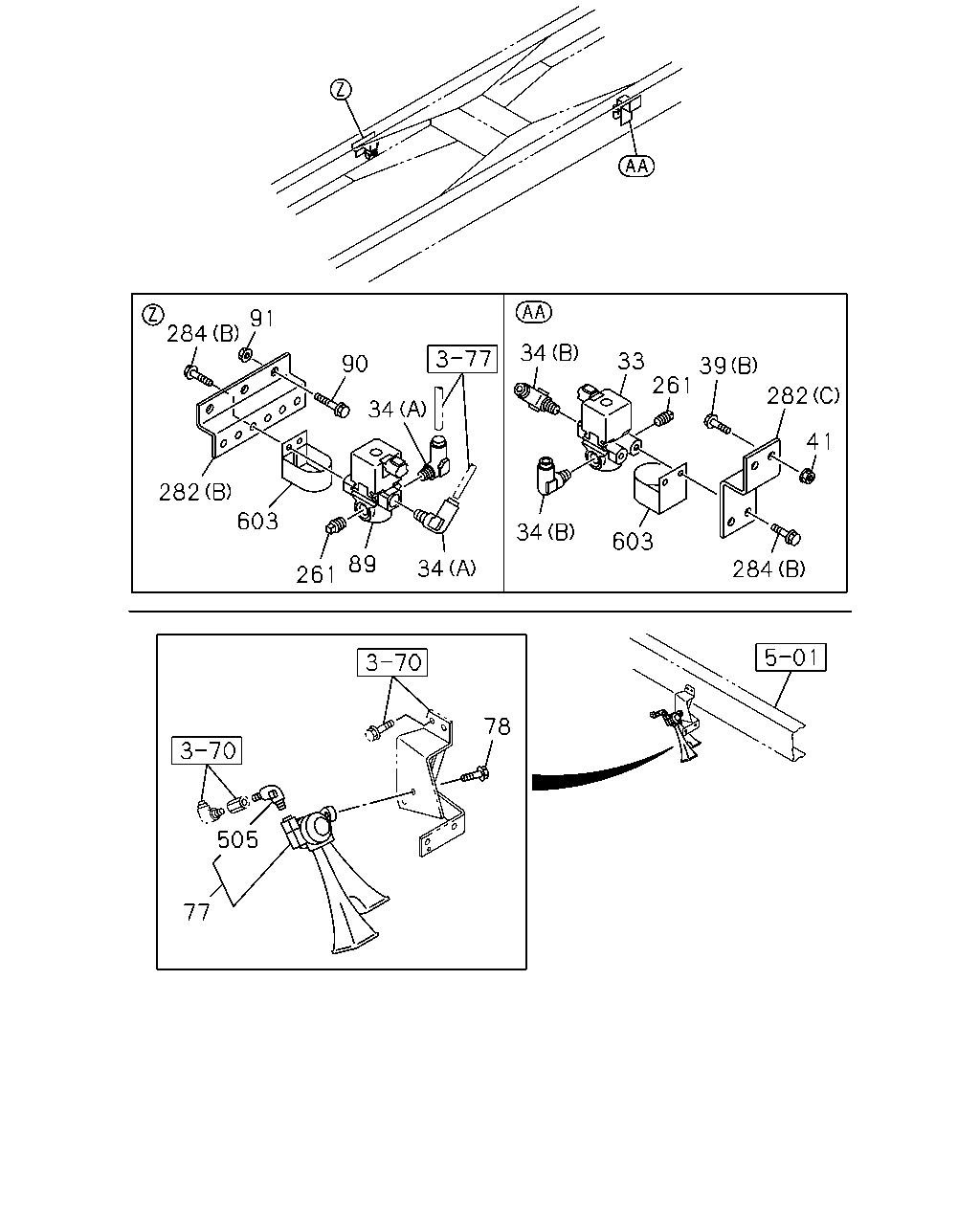

284 91 34 33 39 261 90 282 34 41 282 603 34 603 89 34 284 261 78 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	1008-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	1008-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1008-
39	BOLT; BRKT,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO4 SPECIFICATION<KBT> (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1008-
77	HORN ASM	1-83430-043-0	01	1	1008-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	1008-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	1008-1205
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-
90	BOLT; MAG VLV M8X40 FLANGE	0-28650-840-0	02	1	1008-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	1008-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	1008-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1008-
282	BRACKET; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (A)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (E)	1-82569-290-0	01	1	1008-
282	BRACKET; MAG VLV EURO4 SPECIFICATION<KBT> (D)	1-82569-298-0	01	1	1008-
282	BRACKET; MAG VLV MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (F)	1-82569-367-1	01	1	1008-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1008-
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> (A) M6X50 FLANGE	0-28050-650-0	01	1	1008-
284	BOLT; MAG VLV EURO4 SPECIFICATION<KBT> (A) M6X50 FLANGE	0-28050-650-0	03	1	1008-
505	JOINT; AIR HORN	1-83439-006-0	01	1	1008-
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	1008-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	1008-

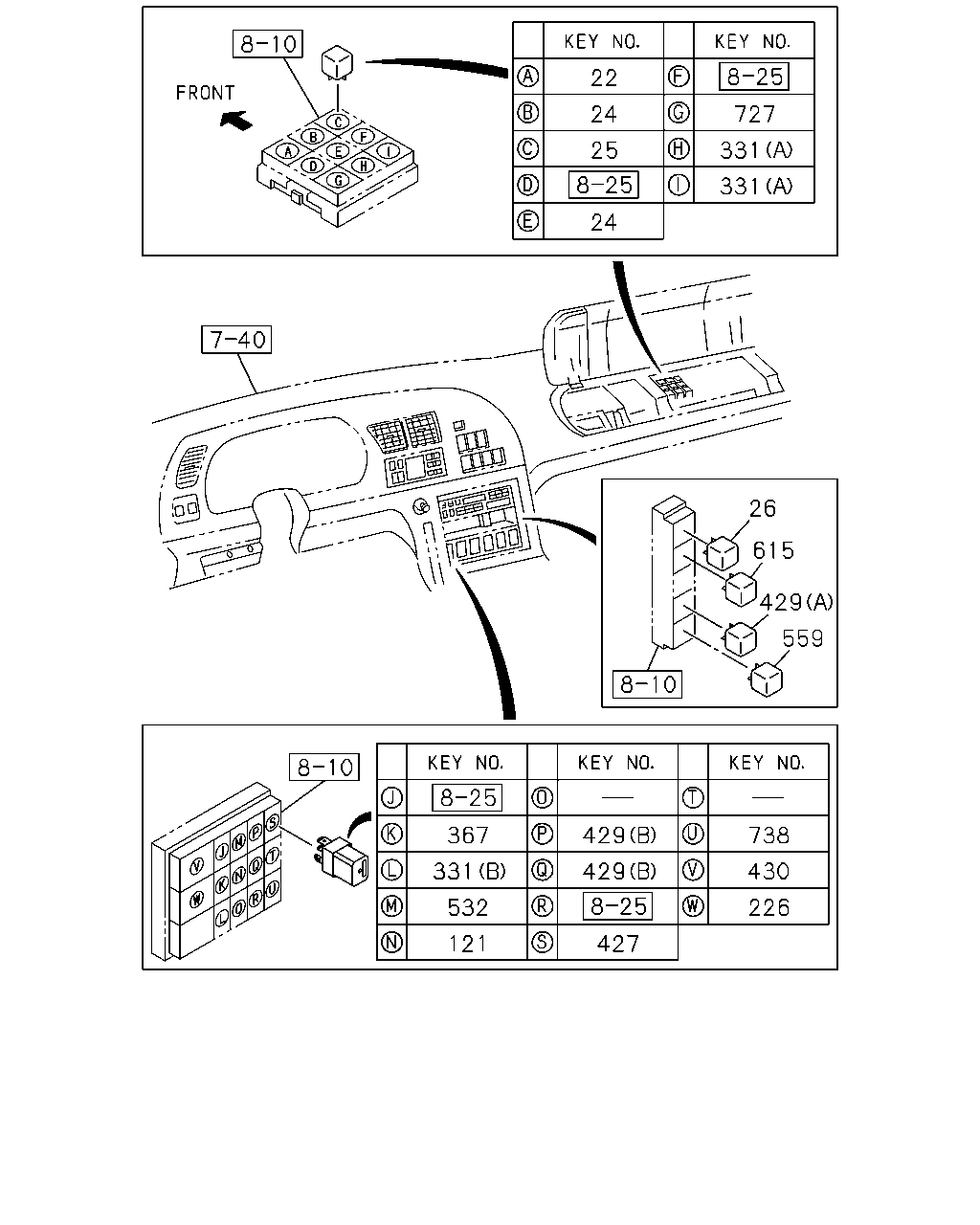

22 24 727 25 331 331 24 26 615 429 559 367 429 738 331 429 430 532 226 121 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP FULL TRAILER PIPING<Z25> 24V 12.5A PANASONIC	8-97262-933-0	02	1	1008-
22	RELAY; STOP LAMP EXC. FULL TRAILER PIPING<Z25> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	1008-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
331	RELAY; A/C (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	1008-1104
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 12.5A PANASONIC	8-97262-933-0	02	1	1105-
331	RELAY; A/C ENGINE CONTROL-B2(Q4T) (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1008-1112
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	1201-
367	RELAY; NEUTRAL CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-
427	RELAY; RETARDER ENGINE CONTROL-B2(Q4T) 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
429	RELAY; POWER CUT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) 24V 12.5A MITUBA	1-82550-326-0	01	1	1008-
429	RELAY; POWER CUT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) 24V 10A PANASONIC	8-97173-035-1	02	1	1008-
430	RELAY; RANGE MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
532	RELAY; SEAT BELT WARNING 24V 10A PANASONIC	8-97173-035-1	01	1	1008-
559	RELAY; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
615	RELAY; TRAILER FULL TRAILER PIPING<Z25> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
727	RELAY; START CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	1008-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	1008-

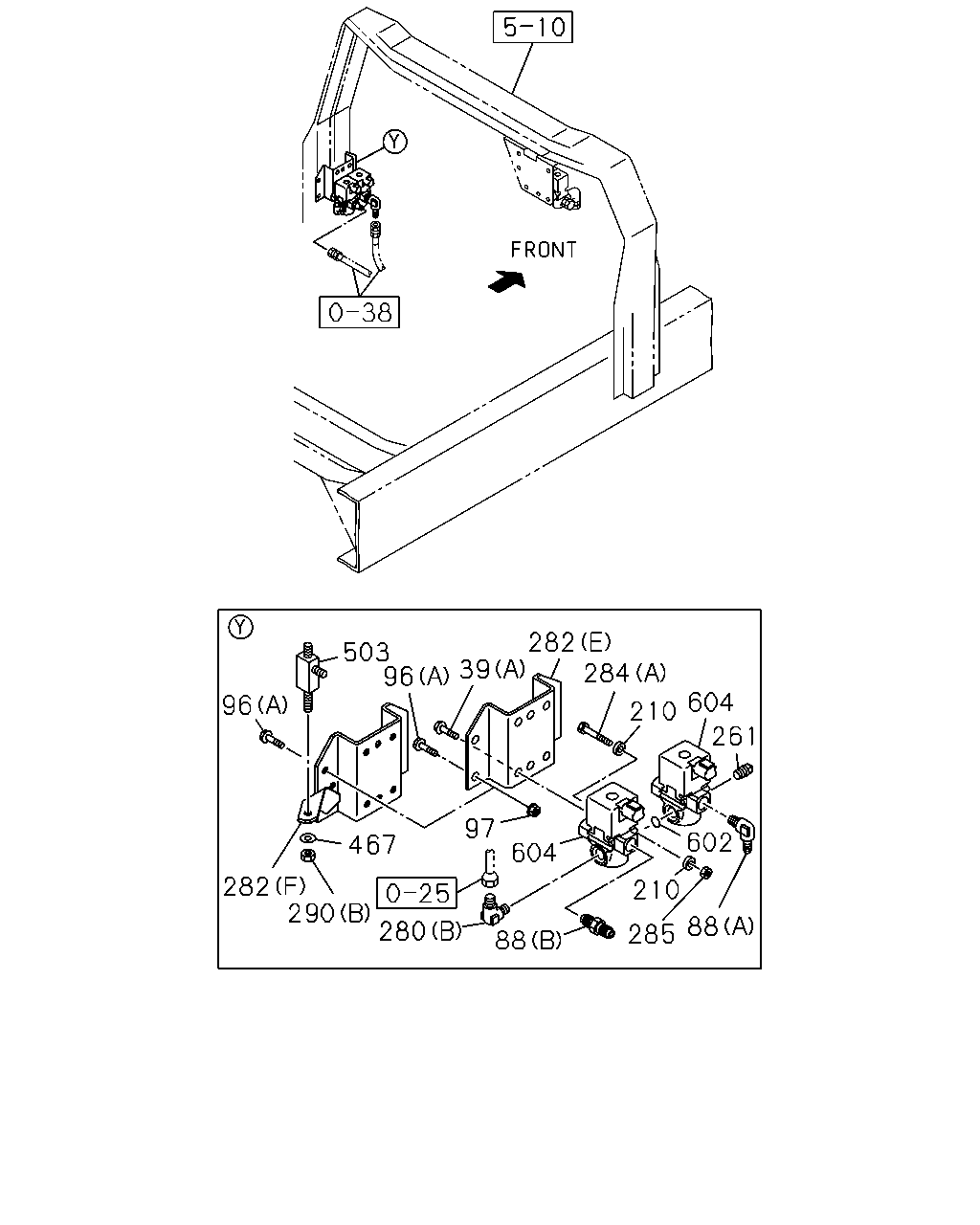

282 284 503 96 39 604 96 210 261 602 210 97 467 604 282 290 280 88 285 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO4 SPECIFICATION<KBT> (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
88	CONNECTOR; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<KBT> (A) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	1008-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	1008-
96	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-
96	BOLT; BRKT FIX EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE	0-28650-835-0	04	1	1008-
97	NUT; BRKT FIX EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	01	1	1008-
97	NUT; BRKT FIX EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	05	1	1008-
97	NUT; BRKT FIX EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	02	1	1008-
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1008-
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	1008-
210	WASHER; PL,BRKT EURO4 SPECIFICATION<KBT>	1-82569-266-0	06	1	1008-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	1008-
280	CONNECTOR; IN,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
280	CONNECTOR; IN,MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
280	CONNECTOR; IN,MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1008-
282	BRACKET; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (A)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (E)	1-82569-290-0	01	1	1008-
282	BRACKET; MAG VLV EURO4 SPECIFICATION<KBT> (D)	1-82569-298-0	01	1	1008-
282	BRACKET; MAG VLV MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (F)	1-82569-367-1	01	1	1008-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1008-
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> (A) M6X50 FLANGE	0-28050-650-0	01	1	1008-
284	BOLT; MAG VLV EURO4 SPECIFICATION<KBT> (A) M6X50 FLANGE	0-28050-650-0	03	1	1008-
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	1008-
285	NUT; MAG VLV EURO4 SPECIFICATION<KBT> M6 FLANGE	0-91180-106-0	03	1	1008-
290	NUT (A) M6 FLANGE	0-91180-106-0	02	1	1008-
290	NUT MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (B) M12	0-91111-512-0	01	1	1008-
467	WASHER; LK,MAG VLV MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> ID=12.2	0-91510-512-0	01	1	1008-
503	UNION MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> M12 2WAY	1-09654-059-2	01	1	1008-
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	1008-
602	GASKET; MAG VLV EURO4 SPECIFICATION<KBT> ID=16.8	9-09565-117-0	03	1	1008-
604	VALVE; MAG,ENG CONT ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN>	1-82563-871-2	01	1	1008-
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX>	1-82563-871-2	01	1	1008-
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX>	1-82563-871-2	02	1	1008-
604	VALVE; MAG,ENG CONT EURO4 SPECIFICATION<KBT>	1-82563-871-2	04	1	1008-

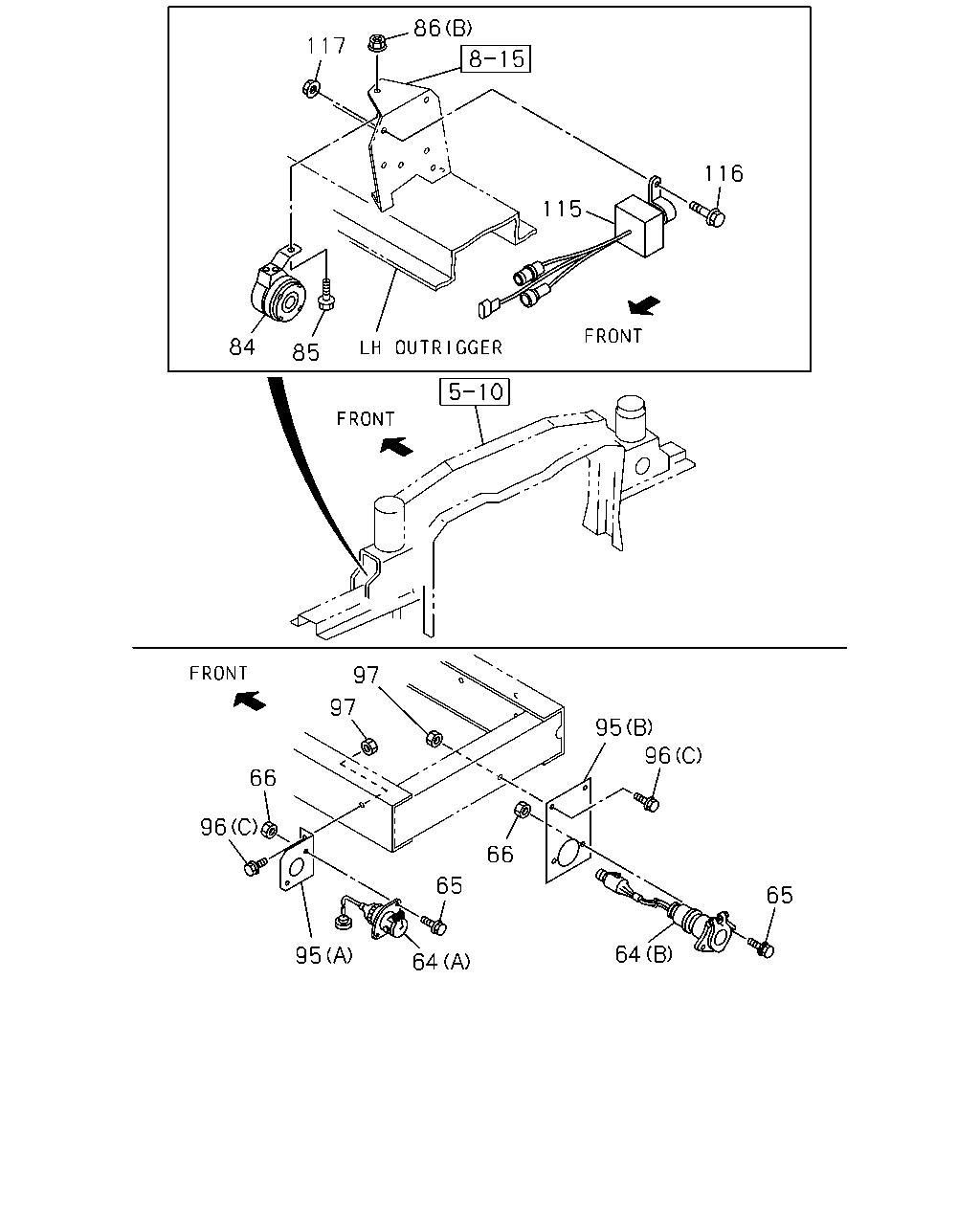

86 117 116 115 84 85 97 97 95 96 66 96 66 65 65 64 95 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER FULL TRAILER PIPING<Z25> (B) 7P	1-82523-014-0	01	1	1008-
64	SOCKET; TRAILER FULL TRAILER PIPING<Z25> (A) L=860	1-82699-449-2	01	1	1008-1008
64	SOCKET; TRAILER FULL TRAILER PIPING<Z25> (A) L=860	8-98172-008-0	01	1	1009-
65	BOLT; SOCKET FIX FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	04	1	1008-
66	NUT; SOCKET FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1008-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	1008-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	1008-
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	1008-
86	NUT; BUZZER ENGINE CONTROL COMMON RAIL(Q4R) (A) M6 FLANGE	0-91180-106-0	01	1	1008-
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (B)	1-82699-387-0	01	1	1008-
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (A)	1-82699-979-0	01	1	1008-1008
95	BRACKET; SOCKET,TRAILER FULL TRAILER PIPING<Z25> (A)	8-97985-137-0	01	1	1009-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	1008-
96	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-
96	BOLT; BRKT FIX EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE	0-28650-835-0	04	1	1008-
97	NUT; BRKT FIX EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	01	1	1008-
97	NUT; BRKT FIX EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	05	1	1008-
97	NUT; BRKT FIX EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	02	1	1008-
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1008-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	1008-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	1008-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	1008-

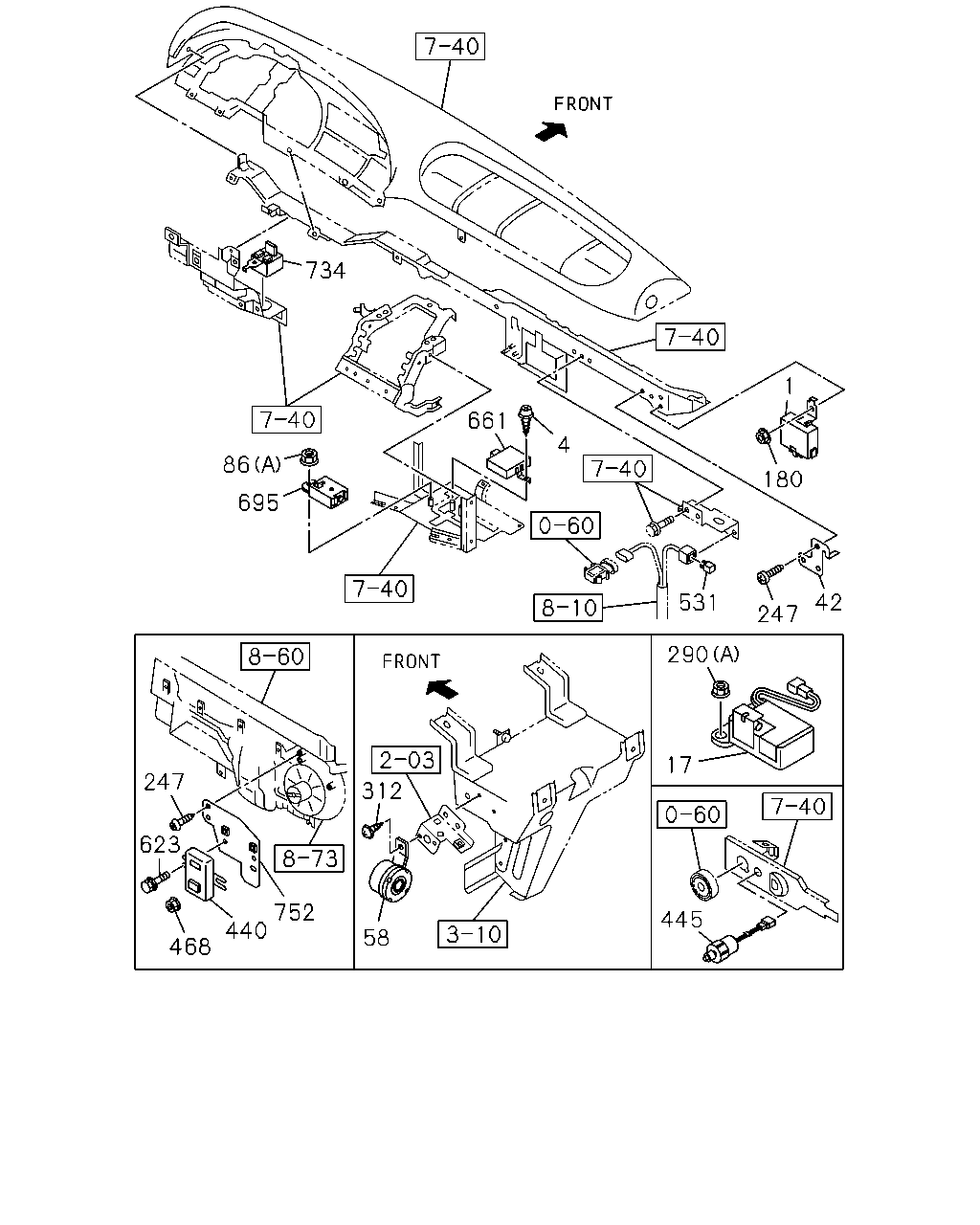

734 1 661 4 86 180 695 42 531 247 290 17 247 312 623 752 440 445 58 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER FULL TRAILER PIPING<Z25>	8-97613-970-1	01	1	1008-
1	UNIT; FLASHER EXC. FULL TRAILER PIPING<Z25>	8-98025-533-1	01	1	1008-
4	SCREW; FLASHER UNIT ENGINE CONTROL COMMON RAIL(Q4R) FULL TRAILER PIPING<Z25> M5X14	8-94279-325-0	01	1	1008-
17	TIMER; SEAT BELT	1-82550-183-1	01	1	1008-
42	BRACKET; RELAY ENGINE CONTROL-B2(Q4T)	1-82698-128-2	01	1	1008-
58	BUZZER; AIR PRESSURE WARNING ENGINE CONTROL COMMON RAIL(Q4R) METRO DENSO	8-98069-859-0	01	1	1008-
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	1008-
86	NUT; BUZZER ENGINE CONTROL COMMON RAIL(Q4R) (A) M6 FLANGE	0-91180-106-0	01	1	1008-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	1008-
180	NUT; FLASHER UNIT ENGINE CONTROL-B2(Q4T) FULL TRAILER PIPING<Z25> M6 FLANGE	0-91180-106-0	01	1	1008-
247	SCREW; BRKT ENGINE CONTROL-B2(Q4T) M5X14	8-94279-325-0	01	1	1008-
247	SCREW; BRKT ENGINE CONTROL-B2(Q4T) FULL TRAILER PIPING<Z25> M5X14	8-94279-325-0	03	1	1008-
290	NUT (A) M6 FLANGE	0-91180-106-0	02	1	1008-
290	NUT MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (B) M12	0-91111-512-0	01	1	1008-
312	BOLT; BUZZER ENGINE CONTROL COMMON RAIL(Q4R) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1008-
440	MODULE; INFORMATION,ABS FULL TRAILER PIPING<Z25>	1-81510-701-0	01	1	1008-
445	SWITCH; ENG STOP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	8-98106-482-0	01	1	1008-
468	NUT; MODULE ENGINE CONTROL COMMON RAIL(Q4R) FULL TRAILER PIPING<Z25> M6 FLANGE	0-91180-106-0	02	1	1008-
531	RELAY; MAIN ENGINE CONTROL-B2(Q4T) 24V	8-98167-175-0	01	1	1008-
623	BOLT; MODULE ENGINE CONTROL-B2(Q4T) FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-
661	CONTROL UNIT; FLASHER FULL TRAILER PIPING<Z25>	1-83470-066-1	01	1	1008-
695	ALARM; OVER HEAT ENGINE CONTROL COMMON RAIL(Q4R)	1-83460-051-1	01	1	1008-
734	ALARM; MULTI ENGINE CONTROL-B2(Q4T)	1-83460-106-0	01	1	1008-
752	BRACKET; MODULE ENGINE CONTROL-B2(Q4T) FULL TRAILER PIPING<Z25>	8-97611-710-0	01	1	1008-

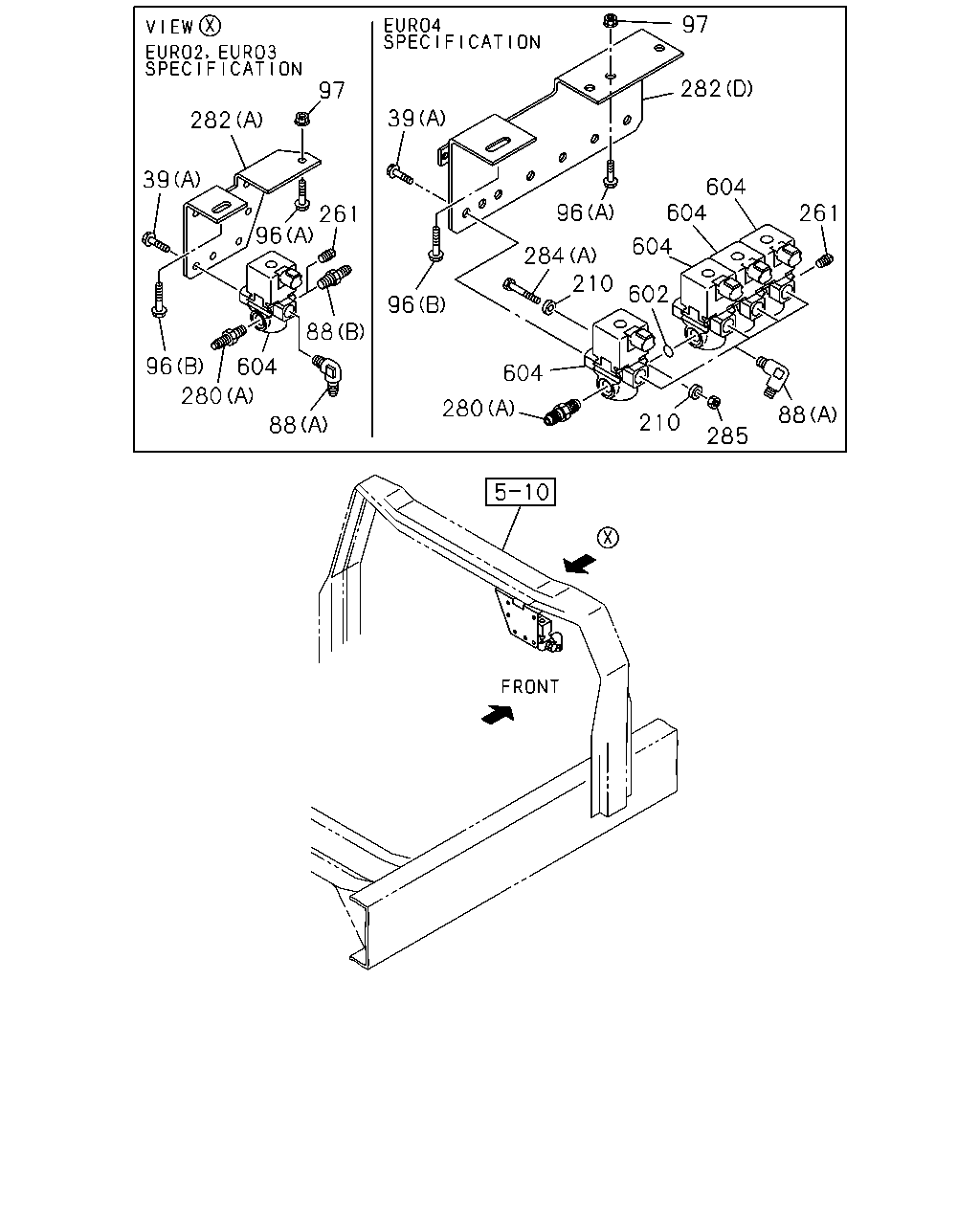

97 282 97 39 282 39 604 604 96 261 261 96 604 284 210 602 96 88 96 604 604 280 280 88 210 88 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
39	BOLT; BRKT,MAG VLV EURO4 SPECIFICATION<KBT> (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
88	CONNECTOR; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
88	CONNECTOR; MAG VLV EURO4 SPECIFICATION<KBT> (A) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	1008-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	1008-
96	BOLT; BRKT FIX EURO2 SPECIFICATION<THN> (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-
96	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (A) M8X25 FLANGE	0-28650-825-0	05	1	1008-
96	BOLT; BRKT FIX EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
96	BOLT; BRKT FIX FULL TRAILER PIPING<Z25> (C) M8X35 FLANGE	0-28650-835-0	04	1	1008-
97	NUT; BRKT FIX EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	01	1	1008-
97	NUT; BRKT FIX EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	05	1	1008-
97	NUT; BRKT FIX EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	02	1	1008-
97	NUT; BRKT FIX FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	04	1	1008-
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	1008-
210	WASHER; PL,BRKT EURO4 SPECIFICATION<KBT>	1-82569-266-0	06	1	1008-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1008-
261	PLUG; MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	1008-
280	CONNECTOR; IN,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
280	CONNECTOR; IN,MAG VLV EURO4 SPECIFICATION<KBT>,EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1008-
280	CONNECTOR; IN,MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1008-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	1008-
282	BRACKET; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> (A)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (A)	1-82569-277-2	01	1	1008-
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> EXC. MIXER TRUCK<RA2> (E)	1-82569-290-0	01	1	1008-
282	BRACKET; MAG VLV EURO4 SPECIFICATION<KBT> (D)	1-82569-298-0	01	1	1008-
282	BRACKET; MAG VLV MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX> (F)	1-82569-367-1	01	1	1008-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	1008-
284	BOLT; MAG VLV (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X20 FLANGE	0-28650-820-0	02	1	1008-
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> (A) M6X50 FLANGE	0-28050-650-0	01	1	1008-
284	BOLT; MAG VLV EURO4 SPECIFICATION<KBT> (A) M6X50 FLANGE	0-28050-650-0	03	1	1008-
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	1008-
285	NUT; MAG VLV EURO4 SPECIFICATION<KBT> M6 FLANGE	0-91180-106-0	03	1	1008-
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	1008-
602	GASKET; MAG VLV EURO4 SPECIFICATION<KBT> ID=16.8	9-09565-117-0	03	1	1008-
604	VALVE; MAG,ENG CONT ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN>	1-82563-871-2	01	1	1008-
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX>	1-82563-871-2	01	1	1008-
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX>	1-82563-871-2	02	1	1008-
604	VALVE; MAG,ENG CONT EURO4 SPECIFICATION<KBT>	1-82563-871-2	04	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
