Sayfa 6-05 - Isuzu EPC

6-05 — FRONT PANEL (#6355) — 299 parça

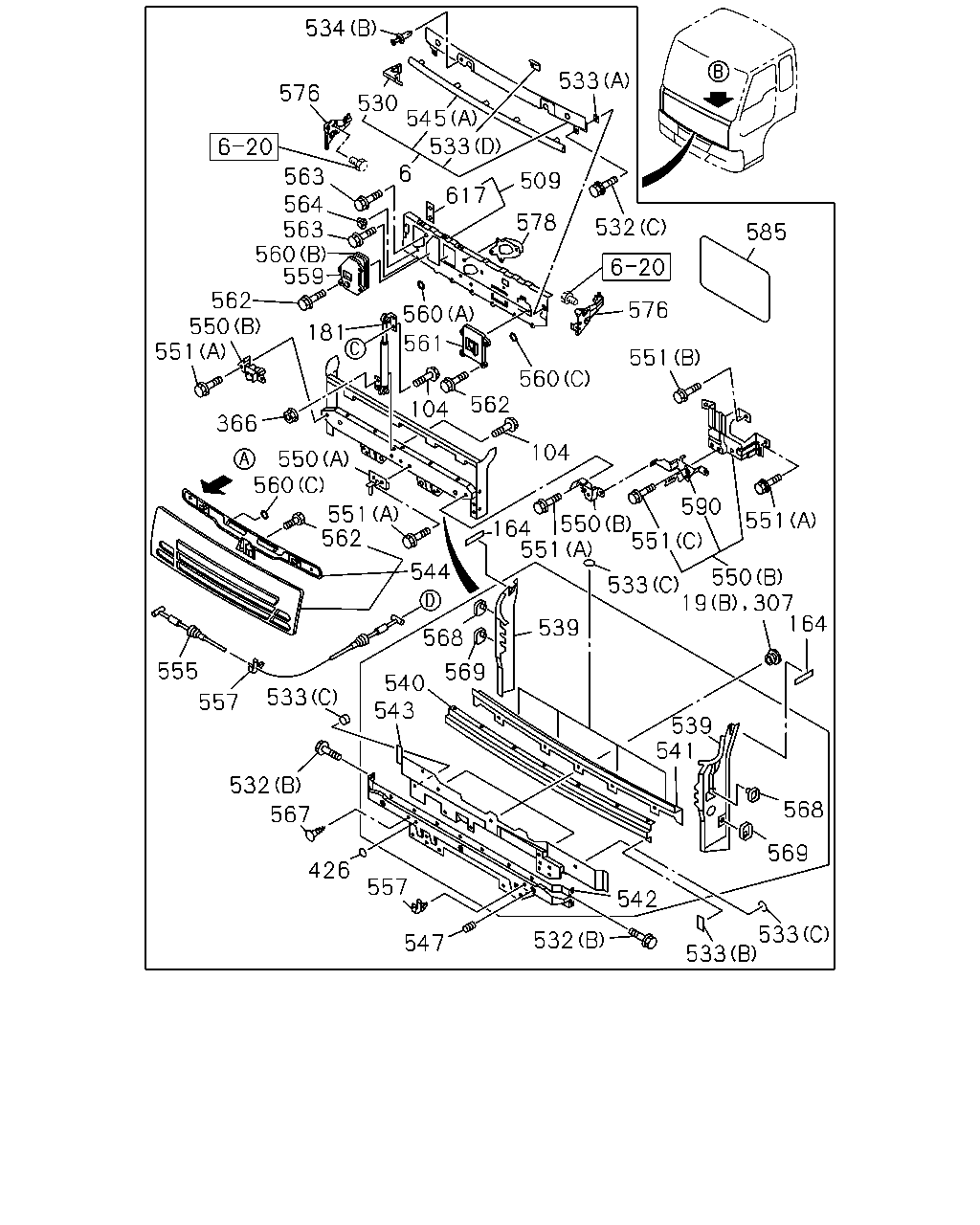

534 533 576 530 545 533 6 563 564 563 560 559 509 617 578 532 585 562 550 551 576 560 561 181 551 560 562 104 366 104 550 560 590 551 562 551 550 164 551 551 544 550 533 164 539 568 555 569 540 543 533 557 539 541 532 568 567 569 426 542 557 533 533 532 547 19 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PANEL; FRONT	1-65471-972-3	01	1	9604-9604
6	PANEL; FRONT	1-65472-257-2	01	1	9605-9807
6	PANEL; FRONT	1-65472-551-2	01	1	9808-
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	9604-
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	9604-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9704-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9604-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9604-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9604-9705
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9706-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9706-
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-4	01	1	9604-9705
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB>,BODY COLOR MARINE BLUE(890) (A)	1-71907-160-4	01	1	9706-
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB>,BODY COLOR MARINE BLUE(890) (A)	1-71907-159-4	01	1	9604-
104	BOLT; SUPPORT BAR M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9604-
104	BOLT; SUPPORT BAR M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9604-9709
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	9604-
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-118-0	01	1	9604-9609
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-261-0	01	1	9610-
307	GROMMET; FRT PANEL OD=44	8-94279-727-0	03	1	9604-9703
366	NUT; SUPPORT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9710-
426	GASKET OD=25 BLACK	1-76798-019-0	12	1	9604-9611
426	GASKET OD=25 BLACK	1-76798-019-0	11	1	9612-
426	GASKET OD=20 T=0.4 BLACK	1-76798-020-0	01	1	9604-9806
426	GASKET OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9807-
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9604-9804
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9805-
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9805-
509	PANEL; DASH HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-493-3	01	1	9604-
509	PANEL; DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-482-4	01	1	9604-
530	STOPPER; FRT PANEL,SIDE	1-71907-487-0	01	1	9605-
530	STOPPER; FRT PANEL,SIDE	1-71907-482-1	01	1	9605-
532	BOLT; FRT PANEL (C) FRONT PANEL UPPER M8X20	1-79198-002-0	02	1	9604-
532	BOLT; FRT PANEL (A) FRT LID CTR STRIKER M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9604-9904
532	BOLT; FRT PANEL CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) FRT LID CTR STRIKER M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9905-
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9604-
533	SEAL; FRT PANEL (D) L=30	1-71996-079-2	07	1	9905-
533	SEAL; FRT PANEL (B)	1-76778-046-2	02	1	9604-
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	16	1	9604-9709
533	SEAL; FRT PANEL (C) OD=36 BLACK	1-76798-018-0	16	1	9710-9806
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	16	1	9807-9908
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	12	1	9909-
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	9604-
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-019-0	08	1	9604-9803
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-020-1	08	1	9804-0001
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-
534	FASTENER (B) FRONT PANEL UPPER D6X12.5	8-94146-425-0	02	1	9604-
539	CLOSING; PILLAR LOWER	1-61480-763-1	01	1	9604-
539	CLOSING; PILLAR LOWER	1-61480-762-1	01	1	9604-
540	PANEL; FRONT,OUTER UPPER	1-61470-699-2	01	1	9604-
541	PANEL; FRONT,INNER UPPER	1-61470-700-1	01	1	9604-
542	RAIL; FRT MOUNTING	1-61470-701-4	01	1	9604-
543	CLOSING; FRT MTG RAIL	1-61470-703-3	01	1	9604-
544	LID; FRT BUMPER W/HEADLAMPS<SLB>	1-71107-108-6	01	1	9604-9904
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71107-346-0	01	1	9905-
544	LID; FRT EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-107-6	01	1	9604-9904
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71107-293-0	01	1	9905-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71107-345-0	01	1	9905-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71107-281-0	01	1	9905-
545	SEAL; FRT LID (A)	1-71907-152-2	01	1	9604-9604
545	SEAL; FRT LID (A) L=2038	1-71907-481-0	01	1	9605-
545	SEAL; FRT LID (B)	1-71907-372-1	01	1	9604-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-372-1	01	1	9905-
545	SEAL; FRT LID (B)	1-71907-153-3	01	1	9604-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-71907-572-0	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	02	1	9905-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=63	1-71998-963-2	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=25 BLACK	1-76798-019-0	01	1	9905-
547	RUBBER; CUSHION OD=22 L=39	1-71907-419-0	02	1	9604-
547	RUBBER; CUSHION OD=22 L=29	8-94324-556-2	02	1	9604-
550	LOCK ASM; FRT LID (A) CENTER	1-79317-002-1	01	1	9604-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) CENTER	1-79317-002-2	01	1	9905-
550	LOCK ASM; FRT LID (B)	1-79318-007-4	01	1	9604-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-79318-007-4	01	1	9905-
550	LOCK ASM; FRT LID (B)	1-79318-006-2	01	1	9604-9904
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-79318-006-2	01	1	9905-
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) CENTER	1-79317-006-1	01	1	9905-
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-015-0	01	1	9905-
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-014-0	01	1	9905-
551	BOLT; LOCK (A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	06	1	9604-
551	BOLT; LOCK CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9905-
551	BOLT; LOCK CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0102-
555	CABLE; FRT LID L=2542	1-79347-004-0	01	1	9604-9904
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2542	1-79347-004-2	01	1	9905-
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2782	1-79347-006-2	01	1	9905-
557	CLIP; CABLE ID=4.8	8-94128-483-0	05	1	9604-9904
557	CLIP; CABLE CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8	8-94128-483-0	05	1	9905-
557	CLIP; CABLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8	8-94128-483-0	04	1	9905-
559	COVER; EVAPOLATOR	1-71998-994-1	01	1	9604-9608
559	COVER; EVAPOLATOR	1-71996-193-0	01	1	9609-
560	SEAL; COVER (B)	1-71998-827-1	01	1	9604-9608
560	SEAL; COVER (C) OD=36	5-76777-035-0	02	1	9604-9708
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36	5-76777-035-0	02	1	9604-9708
560	SEAL; COVER (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9709-9806
560	SEAL; COVER (C) OD=36	5-76777-035-0	02	1	9807-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36	5-76777-035-0	02	1	9807-
560	SEAL; COVER (B)	1-71998-827-1	01	1	9609-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 OD=36 BLACK	1-76798-018-0	01	1	9604-9806
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36	5-76777-035-0	01	1	9807-
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9905-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 OD=36 BLACK	1-76798-018-0	02	1	9709-9806
561	COVER; HEATER CORE	1-71998-993-2	01	1	9604-
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9604-9904
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9905-
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9604-9904
562	BOLT; COVER CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9905-
563	BOLT; DASH PANEL M8X20	1-79198-002-0	16	1	9604-9707
563	BOLT; DASH PANEL M8X20	1-79198-002-0	14	1	9708-9807
563	BOLT; DASH PANEL M8X20	1-79198-002-0	18	1	9808-
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9604-9707
563	BOLT; DASH PANEL M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	9708-9807
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	9604-
567	PLUG; FRT MTG RAIL OD=15 BLACK	8-94279-804-0	02	1	9604-9611
567	PLUG; FRT MTG RAIL OD=15 BLACK	8-94279-804-0	01	1	9612-9712
567	PLUG; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	01	1	9801-9803
567	PLUG; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9804-9804
568	PATCH; INST REINF	1-61480-675-2	02	1	9604-
569	PATCH; LWR GRIP	1-61480-736-2	01	1	9604-
569	PATCH; LWR GRIP	1-61480-689-2	01	1	9604-9712
569	PATCH; LWR GRIP	1-61480-772-0	01	1	9801-
576	FRAME; INST SIDE	1-62280-201-2	01	1	9604-
576	FRAME; INST SIDE	1-62280-200-2	01	1	9604-
578	COVER; WIPER MOTOR	1-62280-185-3	01	1	9604-0009
578	COVER; WIPER MOTOR	1-62280-254-1	01	1	0010-
585	PLATE; EVAPOLATOR HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-71996-084-1	01	1	9604-
590	LOCK; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-79318-007-4	01	1	0102-
590	LOCK; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-79318-006-2	01	1	0102-
617	SEAL; DASH	1-61281-497-0	02	1	9604-

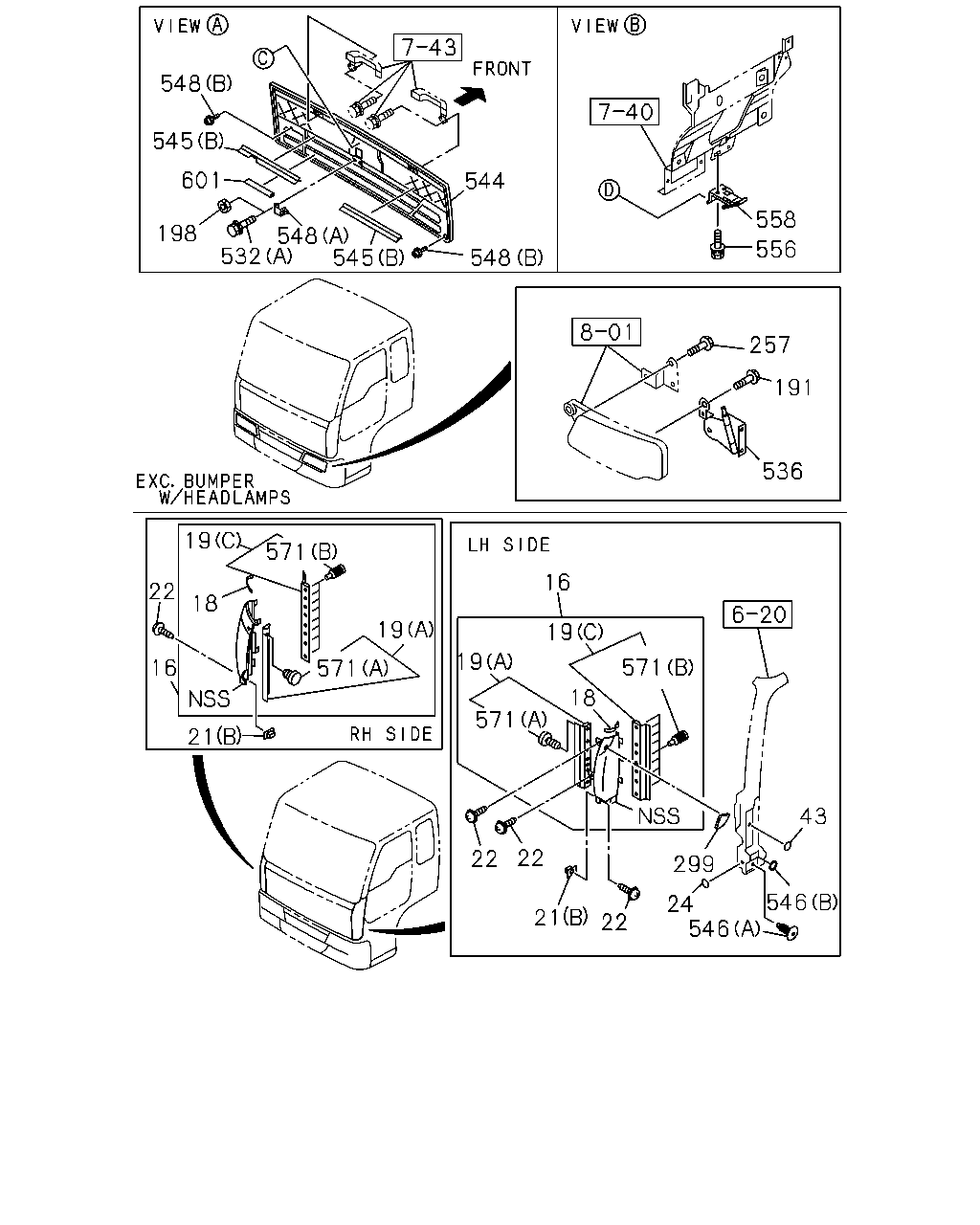

548 545 601 544 558 198 548 532 545 556 548 257 191 536 19 571 16 22 571 18 19 19 19 571 16 18 571 21 43 22 22 299 546 24 546 21 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65472-220-0	01	1	9604-9705
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-899-0	01	1	9706-
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-898-0	01	1	9604-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65472-218-0	01	1	9604-9705
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-897-0	01	1	9706-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-896-0	01	1	9604-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	9604-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	9604-
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	9604-
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	9604-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9704-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9604-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9604-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9604-9705
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9706-
19	SEAL; FRT SIDE PANEL BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9706-
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-4	01	1	9604-9705
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB>,BODY COLOR MARINE BLUE(890) (A)	1-71907-160-4	01	1	9706-
19	SEAL; FRT SIDE PANEL EXC. BUMPER W/HEADLAMPS<SLB>,BODY COLOR MARINE BLUE(890) (A)	1-71907-159-4	01	1	9604-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9604-
21	GROMMET; SCREW,FRT SIDE PANEL (A) DOOR D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9604-
22	SCREW; FRT PANEL SIDE M5X16 W/PL WASHER TAPPING	8-94279-123-0	12	1	9604-0003
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0004-
24	SEAL; FRT PANEL LWR OD=25 BLACK	1-76798-019-0	04	1	9604-9811
24	SEAL; FRT PANEL LWR OD=25 BLACK	1-76798-019-0	10	1	9812-
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9604-9807
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9808-9811
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9808-9811
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9812-
191	BOLT; HINGE EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9604-
198	NUT; PANEL CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE	8-94197-199-0	02	1	9905-
257	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9604-
299	COVER; FRT PANEL SIDE	1-71998-996-1	01	1	9706-
532	BOLT; FRT PANEL (C) FRONT PANEL UPPER M8X20	1-79198-002-0	02	1	9604-
532	BOLT; FRT PANEL (A) FRT LID CTR STRIKER M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9604-9904
532	BOLT; FRT PANEL CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) FRT LID CTR STRIKER M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9905-
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9604-
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-032-5	01	1	9604-
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-031-5	01	1	9604-
544	LID; FRT BUMPER W/HEADLAMPS<SLB>	1-71107-108-6	01	1	9604-9904
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71107-346-0	01	1	9905-
544	LID; FRT EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-107-6	01	1	9604-9904
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71107-293-0	01	1	9905-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71107-345-0	01	1	9905-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71107-281-0	01	1	9905-
545	SEAL; FRT LID (A)	1-71907-152-2	01	1	9604-9604
545	SEAL; FRT LID (A) L=2038	1-71907-481-0	01	1	9605-
545	SEAL; FRT LID (B)	1-71907-372-1	01	1	9604-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-372-1	01	1	9905-
545	SEAL; FRT LID (B)	1-71907-153-3	01	1	9604-9904
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-71907-572-0	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	02	1	9905-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=63	1-71998-963-2	01	1	9905-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) OD=25 BLACK	1-76798-019-0	01	1	9905-
546	PLUG; DUMMY HOLE (A) PLUG OD=16 L=11	1-76378-155-0	02	1	9604-
546	PLUG; DUMMY HOLE (B) SEAL OD=25 BLACK	1-76798-019-0	04	1	9604-
548	STRIKER; FRT LID PANEL (A) CENTER	1-79317-003-0	01	1	9604-
548	STRIKER; FRT LID PANEL (B) LH & RH	1-79318-008-0	02	1	9604-
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9604-9611
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9612-
558	LEVER; FRT LID	8-97865-110-0	01	1	9604-
571	CLIP; SEAL (B) PINK	1-09987-256-0	08	1	9604-
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	08	1	9604-
571	CLIP; SEAL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	15	1	9604-9705
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	9604-9705
571	CLIP; SEAL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	9706-
571	CLIP; SEAL BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	9706-
571	CLIP; SEAL EXC. BUMPER W/HEADLAMPS<SLB>,BODY COLOR MARINE BLUE(890) (A)	1-09987-228-0	14	1	9604-
601	FINISHER; LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190	1-71998-300-0	01	1	9905-

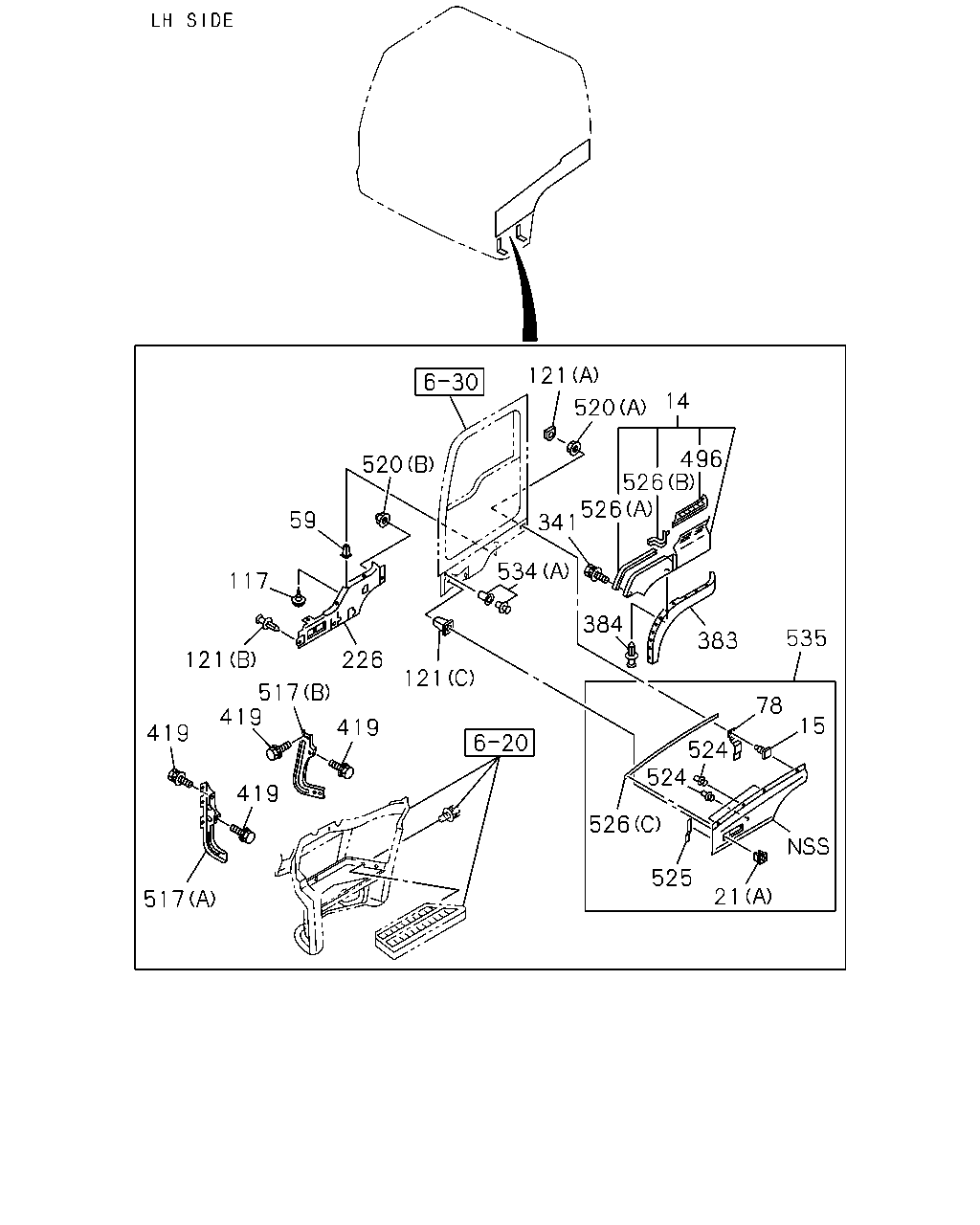

121 14 520 496 526 526 341 520 534 59 117 384 535 383 121 226 121 517 419 78 15 419 419 524 524 419 526 525 21 517

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT	1-65471-722-9	01	1	9604-9704
14	FENDER; FRT WHITE	1-65472-453-2	01	1	9705-
14	FENDER; FRT	1-65471-721-9	01	1	9604-9704
14	FENDER; FRT WHITE	1-65472-452-2	01	1	9705-
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	9604-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9604-
21	GROMMET; SCREW,FRT SIDE PANEL (A) DOOR D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9604-
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	9604-
78	BRACKET; FENDER	1-71267-215-0	01	1	9604-
78	BRACKET; FENDER	1-71267-214-0	01	1	9604-
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	9604-
121	GROMMET; FENDER (A)	1-09983-162-0	02	1	9604-
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	9604-
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9604-9604
121	GROMMET; FENDER (C) '960422- 14.5X14.5 BLACK	8-94279-714-0	02	1	9604-
226	PROTECTOR; FRT DOOR FENDER	1-71267-153-7	01	1	9604-9902
226	PROTECTOR; FRT	1-71267-269-1	01	1	9903-
226	PROTECTOR; FRT DOOR FENDER	1-71267-152-7	01	1	9604-9902
226	PROTECTOR; FRT	1-71267-268-1	01	1	9903-
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	18	1	9604-
383	GUARD; MUD,FENDER LWR	1-71907-443-2	01	1	9604-
383	GUARD; MUD,FENDER LWR	1-71907-442-2	01	1	9604-
384	CLIP; FENDER LWR D8X13.5	1-09987-248-1	11	1	9604-
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9604-
496	RUBBER; STEP FENDER	1-71998-862-0	01	1	9604-
496	RUBBER; STEP FENDER	1-71998-861-0	01	1	9604-
517	SUPPORT; STEP PANEL (B) REAR	1-65671-531-1	01	1	9604-
517	SUPPORT; STEP PANEL (A) FRONT	1-65671-528-3	01	1	9604-9904
517	SUPPORT; STEP PANEL (A) FRONT	1-65671-766-1	01	1	9905-
517	SUPPORT; STEP PANEL (B) REAR	1-65671-530-1	01	1	9604-
517	SUPPORT; STEP PANEL DUAL AIR GAUGE<UG2> (A) FRONT	1-65671-747-4	01	1	9604-
517	SUPPORT; STEP PANEL EXC. DUAL AIR GAUGE<UG2> (A) FRONT	1-65671-529-3	01	1	9604-9904
517	SUPPORT; STEP PANEL EXC. DUAL AIR GAUGE<UG2> (A) FRONT	1-65671-767-1	01	1	9905-
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-
520	NUT; FENDER (B) CUP NUT (PROTECTOR) M6	8-94343-366-1	02	1	9604-
524	CLIP; FENDER COVER D5.4X8	1-09983-174-0	08	1	9604-9803
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	9804-
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	9604-
526	FINISHER; FENDER (A)	1-71998-900-3	02	1	9604-
526	FINISHER; FENDER (C) FRONT DOOR	1-71268-276-1	01	1	9604-
526	FINISHER; FENDER (B)	1-71907-181-4	01	1	9604-
526	FINISHER; FENDER (C) FRONT DOOR	1-71268-275-1	01	1	9604-
526	FINISHER; FENDER (B)	1-71907-180-4	01	1	9604-
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-019-0	08	1	9604-9803
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-020-1	08	1	9804-0001
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-
534	FASTENER (B) FRONT PANEL UPPER D6X12.5	8-94146-425-0	02	1	9604-
535	FENDER; BLISTER	1-71267-186-2	01	1	9604-
535	FENDER; BLISTER	1-71267-185-2	01	1	9604-

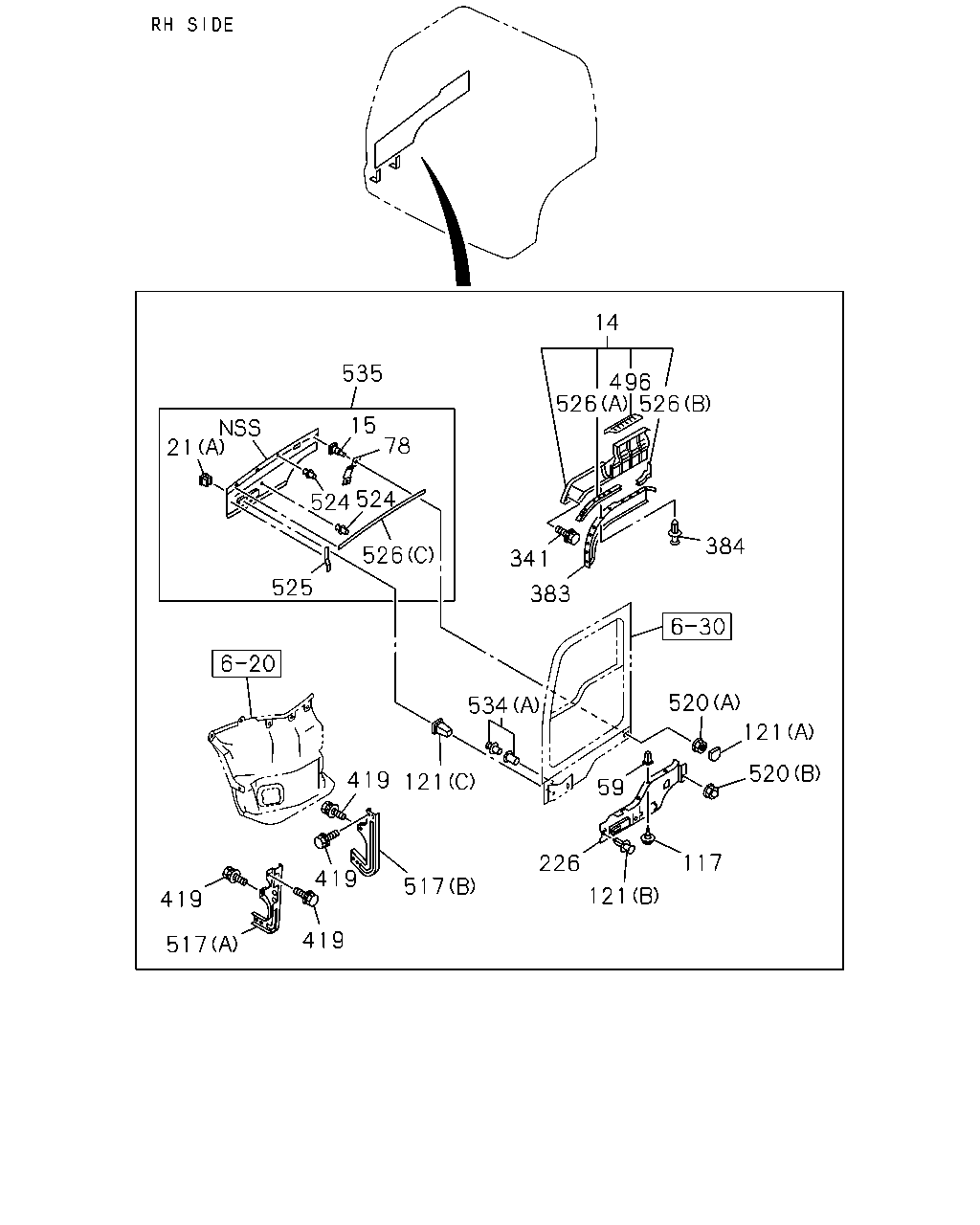

14 535 496 15 78 21 524 524 384 526 341 525 383 520 534 121 520 419 121 59 117 226 419 517 121 419 419 517 526 526

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT	1-65471-722-9	01	1	9604-9704
14	FENDER; FRT WHITE	1-65472-453-2	01	1	9705-
14	FENDER; FRT	1-65471-721-9	01	1	9604-9704
14	FENDER; FRT WHITE	1-65472-452-2	01	1	9705-
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	9604-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9604-
21	GROMMET; SCREW,FRT SIDE PANEL (A) DOOR D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9604-
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	9604-
78	BRACKET; FENDER	1-71267-215-0	01	1	9604-
78	BRACKET; FENDER	1-71267-214-0	01	1	9604-
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	9604-
121	GROMMET; FENDER (A)	1-09983-162-0	02	1	9604-
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	9604-
121	GROMMET; FENDER (C) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9604-9604
121	GROMMET; FENDER (C) '960422- 14.5X14.5 BLACK	8-94279-714-0	02	1	9604-
226	PROTECTOR; FRT DOOR FENDER	1-71267-153-7	01	1	9604-9902
226	PROTECTOR; FRT	1-71267-269-1	01	1	9903-
226	PROTECTOR; FRT DOOR FENDER	1-71267-152-7	01	1	9604-9902
226	PROTECTOR; FRT	1-71267-268-1	01	1	9903-
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	18	1	9604-
383	GUARD; MUD,FENDER LWR	1-71907-443-2	01	1	9604-
383	GUARD; MUD,FENDER LWR	1-71907-442-2	01	1	9604-
384	CLIP; FENDER LWR D8X13.5	1-09987-248-1	11	1	9604-
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9604-
496	RUBBER; STEP FENDER	1-71998-862-0	01	1	9604-
496	RUBBER; STEP FENDER	1-71998-861-0	01	1	9604-
517	SUPPORT; STEP PANEL (B) REAR	1-65671-531-1	01	1	9604-
517	SUPPORT; STEP PANEL (A) FRONT	1-65671-528-3	01	1	9604-9904
517	SUPPORT; STEP PANEL (A) FRONT	1-65671-766-1	01	1	9905-
517	SUPPORT; STEP PANEL (B) REAR	1-65671-530-1	01	1	9604-
517	SUPPORT; STEP PANEL DUAL AIR GAUGE<UG2> (A) FRONT	1-65671-747-4	01	1	9604-
517	SUPPORT; STEP PANEL EXC. DUAL AIR GAUGE<UG2> (A) FRONT	1-65671-529-3	01	1	9604-9904
517	SUPPORT; STEP PANEL EXC. DUAL AIR GAUGE<UG2> (A) FRONT	1-65671-767-1	01	1	9905-
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-
520	NUT; FENDER (B) CUP NUT (PROTECTOR) M6	8-94343-366-1	02	1	9604-
524	CLIP; FENDER COVER D5.4X8	1-09983-174-0	08	1	9604-9803
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	9804-
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	9604-
526	FINISHER; FENDER (A)	1-71998-900-3	02	1	9604-
526	FINISHER; FENDER (C) FRONT DOOR	1-71268-276-1	01	1	9604-
526	FINISHER; FENDER (B)	1-71907-181-4	01	1	9604-
526	FINISHER; FENDER (C) FRONT DOOR	1-71268-275-1	01	1	9604-
526	FINISHER; FENDER (B)	1-71907-180-4	01	1	9604-
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-019-0	08	1	9604-9803
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-020-1	08	1	9804-0001
534	FASTENER (A) DOOR FENDER ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-
534	FASTENER (B) FRONT PANEL UPPER D6X12.5	8-94146-425-0	02	1	9604-
535	FENDER; BLISTER	1-71267-186-2	01	1	9604-
535	FENDER; BLISTER	1-71267-185-2	01	1	9604-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
