Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#63547) — 527 parça

312 69 211 312 312 312 334 335 342 342 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
69	BRACKET; CLIP ENGINE CONTROL COMMON RAIL(Q4R)	8-98171-829-0	01	1	1202-
211	BRACKET; AXLE HARNESS	1-47479-430-0	02	1	1008-
312	BRACKET; CLIP HARNESS CHINA EQUIPMENT(YT2) (C) L=95	1-82699-085-0	01	1	1203-
312	BRACKET; CLIP HARNESS (E) L=120 H=35	1-82698-088-0	01	1	1008-
312	BRACKET; CLIP HARNESS (C)	1-21464-481-0	01	1	1008-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (B)	1-82698-476-0	01	1	1008-1103
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B)	1-82698-476-0	01	1	1104-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (A)	1-82698-648-0	01	1	1008-1103
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	1-82698-648-0	01	1	1104-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (D)	1-82699-199-0	01	1	1008-
334	BRACKET	8-98160-717-1	01	1	1008-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	1008-1104
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA)	1-82698-167-0	01	1	1105-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1008-
342	BRACKET; HARNESS CAB MTG EXC. ENGINE REAR PTO(SV1) (B)	1-47479-974-0	01	1	1008-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1008-

53 53 27 53 53 53 53 53 53 53 53 53 53 53 53 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

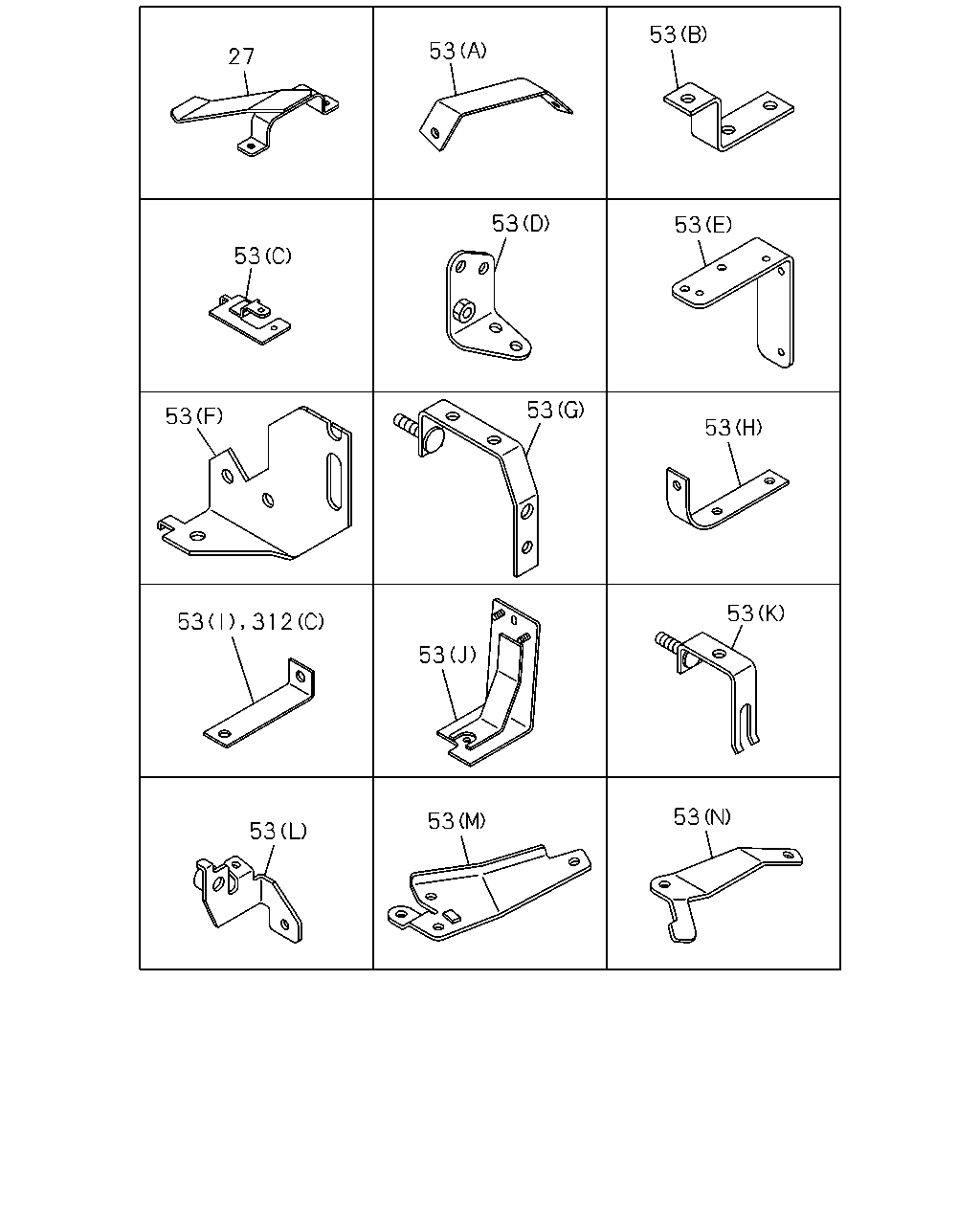

27	PROTECTOR; EDGE	8-97618-028-0	01	1	1008-
53	BRACKET; HARNESS 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (M)	8-98190-688-0	01	1	1201-
53	BRACKET; HARNESS 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (N)	8-98190-689-0	01	1	1201-
53	BRACKET; HARNESS 6WG1 TC-R(75L) (L)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (K)	1-47479-381-2	01	1	1106-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (H)	1-47478-769-0	01	1	1104-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (J)	8-98189-758-0	01	1	1104-
53	BRACKET; HARNESS (A)	1-47479-537-0	09	1	1008-
53	BRACKET; HARNESS (G)	1-47479-800-0	01	1	1008-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (I) L=60	1-47475-455-0	01	1	1008-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (H)	1-47479-342-0	01	1	1008-1103
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (H)	1-47479-342-0	01	1	1104-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (C)	1-82698-495-2	01	1	1008-
53	BRACKET; HARNESS ENGINE CONTROL-B2(Q4T) (F)	8-97617-970-0	01	1	1008-
53	BRACKET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98124-778-0	01	1	1008-
53	BRACKET; HARNESS 6WG1 TC-R(75L) (D)	8-97610-339-1	01	1	1008-
53	BRACKET; HARNESS 6WG1 TC-R(75L) (E)	8-97610-340-1	01	1	1008-
312	BRACKET; CLIP HARNESS CHINA EQUIPMENT(YT2) (C) L=95	1-82699-085-0	01	1	1203-
312	BRACKET; CLIP HARNESS (E) L=120 H=35	1-82698-088-0	01	1	1008-
312	BRACKET; CLIP HARNESS (C)	1-21464-481-0	01	1	1008-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (B)	1-82698-476-0	01	1	1008-1103
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B)	1-82698-476-0	01	1	1104-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (A)	1-82698-648-0	01	1	1008-1103
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	1-82698-648-0	01	1	1104-
312	BRACKET; CLIP HARNESS ENGINE CONTROL-B2(Q4T) (D)	1-82699-199-0	01	1	1008-

119 64 24 524 24 219 294 340 515 43 522 552 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS (B) M8 FLANGE	0-91180-108-0	01	1	1008-
24	NUT; HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) M6	0-91110-506-0	01	1	1008-
43	WASHER; LK,HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ID=6.1	0-91510-506-0	01	1	1008-
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	1008-1202
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1008-1104
119	SCREW; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER	8-94447-551-0	02	1	1105-
219	NUT M8 FLANGE	0-91180-108-0	12	1	1008-
219	NUT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-
219	NUT ENGINE CONTROL-B2(Q4T) M8 FLANGE	0-91180-108-0	01	1	1008-
219	NUT EXC. ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	1008-
294	NUT M8 FLANGE	0-91180-108-0	08	1	1008-
294	NUT FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> M8 FLANGE	0-91180-108-0	01	1	1008-1104
294	NUT M8 FLANGE	0-91180-108-0	01	1	1008-1104
294	NUT FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> M8 FLANGE	0-91180-108-0	01	1	1105-1105
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1105-1105
294	NUT FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> M8 FLANGE	0-91180-108-0	01	1	1106-
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1106-
294	NUT WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	01	1	1106-
340	NUT; HARNESS CAB TO FRAME ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> M8 FLANGE	0-91180-108-0	01	1	1104-
340	NUT; HARNESS CAB TO FRAME ENGINE CONTROL COMMON RAIL(Q4R) M8 FLANGE	0-91180-108-0	02	1	1008-
340	NUT; HARNESS CAB TO FRAME ENGINE CONTROL-B2(Q4T) M8 FLANGE	0-91180-108-0	01	1	1008-1103
340	NUT; HARNESS CAB TO FRAME ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	03	1	1104-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	1008-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
522	WASHER; PL,HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ID=6.4	9-09160-506-0	02	1	1008-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	02	1	1008-
552	NUT; BRKT,HARNESS CHINA EQUIPMENT(YT2) M8 FLANGE	0-91180-108-0	01	1	1203-

516 19 38 150 242 139 150 38 139 242 313 38 38 38 150 242 386 480 38 242 313 139 242 313 86 139 313 38 139 358 239 38 88 313 133 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

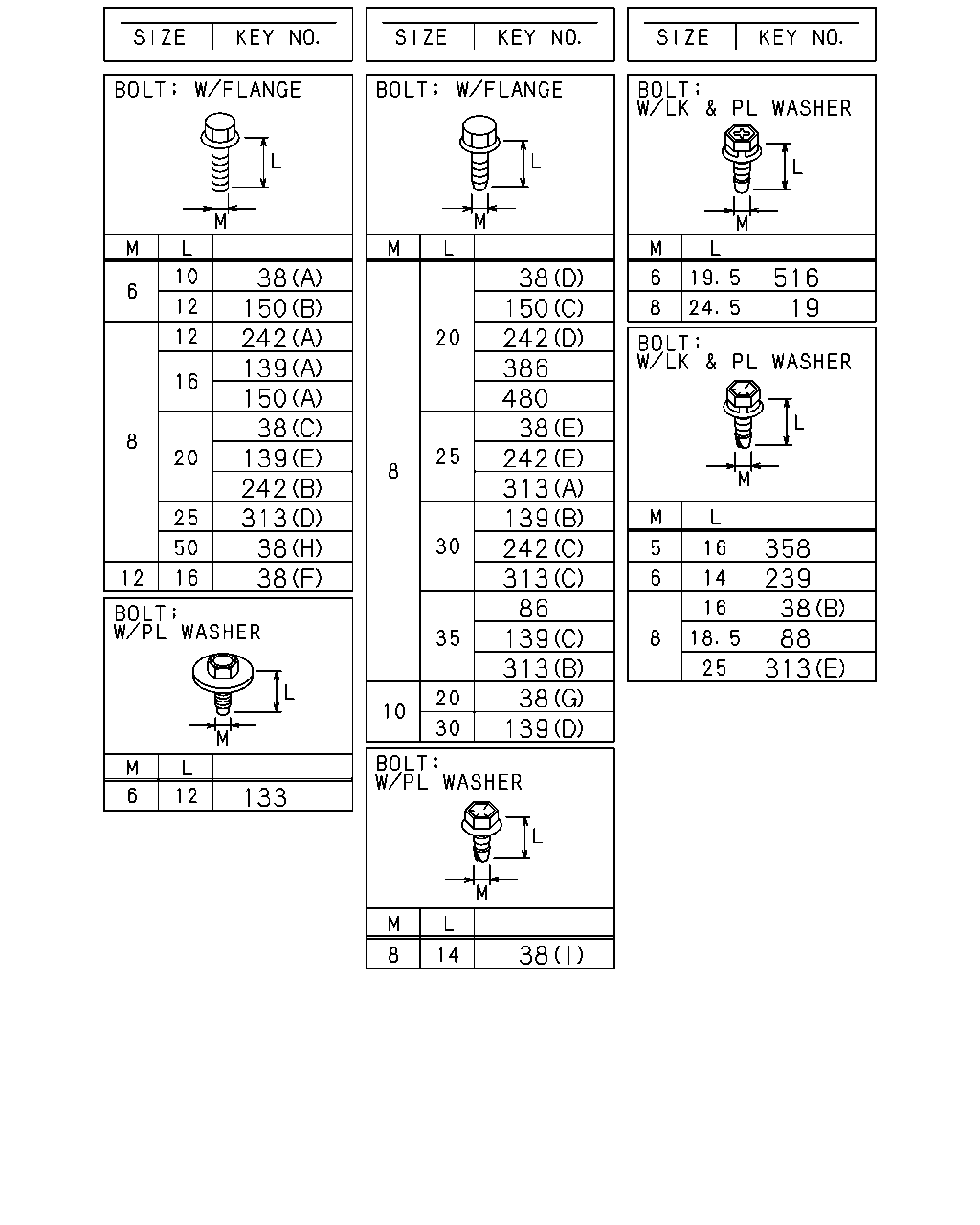

19	BOLT; PROTECTOR M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1008-
38	BOLT; CLIP,HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) M6X10 FLANGE	0-28050-610-0	01	1	1008-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	1008-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	1008-
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) (D) M8X20 FLANGE	0-28650-820-0	05	1	1008-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	02	1	1008-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	1008-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	1008-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (B) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	1008-1201
38	BOLT; CLIP,HARNESS (I) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
38	BOLT; CLIP,HARNESS ENGINE CONTROL-B2(Q4T) (C) M8X20 FLANGE	0-28050-820-0	02	1	1008-
38	BOLT; CLIP,HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (D) M8X20 FLANGE	0-28650-820-0	01	1	1008-
38	BOLT; CLIP,HARNESS ENGINE REAR PTO(SV1) (D) M8X20 FLANGE	0-28650-820-0	01	1	1008-
38	BOLT; CLIP,HARNESS FULL TRAILER PIPING<Z25> (H) M8X50 FLANGE	0-28050-850-0	01	1	1008-
38	BOLT; CLIP,HARNESS MJT7S M/T(Y3E) (D) M8X20 FLANGE	0-28650-820-0	03	1	1008-
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1008-
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1105-
88	BOLT; DOOR HARNESS EARTH M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-1104
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1105-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1008-
139	BOLT; BRKT 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E) M8X20 FLANGE	0-28050-820-0	03	1	1201-
139	BOLT; BRKT 6WG1 TC-R(75L) (D) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	1008-
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1008-1104
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (C) M8X35 FLANGE	0-28650-835-0	01	1	1105-
139	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	04	1	1008-
139	BOLT; BRKT 6WG1 TC-R(75L) (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-
150	BOLT; CLIP 6WF1 TC-C(1B8) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X20 FLANGE	0-28650-820-0	01	1	1202-
150	BOLT; CLIP 6WF1 TC-C(1B8) (B) M6X12 FLANGE	0-28050-612-0	02	1	1008-
150	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X16 FLANGE	0-28050-816-0	03	1	1008-1208
150	BOLT; CLIP 6WF1 TC-C(1B8) (A) M8X16 FLANGE	0-28050-816-0	02	1	1209-
150	BOLT; CLIP 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	01	1	1008-
150	BOLT; CLIP 6WG1 TC-R(75L) (A) M8X16 FLANGE	0-28050-816-0	13	1	1008-
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS CHINA EQUIPMENT(YT2) (E) M8X25 FLANGE	0-28050-825-0	01	1	1203-
242	BOLT; BRKT,HARNESS ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M8X20 FLANGE	0-28050-820-0	02	1	1104-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	1008-
242	BOLT; BRKT,HARNESS (C) M8X30 FLANGE	0-28650-830-0	01	1	1008-
242	BOLT; BRKT,HARNESS ENGINE CONTROL-B2(Q4T) (B) M8X20 FLANGE	0-28050-820-0	02	1	1008-1103
242	BOLT; BRKT,HARNESS ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (B) M8X20 FLANGE	0-28050-820-0	03	1	1104-
242	BOLT; BRKT,HARNESS EXC. ENGINE REAR PTO(SV1) (D) M8X20 FLANGE	0-28650-820-0	01	1	1008-
313	BOLT; BRKT ENGINE CONTROL COMMON RAIL(Q4R) (E) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	1202-
313	BOLT; BRKT ENGINE CONTROL COMMON RAIL(Q4R) (A) M8X25 FLANGE	0-28650-825-0	01	1	1008-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	04	1	1008-
313	BOLT; BRKT ENGINE CONTROL-B2(Q4T) (D) M8X25 FLANGE	0-28050-825-0	02	1	1008-
313	BOLT; BRKT FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) M8X35 FLANGE	0-28650-835-0	01	1	1008-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1008-
386	BOLT; GRAND HARNESS M8X20 FLANGE	0-28650-820-0	01	1	1008-
480	BOLT; BRKT ENGINE CONTROL-B2(Q4T) M8X20 FLANGE	0-28650-820-0	04	1	1008-1103
480	BOLT; BRKT ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> M8X20 FLANGE	0-28650-820-0	04	1	1104-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-

16 183 470 16 104 16 16 425 104 16 218 16 218 148 168 16 16 16 16 116 168 60 16 16 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

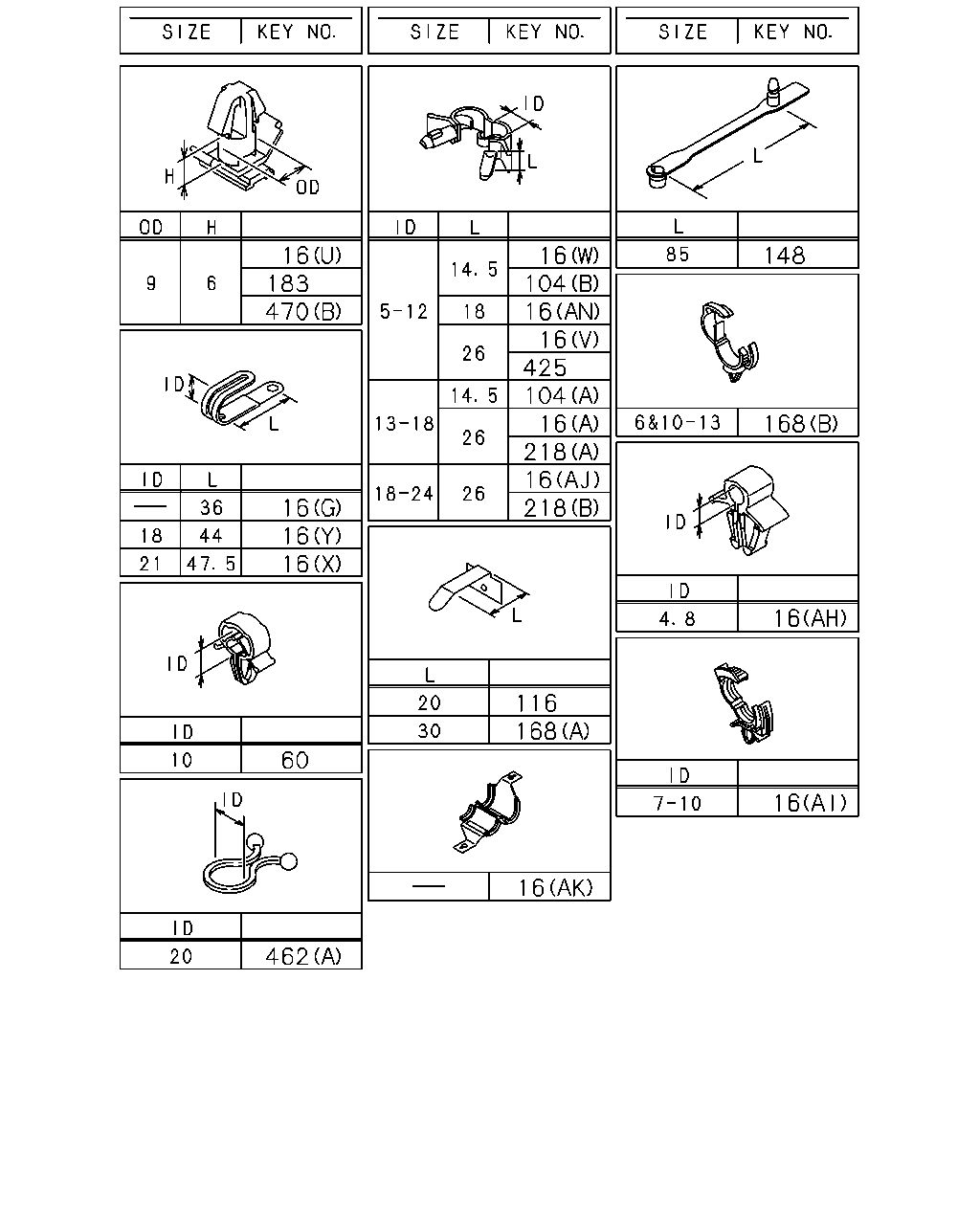

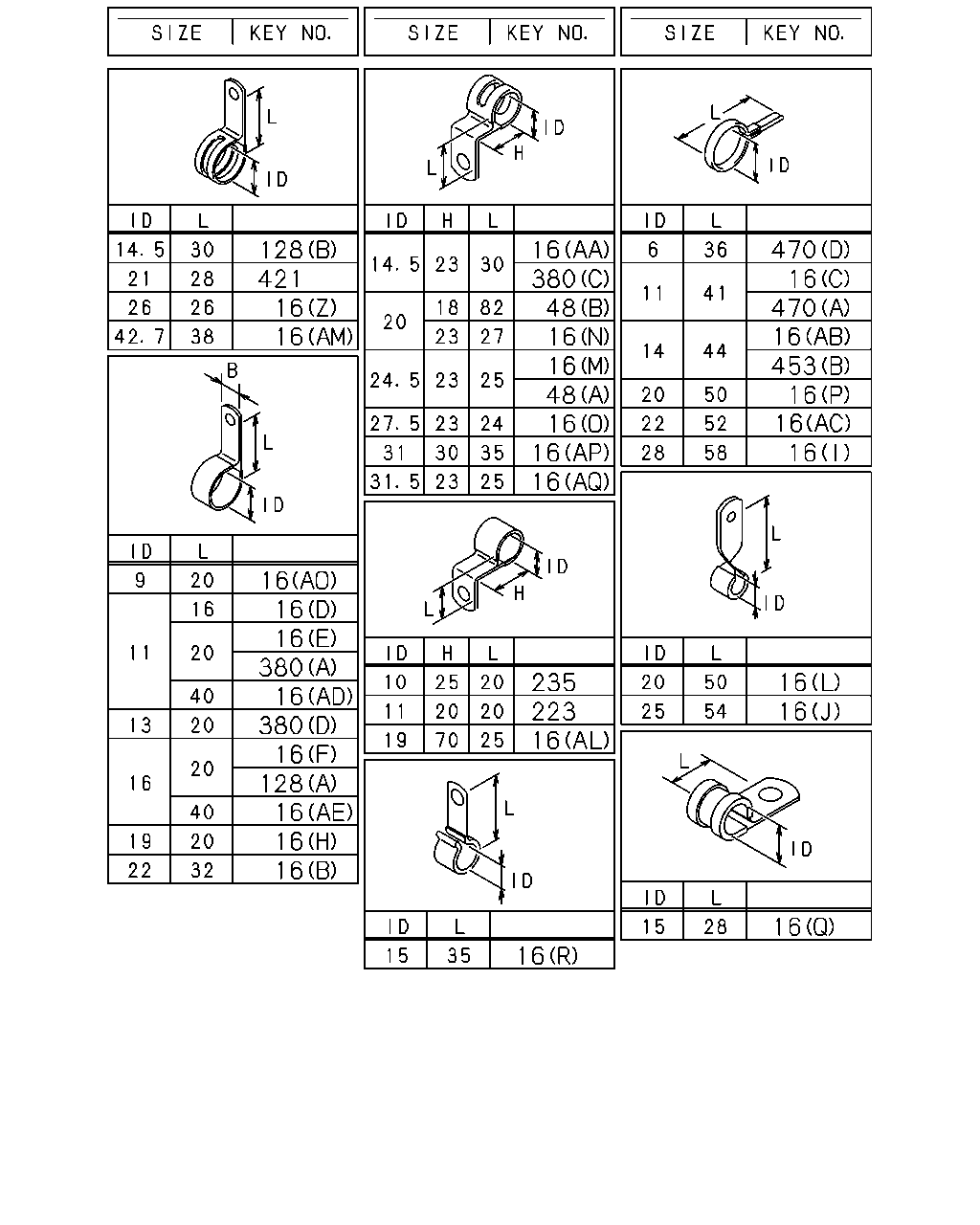

16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	01	1	1203-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AN) ID=5-12 L=18	1-09709-287-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AM) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	1008-1105
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1106-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	1008-
16	CLIP; HARNESS (R) ID=15 L=35	1-09700-507-0	01	1	1008-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-
16	CLIP; HARNESS (AH) ID=4.8	1-09701-218-0	01	1	1008-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	02	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	03	1	1008-
16	CLIP; HARNESS (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1008-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AI) ID=7-10	8-94472-578-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	05	1	1008-1105
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	05	1	1106-
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1008-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1008-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (P) ID=20 L=50	9-09917-430-0	03	1	1008-
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26	1-09709-293-0	04	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AK) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26	1-09709-293-0	03	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (J) ID=25 L=54	1-09700-392-1	01	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (Z) ID=26 L=26	1-09701-236-0	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1008-
16	CLIP; HARNESS MJT7S M/T(Y3E) (AA) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-
16	CLIP; HARNESS MJT7S M/T(Y3E) (U) OD=9 H=6	1-09709-178-0	02	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AD) ID=11 L=40	0-95235-075-0	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AE) ID=16 L=40	0-95235-576-0	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AL) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) B=18 ID=19 L=20	0-95235-836-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (G) L=36	8-94224-891-1	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	03	1	1008-1104
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1105-1112
16	CLIP; HARNESS 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	01	1	1201-
16	CLIP; HARNESS 6WG1 TC-R(75L) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	02	1	1008-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	1008-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1008-
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1008-
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	1008-
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	1008-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	1008-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	01	1	1008-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=30 SET=10 PIECE	1-09987-265-0	01	1	1105-
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	02	1	1008-
183	CLIP; CONNECTOR POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> OD=9 H=6	1-09709-178-0	01	1	1008-
218	CLIP; BAND,RR COMB WHEEL BASE 6500MM(65W) EXC. CHINA EQUIPMENT(YT2) (A) ID=13-18 L=26	1-09709-293-0	05	1	1008-
218	CLIP; BAND,RR COMB WHEEL BASE 6500MM(65W) EXC. CHINA EQUIPMENT(YT2) (B) ID=18-24 L=26	1-09709-296-0	01	1	1008-
218	CLIP; BAND,RR COMB WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) EXC. CHINA EQUIPMENT(YT2) (A) ID=13-18 L=26	1-09709-293-0	06	1	1008-
218	CLIP; BAND,RR COMB CHINA EQUIPMENT(YT2) (A) ID=13-18 L=26	1-09709-293-0	06	1	1008-
425	CLIP; MODULATOR ID=5-12 L=26	1-09709-289-0	02	1	1008-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	1105-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1105-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) ID=6 L=36	9-09917-423-0	02	1	1008-1111

128 421 16 16 16 380 48 16 16 48 16 16 16 470 16 470 16 453 16 16 16 16 16 16 380 16 380 16 128 16 16 16 235 223 16 16 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	01	1	1203-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AN) ID=5-12 L=18	1-09709-287-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AM) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	1008-1105
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1106-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	1008-
16	CLIP; HARNESS (R) ID=15 L=35	1-09700-507-0	01	1	1008-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-
16	CLIP; HARNESS (AH) ID=4.8	1-09701-218-0	01	1	1008-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	02	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	03	1	1008-
16	CLIP; HARNESS (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1008-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AI) ID=7-10	8-94472-578-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	05	1	1008-1105
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	05	1	1106-
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1008-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1008-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (P) ID=20 L=50	9-09917-430-0	03	1	1008-
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26	1-09709-293-0	04	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AK) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26	1-09709-293-0	03	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (J) ID=25 L=54	1-09700-392-1	01	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (Z) ID=26 L=26	1-09701-236-0	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1008-
16	CLIP; HARNESS MJT7S M/T(Y3E) (AA) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-
16	CLIP; HARNESS MJT7S M/T(Y3E) (U) OD=9 H=6	1-09709-178-0	02	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AD) ID=11 L=40	0-95235-075-0	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AE) ID=16 L=40	0-95235-576-0	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AL) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) B=18 ID=19 L=20	0-95235-836-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (G) L=36	8-94224-891-1	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	03	1	1008-1104
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1105-1112
16	CLIP; HARNESS 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	01	1	1201-
16	CLIP; HARNESS 6WG1 TC-R(75L) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	02	1	1008-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1008-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1008-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1008-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1008-
223	CLIP; AIR TANK HARNESS ID=11 H=20 L=20	8-98033-780-0	04	1	1008-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=10 H=25 L=20	1-09700-519-0	01	1	1008-
380	CLIP; EARTH HARNESS ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (D) ID=13 L=20	0-95235-235-0	01	1	1104-
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1008-
380	CLIP; EARTH HARNESS ENGINE CONTROL-B2(Q4T) (A) ID=11 L=20	0-95235-035-0	01	1	1008-1103
380	CLIP; EARTH HARNESS ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=11 L=20	0-95235-035-0	01	1	1104-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	1008-
421	CLIP; FLOOR HARNESS ID=21 L=28	1-09700-673-1	02	1	1008-1202
453	CLIP; CABLE HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=140	5-09707-031-1	01	1	1008-
453	CLIP; CABLE HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) ID=14 L=44	9-09917-427-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) ID=6 L=36	9-09917-423-0	02	1	1008-1111

530 224 510 5 178 178 178 178 178 292 1 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=38.1 L=25	1-09337-052-0	01	1	1008-
1	SLEEVE; RUBBER (D) ID=14 OD=18 L=60	1-09337-030-0	01	1	1008-
1	SLEEVE; RUBBER ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1008-
1	SLEEVE; RUBBER 6WG1 TC-R(75L) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1008-
1	SLEEVE; RUBBER 6WG1 TC-R(75L) (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	1008-
5	GUIDE; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) L=360	1-82699-476-1	01	1	1008-1201
178	GROMMET; HARNESS CHINA EQUIPMENT(YT2) (C) ID=28 OD=35 T=25	1-09332-011-1	01	1	1203-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=25	1-09332-011-1	04	1	1008-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	02	1	1008-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	1008-
178	GROMMET; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (E)	1-82699-891-0	01	1	1008-
178	GROMMET; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1008-
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	1008-
292	CAP; RUBBER ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN>	1-82691-239-0	02	1	1008-
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	1008-1202
530	SEAL; HARNESS 180X40	1-72498-019-1	04	1	1008-
530	SEAL; HARNESS 180X40	1-72498-019-1	08	1	1008-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	1008-

16 51 104 206 208 212 305 453 462 16 104 142 171 228 369 380 470 14 194 14 16 48 194 470 14 14 16 51 142 162 208 373 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1008-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	02	1	1008-
14	CLIP; BAND,HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=350	1-09707-183-0	02	1	1008-
14	CLIP; BAND,HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=450	1-09707-142-1	01	1	1008-
14	CLIP; BAND,HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=180	1-09707-162-1	01	1	1008-
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (AN) ID=5-12 L=18	1-09709-287-0	01	1	1203-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AP) ID=31 H=30 L=35	1-09700-994-0	01	1	1202-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (K) L=250	5-09707-030-1	02	1	1106-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (AN) ID=5-12 L=18	1-09709-287-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AM) ID=42.7 L=38	1-09701-313-0	01	1	1008-1201
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AQ) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1202-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS EXC. POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (T) L=350	1-09707-183-0	01	1	1106-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	1008-1105
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	1106-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	1008-
16	CLIP; HARNESS (F) B=18 T=0.8 ID=16 L=20	0-95235-535-0	01	1	1008-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	1008-
16	CLIP; HARNESS (R) ID=15 L=35	1-09700-507-0	01	1	1008-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	1008-
16	CLIP; HARNESS (AH) ID=4.8	1-09701-218-0	01	1	1008-
16	CLIP; HARNESS (S) L=180	1-09707-162-1	01	1	1008-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	06	1	1008-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	02	1	1008-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	03	1	1008-
16	CLIP; HARNESS (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AF) L=140	5-09707-031-1	01	1	1008-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (AB) ID=14 L=44	9-09917-427-0	03	1	1008-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	07	1	1008-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	1008-
16	CLIP; HARNESS EXC. CHINA EQUIPMENT(YT2) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (T) L=350	1-09707-183-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (S) L=180	1-09707-162-1	06	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AI) ID=7-10	8-94472-578-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (P) ID=20 L=50	9-09917-430-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (AC) ID=22 L=52	9-09917-431-0	02	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (I) ID=28 L=58	1-09700-400-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (AC) ID=22 L=52	9-09917-431-0	05	1	1008-
16	CLIP; HARNESS ENGINE REAR PTO(SV1) (H) B=18 ID=19 L=20	0-95235-836-0	01	1	1008-
16	CLIP; HARNESS EXC. ENGINE REAR PTO(SV1) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	05	1	1008-1105
16	CLIP; HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. POOR QUALITY DIESEL FUEL<KF0> (W) ID=5-12 L=14.5	1-09987-221-0	05	1	1106-
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1008-1105
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1106-1202
16	CLIP; HARNESS CHINA EQUIPMENT(YT2) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS ENGINE CONTROL-B2(Q4T) (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5	1-09987-221-0	02	1	1203-
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (V) ID=5-12 L=26	1-09709-289-0	01	1	1008-
16	CLIP; HARNESS FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (K) L=250	5-09707-030-1	01	1	1008-
16	CLIP; HARNESS (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1008-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (AJ) ID=18-24 L=26	1-09709-296-0	04	1	1008-
16	CLIP; HARNESS FULL TRACTOR TRUCK<RD6> (P) ID=20 L=50	9-09917-430-0	03	1	1008-
16	CLIP; HARNESS EXC. FULL TRACTOR TRUCK<RD6> (A) ID=13-18 L=26	1-09709-293-0	04	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (AK) W/SPONGE RUBBER	1-09709-150-0	01	1	1008-
16	CLIP; HARNESS FULL TRAILER PIPING<Z25> (A) ID=13-18 L=26	1-09709-293-0	03	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (J) ID=25 L=54	1-09700-392-1	01	1	1008-
16	CLIP; HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (Z) ID=26 L=26	1-09701-236-0	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (B) ID=22 L=32	1-09700-126-1	01	1	1008-
16	CLIP; HARNESS EXC. GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (L) ID=20 L=50	1-09700-679-1	01	1	1008-
16	CLIP; HARNESS MJT7S M/T(Y3E) (AA) ID=14.5 H=23 L=30	1-09700-859-0	02	1	1008-
16	CLIP; HARNESS MJT7S M/T(Y3E) (U) OD=9 H=6	1-09709-178-0	02	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1008-1208
16	CLIP; HARNESS MJX16P M/T(Y3Z) (E) B=18 ID=11 L=20	0-95235-035-0	02	1	1209-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AD) ID=11 L=40	0-95235-075-0	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (AE) ID=16 L=40	0-95235-576-0	01	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) (U) OD=9 H=6	1-09709-178-0	03	1	1008-
16	CLIP; HARNESS MJX16P M/T(Y3Z) ENGINE CONTROL-B2(Q4T) (U) OD=9 H=6	1-09709-178-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (E) B=14 ID=11 L=20	0-95235-032-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) B=14 ID=19 L=20	0-95235-832-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (X) ID=21 L=47.5	8-94178-108-0	02	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AL) ID=19 H=70 L=25	8-97360-209-0	01	1	1008-
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1008-1208
16	CLIP; HARNESS 6WF1 TC-C(1B8) EURO2 SPECIFICATION<THN> (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	01	1	1209-
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	05	1	1008-1105
16	CLIP; HARNESS 6WG1 TC-R(75L) (E) B=18 ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS 6WG1 TC-R(75L) (F) B=18 T=1.2 ID=16 L=20	0-95235-536-0	02	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (H) B=18 ID=19 L=20	0-95235-836-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	5-09707-030-1	09	1	1008-1205
16	CLIP; HARNESS 6WG1 TC-R(75L) (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS 6WG1 TC-R(75L) (X) ID=21 L=47.5	8-94178-108-0	03	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (G) L=36	8-94224-891-1	01	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) (Y) ID=18 L=44	8-97367-985-1	05	1	1008-
16	CLIP; HARNESS 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	03	1	1008-1104
16	CLIP; HARNESS 6WG1 TC-R(75L) CAUTIONS CHINESE<SL7> (AG) L=251	8-97619-917-0	03	1	1105-1112
16	CLIP; HARNESS 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	01	1	1201-
16	CLIP; HARNESS 6WG1 TC-R(75L) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (AG) L=251	8-97619-917-0	02	1	1008-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1008-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	1008-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1008-
51	CLIP; COOLER CMPR (A) L=180	1-09707-162-1	01	1	1008-1104
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1105-
51	CLIP; COOLER CMPR (B) L=140	5-09707-031-1	01	1	1008-1104
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1105-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1008-
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	1008-
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	1008-
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	1008-
142	CLIP; HARNESS,ENG 6WF1 TC-C(1B8) (A) L=180	1-09707-162-1	02	1	1008-1207
142	CLIP; HARNESS,ENG 6WF1 TC-C(1B8) (A) L=180	8-98216-427-0	02	1	1208-
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (A) L=180	1-09707-162-1	01	1	1008-1207
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (B) L=250	5-09707-030-1	01	1	1008-1205
142	CLIP; HARNESS,ENG 6WG1 TC-R(75L) (B) L=250	8-98216-430-0	01	1	1206-
162	CLIP; SW HARNESS L=180	1-09707-162-1	01	1	1008-
171	CLIP; STARTER HARNESS ENGINE CONTROL-B2(Q4T) L=250	5-09707-030-1	04	1	1008-
171	CLIP; STARTER HARNESS ENGINE CONTROL COMMON RAIL(Q4R) L=250	5-09707-030-1	05	1	1008-
194	CLIP; BAND (B) L=350	1-09707-183-0	05	1	1008-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	1008-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1008-
208	CLIP; HARNESS,MAG VLV ENGINE CONTROL-B2(Q4T) (A) L=140	5-09707-031-1	01	1	1008-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=180	1-09707-162-1	01	1	1008-
212	CLIP; HORN HARNESS L=140	5-09707-031-1	01	1	1008-
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1008-1104
228	CLIP; COOLER HARNESS AIR CONDITIONER MANUAL CONTROL(C60) L=250	5-09707-030-1	02	1	1105-1112
228	CLIP; COOLER HARNESS L=250	5-09707-030-1	02	1	1201-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1008-
369	CLIP; BAND EDS HARNESS ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> L=250	5-09707-030-1	01	1	1008-
369	CLIP; BAND EDS HARNESS FULL TRACTOR TRUCK<RD6> L=250	5-09707-030-1	02	1	1008-
373	CLIP; BAND,GEN HARNESS GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) L=175	1-09707-176-1	01	1	1008-
380	CLIP; EARTH HARNESS ENGINE CONTROL-B2(Q4T) LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (D) ID=13 L=20	0-95235-235-0	01	1	1104-
380	CLIP; EARTH HARNESS ENGINE CONTROL COMMON RAIL(Q4R) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1008-
380	CLIP; EARTH HARNESS ENGINE CONTROL-B2(Q4T) (A) ID=11 L=20	0-95235-035-0	01	1	1008-1103
380	CLIP; EARTH HARNESS ENGINE CONTROL-B2(Q4T) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=11 L=20	0-95235-035-0	01	1	1104-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	04	1	1008-
453	CLIP; CABLE HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=140	5-09707-031-1	01	1	1008-
453	CLIP; CABLE HARNESS POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) ID=14 L=44	9-09917-427-0	01	1	1008-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09709-068-0	01	1	1105-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	1105-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (A) ID=11 L=41	1-09700-403-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP CHINA EQUIPMENT(YT2) (B) OD=9 H=6	1-09709-178-0	01	1	1008-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (C) L=350	1-09707-183-0	02	1	1008-1111
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (E) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP EXC. CHINA EQUIPMENT(YT2) (D) ID=6 L=36	9-09917-423-0	02	1	1008-1111

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
