7-50 — FRONT SEAT (#63540) — 111 parça

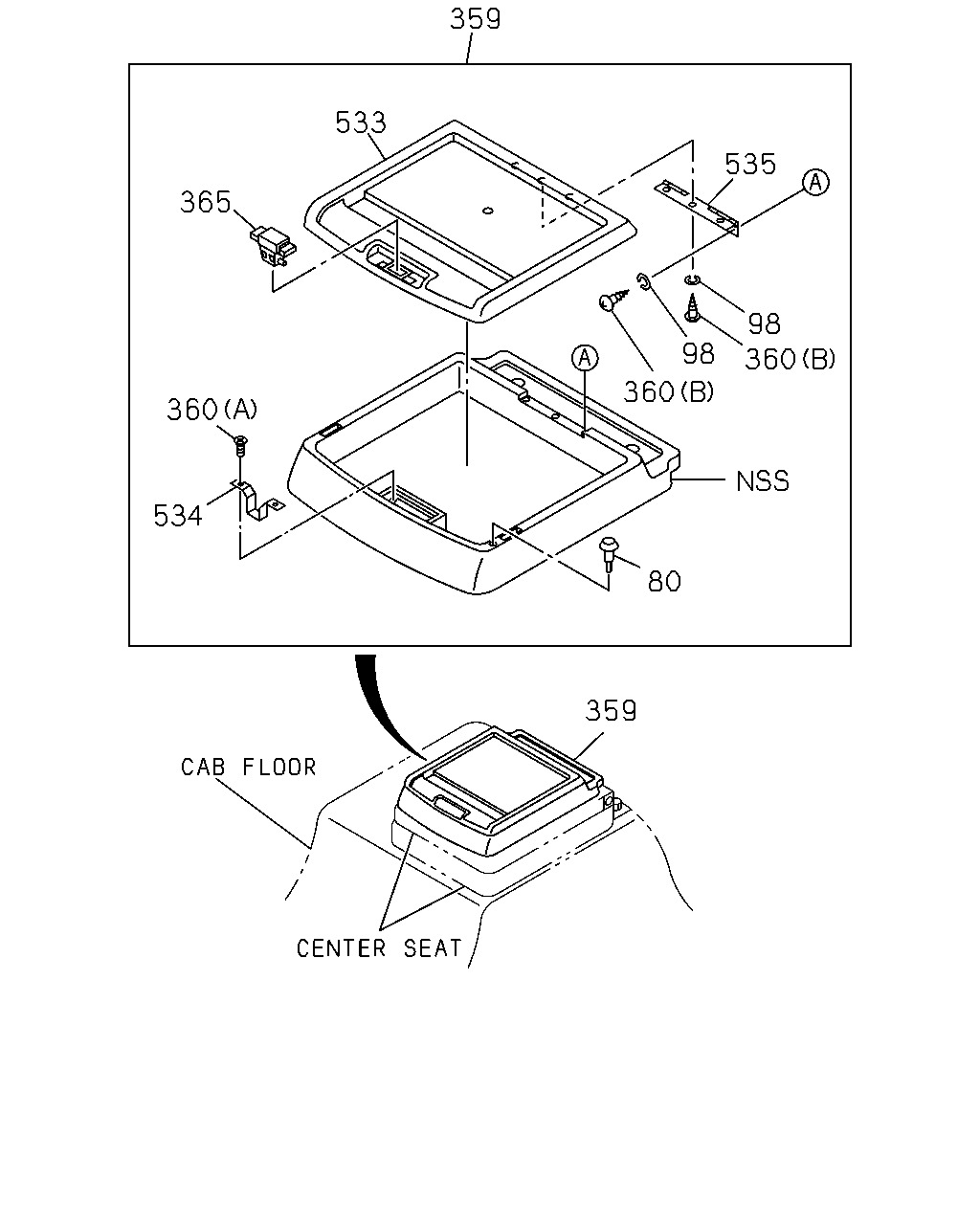

359 533 535 365 98 360 98 360 360 534 80 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-72538-187-0	02	1	1008-
98	WASHER; HINGE CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	1008-
359	BOX; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98145-114-0	01	1	1008-
360	SCREW; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (B) M4X16	0-70040-416-0	06	1	1008-1104
360	SCREW; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1008-
360	SCREW; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1008-
365	LOCK ASM; SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-72538-180-0	01	1	1008-
533	LID; PARCEL BOX CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98145-118-0	01	1	1008-
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-72538-190-0	01	1	1008-
535	HINGE; PARCEL BOX CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-72447-391-1	01	1	1008-

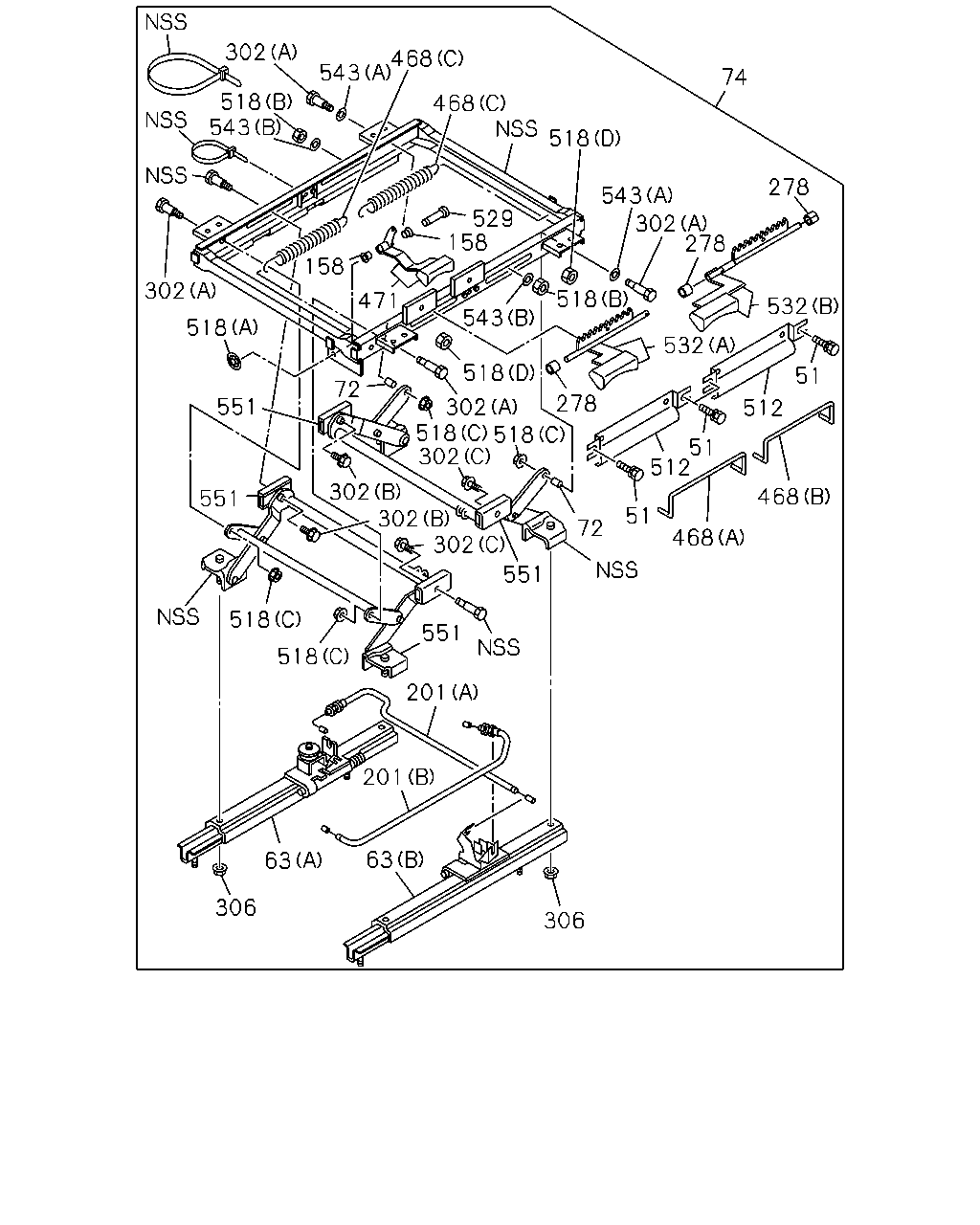

302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ)	1-75518-325-1	04	1	1008-
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-227-1	01	1	1008-
63	ADJUSTER; SEAT SLIDE FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-324-0	01	1	1008-
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-334-1	02	1	1008-1502
72	SPACER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	1-75518-331-3	01	1	1008-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	8-98291-646-0	01	1	1503-
158	BUSHING; LINK ARM FABRIC SEAT W/RECLINING(SFQ)	1-75518-209-0	02	1	1008-
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) (A) L=667	1-75518-288-0	01	1	1008-
201	CABLE; ADJ FABRIC SEAT W/RECLINING(SFQ) (B) L=605	1-75518-289-1	01	1	1008-
278	COLLAR; FRT SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-244-0	03	1	1008-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-266-2	02	1	1008-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-270-1	04	1	1008-1502
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-336-1	02	1	1008-
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	14	1	1008-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-206-0	01	1	1008-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-207-0	01	1	1008-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ) (C)	1-75518-208-0	02	1	1008-
471	LEVER; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ)	8-98107-870-0	01	1	1008-
512	COVER; LEVER FABRIC SEAT W/RECLINING(SFQ)	1-75518-245-1	02	1	1008-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-263-0	01	1	1008-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (C) M8	1-75518-264-0	04	1	1008-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (D) M6 LOCK NUT	5-09984-020-0	02	1	1008-
518	NUT; TILT ADJ FABRIC SEAT W/RECLINING(SFQ) (B) M8 FLANGE	8-94152-886-0	04	1	1008-
529	PIN; LINK FABRIC SEAT W/RECLINING(SFQ)	1-75518-262-0	01	1	1008-
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-221-0	01	1	1008-
532	LEVER ASM; TILT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75518-222-1	01	1	1008-
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (A)	1-75518-335-0	02	1	1008-1502
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-
543	WASHER; HEIGHT ADJUSTER FABRIC SEAT W/RECLINING(SFQ) (B) ID=8.4	9-09160-508-0	04	1	1008-
551	SLIDER; HEIGHT ADJ FABRIC SEAT W/RECLINING(SFQ)	1-75518-265-0	04	1	1008-

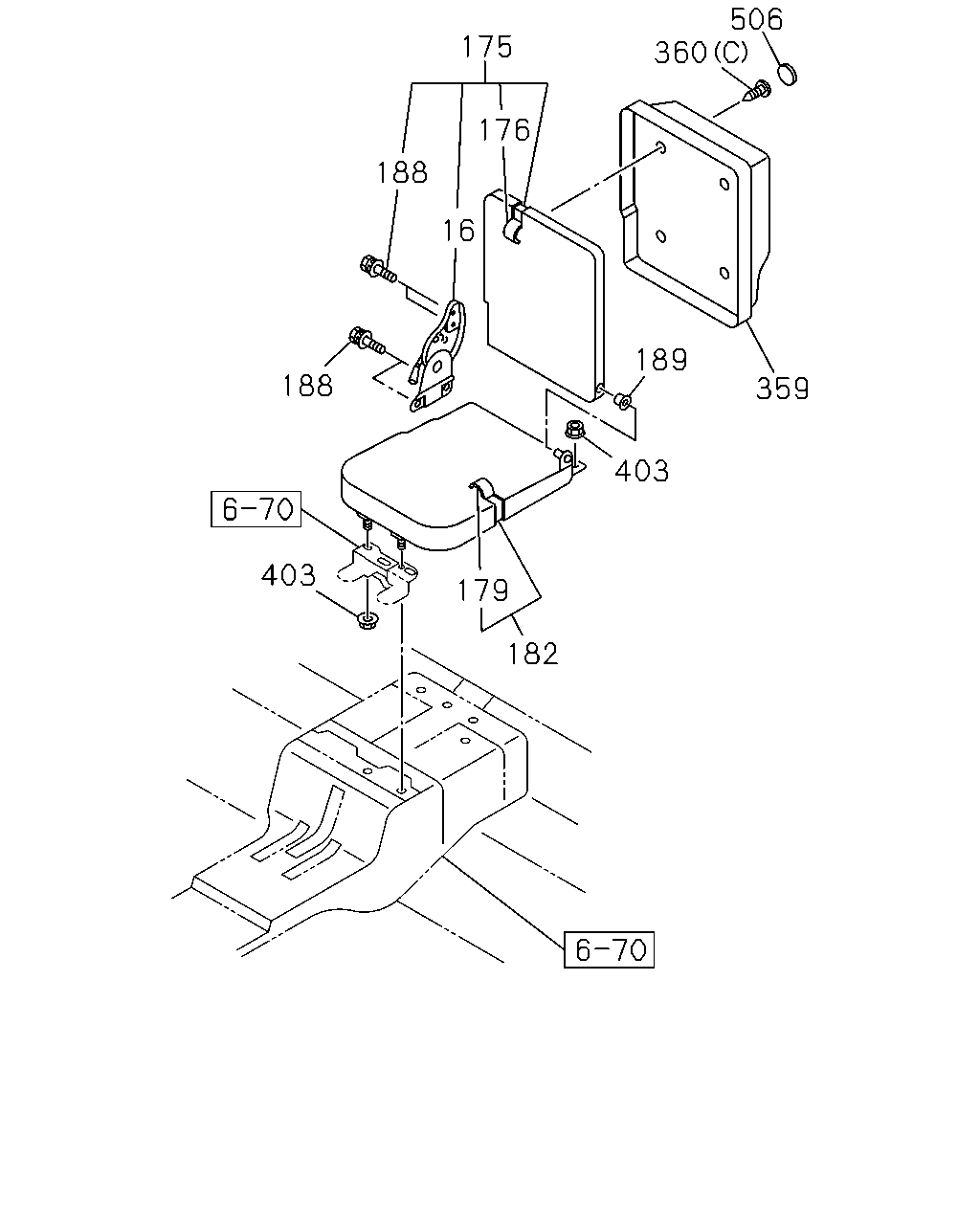

506 360 175 176 188 16 189 188 359 403 403 179 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75418-062-1	01	1	1008-
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75207-602-3	01	1	1008-1011
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-328-1	01	1	1012-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75127-156-2	01	1	1008-1011
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-331-0	01	1	1012-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75127-164-1	01	1	1008-1011
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-325-0	01	1	1012-
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-75207-644-1	01	1	1008-1011
182	CUSHION ASM; CENTER SEAT CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98168-317-2	01	1	1012-
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) M10X16 FLANGE	1-75198-053-0	04	1	1008-
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-97854-900-0	01	1	1008-
359	BOX; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	8-98145-114-0	01	1	1008-
360	SCREW; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (B) M4X16	0-70040-416-0	06	1	1008-1104
360	SCREW; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1008-
360	SCREW; PARCEL CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1008-
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1008-
506	CAP; PARCEL BOX CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ)	1-09983-180-3	02	1	1008-

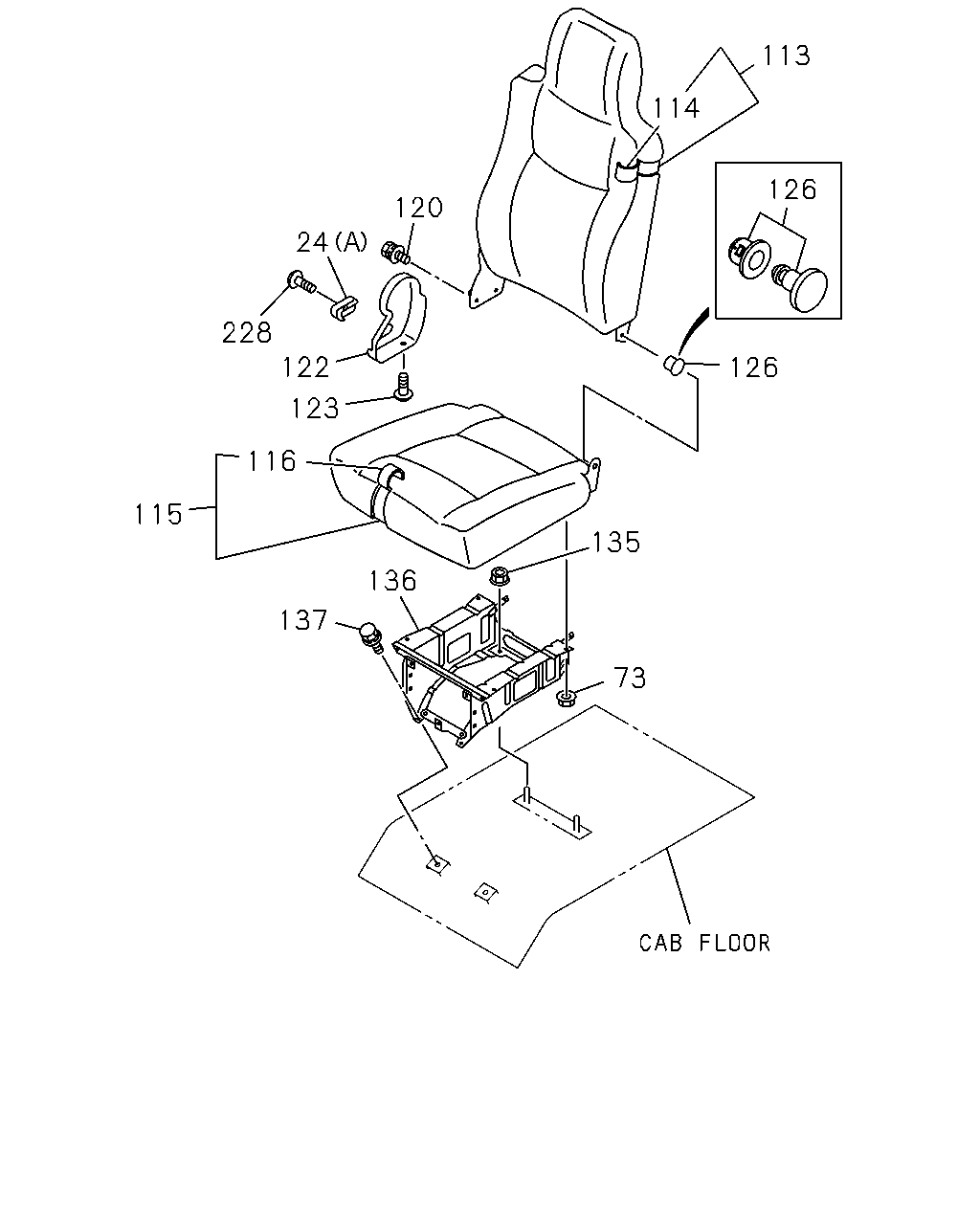

113 114 126 120 24 228 122 126 123 116 115 135 136 137 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75418-066-0	01	1	1008-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75418-067-0	01	1	1008-
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	04	1	1008-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98124-118-0	01	1	1008-1011
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-297-0	01	1	1012-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	8-98124-122-0	01	1	1008-1011
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	8-98168-298-0	01	1	1012-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-642-1	01	1	1008-1011
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-127-0	01	1	1012-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-162-1	01	1	1008-1011
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	8-98168-140-0	01	1	1012-
120	BOLT; RECLINING ADJ FABRIC SEAT W/RECLINING(SFQ) M8X20	8-97255-906-0	02	1	1008-
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ) DARK GRAY	8-97867-020-0	01	1	1008-
123	SCREW; COVER,RECLINING FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	1008-
126	BUSHING; HINGE,RECLINING FABRIC SEAT W/RECLINING(SFQ)	8-97854-087-0	01	1	1008-
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	1008-
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75558-602-3	01	1	1008-1305
136	STAND; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98242-299-0	01	1	1306-
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	1008-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4	8-98062-662-0	02	1	1008-

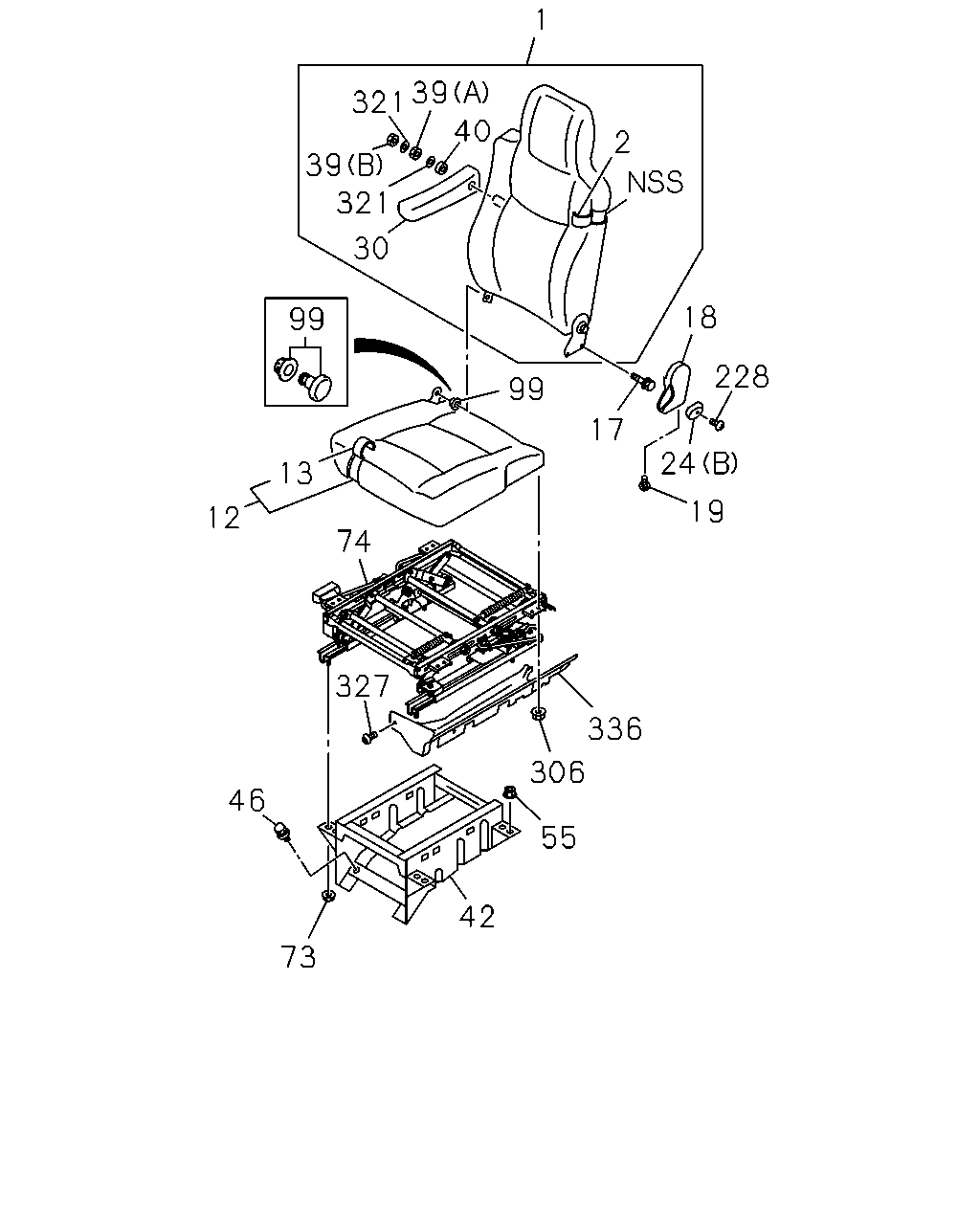

1 39 321 40 2 39 321 30 18 99 228 99 17 24 13 19 12 74 327 336 306 46 55 42 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98124-116-0	01	1	1008-1011
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98168-073-0	01	1	1012-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	8-98124-120-0	01	1	1008-1011
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	8-98168-090-0	01	1	1012-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	1-75207-640-2	01	1	1008-1011
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ)	8-98168-044-0	01	1	1012-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75127-160-2	01	1	1008-1011
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	8-98168-075-0	01	1	1012-
17	BOLT; RECLINING FABRIC SEAT W/RECLINING(SFQ) M8X20	8-97255-906-0	02	1	1008-
18	COVER; RECLINING FABRIC SEAT W/RECLINING(SFQ) DARK GRAY	8-97859-018-0	01	1	1008-
19	SCREW; COVER FABRIC SEAT W/RECLINING(SFQ) M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	1008-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (A)	1-75418-066-0	01	1	1008-
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) (B)	1-75418-067-0	01	1	1008-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ)	8-98147-307-0	01	1	1008-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) (B) M8	1-75147-657-0	01	1	1008-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ) (A) M10	9-09110-410-0	01	1	1008-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ)	8-94285-921-0	02	1	1008-
42	STAND; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75558-604-2	01	1	1008-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1008-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	1008-
73	NUT; ADJ,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	04	1	1008-
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	1-75518-331-3	01	1	1008-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT FABRIC SEAT W/RECLINING(SFQ)	8-98291-646-0	01	1	1503-
99	BUSHING; SEAT BACK FABRIC SEAT W/RECLINING(SFQ)	8-97854-087-0	01	1	1008-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ) M4	8-98062-662-0	02	1	1008-
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ) M8 FLANGE	1-75538-207-0	14	1	1008-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) ID=10.5 OD=22	9-09160-610-0	01	1	1008-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ) ID=8.4 OD=22	9-09164-708-0	01	1	1008-
327	CLIP; COVER FABRIC SEAT W/RECLINING(SFQ)	1-09987-273-0	01	1	1008-
336	COVER; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75518-313-0	01	1	1008-
