7-20 — MIRROR AND MIRROR STAY (#63535) — 234 parça

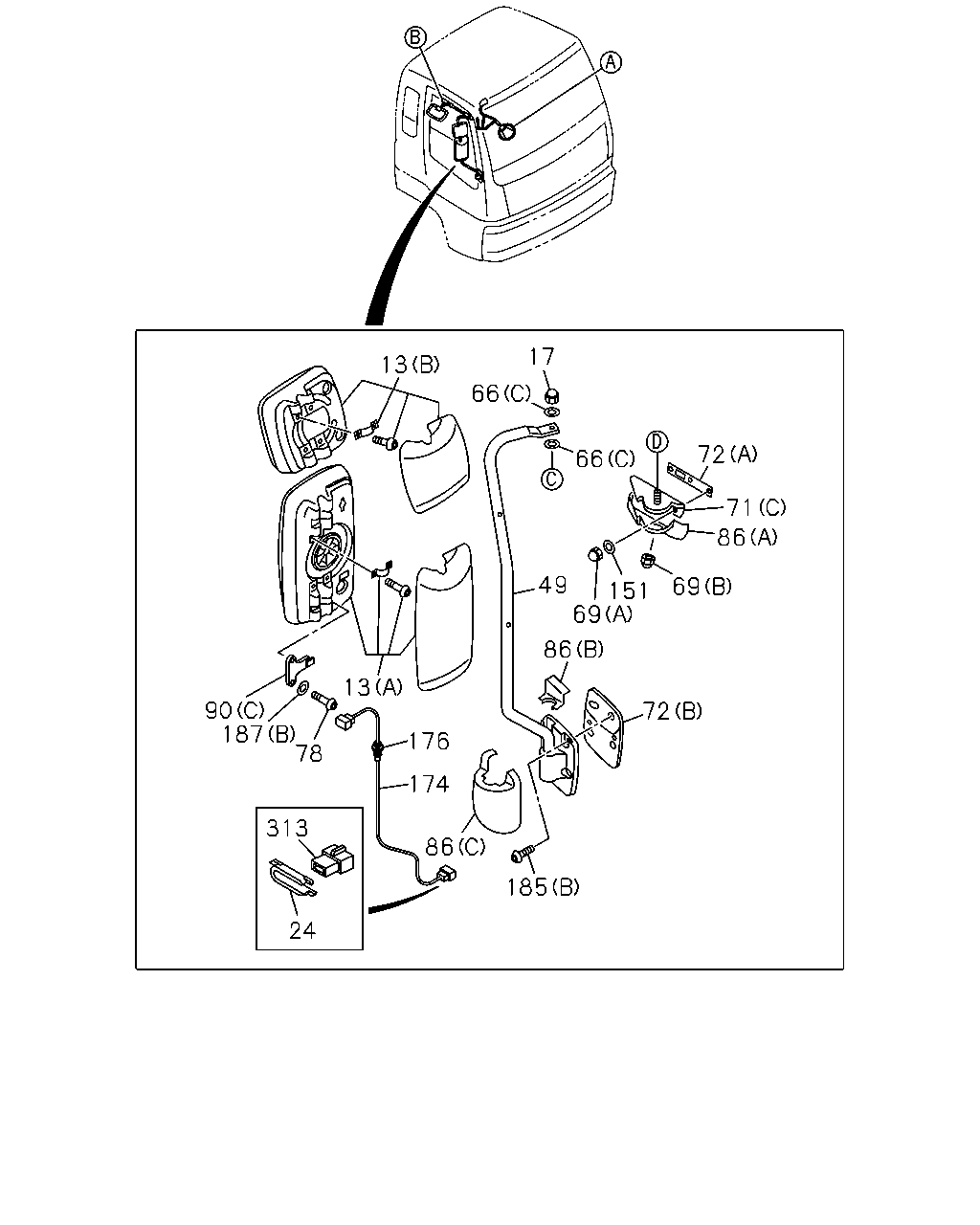

13 17 66 90 187 78 66 72 71 86 69 151 69 86 49 13 176 72 174 86 185 313 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (B)	8-98081-673-2	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-893-2	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-894-2	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-992-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-992-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-991-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-991-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-174-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-058-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98162-676-1	02	1	1008-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12)	8-94447-506-0	02	1	1008-
24	HOLDER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-506-0	02	1	1008-
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-909-1	01	1	1008-1310
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-909-1	01	1	1008-1310
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-906-1	01	1	1008-1310
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-906-1	01	1	1008-1310
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-647-0	01	1	1311-
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-647-0	01	1	1311-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-910-1	01	1	1008-1310
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-910-1	01	1	1008-1310
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1311-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-650-0	01	1	1311-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-907-1	01	1	1008-1310
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-907-1	01	1	1008-1310
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1311-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-649-0	01	1	1311-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	08	1	1008-1109
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1110-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-
72	SHEET (A)	8-98147-891-0	02	1	1008-
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-605-0	01	1	1008-
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-605-0	01	1	1008-
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-604-0	01	1	1008-
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-604-0	01	1	1008-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1008-
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-865-0	01	1	1008-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1008-
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-864-0	01	1	1008-
78	SCREW; BRKT FIX RUSSIA EQUIPMENT(B12)	8-98317-369-0	02	1	1008-
78	SCREW; BRKT FIX MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98317-369-0	02	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1008-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1008-1109
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1110-
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1008-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98144-513-1	02	1	1008-
176	GROMMET; HARNESS RUSSIA EQUIPMENT(B12)	1-82699-906-0	02	1	1008-
176	GROMMET; HARNESS MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	1-82699-906-0	02	1	1008-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1008-
313	CONNECTOR; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-498-0	02	1	1008-

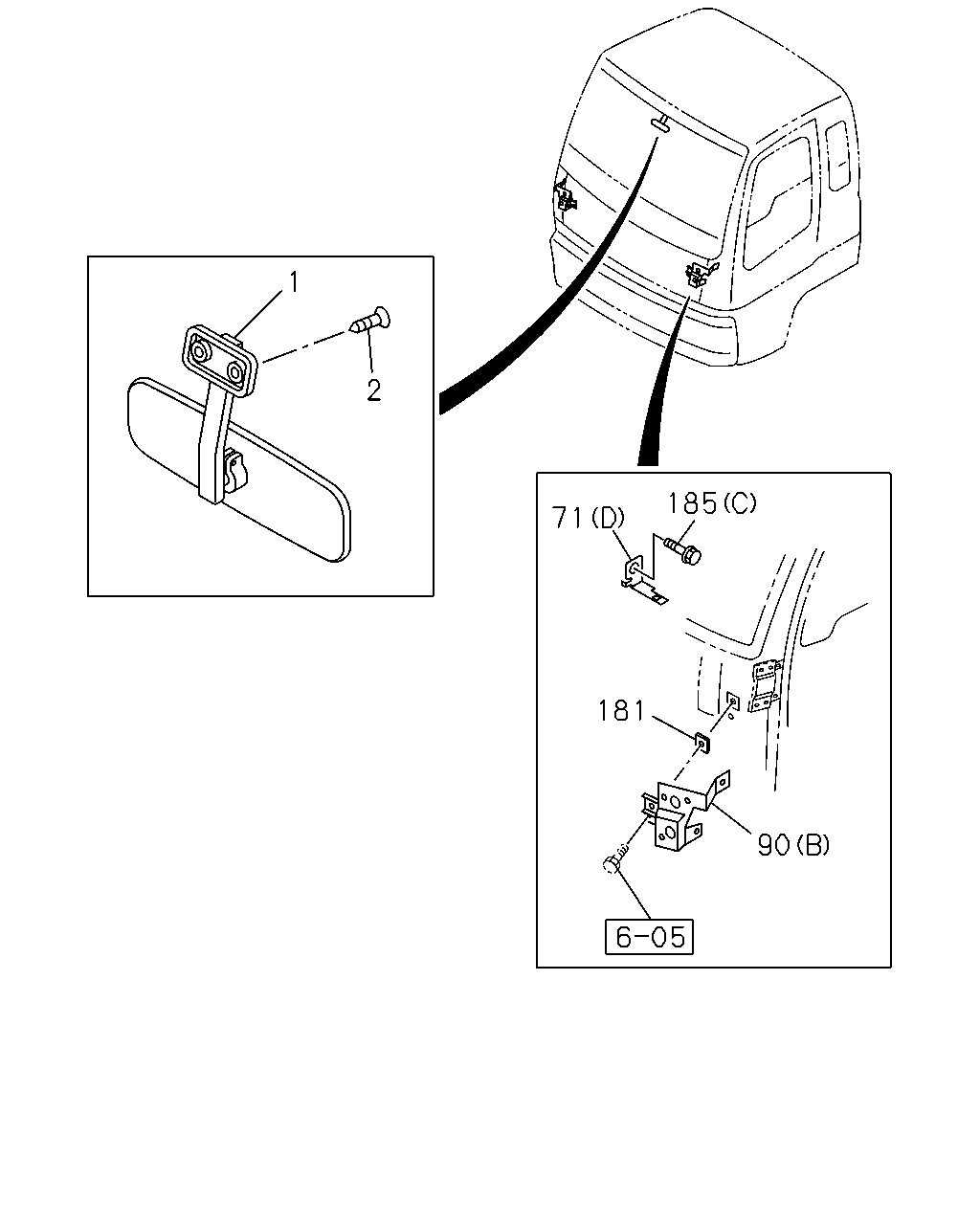

1 2 185 71 181 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM CHINA EQUIPMENT(YT2)	1-73317-561-0	01	1	1008-
1	MIRROR; ROOM EXC. CHINA EQUIPMENT(YT2)	1-73117-033-1	01	1	1008-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	1008-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-

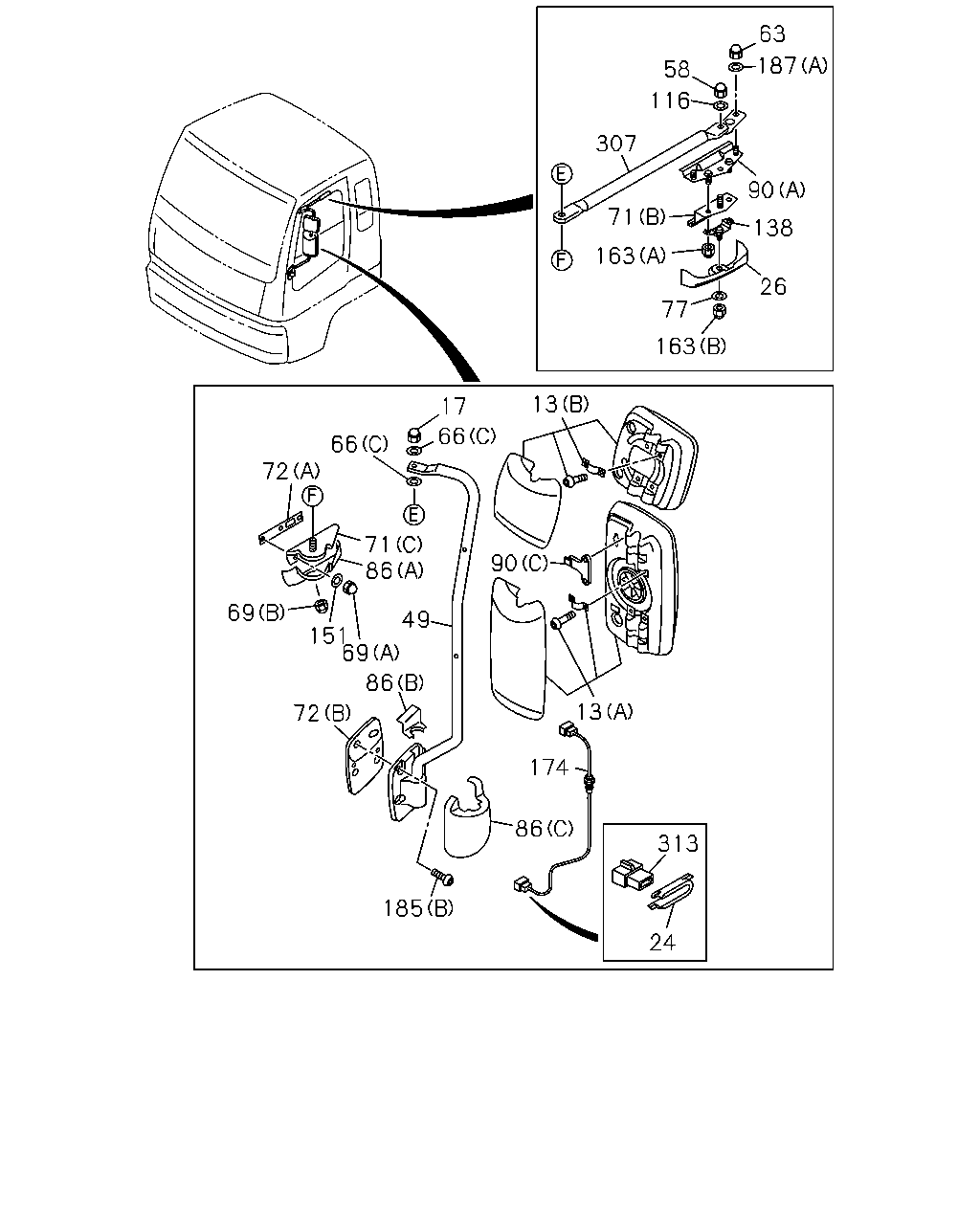

63 58 307 116 90 138 26 71 77 163 13 66 17 66 72 71 69 151 69 86 72 174 86 13 313 49 86 185 90 187 24 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (B)	8-98081-673-2	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-893-2	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW CHINA EQUIPMENT(YT2) (A)	8-98073-894-2	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-992-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-992-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW COLOMBIA EQUIPMENT(CB7) (A)	8-98055-991-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (A)	8-98055-991-1	01	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-174-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-174-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12) (A)	8-98043-058-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (A)	8-98043-058-1	02	1	1008-
13	MIRROR ASM; OUTSIDE RR VIEW RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98162-676-1	02	1	1008-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-
24	HOLDER; OUTSIDE MIRROR RUSSIA EQUIPMENT(B12)	8-94447-506-0	02	1	1008-
24	HOLDER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-506-0	02	1	1008-
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1008-
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-909-1	01	1	1008-1310
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-909-1	01	1	1008-1310
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-648-0	01	1	1311-
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98138-906-1	01	1	1008-1310
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98138-906-1	01	1	1008-1310
49	STAY; MIRROR SIDE GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN>	8-98234-647-0	01	1	1311-
49	STAY; MIRROR SIDE COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2)	8-98234-647-0	01	1	1311-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-910-1	01	1	1008-1310
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-910-1	01	1	1008-1310
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-650-0	01	1	1311-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-650-0	01	1	1311-
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98138-907-1	01	1	1008-1310
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98138-907-1	01	1	1008-1310
49	STAY; MIRROR SIDE RUSSIA EQUIPMENT(B12)	8-98234-649-0	01	1	1311-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98234-649-0	01	1	1311-
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1008-
63	NUT; STAY M8	1-09984-187-0	06	1	1008-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-
69	NUT; CAP (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	08	1	1008-1109
69	NUT; CAP (A) M8 CAP NUT	8-98059-914-0	06	1	1110-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-
72	SHEET (A)	8-98147-891-0	02	1	1008-
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-605-0	01	1	1008-
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-605-0	01	1	1008-
72	SHEET GENERAL EXPORT EQUIPMENT(TAA) EXC. MIR O/S RR VIEW HEATED<DNN> (B)	8-98116-604-0	01	1	1008-
72	SHEET COLOMBIA EQUIPMENT(CB7),CHINA EQUIPMENT(YT2) (B)	8-98116-604-0	01	1	1008-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-865-0	01	1	1008-
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-865-0	01	1	1008-
72	SHEET RUSSIA EQUIPMENT(B12) (B)	8-98101-864-0	01	1	1008-
72	SHEET MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98101-864-0	01	1	1008-
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-1109
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-803-2	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-806-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-197-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98031-802-2	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (B)	8-98031-805-0	01	1	1008-
86	COVER; STAY,OUTSIDE MIRROR (A)	8-98151-196-0	01	1	1008-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1008-
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1008-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	1008-1109
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	1110-
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	06	1	1008-1109
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1110-
174	HARNESS; MIRROR RUSSIA EQUIPMENT(B12)	8-98144-513-1	02	1	1008-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-98144-513-1	02	1	1008-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1008-
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1008-
313	CONNECTOR; MIRROR RUSSIA EQUIPMENT(B12)	8-94447-498-0	02	1	1008-
313	CONNECTOR; MIRROR MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA)	8-94447-498-0	02	1	1008-

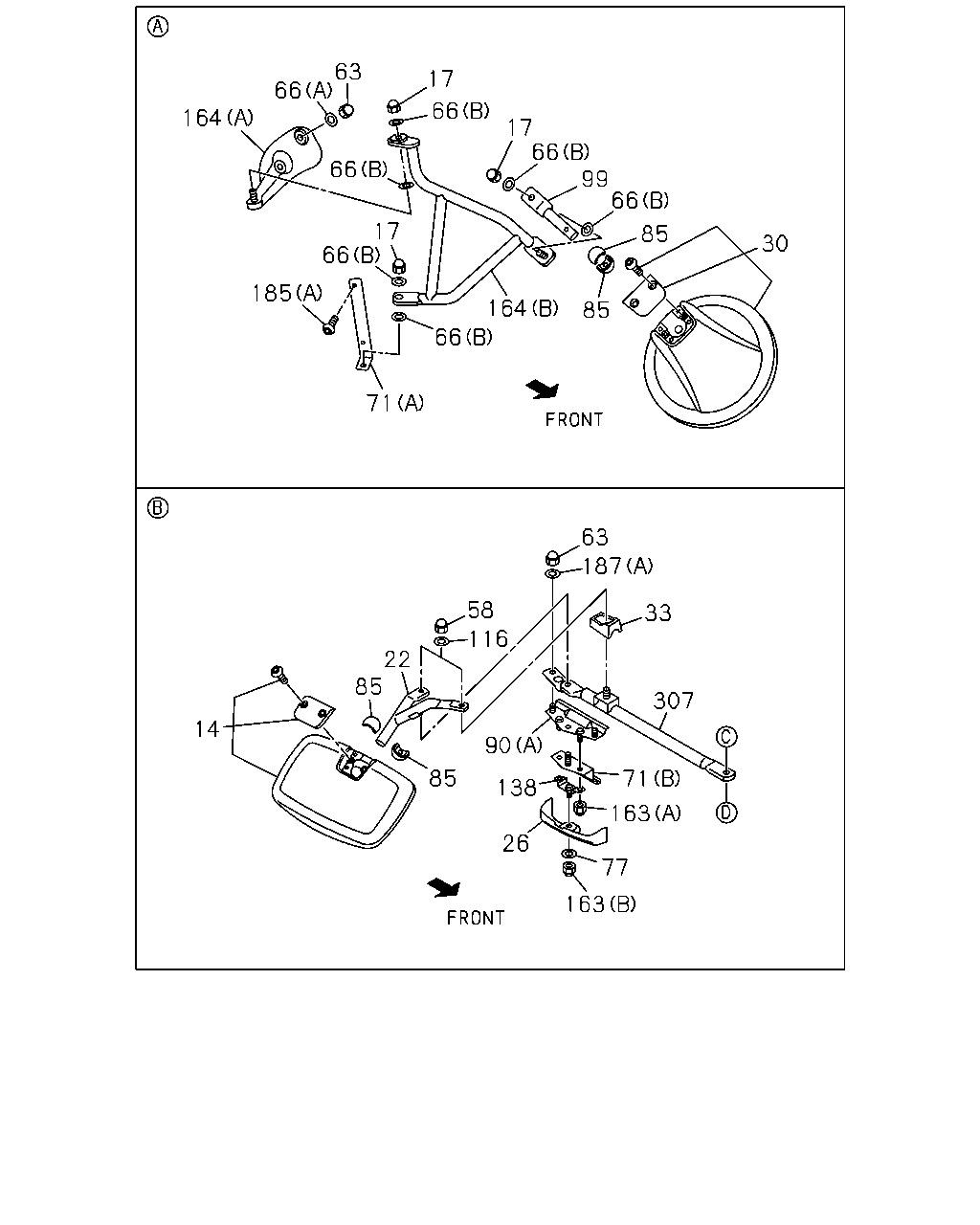

30 85 85 164 66 99 66 17 66 17 66 71 17 66 185 164 66 63 66 58 63 187 116 22 85 85 14 90 138 26 33 307 71 163 77 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	MIRROR ASM; OUTSIDE CHINA EQUIPMENT(YT2)	8-98081-674-1	01	1	1008-
14	MIRROR ASM; OUTSIDE RUSSIA EQUIPMENT(B12),COLOMBIA EQUIPMENT(CB7), GENERAL EXPORT EQUIPMENT(TAA)	8-98043-065-0	01	1	1008-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	05	1	1008-
22	STAY; OUTSIDE MIRROR	8-98154-821-0	01	1	1008-
26	COVER; OUTSIDE MIRROR	8-98171-924-0	02	1	1008-
30	MIRROR; UNDER	8-98055-994-0	01	1	1008-1504
30	MIRROR; UNDER	8-98309-725-0	01	1	1505-
33	COVER; MIRROR	8-98171-925-0	01	1	1008-
58	NUT; MIRROR STAY M10	1-09984-183-0	03	1	1008-
63	NUT; STAY M8	1-09984-187-0	06	1	1008-
66	WASHER; PL (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1008-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	06	1	1008-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-750-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-133-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98167-111-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (A)	1-71707-263-0	01	1	1008-
71	BRACKET; OUTSIDE MIRROR (C)	8-98144-749-0	01	1	1008-1109
71	BRACKET; OUTSIDE MIRROR (C)	8-98197-132-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR (B)	8-98154-718-2	01	1	1008-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> (D)	8-98039-277-2	02	1	1008-
77	WASHER; PL,BRKT,STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	1008-1109
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1008-
85	PIVOT; MAIN MIRROR ID=19.1	1-71737-633-2	02	1	1008-
90	BRACKET; MIRROR STAY (A)	8-98147-160-1	02	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71798-829-1	01	1	1008-
90	BRACKET; MIRROR STAY (B)	1-71707-237-0	01	1	1008-
90	BRACKET; MIRROR STAY RUSSIA EQUIPMENT(B12) (C)	8-98129-822-0	02	1	1008-
90	BRACKET; MIRROR STAY MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (C)	8-98129-822-0	02	1	1008-
99	STAY; MAIN UNDER MIRROR	8-98092-493-0	01	1	1008-
116	WASHER; PL,STAY,MIRROR ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	1008-
138	BRACKET; LWR,OUTSIDE MIRROR	8-98171-926-0	02	1	1008-
163	NUT; MIRROR BRKT (B) M8 CAP NUT FLANGE	8-98197-000-0	02	1	1110-
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	06	1	1008-1109
163	NUT; MIRROR BRKT (A) M8 CAP NUT	8-98059-914-0	04	1	1110-
164	STAY; ROOF (A)	1-71798-300-5	01	1	1008-
164	STAY; ROOF (B)	8-98138-918-1	01	1	1008-
185	BOLT; BRKT (B) M8X23	8-97310-216-1	08	1	1008-
185	BOLT; BRKT (A) M5X16	1-71707-259-0	02	1	1008-
185	BOLT; BRKT MIR O/S RR VIEW HEATED<DNN> (C) M8X16 FLANGE	0-28050-816-0	02	1	1008-
187	WASHER; LK,BRKT RUSSIA EQUIPMENT(B12) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT MIR O/S RR VIEW HEATED<DNN> GENERAL EXPORT EQUIPMENT(TAA) (B)	8-98317-370-0	02	1	1008-
187	WASHER; LK,BRKT (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	1008-
307	STAY; MIRROR SUPPORT	8-98154-969-1	01	1	1008-
307	STAY; MIRROR SUPPORT	8-98154-968-2	01	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
