Isuzu WW
▶
TRUCKS
▶
CYH
▶
11271 - CYH LHD EURO2/3/4 WITH 3STEPS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

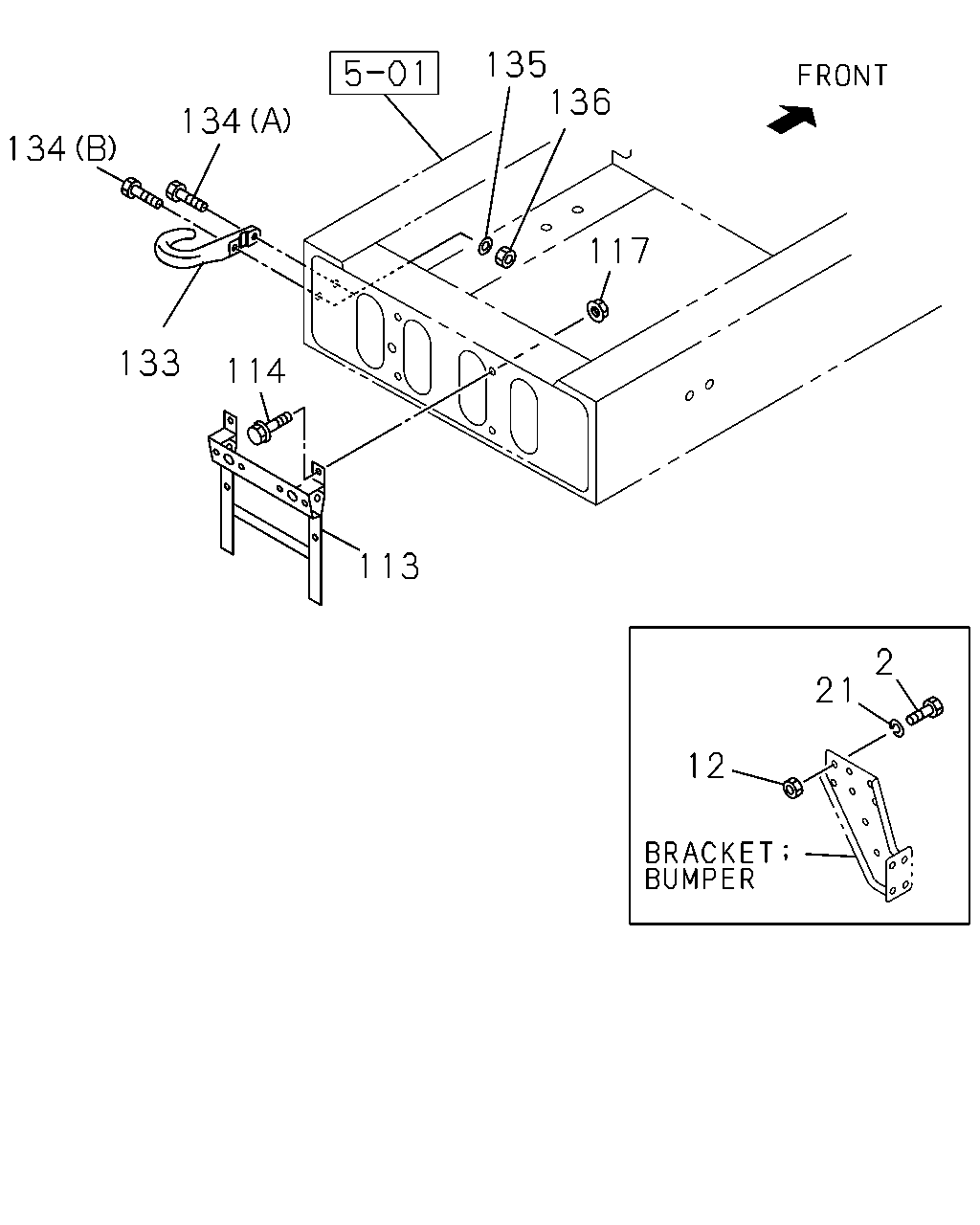

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#63532) — 27 parça
◀
[690A] EXC.CHINA EQUIPMENT (13 parça)
[690A] CHINA EQUIPMENT (14 parça)
▶
135
136
134
134
117
133
114
113
2
21
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; BACK BAR
REAR BUMPER<V38> M16X40
0-20851-640-0
08
1
1008-1111
12
NUT; BRKT
REAR BUMPER<V38> M16
0-91110-516-0
08
1
1008-1111
21
WASHER; LK,BUMPER
REAR BUMPER<V38> ID=16.2
0-91510-816-0
08
1
1008-1111
113
BRACKET; LICENSE PLATE
CHINA EQUIPMENT(YT2)
8-98090-218-1
01
1
1008-
113
BRACKET; LICENSE PLATE
EXC. CHINA EQUIPMENT(YT2)
8-98163-444-1
01
1
1008-
114
BOLT; BRKT,LICENSE PLATE
CHINA EQUIPMENT(YT2) M8X25 FLANGE
0-28650-825-0
02
1
1008-
114
BOLT; BRKT,LICENSE PLATE
EXC. CHINA EQUIPMENT(YT2) M8X70 FLANGE
0-28050-870-0
02
1
1008-
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1008-
133
HOOK
1-57181-027-1
01
1
1008-
134
BOLT; HOOK
(A) M16X60
0-10861-660-0
01
1
1008-
134
BOLT; HOOK
(B) M16X70
0-10861-670-0
01
1
1008-
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
1008-
136
NUT; HOOK
M16
0-91110-516-0
02
1
1008-
134
134
123
133
135
136
122
121
117
113
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
113
BRACKET; LICENSE PLATE
CHINA EQUIPMENT(YT2)
8-98090-218-1
01
1
1008-
113
BRACKET; LICENSE PLATE
EXC. CHINA EQUIPMENT(YT2)
8-98163-444-1
01
1
1008-
114
BOLT; BRKT,LICENSE PLATE
CHINA EQUIPMENT(YT2) M8X25 FLANGE
0-28650-825-0
02
1
1008-
114
BOLT; BRKT,LICENSE PLATE
EXC. CHINA EQUIPMENT(YT2) M8X70 FLANGE
0-28050-870-0
02
1
1008-
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1008-
121
STAY; RR LICENSE PLATE BRKT
CHINA EQUIPMENT(YT2)
1-53485-002-1
01
1
1008-1111
121
STAY; RR LICENSE PLATE BRKT
CHINA EQUIPMENT(YT2)
8-98179-582-0
01
1
1112-
122
BOLT; STAY TO FRAME
CHINA EQUIPMENT(YT2) M12X40 FLANGE
0-28651-240-0
02
1
1008-
123
NUT; STAY
CHINA EQUIPMENT(YT2) M12 FLANGE
0-91180-212-0
02
1
1008-
133
HOOK
1-57181-027-1
01
1
1008-
134
BOLT; HOOK
(A) M16X60
0-10861-660-0
01
1
1008-
134
BOLT; HOOK
(B) M16X70
0-10861-670-0
01
1
1008-
135
WASHER; LK,HOOK
ID=16.2
0-91510-516-0
02
1
1008-
136
NUT; HOOK
M16
0-91110-516-0
02
1
1008-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
