◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#63525) — 22 parça

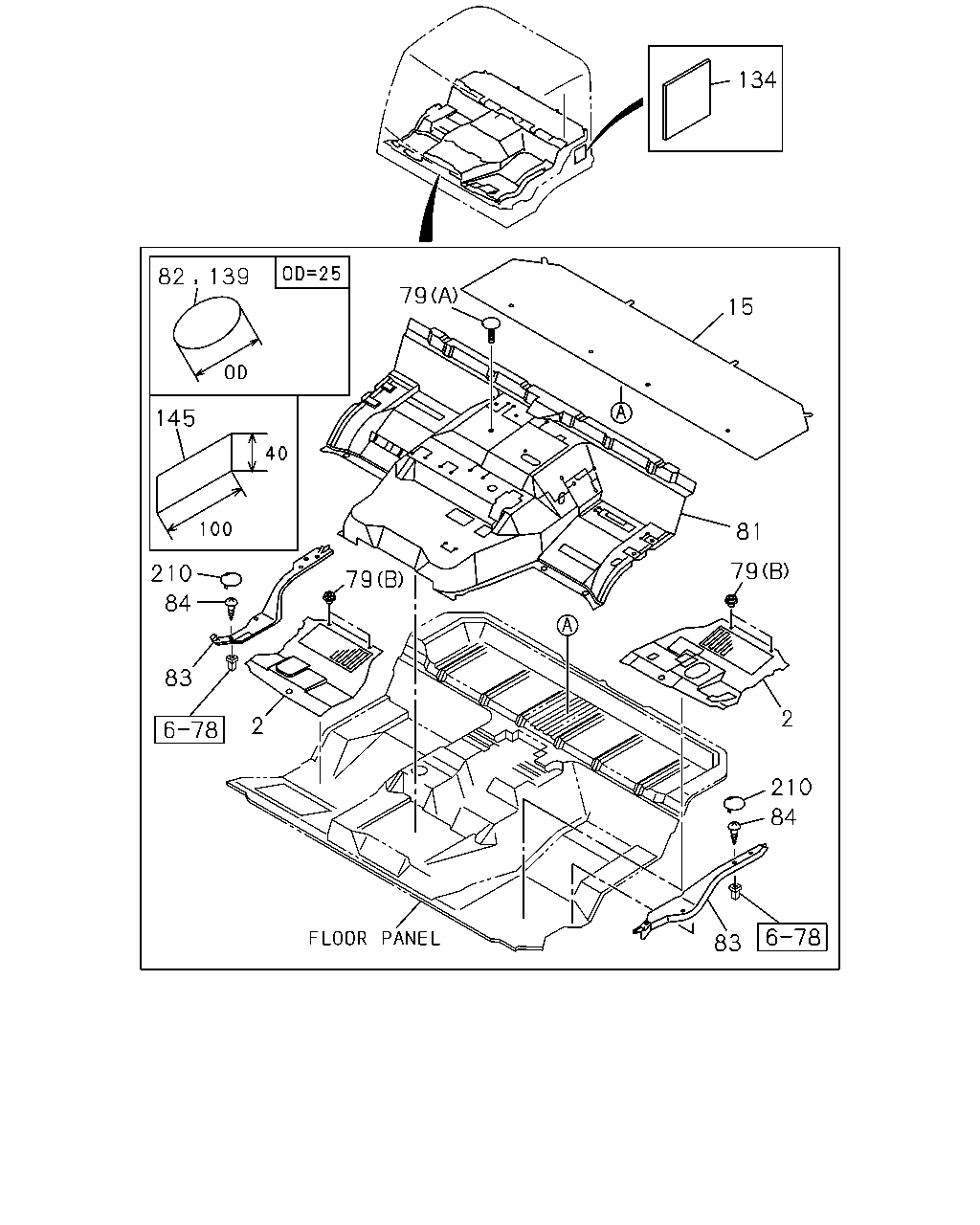

çizim 167049
134 82 139 79 15 145 81 79 210 79 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
CHINA EQUIPMENT(YT2) 		1-73237-936-0 01 1 1008-
2 MAT; FLOOR
CHINA EQUIPMENT(YT2) 		1-73237-937-0 01 1 1008-
2 MAT; FLOOR
EXC. CHINA EQUIPMENT(YT2) 		1-73237-785-1 01 1 1008-
2 MAT; FLOOR
EXC. CHINA EQUIPMENT(YT2) 		1-73237-787-1 01 1 1008-
15 MAT; FLOOR REAR
CENTER SEAT DELETE(SP9) CHINA EQUIPMENT(YT2) EXC. MATTRESS SLEEPER CAB<E40> 		1-73237-941-0 01 1 1008-
15 MAT; FLOOR REAR
CENTER SEAT DELETE(SP9) EXC. MATTRESS SLEEPER CAB<E40>,CHINA EQUIPMENT(YT2) 		1-73237-831-1 01 1 1008-
15 MAT; FLOOR REAR
CHINA EQUIPMENT(YT2) EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) 		1-73237-940-0 01 1 1008-
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9),CHINA EQUIPMENT(YT2) 		1-73237-783-1 01 1 1008-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 01 1 1008-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 1008-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) CHINA EQUIPMENT(YT2) 		1-73237-939-0 01 1 1008-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. CHINA EQUIPMENT(YT2) 		1-73237-830-2 01 1 1008-
81 MAT; FLOOR,CENTER
EXC. CENTER SEAT DELETE(SP9),CHINA EQUIPMENT(YT2) 		1-73237-813-3 01 1 1008-
81 MAT; FLOOR,CENTER
CHINA EQUIPMENT(YT2) EXC. CENTER SEAT DELETE(SP9) 		1-73237-938-0 01 1 1008-
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 01 1 1008-
83 PLATE; KICKING,FLOOR MAT 8-98125-806-3 01 1 1008-
83 PLATE; KICKING,FLOOR MAT 8-98132-636-3 01 1 1008-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 1008-
134 SILENCER; RR FLOOR,SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-73367-016-2 01 1 1008-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 1008-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 1008-
210 COVER; KICKING PLATE 1-76337-461-0 09 1 1008-
