◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#63523) — 27 parça

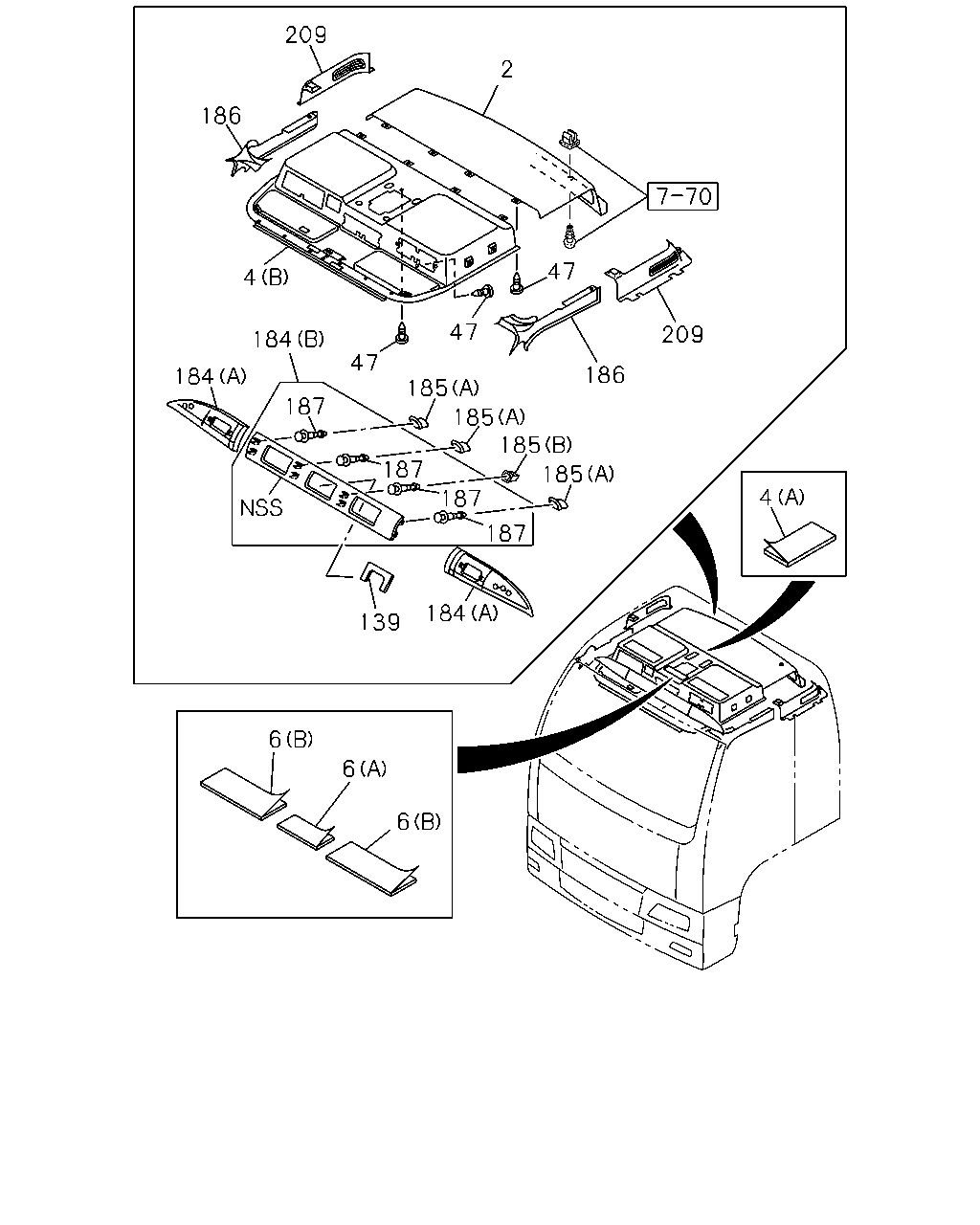

çizim 166992
209 2 186 47 4 47 209 184 47 186 184 185 187 185 185 187 185 187 4 187 184 139 6 6 6
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
CHINA EQUIPMENT(YT2) 		1-73317-565-0 01 1 1008-
2 LINING; HD,ROOF RR
EXC. CHINA EQUIPMENT(YT2) 		1-73317-502-2 01 1 1008-
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 1008-
4 LINING; ROOF,FRT
CHINA EQUIPMENT(YT2) EXC. ROOM LAMP FLUORESCENT<NGG> (B) 		1-73317-564-0 01 1 1008-
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> CHINA EQUIPMENT(YT2) (B) 		1-73317-563-0 01 1 1008-
4 LINING; ROOF,FRT
ROOM LAMP FLUORESCENT<NGG> EXC. CHINA EQUIPMENT(YT2) (B) 		1-73317-518-3 01 1 1008-
4 LINING; ROOF,FRT
EXC. ROOM LAMP FLUORESCENT<NGG>,CHINA EQUIPMENT(YT2) (B) 		1-73317-519-3 01 1 1008-
6 SPACER; HD LINING
(A) 130X300 		1-73317-435-2 01 1 1008-
6 SPACER; HD LINING
(B) 140X800 		1-73317-429-2 02 1 1008-
47 CLIP; HEADLINING
D5X14.7 		1-09983-183-0 05 1 1008-
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 11 1 1008-
47 CLIP; HEADLINING
EXC. ROOM LAMP FLUORESCENT<NGG> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 1008-
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> D7.7X25 LIGHT GRAY 		1-73317-371-0 08 1 1008-
139 SEAL; ROOF
ROOF MARKER LAMP<U01> 		1-73318-562-0 03 1 1008-
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 1008-
184 ORNAMENT; ROOF
(A) 		1-73317-408-2 01 1 1008-
184 ORNAMENT; ROOF
ROOF MARKER LAMP<U01> (B) 		1-73317-405-1 01 1 1008-
184 ORNAMENT; ROOF
EXC. ROOF MARKER LAMP<U01> (B) 		1-73318-660-3 01 1 1008-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 1008-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 1008-
186 TRIM; ROOM,CANT RAIL SIDE
CHINA EQUIPMENT(YT2) 		1-73346-042-0 01 1 1008-
186 TRIM; ROOM,CANT RAIL SIDE
CHINA EQUIPMENT(YT2) 		1-73346-041-0 01 1 1008-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-73346-013-2 01 1 1008-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-73346-012-2 01 1 1008-
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 1008-
209 COVER; GRILLE 1-73347-866-3 01 1 1008-
209 COVER; GRILLE 1-73347-865-3 01 1 1008-
