Isuzu WW
▶
TRUCKS
▶
CYH
▶
11271 - CYH LHD EURO2/3/4 WITH 3STEPS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#63521) — 149 parça
◀
[647A] FIXING;SIDE PANEL (25 parça)
[647A] UNDER PANEL (12 parça)
[647A] INSULATOR AND MUD GUARD (44 parça)
[647A] SPLASH GUARD (37 parça)
[647A] COMPONENT;SIDE PANEL (31 parça)
▶

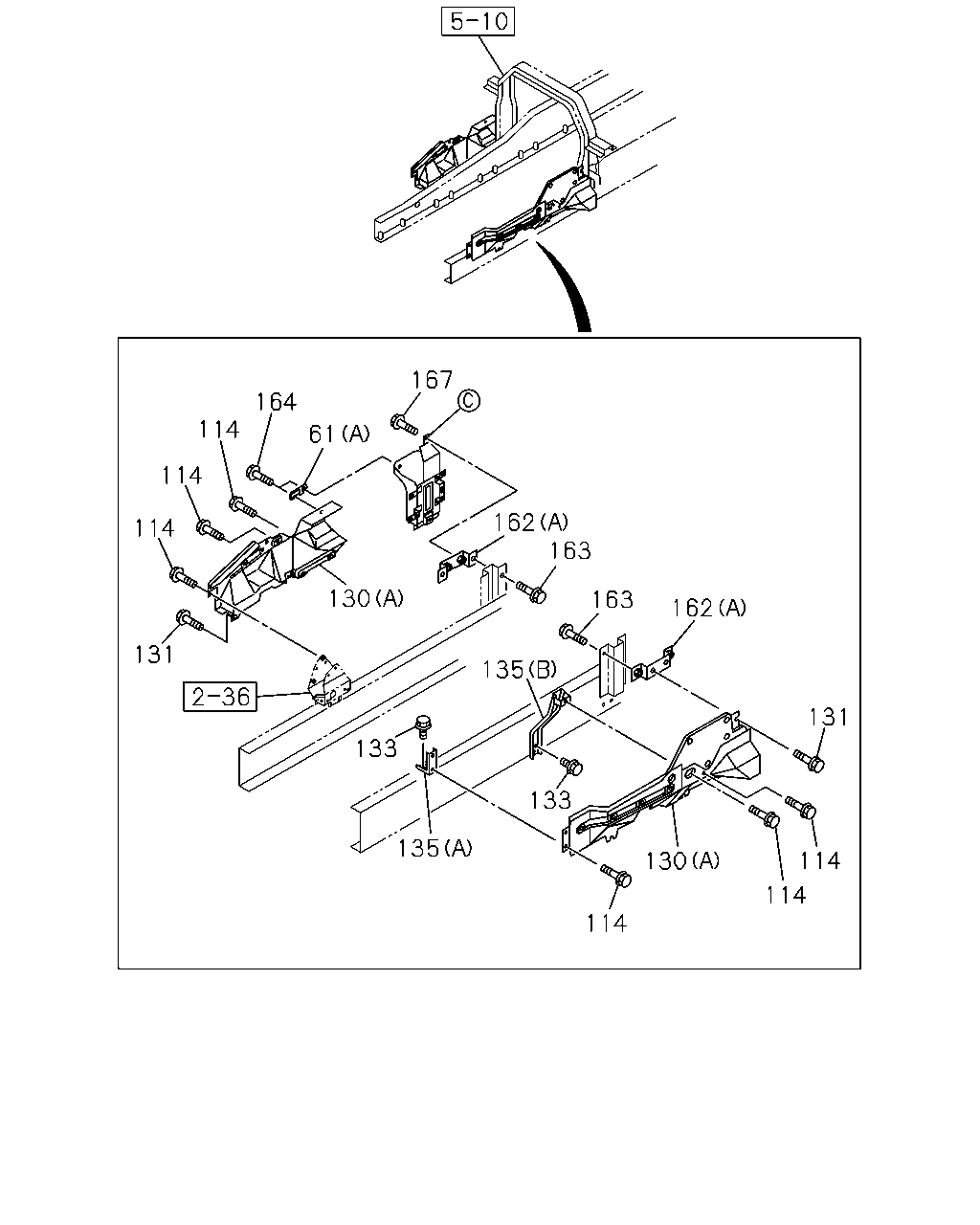

167
164
114
61
114
162
163
114
130
163
162
131
135
131
133
133
135
130
114
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BRACKET; COVER
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR> (C)
1-53441-610-1
02
1
1008-
61
BRACKET; COVER
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR> (B)
1-53441-611-1
01
1
1008-
61
BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> (A)
8-98039-501-1
01
1
1008-
114
BOLT
M8X20 FLANGE
0-28650-820-0
02
1
1008-
114
BOLT
M8X22 W/LK&PL WASHER
1-09030-042-0
09
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-435-1
01
1
1008-
130
PANEL; SHUTTER NOISE
(C)
8-98159-129-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(D)
1-79937-943-2
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-434-1
01
1
1008-
130
PANEL; SHUTTER NOISE
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)
1-53194-652-0
01
1
1008-1203
130
PANEL; SHUTTER NOISE
(A)
1-53194-652-0
01
1
1204-
130
PANEL; SHUTTER NOISE
EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)
1-53194-376-0
01
1
1008-1203
130
PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A)
1-53192-818-6
01
1
1008-
130
PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-53194-380-2
01
1
1008-
131
BOLT; PANEL
M8X25 W/LK&PL WASHER
1-09030-093-0
07
1
1008-
133
BOLT; FRAME
M8X25 FLANGE
0-28650-825-0
04
1
1008-
135
BRACKET; SIDE PANEL
(A)
1-53441-507-0
01
1
1008-
135
BRACKET; SIDE PANEL
ENGINE CONTROL COMMON RAIL(Q4R) (B)
1-53441-598-1
01
1
1008-
135
BRACKET; SIDE PANEL
ENGINE CONTROL-B2(Q4T) (B)
1-53441-508-1
01
1
1008-
162
BRACKET
(A)
1-53441-520-0
02
1
1008-
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B)
1-53441-521-2
01
1
1008-
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C)
1-53441-522-0
01
1
1008-
163
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
164
BOLT; FLEX COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
02
1
1008-
167
BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
05
1
1008-

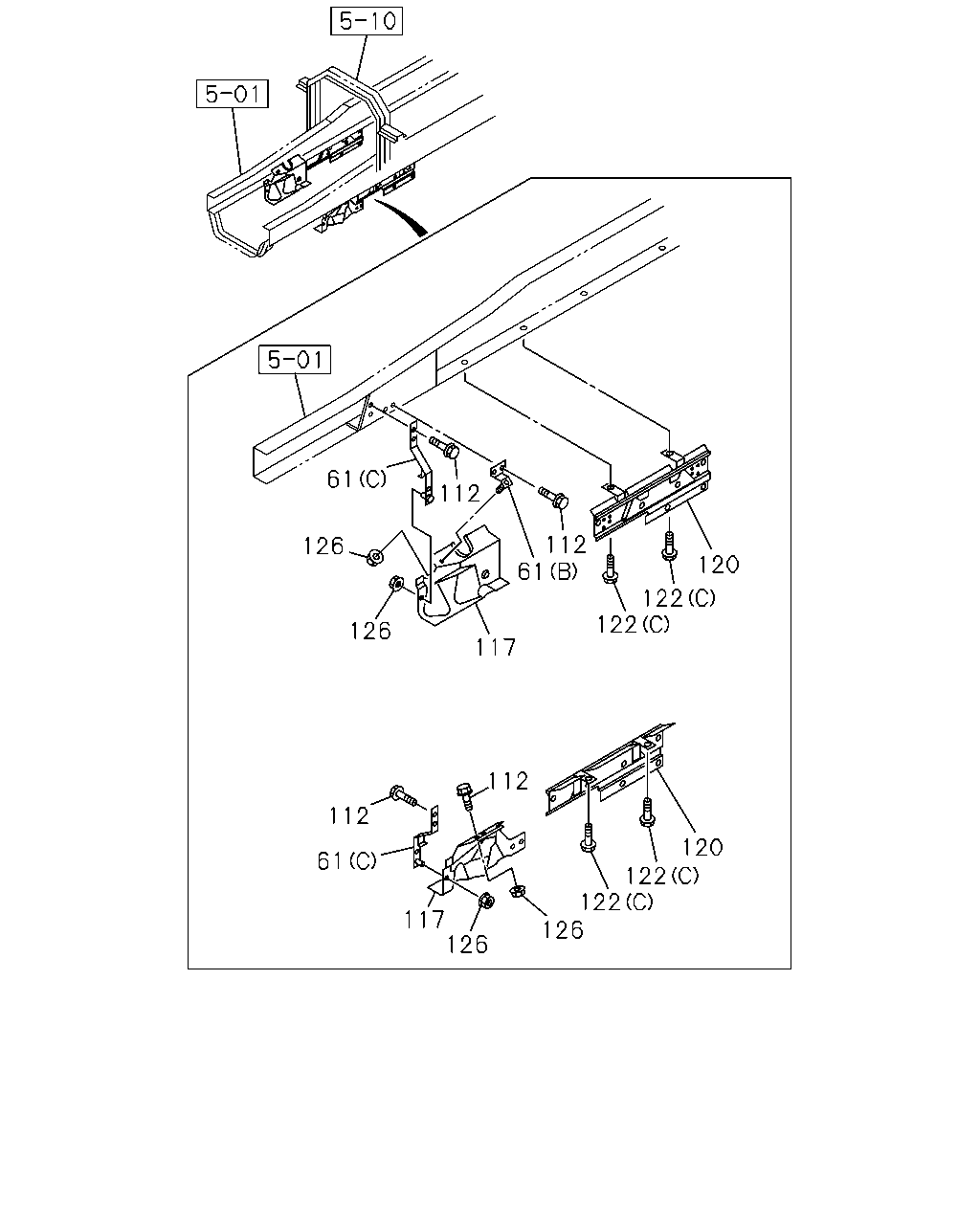

61
112
112
61
126
120
122
122
126
117
112
112
120
122
122
126
61
117
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BRACKET; COVER
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR> (C)
1-53441-610-1
02
1
1008-
61
BRACKET; COVER
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR> (B)
1-53441-611-1
01
1
1008-
61
BRACKET; COVER
EXC. SILENCER SINGLE VERTICAL<N28> (A)
8-98039-501-1
01
1
1008-
112
BOLT; BRKT
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR> M8X25 FLANGE
0-28650-825-0
06
1
1008-
117
PANEL; SIDE,B UNDER
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR>
1-53194-508-2
01
1
1008-
117
PANEL; SIDE,B UNDER
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR>
1-53194-510-2
01
1
1008-
120
PANEL; UNDER
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR>
1-53194-557-1
01
1
1008-
120
PANEL; UNDER
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR>
1-53194-263-2
01
1
1008-
122
BOLT
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR> (C) M8X35 FLANGE
0-28650-835-0
04
1
1008-
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE
0-28650-820-0
03
1
1008-
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE
0-28650-830-0
03
1
1008-
126
NUT; PANEL
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR> M8 FLANGE
1-09464-018-1
04
1
1008-

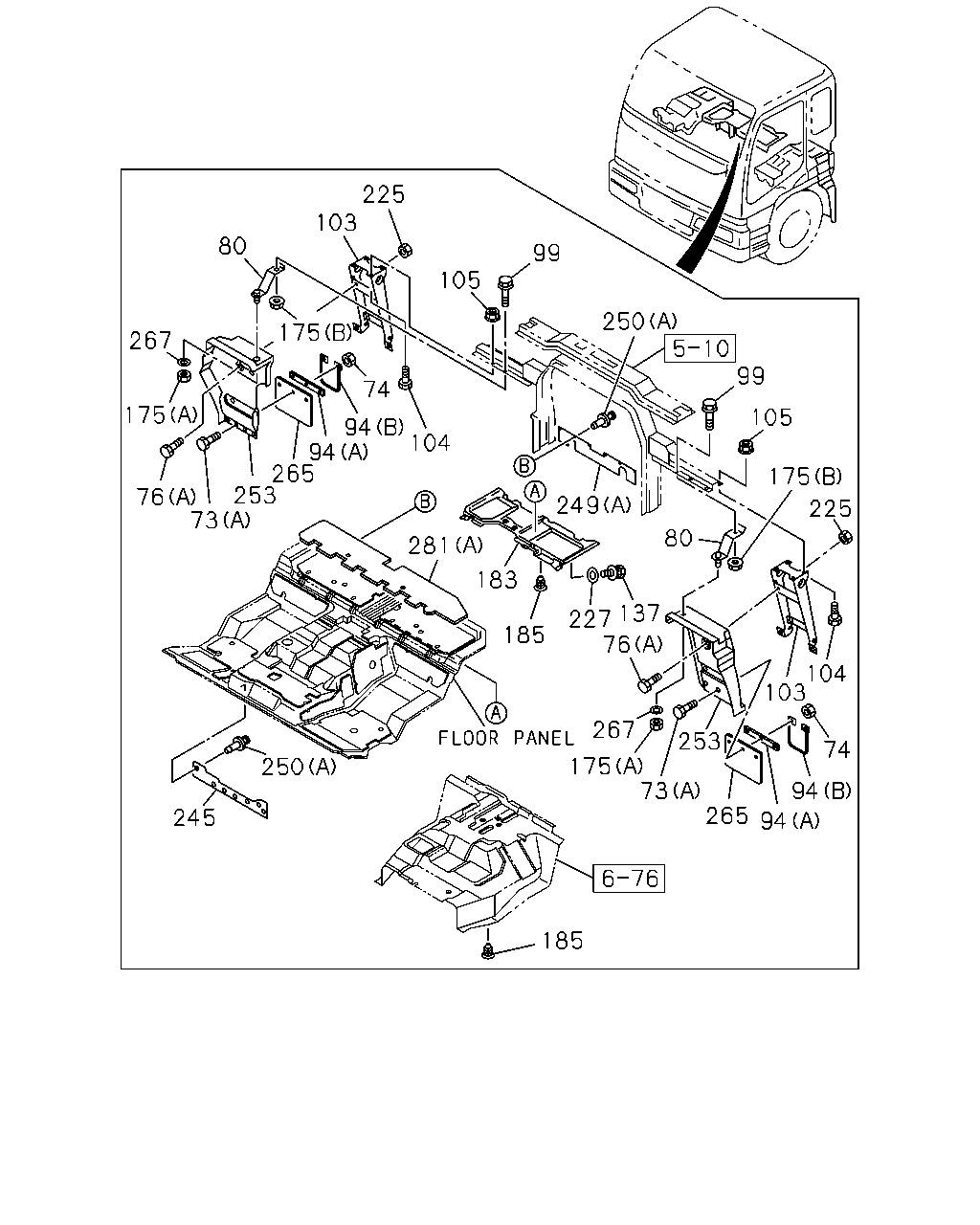

225
103
80
99
105
175
250
99
267
74
175
105
94
104
94
265
253
73
175
76
249
225
80
281
183
137
227
76
185
104
103
267
253
74
175
73
250
94
265
245
94
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1008-
73
BOLT; MUD COVER BRKT
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) M8X16 FLANGE
0-28250-816-0
02
1
1008-1203
73
BOLT; MUD COVER BRKT
(B) M8X16 FLANGE
0-28250-816-0
02
1
1204-
73
BOLT; MUD COVER BRKT
EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) M8X16 FLANGE
0-28250-816-0
05
1
1008-1203
74
NUT
M8 FLANGE
0-91180-108-0
06
1
1008-1203
74
NUT
M8 FLANGE
0-91180-108-0
04
1
1204-
74
NUT
M8 FLANGE
0-91180-108-0
01
1
1008-1203
74
NUT
M8 FLANGE
0-91180-108-0
03
1
1204-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1008-
76
BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1008-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
8-94279-210-0
06
1
1008-
80
BRACKET; MUD GUARD STAY
1-79931-159-1
02
1
1008-
94
RETAINER; FLAP RUBBER
(A)
1-79931-091-2
02
1
1008-
94
RETAINER; FLAP RUBBER
(B)
1-79931-194-0
02
1
1008-
99
BOLT; STAY TO MUD GUARD
M10X25 FLANGE
0-28651-025-0
02
1
1008-
103
BRACKET ASM; RR MUD FLAP
1-79931-444-0
02
1
1008-1502
103
BRACKET ASM; RR MUD FLAP
8-98306-892-0
02
1
1503-
104
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
08
1
1008-
105
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
1008-
137
BOLT
M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
1008-
175
NUT; STAY FIX
(A) M8 FLANGE
0-91180-108-0
02
1
1008-
175
NUT; STAY FIX
(B) M10 FLANGE
0-91180-210-0
02
1
1008-
183
INSULATOR; HEAT,BED PAN
1-71907-539-4
01
1
1008-
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
21
1
1008-
225
NUT; MUD GUARD
M8 FLANGE
0-91180-108-0
08
1
1008-
227
SEAL; MUD GUARD
T=2.0
8-94279-641-0
01
1
1008-
245
RUBBER; SHUTTER,RAD
CONCRETE PUMP<RA5> EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2)
1-79937-949-1
01
1
1201-
249
RUBBER; SHUTTER
(A)
1-79937-924-2
01
1
1008-
249
RUBBER; SHUTTER
(C)
1-79937-981-1
01
1
1008-
249
RUBBER; SHUTTER
(E)
8-98079-173-0
01
1
1008-
249
RUBBER; SHUTTER
(D)
8-98146-437-0
01
1
1008-
249
RUBBER; SHUTTER
(B)
1-79937-979-1
01
1
1008-
249
RUBBER; SHUTTER
(F)
8-98146-436-0
01
1
1008-
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1008-1112
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1201-
250
FASTENER; SHUTTER
CONCRETE PUMP<RA5> EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1201-
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
09
1
1008-
253
GUARD; MUD
8-98134-766-1
01
1
1008-
253
GUARD; MUD
SILENCER SINGLE VERTICAL<N28>
8-98134-760-0
01
1
1008-
253
GUARD; MUD
EXC. SILENCER SINGLE VERTICAL<N28>
8-98134-759-0
01
1
1008-
265
RUBBER; FLAP,REAR
1-79930-978-0
02
1
1008-
267
WASHER; PL,STAY
ID=8.4 OD=26
0-91614-808-0
02
1
1008-
281
INSULATOR; NOISE
(B)
1-79937-956-1
01
1
1008-
281
INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A)
1-73237-445-4
01
1
1008-

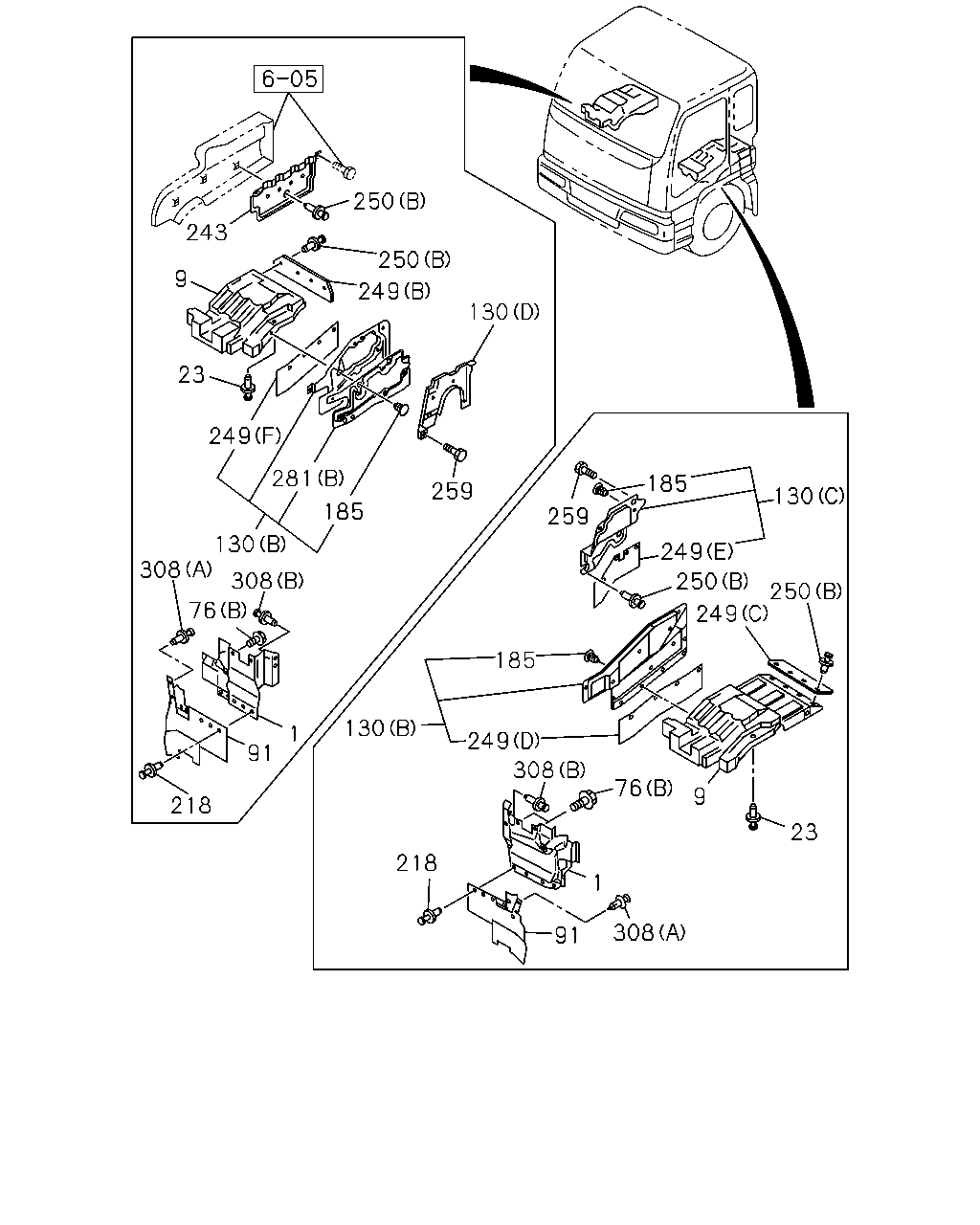

243
250
250
9
249
130
23
249
281
185
259
130
185
259
130
249
308
308
250
250
249
76
185
130
1
249
91
308
76
9
218
23
218
1
308
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
1-79937-894-6
01
1
1008-
1
GUARD; MUD,FRT
1-79937-895-5
01
1
1008-
9
GUARD; SPLASH,WHEEL HOUSE
1-79937-908-4
01
1
1008-
9
GUARD; SPLASH,WHEEL HOUSE
1-79937-907-4
01
1
1008-
23
FASTENER; MUD COVER
D8X13.5
1-09987-248-1
21
1
1008-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1008-
76
BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1008-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
8-94279-210-0
06
1
1008-
91
COVER; MUD,FRT
8-98134-826-2
01
1
1008-
91
COVER; MUD,FRT
8-98134-825-2
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-435-1
01
1
1008-
130
PANEL; SHUTTER NOISE
(C)
8-98159-129-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(D)
1-79937-943-2
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-434-1
01
1
1008-
130
PANEL; SHUTTER NOISE
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)
1-53194-652-0
01
1
1008-1203
130
PANEL; SHUTTER NOISE
(A)
1-53194-652-0
01
1
1204-
130
PANEL; SHUTTER NOISE
EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)
1-53194-376-0
01
1
1008-1203
130
PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A)
1-53192-818-6
01
1
1008-
130
PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-53194-380-2
01
1
1008-
185
CLIP; HEAT INSULATOR
ID=6.2 L=11.4
8-97808-623-0
21
1
1008-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1008-
243
PROTECTOR; NOISE SHUT PANEL
1-79937-906-2
01
1
1008-
249
RUBBER; SHUTTER
(A)
1-79937-924-2
01
1
1008-
249
RUBBER; SHUTTER
(C)
1-79937-981-1
01
1
1008-
249
RUBBER; SHUTTER
(E)
8-98079-173-0
01
1
1008-
249
RUBBER; SHUTTER
(D)
8-98146-437-0
01
1
1008-
249
RUBBER; SHUTTER
(B)
1-79937-979-1
01
1
1008-
249
RUBBER; SHUTTER
(F)
8-98146-436-0
01
1
1008-
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1008-1112
250
FASTENER; SHUTTER
(A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1201-
250
FASTENER; SHUTTER
CONCRETE PUMP<RA5> EURO3 SPECIFICATION<NJX> CHINA EQUIPMENT(YT2) (A) D6X16 PUSH RIVET
1-09983-105-0
06
1
1201-
250
FASTENER; SHUTTER
(B) D8X13.5
1-09987-248-1
09
1
1008-
259
BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER
8-98059-720-0
10
1
1008-
281
INSULATOR; NOISE
(B)
1-79937-956-1
01
1
1008-
281
INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (A)
1-73237-445-4
01
1
1008-
308
FASTENER; MUD GUARD
(A)
1-09470-007-0
08
1
1008-
308
FASTENER; MUD GUARD
(B) ID=6X6 OD=8
1-09987-194-0
02
1
1008-
130
251
74
251
130
73
251
251
122
168
167
122
167
162
160
122
162
160
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
73
BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER
1-09030-093-0
06
1
1008-
73
BOLT; MUD COVER BRKT
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) M8X16 FLANGE
0-28250-816-0
02
1
1008-1203
73
BOLT; MUD COVER BRKT
(B) M8X16 FLANGE
0-28250-816-0
02
1
1204-
73
BOLT; MUD COVER BRKT
EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) M8X16 FLANGE
0-28250-816-0
05
1
1008-1203
74
NUT
M8 FLANGE
0-91180-108-0
06
1
1008-1203
74
NUT
M8 FLANGE
0-91180-108-0
04
1
1204-
74
NUT
M8 FLANGE
0-91180-108-0
01
1
1008-1203
74
NUT
M8 FLANGE
0-91180-108-0
03
1
1204-
122
BOLT
EURO4 SPECIFICATION<KBT> STD DECK WO/REAR BODY<TFR> (C) M8X35 FLANGE
0-28650-835-0
04
1
1008-
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (A) M8X20 FLANGE
0-28650-820-0
03
1
1008-
122
BOLT
EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X30 FLANGE
0-28650-830-0
03
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-435-1
01
1
1008-
130
PANEL; SHUTTER NOISE
(C)
8-98159-129-0
01
1
1008-
130
PANEL; SHUTTER NOISE
(D)
1-79937-943-2
01
1
1008-
130
PANEL; SHUTTER NOISE
(B)
8-98146-434-1
01
1
1008-
130
PANEL; SHUTTER NOISE
POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)
1-53194-652-0
01
1
1008-1203
130
PANEL; SHUTTER NOISE
(A)
1-53194-652-0
01
1
1204-
130
PANEL; SHUTTER NOISE
EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)
1-53194-376-0
01
1
1008-1203
130
PANEL; SHUTTER NOISE
SILENCER SINGLE VERTICAL<N28> (A)
1-53192-818-6
01
1
1008-
130
PANEL; SHUTTER NOISE
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-53194-380-2
01
1
1008-
160
COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-79931-408-4
01
1
1008-1207
160
COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (A)
1-79931-411-2
01
1
1208-
160
COVER ASM; EXH
EXC. SILENCER SINGLE VERTICAL<N28> (B)
1-79931-412-1
01
1
1008-
162
BRACKET
(A)
1-53441-520-0
02
1
1008-
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (B)
1-53441-521-2
01
1
1008-
162
BRACKET
EXC. SILENCER SINGLE VERTICAL<N28> (C)
1-53441-522-0
01
1
1008-
167
BOLT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE
0-28650-820-0
05
1
1008-
168
NUT; EXH COVER
EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE
0-91180-108-0
01
1
1008-
251
CLIP; NOISE INSULATOR
(A)
8-94165-394-0
05
1
1008-
251
CLIP; NOISE INSULATOR
(B)
8-94279-048-0
05
1
1008-
251
CLIP; NOISE INSULATOR
(A)
8-94165-394-0
04
1
1008-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
