6-01 — FRONT BUMPER (#6352) — 126 parça

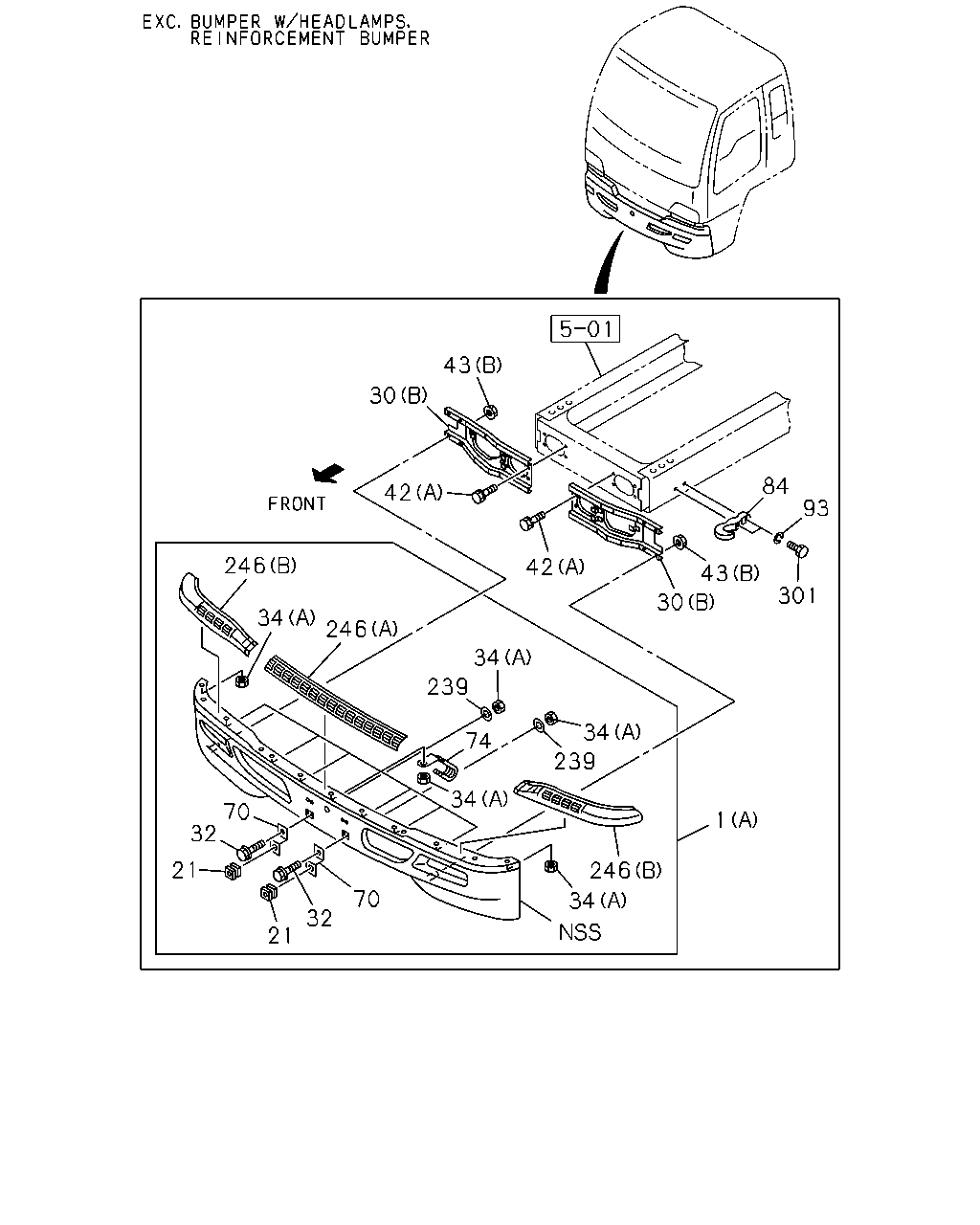

43 30 84 42 93 246 42 43 301 30 34 246 34 239 34 74 239 34 70 32 1 21 246 70 34 32 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-718-1	01	1	9604-9608
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-813-0	01	1	9609-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-949-0	01	1	9905-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-546-3	01	1	9604-9608
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9609-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-722-1	01	1	9604-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	9609-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	9604-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-355-0	01	1	9604-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-439-1	01	1	9612-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-354-0	01	1	9604-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-438-1	01	1	9612-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	9604-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	9604-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-393-0	01	1	9604-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-421-0	01	1	9606-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-392-0	01	1	9604-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-420-0	01	1	9606-
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9604-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M14 FLANGE	0-91150-114-0	04	1	9604-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	9604-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> (B) M10X20 FLANGE	0-28081-020-0	06	1	9604-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9604-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	08	1	9604-9605
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	04	1	9606-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X25 FLANGE	0-28081-025-0	04	1	9606-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> (A) CAP NUT M10 W/PLAIN WASHER M10 CAP NUT	1-09650-480-0	08	1	9604-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	9604-
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	9604-
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	9604-
84	HOOK	1-57181-027-1	01	1	9604-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9604-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	9905-
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	9604-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) CENTER	1-71260-155-0	01	1	9604-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9604-
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9604-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	9-91066-670-0	01	1	9604-9712
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9801-

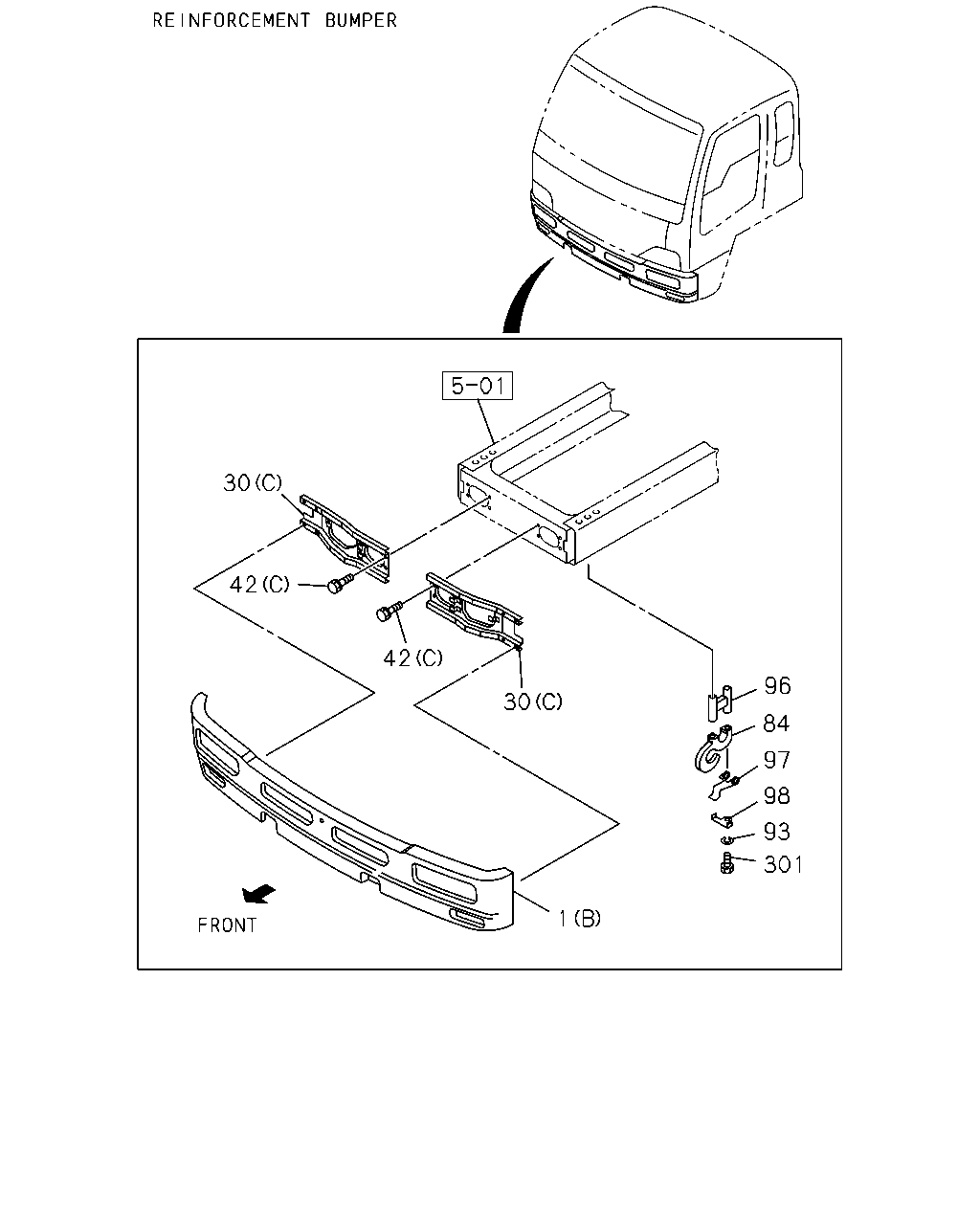

30 42 42 96 30 84 97 98 93 301 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-718-1	01	1	9604-9608
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-813-0	01	1	9609-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-949-0	01	1	9905-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-546-3	01	1	9604-9608
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9609-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-722-1	01	1	9604-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	9609-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-355-0	01	1	9604-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-439-1	01	1	9612-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-354-0	01	1	9604-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-438-1	01	1	9612-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	9604-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	9604-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-393-0	01	1	9604-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-421-0	01	1	9606-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-392-0	01	1	9604-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-420-0	01	1	9606-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> (B) M10X20 FLANGE	0-28081-020-0	06	1	9604-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9604-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	08	1	9604-9605
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	04	1	9606-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X25 FLANGE	0-28081-025-0	04	1	9606-
84	HOOK	1-57181-027-1	01	1	9604-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9604-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-57189-193-0	01	1	9604-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9604-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9604-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	9-91066-670-0	01	1	9604-9712
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9801-

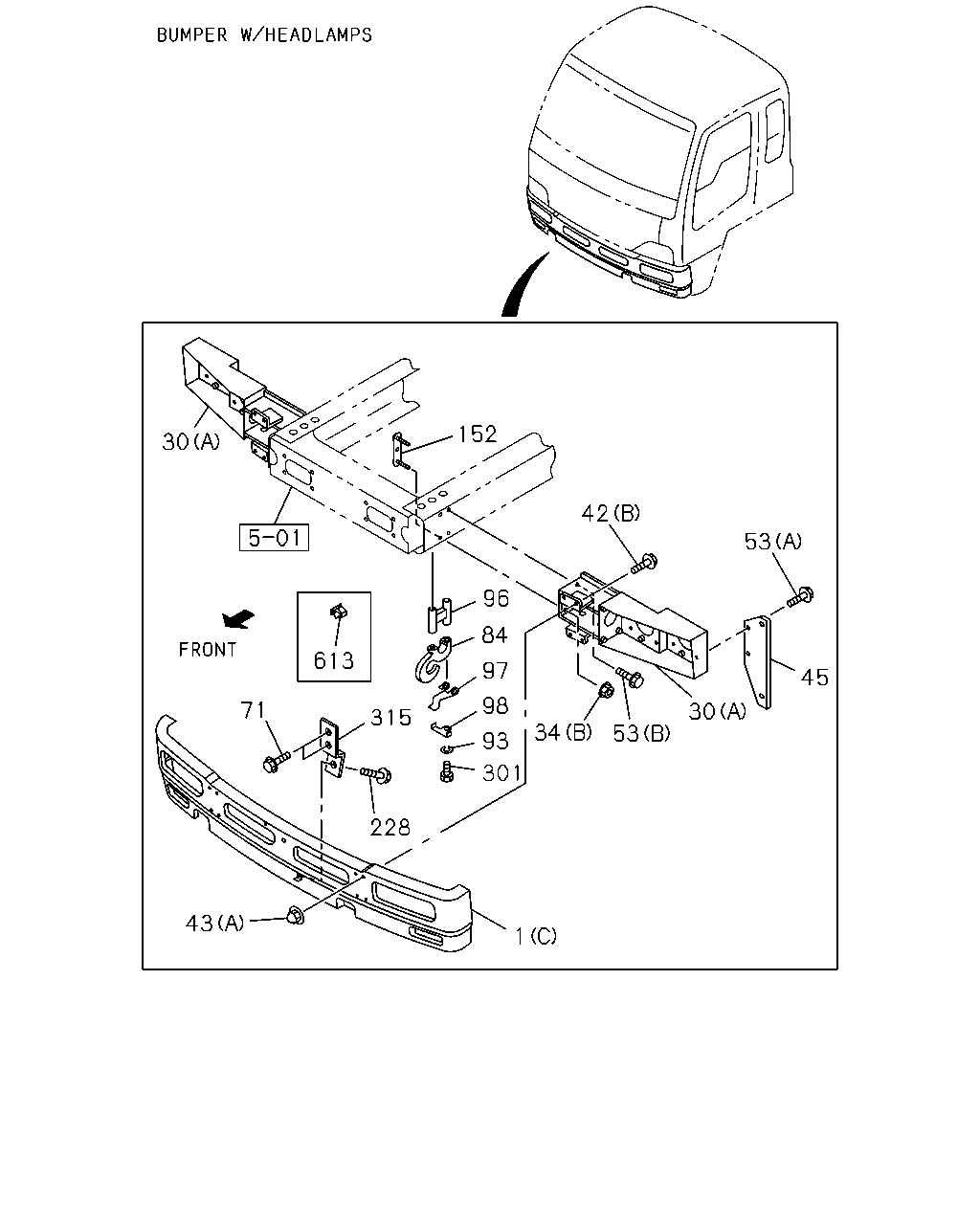

152 30 42 53 96 84 613 97 45 98 71 30 315 34 53 93 301 228 43 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-718-1	01	1	9604-9608
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-813-0	01	1	9609-9904
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> (C)	1-71210-949-0	01	1	9905-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-546-3	01	1	9604-9608
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9609-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-722-1	01	1	9604-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-817-0	01	1	9609-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-355-0	01	1	9604-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-439-1	01	1	9612-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-354-0	01	1	9604-9611
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> (A)	1-71230-438-1	01	1	9612-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	9604-
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	9604-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-393-0	01	1	9604-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-421-0	01	1	9606-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-392-0	01	1	9604-9605
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-420-0	01	1	9606-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> (B) M14 FLANGE	0-91150-114-0	04	1	9604-
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M8 FLANGE	0-91150-108-0	15	1	9604-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> (B) M10X20 FLANGE	0-28081-020-0	06	1	9604-
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9604-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	08	1	9604-9605
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X30 FLANGE	0-28081-030-0	04	1	9606-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (C) M10X25 FLANGE	0-28081-025-0	04	1	9606-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> (A) CAP NUT M10 W/PLAIN WASHER M10 CAP NUT	1-09650-480-0	08	1	9604-
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB> (B) M10 FLANGE	5-09440-006-0	08	1	9604-
45	BRACKET; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-366-0	02	1	9604-
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (A) M10X20 FLANGE	0-28081-020-0	08	1	9604-9606
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (A) M10X20 FLANGE	0-28681-020-0	08	1	9607-
53	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> (B) M14X35	0-28081-435-0	04	1	9604-
71	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	02	1	9604-
84	HOOK	1-57181-027-1	01	1	9604-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9604-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-516-0	01	1	9905-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-57189-193-0	01	1	9604-9904
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-57189-203-1	01	1	9905-
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9604-
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9604-
152	PLATE; FRT BUMPER BUMPER W/HEADLAMPS<SLB>	1-53497-546-1	02	1	9604-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9604-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X80	9-91061-680-0	01	1	9905-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9604-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	9-91066-670-0	01	1	9604-9712
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9801-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB>	1-71230-390-0	01	1	9604-
613	CLIP BUMPER W/HEADLAMPS<SLB> OD=9 H=17.5	1-09709-181-0	02	1	9604-
