Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#63504) — 274 parça

69 72 70 203 204 65 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	1008-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1008-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1008-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	1008-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	1008-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1008-
202	NUT; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M10	9-09111-410-0	04	1	1104-
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1008-1103
202	NUT; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M10	9-09110-410-0	04	1	1104-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1008-1103
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	1104-
203	WASHER; RUBBER,SHOCK EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	1104-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1008-1103
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	1104-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1008-
204	RUBBER; CUSHION,SHOCK EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-51631-004-0	08	1	1104-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1008-1103
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	1104-
205	WASHER; RUBBER,SHOCK EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-51631-079-0	06	1	1104-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1008-1103
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	1104-

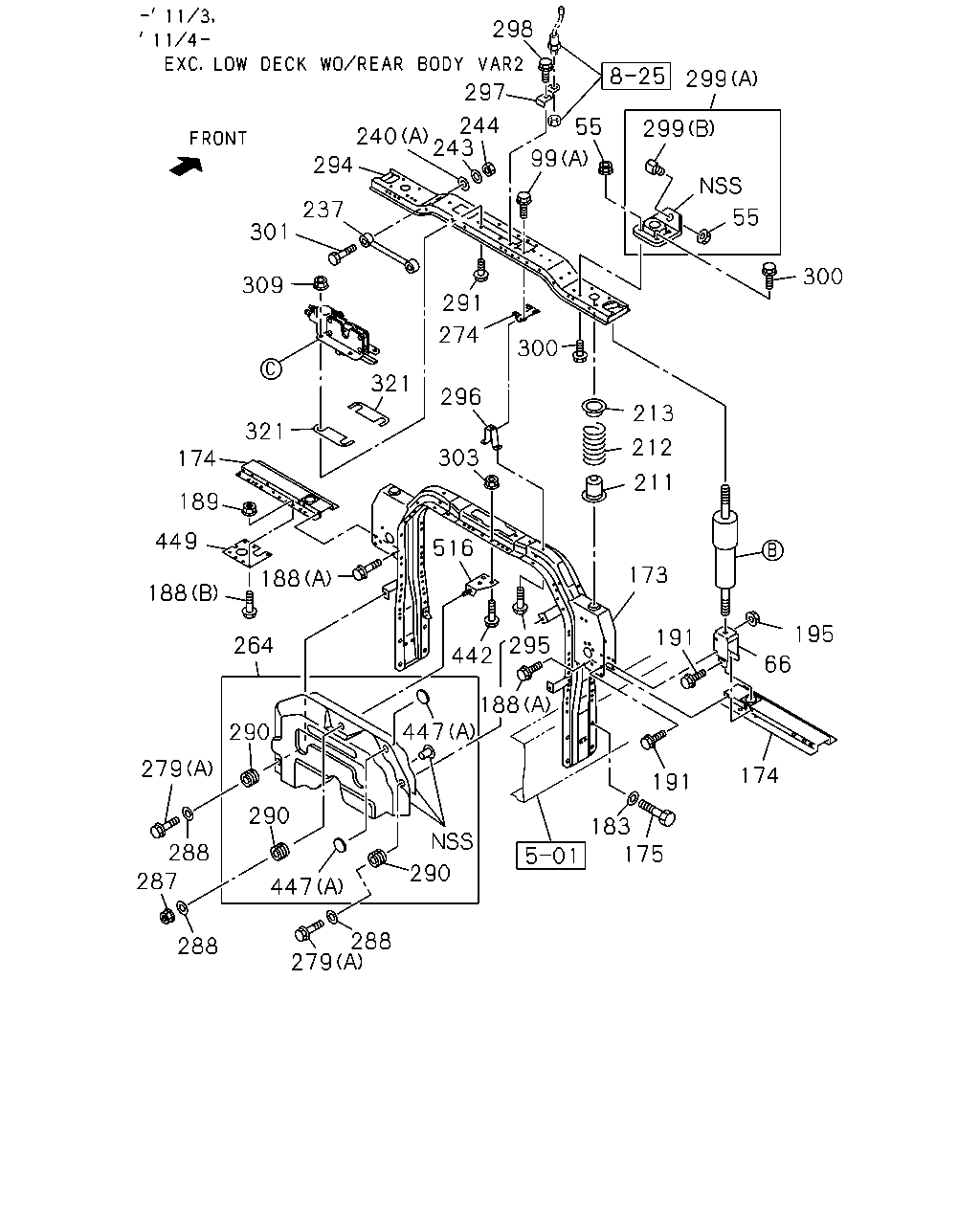

298 299 55 297 244 243 299 240 99 294 237 55 301 300 309 291 274 300 321 296 213 321 212 303 174 211 516 189 449 188 173 188 195 191 295 264 442 66 188 447 290 279 174 191 290 183 175 288 290 287 447 288 279 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER EXC. LOW DECK WO/REAR BODY VAR2<XR8> M8 FLANGE	0-91180-108-0	04	1	1104-
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	1008-1103
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	02	1	1104-
66	BRACKET; S/ABS	1-53458-755-1	01	1	1008-1103
66	BRACKET; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53458-755-1	01	1	1104-1204
66	BRACKET; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1008-1103
66	BRACKET; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53458-786-0	01	1	1104-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-1103
99	BOLT; BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M8X20 FLANGE	0-28650-820-0	04	1	1104-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	1008-
173	MEMBER; CAB MTG RR LOW DECK WO/REAR BODY VAR2<XR8>	8-98188-790-0	01	1	1104-
173	MEMBER; CAB MTG RR EXC. EURO4 SPECIFICATION<KBT>	8-98166-348-0	01	1	1010-1103
173	MEMBER; CAB MTG RR EXC. EURO4 SPECIFICATION<KBT>,LOW DECK WO/REAR BODYVAR2<XR8>	8-98166-348-0	01	1	1104-1104
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK) EXC. EURO4 SPECIFICATION<KBT>,LOW DECK WO/REAR BODYVAR2<XR8>	8-98166-348-0	01	1	1105-
173	MEMBER; CAB MTG RR	1-53450-686-3	01	1	1008-1009
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT>	8-98169-447-0	01	1	1010-1103
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT> EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98169-447-0	01	1	1104-1104
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT> CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98169-447-0	01	1	1105-
174	OUTRIGGER	8-98158-646-0	01	1	1008-
174	OUTRIGGER 6WF1 TC-C(1B8)	8-98158-645-0	01	1	1008-
174	OUTRIGGER 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	8-98158-645-0	01	1	1008-
174	OUTRIGGER 6WG1 TC-R(75L) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	8-97614-275-1	01	1	1008-
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	1008-
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1008-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	1008-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	1008-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	1008-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	1008-1103
191	BOLT; BRKT FIX EXC. LOW DECK WO/REAR BODY VAR2<XR8> M10X25 FLANGE	0-28651-025-0	07	1	1104-
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1008-1103
195	NUT; BRKT FIX EXC. LOW DECK WO/REAR BODY VAR2<XR8> M10 FLANGE	0-91180-210-0	04	1	1104-
211	RUBBER; CUSHION,S/ABS	1-53366-128-0	02	1	1008-1103
211	RUBBER; CUSHION,S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53366-128-0	02	1	1104-1104
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53366-128-0	02	1	1105-
212	SPRING; COIL	1-09580-515-0	02	1	1008-1103
212	SPRING; COIL EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-09580-515-0	02	1	1104-1104
212	SPRING; COIL CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-09580-515-0	02	1	1105-
213	SEAT; SPR,S/ABS	1-53366-132-1	02	1	1008-1103
213	SEAT; SPR,S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53366-132-1	02	1	1104-1104
213	SEAT; SPR,S/ABS CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53366-132-1	02	1	1105-
237	ROD ASM; LATERAL	1-53458-343-0	01	1	1008-1103
237	ROD ASM; LATERAL EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53458-343-0	01	1	1104-
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1008-1103
240	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=12.5 OD=22	0-91610-512-0	02	1	1104-
240	WASHER; PL,BRKT (C) ID=10.5 OD=18	1-09985-173-0	01	1	1008-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1008-
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	1008-1103
243	WASHER; LK,LATERAL ROD EXC. LOW DECK WO/REAR BODY VAR2<XR8> ID=12.2	0-91510-512-0	02	1	1104-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	1008-1103
244	NUT; LATERAL ROD EXC. LOW DECK WO/REAR BODY VAR2<XR8> M12	0-91110-512-0	02	1	1104-
264	PANEL; BACK EURO4 SPECIFICATION<KBT>	1-53194-511-2	01	1	1008-
274	PIN	1-53458-996-0	01	1	1008-1103
274	PIN EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53458-996-0	01	1	1104-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1008-
279	BOLT EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
287	NUT EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	01	1	1008-
288	WASHER; PL EURO4 SPECIFICATION<KBT> ID=8.4 OD=26	0-91614-808-0	03	1	1008-
290	RUBBER; MTG EURO4 SPECIFICATION<KBT>	1-53459-702-1	03	1	1008-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	1008-
294	MEMBER; FLOATING LOW DECK WO/REAR BODY VAR2<XR8>	8-98192-092-0	01	1	1104-
294	MEMBER; FLOATING	1-53454-950-3	01	1	1008-1103
294	MEMBER; FLOATING EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53454-950-3	01	1	1104-1104
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53454-950-3	01	1	1105-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	1008-1103
295	BOLT; STOPPER,UPR EXC. LOW DECK WO/REAR BODY VAR2<XR8> M10X20 FLANGE	0-28651-020-0	02	1	1104-
296	STOPPER; UPR	1-53458-973-1	01	1	1008-1103
296	STOPPER; UPR EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53458-973-1	01	1	1104-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	1008-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1008-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	1008-
299	RUBBER; MTG (A)	1-53366-194-0	02	1	1008-
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1008-1104
300	BOLT; MTG RUBBER CAB SUSPENSION-FULL FLOATING(SMK) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1105-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	1008-1103
301	PIN; LATERAL ROD EXC. LOW DECK WO/REAR BODY VAR2<XR8> M12X57.5	1-53459-498-1	02	1	1104-
303	NUT; BRKT EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	02	1	1008-
309	NUT M10 FLANGE	0-91180-210-0	04	1	1008-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	1008-
442	BOLT; BRKT EURO4 SPECIFICATION<KBT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
447	SEAL (B) OD=25 BLACK	1-76798-019-0	03	1	1008-
447	SEAL EURO4 SPECIFICATION<KBT> (A) OD=45 BLACK	1-76798-017-0	02	1	1008-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	1008-
516	BRACKET; PANEL EURO4 SPECIFICATION<KBT>	1-53496-020-0	01	1	1008-

202 294 202 203 204 205 204 203 201 173 203 204 205 66 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	BRACKET; S/ABS	1-53458-755-1	01	1	1008-1103
66	BRACKET; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53458-755-1	01	1	1104-1204
66	BRACKET; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	1008-1103
66	BRACKET; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53458-786-0	01	1	1104-
173	MEMBER; CAB MTG RR LOW DECK WO/REAR BODY VAR2<XR8>	8-98188-790-0	01	1	1104-
173	MEMBER; CAB MTG RR EXC. EURO4 SPECIFICATION<KBT>	8-98166-348-0	01	1	1010-1103
173	MEMBER; CAB MTG RR EXC. EURO4 SPECIFICATION<KBT>,LOW DECK WO/REAR BODYVAR2<XR8>	8-98166-348-0	01	1	1104-1104
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK) EXC. EURO4 SPECIFICATION<KBT>,LOW DECK WO/REAR BODYVAR2<XR8>	8-98166-348-0	01	1	1105-
173	MEMBER; CAB MTG RR	1-53450-686-3	01	1	1008-1009
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT>	8-98169-447-0	01	1	1010-1103
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT> EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98169-447-0	01	1	1104-1104
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT> CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98169-447-0	01	1	1105-
174	OUTRIGGER	8-98158-646-0	01	1	1008-
174	OUTRIGGER 6WF1 TC-C(1B8)	8-98158-645-0	01	1	1008-
174	OUTRIGGER 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	8-98158-645-0	01	1	1008-
174	OUTRIGGER 6WG1 TC-R(75L) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	8-97614-275-1	01	1	1008-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	1008-1103
201	ABSORBER ASM; SHOCK,RR MTG EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-51630-728-1	02	1	1104-
202	NUT; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M10	9-09111-410-0	04	1	1104-
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	1008-1103
202	NUT; S/ABS EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M10	9-09110-410-0	04	1	1104-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	1008-1103
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	1104-
203	WASHER; RUBBER,SHOCK EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=10.8 OD=38 T=6	1-51631-005-0	08	1	1104-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	1008-1103
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	02	1	1104-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	1008-
204	RUBBER; CUSHION,SHOCK EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-51631-004-0	08	1	1104-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	1008-1103
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	1104-
205	WASHER; RUBBER,SHOCK EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-51631-079-0	06	1	1104-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	1008-1103
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	1104-
294	MEMBER; FLOATING LOW DECK WO/REAR BODY VAR2<XR8>	8-98192-092-0	01	1	1104-
294	MEMBER; FLOATING	1-53454-950-3	01	1	1008-1103
294	MEMBER; FLOATING EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53454-950-3	01	1	1104-1104
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53454-950-3	01	1	1105-

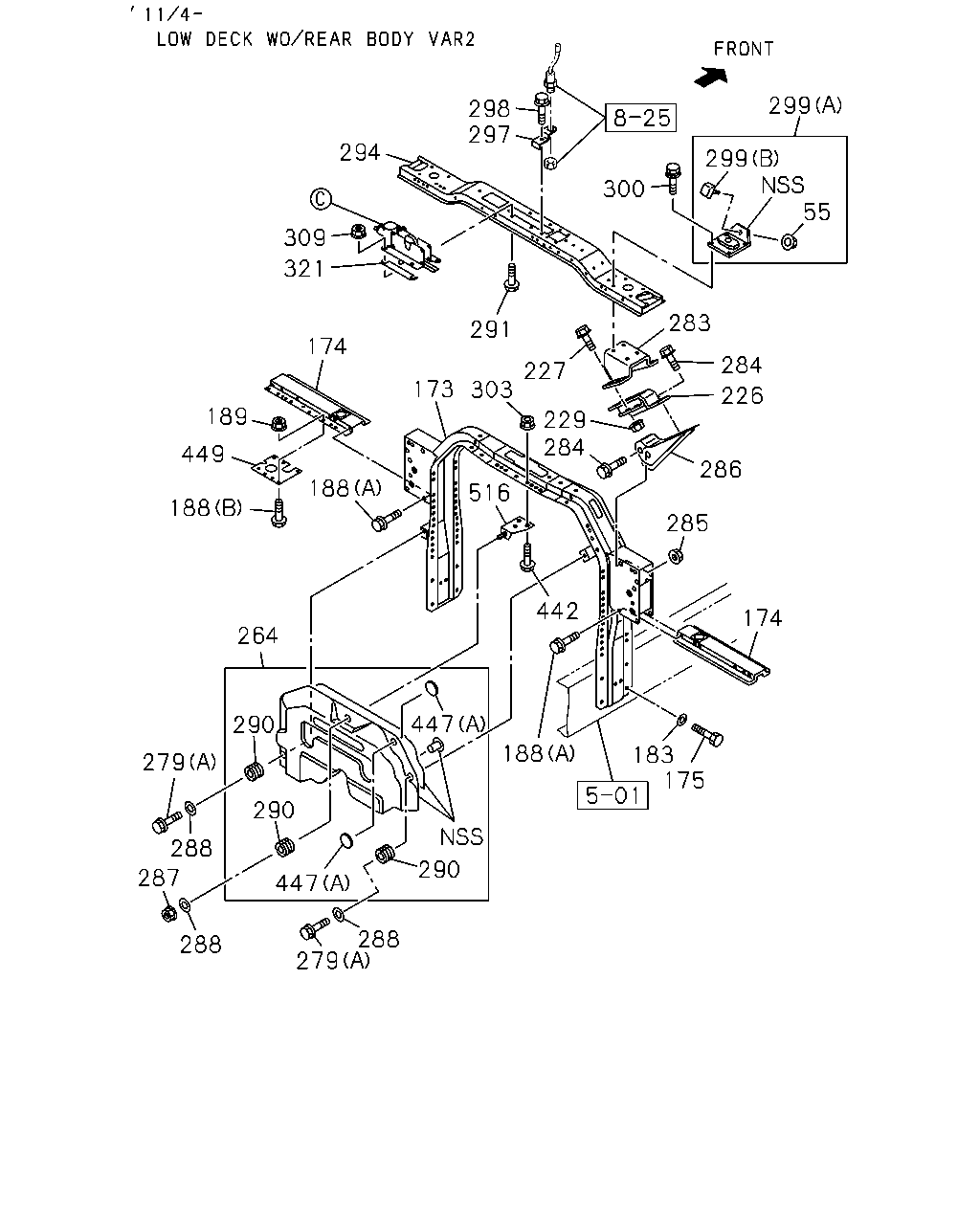

299 298 297 294 299 55 300 309 321 283 291 174 284 227 173 303 226 189 229 284 516 449 286 188 188 285 442 174 264 447 290 188 183 175 279 290 288 290 287 447 288 279 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER EXC. LOW DECK WO/REAR BODY VAR2<XR8> M8 FLANGE	0-91180-108-0	04	1	1104-
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	1008-1103
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	02	1	1104-
173	MEMBER; CAB MTG RR LOW DECK WO/REAR BODY VAR2<XR8>	8-98188-790-0	01	1	1104-
173	MEMBER; CAB MTG RR EXC. EURO4 SPECIFICATION<KBT>	8-98166-348-0	01	1	1010-1103
173	MEMBER; CAB MTG RR EXC. EURO4 SPECIFICATION<KBT>,LOW DECK WO/REAR BODYVAR2<XR8>	8-98166-348-0	01	1	1104-1104
173	MEMBER; CAB MTG RR CAB SUSPENSION-FULL FLOATING(SMK) EXC. EURO4 SPECIFICATION<KBT>,LOW DECK WO/REAR BODYVAR2<XR8>	8-98166-348-0	01	1	1105-
173	MEMBER; CAB MTG RR	1-53450-686-3	01	1	1008-1009
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT>	8-98169-447-0	01	1	1010-1103
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT> EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98169-447-0	01	1	1104-1104
173	MEMBER; CAB MTG RR EURO4 SPECIFICATION<KBT> CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	8-98169-447-0	01	1	1105-
174	OUTRIGGER	8-98158-646-0	01	1	1008-
174	OUTRIGGER 6WF1 TC-C(1B8)	8-98158-645-0	01	1	1008-
174	OUTRIGGER 6WG1 TC-R(75L) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	8-98158-645-0	01	1	1008-
174	OUTRIGGER 6WG1 TC-R(75L) EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	8-97614-275-1	01	1	1008-
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	1008-
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1008-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	1008-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	1008-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	1008-
226	RUBBER; BUFFER LOW DECK WO/REAR BODY VAR2<XR8>	1-53366-131-1	02	1	1104-
227	BOLT; BUFFER RUBBER ROD LOW DECK WO/REAR BODY VAR2<XR8> M10X25 FLANGE	0-28651-025-0	08	1	1104-
229	NUT LOW DECK WO/REAR BODY VAR2<XR8> M10 FLANGE	0-91180-210-0	08	1	1104-
264	PANEL; BACK EURO4 SPECIFICATION<KBT>	1-53194-511-2	01	1	1008-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1008-
279	BOLT EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
283	BRACKET; UPR LOW DECK WO/REAR BODY VAR2<XR8>	1-53458-369-0	02	1	1104-
284	BOLT; BRKT UPR LOW DECK WO/REAR BODY VAR2<XR8> M10X25 FLANGE	0-28651-025-0	20	1	1104-
285	NUT; BRKT UPR LOW DECK WO/REAR BODY VAR2<XR8> M10 FLANGE	0-91180-210-0	02	1	1104-
286	BRACKET; LOW LOW DECK WO/REAR BODY VAR2<XR8>	8-97610-260-0	02	1	1104-
287	NUT EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	01	1	1008-
288	WASHER; PL EURO4 SPECIFICATION<KBT> ID=8.4 OD=26	0-91614-808-0	03	1	1008-
290	RUBBER; MTG EURO4 SPECIFICATION<KBT>	1-53459-702-1	03	1	1008-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	1008-
294	MEMBER; FLOATING LOW DECK WO/REAR BODY VAR2<XR8>	8-98192-092-0	01	1	1104-
294	MEMBER; FLOATING	1-53454-950-3	01	1	1008-1103
294	MEMBER; FLOATING EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53454-950-3	01	1	1104-1104
294	MEMBER; FLOATING CAB SUSPENSION-FULL FLOATING(SMK) EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-53454-950-3	01	1	1105-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	1008-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1008-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	1008-
299	RUBBER; MTG (A)	1-53366-194-0	02	1	1008-
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1008-1104
300	BOLT; MTG RUBBER CAB SUSPENSION-FULL FLOATING(SMK) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	1105-
303	NUT; BRKT EURO4 SPECIFICATION<KBT> M8 FLANGE	0-91180-108-0	02	1	1008-
309	NUT M10 FLANGE	0-91180-210-0	04	1	1008-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	1008-
442	BOLT; BRKT EURO4 SPECIFICATION<KBT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
447	SEAL (B) OD=25 BLACK	1-76798-019-0	03	1	1008-
447	SEAL EURO4 SPECIFICATION<KBT> (A) OD=45 BLACK	1-76798-017-0	02	1	1008-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	1008-
516	BRACKET; PANEL EURO4 SPECIFICATION<KBT>	1-53496-020-0	01	1	1008-

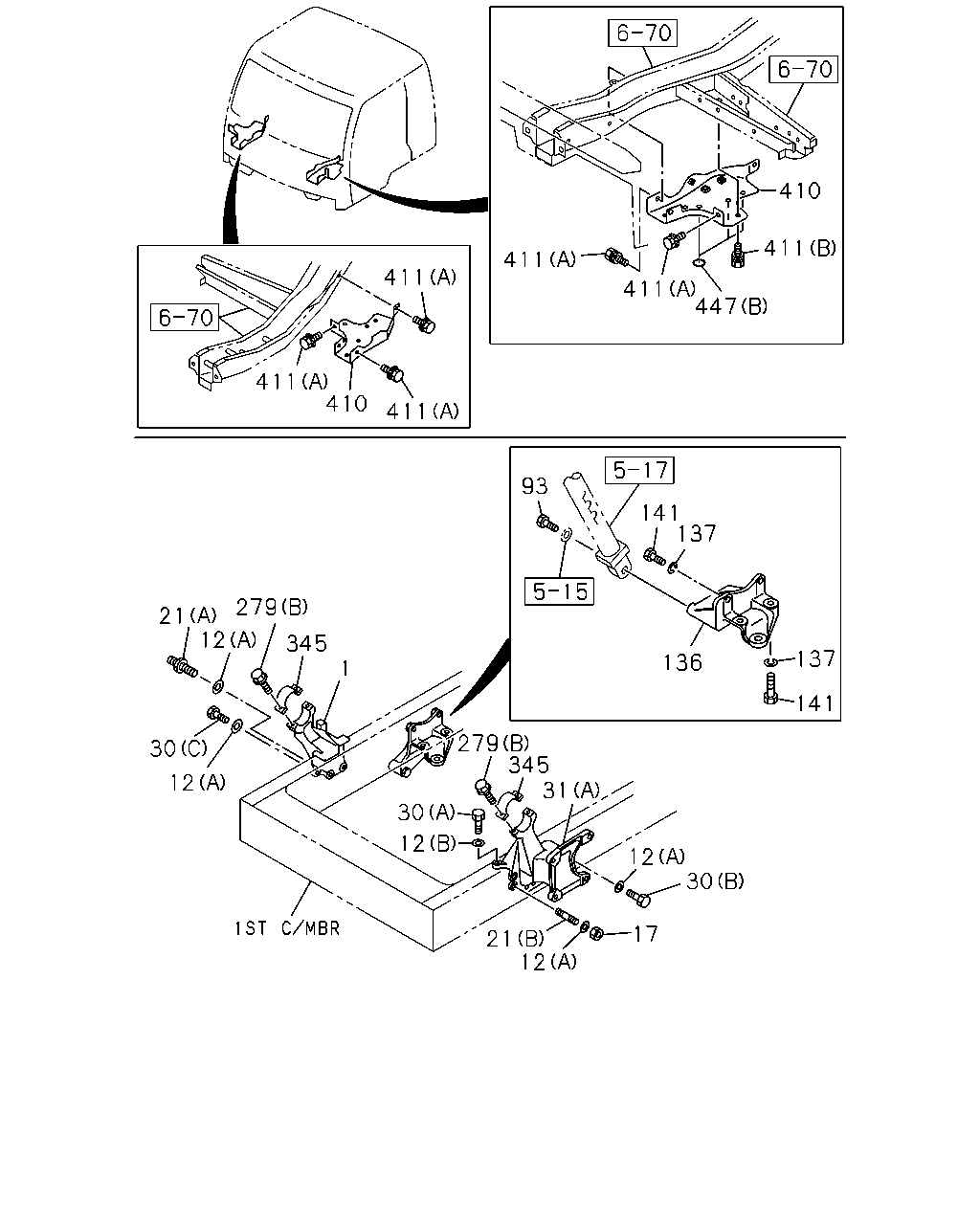

410 411 447 411 411 411 411 410 411 93 141 137 136 137 141 30 12 17 12 21 12 30 31 345 279 12 30 1 345 279 21 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-306-1	01	1	1008-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-316-0	11	1	1008-
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	02	1	1008-
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	1008-
21	STUD; BRKT,CAB TILT (A) M10X20,M16X50 L=81	1-09029-069-0	02	1	1008-
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	1008-
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	1008-
30	BOLT; CAB FRT FOOT (B) M16X50	0-20951-650-0	05	1	1008-
30	BOLT; CAB FRT FOOT (C) M16X45	9-92061-645-0	03	1	1008-
31	BRACKET; CAB (A)	1-44226-176-2	01	1	1008-1108
31	BRACKET; CAB (A)	1-44226-177-3	01	1	1109-
31	BRACKET; CAB (B)	1-53453-274-1	01	1	1008-
31	BRACKET; CAB (B)	1-53453-280-2	01	1	1008-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	1008-
136	BRACKET; OIL CYL	1-53458-903-0	01	1	1008-
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1008-
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	1008-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	1008-
279	BOLT EURO4 SPECIFICATION<KBT> (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
345	CAP; CAB	1-53458-336-3	02	1	1008-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	1008-
410	REINFORCEMENT; CAB TILT	1-62570-939-0	01	1	1008-
411	BOLT; REINFORCEMENT (B) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	1008-
411	BOLT; REINFORCEMENT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	1008-
447	SEAL (B) OD=25 BLACK	1-76798-019-0	03	1	1008-
447	SEAL EURO4 SPECIFICATION<KBT> (A) OD=45 BLACK	1-76798-017-0	02	1	1008-

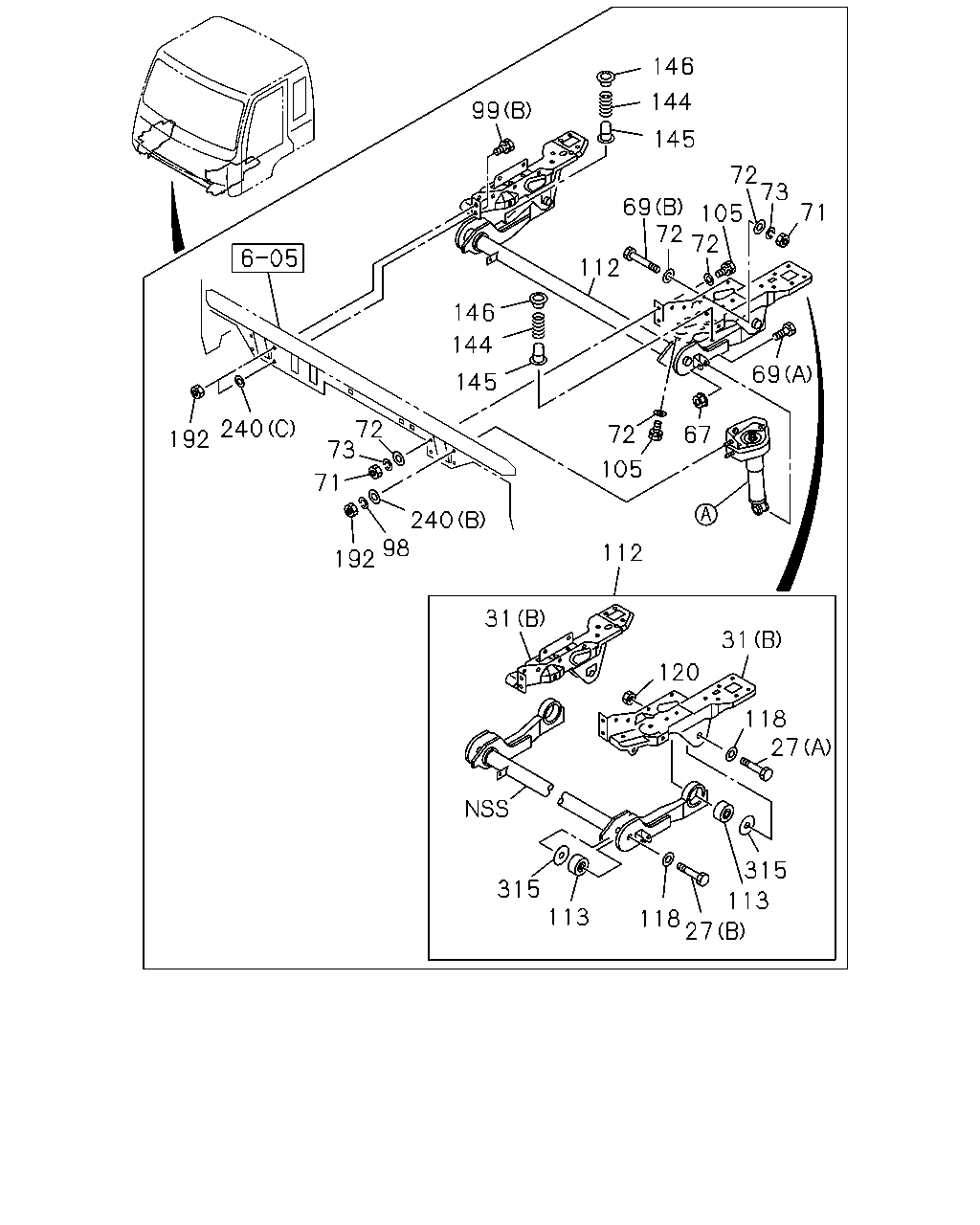

146 144 145 72 73 71 105 69 72 72 112 146 144 145 69 99 192 240 72 73 71 192 98 240 72 67 105 112 31 315 113 118 27 113 315 27 118 31 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	1008-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	1008-
31	BRACKET; CAB (A)	1-44226-176-2	01	1	1008-1108
31	BRACKET; CAB (A)	1-44226-177-3	01	1	1109-
31	BRACKET; CAB (B)	1-53453-274-1	01	1	1008-
31	BRACKET; CAB (B)	1-53453-280-2	01	1	1008-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	1008-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	1008-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	1008-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	04	1	1008-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	1008-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	1008-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	1008-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	1008-1103
99	BOLT; BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M8X20 FLANGE	0-28650-820-0	04	1	1104-
99	BOLT; BRKT (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	1008-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	11	1	1008-
112	ARM ASM; LINK,CAB FRT SUSP 6WF1 TC-C(1B8)	1-53450-567-7	01	1	1008-
112	ARM ASM; LINK,CAB FRT SUSP 6WG1 TC-R(75L)	8-97613-307-1	01	1	1008-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	1008-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	1008-
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	1008-
144	SPRING; COIL,CAB FRT SUSPENSION	1-09580-537-0	02	1	1008-
145	RUBBER; CUSHION,CAB FRT SUSPENSION	1-53366-139-0	02	1	1008-
146	SEAT; SPRING,CAB FRT SUSPENSION	1-53366-138-0	02	1	1008-
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	1008-
240	WASHER; PL,BRKT (A) ID=12.5 OD=22	0-91610-512-0	02	1	1008-1103
240	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=12.5 OD=22	0-91610-512-0	02	1	1104-
240	WASHER; PL,BRKT (C) ID=10.5 OD=18	1-09985-173-0	01	1	1008-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	1008-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	1008-

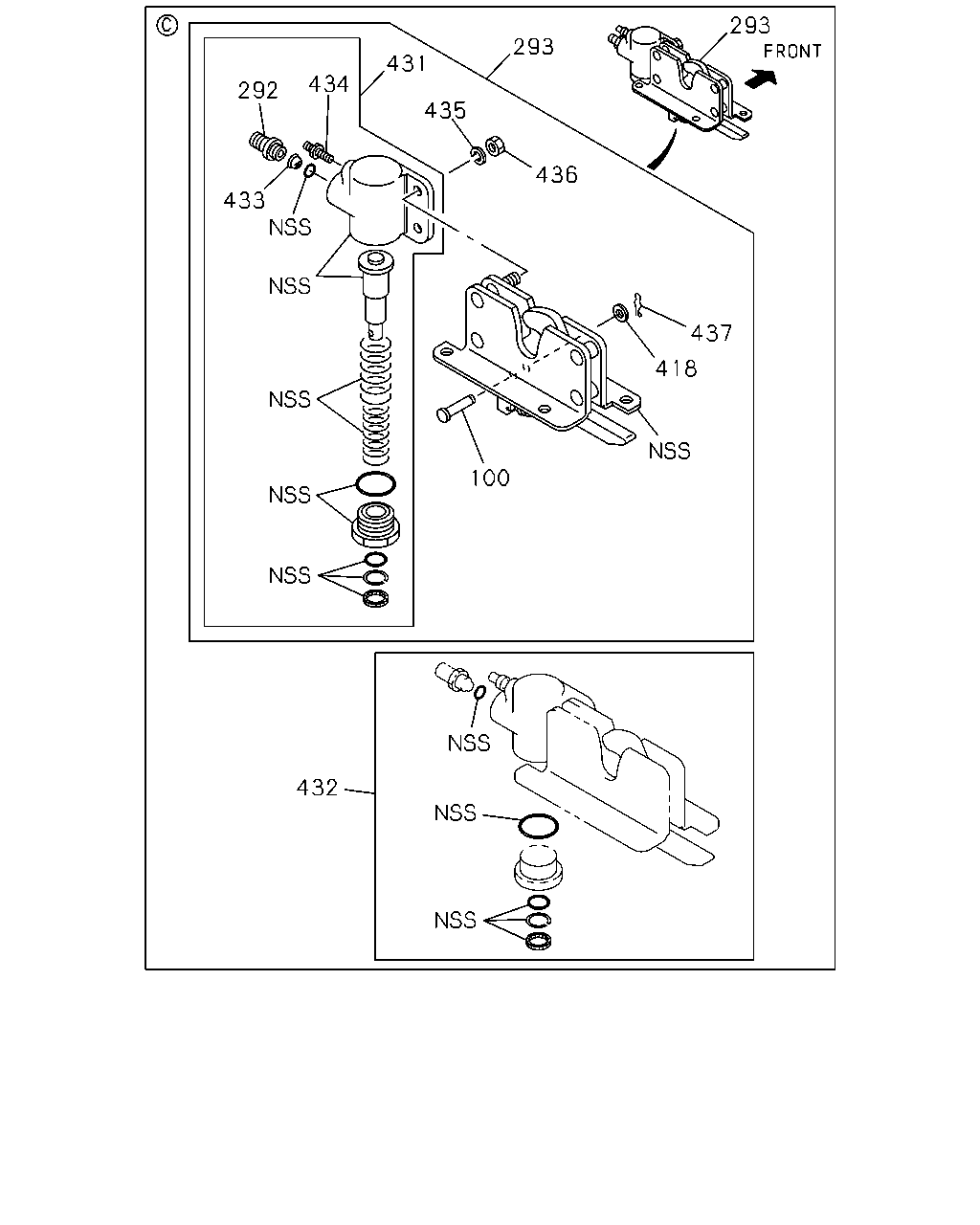

293 293 431 434 292 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	1008-
292	CONNECTOR; CAB SUSPENSION M12	1-53458-941-0	01	1	1008-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	1008-
418	WASHER; PL,PIN	1-53458-059-0	01	1	1008-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	1008-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	1008-
433	FILTER; AIR CYL	1-53458-048-0	01	1	1008-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	1008-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	1008-
436	NUT; AIR CYL	1-53458-528-0	02	1	1008-
437	PIN; SNAP	1-53458-526-0	01	1	1008-

37 36 35 4 35 34 34 4 4 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) CHINA EQUIPMENT(YT2)	8-98190-039-0	01	1	1106-
4	BRACKET; FRT MTG CAB SUSPENSION RIGID(W71) CHINA EQUIPMENT(YT2)	8-98190-042-0	01	1	1106-
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	1008-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	1008-
34	BOLT; CAB MTG BRKT,CAB SIDE CAB SUSPENSION RIGID(W71) CHINA EQUIPMENT(YT2) (A) M10X105	1-79198-008-1	06	1	1106-
34	BOLT; CAB MTG BRKT,CAB SIDE CAB SUSPENSION RIGID(W71) CHINA EQUIPMENT(YT2) (B) M10X35 W/LK&PL WASHER	8-94279-221-0	12	1	1106-
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION RIGID(W71) CHINA EQUIPMENT(YT2) ID=10.5 OD=26 T=2.6	1-09985-184-0	14	1	1106-
36	WASHER; LK,CAB MTG BRKT CAB SUSPENSION RIGID(W71) CHINA EQUIPMENT(YT2) ID=10	1-09985-185-0	06	1	1106-
37	NUT; CAB MTG BRKT,CAB SIDE CAB SUSPENSION RIGID(W71) CHINA EQUIPMENT(YT2) M10	1-09984-142-0	06	1	1106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
