5-01 — FRAME AND OTHER PARTS (#63503) — 112 parça

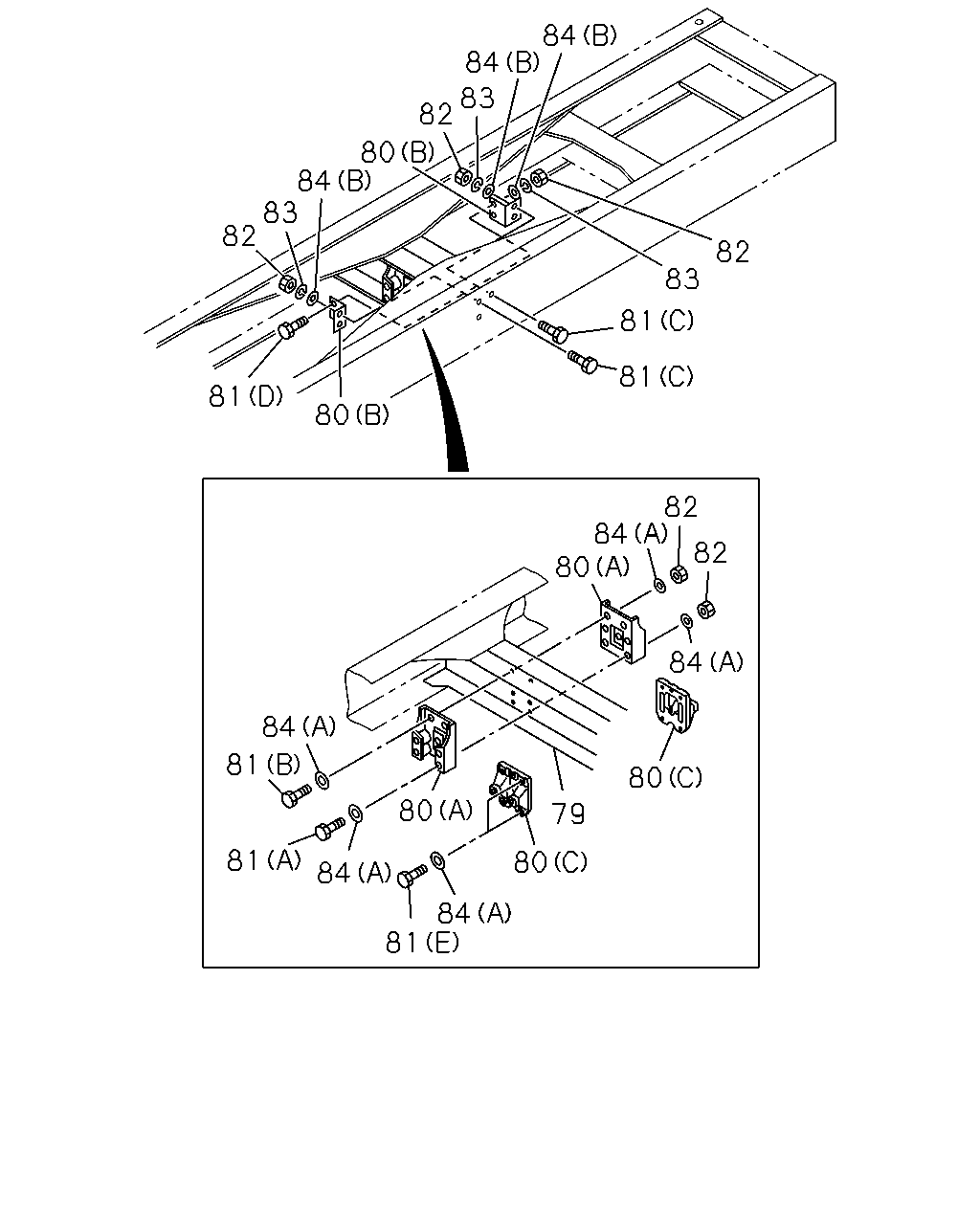

çizim 167016
82 83 81 81 80 81 82 83 84 80 82 83 84 84 82 82 84 80 84 80 79 80 84 81 80 84 81 81 84
BalonParca AdiParca NoAdetTipApplied Date A B C
79 MEMBER; CROSS,TRUNNION ASM 1-53182-054-1 01 1 1008- ● ● ●
80 BRACKET; C/MBR
(A) 		1-53363-031-2 02 1 1008- ● ●
80 BRACKET; C/MBR
MJX16P M/T(Y3Z) (A) 		1-53363-031-2 02 1 1008- ●
80 BRACKET; C/MBR
MJT7S M/T(Y3E) STD DECK WO/REAR BODY<TFR> (A) 		1-53363-031-2 02 1 1008- ●
80 BRACKET; C/MBR
(B) 		1-53167-288-1 04 1 1008- ● ● ●
80 BRACKET; C/MBR
MJT7S M/T(Y3E) LOW DECK WO/REAR BODY VAR2<XR8> (C) 		1-53363-076-0 02 1 1008- ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 07 1 1008- ● ●
81 BOLT; BRKT
MJX16P M/T(Y3Z) (B) M14X50 		0-20951-450-0 07 1 1008- ●
81 BOLT; BRKT
MJT7S M/T(Y3E) STD DECK WO/REAR BODY<TFR> (B) M14X50 		0-20951-450-0 07 1 1008- ●
81 BOLT; BRKT
(A) M14X205 		1-09000-147-0 02 1 1008- ● ●
81 BOLT; BRKT
MJX16P M/T(Y3Z) (A) M14X205 		1-09000-147-0 02 1 1008- ●
81 BOLT; BRKT
MJT7S M/T(Y3E) STD DECK WO/REAR BODY<TFR> (A) M14X205 		1-09000-147-0 02 1 1008- ●
81 BOLT; BRKT
(D) M14X60 		0-20951-460-0 04 1 1008- ● ● ●
81 BOLT; BRKT
(C) M14X45 		9-92061-445-0 08 1 1008- ● ● ●
81 BOLT; BRKT
MJT7S M/T(Y3E) LOW DECK WO/REAR BODY VAR2<XR8> (E) M14X100 		0-10956-400-0 04 1 1008- ●
81 BOLT; BRKT
MJT7S M/T(Y3E) LOW DECK WO/REAR BODY VAR2<XR8> (B) M14X50 		0-20951-450-0 05 1 1008- ●
82 NUT; BRKT
M14 		0-91110-514-0 13 1 1008- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 12 1 1008- ● ● ●
83 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 12 1 1008- ● ● ●
84 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 08 1 1008- ● ● ●
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		9-09164-514-0 16 1 1008-1104 ● ● ●
84 WASHER; PL,BRKT
(B) ID=15 OD=26 		0-91614-514-0 16 1 1105- ● ● ●

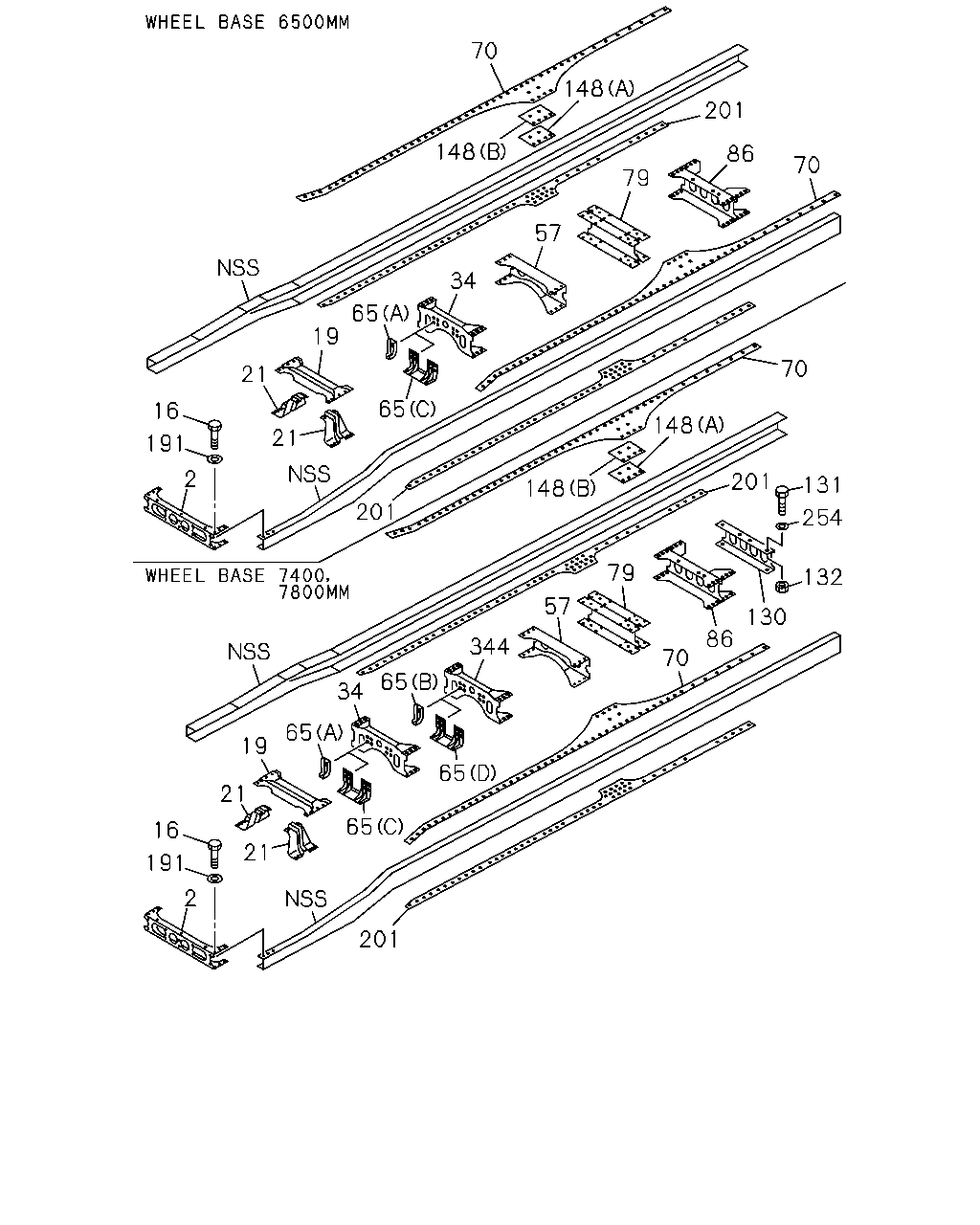

çizim 167042
70 148 148 201 86 70 79 57 34 65 19 21 16 191 21 2 65 201 148 148 70 131 254 201 132 130 86 70 79 57 344 65 34 65 65 201 21 65 19 21 16 191 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST
6WF1 TC-C(1B8) 		1-53181-975-7 01 1 1008- ● ● ●
2 MEMBER; CROSS,1ST
6WG1 TC-R(75L) 		8-98057-315-3 01 1 1008- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M14X40 		0-20951-440-0 02 1 1008- ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 1008- ● ● ●
21 GUSSET; 2ND CROSS 1-53164-208-0 02 1 1008- ● ● ●
34 MEMBER; CROSS,3RD 1-53182-070-1 01 1 1008- ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-3 01 1 1008- ● ● ●
65 BRACKET; CENTER BRG
MJT7S M/T(Y3E) (A) L=325 		1-53271-341-0 02 1 1008- ●
65 BRACKET; CENTER BRG
MJX16P M/T(Y3Z) (C) 		8-98140-252-0 01 1 1008- ● ● ●
65 BRACKET; CENTER BRG
MJT7S M/T(Y3E) (A) L=330 		1-53271-263-2 02 1 1008- ●
65 BRACKET; CENTER BRG
MJT7S M/T(Y3E) STD DECK WO/REAR BODY<TFR> (A) L=330 		1-53271-263-2 02 1 1008- ●
65 BRACKET; CENTER BRG
MJT7S M/T(Y3E) (B) L=360 		1-53271-357-0 02 1 1008- ●
65 BRACKET; CENTER BRG
MJT7S M/T(Y3E) STD DECK WO/REAR BODY<TFR> (B) L=360 		1-53271-357-0 02 1 1008- ●
65 BRACKET; CENTER BRG
MJX16P M/T(Y3Z) (D) 		8-98142-203-0 01 1 1008- ● ●
65 BRACKET; CENTER BRG
MJT7S M/T(Y3E) LOW DECK WO/REAR BODY VAR2<XR8> (A) 		8-97614-134-0 02 1 1008- ●
65 BRACKET; CENTER BRG
MJT7S M/T(Y3E) LOW DECK WO/REAR BODY VAR2<XR8> (B) 		8-97623-393-0 02 1 1008- ●
70 GUSSET; TRUNNION,UPR 8-98138-149-0 02 1 1008- ●
70 GUSSET; TRUNNION,UPR 1-53161-930-1 02 1 1008- ●
70 GUSSET; TRUNNION,UPR 1-53161-913-1 02 1 1008- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53182-054-1 01 1 1008- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-134-2 01 1 1008- ● ● ●
130 MEMBER; CROSS,END 1-53171-876-4 01 1 1008- ● ●
131 BOLT; END C/MBR
M14X40 		0-20951-440-0 04 1 1008- ● ●
132 NUT; END C/MBR
M14 		0-91110-514-0 04 1 1008- ● ●
148 SPACER; C/MBR
(A) T=7.0 		1-53168-486-0 02 1 1008- ● ● ●
148 SPACER; C/MBR
(B) T=8.0 		1-53168-508-0 02 1 1008- ● ● ●
191 WASHER; PL,1ST C/MBR TO S/MBR
ID=15 		8-98010-627-1 02 1 1008- ● ● ●
201 GUSSET; C/MBR 8-98138-154-1 02 1 1008- ●
201 GUSSET; C/MBR 8-98142-382-3 02 1 1008- ●
201 GUSSET; C/MBR 8-98142-383-3 02 1 1008- ●
254 WASHER; PL,C/MBR
ID=15 		8-98010-627-1 04 1 1008- ● ●
344 MEMBER; CROSS,4TH 1-53182-070-1 01 1 1008- ● ●

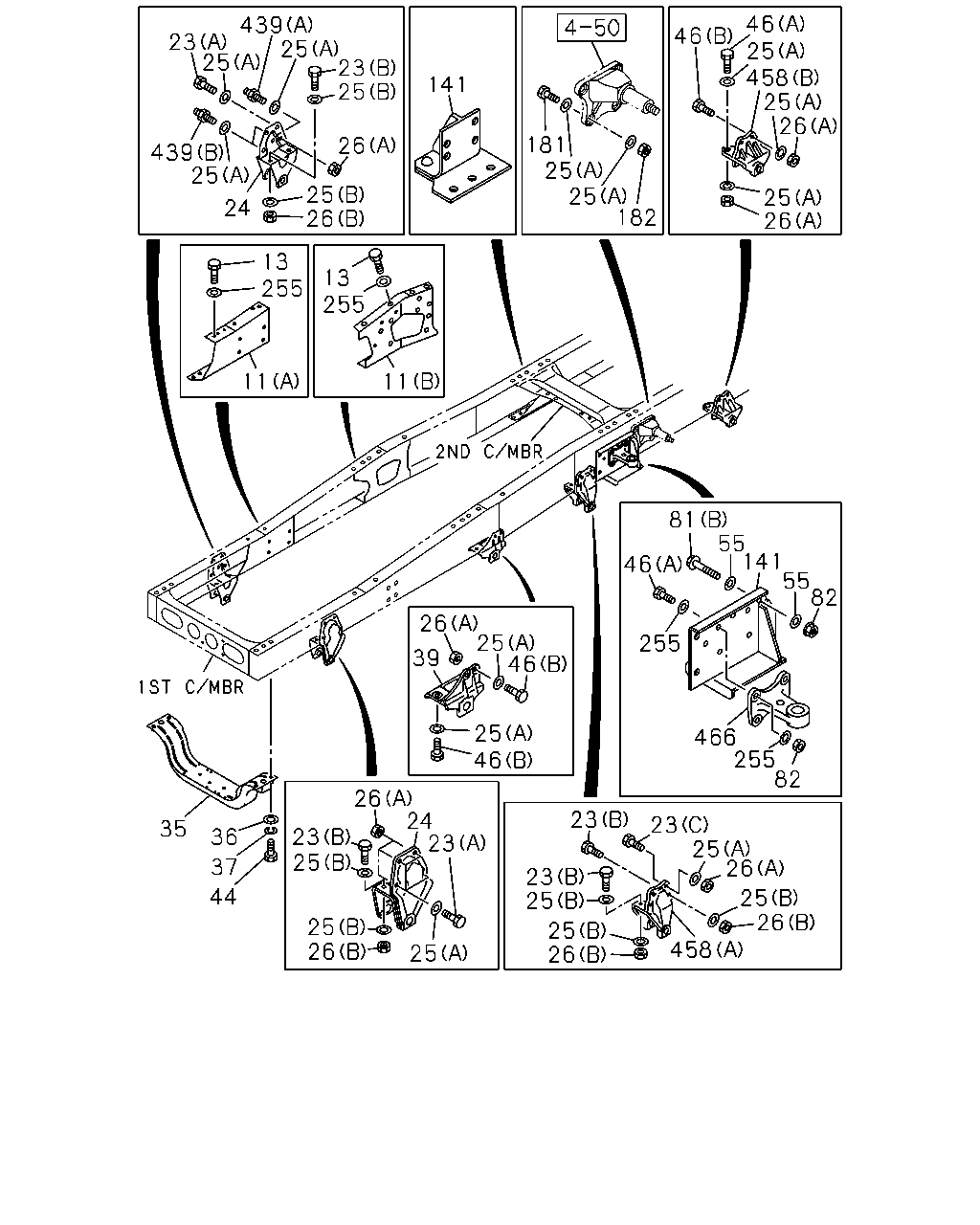

çizim 167045
23 25 439 25 23 25 26 25 26 24 25 439 141 181 25 25 182 26 25 26 25 458 25 46 46 13 255 11 11 255 13 26 25 46 39 25 46 81 46 55 141 55 82 82 255 466 255 23 25 26 25 26 458 26 25 25 23 23 24 26 23 25 25 26 25 44 37 36 35 23
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
EXC. ENGINE REAR PTO(SV1) (B) 		1-53239-141-1 01 1 1008- ●
11 BRACKET; ENG MTG
(B) 		1-53239-141-1 01 1 1008- ● ●
11 BRACKET; ENG MTG
EXC. ENGINE REAR PTO(SV1) (B) 		1-53239-142-1 01 1 1008- ●
11 BRACKET; ENG MTG
(B) 		1-53239-142-1 01 1 1008- ● ●
11 BRACKET; ENG MTG
ENGINE REAR PTO(SV1) (B) 		1-53239-139-1 01 1 1008- ●
11 BRACKET; ENG MTG
ENGINE REAR PTO(SV1) (B) 		8-97618-424-1 01 1 1008- ●
11 BRACKET; ENG MTG
6WF1 TC-C(1B8) EXC. ENGINE REAR PTO(SV1) (A) 		1-53211-399-0 01 1 1008-1112 ●
11 BRACKET; ENG MTG
6WG1 TC-R(75L) (A) 		1-53211-399-0 01 1 1008-1112 ●
11 BRACKET; ENG MTG
(A) 		1-53211-399-0 01 1 1008-1112 ● ●
11 BRACKET; ENG MTG
(A) 		1-53211-399-0 01 1 1201- ● ● ●
11 BRACKET; ENG MTG
6WF1 TC-C(1B8) EXC. ENGINE REAR PTO(SV1) (A) 		1-53211-400-0 01 1 1008-1112 ●
11 BRACKET; ENG MTG
6WG1 TC-R(75L) (A) 		1-53211-400-0 01 1 1008-1112 ●
11 BRACKET; ENG MTG
(A) 		1-53211-400-0 01 1 1008-1112 ● ●
11 BRACKET; ENG MTG
(A) 		1-53211-400-0 01 1 1201- ● ● ●
11 BRACKET; ENG MTG
6WF1 TC-C(1B8) ENGINE REAR PTO(SV1) (A) 		8-98146-424-0 01 1 1008-1112 ●
11 BRACKET; ENG MTG
6WF1 TC-C(1B8) ENGINE REAR PTO(SV1) (A) 		8-98146-425-0 01 1 1008-1112 ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 06 1 1008- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 05 1 1008- ● ● ●
23 BOLT; BRKT,SPR
(C) M14X50 		0-20951-450-0 04 1 1008- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 12 1 1008- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-237-1 01 1 1008- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-238-1 01 1 1008- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 20 1 1008- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 48 1 1008- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 24 1 1008- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 12 1 1008- ● ● ●
35 MEMBER; UNDER 1-53174-263-2 01 1 1008- ● ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 1008- ● ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 04 1 1008- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-179-0 01 1 1008- ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-180-0 01 1 1008- ● ● ●
44 BOLT; UNDER MBR
M16X60 		0-20951-660-0 04 1 1008- ● ● ●
46 BOLT; BRKT FIX
(B) M14X50 		0-20951-450-0 12 1 1008- ● ● ●
46 BOLT; BRKT FIX
(A) M14X60 		0-20951-460-0 08 1 1008- ● ● ●
55 WASHER; PL
ID=15 		8-98010-627-1 10 1 1008- ● ● ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 07 1 1008- ● ●
81 BOLT; BRKT
MJX16P M/T(Y3Z) (B) M14X50 		0-20951-450-0 07 1 1008- ●
81 BOLT; BRKT
MJT7S M/T(Y3E) STD DECK WO/REAR BODY<TFR> (B) M14X50 		0-20951-450-0 07 1 1008- ●
81 BOLT; BRKT
(A) M14X205 		1-09000-147-0 02 1 1008- ● ●
81 BOLT; BRKT
MJX16P M/T(Y3Z) (A) M14X205 		1-09000-147-0 02 1 1008- ●
81 BOLT; BRKT
MJT7S M/T(Y3E) STD DECK WO/REAR BODY<TFR> (A) M14X205 		1-09000-147-0 02 1 1008- ●
81 BOLT; BRKT
(D) M14X60 		0-20951-460-0 04 1 1008- ● ● ●
81 BOLT; BRKT
(C) M14X45 		9-92061-445-0 08 1 1008- ● ● ●
81 BOLT; BRKT
MJT7S M/T(Y3E) LOW DECK WO/REAR BODY VAR2<XR8> (E) M14X100 		0-10956-400-0 04 1 1008- ●
81 BOLT; BRKT
MJT7S M/T(Y3E) LOW DECK WO/REAR BODY VAR2<XR8> (B) M14X50 		0-20951-450-0 05 1 1008- ●
82 NUT; BRKT
M14 		0-91110-514-0 13 1 1008- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 12 1 1008- ● ● ●
141 STIFFENER 1-53151-699-0 01 1 1008- ● ● ●
141 STIFFENER 1-53151-700-0 01 1 1008- ● ● ●
181 BOLT; S/ABS BRKT TO FRAME
M14X50 		0-20951-450-0 08 1 1008- ● ● ●
182 NUT; S/ABS BRKT TO FRAME
M14 		0-91110-514-0 08 1 1008- ● ● ●
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 14 1 1008- ● ● ●
439 STUD; BRKT,SPR
(A) M12X35,M14X45 L=100 		1-09029-075-0 01 1 1008- ● ● ●
439 STUD; BRKT,SPR
(B) M12X25,M14X45 L=81 		1-09029-103-0 02 1 1008- ● ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-217-0 01 1 1008- ● ● ●
458 BRACKET; LEAF SPRING
(A) 		1-53351-218-0 01 1 1008- ● ● ●
458 BRACKET; LEAF SPRING
(B) 		1-53352-067-3 02 1 1008- ● ● ●
466 BRACKET; BOOSTER 1-44515-073-0 01 1 1008- ● ● ●
