◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#63502) — 23 parça

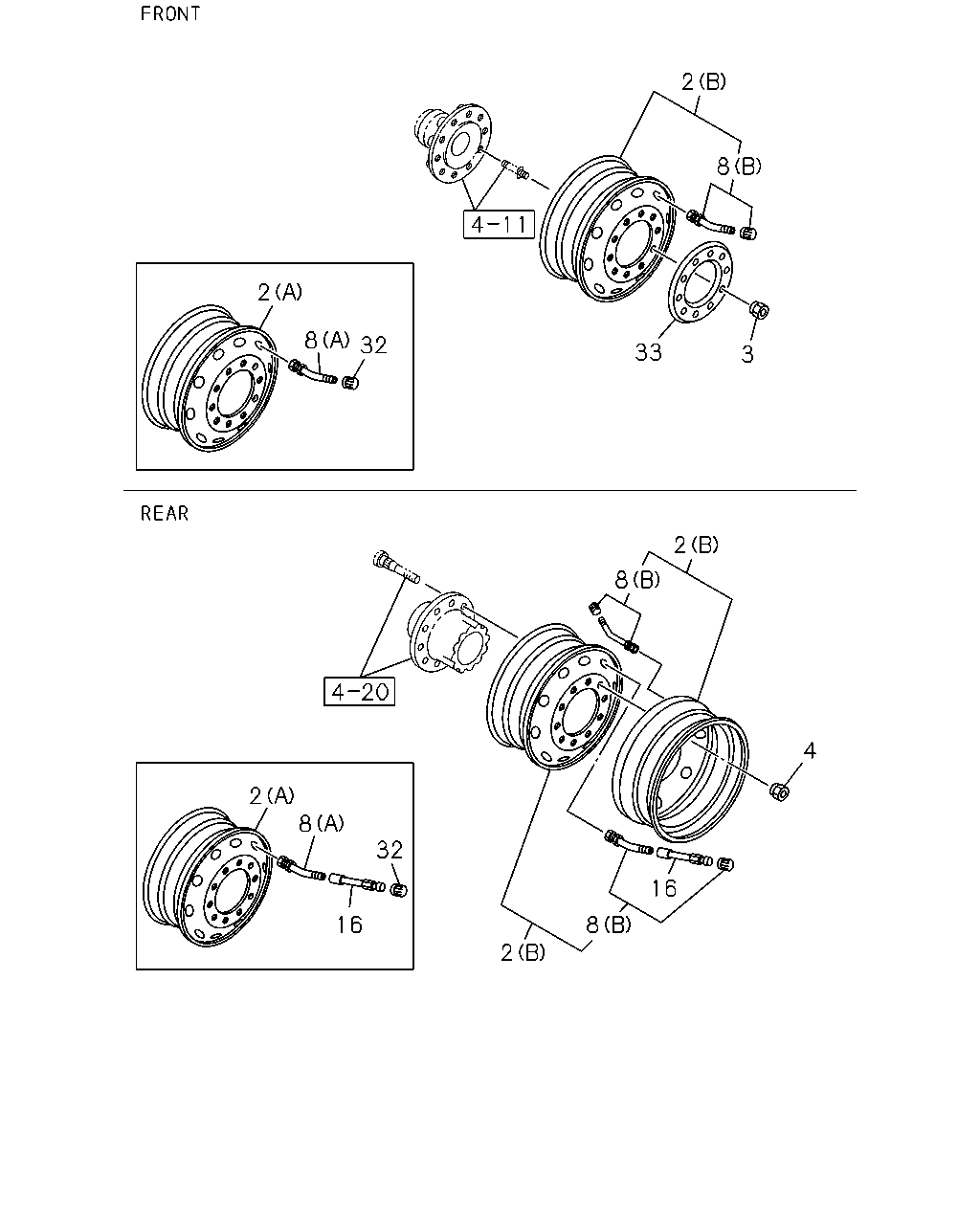

çizim 166954
2 8 32 2 8 33 3 2 8 2 8 32 16 2 8 16 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42350-730-0 12 1 1008-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98217-247-0 12 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		8-98281-497-0 12 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42350-730-0 01 1 1008-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42350-764-0 12 1 1008-
2 WHEEL; DISC
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42350-764-0 01 1 1008-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 40 1 1008-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 40 1 1008-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-020-3 12 1 1008-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-048-0 12 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT,REAR 		1-42370-019-3 12 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-020-3 01 1 1008-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) (B) FRONT,REAR 		1-42370-041-1 12 1 1008-
8 VALVE; TIRE
WHEEL 10STUD 9.00X22.5 175-14 TC(FJB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE 		1-42370-041-1 01 1 1008-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 04 1 1008-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR 		1-42374-001-0 12 1 1008-
32 CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42374-001-0 01 1 1008-
33 COVER; WHEEL
EXC. COLOMBIA EQUIPMENT(CB7) 		1-43139-065-0 04 1 1008-1008
33 COVER; WHEEL 1-43139-065-1 04 1 1009-
