4-65 — REAR LEAF SPRING (#63501) — 60 parça

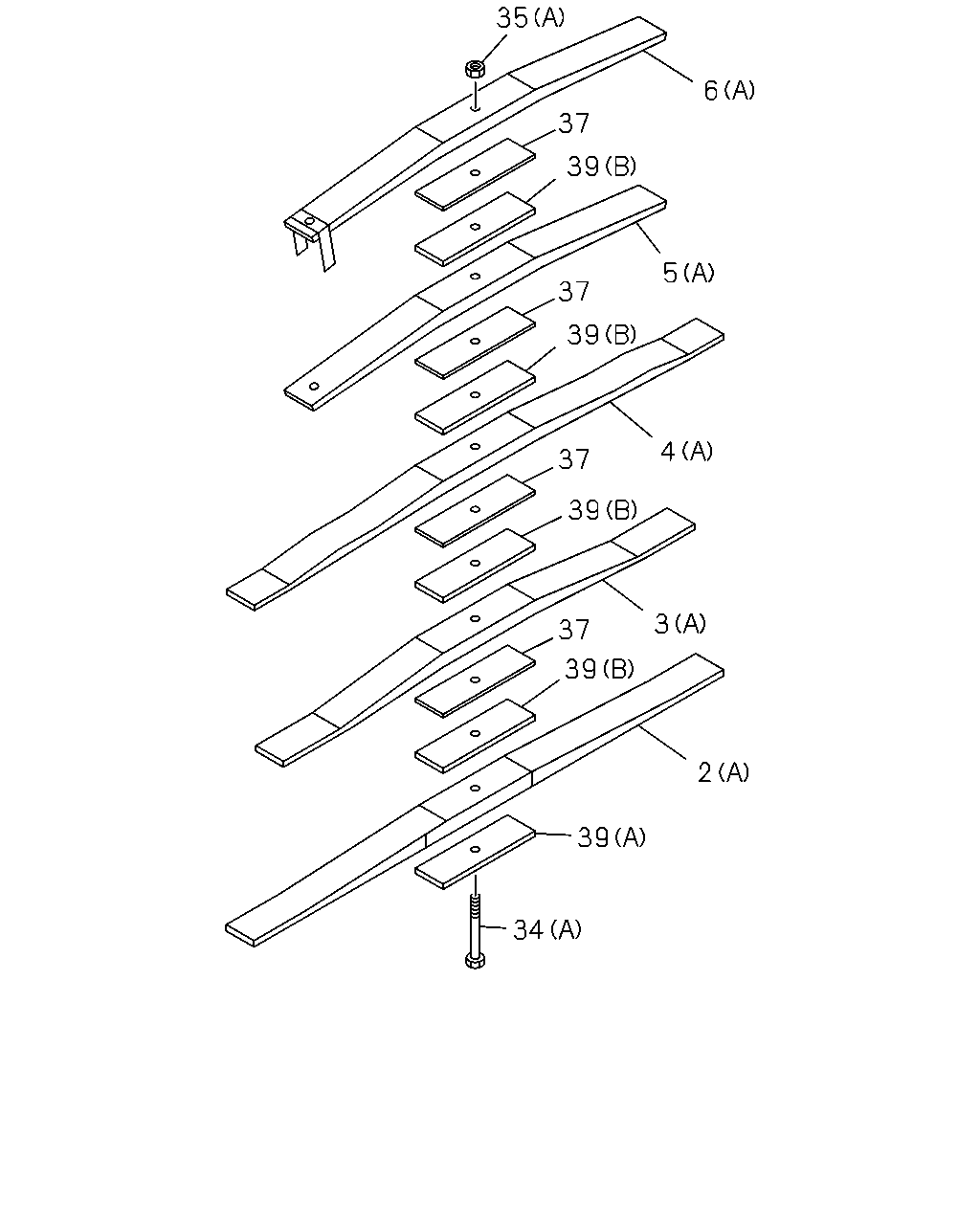

35 6 37 39 5 37 39 4 37 39 3 37 39 2 39 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-934-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-601-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98161-618-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98161-621-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-935-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-602-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98161-619-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98161-622-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-936-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-603-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98161-620-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98161-623-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98145-654-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-937-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98156-986-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-604-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98145-655-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-938-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98156-987-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-605-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=215 ASM PART: A = 8-98140-159-0, B = 8-98157-787-0	8-98148-955-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=225 ASM PART: C = 8-98159-609-0, D = 8-98159-622-0	8-98156-981-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: A = 8-98140-159-0, B = 8-98157-787-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: C = 8-98159-609-0, D = 8-98159-622-0	1-09400-061-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1.2 ASM PART: C = 8-98159-609-0, D = 8-98159-622-0	1-51359-037-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=6 ASM PART: C = 8-98159-609-0, D = 8-98159-622-0	1-51377-399-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=3.2 ASM PART: C = 8-98159-609-0, D = 8-98159-622-0	8-97615-292-0	01	1	-

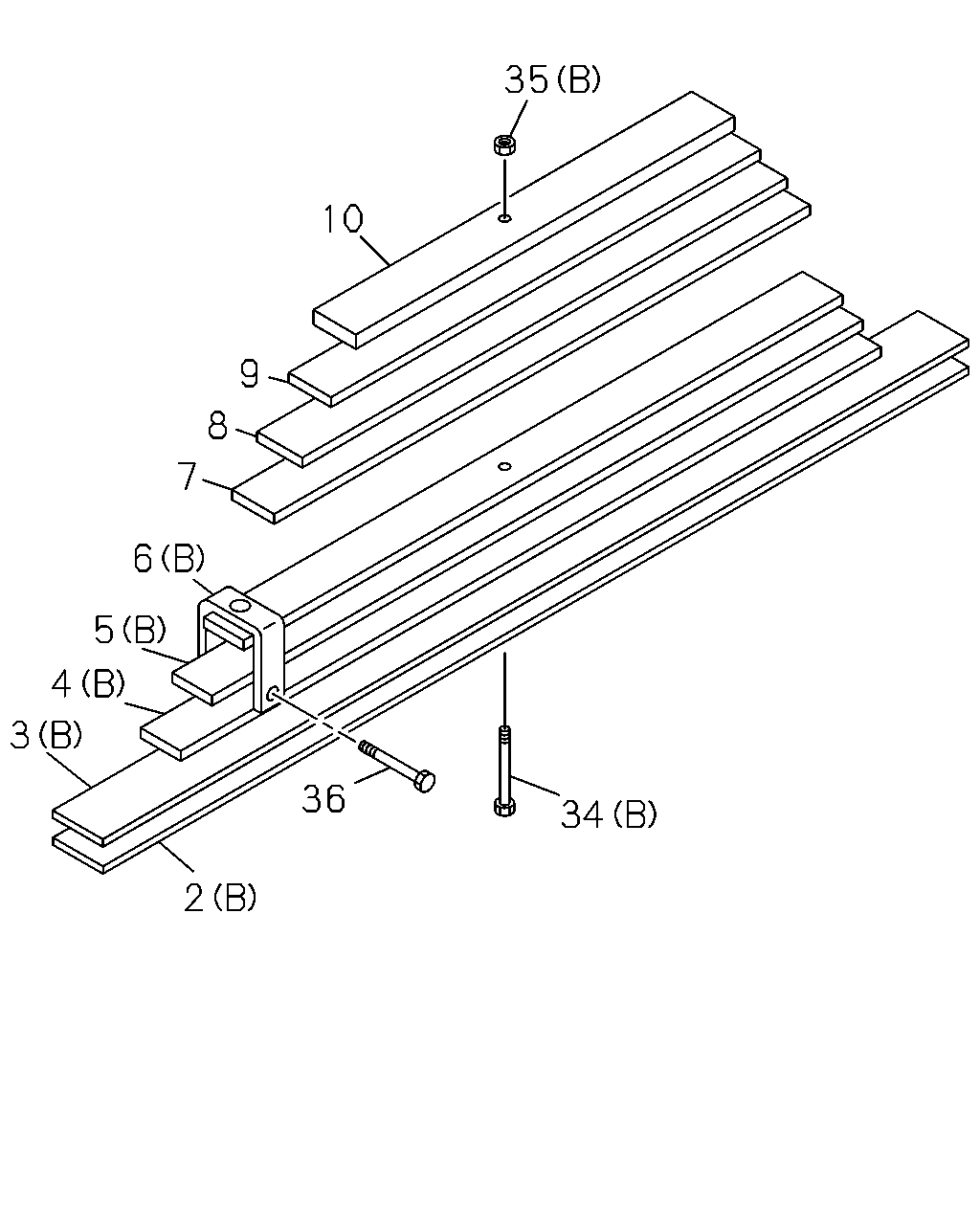

35 10 9 8 7 6 5 4 3 36 34 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-934-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-601-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98161-618-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98161-621-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-935-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-602-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98161-619-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98161-622-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-936-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-603-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98161-620-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98161-623-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98145-654-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-937-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98156-986-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-604-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: D = 8-98159-622-0	8-98145-655-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: A = 8-98140-159-0	8-98148-938-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: C = 8-98159-609-0	8-98156-987-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98157-787-0	8-98161-605-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98140-159-0	8-98148-939-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-98157-787-0	8-98161-606-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 8-98140-159-0	8-98148-940-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 8-98157-787-0	8-98161-607-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 8-98140-159-0	8-98148-941-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 8-98157-787-0	8-98161-608-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 8-98140-159-0	8-98148-942-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 8-98157-787-0	8-98161-609-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=215 ASM PART: A = 8-98140-159-0, B = 8-98157-787-0	8-98148-955-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=225 ASM PART: C = 8-98159-609-0, D = 8-98159-622-0	8-98156-981-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: A = 8-98140-159-0, B = 8-98157-787-0	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: C = 8-98159-609-0, D = 8-98159-622-0	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-98140-159-0, B = 8-98157-787-0	1-09000-326-0	01	1	-
