0-60 — ENGINE ELECTRICAL CONTROL PARTS (#635) — 64 parça

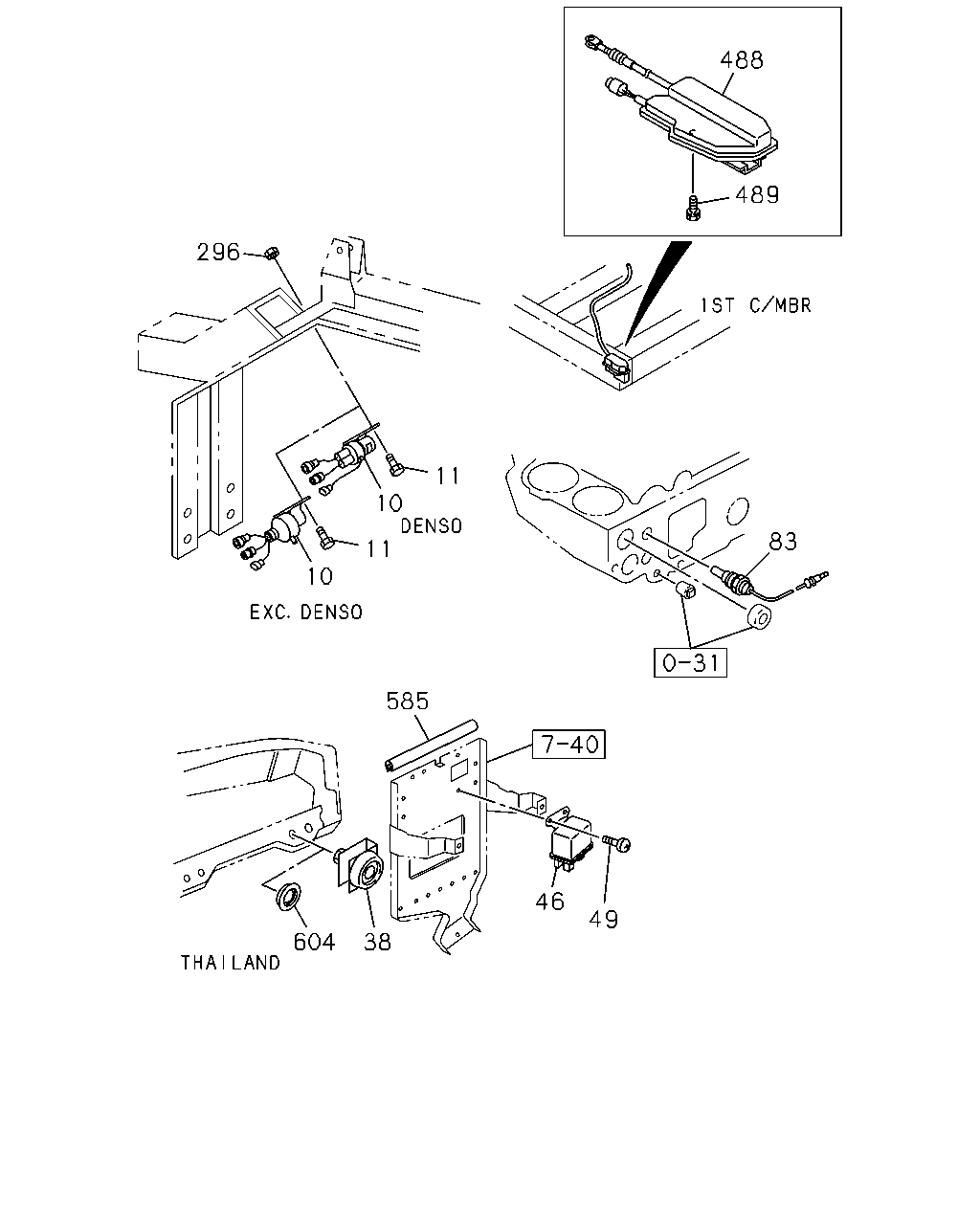

çizim 28784
488 489 296 11 10 83 11 10 585 46 49 38 604
BalonParca AdiParca NoAdetTipApplied Date A B
10 RELAY; STARTER
STARTER DENSO(RC6) DENSO 		1-81171-070-0 01 1 9202- ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) NIKKO 		1-81171-067-0 01 1 9202- ● ●
11 BOLT; RELAY STARTER
M8X18 		0-28010-818-0 02 1 9202-9204 ● ●
11 BOLT; RELAY STARTER
M8X18 FLANGE 		0-28080-818-0 02 1 9205-9207 ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28080-820-0 02 1 9208- ● ●
38 RESISTOR; CONT,GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		1-81402-008-0 01 1 9202- ● ●
46 RELAY; GLOW PLUG
EXC. THAILAND EQUIPMENT(PM9) 		8-94258-014-0 01 1 9202- ● ●
49 SCREW; GLOW PLUG RELAY
EXC. THAILAND EQUIPMENT(PM9) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 9202- ● ●
83 THERMOMETER UNIT 1-83161-019-1 01 1 9202- ● ●
296 NUT; RELAY,STARTER
M8 		9-09110-408-0 02 1 9202- ● ●
488 STOPPER; ENG
AUTO ENG SHUTOFF<KB6> 		1-82840-056-3 01 1 9202- ● ●
489 BOLT; ENG STOPPER
AUTO ENG SHUTOFF<KB6> M8X20 W/LK WASHER 		9-01900-820-0 02 1 9202-9204 ● ●
489 BOLT; ENG STOPPER
AUTO ENG SHUTOFF<KB6> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205-9205 ● ●
489 BOLT; ENG STOPPER
AUTO ENG SHUTOFF<KB6> M8X20 FLANGE 		0-28080-820-0 02 1 9206- ● ●
585 FINISHER; QOS
L=120 		1-71997-513-1 01 1 9202- ● ●
604 GROMMET; CONT RESISTANCE
THAILAND EQUIPMENT(PM9) OD=30 		8-94107-655-0 01 1 9202- ● ●

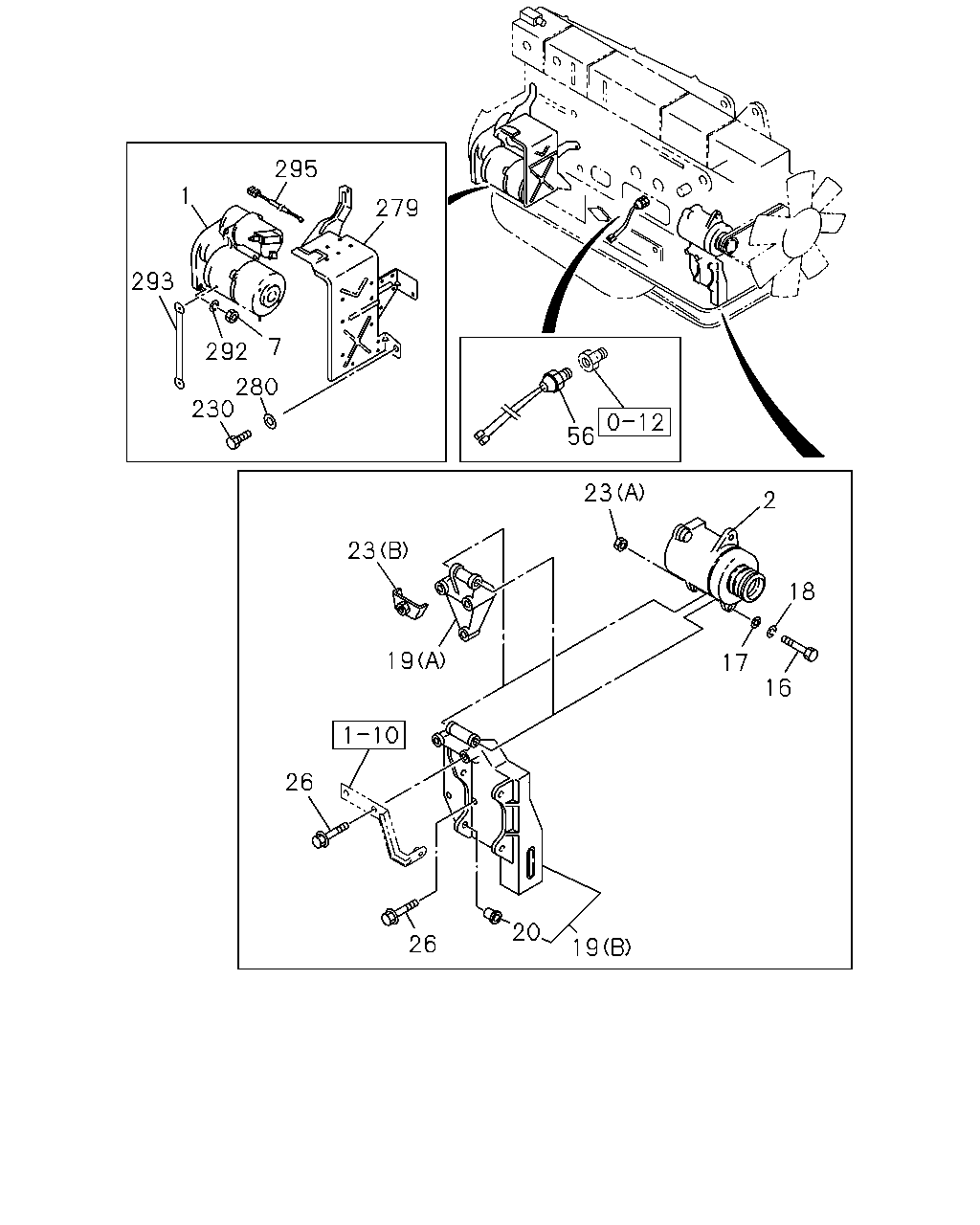

çizim 94705
295 1 279 293 7 292 280 230 56 23 2 23 18 19 17 16 26 20 26 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER DENSO(RC6) 24V 4.5KW DENSO 		8-94399-159-3 01 1 9202- ● ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER DENSO(RC6) 24V 4.5KW NIKKO 		1-81100-295-0 01 1 9202- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-25A 600W(SB8) 24V 25A 		1-81200-446-0 01 1 9202-9307 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-25A 600W(SB8) 24V 25A 		1-81200-386-0 01 1 9308- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO 24V-25A 600W(SB8),GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 40A 		1-81200-321-4 01 1 9202- ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 40A NIKKO 		1-81200-416-3 01 1 9202- ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 9202-9303 ● ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 9304- ● ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 9202- ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 9202- ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 9308- ● ●
19 BRACKET; GEN
AIR CON MANUAL CONTROL(C60) (B) 		8-94397-438-1 01 1 9208-9412 ● ●
19 BRACKET; GEN
AIR CON MANUAL CONTROL(C60) (B) 		8-94395-470-2 01 1 9501- ● ●
19 BRACKET; GEN
HEATER & DEFROSTER(C41) (A) 		8-94396-297-0 01 1 9202- ● ●
20 COLLAR; BRKT,GEN
AIR CON MANUAL CONTROL(C60) 		8-94399-959-0 02 1 9208-9412 ● ●
20 COLLAR; BRKT,GEN
AIR CON MANUAL CONTROL(C60) 		8-94201-057-1 02 1 9501- ● ●
23 NUT; GEN
(A) M14 FLANGE 		0-91150-114-0 01 1 9202-9307 ● ●
23 NUT; GEN
(A) M14 		9-99110-414-0 01 1 9308-9407 ● ●
23 NUT; GEN
(B) M14 W/BRKT 		1-19711-029-0 01 1 9202-9506 ● ●
23 NUT; GEN
(A) M14 		9-99110-414-0 01 1 9408- ● ●
26 BOLT; GEN BRKT
M10X80 FLANGE 		0-28181-080-0 02 1 9202- ● ●
26 BOLT; GEN BRKT
AIR CON MANUAL CONTROL(C60) M10X40 FLANGE 		0-28181-040-0 02 1 9208- ● ●
26 BOLT; GEN BRKT
HEATER & DEFROSTER(C41) M10X40 FLANGE 		0-28181-040-0 01 1 9202- ● ●
56 SWITCH; OIL PRESSURE WARNING
AUSTRALIA EQUIPMENT(RR3) PT1/8 		8-94178-003-1 01 1 9202- ●
56 SWITCH; OIL PRESSURE WARNING
EXC. AUSTRALIA EQUIPMENT(RR3) PT1/8 		1-82410-091-2 01 1 9202-9502 ● ●
56 SWITCH; OIL PRESSURE WARNING
EXC. AUSTRALIA EQUIPMENT(RR3) PT1/8 		1-82410-160-0 01 1 9503- ● ●
230 BOLT; HEAT PROTECTOR
M8X14 FLANGE 		0-28080-814-0 03 1 9202-9307 ● ●
230 BOLT; HEAT PROTECTOR
M8X14 		0-20800-814-0 03 1 9308- ● ●
279 PROTECTOR; STARTER 8-94394-435-2 01 1 9202- ● ●
280 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=18 		9-09160-608-0 03 1 9202- ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 9304- ● ●
293 CABLE; STARTER EARTH
FRONT AXLE F049<FS4> L=360 		1-82650-230-1 01 1 9202-9307 ● ●
293 CABLE; STARTER EARTH
FRONT AXLE F049<FS4> L=360 		1-82650-230-1 01 1 9305-9305 ● ●
293 CABLE; STARTER EARTH
FRONT AXLE F049<FS4> L=360 		1-82650-230-1 01 1 9308- ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9202-9306 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9302-9302 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9307-9311 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9305-9305 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9312-9401 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9305-9305 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9402-9411 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9311-9311 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9412-9503 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9311-9311 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9504- ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9401-9402 ● ●
293 CABLE; STARTER EARTH
EXC. FRONT AXLE F049<FS4> L=300 		1-82650-223-0 01 1 9411-9411 ● ●
295 HARNESS; STARTER 1-82640-527-0 01 1 9202- ● ●
