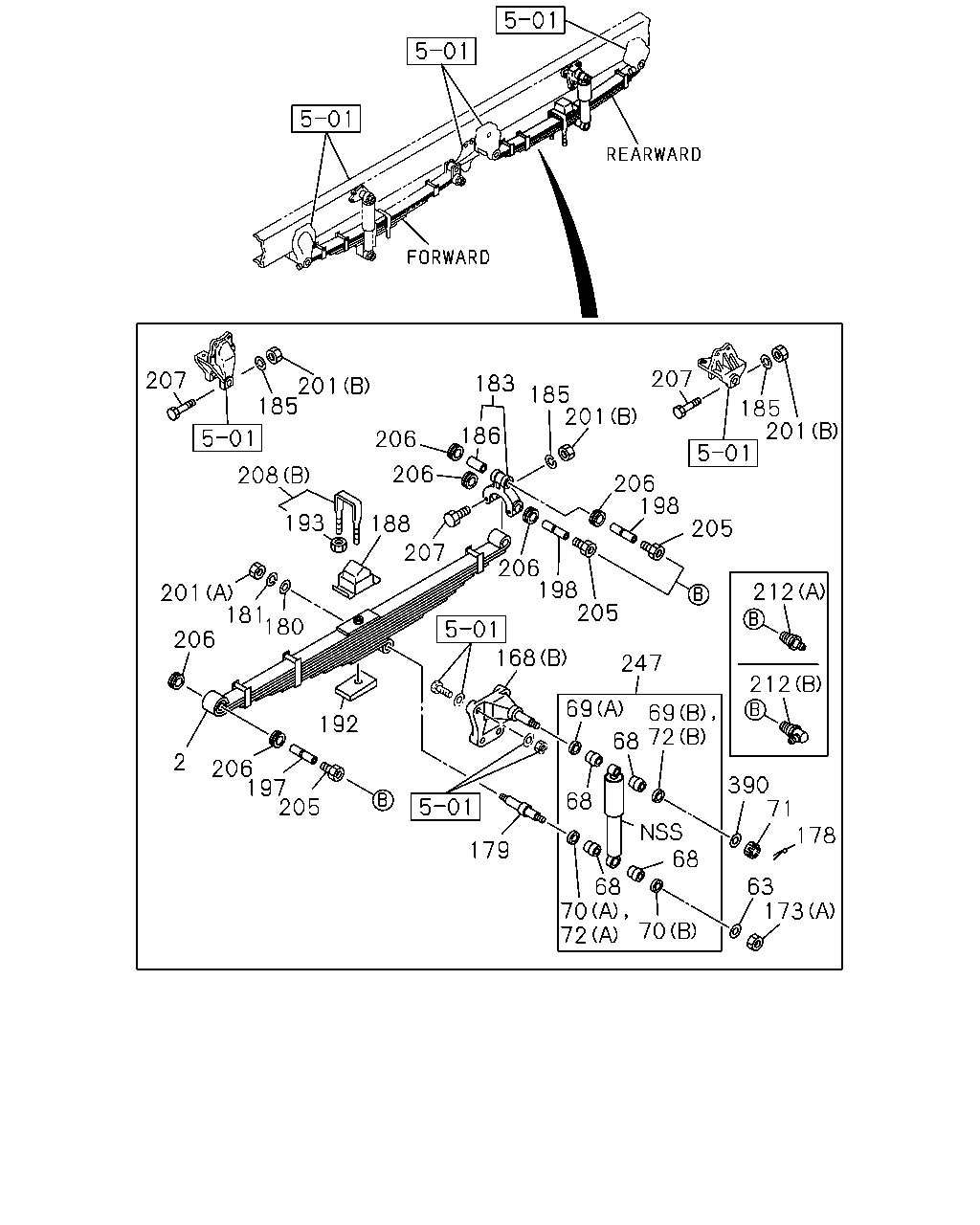

4-50 — FRONT SUSPENSION (#63498) — 132 parça

207 207 183 201 185 185 201 185 201 186 206 206 208 206 198 193 188 205 207 206 198 205 212 201 181 180 206 168 247 212 69 69 72 68 192 2 206 197 205 390 71 178 68 68 179 63 173 68 70 72 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF	8-98158-579-0	02	1	1008-1103
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF	8-98192-906-0	02	1	1104-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF	8-98158-581-0	02	1	1008-1103
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF	8-98192-907-0	02	1	1104-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF	8-98157-782-0	02	1	1008-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 9-LEAF	8-98157-784-0	02	1	1008-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. MULTI LEAF SUSPENSION FRT<SAQ> FORWARD 4-LEAF	8-98157-780-0	02	1	1008-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. MULTI LEAF SUSPENSION FRT<SAQ> REARWARD 5-LEAF	8-98157-783-0	02	1	1008-
63	WASHER; PL,S/ABS,LWR ID=21	0-91610-520-0	02	1	1008-
68	BUSHING; S/ABS MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1008-1103
68	BUSHING; S/ABS MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1008-1103
68	BUSHING; S/ABS	9-51631-026-0	16	1	1104-
68	BUSHING; S/ABS EXC. MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	16	1	1008-1103
69	WASHER; UPR,S/ABS (A) ID=27	9-51631-027-0	02	1	1008-
69	WASHER; UPR,S/ABS EXC. MULTI LEAF SUSPENSION FRT<SAQ> (B) ID=21	9-51631-028-0	02	1	1008-
69	WASHER; UPR,S/ABS MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=21	9-51631-028-0	02	1	1008-
70	WASHER; LWR,S/ABS (B) ID=21	9-51631-028-0	02	1	1008-
70	WASHER; LWR,S/ABS EXC. MULTI LEAF SUSPENSION FRT<SAQ> (A) ID=27	9-51631-027-0	02	1	1008-
70	WASHER; LWR,S/ABS MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=27	9-51631-027-0	02	1	1008-
71	NUT; LK,S/ABS,UPR M20 SLOTTED	9-99116-420-0	02	1	1008-1010
72	WASHER; CENTER,S/ABS UPR BUSHING MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=27	9-51631-027-0	02	1	1008-
72	WASHER; CENTER,S/ABS UPR BUSHING MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=21	9-51631-028-0	02	1	1008-
168	BRACKET; S/ABS,FRT SUSP (A)	1-51681-745-0	02	1	1008-1012
168	BRACKET; S/ABS,FRT SUSP (A)	8-98182-383-0	02	1	1101-
168	BRACKET; S/ABS,FRT SUSP (B)	1-51681-746-0	02	1	1008-1012
168	BRACKET; S/ABS,FRT SUSP (B)	8-98182-384-0	02	1	1101-
173	NUT; S/ABS (B) M14	0-91110-514-0	08	1	1008-
173	NUT; S/ABS (A) M20	0-91110-520-0	04	1	1008-
178	PIN; SPLIT,S/ABS OD=3.7 L=35	0-81124-035-0	06	1	1008-1011
179	PIN	1-51682-094-1	04	1	1008-
180	WASHER; PL,PIN ID=25	1-09503-169-0	04	1	1008-
181	WASHER; LK,PIN ID=24.5	0-91510-524-0	04	1	1008-
183	SHACKLE; FRT SUSP	1-51162-029-5	04	1	1008-
185	WASHER; LK,PIN ID=12.2	0-91510-612-0	24	1	1008-
186	BUSHING; SHACKLE OD=38	8-98081-829-0	04	1	1008-
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> FORWARD	1-51172-081-1	02	1	1008-1103
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> REARWARD	1-51172-088-1	02	1	1008-1103
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> FORWARD,REARWARD	1-51172-088-1	04	1	1104-
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD	1-51172-085-2	02	1	1008-
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD	1-51172-081-1	02	1	1008-
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. MULTI LEAF SUSPENSION FRT<SAQ> FORWARD,REARWARD	1-51172-081-1	04	1	1008-
192	PIECE; DIST	1-51177-281-1	02	1	1008-1308
192	PIECE; DIST	8-98200-748-0	02	1	1309-
193	NUT; U BOLT M22	0-91112-822-0	16	1	1008-1206
193	NUT; U BOLT M22	8-98179-318-0	16	1	1207-
197	PIN; FRT SPR,FRT	1-51161-031-0	04	1	1008-
198	PIN; FRT SPR & SHACKLE,FWD FRT	1-51161-031-0	08	1	1008-
201	NUT; PIN LK (B) M12	0-91110-512-0	24	1	1008-
201	NUT; PIN LK (A) M24	0-91110-524-0	02	1	1008-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	12	1	1008-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	24	1	1008-
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	24	1	1008-
208	U-BOLT SET; FRT SPRING (A) L=270	1-87870-327-1	04	1	1008-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=290	1-87870-437-1	04	1	1008-1103
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=250	1-87870-343-1	04	1	1104-1206
208	U-BOLT SET; FRT SPRING LOW DECK WO/REAR BODY VAR2<XR8> (B) L=250	1-87870-343-1	04	1	1104-1206
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=250	1-87870-494-0	04	1	1207-
208	U-BOLT SET; FRT SPRING LOW DECK WO/REAR BODY VAR2<XR8> (B) L=250	1-87870-494-0	04	1	1207-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) L=240	1-87870-376-2	04	1	1008-
208	U-BOLT SET; FRT SPRING EXC. MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270	1-87870-327-1	04	1	1008-
212	NIPPLE; GREASE,ELBOW (A) PT1/8 STRAIGHT	0-90301-410-0	05	1	1008-
212	NIPPLE; GREASE,ELBOW (B) PT1/8 ELBOW	0-90301-610-0	07	1	1008-
247	ABSORBER ASM; SHOCK,RWD FRT MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8>	1-51630-444-0	02	1	1008-1103
247	ABSORBER ASM; SHOCK,RWD FRT MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8>	1-51630-443-0	02	1	1104-
247	ABSORBER ASM; SHOCK,RWD FRT MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-51630-783-0	02	1	1008-
247	ABSORBER ASM; SHOCK,RWD FRT EXC. MULTI LEAF SUSPENSION FRT<SAQ>	8-98162-765-0	02	1	1008-
390	WASHER; PL,S/ABS,UPR ID=21	0-91610-520-0	02	1	1008-

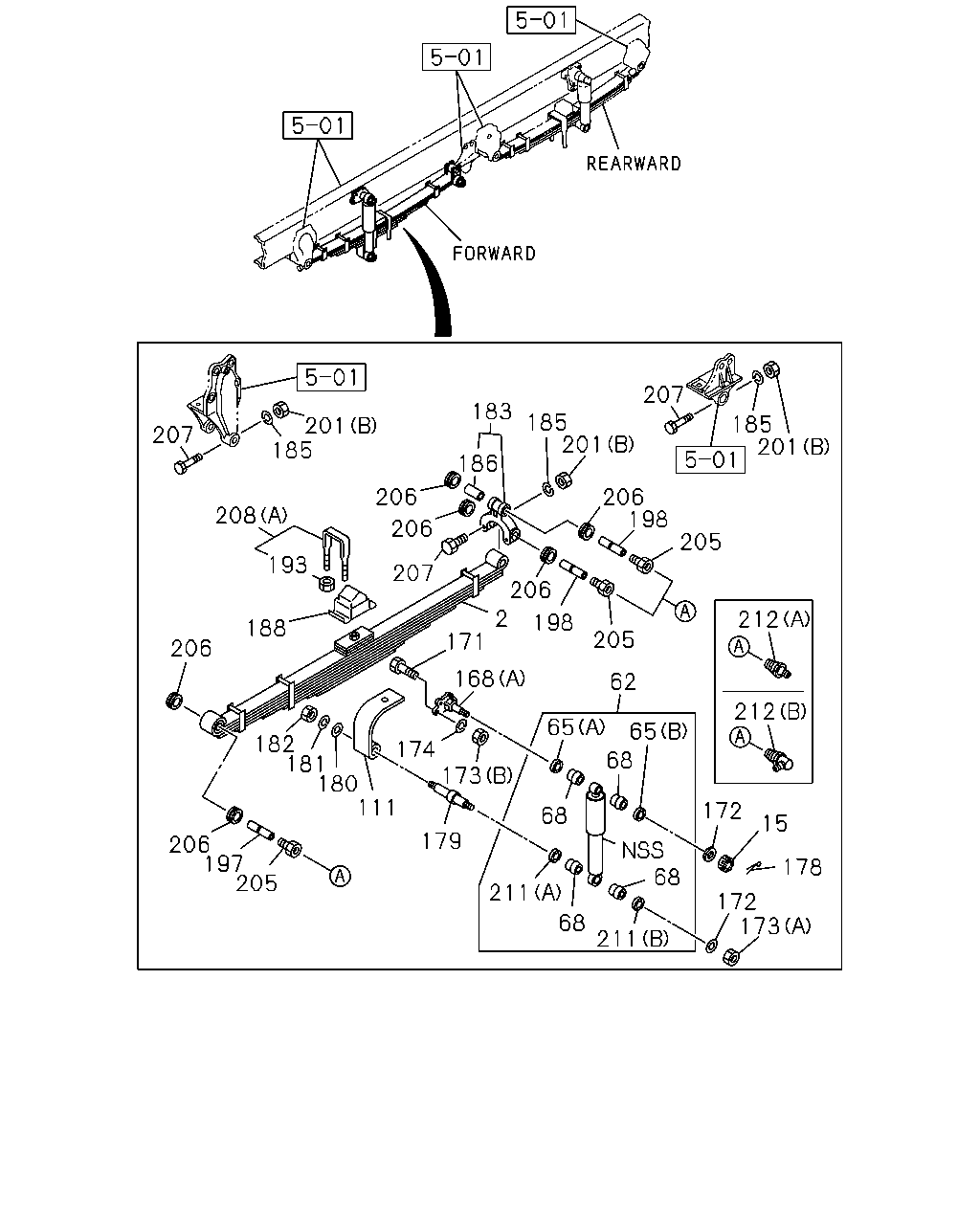

207 183 185 201 185 201 201 185 207 186 206 206 198 208 206 205 193 207 206 2 212 198 188 205 171 206 168 62 212 65 65 182 181 180 111 174 173 68 172 68 15 68 179 206 197 205 178 211 172 173 68 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF	8-98158-579-0	02	1	1008-1103
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF	8-98192-906-0	02	1	1104-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF	8-98158-581-0	02	1	1008-1103
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF	8-98192-907-0	02	1	1104-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF	8-98157-782-0	02	1	1008-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 9-LEAF	8-98157-784-0	02	1	1008-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. MULTI LEAF SUSPENSION FRT<SAQ> FORWARD 4-LEAF	8-98157-780-0	02	1	1008-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. MULTI LEAF SUSPENSION FRT<SAQ> REARWARD 5-LEAF	8-98157-783-0	02	1	1008-
15	NUT; S/ABS,UPR M20 SLOTTED	9-99116-420-0	04	1	1008-1107
15	NUT; S/ABS,UPR M20	0-91110-520-0	04	1	1108-
62	ABSORBER ASM; SHOCK,FRT MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8>	1-51630-429-0	02	1	1104-
62	ABSORBER ASM; SHOCK,FRT MULTI LEAF SUSPENSION FRT<SAQ>	1-51630-443-0	02	1	1008-1103
62	ABSORBER ASM; SHOCK,FRT MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8>	1-51630-443-0	02	1	1104-
62	ABSORBER ASM; SHOCK,FRT EXC. MULTI LEAF SUSPENSION FRT<SAQ>	8-98162-769-0	02	1	1008-
65	WASHER; S/ABS (A) ID=27	9-51631-027-0	02	1	1008-
65	WASHER; S/ABS (B) ID=21	9-51631-028-0	02	1	1008-
68	BUSHING; S/ABS MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1008-1103
68	BUSHING; S/ABS MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1008-1103
68	BUSHING; S/ABS	9-51631-026-0	16	1	1104-
68	BUSHING; S/ABS EXC. MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	16	1	1008-1103
111	SUPPORTER; S/ABS,FRT SUSP	1-51681-627-0	02	1	1008-
168	BRACKET; S/ABS,FRT SUSP (A)	1-51681-745-0	02	1	1008-1012
168	BRACKET; S/ABS,FRT SUSP (A)	8-98182-383-0	02	1	1101-
168	BRACKET; S/ABS,FRT SUSP (B)	1-51681-746-0	02	1	1008-1012
168	BRACKET; S/ABS,FRT SUSP (B)	8-98182-384-0	02	1	1101-
171	BOLT; S/ABS BRKT M14X45	9-92061-445-0	08	1	1008-
172	WASHER; PL,S/ABS BRKT ID=21	0-91610-520-0	04	1	1008-
173	NUT; S/ABS (B) M14	0-91110-514-0	08	1	1008-
173	NUT; S/ABS (A) M20	0-91110-520-0	04	1	1008-
174	WASHER; LK,S/ABS ID=14.2	0-91510-614-0	08	1	1008-
178	PIN; SPLIT,S/ABS OD=3.7 L=35	0-81124-035-0	06	1	1008-1011
179	PIN	1-51682-094-1	04	1	1008-
180	WASHER; PL,PIN ID=25	1-09503-169-0	04	1	1008-
181	WASHER; LK,PIN ID=24.5	0-91510-524-0	04	1	1008-
182	NUT; S/ABS LWR M24	0-91110-524-0	02	1	1008-
183	SHACKLE; FRT SUSP	1-51162-029-5	04	1	1008-
185	WASHER; LK,PIN ID=12.2	0-91510-612-0	24	1	1008-
186	BUSHING; SHACKLE OD=38	8-98081-829-0	04	1	1008-
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> FORWARD	1-51172-081-1	02	1	1008-1103
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> REARWARD	1-51172-088-1	02	1	1008-1103
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> FORWARD,REARWARD	1-51172-088-1	04	1	1104-
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD	1-51172-085-2	02	1	1008-
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD	1-51172-081-1	02	1	1008-
188	RUBBER; CLAMP,U-BOLT,FRT SPR EXC. MULTI LEAF SUSPENSION FRT<SAQ> FORWARD,REARWARD	1-51172-081-1	04	1	1008-
193	NUT; U BOLT M22	0-91112-822-0	16	1	1008-1206
193	NUT; U BOLT M22	8-98179-318-0	16	1	1207-
197	PIN; FRT SPR,FRT	1-51161-031-0	04	1	1008-
198	PIN; FRT SPR & SHACKLE,FWD FRT	1-51161-031-0	08	1	1008-
201	NUT; PIN LK (B) M12	0-91110-512-0	24	1	1008-
201	NUT; PIN LK (A) M24	0-91110-524-0	02	1	1008-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	12	1	1008-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	24	1	1008-
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	24	1	1008-
208	U-BOLT SET; FRT SPRING (A) L=270	1-87870-327-1	04	1	1008-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=290	1-87870-437-1	04	1	1008-1103
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=250	1-87870-343-1	04	1	1104-1206
208	U-BOLT SET; FRT SPRING LOW DECK WO/REAR BODY VAR2<XR8> (B) L=250	1-87870-343-1	04	1	1104-1206
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=250	1-87870-494-0	04	1	1207-
208	U-BOLT SET; FRT SPRING LOW DECK WO/REAR BODY VAR2<XR8> (B) L=250	1-87870-494-0	04	1	1207-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) L=240	1-87870-376-2	04	1	1008-
208	U-BOLT SET; FRT SPRING EXC. MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270	1-87870-327-1	04	1	1008-
211	WASHER; BRKT,SHOCK (A) ID=27	9-51631-027-0	02	1	1008-
211	WASHER; BRKT,SHOCK (B) ID=21	9-51631-028-0	02	1	1008-
212	NIPPLE; GREASE,ELBOW (A) PT1/8 STRAIGHT	0-90301-410-0	05	1	1008-
212	NIPPLE; GREASE,ELBOW (B) PT1/8 ELBOW	0-90301-610-0	07	1	1008-
