4-40 — STEERING UNIT (#63495) — 163 parça

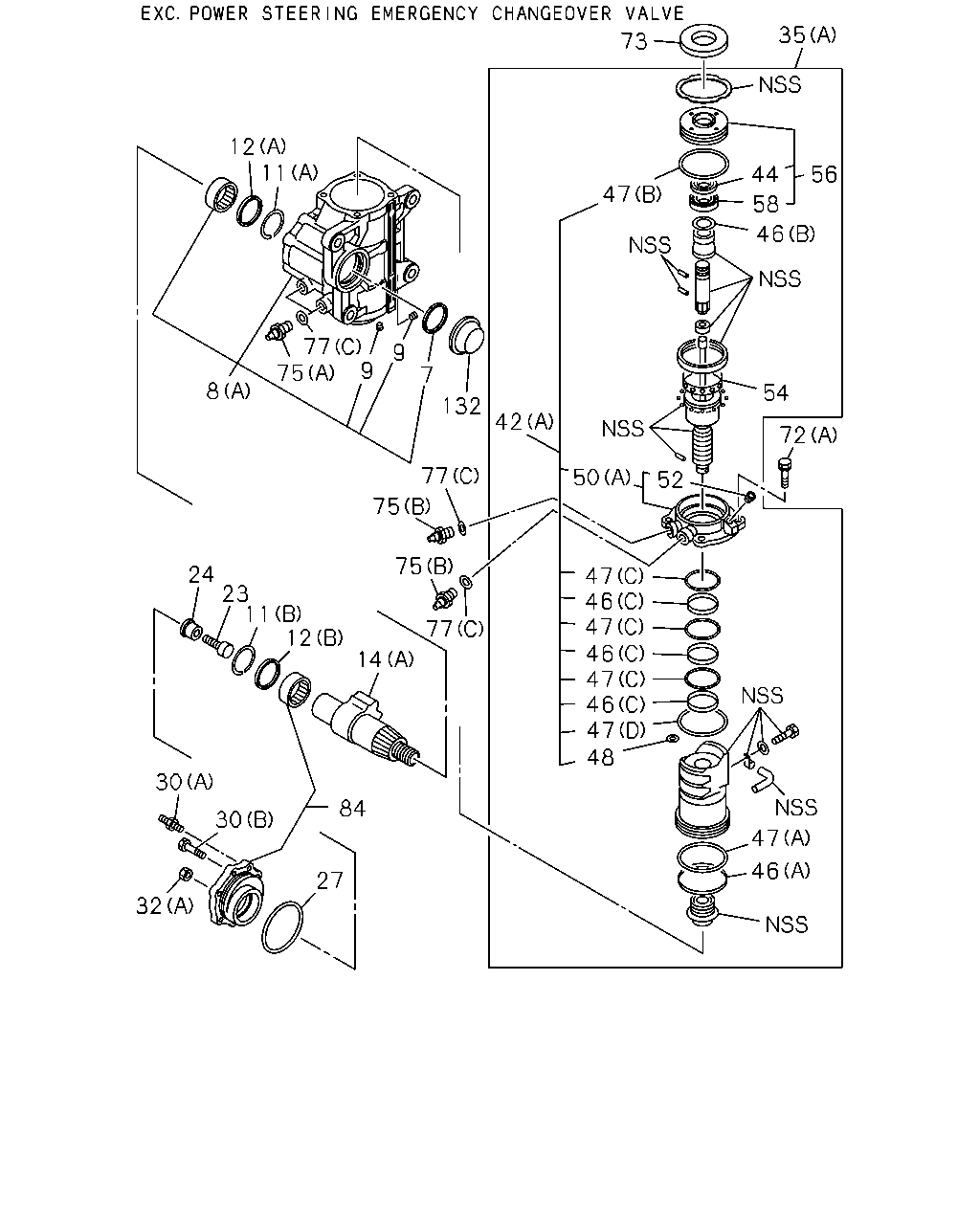

35 73 12 11 56 44 47 58 46 77 75 9 9 7 8 54 132 42 72 77 50 52 75 75 24 23 11 12 47 46 47 46 47 46 47 48 77 14 30 84 30 47 46 27 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	8-98159-116-0	01	1	-
8	BOX ASM; STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44240-152-0	01	1	-
8	BOX ASM; STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44240-154-0	01	1	-
9	PLUG; FILLER,STRG UNIT ASM PART: A = 1-44000-917-2	1-44519-071-0	02	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-265-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44320-029-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44321-032-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: B = 1-44000-923-3	1-19519-121-0	02	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-917-2	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44279-012-0	06	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-917-2	1-44279-012-0	05	1	-
32	NUT; ADJ SCREW,STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44269-007-0	01	1	-
32	NUT; ADJ SCREW,STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44269-037-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44150-095-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44150-118-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44560-080-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44560-092-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-917-2	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (D) ASM PART: B = 1-44000-923-3	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-261-0	01	1	-
47	GASKET; HSG,STRG UNIT (E) ASM PART: B = 1-44000-923-3	1-44519-262-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-917-2	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44560-076-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44560-093-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: B = 1-44000-923-3	1-44519-071-0	04	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-917-2	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT (A) ASM PART: B = 1-44000-923-3	1-44259-017-0	03	1	-
72	BOLT; HSG FIX STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44259-017-0	04	1	-
72	BOLT; HSG FIX STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44259-070-0	01	1	-
72	BOLT; HSG FIX STRG UNIT (C) ASM PART: B = 1-44000-923-3	1-44259-071-0	01	1	-
72	BOLT; HSG FIX STRG UNIT (D) ASM PART: B = 1-44000-923-3	1-44259-072-0	03	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	8-98166-307-0	01	1	-
75	CONNECTOR; HSG STRG UNIT (A), M20X1.5 ASM PART: A = 1-44000-917-2	1-44259-034-1	02	1	-
75	CONNECTOR; HSG STRG UNIT (A), M20X1.5 ASM PART: B = 1-44000-923-3	1-44259-034-1	04	1	-
75	CONNECTOR; HSG STRG UNIT (B), M22X1.5 ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44259-035-1	02	1	-
75	CONNECTOR; HSG STRG UNIT (C) ASM PART: B = 1-44000-923-3	1-44259-075-0	01	1	-
77	GASKET; CONNECTOR,STRG UNIT (A) ASM PART: B = 1-44000-923-3	1-44159-247-0	08	1	-
77	GASKET; CONNECTOR,STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44159-248-0	01	1	-
77	GASKET; CONNECTOR,STRG UNIT (C) ASM PART: B = 1-44000-923-3	9-89970-787-0	06	1	-
77	GASKET; CONNECTOR,STRG UNIT (C) ASM PART: A = 1-44000-917-2	9-89970-787-0	04	1	-
84	COVER ASM; STRG UNIT ASM PART: A = 1-44000-917-2	1-44260-030-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-227-0	01	1	-

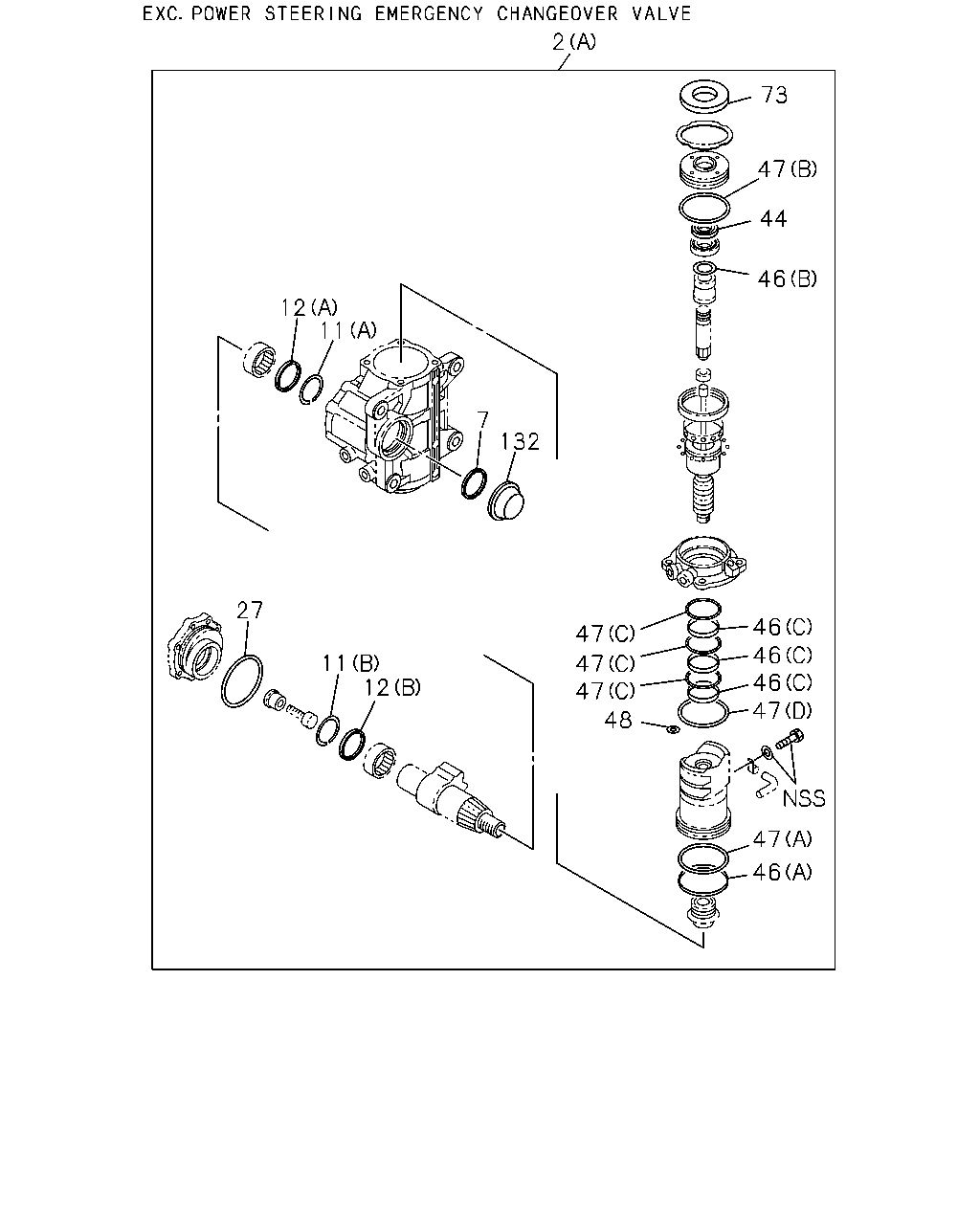

2 73 47 44 46 12 11 7 132 27 46 46 46 47 47 11 12 47 47 48 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR (A), 2 YEAR ASM PART: A = 1-44000-917-2	8-98166-305-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR (B), 2 YEAR ASM PART: B = 1-44000-923-3	8-98166-415-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	8-98159-116-0	01	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-265-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44269-035-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-917-2	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (D) ASM PART: B = 1-44000-923-3	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-261-0	01	1	-
47	GASKET; HSG,STRG UNIT (E) ASM PART: B = 1-44000-923-3	1-44519-262-0	01	1	-
48	GASKET; HSG,STRG UNIT ASM PART: A = 1-44000-917-2	1-44519-262-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	8-98166-307-0	01	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-227-0	01	1	-

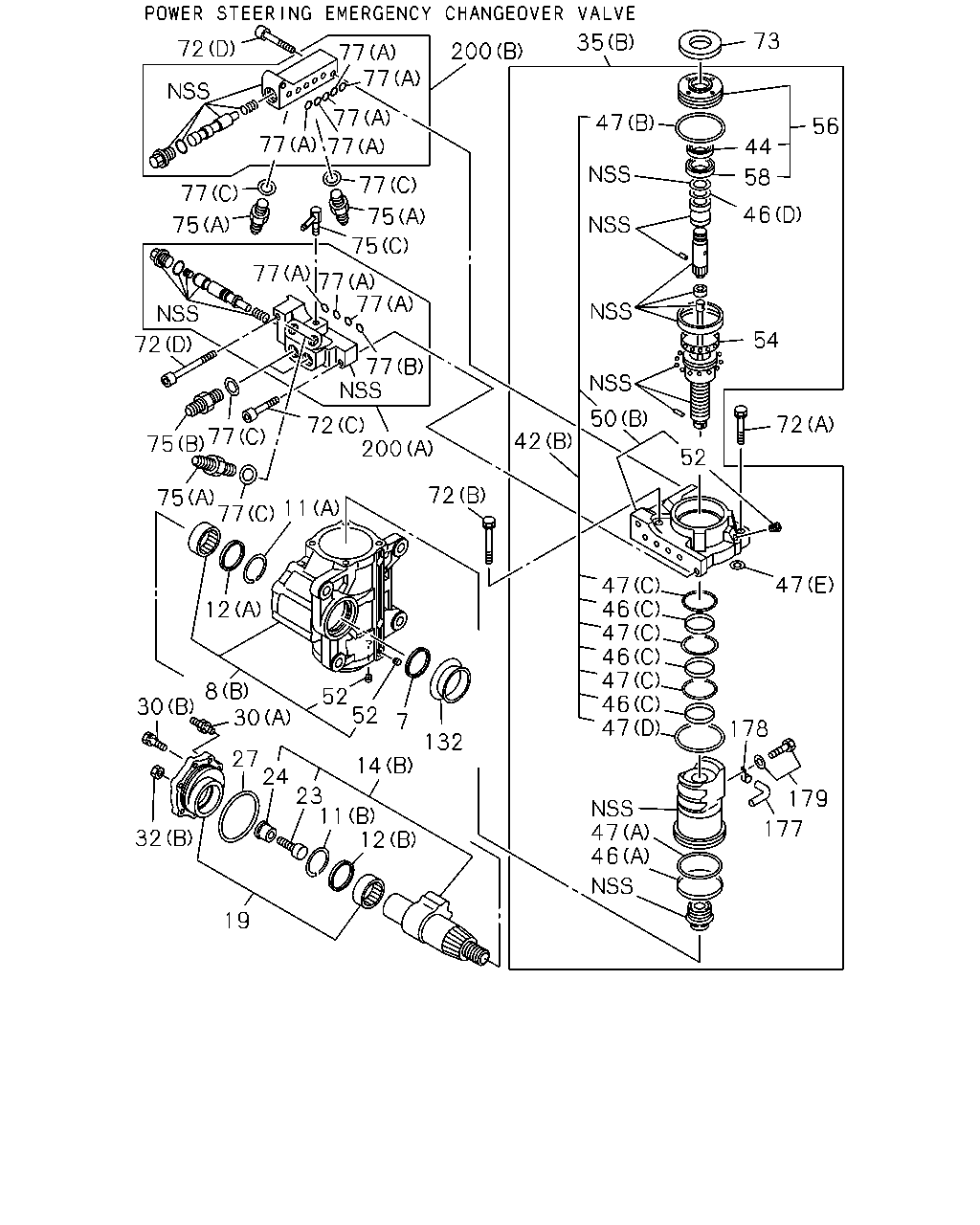

73 35 72 200 77 77 77 47 56 77 77 44 58 77 77 46 75 75 75 77 77 77 77 54 72 50 77 75 72 72 200 42 52 72 75 77 11 47 47 46 47 46 47 46 47 12 8 30 52 52 30 7 178 132 27 24 23 11 12 14 179 47 46 177 32 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	8-98159-116-0	01	1	-
8	BOX ASM; STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44240-152-0	01	1	-
8	BOX ASM; STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44240-154-0	01	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-265-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44320-029-0	01	1	-
14	SHAFT; SECTOR,STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44321-032-0	01	1	-
19	COVER; SIDE STRG UNIT ASM PART: B = 1-44000-923-3	1-44260-030-0	01	1	-
23	SCREW; ADJ,SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44277-003-1	01	1	-
24	RETAINER; STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44279-011-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44269-035-0	01	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: B = 1-44000-923-3	1-19519-121-0	02	1	-
30	BOLT; COVER STRG UNIT (A) STUD ASM PART: A = 1-44000-917-2	1-19519-121-0	03	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44279-012-0	06	1	-
30	BOLT; COVER STRG UNIT (B) ASM PART: A = 1-44000-917-2	1-44279-012-0	05	1	-
32	NUT; ADJ SCREW,STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44269-007-0	01	1	-
32	NUT; ADJ SCREW,STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44269-037-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44150-095-0	01	1	-
35	HOUSING & SCREW ASM; STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44150-118-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44560-080-0	01	1	-
42	HOUSING & SEAL ASM; STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44560-092-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-917-2	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (D) ASM PART: B = 1-44000-923-3	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-261-0	01	1	-
47	GASKET; HSG,STRG UNIT (E) ASM PART: B = 1-44000-923-3	1-44519-262-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44560-076-0	01	1	-
50	HOUSING ASM; VALVE STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44560-093-0	01	1	-
52	PLUG; HSG STRG UNIT ASM PART: B = 1-44000-923-3	1-44519-071-0	04	1	-
52	PLUG; HSG STRG UNIT ASM PART: A = 1-44000-917-2	1-44519-071-0	01	1	-
54	CASE; BEARING STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44241-088-0	01	1	-
56	PLUG & SEAL ASM; STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44250-006-1	01	1	-
58	BEARING; HSG STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44259-029-0	01	1	-
72	BOLT; HSG FIX STRG UNIT (A) ASM PART: B = 1-44000-923-3	1-44259-017-0	03	1	-
72	BOLT; HSG FIX STRG UNIT (A) ASM PART: A = 1-44000-917-2	1-44259-017-0	04	1	-
72	BOLT; HSG FIX STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44259-070-0	01	1	-
72	BOLT; HSG FIX STRG UNIT (C) ASM PART: B = 1-44000-923-3	1-44259-071-0	01	1	-
72	BOLT; HSG FIX STRG UNIT (D) ASM PART: B = 1-44000-923-3	1-44259-072-0	03	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	8-98166-307-0	01	1	-
75	CONNECTOR; HSG STRG UNIT (A), M20X1.5 ASM PART: A = 1-44000-917-2	1-44259-034-1	02	1	-
75	CONNECTOR; HSG STRG UNIT (A), M20X1.5 ASM PART: B = 1-44000-923-3	1-44259-034-1	04	1	-
75	CONNECTOR; HSG STRG UNIT (B), M22X1.5 ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44259-035-1	02	1	-
75	CONNECTOR; HSG STRG UNIT (C) ASM PART: B = 1-44000-923-3	1-44259-075-0	01	1	-
77	GASKET; CONNECTOR,STRG UNIT (A) ASM PART: B = 1-44000-923-3	1-44159-247-0	08	1	-
77	GASKET; CONNECTOR,STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44159-248-0	01	1	-
77	GASKET; CONNECTOR,STRG UNIT (C) ASM PART: B = 1-44000-923-3	9-89970-787-0	06	1	-
77	GASKET; CONNECTOR,STRG UNIT (C) ASM PART: A = 1-44000-917-2	9-89970-787-0	04	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-227-0	01	1	-
177	TUBE; BALL BRG STRG UNIT ASM PART: B = 1-44000-923-3	1-44159-176-0	02	1	-
178	CLIP; BALL TUBE STRG UNIT ASM PART: B = 1-44000-923-3	1-44159-034-0	01	1	-
179	SCREW; CLIP STRG UNIT ASM PART: B = 1-44000-923-3	1-09000-610-0	02	1	-
200	VALVE ASM; CONTROL (A) ASM PART: B = 1-44000-923-3	1-44560-094-0	01	1	-
200	VALVE ASM; CONTROL (B) ASM PART: B = 1-44000-923-3	1-44560-095-0	01	1	-

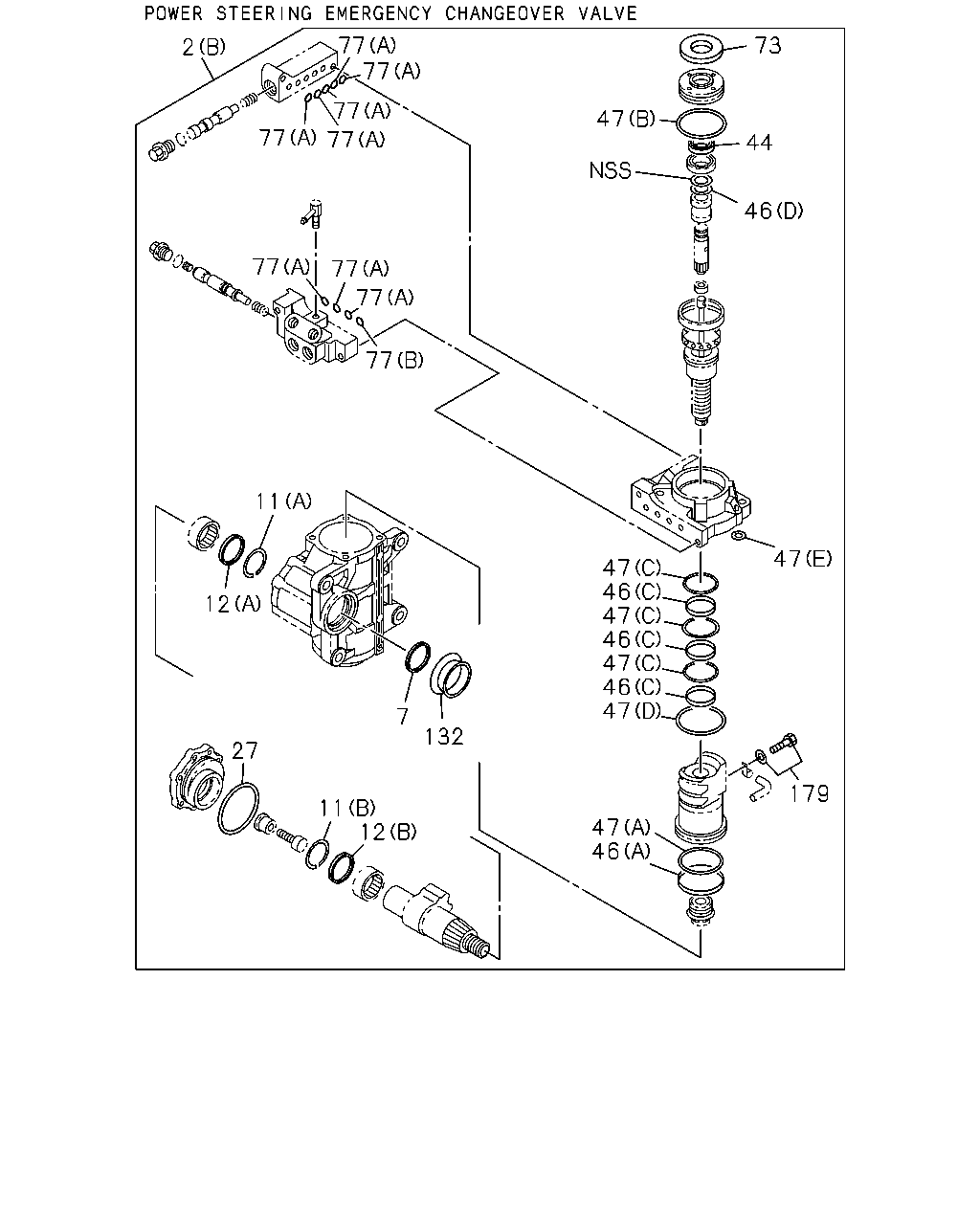

77 77 73 2 77 47 77 77 44 46 77 77 77 77 11 47 47 46 47 46 47 46 47 12 7 132 27 179 11 12 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; STRG UNIT,2 YEAR (A), 2 YEAR ASM PART: A = 1-44000-917-2	8-98166-305-0	01	1	-
2	REPAIR KIT; STRG UNIT,2 YEAR (B), 2 YEAR ASM PART: B = 1-44000-923-3	8-98166-415-0	01	1	-
7	SEAL; SECTOR SHAFT,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	8-98159-116-0	01	1	-
11	RING; BACKUP,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44249-075-0	01	1	-
11	RING; BACKUP,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-252-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44249-076-0	01	1	-
12	GASKET; SHAFT,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-265-0	01	1	-
27	GASKET; SIDE COVER,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44269-035-0	01	1	-
44	SEAL; OIL,SHAFT STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44259-036-1	01	1	-
46	SEAL; RING,HSG STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44159-170-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (B) ASM PART: A = 1-44000-917-2	1-44519-096-0	01	1	-
46	SEAL; RING,HSG STRG UNIT (C) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-255-0	03	1	-
46	SEAL; RING,HSG STRG UNIT (D) ASM PART: B = 1-44000-923-3	1-44519-302-0	01	1	-
47	GASKET; HSG,STRG UNIT (A) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44159-163-0	01	1	-
47	GASKET; HSG,STRG UNIT (C) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-101-0	03	1	-
47	GASKET; HSG,STRG UNIT (B) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-260-0	01	1	-
47	GASKET; HSG,STRG UNIT (D) ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-261-0	01	1	-
47	GASKET; HSG,STRG UNIT (E) ASM PART: B = 1-44000-923-3	1-44519-262-0	01	1	-
73	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	8-98166-307-0	01	1	-
77	GASKET; CONNECTOR,STRG UNIT (A) ASM PART: B = 1-44000-923-3	1-44159-247-0	08	1	-
77	GASKET; CONNECTOR,STRG UNIT (B) ASM PART: B = 1-44000-923-3	1-44159-248-0	01	1	-
77	GASKET; CONNECTOR,STRG UNIT (C) ASM PART: B = 1-44000-923-3	9-89970-787-0	06	1	-
77	GASKET; CONNECTOR,STRG UNIT (C) ASM PART: A = 1-44000-917-2	9-89970-787-0	04	1	-
132	COVER; DUST,STRG UNIT ASM PART: A = 1-44000-917-2, B = 1-44000-923-3	1-44519-227-0	01	1	-
179	SCREW; CLIP STRG UNIT ASM PART: B = 1-44000-923-3	1-09000-610-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
