Sayfa 4-35 - Isuzu EPC

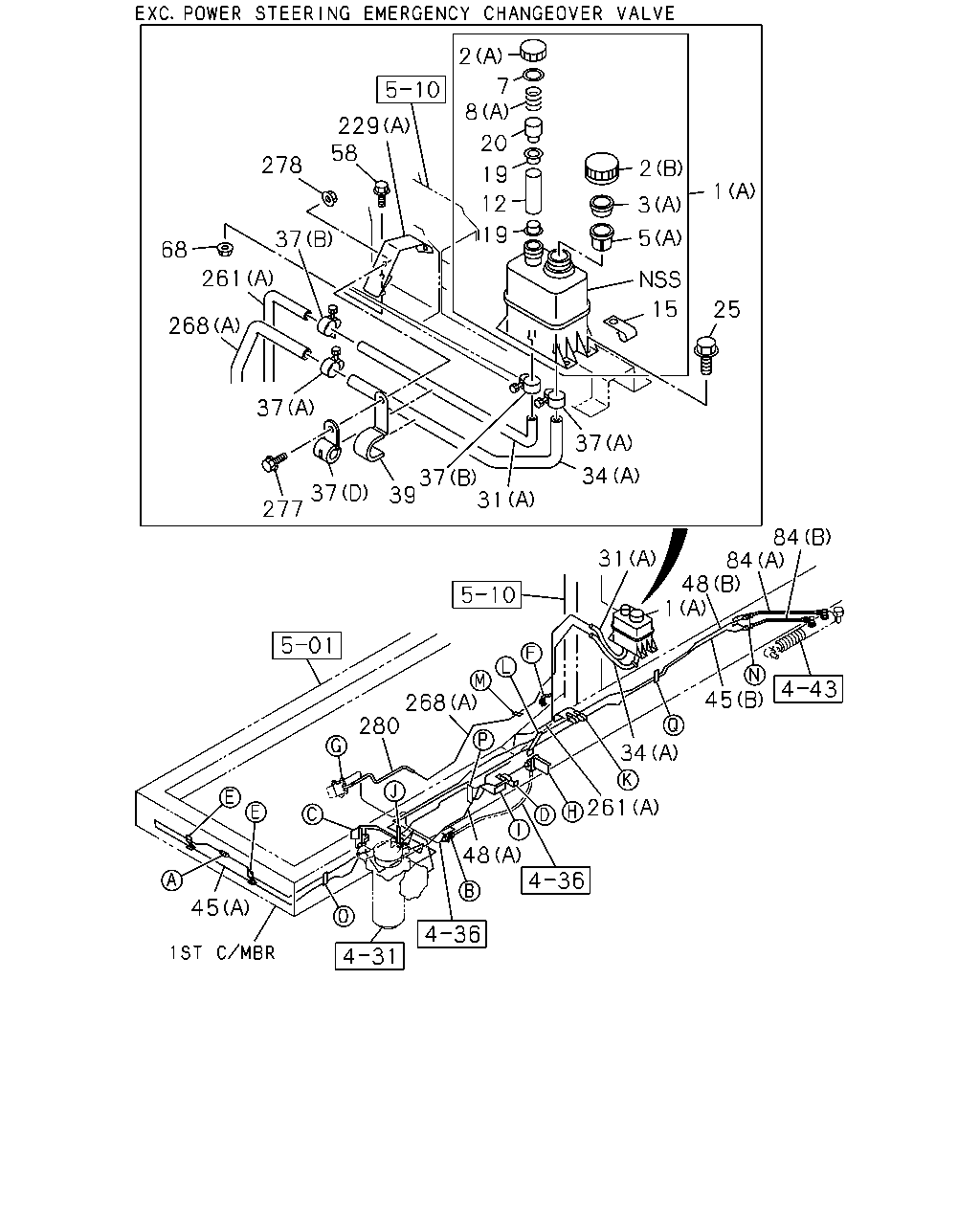

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#63493) — 507 parça

2 7 8 229 58 20 278 2 19 1 12 3 19 5 37 68 261 15 25 268 37 37 34 37 39 31 37 277 84 84 48 1 31 45 268 280 34 261 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21210-229-0	02	1	1008-
1	TANK ASM; OIL,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21210-235-1	01	1	1008-
2	CAP; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C)	1-21241-017-0	01	1	1008-
2	CAP; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D)	1-21241-018-0	02	1	1008-
2	CAP; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) WO/GAUGE	1-21241-003-6	01	1	1008-
2	CAP; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) W/GAUGE	1-21241-006-4	01	1	1008-
3	GASKET; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21249-015-0	02	1	1008-
3	GASKET; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21249-006-2	01	1	1008-
5	STRAINER; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21235-018-0	02	1	1008-
5	STRAINER; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21235-006-1	01	1	1008-
7	RING; GASKET,OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21249-005-0	01	1	1008-
8	SPRING; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-09580-595-0	02	1	1008-
8	SPRING; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-09580-599-0	01	1	1008-
12	FILTER; MICROBON,OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21235-004-1	01	1	1008-
15	PLATE; FILTER,OIL TANK EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21249-016-0	04	1	1008-
19	SEAT; OIL TANK EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21262-001-0	02	1	1008-
20	HOLDER; FILTER,OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21239-001-2	01	1	1008-
25	BOLT; OIL TANK BRKT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	04	1	1008-
31	HOSE; P/S OIL TANK,INL POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98145-642-0	01	1	1008-
31	HOSE; P/S OIL TANK,INL EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21114-284-0	01	1	1008-
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21117-707-0	01	1	1008-
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C)	8-98145-643-0	01	1	1008-
34	HOSE; P/S OIL TANK,OUTLET EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21114-283-0	01	1	1008-
37	CLIP; HOSE,P/S (D) ID=28 L=30	1-09700-607-1	01	1	1008-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (H) ID=13 L=20	0-95235-235-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (I) ID=16 L=28	1-09700-872-0	11	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (F) ID=12 & 12	1-09709-280-1	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (G) ID=12 & 15	1-09709-281-1	02	1	1008-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=2743	8-98144-823-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=2513	8-98168-561-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2553	8-98163-432-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2457	8-98168-560-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=2810	8-98144-824-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=1819	8-98168-558-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2412	8-98163-433-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1895	8-98168-559-0	01	1	1008-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	07	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X25 FLANGE	0-28650-825-0	10	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X30 FLANGE	0-28650-830-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M10X25 FLANGE	0-28651-025-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1008-
68	NUT; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10 FLANGE	0-91180-210-0	02	1	1008-
68	NUT; CLIP,OIL PIPE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	01	1	1008-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1008-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1008-
229	BRACKET; HOSE,POWER STRG POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98150-114-0	01	1	1008-
229	BRACKET; HOSE,POWER STRG EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21464-407-1	01	1	1008-
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2950	8-98169-748-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2944	8-98169-745-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-R(75L) (B) L=2991	8-98169-746-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1276	1-21117-830-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=1307	8-98155-116-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1290	8-98144-825-0	01	1	1008-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	1008-
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	1008-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1008-

364 37 195 58 79 364 232 62 232 122 195 125 364 346 58 62 58 37 37 37 229 65 65 278 195 58 65 62 58 58 277 59 37 55 39 232 79 68 239 58 37 62 37 62 37 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	CLIP; HOSE,P/S (D) ID=28 L=30	1-09700-607-1	01	1	1008-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (H) ID=13 L=20	0-95235-235-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (I) ID=16 L=28	1-09700-872-0	11	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (F) ID=12 & 12	1-09709-280-1	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (G) ID=12 & 15	1-09709-281-1	02	1	1008-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	1008-
55	CLIP; P/S RUBBER HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ID=28 L=30	1-09700-607-1	01	1	1008-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	07	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X25 FLANGE	0-28650-825-0	10	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X30 FLANGE	0-28650-830-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M10X25 FLANGE	0-28651-025-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (B) L=112	1-47475-694-1	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-521-0	02	1	1008-
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E)	1-47471-098-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (F)	1-47477-145-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-R(75L) (A)	1-47471-183-0	01	1	1008-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1008-
62	NUT; CLIP FIX POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	07	1	1008-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
65	NUT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	03	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1008-
68	NUT; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10 FLANGE	0-91180-210-0	02	1	1008-
68	NUT; CLIP,OIL PIPE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	01	1	1008-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1008-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-
79	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
122	CLIP; PIPE,P/S (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
122	CLIP; PIPE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) ID=13 L=20	0-95235-235-0	01	1	1008-
122	CLIP; PIPE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
125	CONNECTOR; P/S PUMP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-13313-532-0	01	1	1008-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1008-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1008-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) M10X16 FLANGE	0-28051-016-0	04	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X20 FLANGE	0-28650-820-0	02	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X25 FLANGE	0-28650-825-0	08	1	1008-
229	BRACKET; HOSE,POWER STRG POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98150-114-0	01	1	1008-
229	BRACKET; HOSE,POWER STRG EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21464-407-1	01	1	1008-
232	NUT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	10	1	1008-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1008-
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-
239	BRACKET; FLEX HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-47471-239-0	01	1	1008-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	1008-
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	1008-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> LOW DECK WO/REAR BODY VAR2<XR8> (A) L=2383	8-98182-889-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=2286	8-98182-890-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2404	1-21117-825-0	01	1	1008-1103
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) L=2404	1-21117-825-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2290	1-21117-826-0	01	1	1008-1103
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) L=2290	1-21117-826-0	01	1	1104-
364	BRACKET; PUMP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-47471-090-2	01	1	1008-
364	BRACKET; PUMP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-47471-270-0	01	1	1008-
364	BRACKET; PUMP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C)	1-47479-956-0	01	1	1008-

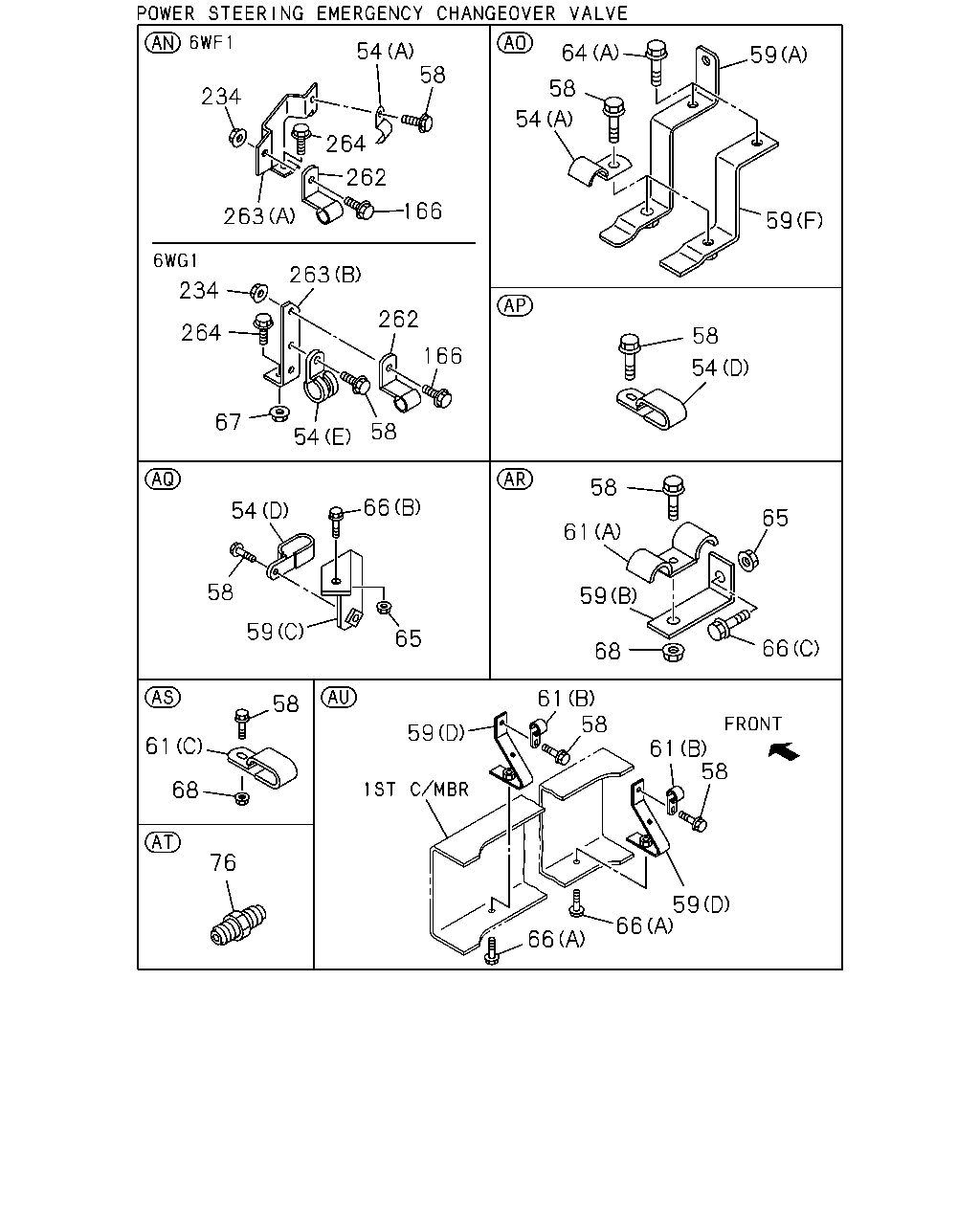

76 266 256 257 66 61 54 58 65 59 58 65 66 59 68 61 54 58 58 234 58 61 58 264 59 59 262 66 166 263 66 61 255 111 111 195 195 79 239 280 41 257 65 41 256 157 268 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1008-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	1008-
54	CLIP; OIL PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (A) ID=23.6 L=35	1-09700-634-0	01	1	1008-
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (E) ID=26 L=27	1-09701-006-0	01	1	1008-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	07	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X25 FLANGE	0-28650-825-0	10	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X30 FLANGE	0-28650-830-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M10X25 FLANGE	0-28651-025-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (B) L=112	1-47475-694-1	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-521-0	02	1	1008-
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E)	1-47471-098-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (F)	1-47477-145-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-R(75L) (A)	1-47471-183-0	01	1	1008-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	1008-
61	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1008-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
61	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 L=20	0-95235-535-0	01	1	1008-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
65	NUT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	03	1	1008-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1008-
66	BOLT; BRKT,OIL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1008-
68	NUT; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10 FLANGE	0-91180-210-0	02	1	1008-
68	NUT; CLIP,OIL PIPE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	01	1	1008-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1008-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1008-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-
79	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-

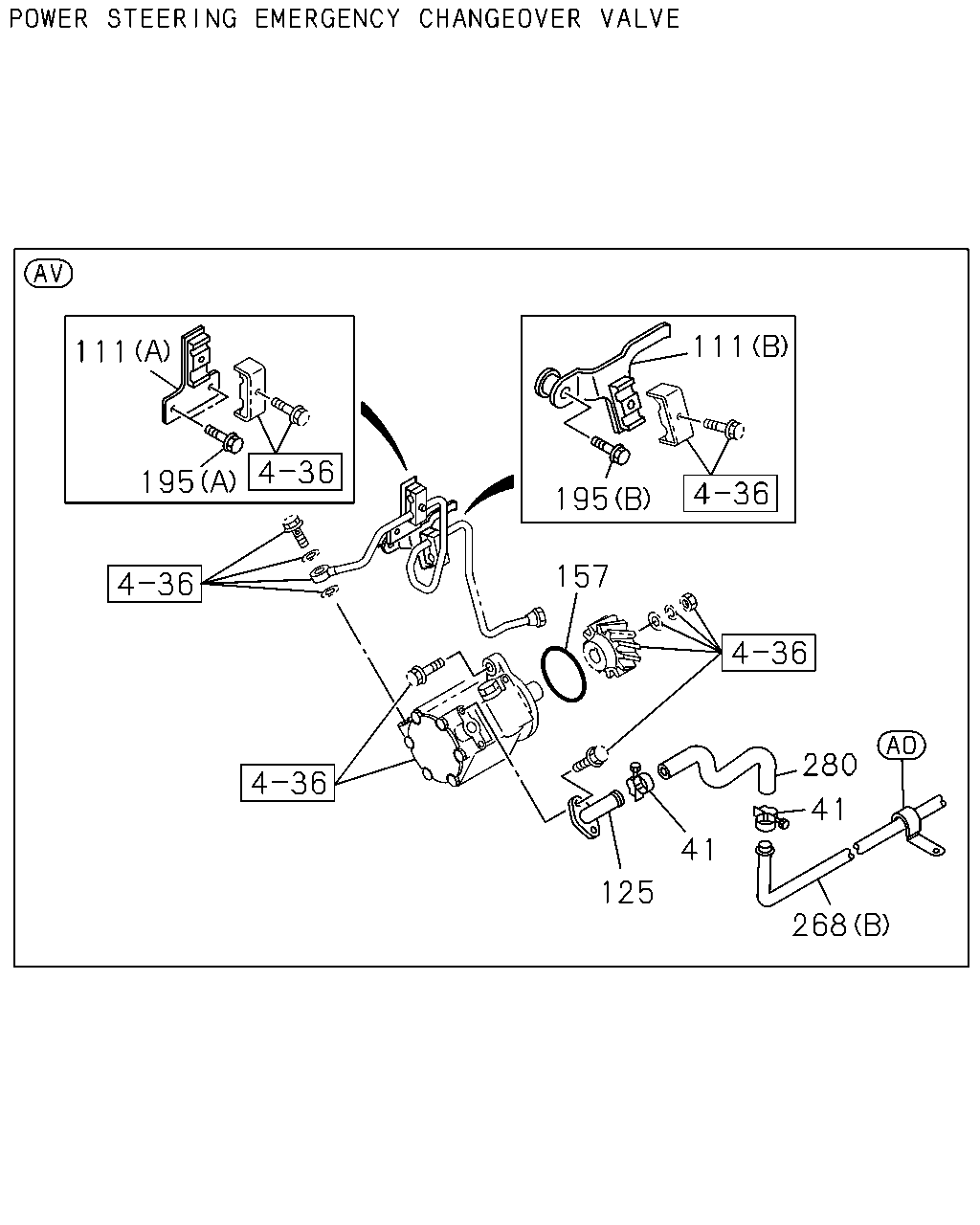

111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1008-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1008-
125	CONNECTOR; P/S PUMP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-13313-532-0	01	1	1008-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1008-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1008-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
166	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1008-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) M10X16 FLANGE	0-28051-016-0	04	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X20 FLANGE	0-28650-820-0	02	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X25 FLANGE	0-28650-825-0	08	1	1008-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1008-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1008-
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-
239	BRACKET; FLEX HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-47471-239-0	01	1	1008-
255	UNION; FLEX HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-09656-769-0	01	1	1008-
255	UNION; FLEX HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) M22 & M22 ELBOW	1-09650-375-1	01	1	1008-
256	NUT; UNION M22	0-91111-522-0	01	1	1008-
256	NUT; UNION M22	0-91111-522-0	01	1	1008-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1008-
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	1008-
263	BRACKET; P/S PIPE 6WG1 TC-R(75L) (B)	1-47471-191-1	01	1	1008-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1276	1-21117-830-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=1307	8-98155-116-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1290	8-98144-825-0	01	1	1008-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1008-

192 62 365 79 37 58 368 17 370 17 109 131 2 195 1 1 109 346 31 37 261 37 268 109 109 37 37 109 109 34 367 34 109 109 131 367 131 4 2 22 1 3 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

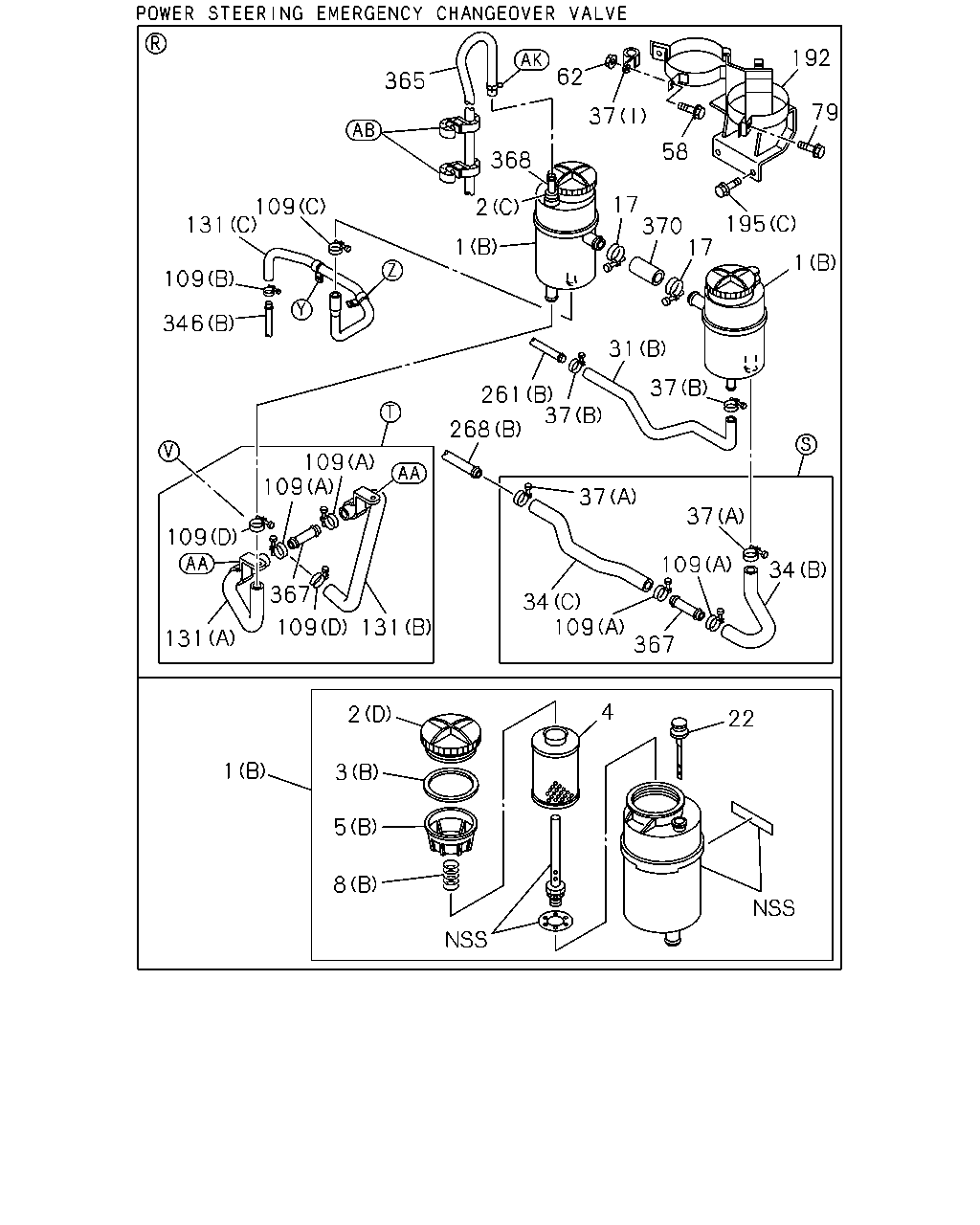

1	TANK ASM; OIL,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21210-229-0	02	1	1008-
1	TANK ASM; OIL,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21210-235-1	01	1	1008-
2	CAP; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C)	1-21241-017-0	01	1	1008-
2	CAP; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D)	1-21241-018-0	02	1	1008-
2	CAP; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) WO/GAUGE	1-21241-003-6	01	1	1008-
2	CAP; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) W/GAUGE	1-21241-006-4	01	1	1008-
3	GASKET; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21249-015-0	02	1	1008-
3	GASKET; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21249-006-2	01	1	1008-
4	FILTER; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21235-017-0	02	1	1008-
5	STRAINER; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21235-018-0	02	1	1008-
5	STRAINER; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21235-006-1	01	1	1008-
8	SPRING; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-09580-595-0	02	1	1008-
8	SPRING; OIL TANK,P/S EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-09580-599-0	01	1	1008-
17	CLIP; HOSE,OIL TANK POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ID=38	9-09915-666-1	02	1	1008-
22	GAUGE; OIL TANK,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21241-019-0	02	1	1008-
31	HOSE; P/S OIL TANK,INL POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98145-642-0	01	1	1008-
31	HOSE; P/S OIL TANK,INL EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21114-284-0	01	1	1008-
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21117-707-0	01	1	1008-
34	HOSE; P/S OIL TANK,OUTLET POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C)	8-98145-643-0	01	1	1008-
34	HOSE; P/S OIL TANK,OUTLET EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21114-283-0	01	1	1008-
37	CLIP; HOSE,P/S (D) ID=28 L=30	1-09700-607-1	01	1	1008-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (H) ID=13 L=20	0-95235-235-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (I) ID=16 L=28	1-09700-872-0	11	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (F) ID=12 & 12	1-09709-280-1	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (G) ID=12 & 15	1-09709-281-1	02	1	1008-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	07	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X25 FLANGE	0-28650-825-0	10	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X30 FLANGE	0-28650-830-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M10X25 FLANGE	0-28651-025-0	01	1	1008-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1008-
62	NUT; CLIP FIX POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	07	1	1008-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1008-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-
79	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
109	CLIP; RUBBER HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) ID=26	1-09707-108-0	01	1	1008-
109	CLIP; RUBBER HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) ID=38	9-09915-041-1	04	1	1008-
109	CLIP; RUBBER HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) ID=38	9-09915-666-1	02	1	1008-
109	CLIP; RUBBER HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=28	9-09915-672-1	01	1	1008-
131	HOSE; RUBBER,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21117-837-0	01	1	1008-
131	HOSE; RUBBER,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21117-838-0	01	1	1008-
131	HOSE; RUBBER,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C)	1-21117-839-0	01	1	1008-
192	BRACKET; P/S OIL TANK POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-47471-240-0	01	1	1008-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1008-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) M10X16 FLANGE	0-28051-016-0	04	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X20 FLANGE	0-28650-820-0	02	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X25 FLANGE	0-28650-825-0	08	1	1008-
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2950	8-98169-748-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2944	8-98169-745-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-R(75L) (B) L=2991	8-98169-746-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1276	1-21117-830-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=1307	8-98155-116-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1290	8-98144-825-0	01	1	1008-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> LOW DECK WO/REAR BODY VAR2<XR8> (A) L=2383	8-98182-889-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=2286	8-98182-890-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2404	1-21117-825-0	01	1	1008-1103
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) L=2404	1-21117-825-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2290	1-21117-826-0	01	1	1008-1103
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) L=2290	1-21117-826-0	01	1	1104-
365	HOSE; RUBBER,OIL TANK TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> L=3500	8-98155-185-0	01	1	1008-
367	NIPPLE; HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21117-691-0	02	1	1008-
368	CONNECTOR; OIL TANK POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21431-576-0	01	1	1008-
370	HOSE; OIL TANK POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-21117-562-0	01	1	1008-

63 58 79 61 63 54 58 62 67 68 64 62 62 58 58 63 122 54 62 54 54 79 79 63 67 67 59 84 54 58 61 58 64 239 81 84 238 58 63 54 48 238 81 238 45 79 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=2743	8-98144-823-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=2513	8-98168-561-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2553	8-98163-432-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2457	8-98168-560-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=2810	8-98144-824-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=1819	8-98168-558-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2412	8-98163-433-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1895	8-98168-559-0	01	1	1008-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	1008-
54	CLIP; OIL PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (A) ID=23.6 L=35	1-09700-634-0	01	1	1008-
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (E) ID=26 L=27	1-09701-006-0	01	1	1008-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	07	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X25 FLANGE	0-28650-825-0	10	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X30 FLANGE	0-28650-830-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M10X25 FLANGE	0-28651-025-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (B) L=112	1-47475-694-1	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-521-0	02	1	1008-
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E)	1-47471-098-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (F)	1-47477-145-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-R(75L) (A)	1-47471-183-0	01	1	1008-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	1008-
61	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1008-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
61	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 L=20	0-95235-535-0	01	1	1008-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1008-
62	NUT; CLIP FIX POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	07	1	1008-
63	BRACKET; CLIP,P/S (E)	1-47471-146-0	01	1	1008-
63	BRACKET; CLIP,P/S (A)	1-47471-268-0	01	1	1008-
63	BRACKET; CLIP,P/S (B)	1-47471-269-0	01	1	1008-
63	BRACKET; CLIP,P/S (C)	1-47471-364-1	01	1	1008-
63	BRACKET; CLIP,P/S (D) L=40	1-47478-410-0	01	1	1008-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1008-
64	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
67	NUT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1008-
68	NUT; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10 FLANGE	0-91180-210-0	02	1	1008-
68	NUT; CLIP,OIL PIPE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	01	1	1008-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1008-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-
79	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1008-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1008-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1008-
122	CLIP; PIPE,P/S (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
122	CLIP; PIPE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) ID=13 L=20	0-95235-235-0	01	1	1008-
122	CLIP; PIPE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
238	NUT; FLEX HOSE (A) M20	0-91111-520-0	02	1	1008-
238	NUT; FLEX HOSE (B) M8 FLANGE	0-91180-108-0	02	1	1008-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1008-
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-
239	BRACKET; FLEX HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-47471-239-0	01	1	1008-

365 131 84 84 268 261 31 48 346 346 45 45 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

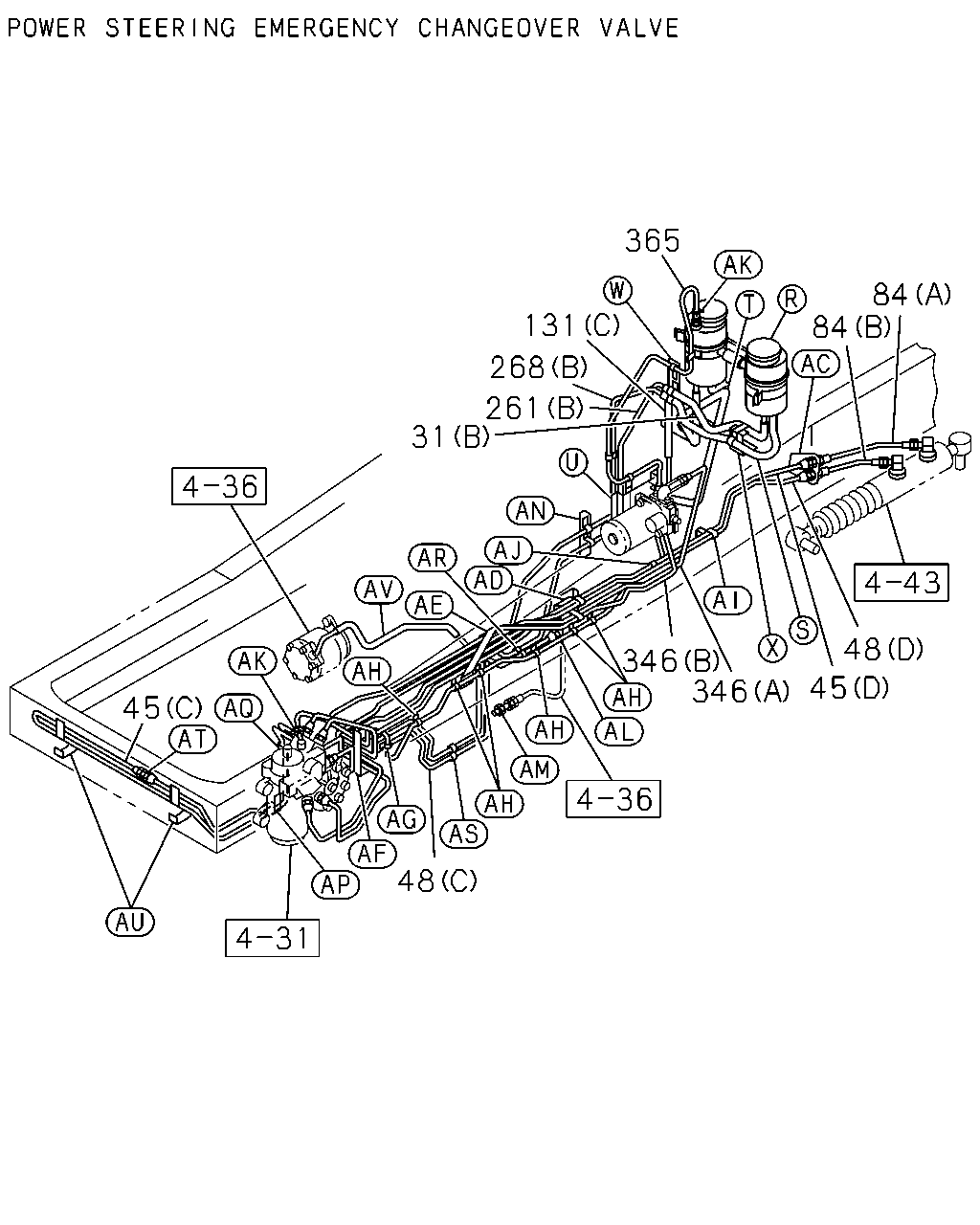

31	HOSE; P/S OIL TANK,INL POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	8-98145-642-0	01	1	1008-
31	HOSE; P/S OIL TANK,INL EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21114-284-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=2743	8-98144-823-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=2513	8-98168-561-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2553	8-98163-432-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2457	8-98168-560-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=2810	8-98144-824-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=1819	8-98168-558-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2412	8-98163-433-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1895	8-98168-559-0	01	1	1008-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1008-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1008-
131	HOSE; RUBBER,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A)	1-21117-837-0	01	1	1008-
131	HOSE; RUBBER,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-21117-838-0	01	1	1008-
131	HOSE; RUBBER,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C)	1-21117-839-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE 6WF1 TC-C(1B8) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2950	8-98169-748-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2944	8-98169-745-0	01	1	1008-
261	PIPE; OIL,UNION TO HOSE 6WG1 TC-R(75L) (B) L=2991	8-98169-746-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1276	1-21117-830-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=1307	8-98155-116-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1290	8-98144-825-0	01	1	1008-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> LOW DECK WO/REAR BODY VAR2<XR8> (A) L=2383	8-98182-889-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> LOW DECK WO/REAR BODY VAR2<XR8> (B) L=2286	8-98182-890-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2404	1-21117-825-0	01	1	1008-1103
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) L=2404	1-21117-825-0	01	1	1104-
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2290	1-21117-826-0	01	1	1008-1103
346	PIPE; OIL,STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) L=2290	1-21117-826-0	01	1	1104-
365	HOSE; RUBBER,OIL TANK TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> L=3500	8-98155-185-0	01	1	1008-

54 58 64 59 58 234 54 264 262 166 263 59 263 234 262 264 58 166 54 67 58 54 58 66 54 65 61 58 59 59 65 66 68 61 58 58 59 61 61 58 68 76 59 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

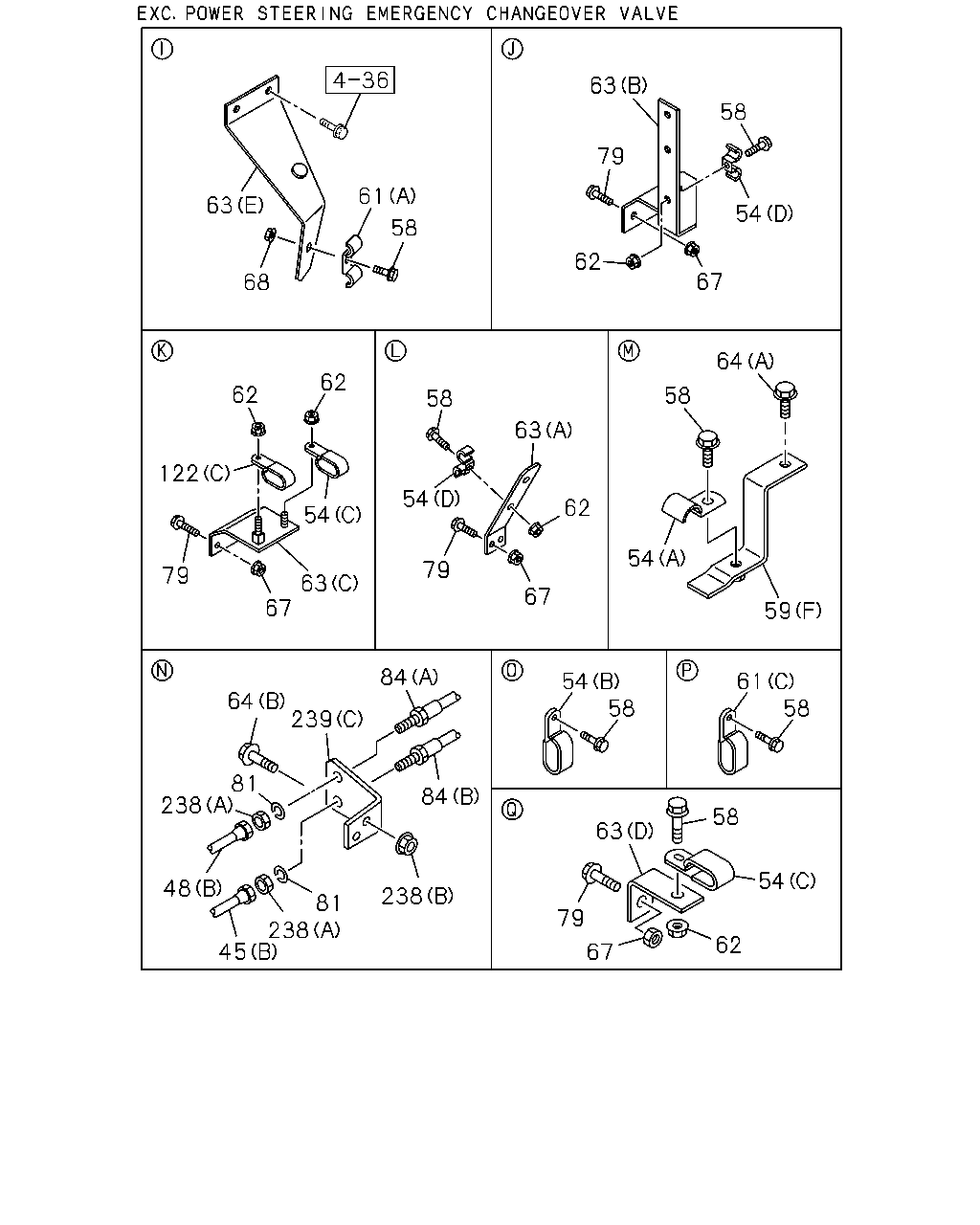

54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	1008-
54	CLIP; OIL PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (A) ID=23.6 L=35	1-09700-634-0	01	1	1008-
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (E) ID=26 L=27	1-09701-006-0	01	1	1008-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	07	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X25 FLANGE	0-28650-825-0	10	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X30 FLANGE	0-28650-830-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M10X25 FLANGE	0-28651-025-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (B) L=112	1-47475-694-1	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-521-0	02	1	1008-
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E)	1-47471-098-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE 6WF1 TC-C(1B8) (F)	1-47477-145-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE 6WG1 TC-R(75L) (A)	1-47471-183-0	01	1	1008-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	02	1	1008-
61	CLIP; OIL PIPE (C) ID=16X2 L=20	0-95325-535-0	02	1	1008-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
61	CLIP; OIL PIPE MJX16P M/T(Y3Z) (B) ID=16 L=20	0-95235-535-0	01	1	1008-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1008-
64	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
65	NUT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	03	1	1008-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1008-
66	BOLT; BRKT,OIL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	1008-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
67	NUT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1008-
68	NUT; CLIP,OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10 FLANGE	0-91180-210-0	02	1	1008-
68	NUT; CLIP,OIL PIPE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	01	1	1008-

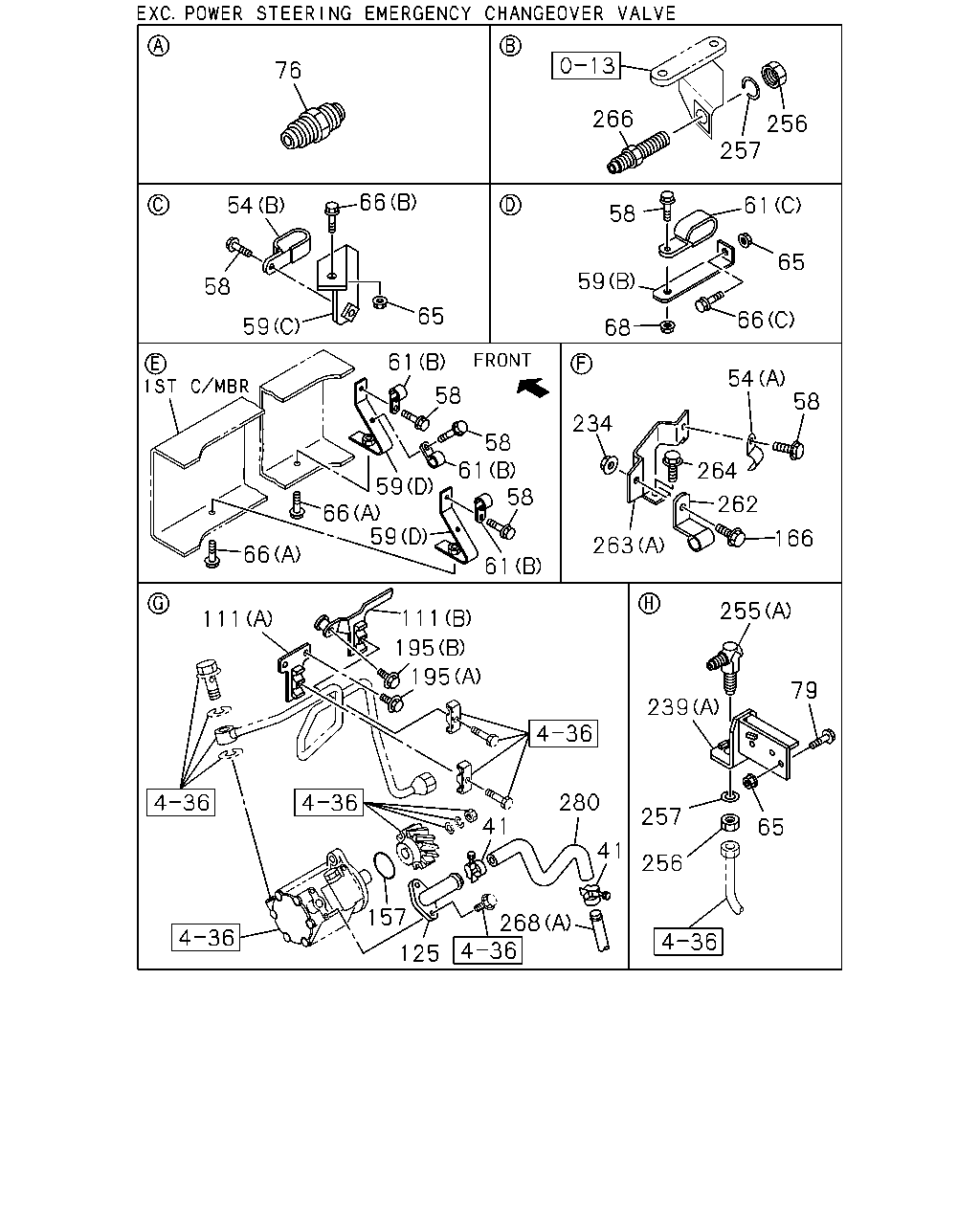

76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1008-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
166	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1008-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1008-
263	BRACKET; P/S PIPE 6WF1 TC-C(1B8) (A)	1-47476-483-2	01	1	1008-
263	BRACKET; P/S PIPE 6WG1 TC-R(75L) (B)	1-47471-191-1	01	1	1008-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-

111 111 195 195 157 280 41 41 125 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

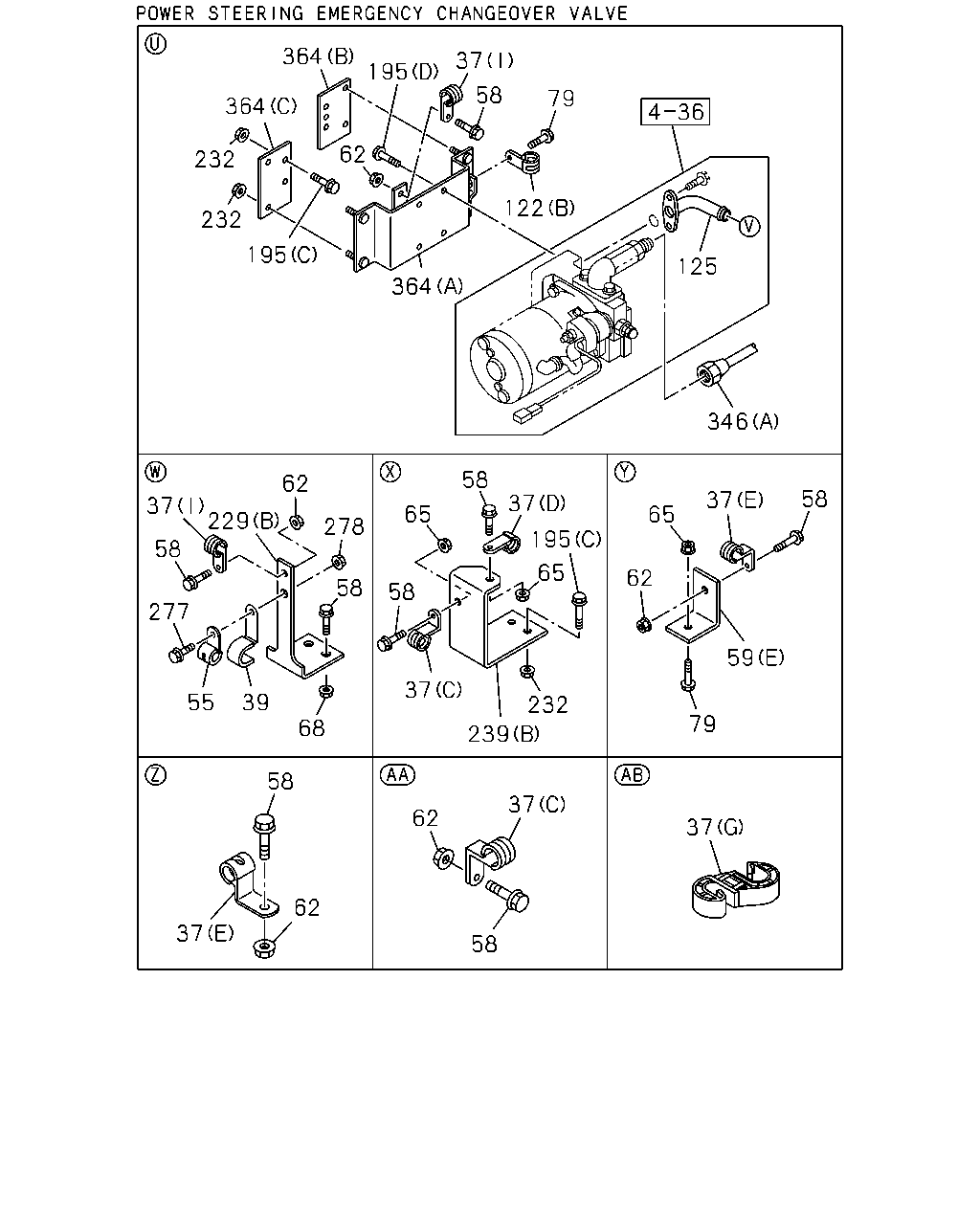

41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1008-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1008-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1008-
125	CONNECTOR; P/S PUMP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT>	1-13313-532-0	01	1	1008-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1008-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1008-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1008-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) M10X16 FLANGE	0-28051-016-0	04	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X20 FLANGE	0-28650-820-0	02	1	1008-
195	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) M8X25 FLANGE	0-28650-825-0	08	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1276	1-21117-830-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WF1 TC-C(1B8) POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=1307	8-98155-116-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE 6WG1 TC-R(75L) (B) L=1290	8-98144-825-0	01	1	1008-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1008-

239 238 62 166 122 63 287 287 58 64 45 84 122 54 54 81 238 84 81 238 48 79 62 63 67 79 67 62 37 122 58 37 166 37 62 62 287 58 54 58 58 79 63 67 62 58 37 63 79 42 54 67 62 65 63 79 255 239 48 256 257 266 257 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

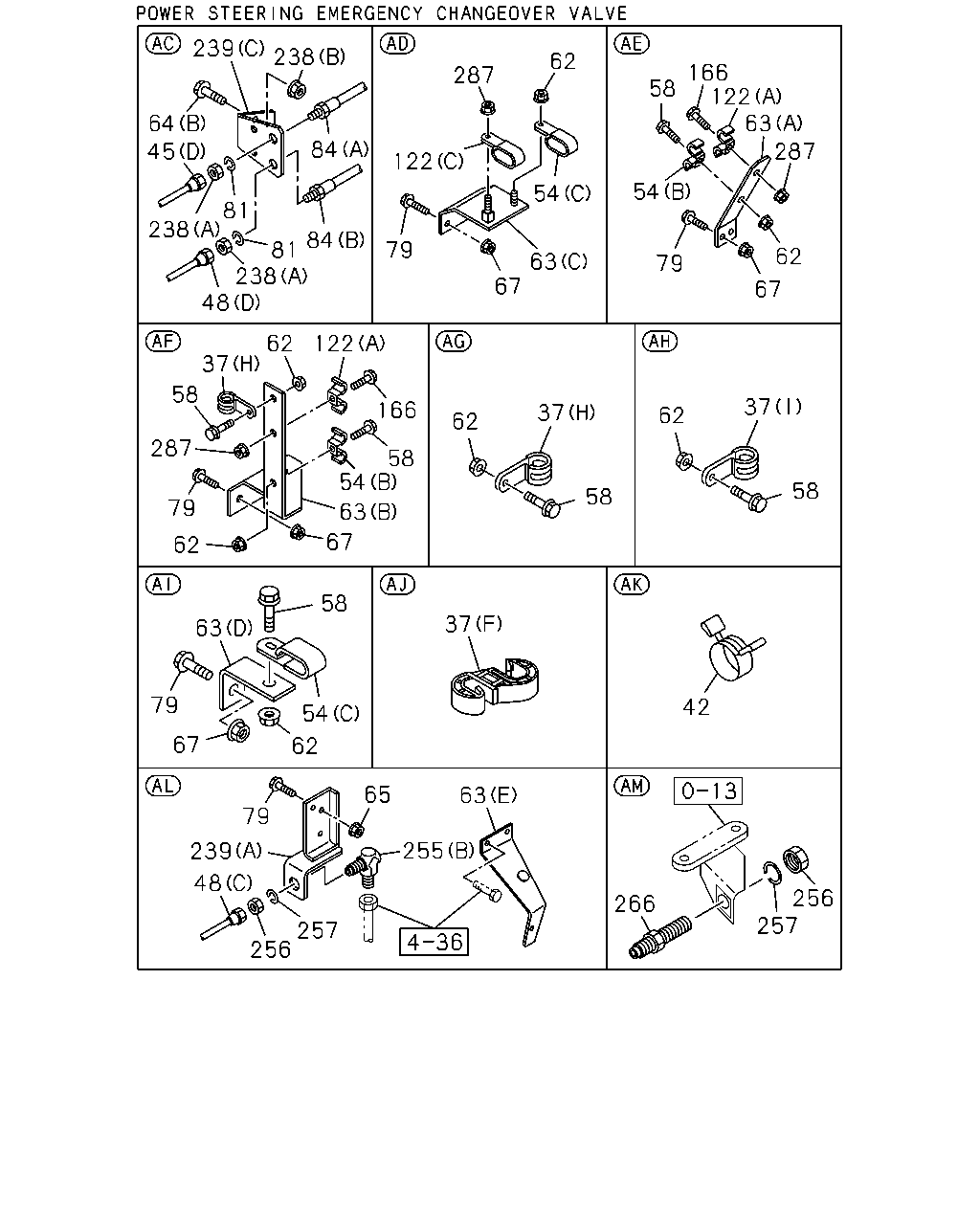

37	CLIP; HOSE,P/S (D) ID=28 L=30	1-09700-607-1	01	1	1008-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (H) ID=13 L=20	0-95235-235-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (I) ID=16 L=28	1-09700-872-0	11	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (F) ID=12 & 12	1-09709-280-1	02	1	1008-
37	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (G) ID=12 & 15	1-09709-281-1	02	1	1008-
42	CLIP; HOSE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> ID=12	8-94238-610-0	02	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=2743	8-98144-823-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=2513	8-98168-561-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2553	8-98163-432-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=2457	8-98168-560-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (D) L=2810	8-98144-824-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) L=1819	8-98168-558-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) L=2412	8-98163-433-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) L=1895	8-98168-559-0	01	1	1008-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	1008-
54	CLIP; OIL PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
54	CLIP; OIL PIPE 6WF1 TC-C(1B8) (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (A) ID=23.6 L=35	1-09700-634-0	01	1	1008-
54	CLIP; OIL PIPE 6WG1 TC-R(75L) (E) ID=26 L=27	1-09701-006-0	01	1	1008-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M8X20 FLANGE	0-28650-820-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	07	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X25 FLANGE	0-28650-825-0	10	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X30 FLANGE	0-28650-830-0	01	1	1008-
58	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP 6WG1 TC-R(75L) M10X25 FLANGE	0-28651-025-0	01	1	1008-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1008-
62	NUT; CLIP FIX POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	07	1	1008-
63	BRACKET; CLIP,P/S (E)	1-47471-146-0	01	1	1008-
63	BRACKET; CLIP,P/S (A)	1-47471-268-0	01	1	1008-
63	BRACKET; CLIP,P/S (B)	1-47471-269-0	01	1	1008-
63	BRACKET; CLIP,P/S (C)	1-47471-364-1	01	1	1008-
63	BRACKET; CLIP,P/S (D) L=40	1-47478-410-0	01	1	1008-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1008-
64	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
65	NUT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	03	1	1008-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
67	NUT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	01	1	1008-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1008-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1008-
79	BOLT; BRKT POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1008-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1008-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1008-
122	CLIP; PIPE,P/S (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
122	CLIP; PIPE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B) ID=13 L=20	0-95235-235-0	01	1	1008-
122	CLIP; PIPE,P/S POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
166	BOLT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8X20 FLANGE	0-28650-820-0	02	1	1008-
238	NUT; FLEX HOSE (A) M20	0-91111-520-0	02	1	1008-
238	NUT; FLEX HOSE (B) M8 FLANGE	0-91180-108-0	02	1	1008-
239	BRACKET; FLEX HOSE (C)	1-47479-146-0	01	1	1008-
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-
239	BRACKET; FLEX HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-47471-239-0	01	1	1008-
255	UNION; FLEX HOSE POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (B)	1-09656-769-0	01	1	1008-
255	UNION; FLEX HOSE EXC. POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> (A) M22 & M22 ELBOW	1-09650-375-1	01	1	1008-
256	NUT; UNION M22	0-91111-522-0	01	1	1008-
256	NUT; UNION M22	0-91111-522-0	01	1	1008-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1008-
287	NUT; CLIP POWER STEERING EMERGENCY CHANGEOVER VALVE<EAT> M8 FLANGE	0-91180-108-0	03	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
