◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11271 - CYH LHD EURO2/3/4 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#63482) — 364 parça

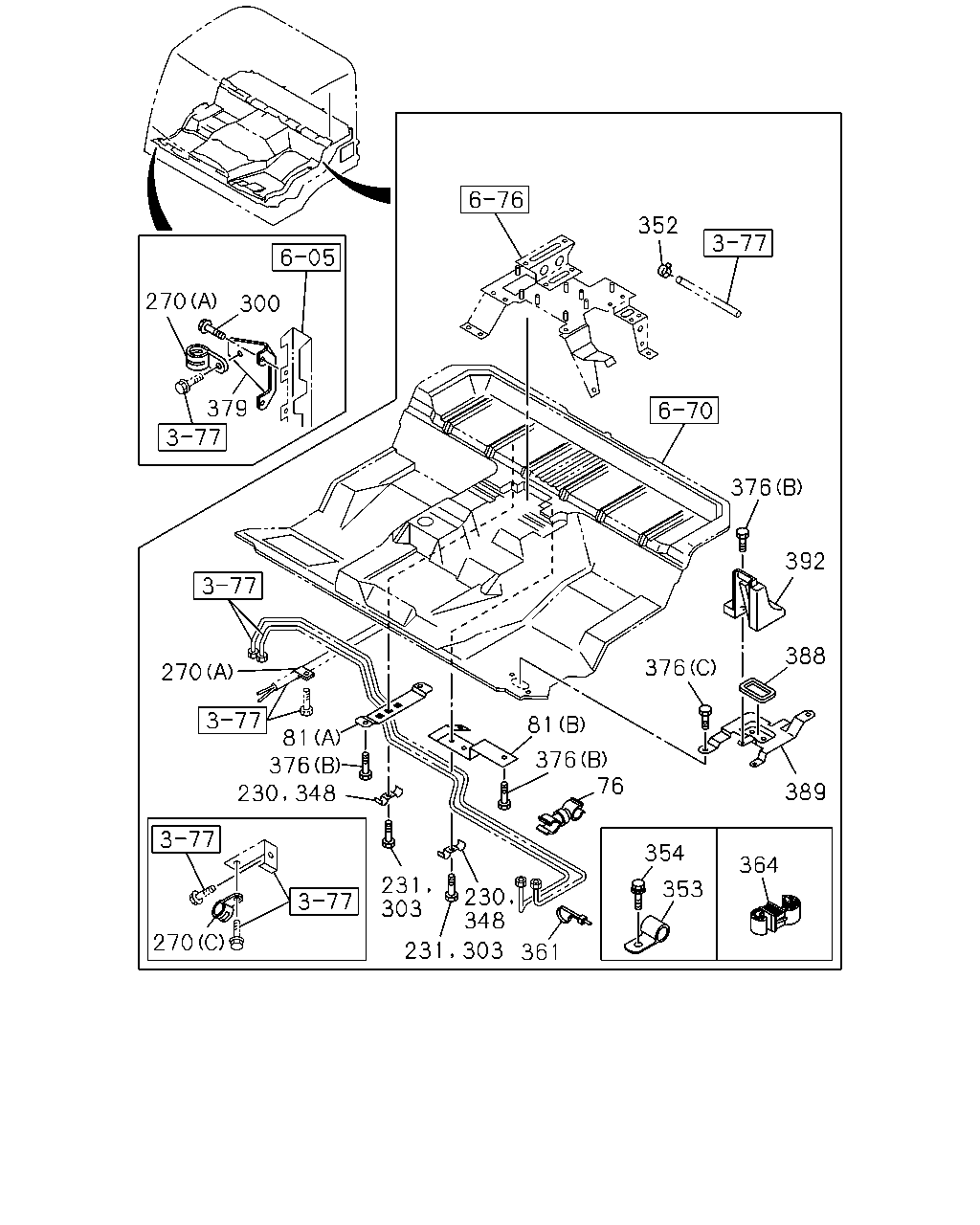

çizim 166891
352 270 300 379 376 392 388 376 270 81 81 376 376 76 389 354 364 231 303 353 230 348 270 361 230 348 231 303
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
EXC. EURO4 SPECIFICATION<KBT> ID=6 & 8.3 		8-94167-742-0 02 1 1008-
81 BRACKET; CLIP
(E) 		1-47477-694-0 02 1 1008-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 1008-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1008-
81 BRACKET; CLIP
(G) 		8-98046-950-0 01 1 1008-
81 BRACKET; CLIP
(H) 		8-98052-412-0 01 1 1008-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1008-
81 BRACKET; CLIP
(F) 		8-98061-758-0 03 1 1008-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1008-
81 BRACKET; CLIP
MJT7S M/T(Y3E) (C) 		1-47479-381-2 01 1 1008-
230 CLIP; PIPE,AIR
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-
231 BOLT; CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1008-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 1008-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 1008-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 1008-
303 BOLT; PIPE CLIP
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 1008-
303 BOLT; PIPE CLIP
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-
303 BOLT; PIPE CLIP
EXC. FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 1008-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 1008-
348 CLIP; AIR PIPE
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-
348 CLIP; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 1008-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 1008-
353 CLIP; AIR PIPE
FULL TRAILER PIPING<Z25> ID=9 L=16 		0-95234-822-0 01 1 1008-
354 BOLT; PIPE CLIP
FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1008-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
EXC. EURO4 SPECIFICATION<KBT> L=250 		5-09707-030-1 01 1 1008-
364 CLIP; AIR PIPE
FULL TRAILER PIPING<Z25> ID=8.3 & 10 		8-94176-792-0 01 1 1008-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-
376 BOLT; BRKT
EXC. EURO4 SPECIFICATION<KBT> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 1008-
388 SEAL
L=215 		1-79738-794-1 01 1 1008-
389 BRACKET; UNION
EURO4 SPECIFICATION<KBT> 		1-79738-795-1 01 1 1008-
389 BRACKET; UNION
EXC. EURO4 SPECIFICATION<KBT> 		1-79738-790-1 01 1 1008-
392 COVER; BRKT
EXC. EURO4 SPECIFICATION<KBT> 		1-73996-264-1 01 1 1008-

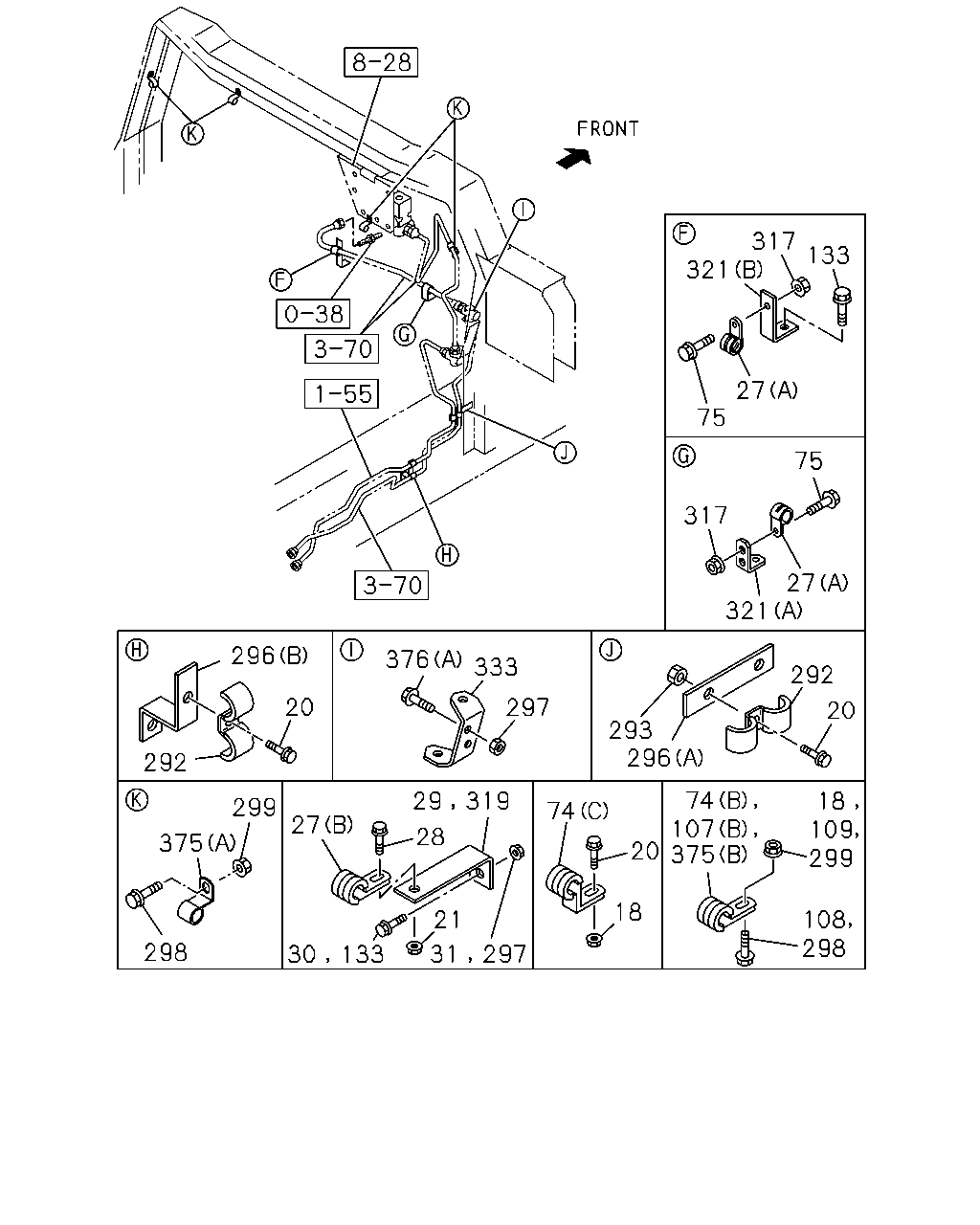

çizim 166896
317 321 133 27 75 75 317 27 321 296 376 333 292 20 297 20 293 296 292 74 107 375 18 109 299 299 74 27 28 375 20 18 108 298 21 298 31 297 30 133 29 319
BalonParca AdiParca NoAdetTipApplied Date
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 1008-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 06 1 1008-
20 BOLT; CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1008-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 1008-
27 CLIP; FLEX HOSE
(B) ID=26 L=27 		1-09701-006-0 01 1 1008-
27 CLIP; FLEX HOSE
EXC. MIXER TRUCK<RA2> (A) ID=15 L=28 		1-09701-216-0 02 1 1008-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
29 BRACKET; CLIP,AIR PIPE
L=145 B=25 		1-47479-123-0 01 1 1008-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1008-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1008-
74 CLIP; NYLON TUBE
(B) ID=13 		1-09701-030-1 03 1 1008-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09701-047-0 02 1 1008-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-
74 CLIP; NYLON TUBE
FULL TRAILER PIPING<Z25> (A) L=350 		1-09707-183-0 03 1 1008-
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 18 1 1008-
74 CLIP; NYLON TUBE
WHEEL BASE 7400MM(74W) (A) L=350 		1-09707-183-0 22 1 1008-
74 CLIP; NYLON TUBE
WHEEL BASE 7800MM(78W) (A) L=350 		1-09707-183-0 23 1 1008-
75 BOLT; CLIP
EXC. MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 02 1 1008-
107 CLIP; NYLON TUBE
6WF1 TC-C(1B8) (A) L=350 		1-09707-183-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 1008-
107 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=21 L=24 		8-98019-191-0 01 1 1008-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1008-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1008-
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1008-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 07 1 1008-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 1008-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 08 1 1008-
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 1008-1107
133 BOLT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8X20 FLANGE 		0-28650-820-0 01 1 1108-1311
133 BOLT; BRKT
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 01 1 1312-
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
133 BOLT; BRKT
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 1008-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1008-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 1008-
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 1008-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1008-
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 1008-1107
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-1107
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1108-1311
297 NUT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 01 1 1108-1311
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
EXC. MIXER TRUCK<RA2> M12 FLANGE 		0-91180-212-0 01 1 1008-
297 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 20 1 1008-
297 NUT; BRKT
WHEEL BASE 7400MM(74W) M8 FLANGE 		0-91180-108-0 23 1 1008-
297 NUT; BRKT
WHEEL BASE 7800MM(78W) M8 FLANGE 		0-91180-108-0 24 1 1008-
298 BOLT; CLIP
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28650-820-0 02 1 1108-
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 03 1 1008-1107
298 BOLT; CLIP
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 1108-
299 NUT; CLIP
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91180-108-0 02 1 1108-
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 03 1 1008-1107
299 NUT; CLIP
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 1108-
317 NUT; CLIP
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 02 1 1008-
319 BRACKET; CLIP
MIXER TRUCK<RA2> L=75 		1-47477-119-0 01 1 1008-1107
319 BRACKET; CLIP
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> L=75 		1-47477-119-0 01 1 1108-1311
319 BRACKET; CLIP
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> L=75 		1-47477-119-0 01 1 1312-
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (A) 		1-47477-337-1 01 1 1008-
321 BRACKET; CLIP
EXC. MIXER TRUCK<RA2> (B) L=75 		1-47478-328-0 01 1 1008-
333 BRACKET; BRK AIR PIPE 1-47477-045-0 01 1 1008-
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (B) ID=7 L=20 		0-95234-635-0 02 1 1008-1107
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (B) ID=7 L=20 		0-95234-635-0 02 1 1108-
375 CLIP; AIR PIPE
MIXER TRUCK<RA2> (A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1008-
376 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1008-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 1008-
376 BOLT; BRKT
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 1008-
376 BOLT; BRKT
EXC. EURO4 SPECIFICATION<KBT> (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-

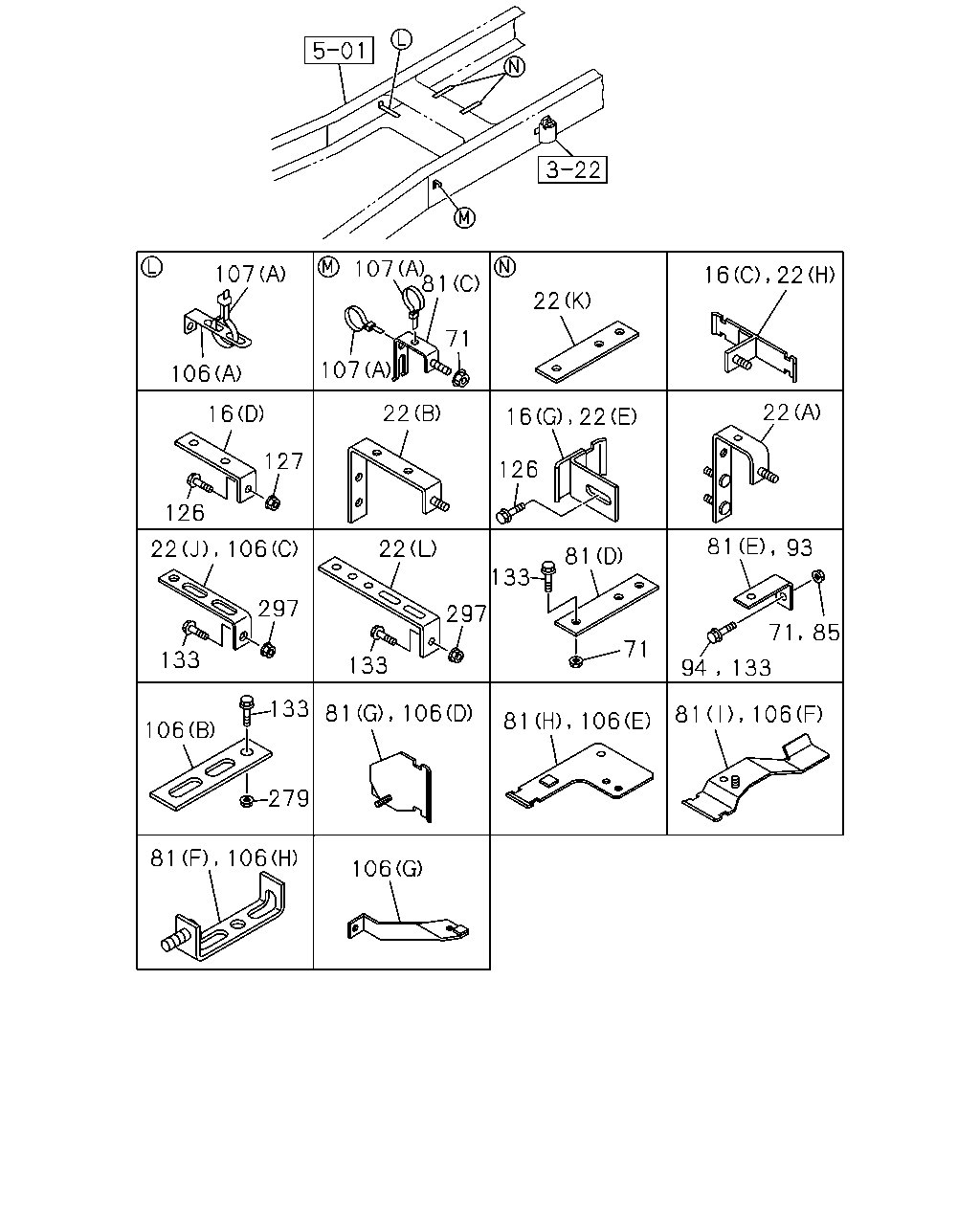

çizim 166918
107 81 107 22 71 107 106 22 22 16 16 22 127 126 126 81 93 22 106 22 81 133 297 297 71 85 71 133 133 94 133 133 81 106 81 106 81 106 106 279 81 106 106
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> (I) 		1-47479-381-2 04 1 1106-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 1008-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 1008-
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 02 1 1008-
16 BRACKET; PIPE CLIP
(H) 		1-47479-722-1 01 1 1008-
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 1008-
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 1008-
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 6500MM(65W) (I) 		1-47479-381-2 04 1 1008-1105
16 BRACKET; PIPE CLIP
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (I) 		1-47479-381-2 03 1 1106-
16 BRACKET; PIPE CLIP
WHEEL BASE 6500MM(65W) (G) 		1-47479-693-0 02 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 7400MM(74W) (I) 		1-47479-381-2 06 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (G) 		1-47479-693-0 03 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 7800MM(78W) (I) 		1-47479-381-2 07 1 1008-
22 BRACKET; CLIP
(M) 		1-47477-571-3 01 1 1008-
22 BRACKET; CLIP
(K) L=130 		1-47478-959-0 02 1 1008-
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 1008-
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 1008-
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 1008-
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 1008-
22 BRACKET; CLIP
(L) L=160 H=30 		1-47479-759-0 03 1 1008-
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 1008-
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 1008-
22 BRACKET; CLIP
(J) 		1-47479-754-0 01 1 1008-
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 1008-
22 BRACKET; CLIP
FULL TRAILER PIPING<Z25> (F) 		1-47479-381-2 01 1 1008-
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-381-2 08 1 1008-
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (E) 		1-47479-693-0 02 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7400MM(74W) (F) 		1-47479-381-2 10 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (E) 		1-47479-693-0 03 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7800MM(78W) (F) 		1-47479-381-2 11 1 1008-
71 NUT; BRKT
MJT7S M/T(Y3E) M8 FLANGE 		0-91180-108-0 09 1 1008-
71 NUT; BRKT
MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 08 1 1008-
81 BRACKET; CLIP
(E) 		1-47477-694-0 02 1 1008-
81 BRACKET; CLIP
(D) L=130 		1-47478-959-0 02 1 1008-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 1008-
81 BRACKET; CLIP
(G) 		8-98046-950-0 01 1 1008-
81 BRACKET; CLIP
(H) 		8-98052-412-0 01 1 1008-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 1008-
81 BRACKET; CLIP
(F) 		8-98061-758-0 03 1 1008-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 1008-
81 BRACKET; CLIP
MJT7S M/T(Y3E) (C) 		1-47479-381-2 01 1 1008-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1008-
93 BRACKET; PIPE CLIP
L=75 		1-47478-323-0 01 1 1008-
93 BRACKET; PIPE CLIP
L=95 		1-82699-085-0 02 1 1008-
94 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1008-
106 BRACKET; TUBE CLIP
(B) 		1-47477-514-3 01 1 1008-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 05 1 1008-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 01 1 1008-
106 BRACKET; TUBE CLIP
(D) 		8-98046-949-0 01 1 1008-
106 BRACKET; TUBE CLIP
(E) 		8-98052-408-0 01 1 1008-1412
106 BRACKET; TUBE CLIP
(E) 		8-98297-188-0 01 1 1501-
106 BRACKET; TUBE CLIP
(F) 		8-98052-410-0 01 1 1008-
106 BRACKET; TUBE CLIP
(G) 		8-98057-133-0 01 1 1008-
106 BRACKET; TUBE CLIP
(H) 		8-98061-758-0 01 1 1008-
107 CLIP; NYLON TUBE
6WF1 TC-C(1B8) (A) L=350 		1-09707-183-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 1008-
107 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=21 L=24 		8-98019-191-0 01 1 1008-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1008-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1008-
126 BOLT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
126 BOLT; CLIP BRKT
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
127 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 08 1 1106-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
127 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 08 1 1008-1105
127 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 07 1 1106-
127 NUT; CLIP BRKT
WHEEL BASE 7400MM(74W) M8 FLANGE 		0-91180-108-0 11 1 1008-
127 NUT; CLIP BRKT
WHEEL BASE 7800MM(78W) M8 FLANGE 		0-91180-108-0 12 1 1008-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 1008-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 08 1 1008-
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 1008-1107
133 BOLT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8X20 FLANGE 		0-28650-820-0 01 1 1108-1311
133 BOLT; BRKT
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 01 1 1312-
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
133 BOLT; BRKT
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1008-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1008-
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 1008-1107
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-1107
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1108-1311
297 NUT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 01 1 1108-1311
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
EXC. MIXER TRUCK<RA2> M12 FLANGE 		0-91180-212-0 01 1 1008-
297 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 20 1 1008-
297 NUT; BRKT
WHEEL BASE 7400MM(74W) M8 FLANGE 		0-91180-108-0 23 1 1008-
297 NUT; BRKT
WHEEL BASE 7800MM(78W) M8 FLANGE 		0-91180-108-0 24 1 1008-

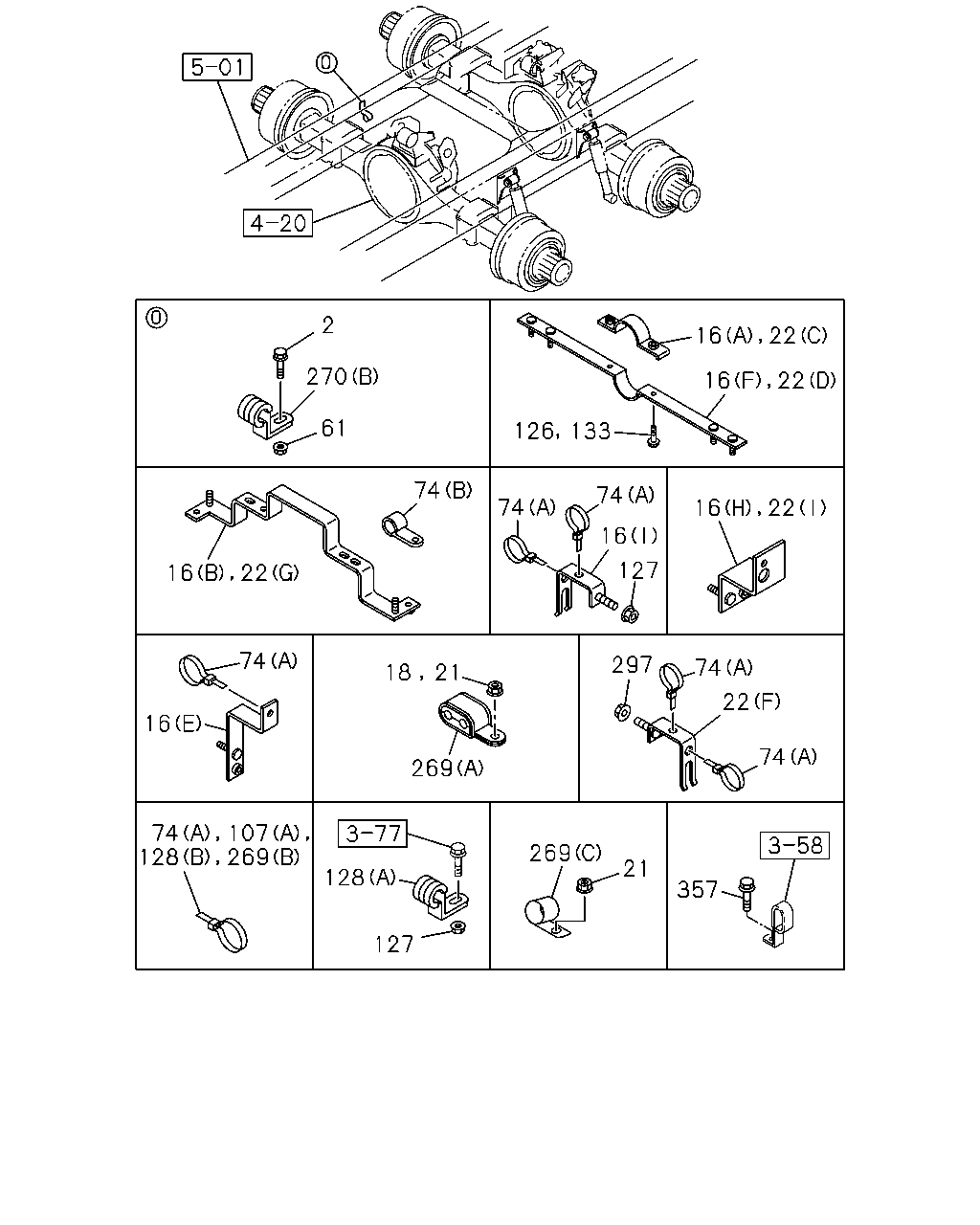

çizim 166921
2 16 22 270 61 126 133 74 74 74 16 127 74 297 74 18 21 22 16 74 269 74 107 269 21 128 357 127 128 269 16 22 16 22
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> (I) 		1-47479-381-2 04 1 1106-
16 BRACKET; PIPE CLIP
(A) 		1-47479-546-0 01 1 1008-
16 BRACKET; PIPE CLIP
(F) 		1-47479-720-0 01 1 1008-
16 BRACKET; PIPE CLIP
(E) 		1-47479-721-0 02 1 1008-
16 BRACKET; PIPE CLIP
(H) 		1-47479-722-1 01 1 1008-
16 BRACKET; PIPE CLIP
(B) 		1-47479-898-0 01 1 1008-
16 BRACKET; PIPE CLIP
(D) L=30 		1-47479-481-0 01 1 1008-
16 BRACKET; PIPE CLIP
(C) 		1-47479-554-0 01 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 6500MM(65W) (I) 		1-47479-381-2 04 1 1008-1105
16 BRACKET; PIPE CLIP
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (I) 		1-47479-381-2 03 1 1106-
16 BRACKET; PIPE CLIP
WHEEL BASE 6500MM(65W) (G) 		1-47479-693-0 02 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 7400MM(74W) (I) 		1-47479-381-2 06 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (G) 		1-47479-693-0 03 1 1008-
16 BRACKET; PIPE CLIP
WHEEL BASE 7800MM(78W) (I) 		1-47479-381-2 07 1 1008-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 1008-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 1008-
22 BRACKET; CLIP
(M) 		1-47477-571-3 01 1 1008-
22 BRACKET; CLIP
(K) L=130 		1-47478-959-0 02 1 1008-
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 1008-
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 1008-
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 1008-
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 1008-
22 BRACKET; CLIP
(L) L=160 H=30 		1-47479-759-0 03 1 1008-
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 1008-
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 1008-
22 BRACKET; CLIP
(J) 		1-47479-754-0 01 1 1008-
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 1008-
22 BRACKET; CLIP
FULL TRAILER PIPING<Z25> (F) 		1-47479-381-2 01 1 1008-
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-381-2 08 1 1008-
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (E) 		1-47479-693-0 02 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7400MM(74W) (F) 		1-47479-381-2 10 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (E) 		1-47479-693-0 03 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7800MM(78W) (F) 		1-47479-381-2 11 1 1008-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1008-
74 CLIP; NYLON TUBE
(B) ID=13 		1-09701-030-1 03 1 1008-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09701-047-0 02 1 1008-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 01 1 1008-
74 CLIP; NYLON TUBE
FULL TRAILER PIPING<Z25> (A) L=350 		1-09707-183-0 03 1 1008-
74 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (A) L=350 		1-09707-183-0 18 1 1008-
74 CLIP; NYLON TUBE
WHEEL BASE 7400MM(74W) (A) L=350 		1-09707-183-0 22 1 1008-
74 CLIP; NYLON TUBE
WHEEL BASE 7800MM(78W) (A) L=350 		1-09707-183-0 23 1 1008-
107 CLIP; NYLON TUBE
6WF1 TC-C(1B8) (A) L=350 		1-09707-183-0 01 1 1008-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 20 1 1008-
107 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 1008-
107 CLIP; NYLON TUBE
(B) ID=21 L=24 		8-98019-191-0 01 1 1008-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1008-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1008-
126 BOLT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
126 BOLT; CLIP BRKT
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
127 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 08 1 1106-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
127 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 08 1 1008-1105
127 NUT; CLIP BRKT
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE 		0-91180-108-0 07 1 1106-
127 NUT; CLIP BRKT
WHEEL BASE 7400MM(74W) M8 FLANGE 		0-91180-108-0 11 1 1008-
127 NUT; CLIP BRKT
WHEEL BASE 7800MM(78W) M8 FLANGE 		0-91180-108-0 12 1 1008-
128 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=350 		1-09707-183-0 12 1 1106-
128 CLIP; NYLON TUBE
(A) ID=35 H=45 L=33 		1-09700-947-0 02 1 1008-
128 CLIP; NYLON TUBE
(A) ID=45 H=31 L=35 		1-09701-308-0 01 1 1008-
128 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) (B) L=350 		1-09707-183-0 12 1 1008-1105
128 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) POOR QUALITY DIESEL FUEL<KF0> (B) L=350 		1-09707-183-0 11 1 1106-
128 CLIP; NYLON TUBE
WHEEL BASE 7400MM(74W) (B) L=350 		1-09707-183-0 16 1 1008-
128 CLIP; NYLON TUBE
WHEEL BASE 7800MM(78W) (B) L=350 		1-09707-183-0 17 1 1008-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 1008-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 08 1 1008-
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 1008-1107
133 BOLT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8X20 FLANGE 		0-28650-820-0 01 1 1108-1311
133 BOLT; BRKT
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 01 1 1312-
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
133 BOLT; BRKT
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
269 CLIP; BAND,NYLON TUBE
(C) ID=13 		1-09701-030-1 03 1 1008-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 06 1 1008-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1008-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1008-
270 CLIP; NYLON TUBE
(A) ID=28 L=32 		1-09701-107-1 03 1 1008-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 1008-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1008-
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 1008-1107
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-1107
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1108-1311
297 NUT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 01 1 1108-1311
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
EXC. MIXER TRUCK<RA2> M12 FLANGE 		0-91180-212-0 01 1 1008-
297 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 20 1 1008-
297 NUT; BRKT
WHEEL BASE 7400MM(74W) M8 FLANGE 		0-91180-108-0 23 1 1008-
297 NUT; BRKT
WHEEL BASE 7800MM(78W) M8 FLANGE 		0-91180-108-0 24 1 1008-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1008-

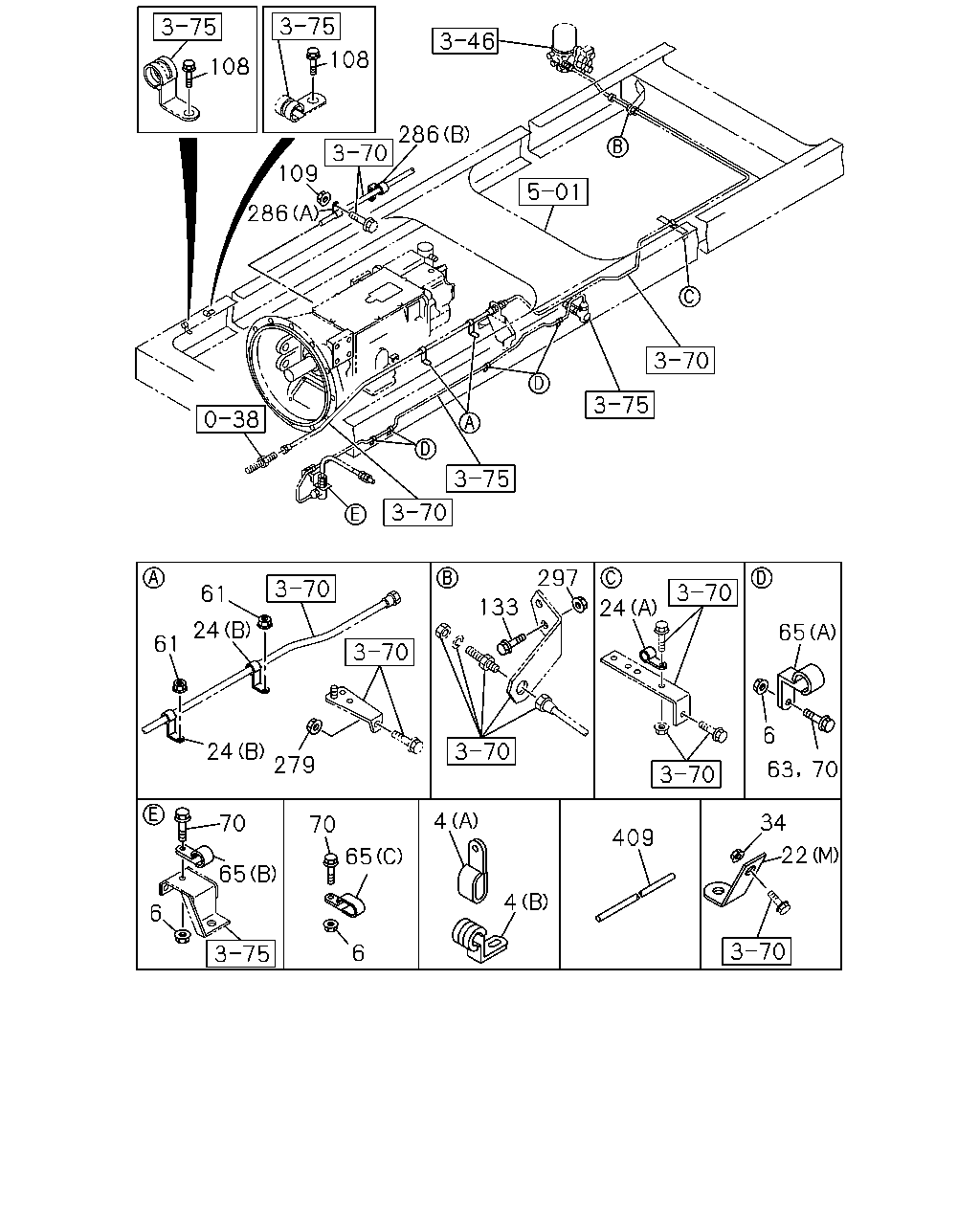

çizim 166923
108 108 286 109 286 297 61 133 24 24 65 61 6 24 279 63 70 4 34 70 70 409 22 65 65 4 6 6
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; AIR PIPE
(A) ID=16X2 L=20 		0-95325-535-0 01 1 1008-
4 CLIP; AIR PIPE
(B) ID=12 H=24 L=20 		1-09700-605-0 01 1 1008-
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 06 1 1008-
22 BRACKET; CLIP
(M) 		1-47477-571-3 01 1 1008-
22 BRACKET; CLIP
(K) L=130 		1-47478-959-0 02 1 1008-
22 BRACKET; CLIP
(A) 		1-47479-329-0 01 1 1008-
22 BRACKET; CLIP
(C) 		1-47479-546-0 01 1 1008-
22 BRACKET; CLIP
(D) 		1-47479-720-0 01 1 1008-
22 BRACKET; CLIP
(I) 		1-47479-722-1 01 1 1008-
22 BRACKET; CLIP
(L) L=160 H=30 		1-47479-759-0 03 1 1008-
22 BRACKET; CLIP
(G) 		1-47479-898-0 01 1 1008-
22 BRACKET; CLIP
(H) 		1-47479-554-0 01 1 1008-
22 BRACKET; CLIP
(J) 		1-47479-754-0 01 1 1008-
22 BRACKET; CLIP
(B) 		1-47479-800-0 01 1 1008-
22 BRACKET; CLIP
FULL TRAILER PIPING<Z25> (F) 		1-47479-381-2 01 1 1008-
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (F) 		1-47479-381-2 08 1 1008-
22 BRACKET; CLIP
WHEEL BASE 6500MM(65W) (E) 		1-47479-693-0 02 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7400MM(74W) (F) 		1-47479-381-2 10 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (E) 		1-47479-693-0 03 1 1008-
22 BRACKET; CLIP
WHEEL BASE 7800MM(78W) (F) 		1-47479-381-2 11 1 1008-
24 CLIP; PIPE
(A) ID=19 L=20 		0-95235-836-0 01 1 1008-
24 CLIP; PIPE
(B) ID=25 H=30 L=35 		1-09700-875-0 02 1 1008-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1008-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1008-
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 1008-
65 CLIP; AIR PIPE
(B) ID=13 L=20 		0-95235-236-0 01 1 1008-
65 CLIP; AIR PIPE
(C) ID=13X2 L=20 		0-95325-236-0 01 1 1008-
65 CLIP; AIR PIPE
(C) ID=16X2 L=20 		0-95325-535-0 01 1 1008-
65 CLIP; AIR PIPE
(A) ID=12 H=24 L=20 		1-09700-605-0 04 1 1008-
70 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 04 1 1008-
70 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 1008-
70 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28650-830-0 03 1 1008-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 1008-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1008-
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 01 1 1008-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 07 1 1008-
133 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 1008-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1008-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 10 1 1008-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 1008-
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 08 1 1008-
133 BOLT; BRKT
MIXER TRUCK<RA2> M8X20 FLANGE 		0-28650-820-0 01 1 1008-1107
133 BOLT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8X20 FLANGE 		0-28650-820-0 01 1 1108-1311
133 BOLT; BRKT
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8X20 FLANGE 		0-28650-820-0 01 1 1312-
133 BOLT; BRKT
EXC. MIXER TRUCK<RA2> M6X10 FLANGE 		0-28050-610-0 01 1 1008-
133 BOLT; BRKT
WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
133 BOLT; BRKT
WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE 		0-28650-830-0 03 1 1008-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1008-
286 CLIP; NYLON TUBE
MJT7S M/T(Y3E) (B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1008-
286 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) (A) ID=18 L=28 		1-09701-067-0 01 1 1008-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1008-
297 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 1008-1107
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1008-1107
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1108-1311
297 NUT; BRKT
MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT> M8 FLANGE 		0-91180-108-0 01 1 1108-1311
297 NUT; BRKT
FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
MIXER TRUCK<RA2> EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE 		0-91180-108-0 01 1 1312-
297 NUT; BRKT
EXC. MIXER TRUCK<RA2> M12 FLANGE 		0-91180-212-0 01 1 1008-
297 NUT; BRKT
WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 20 1 1008-
297 NUT; BRKT
WHEEL BASE 7400MM(74W) M8 FLANGE 		0-91180-108-0 23 1 1008-
297 NUT; BRKT
WHEEL BASE 7800MM(78W) M8 FLANGE 		0-91180-108-0 24 1 1008-
409 TUBE; DISTANCE
L=22 		9-22159-024-0 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
