◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#6348) — 114 parça

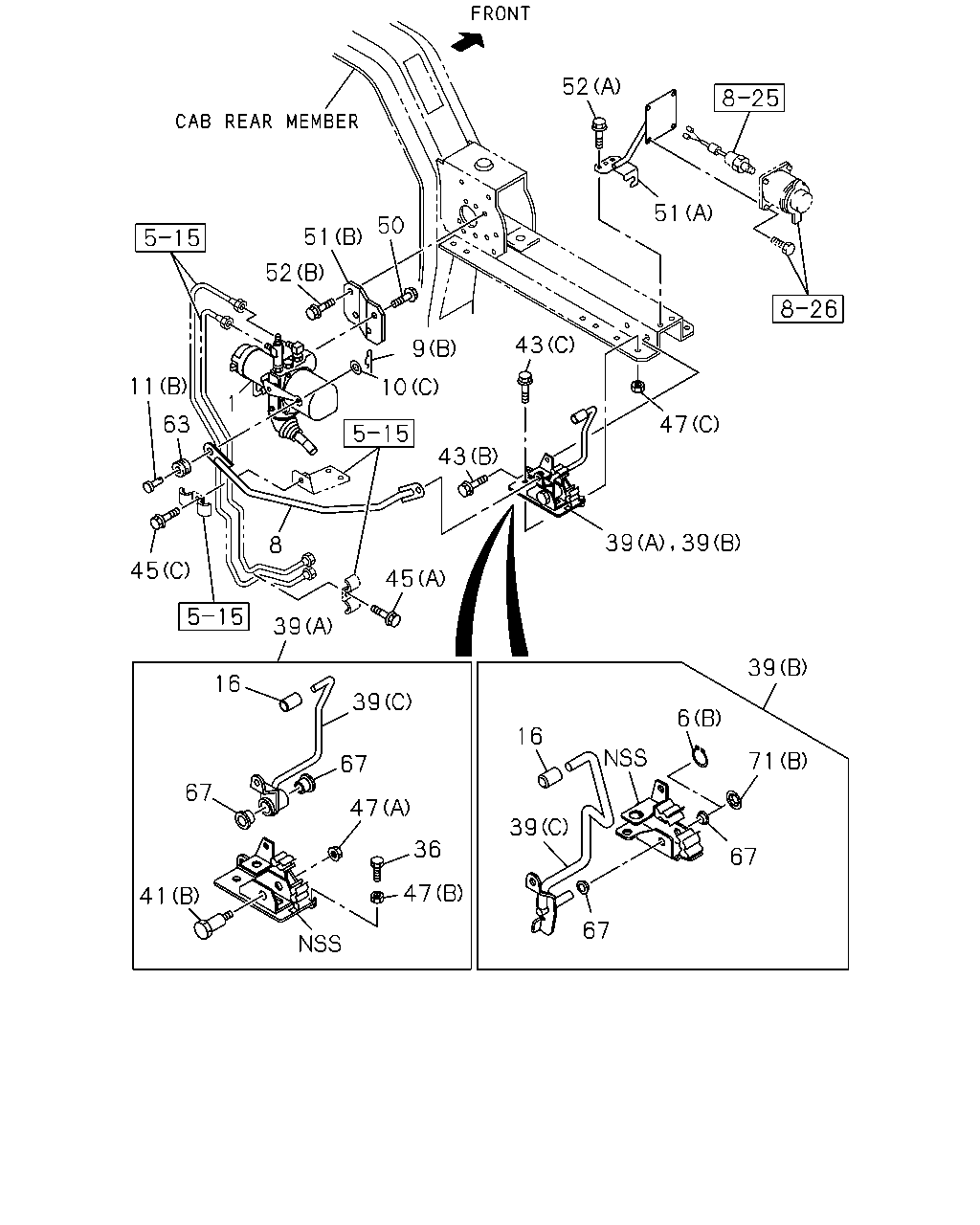

çizim 7620
52 51 50 51 52 43 9 11 10 1 63 47 43 39 39 8 45 45 39 39 16 39 6 16 71 67 67 47 39 36 67 47 41 67
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53458-661-1 01 1 9604-9904
1 PUMP; OIL,CAB TILT 1-53458-921-0 01 1 9905-9910
1 PUMP; OIL,CAB TILT 1-53458-965-0 01 1 9911-
6 RING; SNAP
(A) 		1-53458-411-0 01 1 9604-
6 RING; SNAP
(B) ID=8 		9-09185-408-0 01 1 9610-9803
8 LINK; OIL PUMP 1-53458-664-0 01 1 9604-9903
8 LINK; OIL PUMP 1-53458-929-0 01 1 9904-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 9604-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9604-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 9604-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9604-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 9604-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 9604-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9604-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 9604-
16 CAP
ID=9.0 		8-94207-303-0 01 1 9604-
36 BOLT; STOPPER
M8X25 		0-20800-825-0 01 1 9604-9609
39 LEVER; OIL PUMP
(A) 		1-53458-662-0 01 1 9604-9609
39 LEVER; OIL PUMP
(B) 		1-53458-779-1 01 1 9610-
39 LEVER; OIL PUMP
(C) 		1-53458-663-0 01 1 9604-9609
39 LEVER; OIL PUMP
(C) 		1-53458-778-0 01 1 9610-9803
39 LEVER; OIL PUMP
(C) 		1-53458-872-0 01 1 9804-
39 LEVER; OIL PUMP
(D) 		1-53458-723-0 01 1 9604-
41 PIN; SPR,LEVER
(B) 		1-33619-128-1 01 1 9604-9609
41 PIN; SPR,LEVER
(A) 		1-53458-019-0 01 1 9604-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607-
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28081-020-0 01 1 9604-9606
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 9803-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9604-
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9604-9606
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606
45 BOLT; COVER
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9607-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 9604-
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 02 1 9604-9606
47 NUT; LEVER
(A) M10 FLANGE 		0-91150-110-0 01 1 9607-9609
47 NUT; LEVER
(B) M8 		9-09111-408-0 01 1 9604-9609
47 NUT; LEVER
(C) M10 FLANGE 		0-91150-210-0 01 1 9607-
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28081-016-0 02 1 9604-
51 BRACKET; OIL PUMP
(A) 		1-53458-665-0 01 1 9604-9609
51 BRACKET; OIL PUMP
(A) 		1-53458-781-0 01 1 9610-
51 BRACKET; OIL PUMP
(B) 		1-53458-666-0 01 1 9604-
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-
52 BOLT; BRKT
(B) M10X20 FLANGE 		0-28081-020-0 02 1 9604-9606
52 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 02 1 9607-
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 9604-
67 BUSHING
ID=16 OD=18 L=12.5 		1-09330-048-0 02 1 9604-9609
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 9610-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 9604-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9804-

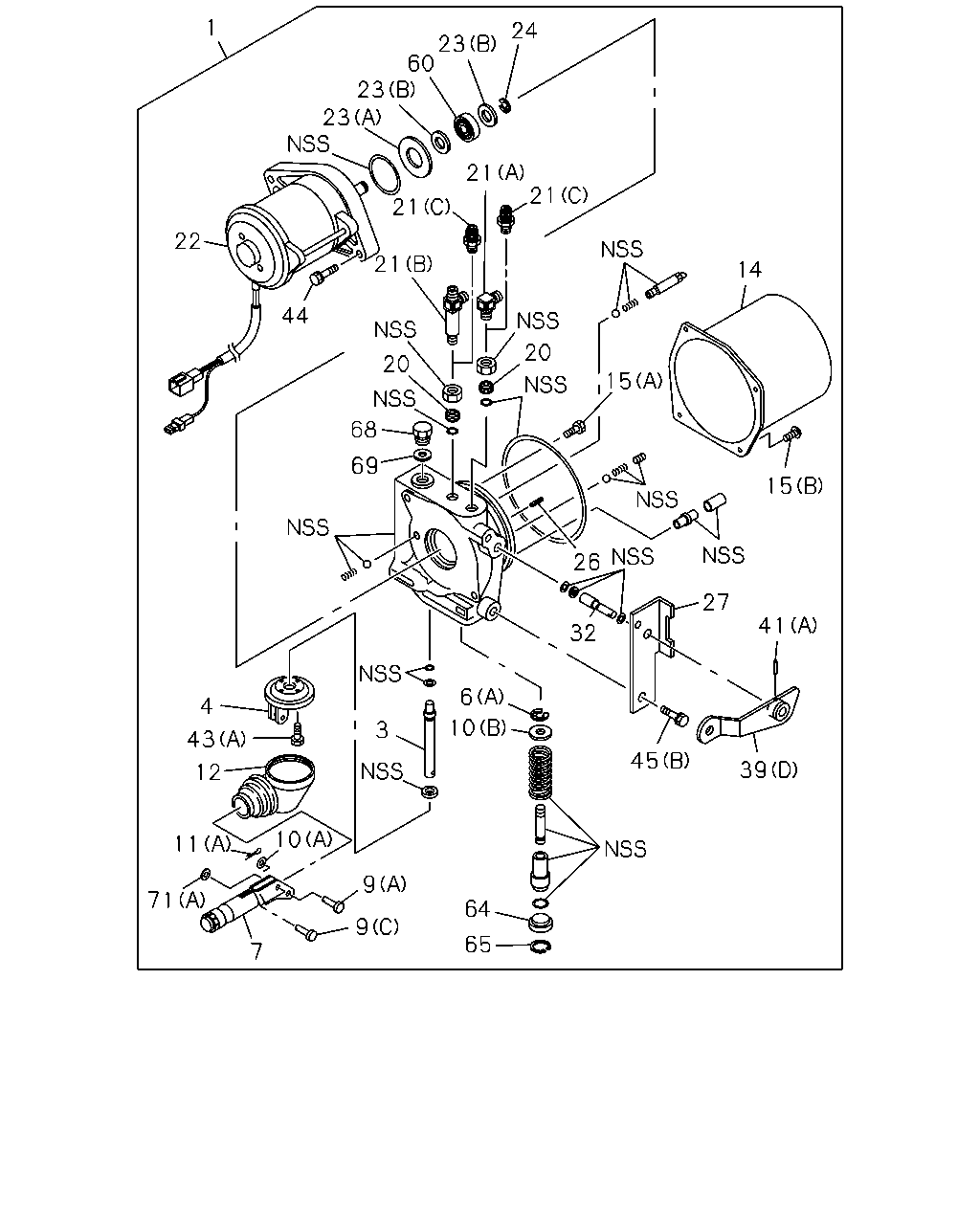

çizim 7621
1 24 23 60 23 23 21 21 21 22 21 14 44 20 20 15 68 69 15 26 27 41 32 6 4 10 3 43 45 39 12 10 11 9 71 64 9 65 7
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53458-661-1 01 1 9604-9904
1 PUMP; OIL,CAB TILT 1-53458-921-0 01 1 9905-9910
1 PUMP; OIL,CAB TILT 1-53458-965-0 01 1 9911-
3 PISTON; MANUAL 1-53458-842-0 01 1 9604-
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 9604-
6 RING; SNAP
(A) 		1-53458-411-0 01 1 9604-
6 RING; SNAP
(B) ID=8 		9-09185-408-0 01 1 9610-9803
7 SOCKET; OIL PUMP 1-53458-724-1 01 1 9604-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 9604-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 9604-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 9604-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 9604-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 9604-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		9-09160-708-0 02 1 9604-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 9604-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		9-08223-817-0 02 1 9604-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 9604-
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 9604-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 9604-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 9604-
20 FILTER; OIL PUMP 1-53458-048-0 02 1 9604-
21 CONNECTOR; OIL PUMP
(B) 		1-53458-562-0 01 1 9604-9904
21 CONNECTOR; OIL PUMP
(A) 		1-53458-563-0 01 1 9604-9904
21 CONNECTOR; OIL PUMP
(C) M12 		1-53458-941-0 02 1 9905-9910
21 CONNECTOR; OIL PUMP
(C) M12 		1-53458-941-0 01 1 9911-
21 CONNECTOR; OIL PUMP
(A) 		1-53457-026-0 01 1 9911-
22 MOTOR; OIL PUMP 1-53458-731-0 01 1 9604-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 9604-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 9604-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 9604-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 9604-
27 COVER; OIL PUMP 1-53458-725-0 01 1 9604-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 9604-
39 LEVER; OIL PUMP
(A) 		1-53458-662-0 01 1 9604-9609
39 LEVER; OIL PUMP
(B) 		1-53458-779-1 01 1 9610-
39 LEVER; OIL PUMP
(C) 		1-53458-663-0 01 1 9604-9609
39 LEVER; OIL PUMP
(C) 		1-53458-778-0 01 1 9610-9803
39 LEVER; OIL PUMP
(C) 		1-53458-872-0 01 1 9804-
39 LEVER; OIL PUMP
(D) 		1-53458-723-0 01 1 9604-
41 PIN; SPR,LEVER
(B) 		1-33619-128-1 01 1 9604-9609
41 PIN; SPR,LEVER
(A) 		1-53458-019-0 01 1 9604-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9607-
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28081-020-0 01 1 9604-9606
43 BOLT; LEVER
(C) M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28681-025-0 01 1 9803-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 9604-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 9604-
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9604-9606
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-
45 BOLT; COVER
(C) M8X20 FLANGE 		0-28080-820-0 01 1 9604-9606
45 BOLT; COVER
(C) M8X25 FLANGE 		0-28680-825-0 01 1 9607-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 9604-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 9604-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 9604-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 9604-
68 PLUG; FILLER 1-53458-428-0 01 1 9604-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 9604-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 9604-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 9804-
çizim 7622
2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 9604-
