Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#63479) — 235 parça

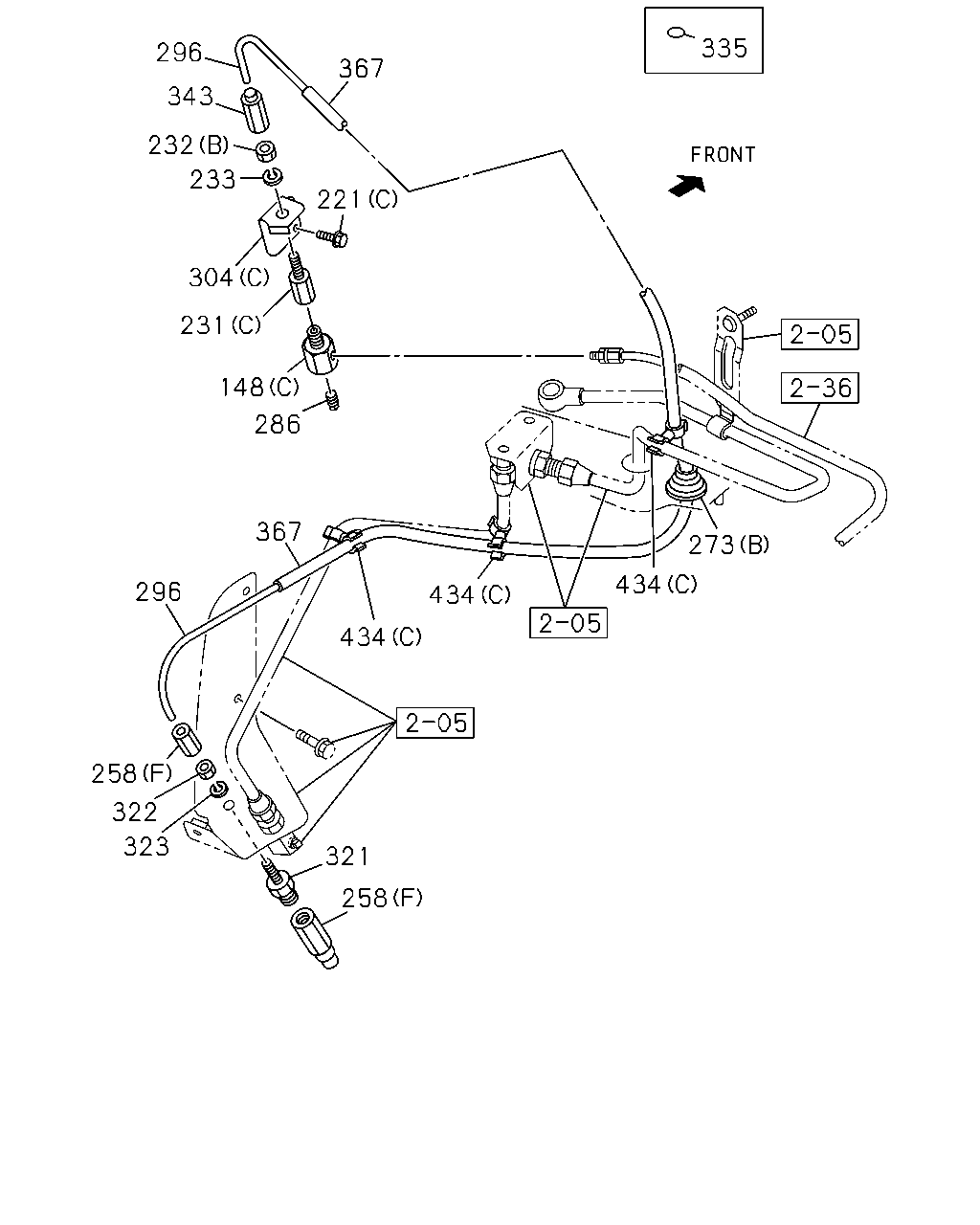

335 296 367 343 232 233 221 304 231 148 286 367 273 434 296 434 434 258 322 323 321 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
148	CONNECTOR; UNION (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1008-
148	CONNECTOR; UNION (B)	1-09661-729-0	01	1	1008-
148	CONNECTOR; UNION MJX16P M/T(Y3Z) (C)	8-94338-417-0	01	1	1008-
221	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1008-
221	BOLT; BRKT (B) M10X40 FLANGE	0-28651-040-0	02	1	1008-
221	BOLT; BRKT MJX16P M/T(Y3Z) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-
231	UNION; AIR PIPE EXC. EURO4 SPECIFICATION<KBT> (B) M10 ELBOW	1-09654-186-2	01	1	1008-
231	UNION; AIR PIPE EXC. EURO4 SPECIFICATION<KBT> (A) M10 STRAIGHT	1-09654-361-0	01	1	1008-
231	UNION; AIR PIPE MJX16P M/T(Y3Z) (C)	1-09656-713-2	01	1	1008-
232	NUT; UNION,AIR PIPE EXC. EURO4 SPECIFICATION<KBT> (A) M10	0-91110-510-0	01	1	1008-
232	NUT; UNION,AIR PIPE MJX16P M/T(Y3Z) (B) M10 H=8	1-09400-029-0	01	1	1008-
232	NUT; UNION,AIR PIPE EXC. EURO4 SPECIFICATION<KBT> (B) M10 H=8	1-09400-029-0	01	1	1008-
233	WASHER; LK,UNION,AIR PIPE MJX16P M/T(Y3Z) ID=10.2	0-91510-510-0	01	1	1008-
258	CONNECTOR; NYLON TUBE MJT7S M/T(Y3E) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> CHINA EQUIPMENT(YT2) (G)	1-48319-059-0	01	1	1111-
258	CONNECTOR; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	1008-
258	CONNECTOR; NYLON TUBE MJT7S M/T(Y3E) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1008-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1008-
273	GROMMET (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-
273	GROMMET MJX16P M/T(Y3Z) (B)	1-09332-102-0	01	1	1008-
286	PLUG; AIR PIPE	9-09204-510-0	01	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-
304	BRACKET; UNION (A)	1-47479-603-0	01	1	1008-
304	BRACKET; UNION (B)	8-98171-684-0	01	1	1008-
304	BRACKET; UNION MJX16P M/T(Y3Z) (C)	1-71117-210-0	01	1	1008-
321	JOINT; FLEX HOSE MJX16P M/T(Y3Z) M12 L=66.5	0-92113-306-0	01	1	1008-
322	NUT; JOINT,FLEX HOSE MJX16P M/T(Y3Z) M12	9-09840-280-0	01	1	1008-
323	WASHER; LK,JOINT MJX16P M/T(Y3Z) ID=12.2	0-91510-512-0	01	1	1008-
335	SEAL; UNION OD=30 BLACK	1-76798-035-0	01	1	1008-
335	SEAL; UNION MJT7S M/T(Y3E) OD=30 BLACK	1-76798-035-0	01	1	1008-
343	UNION; NYLON TUBE EXC. EURO4 SPECIFICATION<KBT>	1-09660-796-1	02	1	1008-
343	UNION; NYLON TUBE MJX16P M/T(Y3Z)	1-09660-796-1	01	1	1008-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1008-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1008-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1008-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1008-
434	CLIP (A) L=350	1-09707-183-0	01	1	1008-
434	CLIP EXC. EURO4 SPECIFICATION<KBT> (B) ID=10 & 10	1-09709-221-0	01	1	1008-
434	CLIP MJX16P M/T(Y3Z) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	1008-

434 337 337 232 231 330 334 330 232 231 343 343 297 372 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	CONNECTOR; AIR PIPE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25>	1-47470-655-0	01	1	1008-
120	CONNECTOR; AIR PIPE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG>	8-98138-506-1	01	1	1008-
120	CONNECTOR; AIR PIPE EXC. FULL TRAILER PIPING<Z25>	1-47470-418-2	01	1	1008-
231	UNION; AIR PIPE EXC. EURO4 SPECIFICATION<KBT> (B) M10 ELBOW	1-09654-186-2	01	1	1008-
231	UNION; AIR PIPE EXC. EURO4 SPECIFICATION<KBT> (A) M10 STRAIGHT	1-09654-361-0	01	1	1008-
231	UNION; AIR PIPE MJX16P M/T(Y3Z) (C)	1-09656-713-2	01	1	1008-
232	NUT; UNION,AIR PIPE EXC. EURO4 SPECIFICATION<KBT> (A) M10	0-91110-510-0	01	1	1008-
232	NUT; UNION,AIR PIPE MJX16P M/T(Y3Z) (B) M10 H=8	1-09400-029-0	01	1	1008-
232	NUT; UNION,AIR PIPE EXC. EURO4 SPECIFICATION<KBT> (B) M10 H=8	1-09400-029-0	01	1	1008-
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-
297	TUBE; NYLON EXC. EURO4 SPECIFICATION<KBT> SERVICED BY L=2000 OD=6	1-87410-081-0	02	1	1008-
330	WASHER; LK,UNION,AIR PIPE EXC. EURO4 SPECIFICATION<KBT> ID=10.2	0-91510-510-0	02	1	1008-
334	SPACER; PIPE UNION EXC. EURO4 SPECIFICATION<KBT> ID=10.5 OD=22 T=4	1-09503-045-0	01	1	1008-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. EURO4 SPECIFICATION<KBT> L=720	0-57210-720-0	02	1	1008-
343	UNION; NYLON TUBE EXC. EURO4 SPECIFICATION<KBT>	1-09660-796-1	02	1	1008-
343	UNION; NYLON TUBE MJX16P M/T(Y3Z)	1-09660-796-1	01	1	1008-
372	NUT M8 FLANGE	0-91180-108-0	02	1	1008-
434	CLIP (A) L=350	1-09707-183-0	01	1	1008-
434	CLIP EXC. EURO4 SPECIFICATION<KBT> (B) ID=10 & 10	1-09709-221-0	01	1	1008-
434	CLIP MJX16P M/T(Y3Z) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	1008-

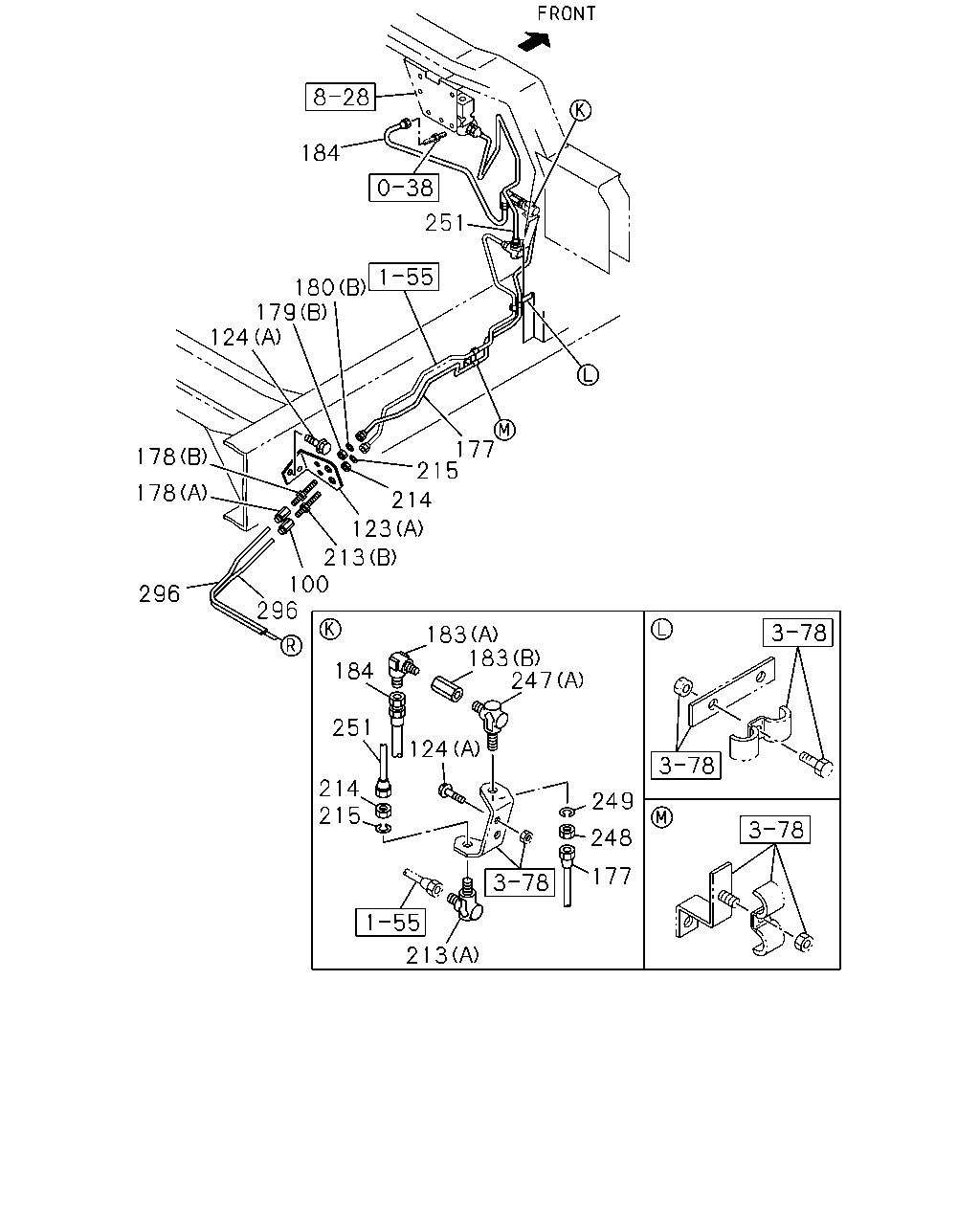

184 251 180 179 124 177 215 178 178 214 123 213 100 296 296 183 183 247 184 251 124 214 215 249 248 177 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	CONNECTOR; AIR PIPE DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1008-
123	BRACKET; UNION (A)	1-47479-146-0	01	1	1008-
123	BRACKET; UNION (B)	1-53457-161-0	01	1	1008-
123	BRACKET; UNION MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (C)	1-82569-367-1	01	1	1008-
124	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	1008-
124	BOLT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28650-825-0	04	1	1008-
177	PIPE; AIR,UNION TO UNION L=1003 SERVICED BY L=1100	1-47428-815-0	01	1	1008-
178	UNION; AIR PIPE (B) M12 L=66.5	0-92113-306-0	01	1	1008-
178	UNION; AIR PIPE (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1008-
179	NUT; UNION (A) M22	0-91111-522-0	02	1	1008-
179	NUT; UNION (B) M12	9-09840-280-0	01	1	1008-
180	WASHER; LK,UNION (B) ID=12.2	0-91510-512-0	01	1	1008-
180	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	02	1	1008-
183	UNION; FLEX HOSE,GOV EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1008-
183	UNION; FLEX HOSE,GOV EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT	1-09660-879-0	01	1	1008-
184	HOSE; FLEX,AIR GOV MIXER TRUCK<RA2> L=370	1-09363-771-0	01	1	1008-
184	HOSE; FLEX,AIR GOV EXC. MIXER TRUCK<RA2> L=740	1-09363-675-0	01	1	1008-
213	UNION; AIR PIPE (B) M12 L=66.5	0-92113-306-0	01	1	1008-
213	UNION; AIR PIPE (A) M12 ELBOW	0-92125-206-0	01	1	1008-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	02	1	1008-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	02	1	1008-
247	UNION; AIR PIPE MIXER TRUCK<RA2> (B) M12 L=66.5	0-92113-306-0	01	1	1008-
247	UNION; AIR PIPE EXC. MIXER TRUCK<RA2> (A) M12 ELBOW	0-92125-206-0	01	1	1008-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	1008-
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	1008-
251	PIPE; AIR,UNION TO MAG VLV L=375	1-49124-511-0	01	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-

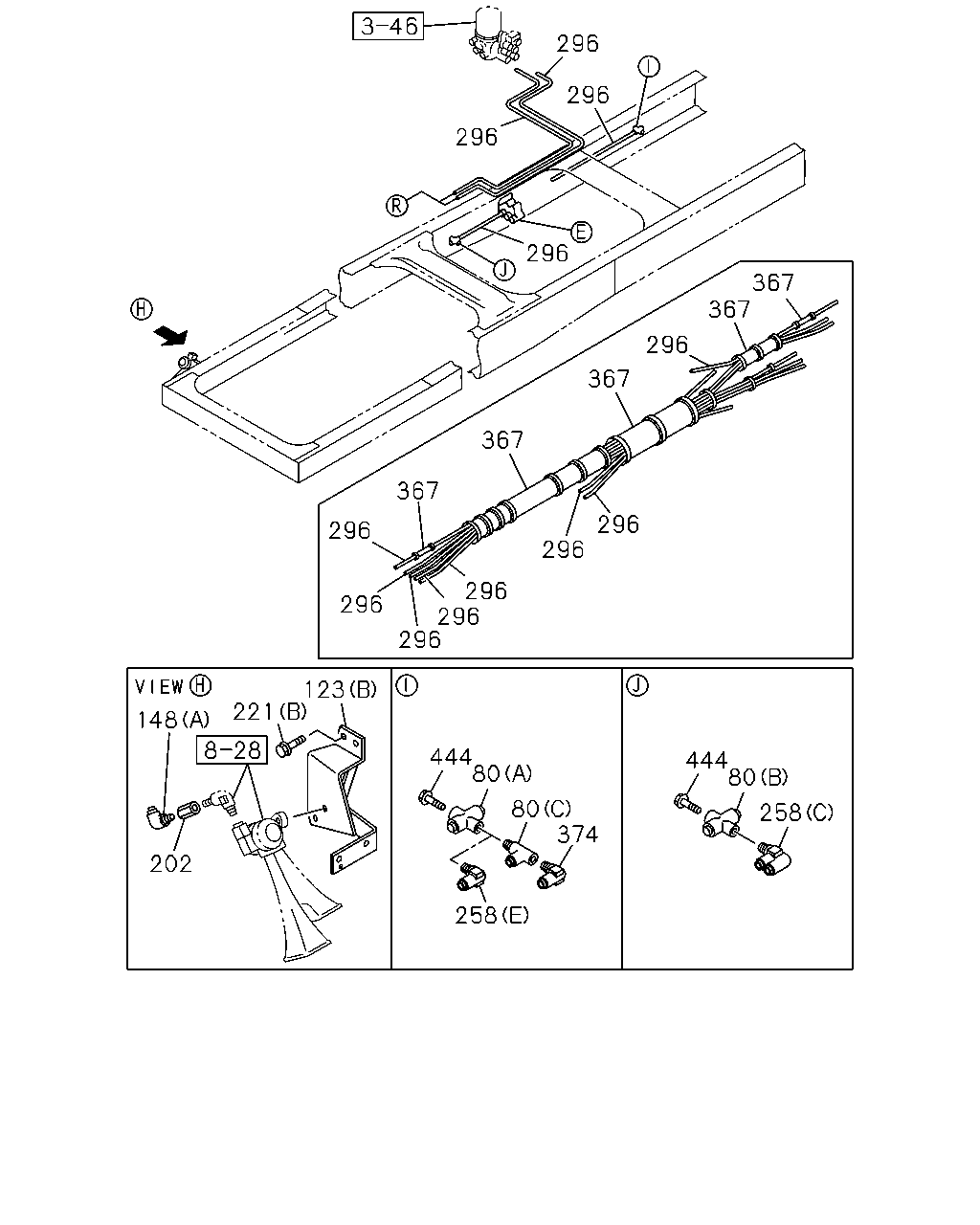

296 296 296 296 367 367 296 367 367 367 296 296 296 296 296 296 296 123 221 148 444 80 444 80 80 374 258 202 258

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	UNION; 3 WAY (A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1008-
80	UNION; 3 WAY (B) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1008-
80	UNION; 3 WAY MJX16P M/T(Y3Z) (C) DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	1008-
123	BRACKET; UNION (A)	1-47479-146-0	01	1	1008-
123	BRACKET; UNION (B)	1-53457-161-0	01	1	1008-
123	BRACKET; UNION MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (C)	1-82569-367-1	01	1	1008-
148	CONNECTOR; UNION (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1008-
148	CONNECTOR; UNION (B)	1-09661-729-0	01	1	1008-
148	CONNECTOR; UNION MJX16P M/T(Y3Z) (C)	8-94338-417-0	01	1	1008-
202	ADAPTER M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	1008-
221	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1008-
221	BOLT; BRKT (B) M10X40 FLANGE	0-28651-040-0	02	1	1008-
221	BOLT; BRKT MJX16P M/T(Y3Z) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-
258	CONNECTOR; NYLON TUBE MJT7S M/T(Y3E) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> CHINA EQUIPMENT(YT2) (G)	1-48319-059-0	01	1	1111-
258	CONNECTOR; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	1008-
258	CONNECTOR; NYLON TUBE MJT7S M/T(Y3E) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1008-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1008-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1008-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1008-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1008-
374	CONNECTOR MJX16P M/T(Y3Z) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1008-
444	BOLT; UNION M8X30 FLANGE	0-28650-830-0	02	1	1008-

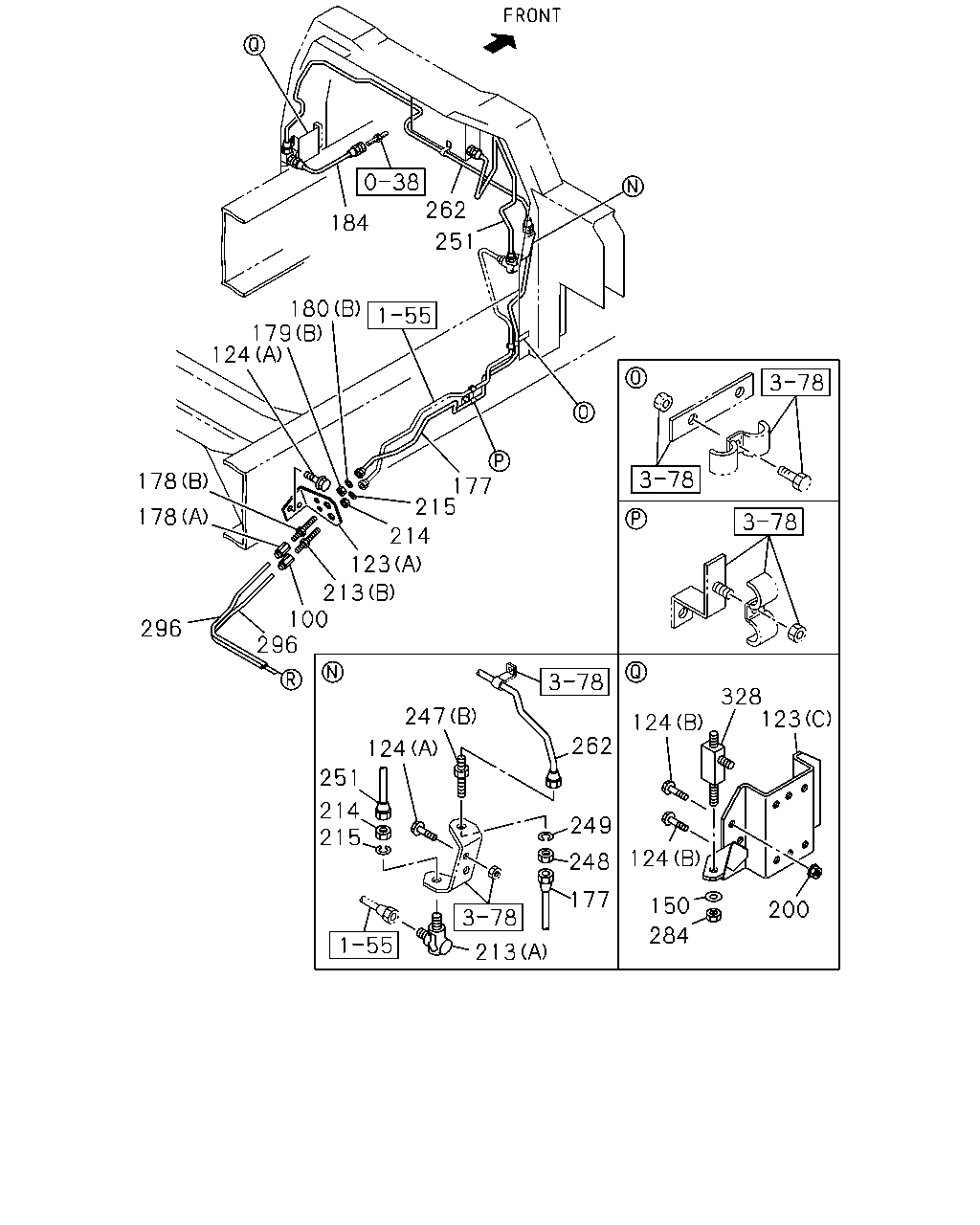

262 184 251 180 179 124 177 215 178 178 214 123 213 100 296 296 328 123 247 124 262 124 251 214 215 249 124 248 177 150 200 284 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	CONNECTOR; AIR PIPE DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1008-
123	BRACKET; UNION (A)	1-47479-146-0	01	1	1008-
123	BRACKET; UNION (B)	1-53457-161-0	01	1	1008-
123	BRACKET; UNION MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (C)	1-82569-367-1	01	1	1008-
124	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	1008-
124	BOLT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28650-825-0	04	1	1008-
150	WASHER; LK,UNION MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> ID=12.2	0-91510-512-0	01	1	1008-
177	PIPE; AIR,UNION TO UNION L=1003 SERVICED BY L=1100	1-47428-815-0	01	1	1008-
178	UNION; AIR PIPE (B) M12 L=66.5	0-92113-306-0	01	1	1008-
178	UNION; AIR PIPE (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1008-
179	NUT; UNION (A) M22	0-91111-522-0	02	1	1008-
179	NUT; UNION (B) M12	9-09840-280-0	01	1	1008-
180	WASHER; LK,UNION (B) ID=12.2	0-91510-512-0	01	1	1008-
180	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	02	1	1008-
184	HOSE; FLEX,AIR GOV MIXER TRUCK<RA2> L=370	1-09363-771-0	01	1	1008-
184	HOSE; FLEX,AIR GOV EXC. MIXER TRUCK<RA2> L=740	1-09363-675-0	01	1	1008-
200	NUT; BRKT MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M8 FLANGE	0-91180-108-0	04	1	1008-
213	UNION; AIR PIPE (B) M12 L=66.5	0-92113-306-0	01	1	1008-
213	UNION; AIR PIPE (A) M12 ELBOW	0-92125-206-0	01	1	1008-
214	NUT; UNION,AIR PIPE M12	9-09840-280-0	02	1	1008-
215	WASHER; LK,UNION,AIR PIPE ID=12.2	0-91510-512-0	02	1	1008-
247	UNION; AIR PIPE MIXER TRUCK<RA2> (B) M12 L=66.5	0-92113-306-0	01	1	1008-
247	UNION; AIR PIPE EXC. MIXER TRUCK<RA2> (A) M12 ELBOW	0-92125-206-0	01	1	1008-
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	1008-
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	1008-
251	PIPE; AIR,UNION TO MAG VLV L=375	1-49124-511-0	01	1	1008-
262	PIPE; AIR,UNION TO FLEX MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	8-98196-478-0	01	1	1108-1311
262	PIPE; AIR,UNION TO FLEX MIXER TRUCK<RA2> EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	8-98130-033-0	01	1	1312-
262	PIPE; AIR,UNION TO FLEX MIXER TRUCK<RA2>	1-49124-942-0	01	1	1008-1107
262	PIPE; AIR,UNION TO FLEX MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>	1-49124-942-0	01	1	1108-
284	NUT; UNION MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-
328	UNION; AIR PIPE MIXER TRUCK<RA2> EURO4 SPECIFICATION<KBT>,EURO2 SPECIFICATION<THN> M12 2WAY	1-09654-059-2	01	1	1008-

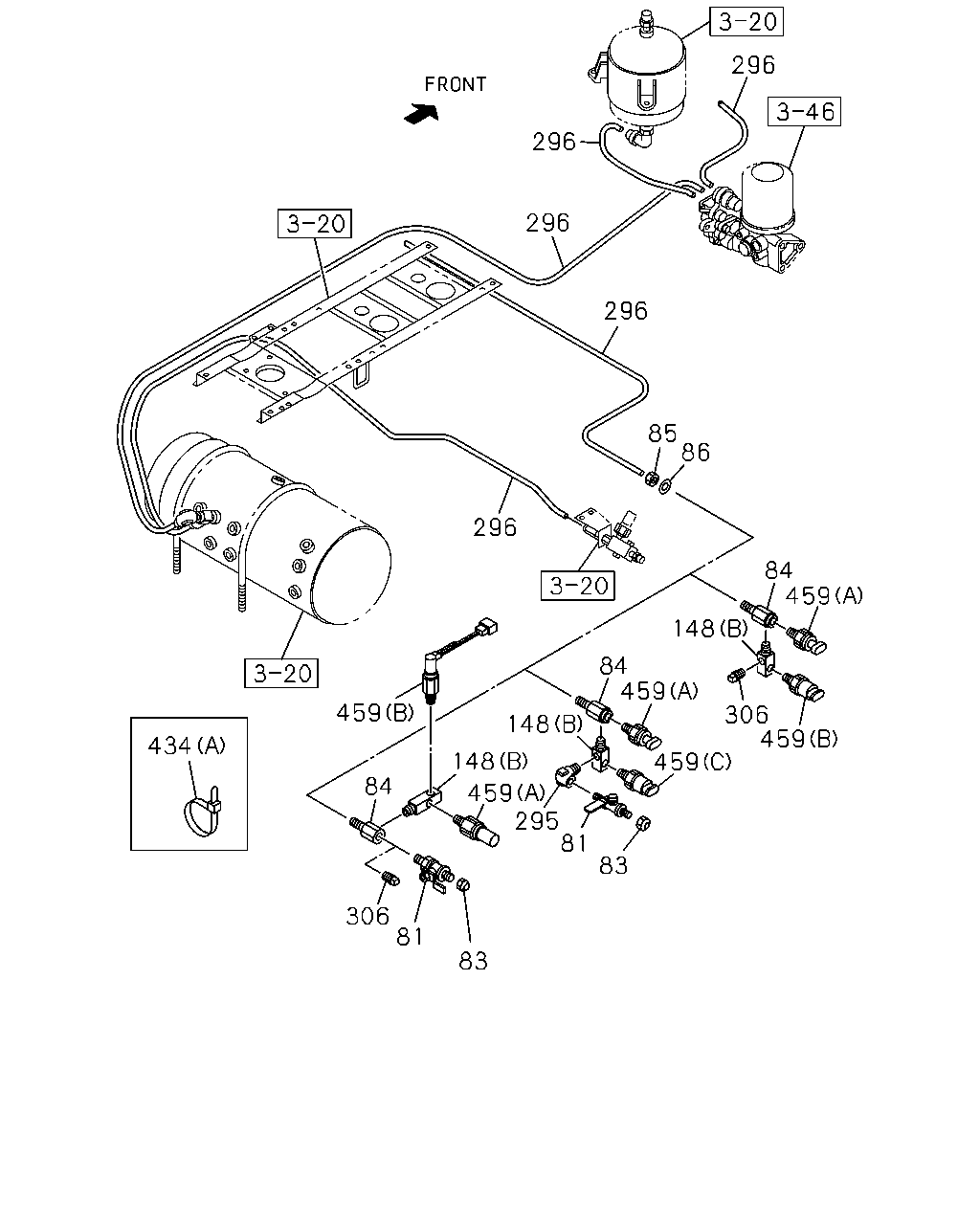

296 296 296 296 85 86 296 84 459 148 84 459 459 306 459 148 434 148 459 84 459 295 81 83 306 81 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	COCK; AIR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	1008-
83	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	1008-
84	UNION; NYLON TUBE	1-09661-092-0	01	1	1008-
85	NUT; UNION M18	0-91110-518-0	01	1	1008-
86	WASHER; LK,TUBE UNION ID=18.2	0-91510-518-0	01	1	1008-
148	CONNECTOR; UNION (A) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1008-
148	CONNECTOR; UNION (B)	1-09661-729-0	01	1	1008-
148	CONNECTOR; UNION MJX16P M/T(Y3Z) (C)	8-94338-417-0	01	1	1008-
295	CONNECTOR; NYLON TUBE 6WG1 TC-R(75L) TIRE INFLATOR DEVICE<SG4> PT1/4 2WAY	1-09660-693-0	01	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1008-
306	PLUG; NYLON TUBE EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	01	1	1008-
434	CLIP (A) L=350	1-09707-183-0	01	1	1008-
434	CLIP EXC. EURO4 SPECIFICATION<KBT> (B) ID=10 & 10	1-09709-221-0	01	1	1008-
434	CLIP MJX16P M/T(Y3Z) (C) ID=8.3 & 8.3	8-94426-175-0	03	1	1008-
459	SWITCH; PRESS (A) THREAD R1/4	1-80220-023-1	01	1	1008-
459	SWITCH; PRESS 6WF1 TC-C(1B8) (B)	1-48340-058-2	01	1	1008-
459	SWITCH; PRESS 6WG1 TC-R(75L) (C)	8-97615-622-0	01	1	1008-

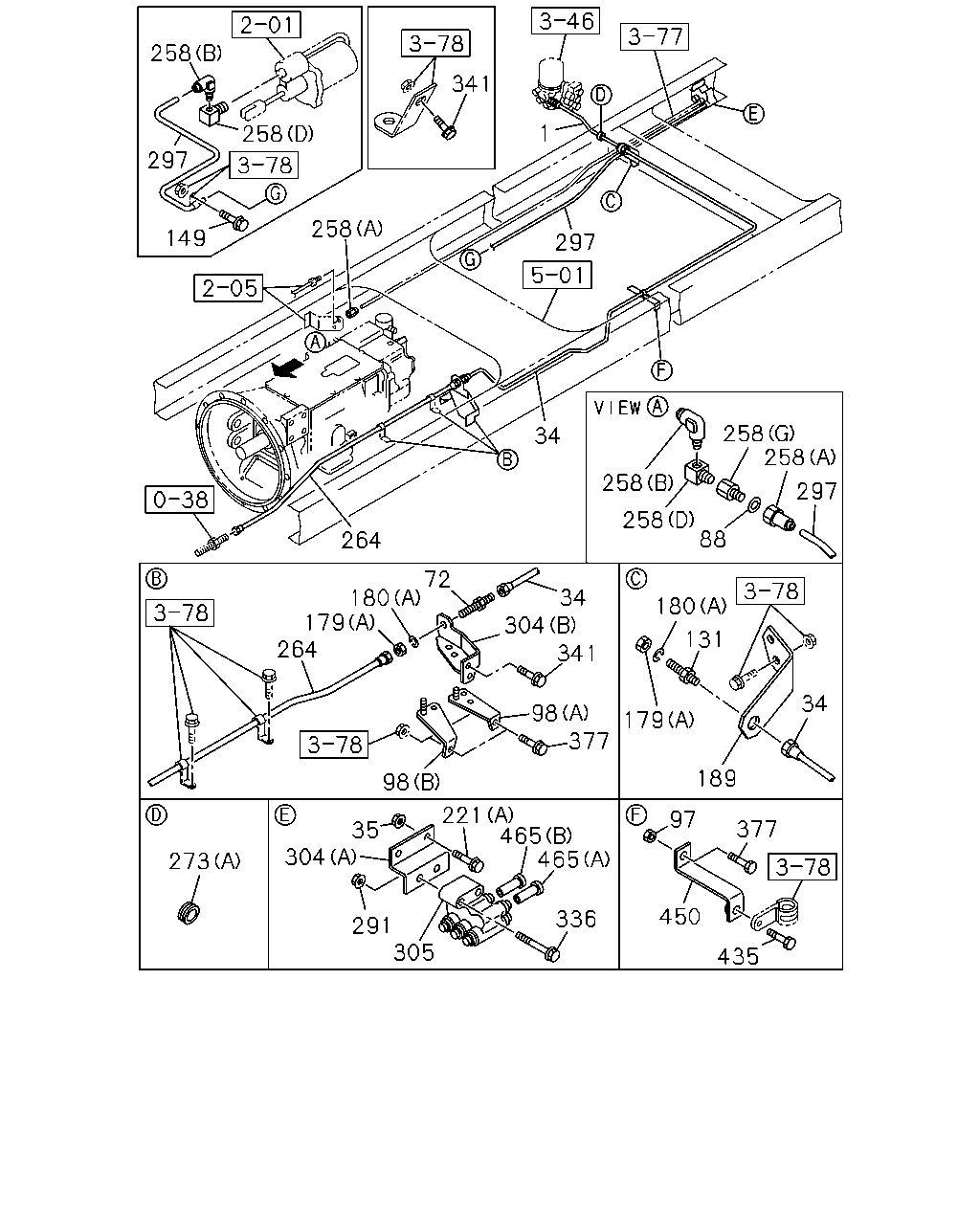

258 341 258 1 297 258 149 297 258 258 34 258 297 258 88 264 72 34 304 180 179 264 180 131 341 34 98 377 179 189 98 221 465 465 97 377 35 304 273 450 336 291 305 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=880	1-09363-920-0	01	1	1008-
34	PIPE; AIR L=1217	8-98043-255-0	01	1	1008-
35	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
72	UNION; AIR PIPE M22 & M30 STRAIGHT	1-09664-237-1	01	1	1008-
88	GASKET; NYLON TUBE MJT7S M/T(Y3E) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> CHINA EQUIPMENT(YT2) ID=14.2 OD=23.0	9-09572-014-0	01	1	1111-
97	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1008-
98	BRACKET; AIR PIPE (B)	1-47471-283-0	01	1	1008-
98	BRACKET; AIR PIPE (A)	1-47479-723-0	01	1	1008-
131	UNION; AIR PIPE M22 & M30 STRAIGHT	1-09664-237-1	01	1	1008-
149	BOLT; TUBE CLIP M8X50 FLANGE	0-28050-850-0	01	1	1008-
179	NUT; UNION (A) M22	0-91111-522-0	02	1	1008-
179	NUT; UNION (B) M12	9-09840-280-0	01	1	1008-
180	WASHER; LK,UNION (B) ID=12.2	0-91510-512-0	01	1	1008-
180	WASHER; LK,UNION (A) ID=22.5	0-91510-522-0	02	1	1008-
189	BRACKET; FLEX HOSE	8-98144-753-0	01	1	1008-
221	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1008-
221	BOLT; BRKT (B) M10X40 FLANGE	0-28651-040-0	02	1	1008-
221	BOLT; BRKT MJX16P M/T(Y3Z) (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-
258	CONNECTOR; NYLON TUBE MJT7S M/T(Y3E) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> CHINA EQUIPMENT(YT2) (G)	1-48319-059-0	01	1	1111-
258	CONNECTOR; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1008-
258	CONNECTOR; NYLON TUBE (D) PT3/8 & PT3/8	1-09661-303-0	01	1	1008-
258	CONNECTOR; NYLON TUBE MJT7S M/T(Y3E) (E) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1008-
258	CONNECTOR; NYLON TUBE MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	1008-
264	HOSE; FLEX L=1000	1-09363-794-0	01	1	1008-
273	GROMMET (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1008-
273	GROMMET MJX16P M/T(Y3Z) (B)	1-09332-102-0	01	1	1008-
291	NUT; UNION M8 FLANGE	0-91180-108-0	02	1	1008-
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1008-
297	TUBE; NYLON EXC. EURO4 SPECIFICATION<KBT> SERVICED BY L=2000 OD=6	1-87410-081-0	02	1	1008-
304	BRACKET; UNION (A)	1-47479-603-0	01	1	1008-
304	BRACKET; UNION (B)	8-98171-684-0	01	1	1008-
304	BRACKET; UNION MJX16P M/T(Y3Z) (C)	1-71117-210-0	01	1	1008-
305	UNION ASM; NYLON TUBE	1-09661-613-1	01	1	1008-
336	BOLT; PIPE UNION M8X70 FLANGE	0-28050-870-0	02	1	1008-1008
336	BOLT; PIPE UNION M8X60 FLANGE	0-28050-860-0	02	1	1009-
341	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	1008-
377	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	03	1	1008-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
450	BRACKET; CLIP	1-46147-101-0	01	1	1008-
465	PLUG (A) OD=6 L=27	1-09661-615-0	01	1	1008-
465	PLUG MJT7S M/T(Y3E) (A) OD=6 L=27	1-09661-615-0	01	1	1008-
465	PLUG EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27	1-09661-615-0	01	1	1008-
465	PLUG (B) OD=8	1-09661-616-0	01	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
