5-15 — CAB MOUNTING; CAB SIDE (#6347) — 124 parça

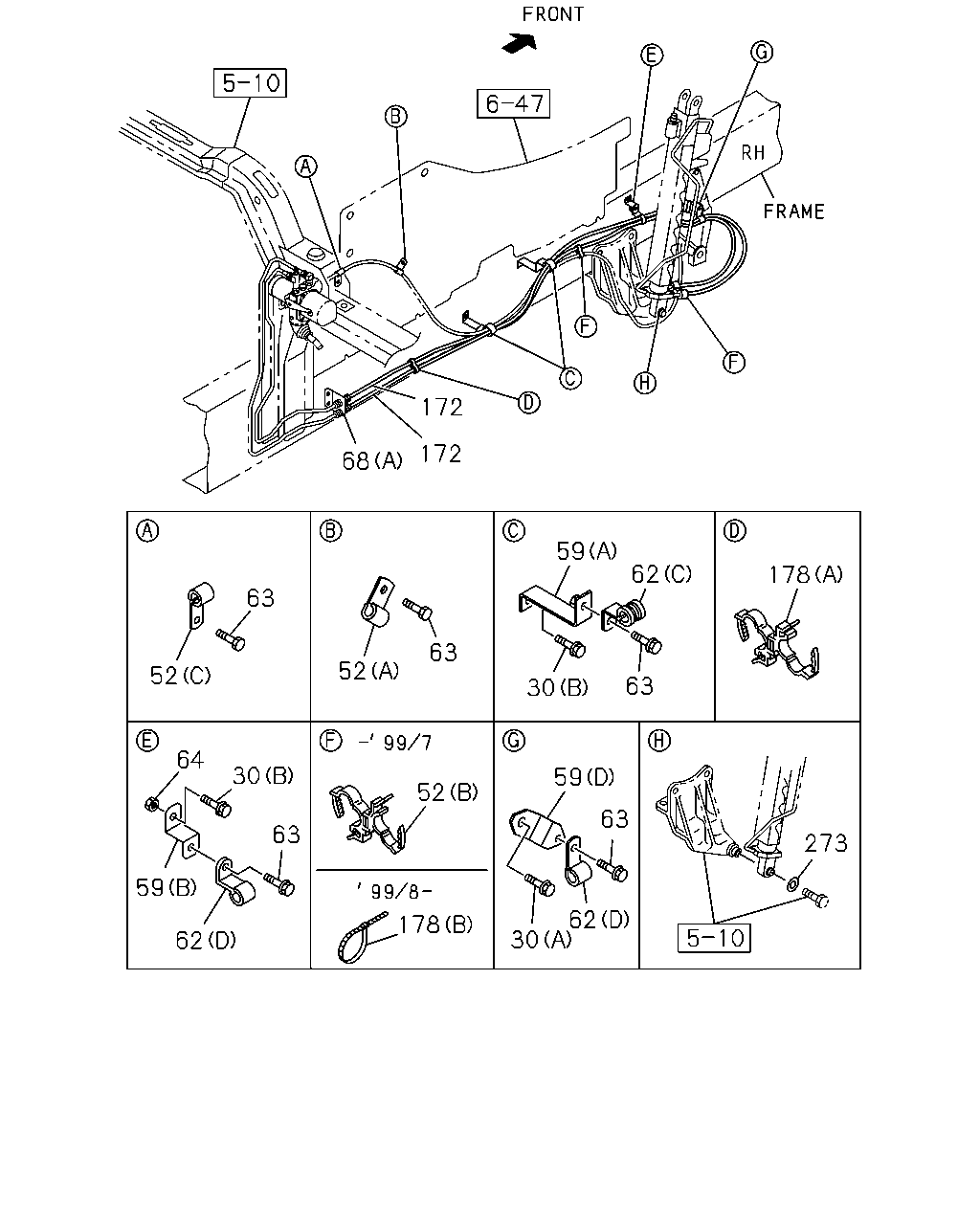

çizim 41637
172 172 68 59 62 178 63 63 52 52 63 30 64 30 59 52 63 63 273 59 62 178 30 62
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28081-225-0 01 1 9604-9606
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 9607-
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9905-
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606
30 BOLT; BRKT FIX
(B),(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B),(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905-
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28080-825-0 03 1 9604-9606
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28680-825-0 03 1 9607-
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9604-
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 02 1 9604-9907
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9908-
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 9604-
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 9604-
59 BRACKET; CLIP
(B) 		1-47476-200-0 01 1 9604-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 9604-
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 9604-
59 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=90 		1-82699-856-0 01 1 9604-
59 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=90 		1-82699-856-0 02 1 9604-
62 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 9604-9904
62 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 9905-
62 CLIP; OIL PIPE
(B) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9604-9904
62 CLIP; OIL PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9905-
62 CLIP; OIL PIPE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 9604-9905
62 CLIP; OIL PIPE
(C) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906-
62 CLIP; OIL PIPE
(D) ID=11X2 L=16 		9-09535-025-0 02 1 9604-9904
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		9-09534-825-0 02 1 9905-
63 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 06 1 9604-9606
63 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 06 1 9607-
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 		9-09110-408-0 01 1 9604-9606
64 NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE 		0-91150-108-0 01 1 9607-
68 BRACKET; UNION
(A) 		1-47477-751-0 01 1 9604-9902
68 BRACKET; UNION
(A) 		1-47478-384-0 01 1 9903-9903
68 BRACKET; UNION
(B) 		1-53458-374-1 01 1 9604-
68 BRACKET; UNION
(A) 		1-47478-384-0 01 1 9904-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09364-825-1 02 1 9604-9904
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 9905-
178 CLIP; FLEX HOSE
(A) ID=12-16 & 12-16 		1-09709-191-0 02 1 9604-9706
178 CLIP; FLEX HOSE
(B) L=140 		5-09707-031-1 01 1 9908-
273 WASHER; PL,OIL CYL
ID=10.5 OD=32 		9-09164-810-0 01 1 9604-

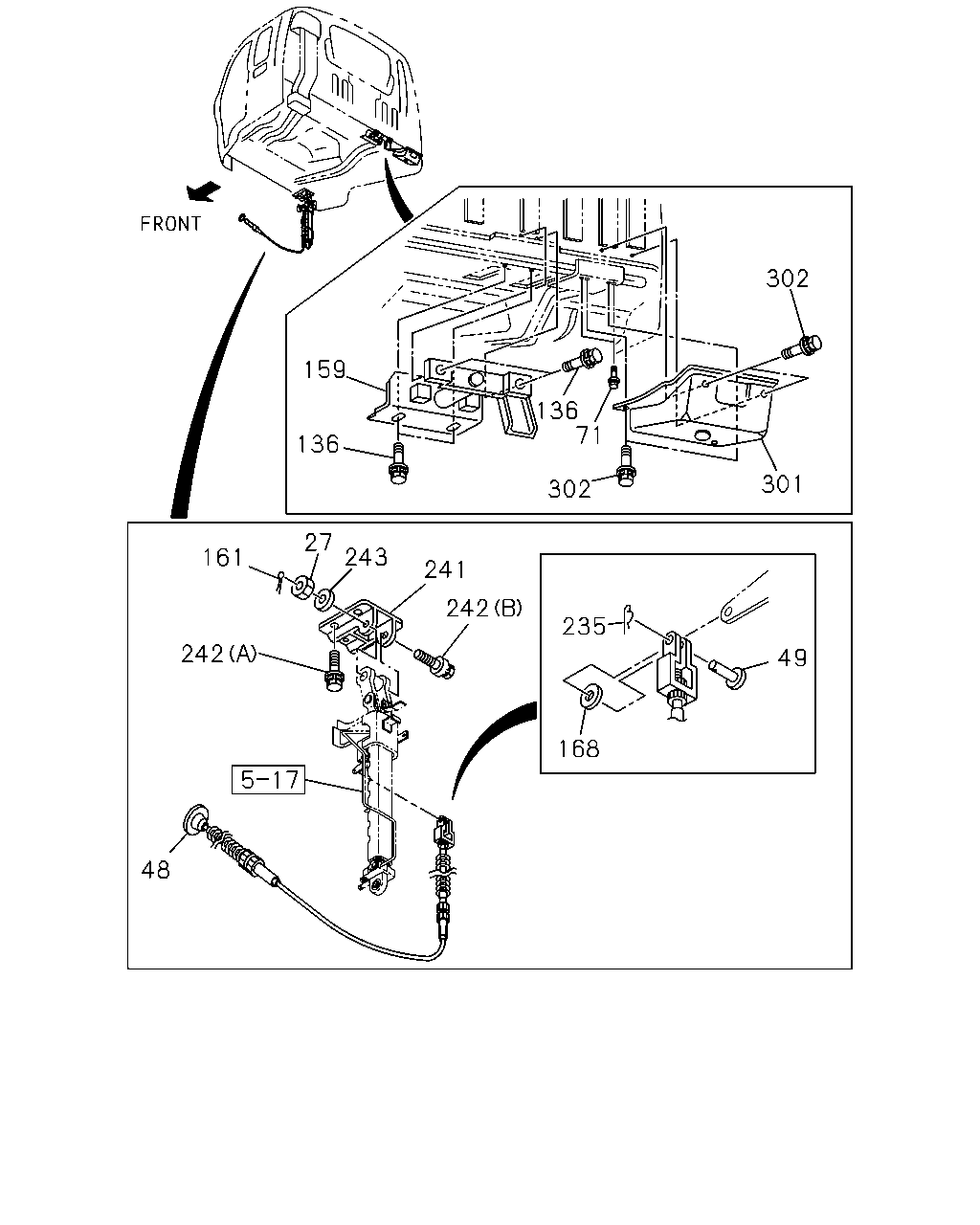

çizim 41677
302 159 136 71 136 301 302 27 243 161 241 242 235 242 49 168 48
BalonParca AdiParca NoAdetTipApplied Date
27 NUT; OIL CYL
M14 		9-99116-414-0 01 1 9604-
48 CABLE ASM; CONT
L=2457 		1-62500-670-6 01 1 9604-9910
48 CABLE ASM; CONT
L=2457 		1-62500-730-0 01 1 9911-
49 PIN; JAW FIX
OD=6 L=17 		9-08223-617-0 01 1 9604-
71 BOLT
M10X25 W/LK&PL WASHER 		8-94279-220-0 02 1 9604-
136 BOLT; CAB LK
M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9604-
159 PIN 1-79717-615-2 01 1 9604-9609
159 PIN 1-79717-627-1 01 1 9610-
161 PIN; SPLIT
OD=2.8 L=25 		9-08113-025-0 01 1 9604-
168 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 9604-
235 PIN; SNAP
L=21.2 		8-94157-840-0 01 1 9604-
241 BRACKET; POWER CYL UPR,CAB TILT 1-53458-660-0 01 1 9604-
242 BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 		1-09980-546-0 05 1 9604-
242 BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70 		1-53458-633-0 01 1 9604-
243 WASHER; LK,POWER CYL BRKT
ID=14.2 		9-09150-514-0 01 1 9604-
301 BRACKET; RR MTG,CAB 1-62570-866-1 02 1 9604-
302 BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER 		8-94279-220-0 08 1 9604-

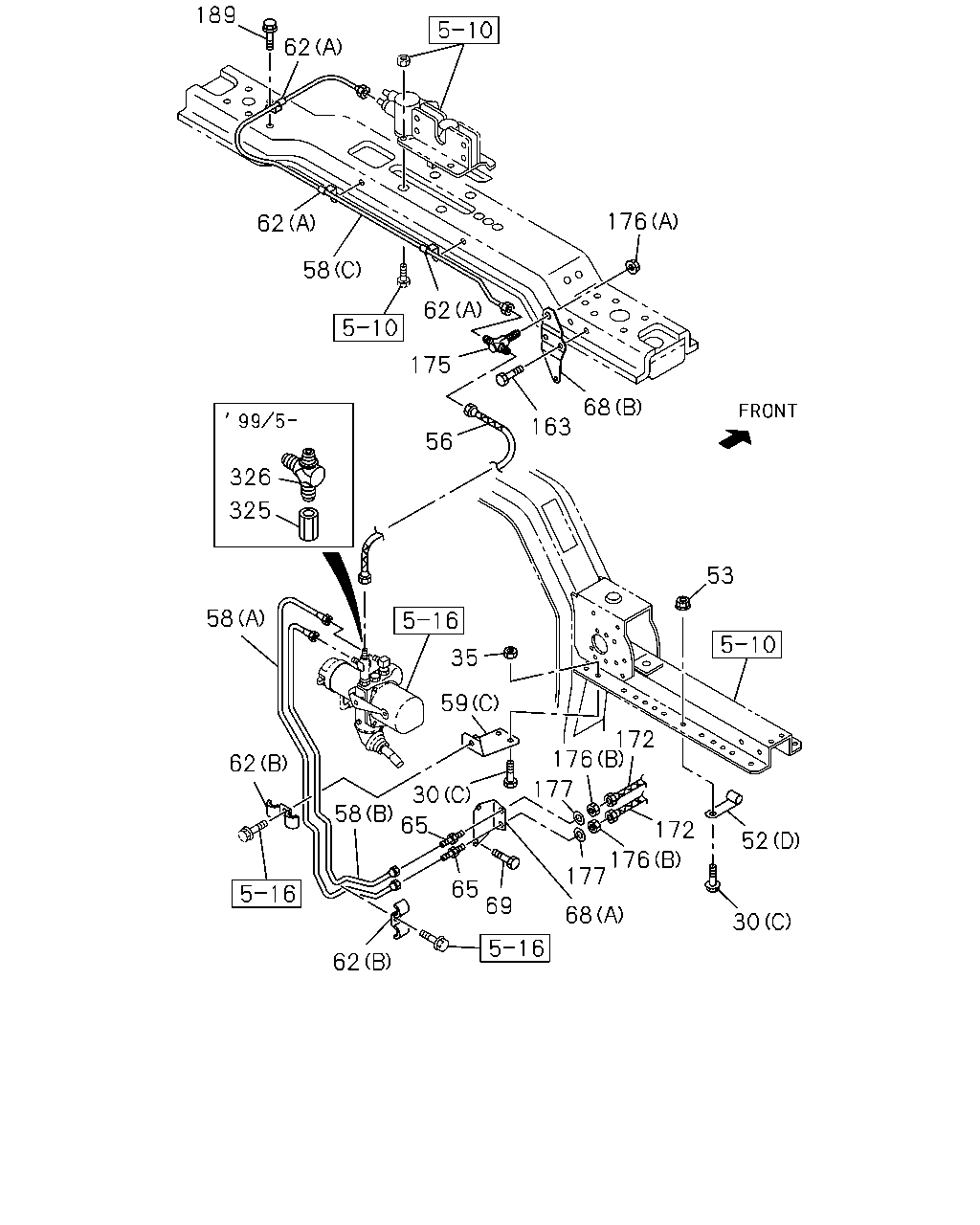

çizim 41680
189 62 176 62 58 62 175 68 163 56 326 325 53 58 35 59 172 176 62 177 30 58 65 172 52 176 177 65 69 68 30 62
BalonParca AdiParca NoAdetTipApplied Date
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28081-225-0 01 1 9604-9606
30 BOLT; BRKT FIX
(A) M12X25 FLANGE 		0-28681-225-0 01 1 9607-
30 BOLT; BRKT FIX
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9905-
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28080-825-0 02 1 9604-9606
30 BOLT; BRKT FIX
(B),(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B),(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-9904
30 BOLT; BRKT FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE 		0-28680-825-0 02 1 9905-
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28080-825-0 03 1 9604-9606
30 BOLT; BRKT FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE 		0-28680-825-0 03 1 9607-
35 NUT; BRKT
M8 		9-09110-408-0 02 1 9604-9606
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-
52 CLIP; CONT CABLE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9604-
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 02 1 9604-9907
52 CLIP; CONT CABLE
(B) ID=6-10 & 10-14 		1-09709-201-1 01 1 9908-
52 CLIP; CONT CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 9604-
52 CLIP; CONT CABLE
(D) ID=7 L=50 		9-09524-685-0 01 1 9604-
53 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9604-
56 HOSE; FLEX,OIL PIPE
L=300 		1-09364-545-2 01 1 9604-9904
56 HOSE; FLEX,OIL PIPE
L=300 		1-09365-059-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(C) L=1390 		1-47428-967-0 01 1 9604-9904
58 PIPE; OIL,POWER UNIT
(B) L=1054 		1-49164-150-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(B) L=1025 		1-47429-627-0 01 1 9604-9903
58 PIPE; OIL,POWER UNIT
(B) L=1030 		1-49164-392-0 01 1 9904-9904
58 PIPE; OIL,POWER UNIT
(C) L=1396 		1-49163-351-0 01 1 9905-
58 PIPE; OIL,POWER UNIT
(A) L=997 		1-47429-806-0 01 1 9604-9903
58 PIPE; OIL,POWER UNIT
(A) L=1002 		1-49164-393-0 01 1 9904-9904
58 PIPE; OIL,POWER UNIT
(A) L=1120 		1-49164-151-0 01 1 9905-9910
58 PIPE; OIL,POWER UNIT
(A) L=1006 		1-49165-034-0 01 1 9911-
59 BRACKET; CLIP
(B) 		1-47476-200-0 01 1 9604-
59 BRACKET; CLIP
(C) 		1-47477-317-0 01 1 9604-
59 BRACKET; CLIP
(D) 		1-47477-631-1 01 1 9604-
59 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=90 		1-82699-856-0 01 1 9604-
59 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=90 		1-82699-856-0 02 1 9604-
62 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 9604-9904
62 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 9905-
62 CLIP; OIL PIPE
(B) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 9604-9904
62 CLIP; OIL PIPE
(B) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 9905-
62 CLIP; OIL PIPE
(C) ID=25 H=30 L=35 		1-09700-875-0 02 1 9604-9905
62 CLIP; OIL PIPE
(C) ID=18 H=23 L=28 		1-09700-860-0 02 1 9906-
62 CLIP; OIL PIPE
(D) ID=11X2 L=16 		9-09535-025-0 02 1 9604-9904
62 CLIP; OIL PIPE
(D) ID=9X2 L=16 		9-09534-825-0 02 1 9905-
65 UNION; OIL PIPE
M14 		9-09223-308-1 02 1 9604-9904
65 UNION; OIL PIPE
M12 L=66.5 		9-09223-306-1 02 1 9905-
68 BRACKET; UNION
(A) 		1-47477-751-0 01 1 9604-9902
68 BRACKET; UNION
(A) 		1-47478-384-0 01 1 9903-9903
68 BRACKET; UNION
(B) 		1-53458-374-1 01 1 9604-
68 BRACKET; UNION
(A) 		1-47478-384-0 01 1 9904-
69 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9604-9606
69 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9604-9606
163 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9607-
172 HOSE; FLEX,OIL TILT
L=1600 		1-09364-825-1 02 1 9604-9904
172 HOSE; FLEX,OIL TILT
L=1600 		1-09365-052-1 02 1 9905-
175 UNION; FLEX HOSE
M14 2WAY 		1-09654-176-2 01 1 9604-9904
175 UNION; FLEX HOSE
M12 2WAY 		1-09654-234-2 01 1 9905-
176 NUT; UNION
(A) M12 FLANGE 		0-91150-112-0 01 1 9604-9606
176 NUT; UNION
(A) M12 FLANGE 		0-91150-212-0 01 1 9607-
176 NUT; UNION
(B) M14 		9-99111-414-0 02 1 9604-9904
176 NUT; UNION
(B) M12 		9-09840-280-0 02 1 9905-
177 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 02 1 9604-9904
177 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 9905-
189 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 03 1 9604-9606
189 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 9607-
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 9905-
326 UNION; PUMP
M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 9905-
