Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#63459) — 87 parça

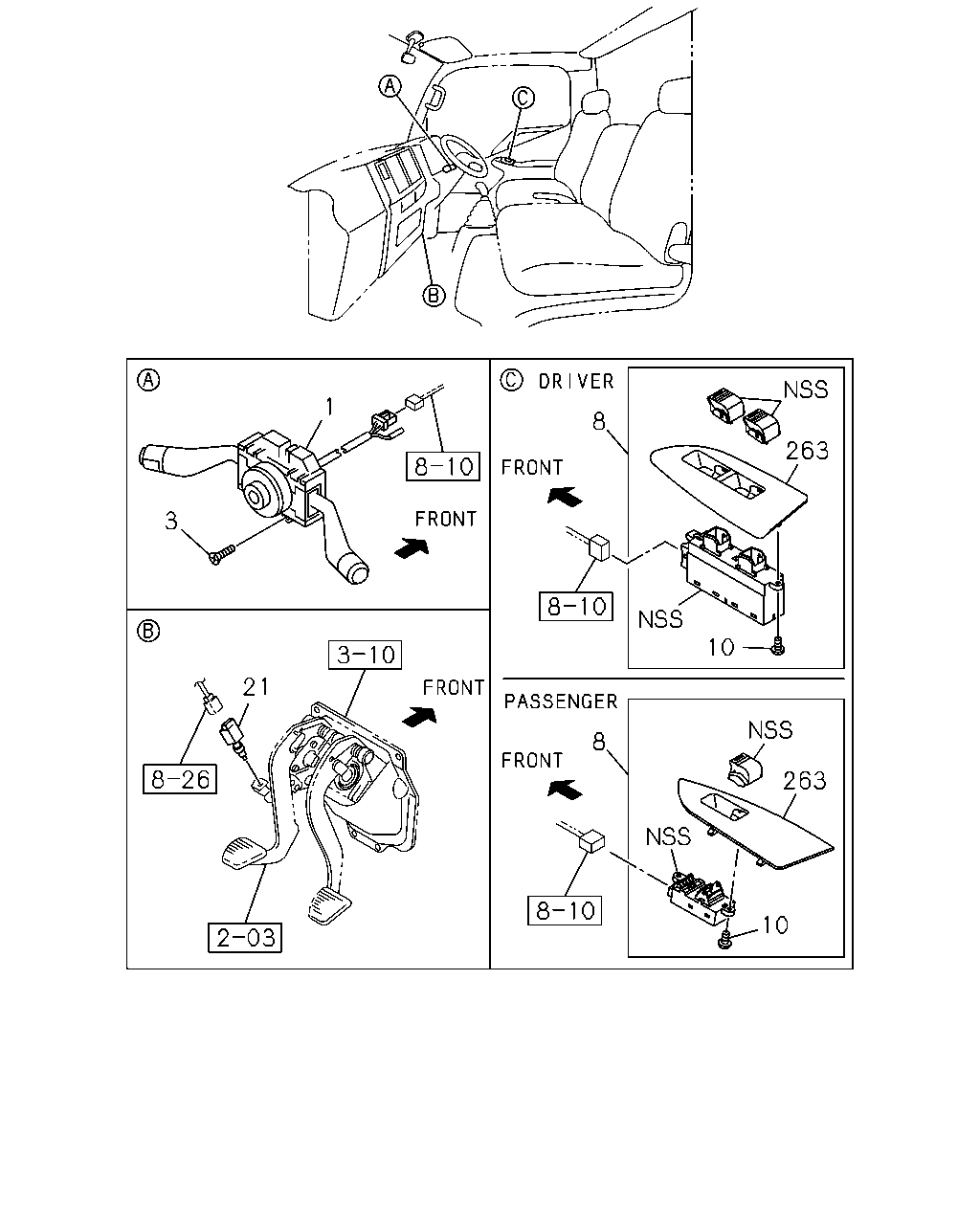

1 8 263 3 10 21 8 263 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB AIR BAG DRIVER(AJ3)	8-98146-618-0	01	1	1001-1210
1	SWITCH; COMB AIR BAG DRIVER(AJ3)	8-98217-820-0	01	1	1211-1310
1	SWITCH; COMB AIR BAG DRIVER(AJ3)	8-98243-691-0	01	1	1311-
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3)	8-98060-302-1	01	1	1001-1310
1	SWITCH; COMB EXC. AIR BAG DRIVER(AJ3)	8-98243-704-0	01	1	1311-
3	SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1001-
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER	8-97387-034-2	01	1	1001-1509
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98298-750-0	01	1	1510-
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98129-844-0	01	1	1001-1001
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER	8-98159-543-0	01	1	1002-1509
8	SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98316-415-0	01	1	1510-
10	SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	1001-
21	SWITCH; CLU TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-94337-761-0	01	1	1001-1112
21	SWITCH; CLU TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-94337-761-0	01	1	1201-
21	SWITCH; CLU EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97358-248-0	01	1	1001-1112
21	SWITCH; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97358-248-0	01	1	1201-
263	COVER; SW POWER WINDOW FRT DOOR<A32> PASSENGER	8-98153-836-0	01	1	1001-
263	COVER; SW POWER WINDOW FRT DOOR<A32> DRIVER	8-98153-841-0	01	1	1001-

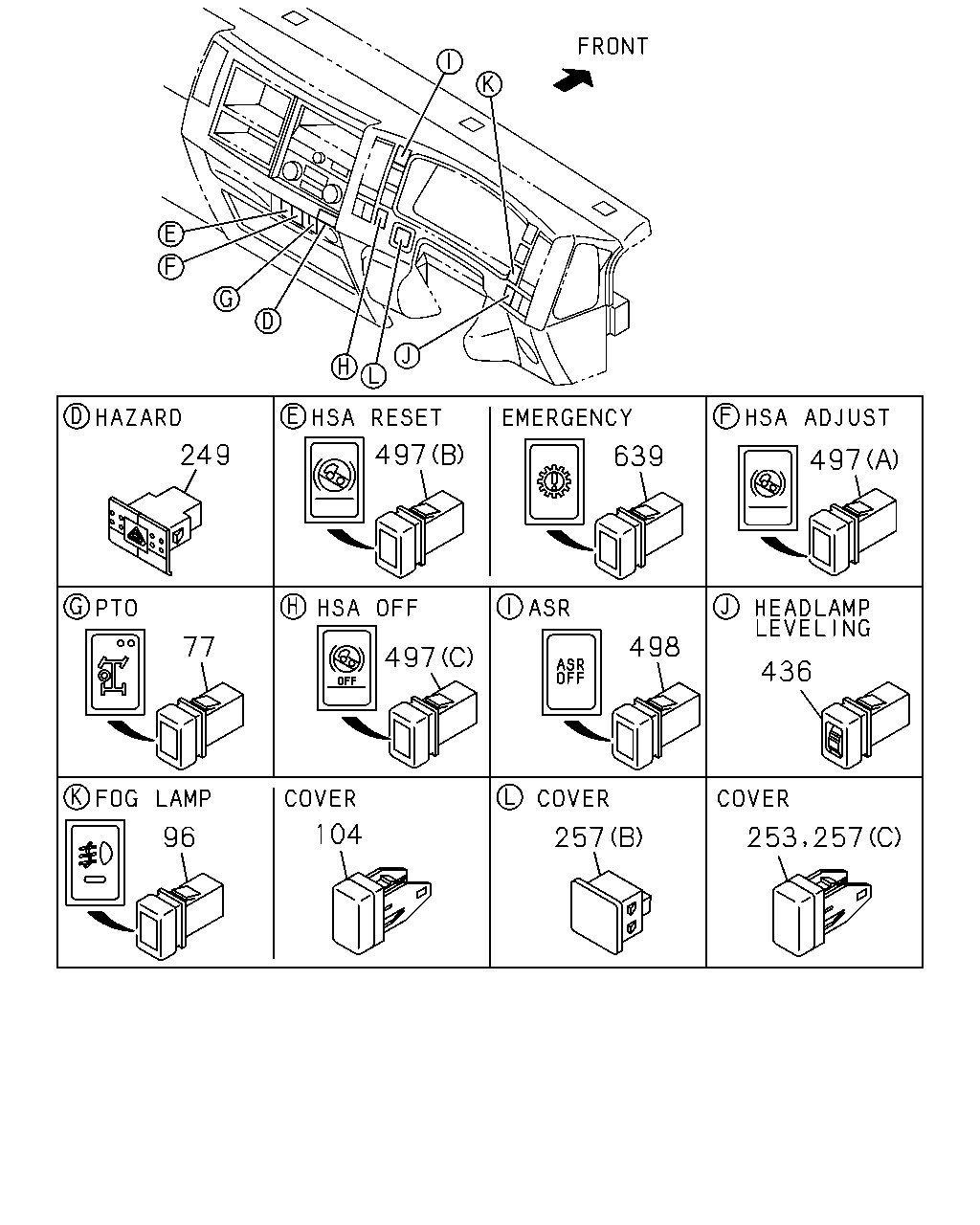

497 249 639 497 77 498 497 436 104 96 257 253 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	1201-
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97615-488-2	01	1	1001-1112
77	SWITCH; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97615-488-2	01	1	1201-
96	SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	1001-
104	COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>	8-98025-954-1	01	1	1001-
249	SWITCH; HAZARD	8-97386-922-1	01	1	1001-
253	COVER; SW HOLE	8-98025-954-1	02	1	1001-
253	COVER; SW HOLE	8-98025-954-1	01	1	1001-
253	COVER; SW HOLE EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98025-954-1	01	1	1001-
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	1001-
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	1001-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98029-917-0	01	1	1001-
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-97386-981-2	01	1	1001-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (C) OFF	8-97386-923-2	01	1	1001-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-98119-946-0	01	1	1001-1112
497	SWITCH; HSA H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) RESET	8-98119-946-0	01	1	1201-
497	SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-1	01	1	1001-
498	SWITCH; ASR THROTTLE CONTROL SYSTEM(6XH)	8-97386-920-2	01	1	1001-
639	SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1201-

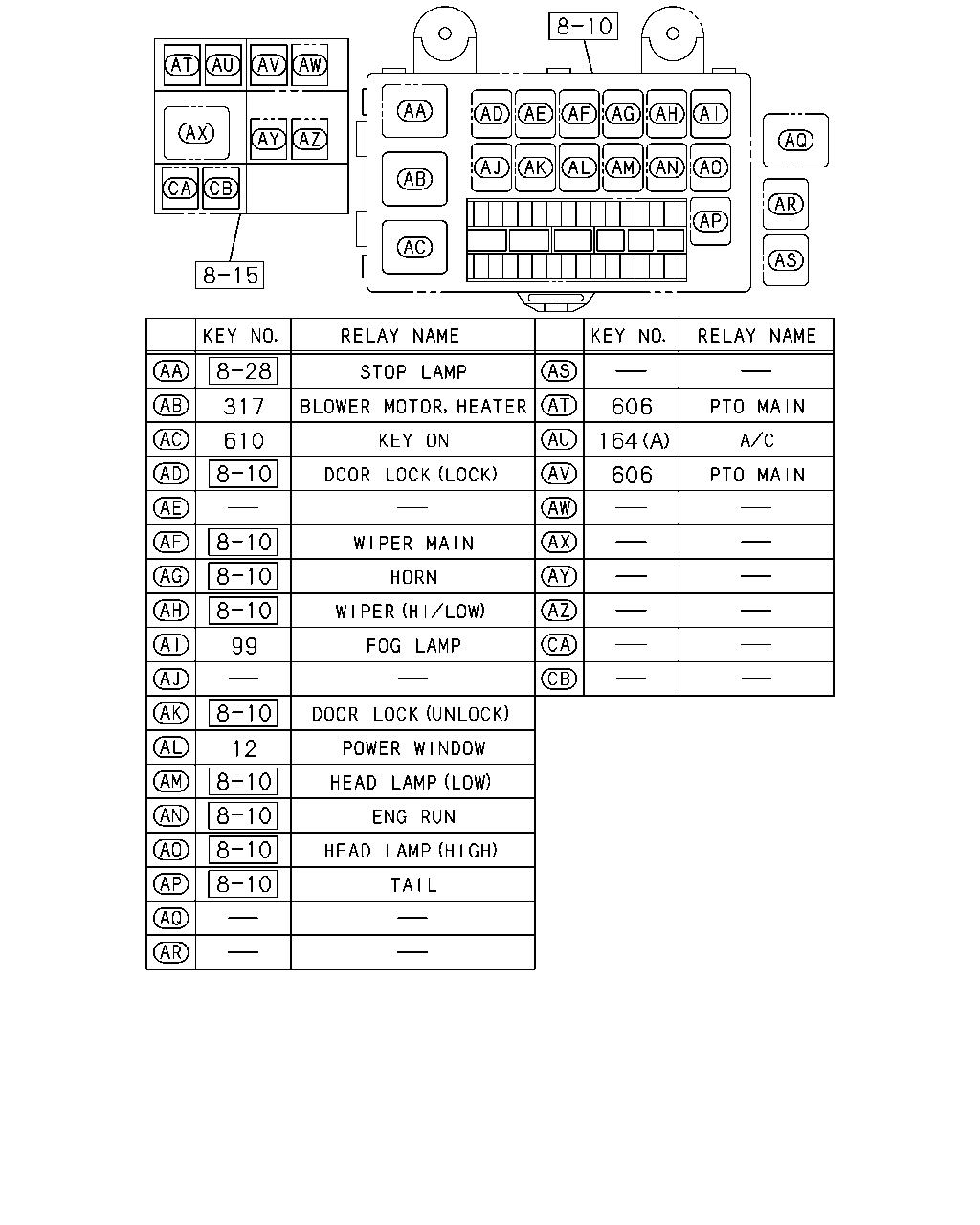

317 606 610 164 606 99 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
99	RELAY; FOG LAMP FOG LAMP<T96> 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1001-
317	RELAY; BLOWER MOTOR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1001-
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	1001-1112
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	1001-1112
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-
606	RELAY; PTO MAIN TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 10A PANASONIC	8-97173-035-1	01	1	1201-
610	RELAY; KEY ON 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1001-

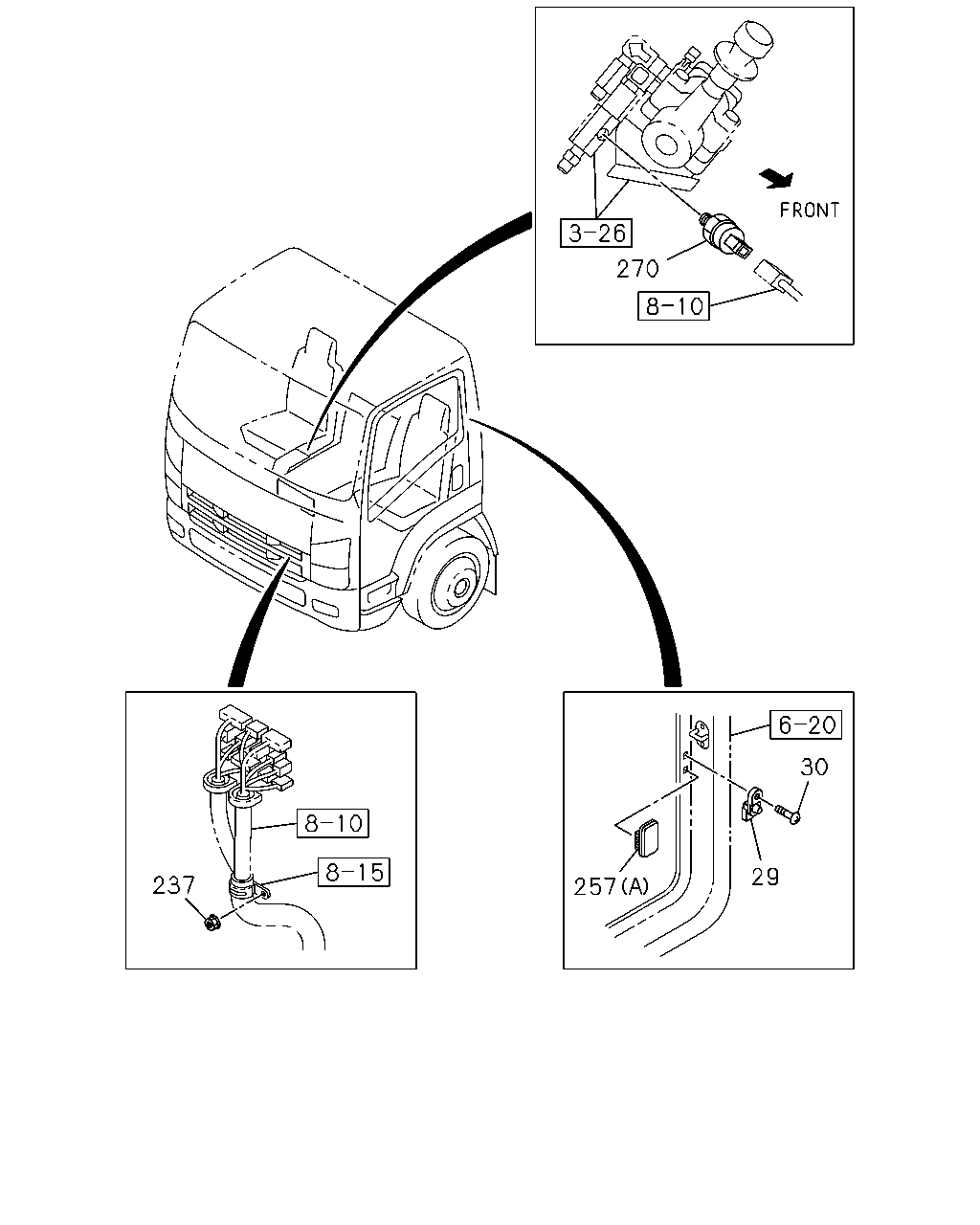

270 30 29 237 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR BLACK	8-98022-211-0	01	1	1001-
29	SWITCH; DOOR H.S.A SYSTEM<6EP> BLACK	8-98022-211-0	01	1	1001-
30	SCREW; DOOR SW M5X18	8-98047-201-0	01	1	1001-
30	SCREW; DOOR SW H.S.A SYSTEM<6EP> M5X18	8-98047-201-0	01	1	1001-
237	NUT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
257	COVER; HOLE,SW (C)	8-98025-954-1	03	1	1001-
257	COVER; HOLE,SW (B)	8-98029-914-1	01	1	1001-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1001-1112
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW (C)	8-98025-954-1	01	1	1201-
257	COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (A)	8-98029-917-0	01	1	1001-
270	SWITCH; PRESS,WHEEL PARKING STAMP 2.0	8-98010-856-2	01	1	1001-

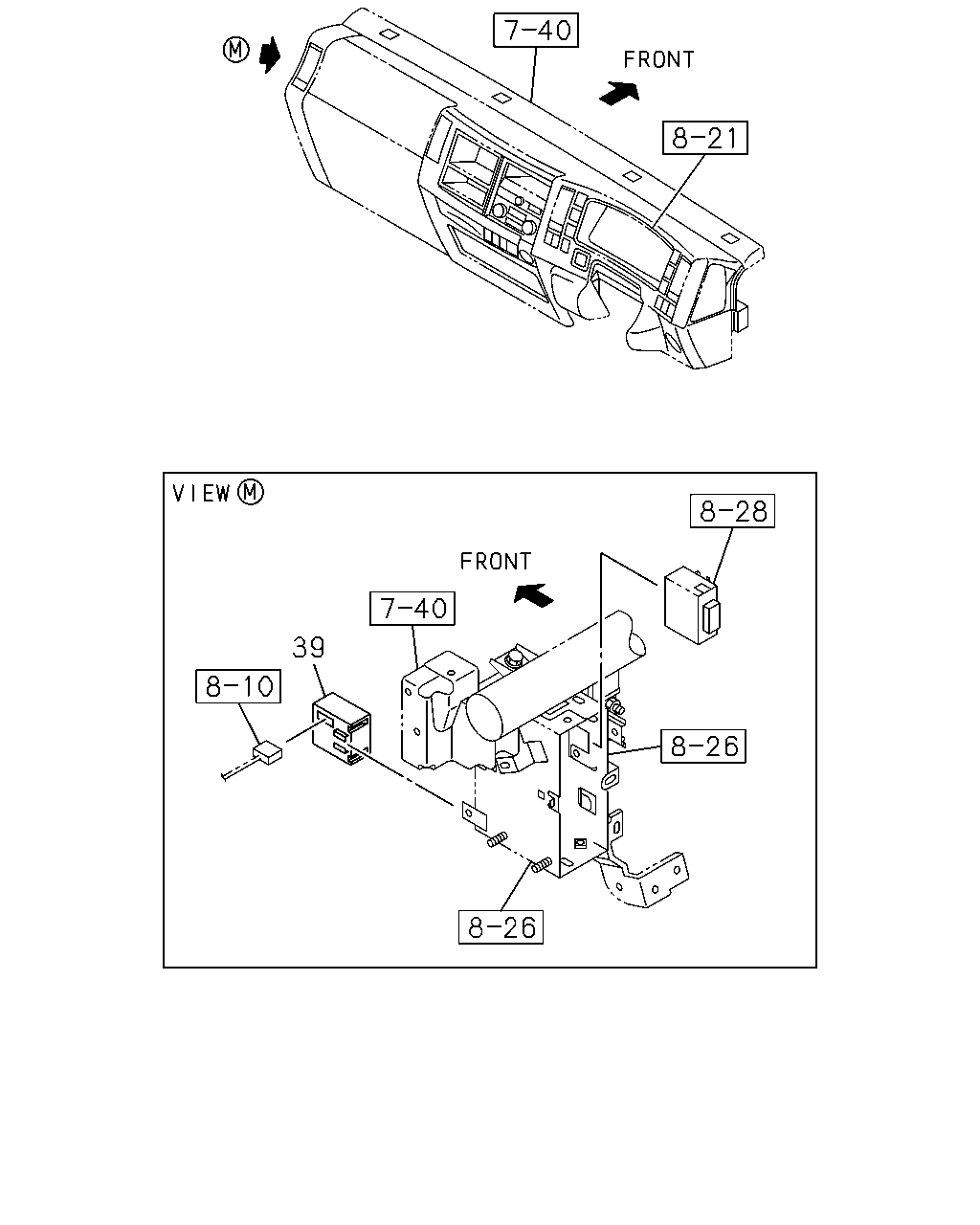

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	39	RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	1001-

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	1001-
	164	RELAY; A/C COMPRESSOR AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC SOU	8-97262-933-0	01	1	1001-
