Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#63456) — 316 parça

16 16 483 171 171 81 223 171 235 48 483 483 116 16 223 48 16 235 48 470 16

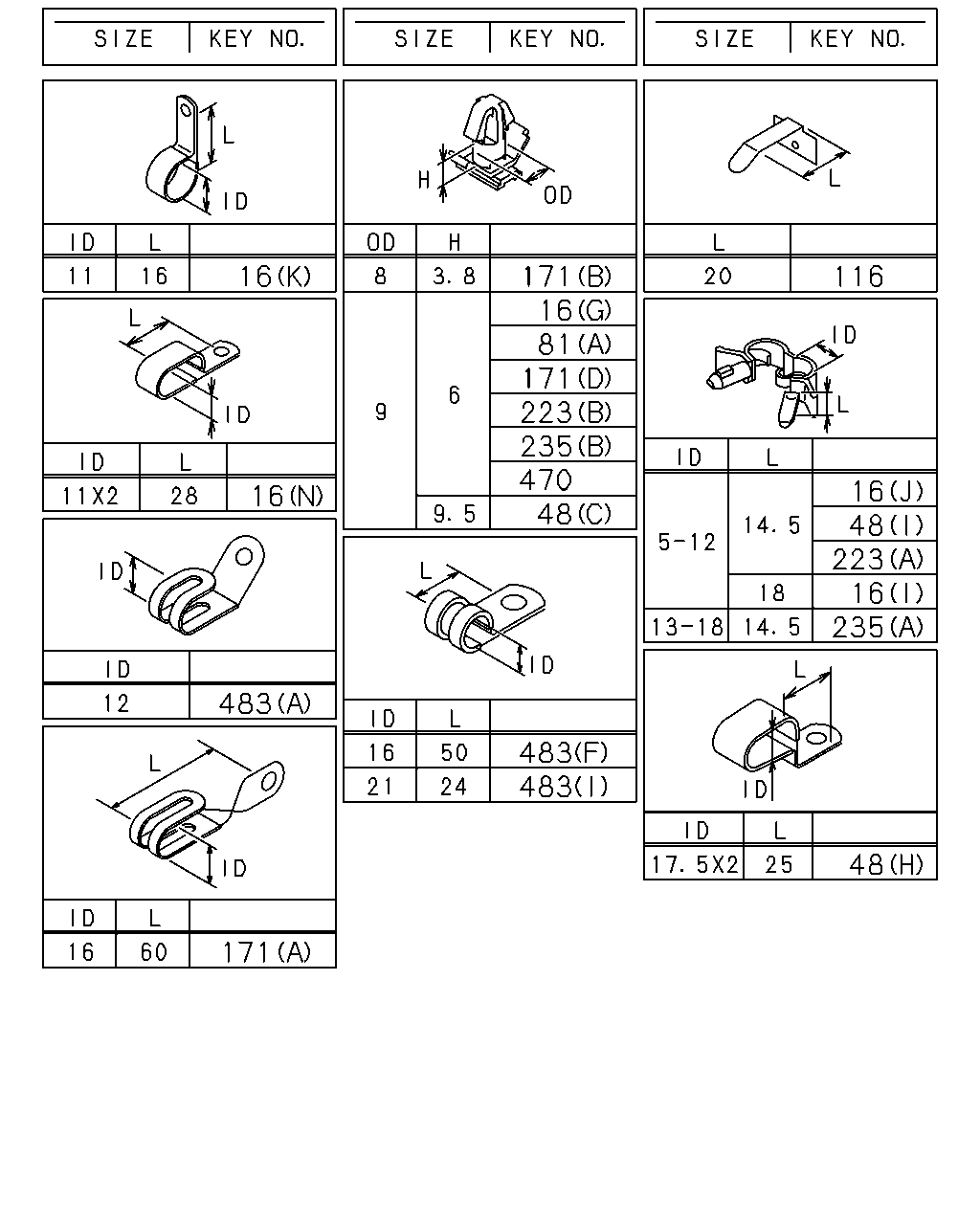

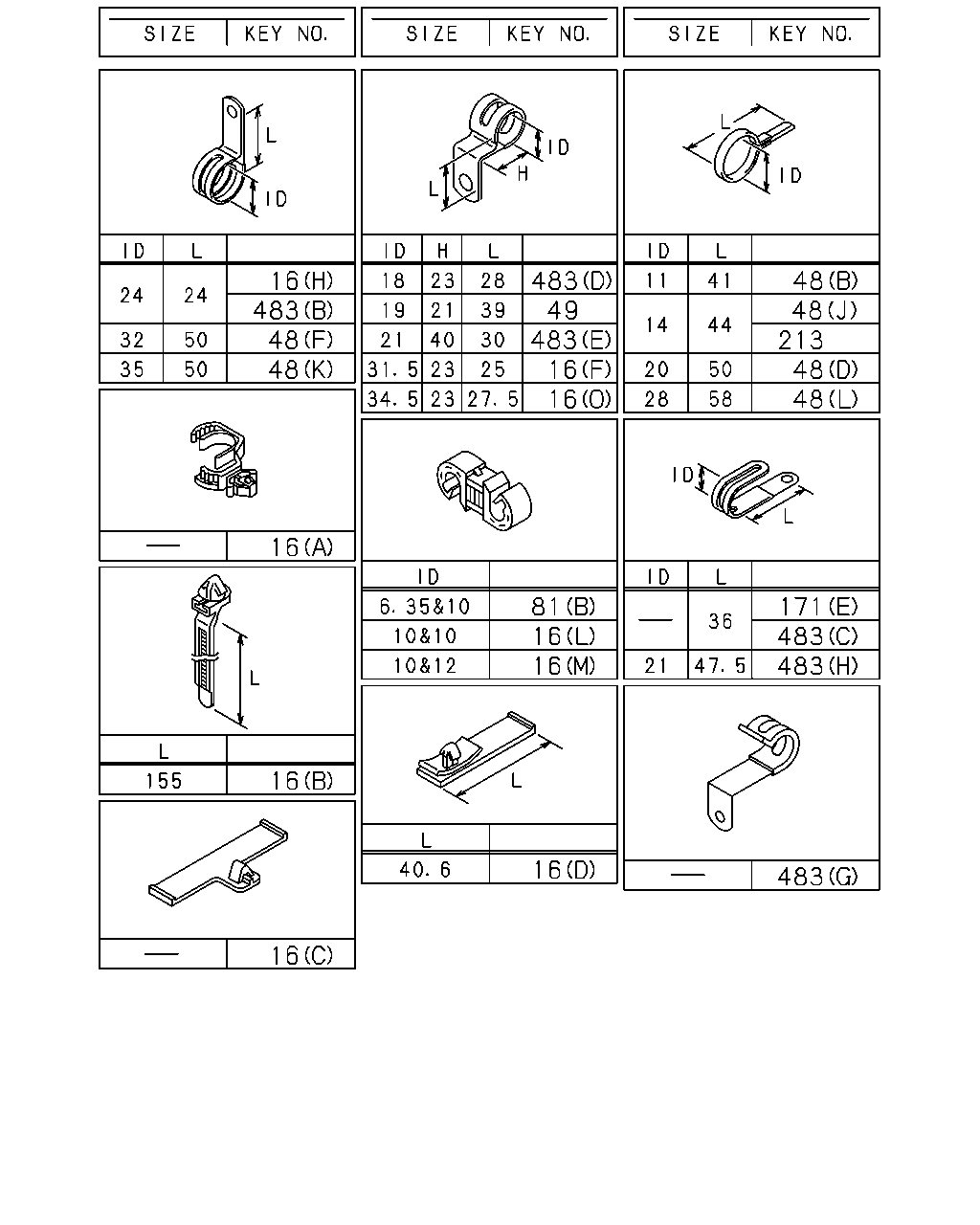

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1201-
16	CLIP; HARNESS (L) ID=10 & 10	1-09709-277-1	04	1	1001-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	1001-
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (N) ID=11X2 L=16	1-09700-734-0	01	1	1001-
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1001-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-1112
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1201-
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1001-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1001-
16	CLIP; HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6	1-09709-178-0	01	1	1001-
48	CLIP; FRAME HARNESS (L) ID=28 L=58	1-09700-400-0	01	1	1306-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (K) ID=35 L=50	1-09701-214-0	01	1	1201-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	01	1	1003-1112
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250 SOU	5-09707-030-1	01	1	1201-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	01	1	1201-
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	04	1	1008-1112
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (J) ID=14 L=44	9-09917-427-0	04	1	1201-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1001-1112
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	1201-
48	CLIP; FRAME HARNESS (G) L=600	1-09707-107-1	01	1	1001-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	03	1	1001-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1001-1002
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1001-1002
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1003-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	05	1	1001-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1008-1112
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1201-1201
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	10	1	1001-1007
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	10	1	1008-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-1112
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1201-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) OD=9 H=6	1-09709-178-0	01	1	1001-1007
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1008-1112
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1201-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	04	1	1001-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	03	1	1001-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180 SOU	1-09707-162-1	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	1001-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1001-1011
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1012-1112
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1201-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1001-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (H) ID=21 L=47.5	8-94178-108-0	01	1	1401-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1201-1210
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (G)	1-09987-281-0	01	1	1201-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (H) ID=21 L=47.5	8-94178-108-0	01	1	1201-1209
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (C) L=36	8-94224-891-1	01	1	1201-
483	CLIP; ENG HARNESS (E) ID=21 L=30 H=40	1-09700-991-1	01	1	1110-
483	CLIP; ENG HARNESS (F) ID=16 L=50	1-09701-158-0	01	1	1110-
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1001-1112
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210
483	CLIP; ENG HARNESS (I) ID=21 L=24	8-98019-191-0	01	1	1211-
483	CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	1001-
483	CLIP; ENG HARNESS (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1001-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	03	1	1001-1109
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	02	1	1110-

16 48 483 16 16 16 16 16 16 81 16 16 483 49 483 48 48 48 213 48 171 483 483 483 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1201-
16	CLIP; HARNESS (L) ID=10 & 10	1-09709-277-1	04	1	1001-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	1001-
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (N) ID=11X2 L=16	1-09700-734-0	01	1	1001-
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1001-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-1112
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1201-
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1001-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1001-
16	CLIP; HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6	1-09709-178-0	01	1	1001-
48	CLIP; FRAME HARNESS (L) ID=28 L=58	1-09700-400-0	01	1	1306-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (K) ID=35 L=50	1-09701-214-0	01	1	1201-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	01	1	1003-1112
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250 SOU	5-09707-030-1	01	1	1201-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	01	1	1201-
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	04	1	1008-1112
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (J) ID=14 L=44	9-09917-427-0	04	1	1201-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1001-1112
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	1201-
48	CLIP; FRAME HARNESS (G) L=600	1-09707-107-1	01	1	1001-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	03	1	1001-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1001-1002
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1001-1002
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1003-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	05	1	1001-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1008-1112
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1201-1201
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	10	1	1001-1007
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	10	1	1008-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	1001-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-1112
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1201-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) OD=9 H=6	1-09709-178-0	01	1	1001-1007
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1008-1112
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1201-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180 SOU	1-09707-162-1	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	1001-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1001-1011
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1012-1112
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1201-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1001-
483	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (A) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1401-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (H) ID=21 L=47.5	8-94178-108-0	01	1	1401-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1201-1210
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (G)	1-09987-281-0	01	1	1201-
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (H) ID=21 L=47.5	8-94178-108-0	01	1	1201-1209
483	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (C) L=36	8-94224-891-1	01	1	1201-
483	CLIP; ENG HARNESS (E) ID=21 L=30 H=40	1-09700-991-1	01	1	1110-
483	CLIP; ENG HARNESS (F) ID=16 L=50	1-09701-158-0	01	1	1110-
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	1001-1112
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210
483	CLIP; ENG HARNESS (I) ID=21 L=24	8-98019-191-0	01	1	1211-
483	CLIP; ENG HARNESS (B) ID=24 L=24	1-09701-001-1	01	1	1001-
483	CLIP; ENG HARNESS (A) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1001-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	03	1	1001-1109
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	02	1	1110-

150 139 139 150 38 150 139 150 150 93 38 38 139 313 150 139 313 150 139 313 38 139 84 184 524 294 219 525 515 294 219 524 47 38 386 386 377 38

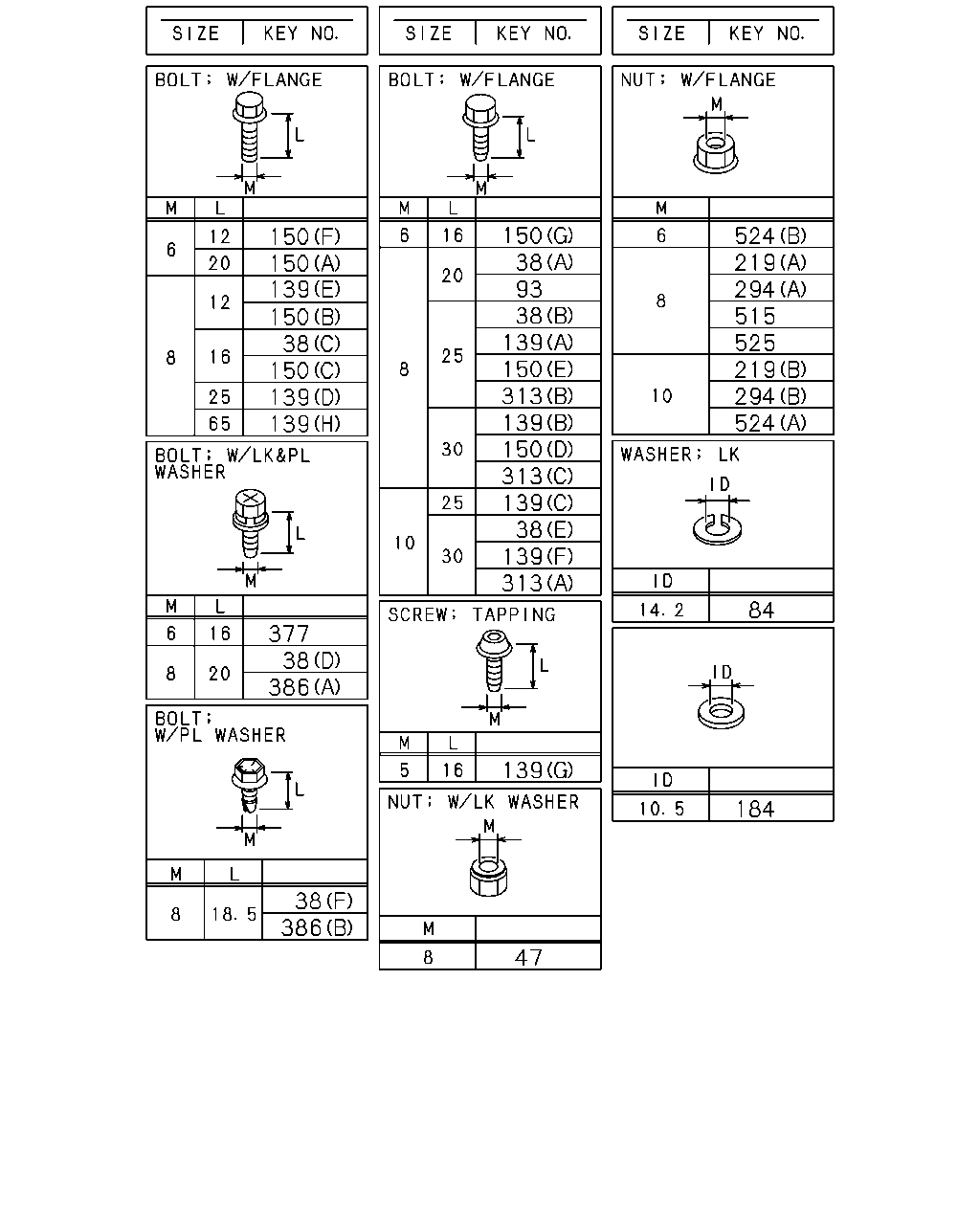

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE SOU	0-28050-816-0	03	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	03	1	1001-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER SOU	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ID=14.2 SOU	0-91510-814-0	02	1	1001-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	1001-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1001-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-1112
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-1112
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1201-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1201-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-
139	BOLT; BRKT (C) M10X25 FLANGE SOU	0-28651-025-0	02	1	1001-
139	BOLT; BRKT (F) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-
139	BOLT; BRKT (F) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-
139	BOLT; BRKT (D) M8X25 FLANGE SOU	0-28050-825-0	02	1	1001-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1001-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1001-
150	BOLT; CLIP EURO2 SPECIFICATION<NT2> (F) M6X12 FLANGE SOU	0-28050-612-0	04	1	1401-
150	BOLT; CLIP EURO3 SPECIFICATION<NT3> (F) M6X12 FLANGE SOU	0-28050-612-0	03	1	1401-
150	BOLT; CLIP (E) M8X25 FLANGE SOU	0-28650-825-0	01	1	1110-
150	BOLT; CLIP (A) M6X20 FLANGE	0-28050-620-0	01	1	1001-1109
150	BOLT; CLIP (F) M6X12 FLANGE SOU	0-28050-612-0	02	1	1110-1312
150	BOLT; CLIP (G) M6X16 FLANGE SOU	0-28650-616-0	01	1	1401-
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	01	1	1001-
150	BOLT; CLIP (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1109
150	BOLT; CLIP (C) M8X16 FLANGE SOU	0-28050-816-0	01	1	1110-
150	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	01	1	1001-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	01	1	1001-
219	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
219	NUT (A) M8 FLANGE SOU	0-91180-108-0	02	1	1001-
219	NUT MLD6S M/T(X7W) (B) M10 FLANGE SOU	0-91180-210-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	03	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	04	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1001-1010
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	02	1	1011-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	03	1	1001-1010
294	NUT MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) (B) M10 FLANGE SOU	0-91180-210-0	01	1	1011-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1011-
313	BOLT; BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	1001-
313	BOLT; BRKT (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-1112
313	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) M10X30 FLANGE SOU	0-28651-030-0	01	1	1201-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1001-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	02	1	1001-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
515	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
524	NUT; HARNESS (B) M6 FLANGE SOU	0-91180-106-0	04	1	1001-
524	NUT; HARNESS (A) M10 FLANGE SOU	0-91180-110-0	01	1	1001-
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-1008
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1009-
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1009-

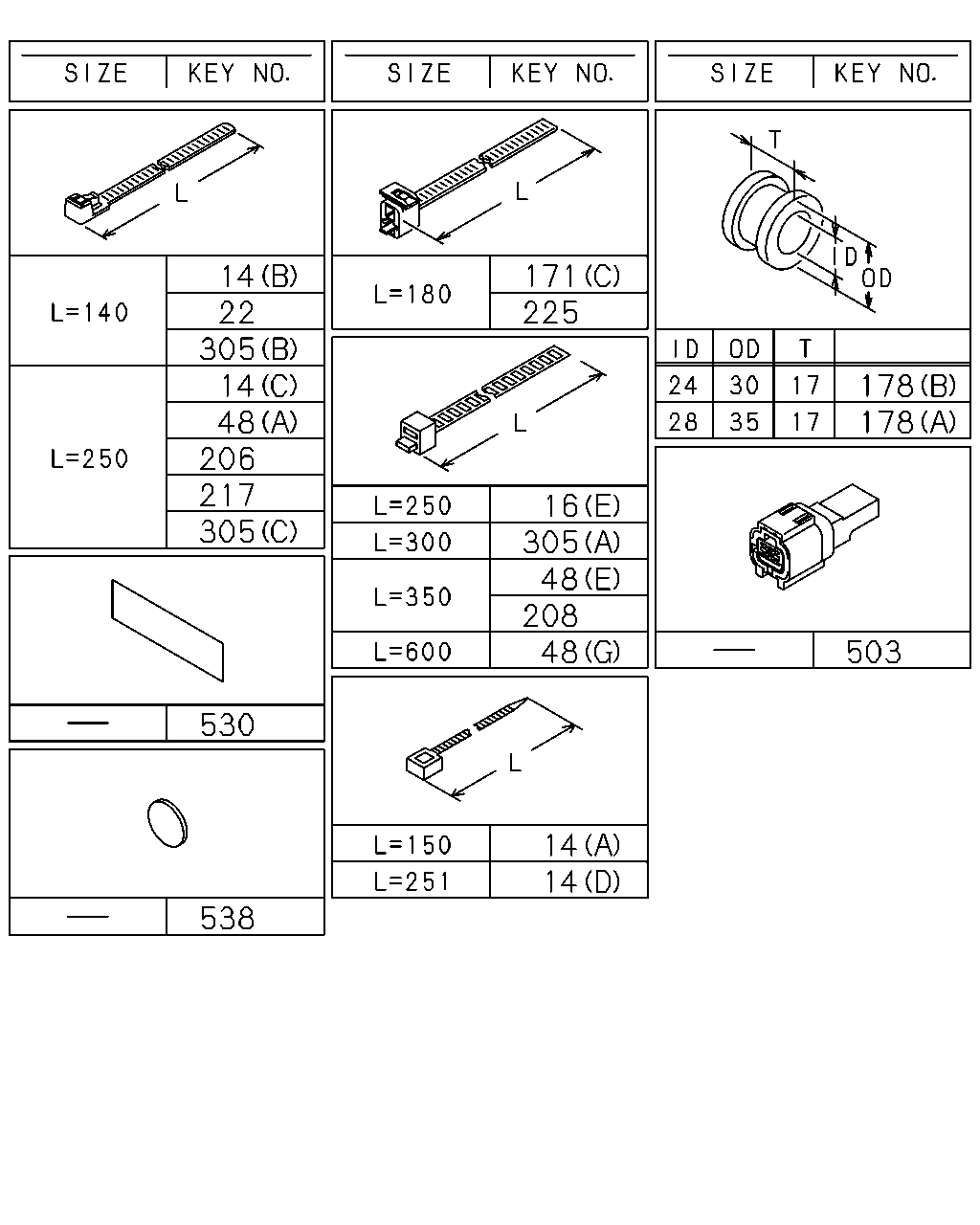

14 22 305 14 48 206 217 305 171 225 178 178 16 305 48 208 48 503 530 14 14 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (C) L=250 SOU	5-09707-030-1	02	1	1001-
14	CLIP; BAND,HARNESS (B) L=140 SOU	5-09707-031-1	04	1	1001-1109
14	CLIP; BAND,HARNESS (B) L=140 SOU	5-09707-031-1	05	1	1110-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	01	1	1001-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	1001-
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 SOU	5-09707-031-1	02	1	1001-1107
14	CLIP; BAND,HARNESS (B) L=140 SOU	5-09707-031-1	02	1	1108-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (O) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1201-
16	CLIP; HARNESS (L) ID=10 & 10	1-09709-277-1	04	1	1001-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	1001-
16	CLIP; HARNESS (K) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (N) ID=11X2 L=16	1-09700-734-0	01	1	1001-
16	CLIP; HARNESS (H) ID=24 L=24	1-09701-001-1	02	1	1001-
16	CLIP; HARNESS (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-1112
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1201-
16	CLIP; HARNESS (E) L=250	1-09707-126-0	02	1	1001-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	01	1	1001-
16	CLIP; HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6	1-09709-178-0	01	1	1001-
22	CLIP; ENG HARNESS L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (L) ID=28 L=58	1-09700-400-0	01	1	1306-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (K) ID=35 L=50	1-09701-214-0	01	1	1201-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	01	1	1003-1112
48	CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=250 SOU	5-09707-030-1	01	1	1201-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	01	1	1201-
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	04	1	1008-1112
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (J) ID=14 L=44	9-09917-427-0	04	1	1201-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (F) ID=32 L=50	1-09701-055-1	01	1	1001-1112
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	1201-
48	CLIP; FRAME HARNESS (G) L=600	1-09707-107-1	01	1	1001-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	03	1	1001-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1001-1002
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1001-1002
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	02	1	1003-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	05	1	1001-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1008-1112
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) ID=20 L=50 SOU	9-09917-430-0	01	1	1201-1201
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	10	1	1001-1007
48	CLIP; FRAME HARNESS (J) ID=14 L=44	9-09917-427-0	10	1	1008-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180 SOU	1-09707-162-1	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	1001-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1001-1011
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1012-1112
171	CLIP; STARTER HARNESS MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1201-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1001-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-1112
178	GROMMET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1201-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	1001-
206	CLIP; FUEL TANK HARNESS L=250 SOU	5-09707-030-1	03	1	1001-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1001-
217	CLIP; RR BODY HARNESS L=250 SOU	5-09707-030-1	02	1	1001-
225	CLIP; AIR TANK HARNESS L=180 SOU	1-09707-162-1	01	1	1001-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=250 SOU	5-09707-030-1	01	1	1201-
305	CLIP; ENG HARNESS (A) L=300	1-09707-001-1	01	1	1001-
305	CLIP; ENG HARNESS (B) L=140 SOU	5-09707-031-1	02	1	1001-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1001-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1001-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
530	SEAL; HARNESS 100X40 SOU	1-72498-022-1	06	1	1001-1305
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK SOU	1-76798-019-0	01	1	1001-

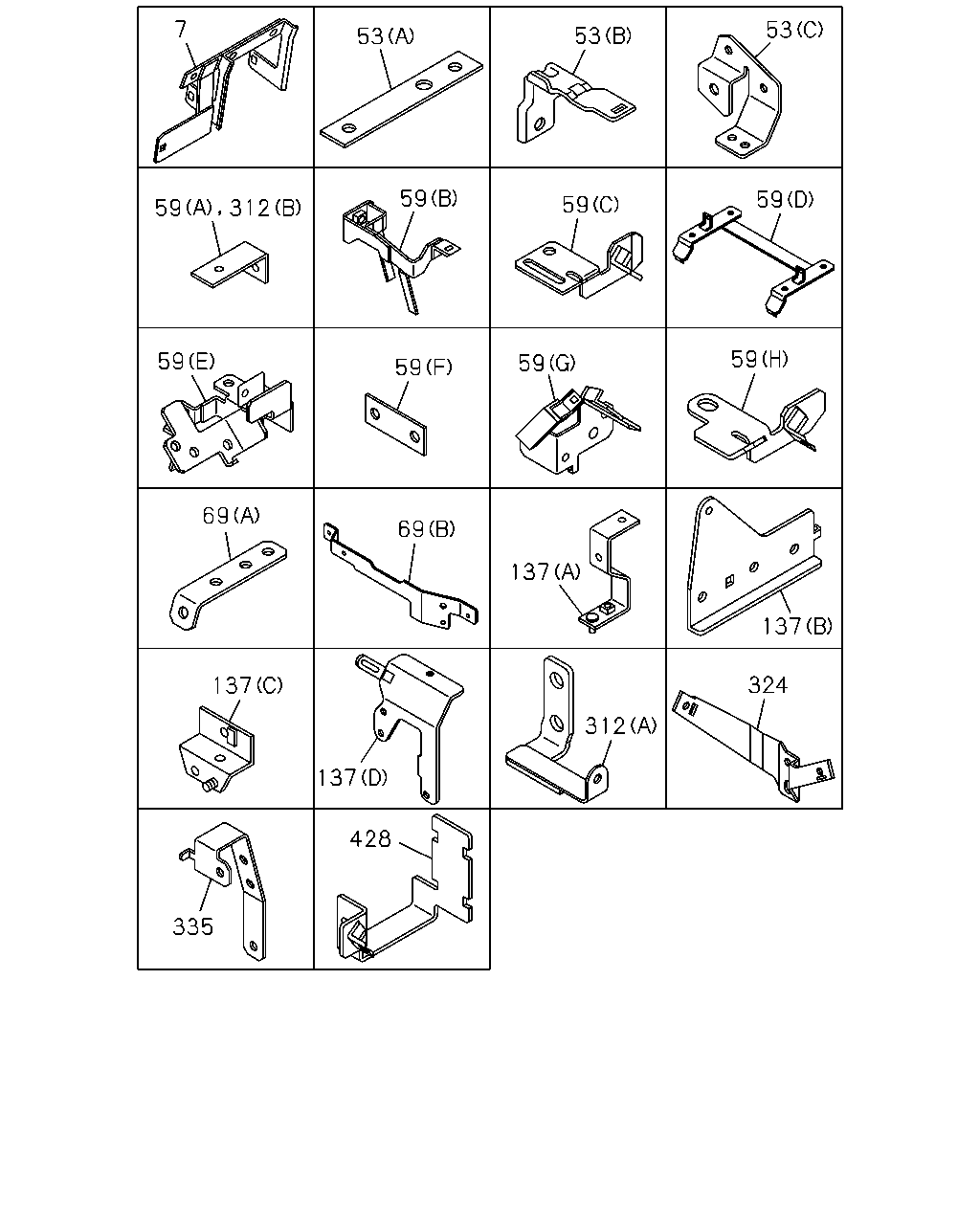

7 53 53 53 59 312 59 59 59 59 59 59 59 69 69 137 137 137 137 312 324 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1001-
53	BRACKET; HARNESS (A) L=170	1-47479-380-0	01	1	1001-1112
53	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (A) L=170	1-47479-380-0	01	1	1201-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1001-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1001-
59	BRACKET; FRAME HARNESS (A) L=55	1-47475-304-0	01	1	1001-1001
59	BRACKET; FRAME HARNESS (F) L=85	8-98044-743-0	01	1	1001-
59	BRACKET; FRAME HARNESS (C)	8-97616-305-0	01	1	1001-1502
59	BRACKET; FRAME HARNESS (H)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (D)	8-97619-533-0	01	1	1001-
59	BRACKET; FRAME HARNESS (E)	8-97619-535-0	01	1	1001-1401
59	BRACKET; FRAME HARNESS (G)	8-97622-828-0	01	1	1402-
59	BRACKET; FRAME HARNESS (B)	8-98099-963-0	01	1	1001-
69	BRACKET; CLIP (A)	1-82698-167-0	01	1	1001-1112
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-82698-167-0	01	1	1201-
69	BRACKET; CLIP (B)	8-97614-738-0	01	1	1001-
137	BRACKET; HARNESS CLAMP (B)	8-97624-016-0	01	1	1001-
137	BRACKET; HARNESS CLAMP (A)	8-98065-904-0	01	1	1001-
137	BRACKET; HARNESS CLAMP (C)	8-98058-354-1	01	1	1001-
137	BRACKET; HARNESS CLAMP (D)	8-97618-098-2	01	1	1001-
312	BRACKET; CLIP HARNESS EURO3 SPECIFICATION<NT3> (A)	8-98094-804-0	01	1	1201-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1001-
324	BRACKET; CLIP	8-98061-654-2	01	1	1001-
324	BRACKET; CLIP	8-98061-653-2	01	1	1001-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1001-
428	BRACKET	8-98116-461-0	01	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
