Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#63455) — 355 parça

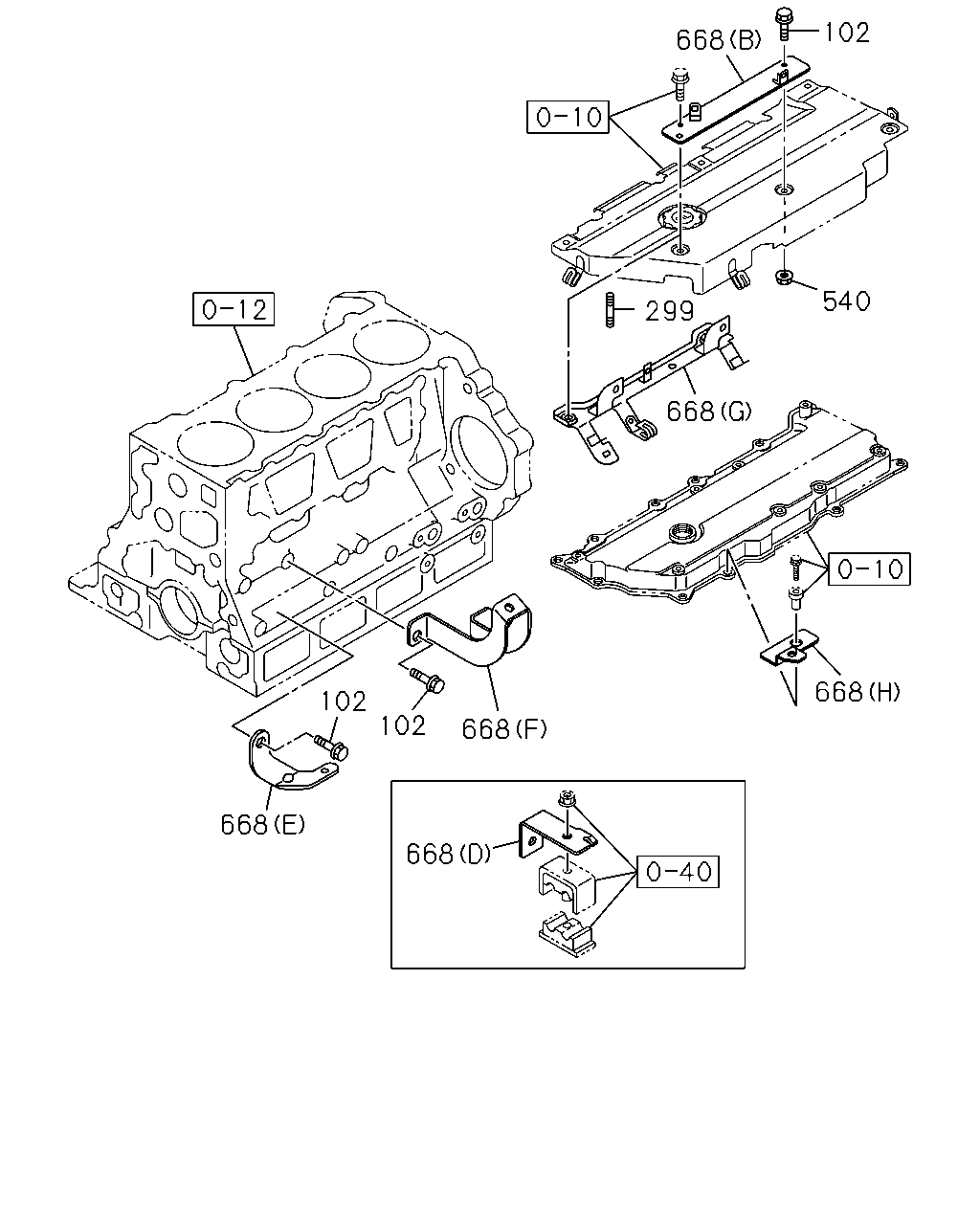

668 102 540 668 668 668 668 102 102 668 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
102	BOLT; BRKT,HARNESS CONNECTOR M6X25 FLANGE	0-28050-625-0	01	1	1001-1109
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE SOU	0-28050-816-0	03	1	1001-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1001-
299	STUD; BRKT M6X20 L=28	0-41010-620-0	02	1	1110-1110
540	NUT; BRKT FIX M6 FLANGE SOU	0-91180-106-0	01	1	1001-1109
540	NUT; BRKT FIX M6 FLANGE SOU	0-91180-106-0	02	1	1110-1312
668	BRACKET; HARNESS (D)	8-98001-095-0	01	1	1001-1408
668	BRACKET; HARNESS EURO3 SPECIFICATION<NT3> (D)	8-98001-095-0	01	1	1409-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1001-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1001-
668	BRACKET; HARNESS (B)	8-98022-106-2	01	1	1001-1109
668	BRACKET; HARNESS (G)	8-98061-805-2	01	1	1110-1312
668	BRACKET; HARNESS (H)	8-98205-089-0	01	1	1401-
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1001-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	1001-

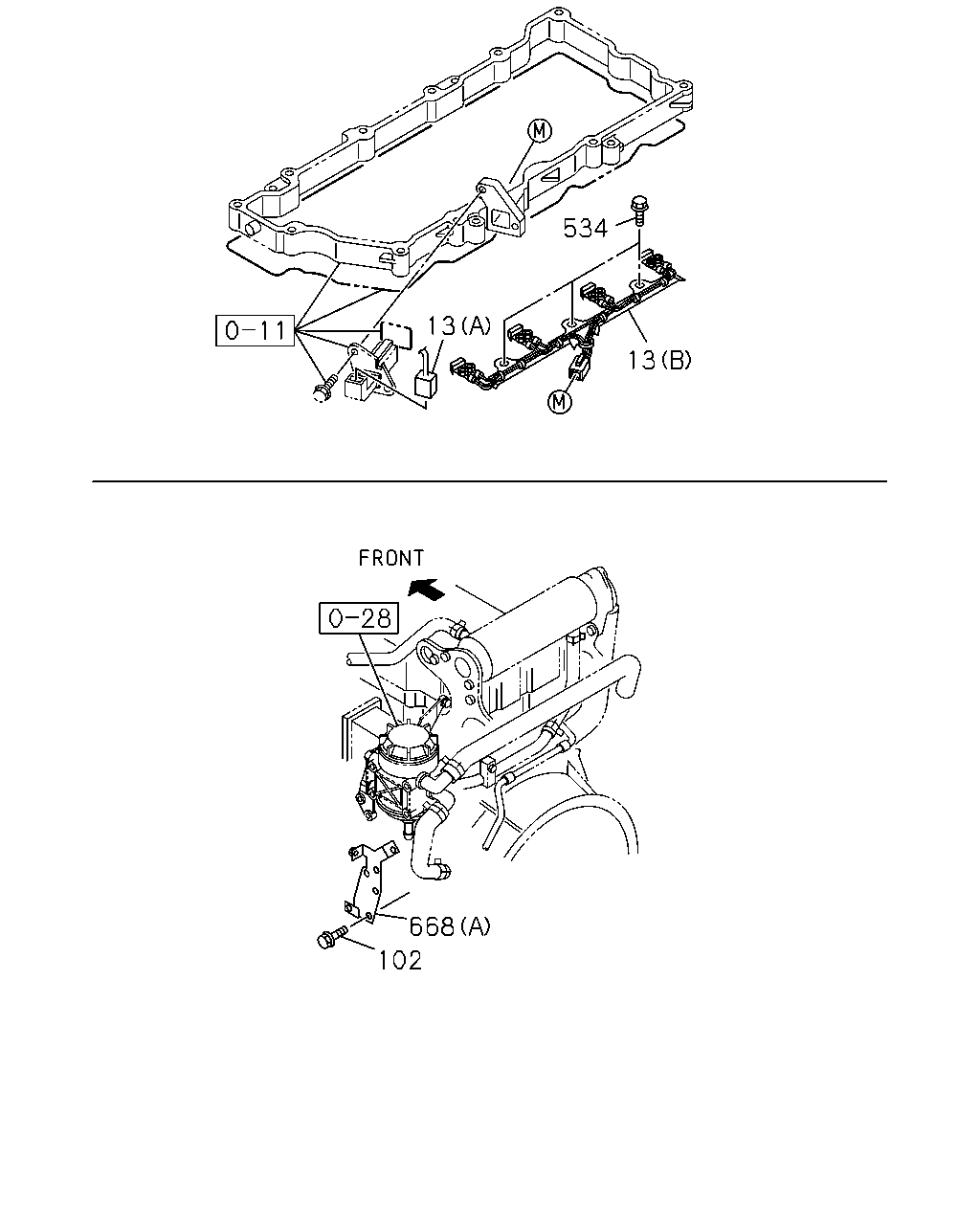

13 534 13 668 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) (A)	8-98170-270-2	01	1	1201-1312
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) (A)	8-98255-591-0	01	1	1401-1405
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) (A)	8-98274-038-0	01	1	1406-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) (A)	8-98170-269-2	01	1	1201-1312
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) (A)	8-98255-590-0	01	1	1401-1405
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) (A)	8-98274-037-0	01	1	1406-
13	HARNESS; ENG (B)	8-97332-133-3	01	1	1001-1007
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98077-326-4	01	1	1001-1109
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98171-999-4	01	1	1110-1112
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) (A)	8-98171-999-4	01	1	1201-1312
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) (A)	8-98255-582-0	01	1	1401-1405
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) (A)	8-98274-029-0	01	1	1406-
13	HARNESS; ENG GENERATOR 24V60A(KG2) (A)	8-98077-327-4	01	1	1001-1109
13	HARNESS; ENG GENERATOR 24V60A(KG2) (A)	8-98172-000-4	01	1	1110-1112
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) (A)	8-98172-000-4	01	1	1201-1312
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) (A)	8-98255-583-0	01	1	1401-1405
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) (A)	8-98274-030-0	01	1	1406-
102	BOLT; BRKT,HARNESS CONNECTOR M6X25 FLANGE	0-28050-625-0	01	1	1001-1109
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE SOU	0-28050-816-0	03	1	1001-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1001-
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	1001-
668	BRACKET; HARNESS (D)	8-98001-095-0	01	1	1001-1408
668	BRACKET; HARNESS EURO3 SPECIFICATION<NT3> (D)	8-98001-095-0	01	1	1409-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1001-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1001-
668	BRACKET; HARNESS (B)	8-98022-106-2	01	1	1001-1109
668	BRACKET; HARNESS (G)	8-98061-805-2	01	1	1110-1312
668	BRACKET; HARNESS (H)	8-98205-089-0	01	1	1401-
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1001-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	1001-

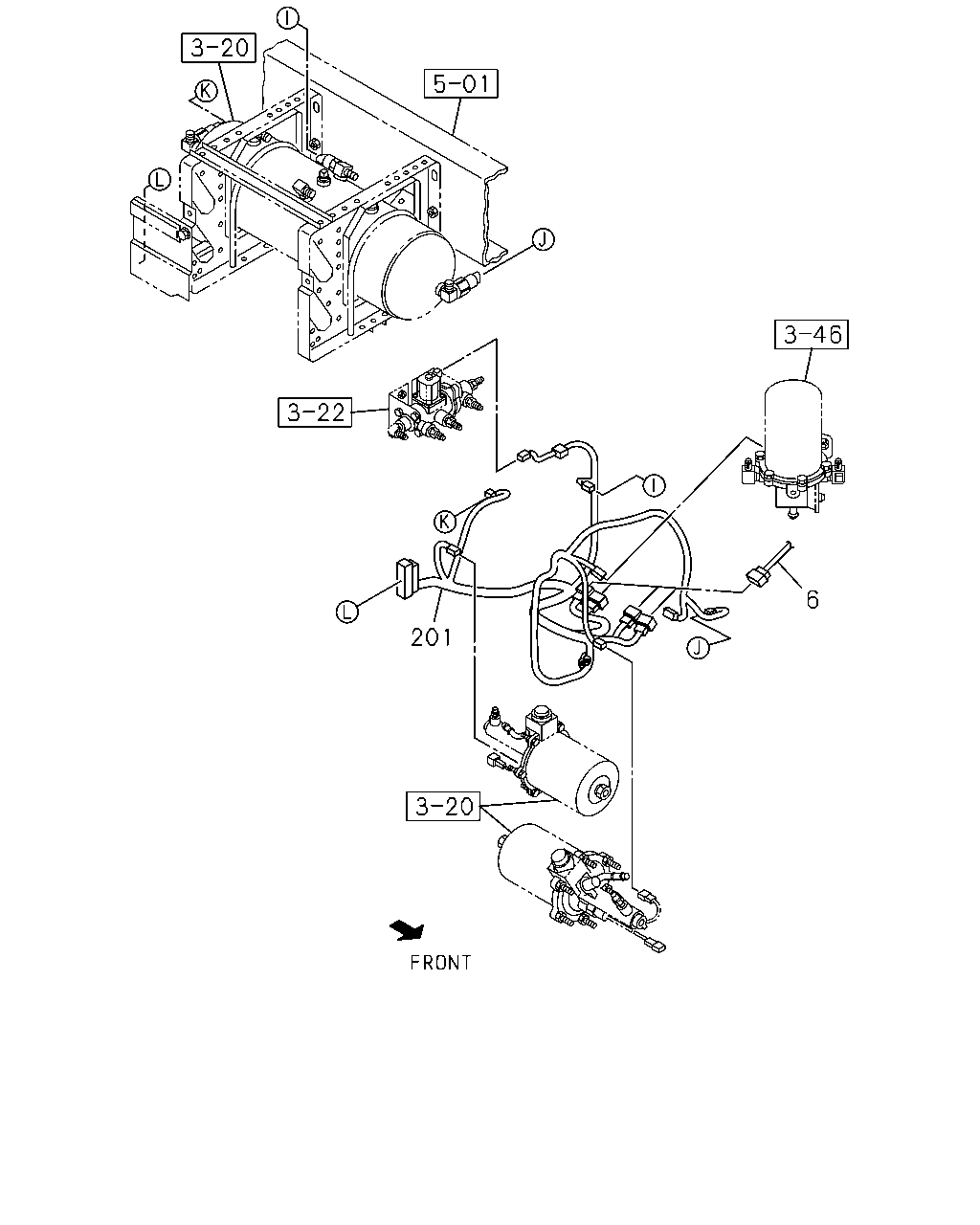

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98203-562-0	01	1	1201-1305
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98240-518-2	01	1	1306-
6	HARNESS; FRAME	8-98064-293-2	01	1	1001-1112
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98064-293-2	01	1	1201-1305
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98240-517-2	01	1	1306-
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98111-494-0	01	1	1001-1001
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98156-711-2	01	1	1002-
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98111-493-0	01	1	1001-1001
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-710-2	01	1	1002-

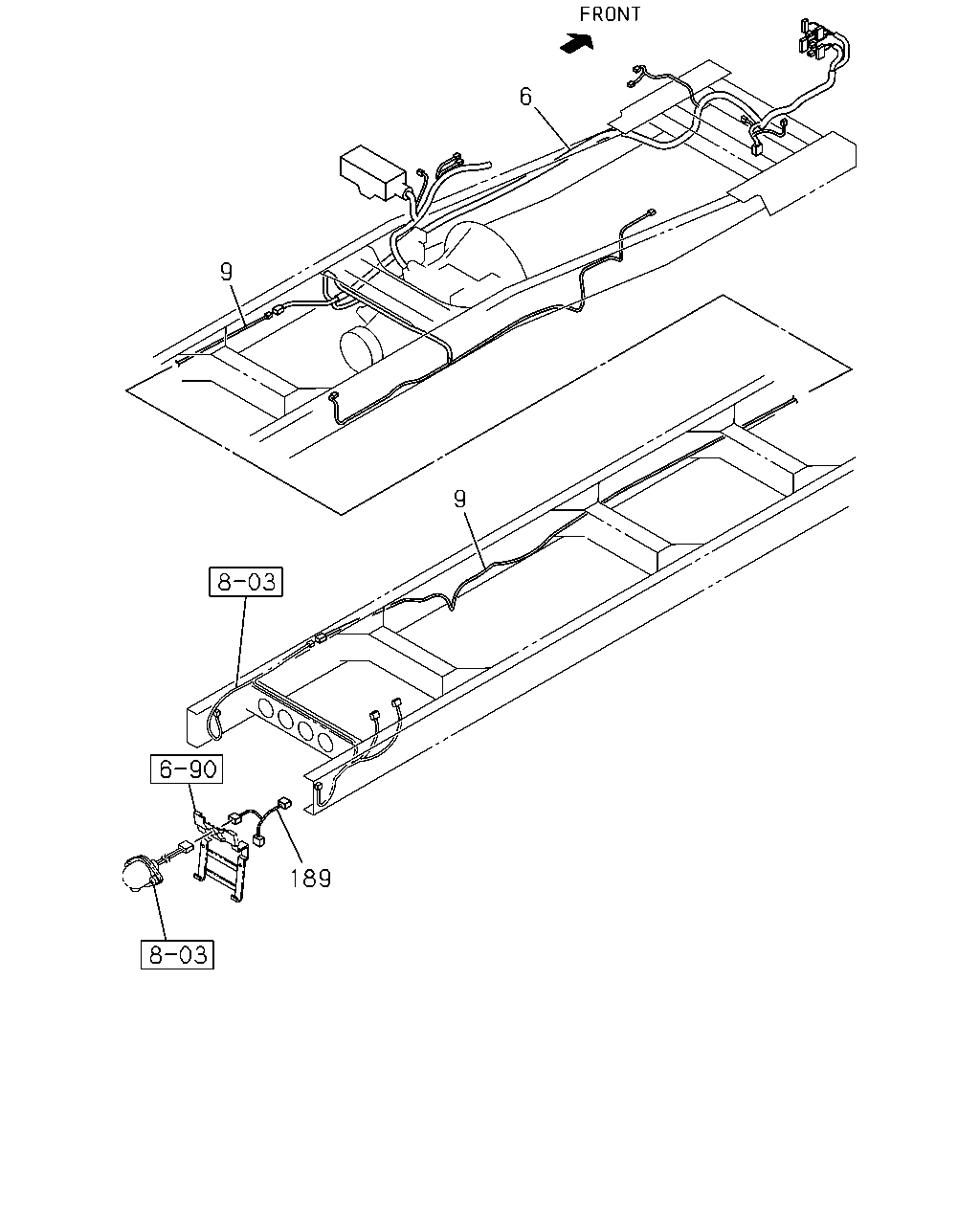

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98203-562-0	01	1	1201-1305
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98240-518-2	01	1	1306-
6	HARNESS; FRAME	8-98064-293-2	01	1	1001-1112
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98064-293-2	01	1	1201-1305
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98240-517-2	01	1	1306-
9	HARNESS; FRAME,RR	8-98064-317-1	01	1	1001-1007
9	HARNESS; FRAME,RR	8-98168-572-1	01	1	1008-
189	HARNESS; EXT	8-98131-066-0	01	1	1001-

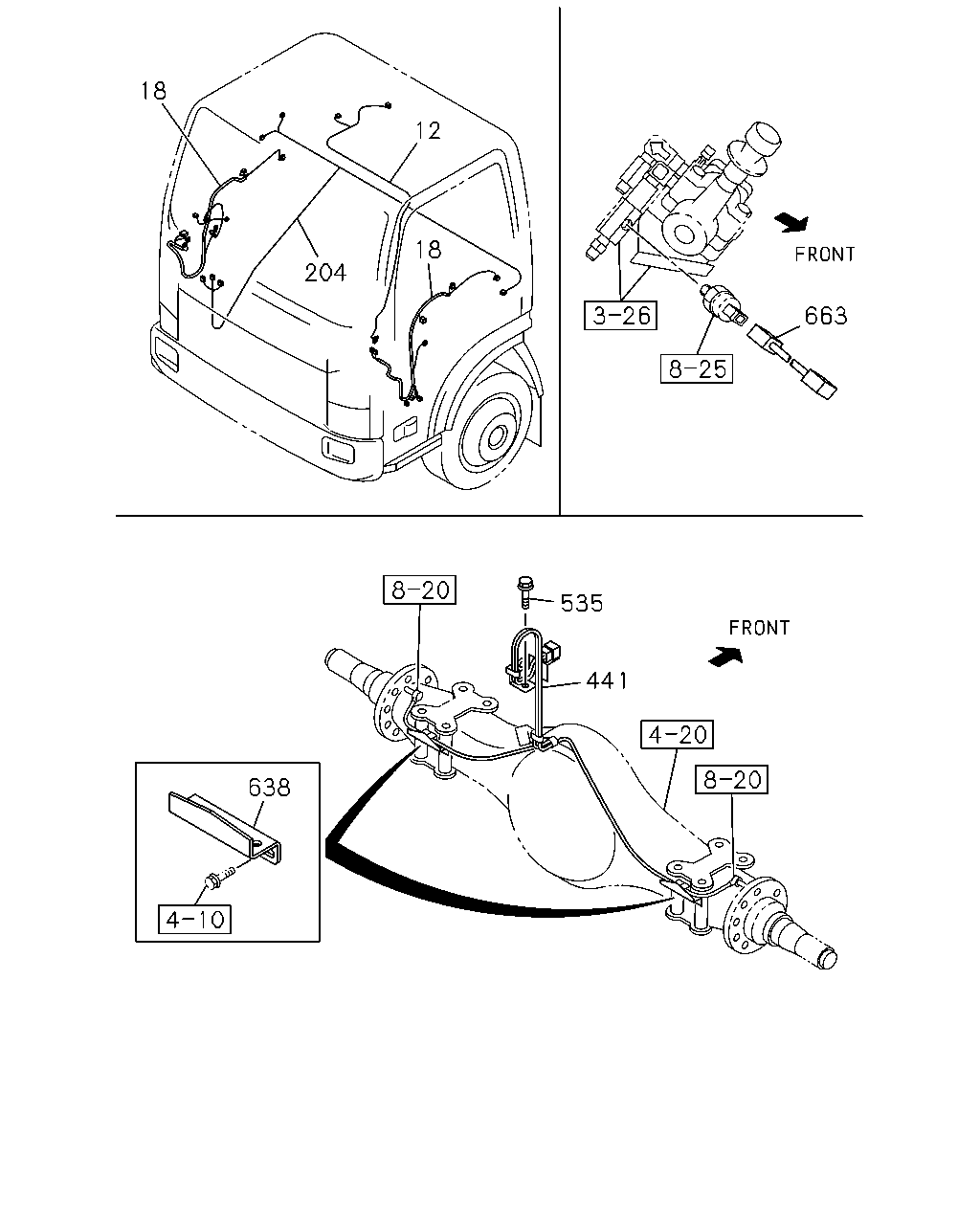

18 12 18 204 663 535 441 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC>	8-98084-247-0	01	1	1001-
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>	8-98041-948-2	01	1	1001-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98084-288-3	01	1	1001-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-440-1	01	1	1203-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98084-283-3	01	1	1001-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-439-1	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-287-3	01	1	1001-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98076-305-3	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-282-3	01	1	1001-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98076-304-3	01	1	1203-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-208-1	01	1	1201-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-209-1	01	1	1201-
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98084-204-0	01	1	1201-
204	HARNESS; CABLE,FLOOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98084-205-1	01	1	1201-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98084-194-0	01	1	1001-1112
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-194-0	01	1	1201-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98084-195-1	01	1	1001-1112
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-195-1	01	1	1201-
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3)	8-98084-188-0	01	1	1001-1112
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98084-188-0	01	1	1201-
204	HARNESS; CABLE,FLOOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER(AJ3)	8-98084-191-1	01	1	1001-1112
204	HARNESS; CABLE,FLOOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98084-191-1	01	1	1201-
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1001-
535	BOLT; BRKT FIX M8X10 W/LK WASHER	8-98029-928-0	02	1	1001-
638	BRACKET; SPD SENSOR	8-98012-580-1	02	1	1001-
663	HARNESS; EXTENSION,RR WHEEL PARKING	8-98126-779-2	01	1	1008-

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-852-0	01	1	1112-1112
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1201-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1112-1112
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1201-1209
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1201-1209
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1201-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1111
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1112-1112
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1201-1209
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1111
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1112-1112
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1201-1209
2	DIODE; CABLE HARNESS (A) BLACK 10P SOU	1-82699-703-0	01	1	1001-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1001-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1001-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 10P GREEN	1-82698-579-0	02	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 10P GREEN	1-82698-579-0	02	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (F) 10P GREEN	1-82698-579-0	02	1	1306-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (C) 10P BLUE	1-82699-598-0	04	1	1306-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	04	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	04	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (G) 10P GREEN	1-82699-599-0	04	1	1306-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN SOU	1-82699-601-0	01	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN SOU	1-82699-601-0	01	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (D) 10P BROWN SOU	1-82699-601-0	01	1	1306-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1001-1112
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (H) 6P BLACK	8-97616-194-0	01	1	1201-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-

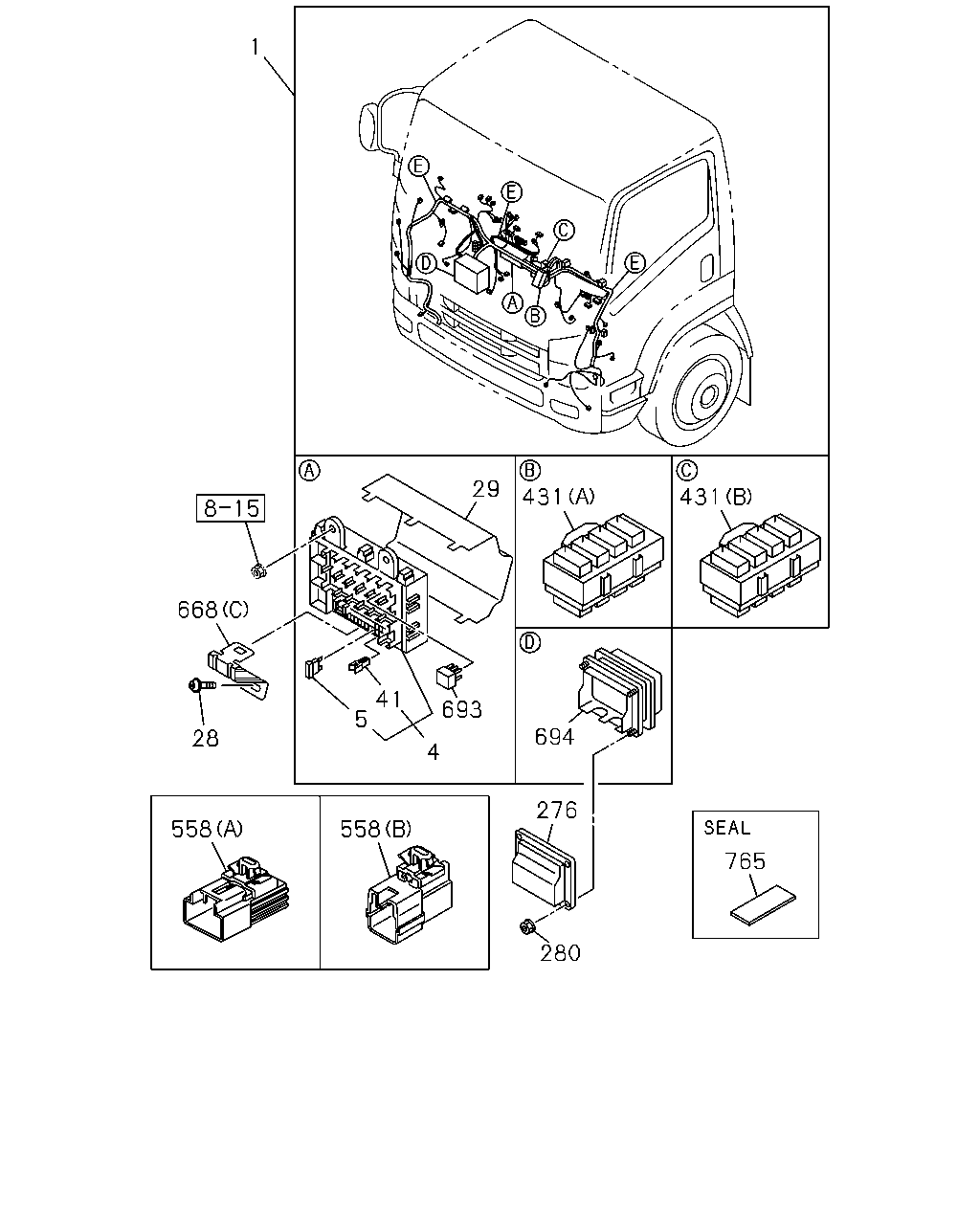

1 668 28 558 558 276 280 765 431 694 431 29 693 4 41 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-852-0	01	1	1112-1112
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1201-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1112-1112
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1201-1209
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1201-1209
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1201-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1111
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1112-1112
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1201-1209
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1111
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1112-1112
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1201-1209

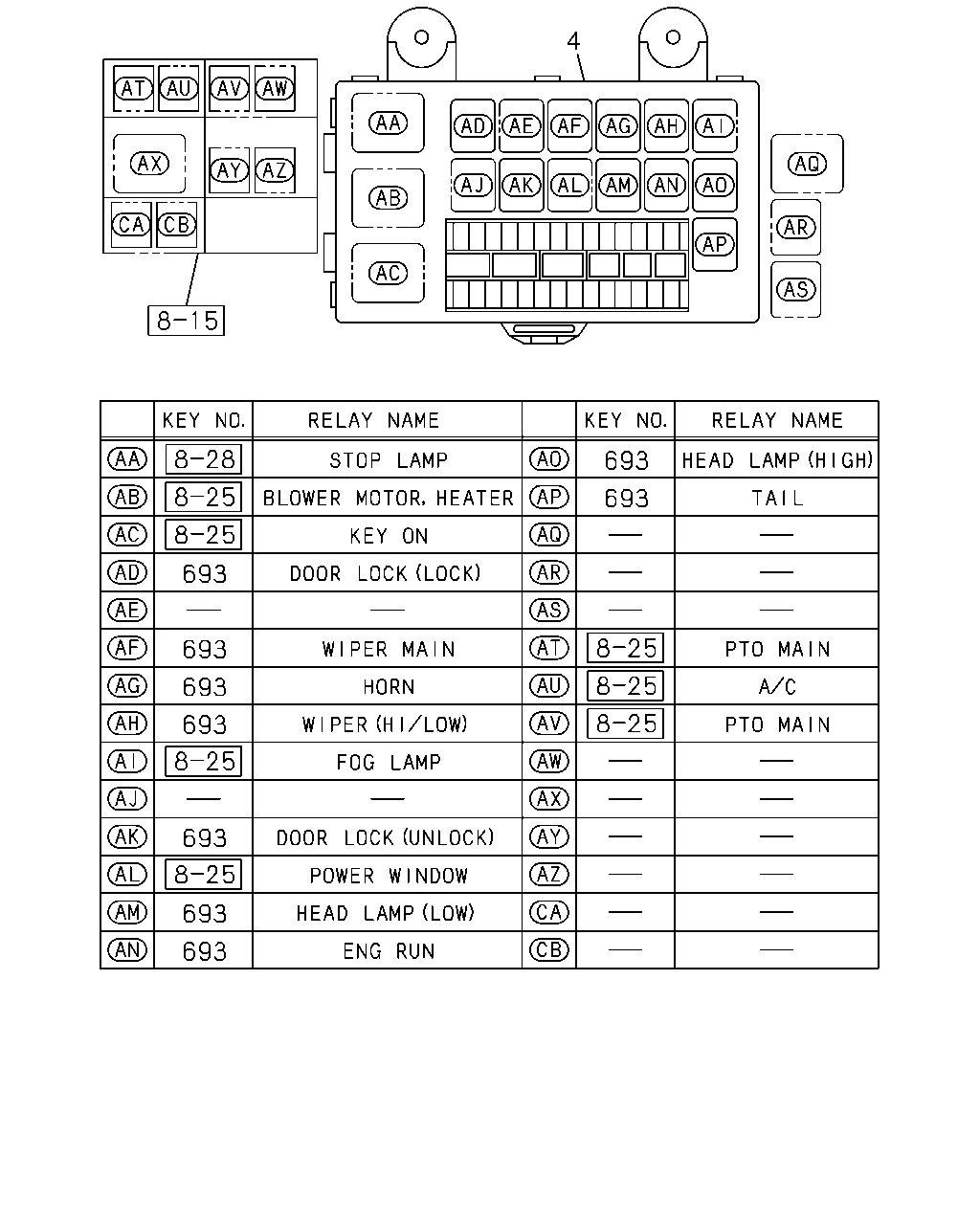

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1001-
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1001-
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1001-
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1001-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	1001-
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1001-
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE SOU	0-28650-616-0	01	1	1001-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1001-
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1001-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1001-
280	NUT; BOX ASM FIX M6 FLANGE SOU	0-91180-106-0	04	1	1001-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 10P GREEN	1-82698-579-0	02	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 10P GREEN	1-82698-579-0	02	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (F) 10P GREEN	1-82698-579-0	02	1	1306-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (C) 10P BLUE	1-82699-598-0	04	1	1306-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	04	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	04	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (G) 10P GREEN	1-82699-599-0	04	1	1306-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN SOU	1-82699-601-0	01	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN SOU	1-82699-601-0	01	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (D) 10P BROWN SOU	1-82699-601-0	01	1	1306-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1001-1112
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (H) 6P BLACK	8-97616-194-0	01	1	1201-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) SOU	1-82690-668-0	01	1	1001-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1001-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1001-
668	BRACKET; HARNESS (D)	8-98001-095-0	01	1	1001-1408
668	BRACKET; HARNESS EURO3 SPECIFICATION<NT3> (D)	8-98001-095-0	01	1	1409-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	1001-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	1001-
668	BRACKET; HARNESS (B)	8-98022-106-2	01	1	1001-1109
668	BRACKET; HARNESS (G)	8-98061-805-2	01	1	1110-1312
668	BRACKET; HARNESS (H)	8-98205-089-0	01	1	1401-
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	1001-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	1001-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1001-
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	1001-
765	TAPE 100X40 SOU	1-72498-022-1	01	1	1409-

700 13 558 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98203-562-0	01	1	1201-1305
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98240-518-2	01	1	1306-
6	HARNESS; FRAME	8-98064-293-2	01	1	1001-1112
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98064-293-2	01	1	1201-1305
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98240-517-2	01	1	1306-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) (A)	8-98170-270-2	01	1	1201-1312
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) (A)	8-98255-591-0	01	1	1401-1405
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) (A)	8-98274-038-0	01	1	1406-
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) (A)	8-98170-269-2	01	1	1201-1312
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) (A)	8-98255-590-0	01	1	1401-1405
13	HARNESS; ENG EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) (A)	8-98274-037-0	01	1	1406-
13	HARNESS; ENG (B)	8-97332-133-3	01	1	1001-1007
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98077-326-4	01	1	1001-1109
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98171-999-4	01	1	1110-1112
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) (A)	8-98171-999-4	01	1	1201-1312
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) (A)	8-98255-582-0	01	1	1401-1405
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) (A)	8-98274-029-0	01	1	1406-
13	HARNESS; ENG GENERATOR 24V60A(KG2) (A)	8-98077-327-4	01	1	1001-1109
13	HARNESS; ENG GENERATOR 24V60A(KG2) (A)	8-98172-000-4	01	1	1110-1112
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) (A)	8-98172-000-4	01	1	1201-1312
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) (A)	8-98255-583-0	01	1	1401-1405
13	HARNESS; ENG EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) (A)	8-98274-030-0	01	1	1406-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) SOU	1-82690-668-0	01	1	1001-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1001-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1001-
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1001-

6 10 174 27 184 453 431 431 388 431 431 431 720 184 698 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98203-562-0	01	1	1201-1305
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98240-518-2	01	1	1306-
6	HARNESS; FRAME	8-98064-293-2	01	1	1001-1112
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98064-293-2	01	1	1201-1305
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98240-517-2	01	1	1306-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1001-1112
10	BOX; FUSE,HARNESS WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-762-0	01	1	1201-
10	BOX; FUSE,HARNESS WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-762-0	01	1	1201-
27	FUSE UNIT 10A RED SOU	8-98054-257-0	01	1	1001-1112
27	FUSE UNIT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 10A RED SOU	8-98054-257-0	01	1	1201-
27	FUSE UNIT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 10A RED SOU	8-98054-257-0	01	1	1201-
27	FUSE UNIT 15A BLUE SOU	8-98054-258-0	02	1	1001-1112
27	FUSE UNIT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 15A BLUE SOU	8-98054-258-0	02	1	1201-
27	FUSE UNIT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 15A BLUE SOU	8-98054-258-0	02	1	1201-
174	FUSE; SLOW BLOW EURO3 SPECIFICATION<NT3> 30A PINK SOU	8-98079-191-0	02	1	1306-
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	01	1	1107-1112
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 60A YELLOW SOU	8-97219-407-0	01	1	1201-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 60A YELLOW SOU	8-97219-407-0	01	1	1201-
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	01	1	1001-1112
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 30A PINK SOU	8-98079-191-0	01	1	1201-1305
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 30A PINK SOU	8-98079-191-0	01	1	1201-1305
174	FUSE; SLOW BLOW EURO2 SPECIFICATION<NT2> 30A PINK SOU	8-98079-191-0	01	1	1306-
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	02	1	1001-1112
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 40A GREEN SOU	8-98079-192-0	02	1	1201-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 40A GREEN SOU	8-98079-192-0	02	1	1201-
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	03	1	1001-1112
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 50A RED SOU	8-98079-193-0	03	1	1201-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 50A RED SOU	8-98079-193-0	03	1	1201-
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	03	1	1001-1106
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	02	1	1107-1112
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 60A YELLOW SOU	8-97219-407-0	02	1	1201-
174	FUSE; SLOW BLOW WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) 60A YELLOW SOU	8-97219-407-0	02	1	1201-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1001-1112
184	COVER; RELAY & FUSE BOX WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98030-766-0	01	1	1201-
184	COVER; RELAY & FUSE BOX WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98030-766-0	01	1	1201-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-0	01	1	1001-1112
184	COVER; RELAY & FUSE BOX WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-767-0	01	1	1201-
184	COVER; RELAY & FUSE BOX WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-767-0	01	1	1201-
388	DIODE; RELAY BOX BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1001-1112
388	DIODE; RELAY BOX WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1201-
388	DIODE; RELAY BOX WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1201-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1001-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 10P GREEN	1-82698-579-0	02	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 10P GREEN	1-82698-579-0	02	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (F) 10P GREEN	1-82698-579-0	02	1	1306-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P BLUE	1-82699-598-0	04	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (C) 10P BLUE	1-82699-598-0	04	1	1306-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	04	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 10P GREEN	1-82699-599-0	04	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (G) 10P GREEN	1-82699-599-0	04	1	1306-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-1112
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN SOU	1-82699-601-0	01	1	1201-1305
431	CONNECTOR; JOINT WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BROWN SOU	1-82699-601-0	01	1	1201-1305
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (D) 10P BROWN SOU	1-82699-601-0	01	1	1306-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1001-1112
431	CONNECTOR; JOINT EURO2 SPECIFICATION<NT2> (H) 6P BLACK	8-97616-194-0	01	1	1201-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1001-1112
453	PROTECTOR; HARNESS WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82699-709-0	02	1	1201-
453	PROTECTOR; HARNESS WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82699-709-0	02	1	1201-
698	NUT; COVER,RELAY BOX M8 FLANGE SOU	0-91180-108-0	02	1	1001-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1001-1112
720	ATTACHMENT; CONNECTOR WHEEL BASE 4300MM(43W) EURO2 SPECIFICATION<NT2> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82699-688-0	03	1	1201-
720	ATTACHMENT; CONNECTOR WHEEL BASE 4300MM(43W) EURO3 SPECIFICATION<NT3> TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82699-688-0	03	1	1201-

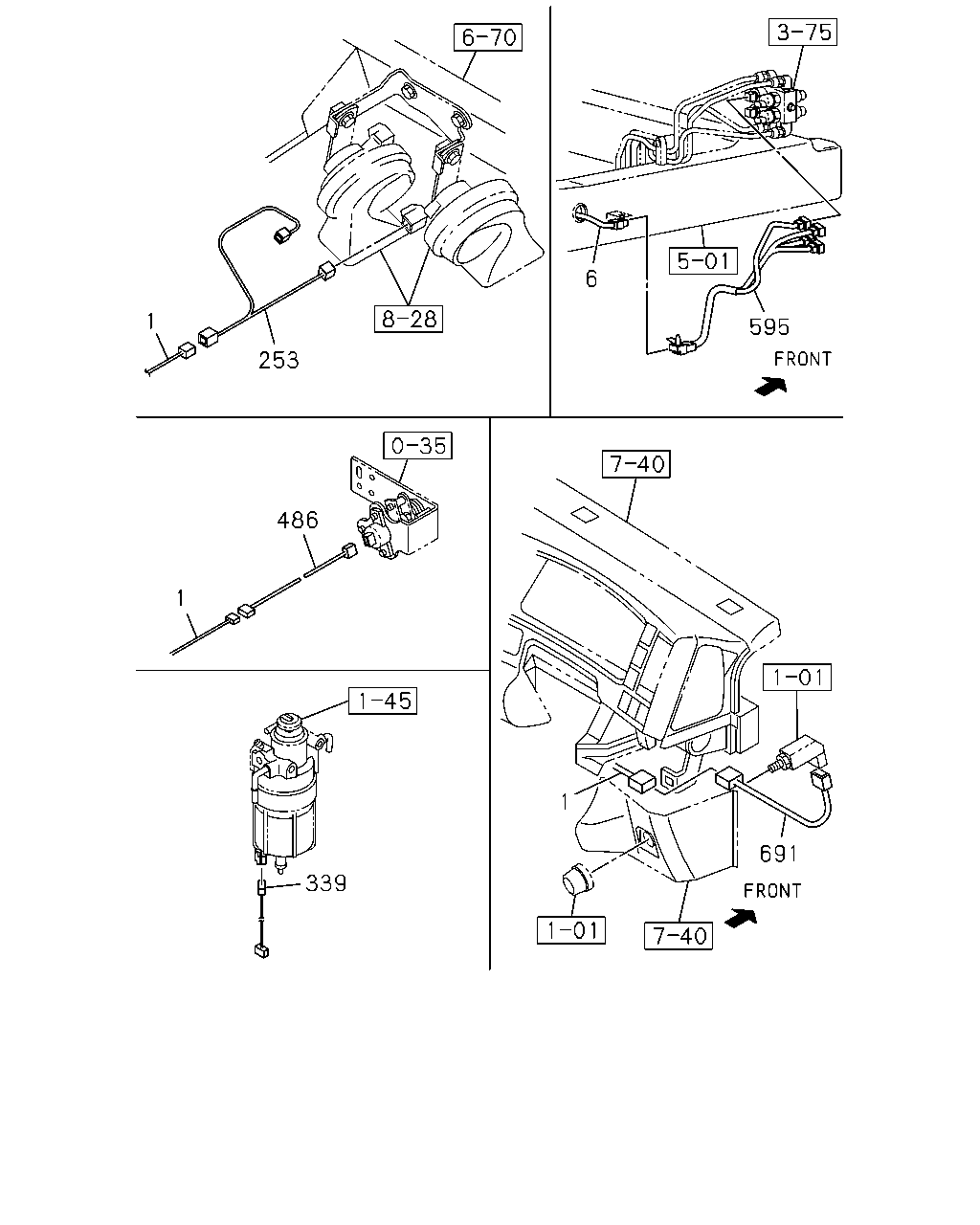

6 1 595 253 486 1 1 691 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-852-0	01	1	1112-1112
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1201-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1112-1112
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1201-1209
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1201-1209
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1201-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1111
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1112-1112
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1201-1209
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1111
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1112-1112
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1201-1209
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98203-562-0	01	1	1201-1305
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98240-518-2	01	1	1306-
6	HARNESS; FRAME	8-98064-293-2	01	1	1001-1112
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98064-293-2	01	1	1201-1305
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98240-517-2	01	1	1306-
253	HARNESS; EXT,HORN	8-98074-080-3	01	1	1001-
339	HARNESS; EXT,FUEL	8-98119-943-0	01	1	1001-
486	HARNESS; ALL SPEED ACCEL 4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1001-1101
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1102-
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1201-
595	HARNESS; WARNING,BRK	8-97621-003-3	01	1	1001-1112
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-003-3	01	1	1201-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1001-

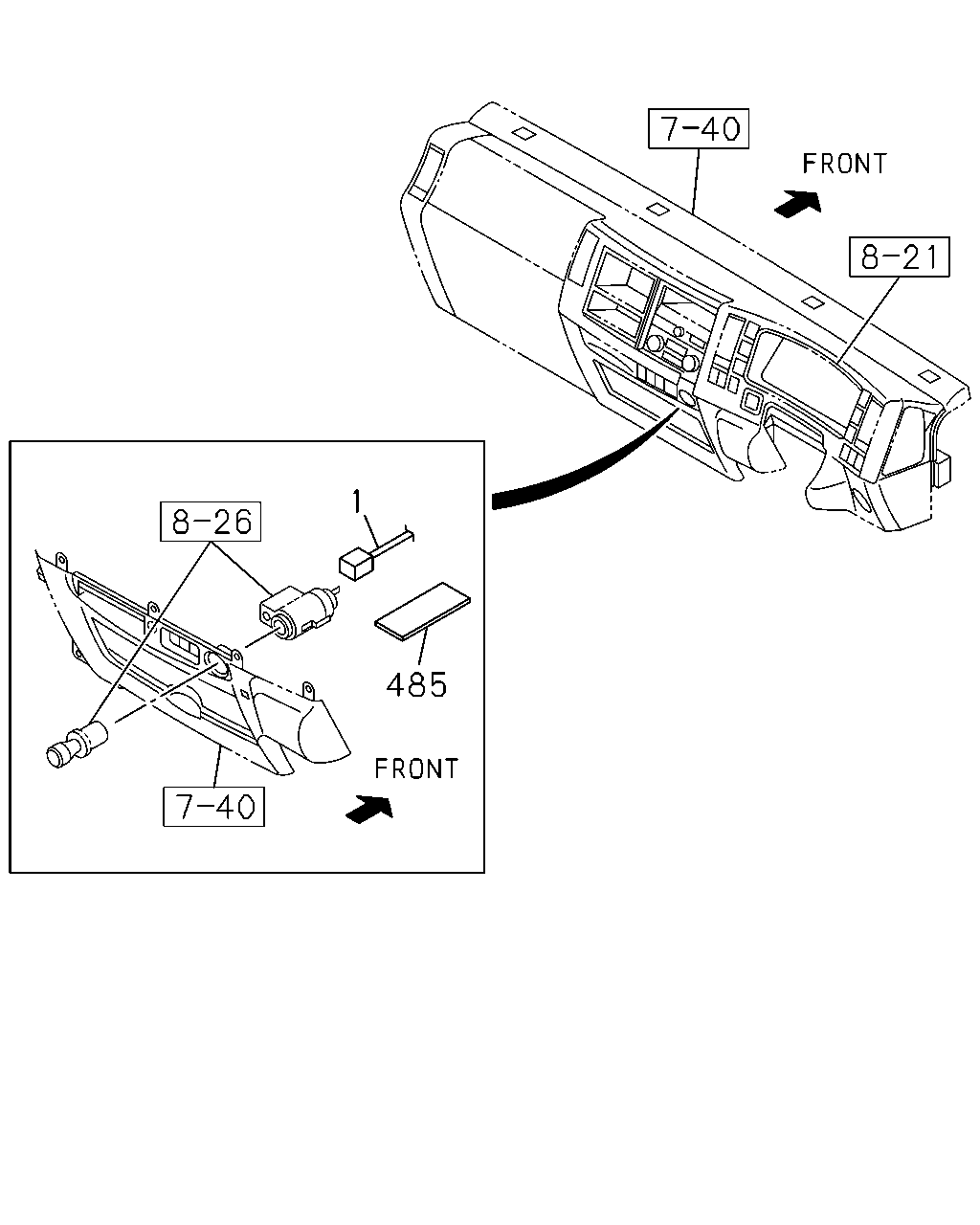

1 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF>	8-98187-852-0	01	1	1112-1112
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1201-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-852-0	01	1	1210-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1112-1112
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1201-1209
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-851-0	01	1	1210-
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1201-1209
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)	8-98198-680-0	01	1	1210-
1	HARNESS; CAB MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98198-682-0	01	1	1201-1209
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98083-931-2	01	1	1001-1111
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1112-1112
1	HARNESS; CAB AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98083-931-2	01	1	1201-1209
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3)	8-98083-930-2	01	1	1001-1111
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1112-1112
1	HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98083-930-2	01	1	1201-1209
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	1001-

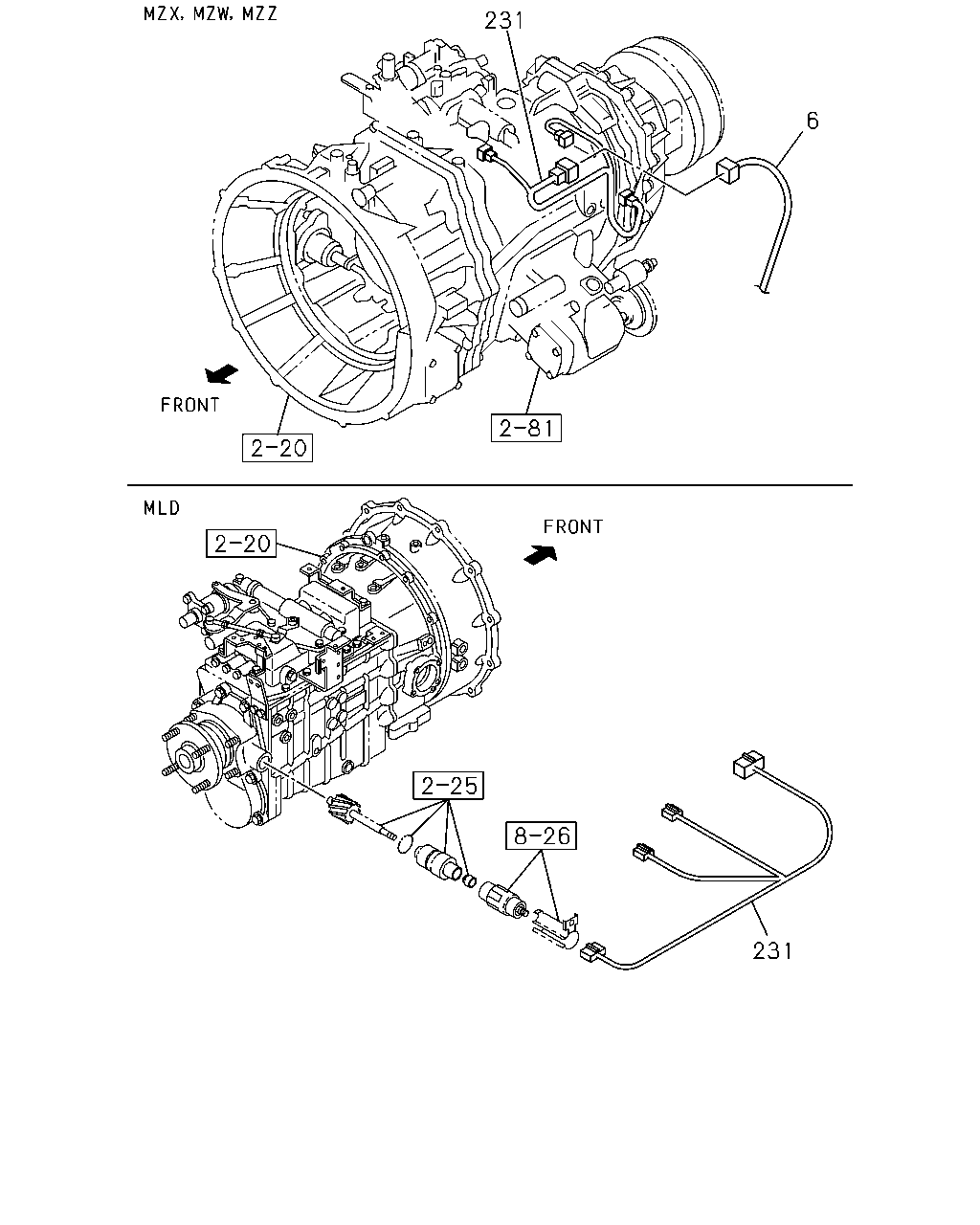

231 6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98203-562-0	01	1	1201-1305
6	HARNESS; FRAME EURO3 SPECIFICATION<NT3>	8-98240-518-2	01	1	1306-
6	HARNESS; FRAME	8-98064-293-2	01	1	1001-1112
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98064-293-2	01	1	1201-1305
6	HARNESS; FRAME EURO2 SPECIFICATION<NT2>	8-98240-517-2	01	1	1306-
231	HARNESS; TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-317-3	01	1	1201-
231	HARNESS; TRANS MZZ6W M/T(RSA)	8-98170-740-0	01	1	1012-
231	HARNESS; TRANS MLD6S M/T(X7W)	8-98114-228-1	01	1	1001-
231	HARNESS; TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-97618-933-2	01	1	1001-1112
231	HARNESS; TRANS MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97618-933-2	01	1	1201-

693 693 693 693 693 693 693 693 693 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1001-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
