5-01 — FRAME AND OTHER PARTS (#6345) — 152 parça

282 103 282 117 82 126 118 103 106 119 112 106 97 124 82 85 255 105 102 126 109 96 110 109 281 281 111 89 126 127 101 118 282 103 282 117 82 126 103 106 119 85 255

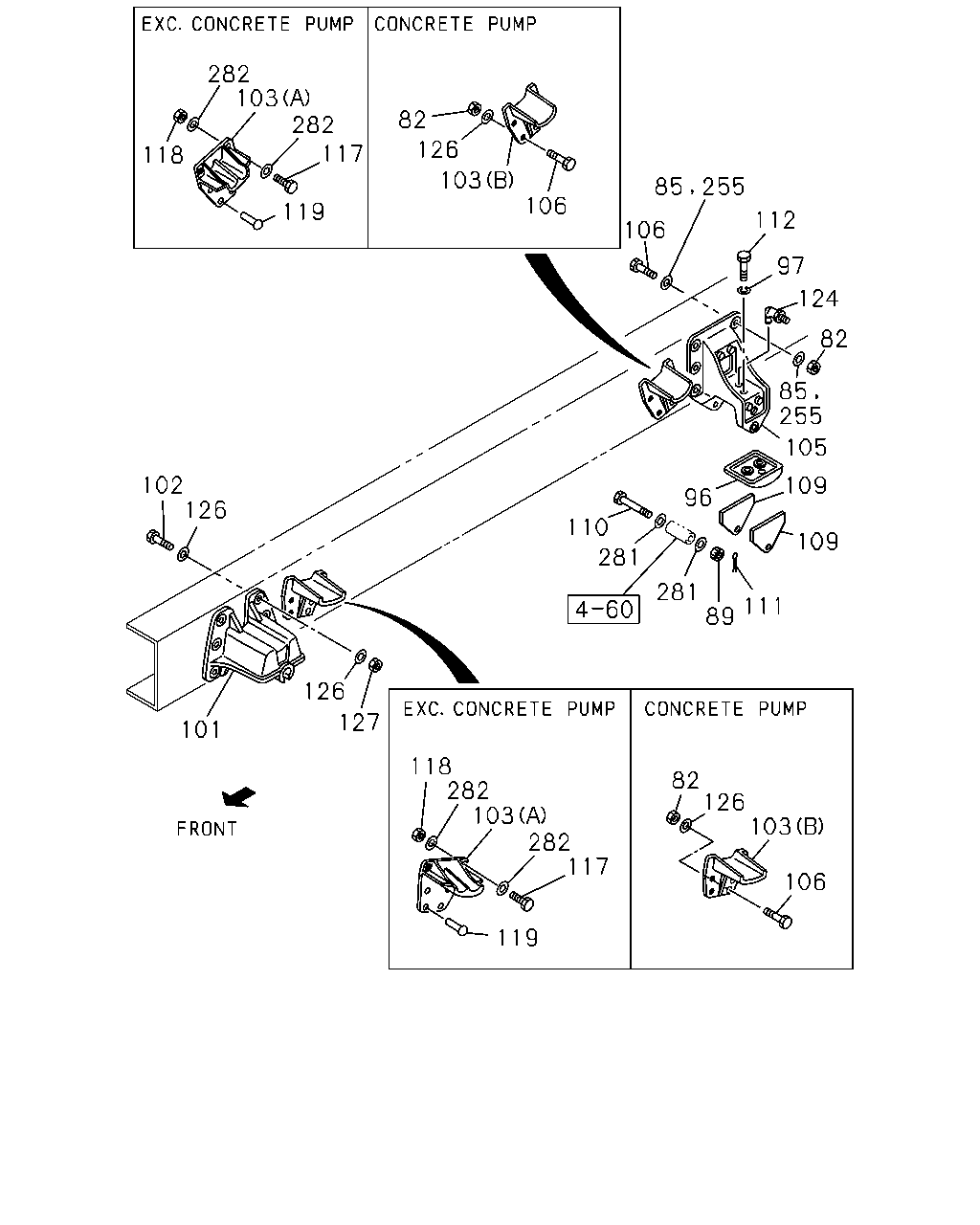

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	NUT; BRKT CONCRETE PUMP<RA5> M14	9-99110-514-0	28	1	9604-9904	●
82	NUT; BRKT EXC. CONCRETE PUMP<RA5> M14	9-99110-514-0	12	1	9604-9904	●
82	NUT; BRKT M14	9-99110-514-0	12	1	9604-9904		●
82	NUT; BRKT CONCRETE PUMP<RA5> M14	9-99110-514-0	28	1	9905-	●
85	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9604-9904	●	●
85	WASHER; PL,BRKT CONCRETE PUMP<RA5> ID=15	9-09651-069-0	24	1	9905-	●
89	NUT; LEAF SPR STOPPER M14	9-99116-414-0	02	1	9604-	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	9604-	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9604-9606	●	●
97	WASHER; LK,PAD ID=14.2	9-09150-514-0	04	1	9609-	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	9604-	●	●
102	BOLT; BRKT,RR SPR M14X50	9-92061-450-0	12	1	9604-	●	●
103	STOPPER; SUB SPR CONCRETE PUMP<RA5> (B)	1-53356-057-0	04	1	9604-	●
103	STOPPER; SUB SPR EXC. CONCRETE PUMP<RA5> (A)	1-53356-044-0	04	1	9604-	●
103	STOPPER; SUB SPR (A)	1-53356-044-0	04	1	9604-		●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	9604-	●	●
106	BOLT; BRKT CONCRETE PUMP<RA5> M14X40	9-92061-440-0	16	1	9604-	●
106	BOLT; BRKT M14X50	9-92061-450-0	12	1	9604-	●	●
109	SHIM; RR SPR T=4.5	1-53359-061-1	02	1	9604-	●	●
109	SHIM; RR SPR T=3.2	1-53359-062-1	02	1	9604-	●	●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	9604-	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	9-08113-028-0	02	1	9604-	●	●
112	BOLT; PAD M14X35	0-20801-435-0	04	1	9604-9606	●	●
112	BOLT; PAD M14X30 FLANGE	0-28681-430-0	04	1	9607-9608	●	●
112	BOLT; PAD M14X35	9-92061-435-0	04	1	9609-	●	●
117	BOLT; STOPPER EXC. CONCRETE PUMP<RA5> M14X50	9-92061-450-0	08	1	9604-	●
117	BOLT; STOPPER M14X50	9-92061-450-0	08	1	9604-		●
118	NUT; STOPPER EXC. CONCRETE PUMP<RA5> M14	9-99110-514-0	08	1	9604-	●
118	NUT; STOPPER M14	9-99110-514-0	08	1	9604-		●
119	RIVET; STOPPER EXC. CONCRETE PUMP<RA5>	1-09730-094-0	16	1	9604-9611	●
119	RIVET; STOPPER	1-09730-094-0	16	1	9604-9611		●
119	RIVET; STOPPER EXC. CONCRETE PUMP<RA5>	9-06771-352-0	16	1	9612-	●
119	RIVET; STOPPER	9-06771-352-0	16	1	9612-		●
124	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9604-	●	●
126	WASHER; PL,BRKT CONCRETE PUMP<RA5> ID=15	9-09651-069-0	40	1	9604-9904	●
126	WASHER; PL,BRKT EXC. CONCRETE PUMP<RA5> ID=15	9-09651-069-0	24	1	9905-	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9905-		●
126	WASHER; PL,BRKT EXC. CONCRETE PUMP<RA5> ID=15	9-09651-069-0	24	1	9604-9904	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9604-9904		●
126	WASHER; PL,BRKT CONCRETE PUMP<RA5> ID=15	9-09651-069-0	40	1	9905-	●
127	NUT; BRKT EXC. CONCRETE PUMP<RA5> M14	9-99110-514-0	24	1	9905-	●
127	NUT; BRKT M14	9-99110-514-0	24	1	9905-		●
127	NUT; BRKT M14	9-99110-514-0	12	1	9604-9904	●	●
127	NUT; BRKT CONCRETE PUMP<RA5> M14	9-99110-514-0	12	1	9905-	●
255	WASHER; PL,BRKT EXC. CONCRETE PUMP<RA5> ID=15	9-09651-069-0	24	1	9905-	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9905-		●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	9604-	●	●
282	WASHER; PL,STOPPER EXC. CONCRETE PUMP<RA5> ID=15	9-09651-069-0	16	1	9604-	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	9604-		●

130 57 34 86 41 19 21 11 131 21 130 11 11 11 77 254 12 132 6 13 2 33 16 77 19 21 11 130 21 11 11 11 86 57 344 2 6 41 41 16 34 19 21 21 11 11 11 11 12 6 13 2 16

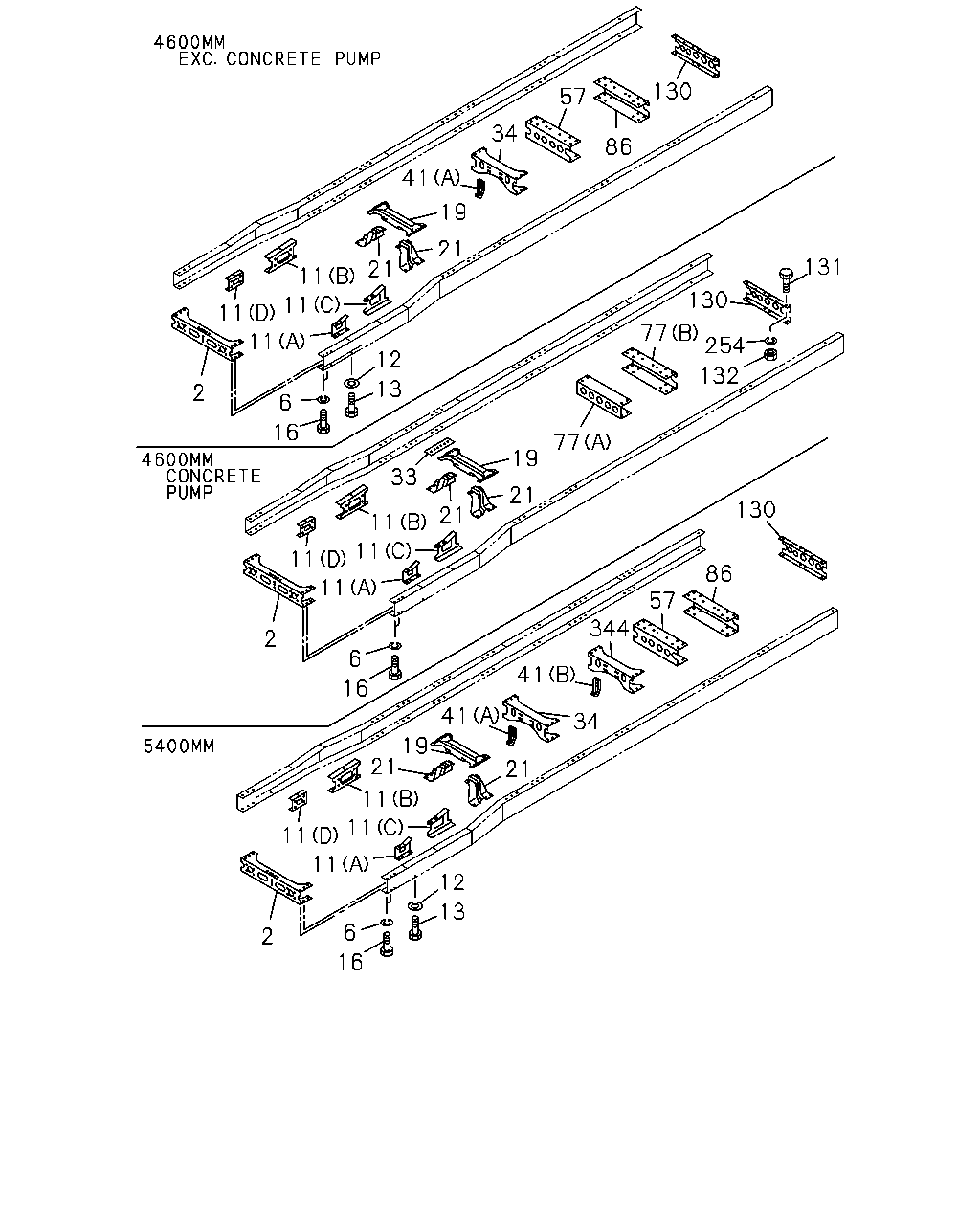

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-710-1	01	1	9604-	●	●
6	WASHER; LK,1ST C/MBR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=16.2	9-09150-616-0	02	1	9604-	●	●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (A)	1-53219-524-2	01	1	9604-9904	●
11	BRACKET; ENG MTG 8PE1S(59L) EXC. CONCRETE PUMP<RA5> (A)	1-53219-524-3	01	1	9905-	●
11	BRACKET; ENG MTG 8PE1S(59L) (A)	1-53219-524-3	01	1	9905-		●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (B)	1-53219-584-3	01	1	9604-	●
11	BRACKET; ENG MTG CONCRETE PUMP<RA5> (C)	1-53219-585-3	01	1	9604-	●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (A)	1-53219-524-2	01	1	9604-9904	●
11	BRACKET; ENG MTG (A)	1-53219-524-2	01	1	9604-9904		●
11	BRACKET; ENG MTG 8PE1S(59L) CONCRETE PUMP<RA5> (A)	1-53219-524-3	01	1	9905-	●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (B)	1-53219-596-1	01	1	9604-	●
11	BRACKET; ENG MTG (B)	1-53219-596-1	01	1	9604-		●
11	BRACKET; ENG MTG EXC. CONCRETE PUMP<RA5> (C)	1-53219-597-2	01	1	9604-	●
11	BRACKET; ENG MTG (C)	1-53219-597-2	01	1	9604-		●
11	BRACKET; ENG MTG 10PE1N(61L) CONCRETE PUMP<RA5> (A)	1-53219-583-0	01	1	9905-	●
11	BRACKET; ENG MTG 10PE1N(61L) EXC. CONCRETE PUMP<RA5> (A)	1-53219-583-0	01	1	9905-	●
11	BRACKET; ENG MTG 10PE1N(61L) (A)	1-53219-583-0	01	1	9905-		●
11	BRACKET; ENG MTG (D)	1-53219-726-0	01	1	9604-9904	●	●
11	BRACKET; ENG MTG 8PE1S(59L) (D)	1-53219-726-1	01	1	9905-	●	●
11	BRACKET; ENG MTG 10PE1N(61L) (D)	1-53219-582-0	01	1	9905-	●	●
12	WASHER; PL,BRKT,ENG MTG EXC. CONCRETE PUMP<RA5> ID=15	9-09651-069-0	02	1	9604-9912	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	9604-9912		●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) EXC. CONCRETE PUMP<RA5> ID=15	9-09651-069-0	02	1	0001-	●
12	WASHER; PL,BRKT,ENG MTG 8PE1S(59L) ID=15	9-09651-069-0	02	1	0001-		●
12	WASHER; PL,BRKT,ENG MTG 10PE1N(61L) EXC. CONCRETE PUMP<RA5> ID=15	9-09651-069-0	01	1	0001-	●
12	WASHER; PL,BRKT,ENG MTG 10PE1N(61L) ID=15	9-09651-069-0	01	1	0001-		●
13	BOLT; BRKT,ENG MTG EXC. CONCRETE PUMP<RA5> M14X40	9-92061-440-0	02	1	9604-9912	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	02	1	9604-9912		●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) EXC. CONCRETE PUMP<RA5> M14X40	9-92061-440-0	02	1	0001-	●
13	BOLT; BRKT,ENG MTG 8PE1S(59L) M14X40	9-92061-440-0	02	1	0001-		●
13	BOLT; BRKT,ENG MTG 10PE1N(61L) EXC. CONCRETE PUMP<RA5> M14X40	9-92061-440-0	01	1	0001-	●
13	BOLT; BRKT,ENG MTG 10PE1N(61L) M14X40	9-92061-440-0	01	1	0001-		●
16	BOLT; 1ST C/MBR TO S/MBR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X40	0-20801-640-0	02	1	9604-	●	●
19	MEMBER; CROSS,2ND CONCRETE PUMP<RA5>	1-53174-231-1	01	1	9604-	●
19	MEMBER; CROSS,2ND EXC. CONCRETE PUMP<RA5>	1-53174-221-0	01	1	9604-	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	9604-		●
21	GUSSET; 2ND CROSS CONCRETE PUMP<RA5>	1-53164-185-0	02	1	9604-	●
21	GUSSET; 2ND CROSS EXC. CONCRETE PUMP<RA5>	1-53164-207-0	02	1	9604-	●
21	GUSSET; 2ND CROSS	1-53164-207-0	02	1	9604-		●
33	SPACER; 2ND C/MBR,UPR CONCRETE PUMP<RA5>	1-53168-351-1	02	1	9604-	●
34	MEMBER; CROSS,3RD EXC. CONCRETE PUMP<RA5>	1-53181-640-1	01	1	9604-	●
34	MEMBER; CROSS,3RD	1-53181-640-1	01	1	9604-		●
41	BRACKET; CENTER BRG,FRAME SIDE EXC. CONCRETE PUMP<RA5> (A)	1-53271-299-1	02	1	9604-	●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=305	1-53271-262-2	02	1	9604-		●
41	BRACKET; CENTER BRG,FRAME SIDE (B) L=365	1-53271-284-1	02	1	9604-		●
57	MEMBER; CROSS,RR SUSP FRT EXC. CONCRETE PUMP<RA5>	1-53171-788-4	01	1	9604-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-788-4	01	1	9604-		●
77	MEMBER; CROSS,TRUNNION RR CONCRETE PUMP<RA5> (A)	1-53171-867-2	01	1	9604-	●
77	MEMBER; CROSS,TRUNNION RR CONCRETE PUMP<RA5> (B)	1-53181-384-4	01	1	9604-	●
86	MEMBER; CROSS,RR SUSP RR EXC. CONCRETE PUMP<RA5>	1-53171-788-4	01	1	9604-	●
86	MEMBER; CROSS,RR SUSP RR	1-53171-788-4	01	1	9604-		●
130	MEMBER; CROSS,END CONCRETE PUMP<RA5>	1-53181-613-1	01	1	9604-	●
130	MEMBER; CROSS,END EXC. CONCRETE PUMP<RA5>	1-53181-537-1	01	1	9604-	●
130	MEMBER; CROSS,END	1-53181-537-1	01	1	9604-		●
131	BOLT; END C/MBR CONCRETE PUMP<RA5> M14X40	9-92061-440-0	04	1	9604-	●
132	NUT; END C/MBR CONCRETE PUMP<RA5> M14	9-99110-514-0	04	1	9604-	●
254	WASHER; PL,C/MBR CONCRETE PUMP<RA5> ID=15	9-09651-069-0	04	1	9604-	●
344	MEMBER; CROSS,4TH	1-53181-640-1	01	1	9604-		●

26 46 25 25 39 25 46 25 46 25 46 25 46 26 26 25 25 23 23 25 23 24 46 25 23 25 23 25 25 25 26 25 133 44 36 37 25 26 39 26 26 25 25 25 25 24 25 46 26 46 25 25 23 25 26 26 35

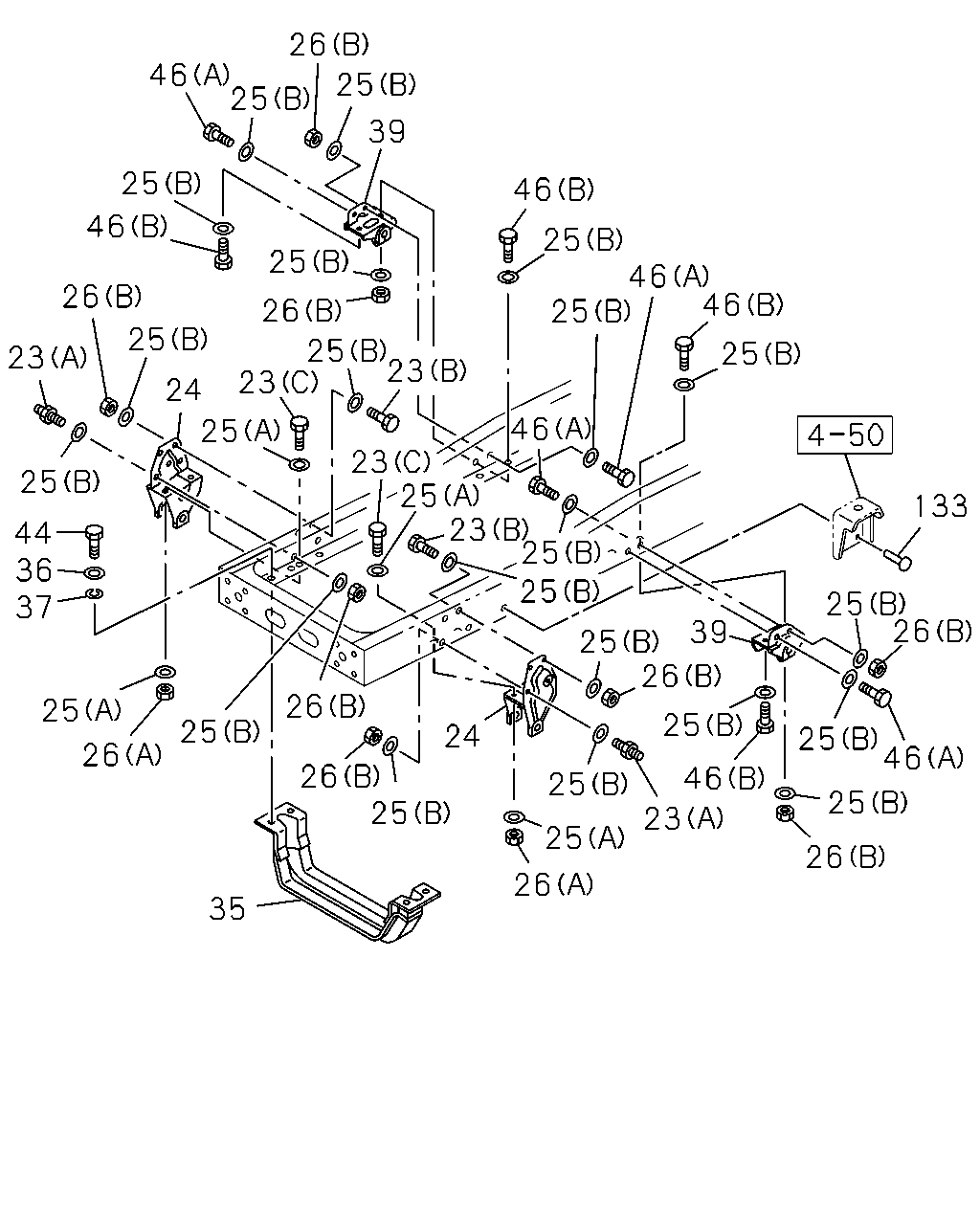

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; BRKT,SPR CONCRETE PUMP<RA5> (A) M12X35,M14X45 L=100	1-09029-075-0	06	1	9604-9904	●
23	BOLT; BRKT,SPR EXC. CONCRETE PUMP<RA5> (A) M12X35,M14X45 L=100	1-09029-075-0	04	1	9905-9912	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	04	1	9905-9912		●
23	BOLT; BRKT,SPR EXC. CONCRETE PUMP<RA5> (A) M12X35,M14X45 L=100	1-09029-075-0	04	1	9604-9904	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	04	1	9604-9904		●
23	BOLT; BRKT,SPR CONCRETE PUMP<RA5> (A) M12X35,M14X45 L=100	1-09029-075-0	06	1	9905-9912	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	04	1	0001-	●	●
23	BOLT; BRKT,SPR (B) M14X40	9-92061-440-0	04	1	9604-	●	●
23	BOLT; BRKT,SPR (C) M16X50	9-92061-650-0	04	1	9604-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-220-0	01	1	9604-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-219-0	01	1	9604-	●	●
25	WASHER; PL,BRKT CONCRETE PUMP<RA5> (B) ID=15	9-09651-069-0	28	1	9604-9912	●
25	WASHER; PL,BRKT (B) ID=15	9-09651-069-0	28	1	9604-9912		●
25	WASHER; PL,BRKT 8PE1S(59L) (B) ID=15	9-09651-069-0	28	1	0001-	●	●
25	WASHER; PL,BRKT EXC. CONCRETE PUMP<RA5> (B) ID=15	9-09651-069-0	24	1	9604-9912	●
25	WASHER; PL,BRKT 10PE1N(61L) CONCRETE PUMP<RA5> (B) ID=15	9-09651-069-0	24	1	0001-	●
25	WASHER; PL,BRKT 10PE1N(61L) (B) ID=15	9-09651-069-0	24	1	0001-		●
25	WASHER; PL,BRKT 10PE1N(61L) EXC. CONCRETE PUMP<RA5> (B) ID=15	9-09651-069-0	20	1	0001-	●
25	WASHER; PL,BRKT (A) ID=16.2	1-09503-223-0	08	1	9604-9912	●	●
25	WASHER; PL,BRKT 8PE1S(59L) (A) ID=16.2	1-09503-223-0	08	1	0001-	●	●
25	WASHER; PL,BRKT 10PE1N(61L) (A) ID=16.2	1-09503-223-0	06	1	0001-	●	●
26	NUT; BRKT,SPR CONCRETE PUMP<RA5> (B) M14	9-99110-514-0	12	1	9604-9904	●
26	NUT; BRKT,SPR EXC. CONCRETE PUMP<RA5> (B) M14	9-99110-514-0	08	1	9905-9912	●
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9905-9912		●
26	NUT; BRKT,SPR 10PE1N(61L) CONCRETE PUMP<RA5> (B) M14	9-99110-514-0	08	1	0001-	●
26	NUT; BRKT,SPR EXC. CONCRETE PUMP<RA5> (B) M14	9-99110-514-0	08	1	9604-9904	●
26	NUT; BRKT,SPR (B) M14	9-99110-514-0	08	1	9604-9904		●
26	NUT; BRKT,SPR CONCRETE PUMP<RA5> (B) M14	9-99110-514-0	12	1	9905-9912	●
26	NUT; BRKT,SPR 8PE1S(59L) (B) M14	9-99110-514-0	12	1	0001-	●	●
26	NUT; BRKT,SPR 10PE1N(61L) EXC. CONCRETE PUMP<RA5> (B) M14	9-99110-514-0	04	1	0001-	●
26	NUT; BRKT,SPR 10PE1N(61L) (B) M14	9-99110-514-0	04	1	0001-		●
26	NUT; BRKT,SPR (A) M16	9-99110-516-0	04	1	9604-9912	●	●
26	NUT; BRKT,SPR 8PE1S(59L) (A) M16	9-99110-516-0	04	1	0001-	●	●
26	NUT; BRKT,SPR 10PE1N(61L) (A) M16	9-99110-516-0	02	1	0001-	●	●
35	MEMBER; UNDER	1-53174-214-2	01	1	9604-	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	9604-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	9604-	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9604-	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9604-	●	●
44	BOLT; UNDER MBR M16X50	9-92061-650-0	04	1	9604-9606	●	●
44	BOLT; UNDER MBR M16X45	9-92061-645-0	04	1	9607-	●	●
46	BOLT; BRKT FIX (A) M14X40	9-92061-440-0	04	1	9604-	●	●
46	BOLT; BRKT FIX (B) M14X50	9-92061-450-0	04	1	9604-	●	●
133	RIVET; BRKT EXC. CONCRETE PUMP<RA5> D13X36 PLATED TAPER END	9-06771-336-0	08	1	9905-	●
133	RIVET; BRKT D13X36 PLATED TAPER END	9-06771-336-0	08	1	9905-		●
