Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#63449) — 715 parça

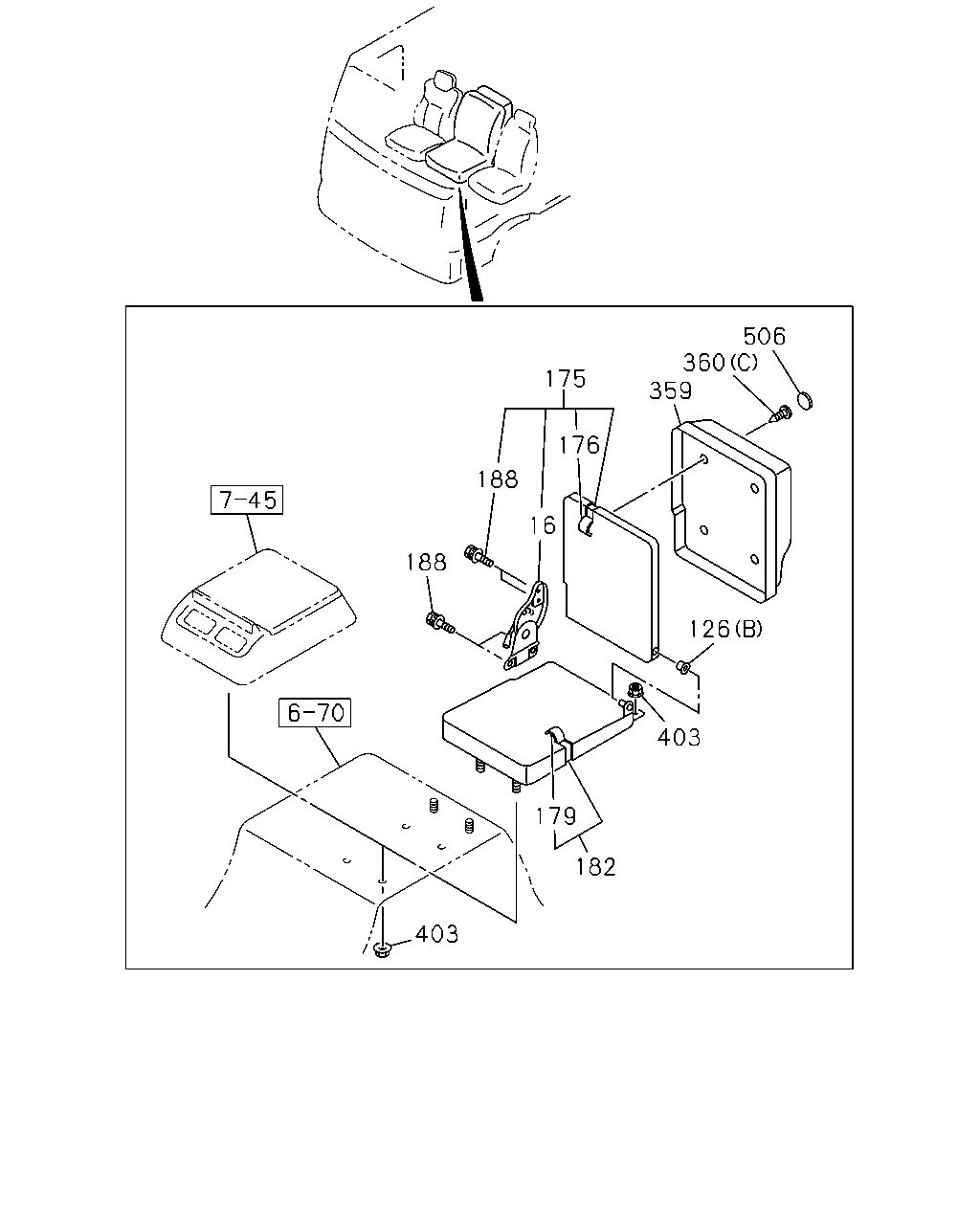

403 182 179 403 126 359 360 506 175 176 188 16 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-75418-062-1	01	1	1001-1104
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-75418-062-1	01	1	1105-1109
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-75418-062-1	01	1	1110-
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> SOU	1-75418-062-1	01	1	1105-1109
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1001-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	8-97854-900-0	01	1	1105-1109
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	1001-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-233-0	01	1	1001-1009
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1010-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	1001-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-234-0	01	1	1001-1009
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1010-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-974-1	01	1	1007-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-237-0	01	1	1001-1009
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-432-1	01	1	1010-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-973-3	01	1	1001-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-235-0	01	1	1001-1009
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-430-3	01	1	1010-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE SOU	1-75198-053-0	04	1	1001-1104
188	BOLT; BACK TO CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE SOU	1-75198-053-0	04	1	1105-1109
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE SOU	1-75198-053-0	04	1	1110-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE SOU	1-75198-053-0	04	1	1105-1109
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-

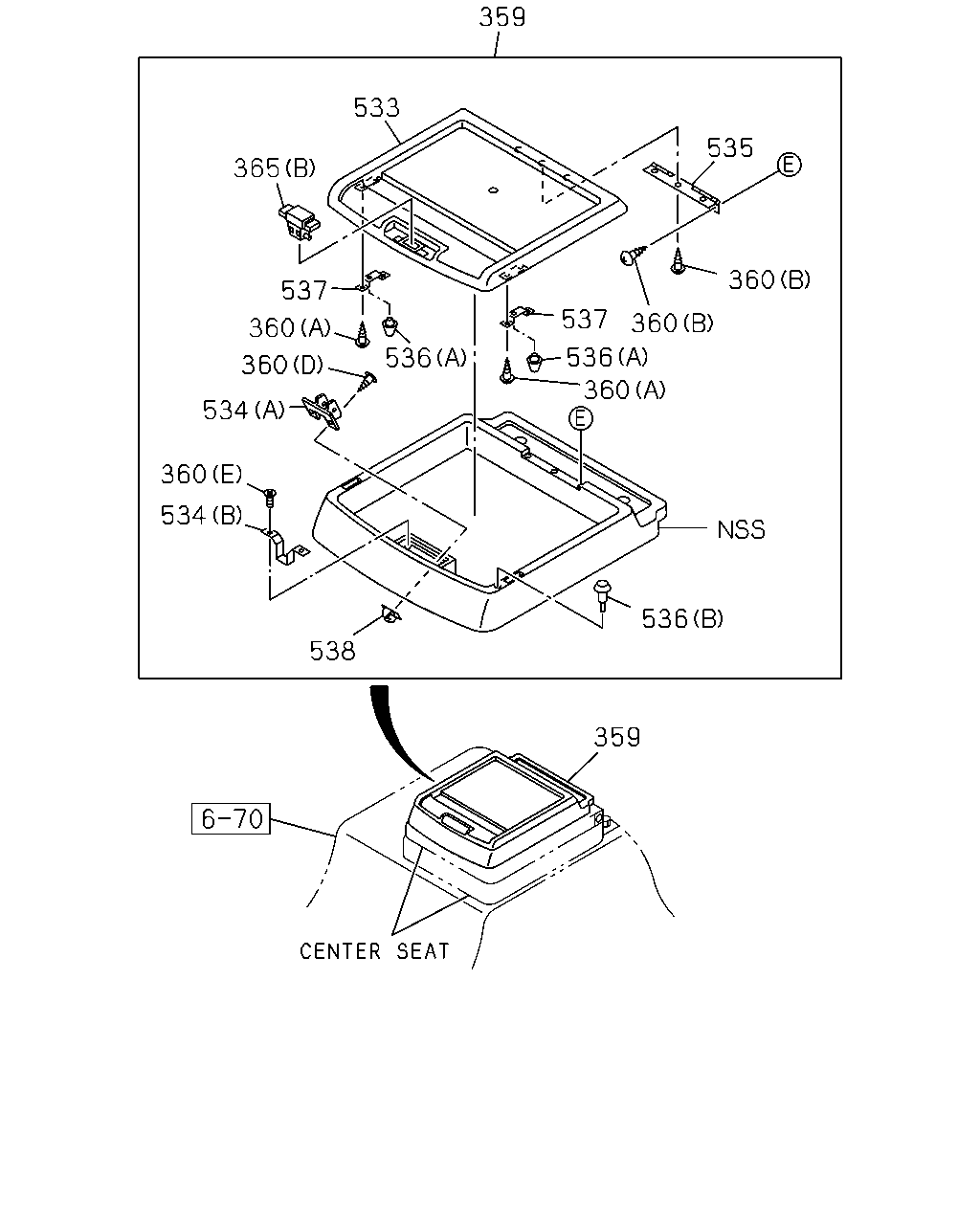

359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	1001-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1001-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1010-1104
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1001-1104
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER SOU	0-74360-516-0	04	1	1001-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 SOU	9-09829-324-1	02	1	1001-1009
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE SOU	0-91180-108-0	04	1	1001-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	1001-1006
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-

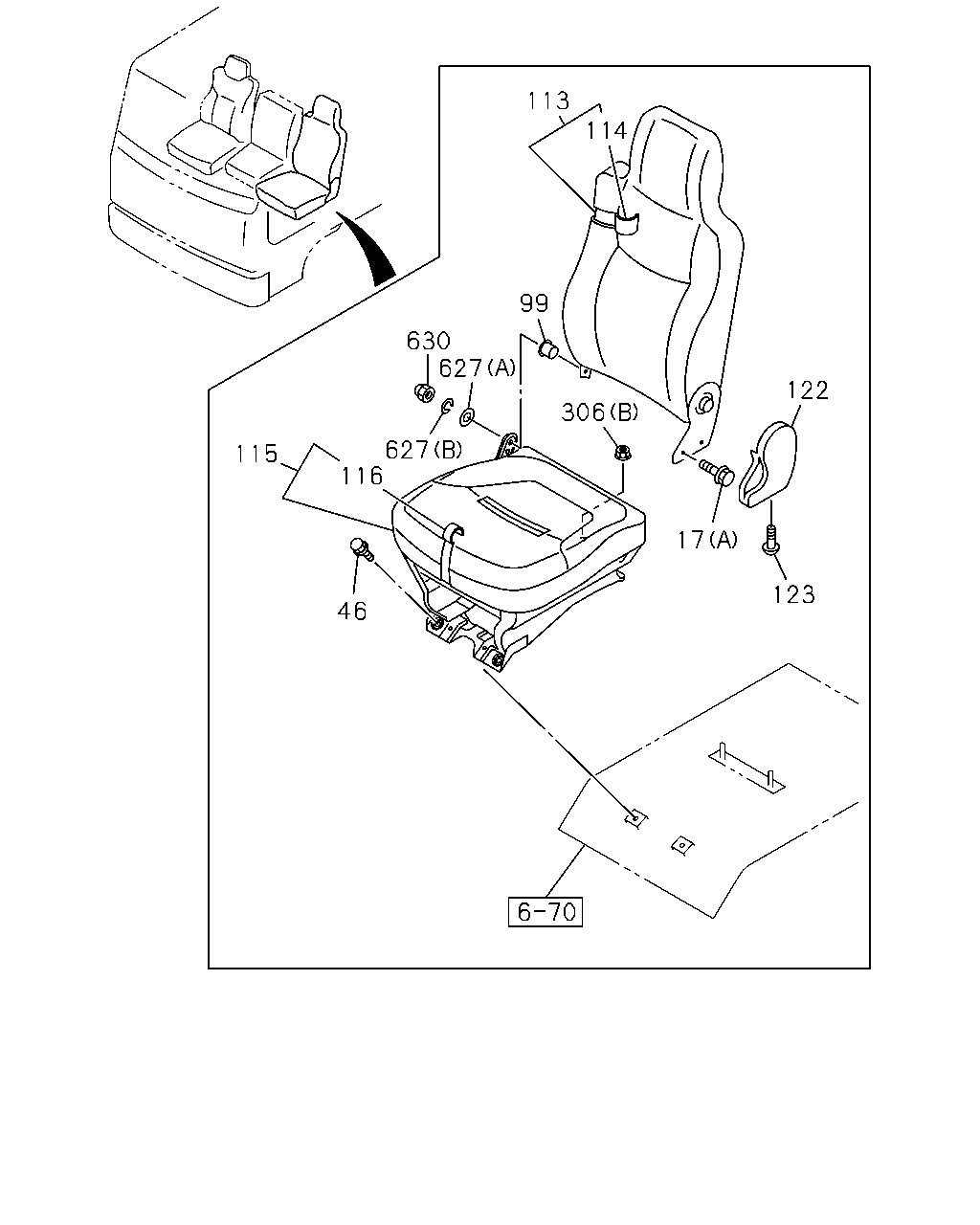

113 114 99 630 306 627 627 116 115 46 17 123 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1001-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1510-
46	BOLT; STAND TO FLOOR M10X20 FLANGE SOU	0-28451-020-0	02	1	1001-
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	1001-1009
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-221-0	01	1	1001-1009
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-422-0	01	1	1010-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-966-1	01	1	1001-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97416-223-0	01	1	1001-1009
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-424-0	01	1	1010-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-916-0	01	1	1001-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-225-0	01	1	1001-1009
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-418-2	01	1	1010-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-965-1	01	1	1001-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97416-227-0	01	1	1001-1009
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-420-1	01	1	1010-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-915-0	01	1	1001-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1001-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1001-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE SOU	0-91180-110-0	02	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1001-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1001-1502
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1510-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1001-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1001-
630	NUT; CAP M8	8-98063-225-0	01	1	1001-

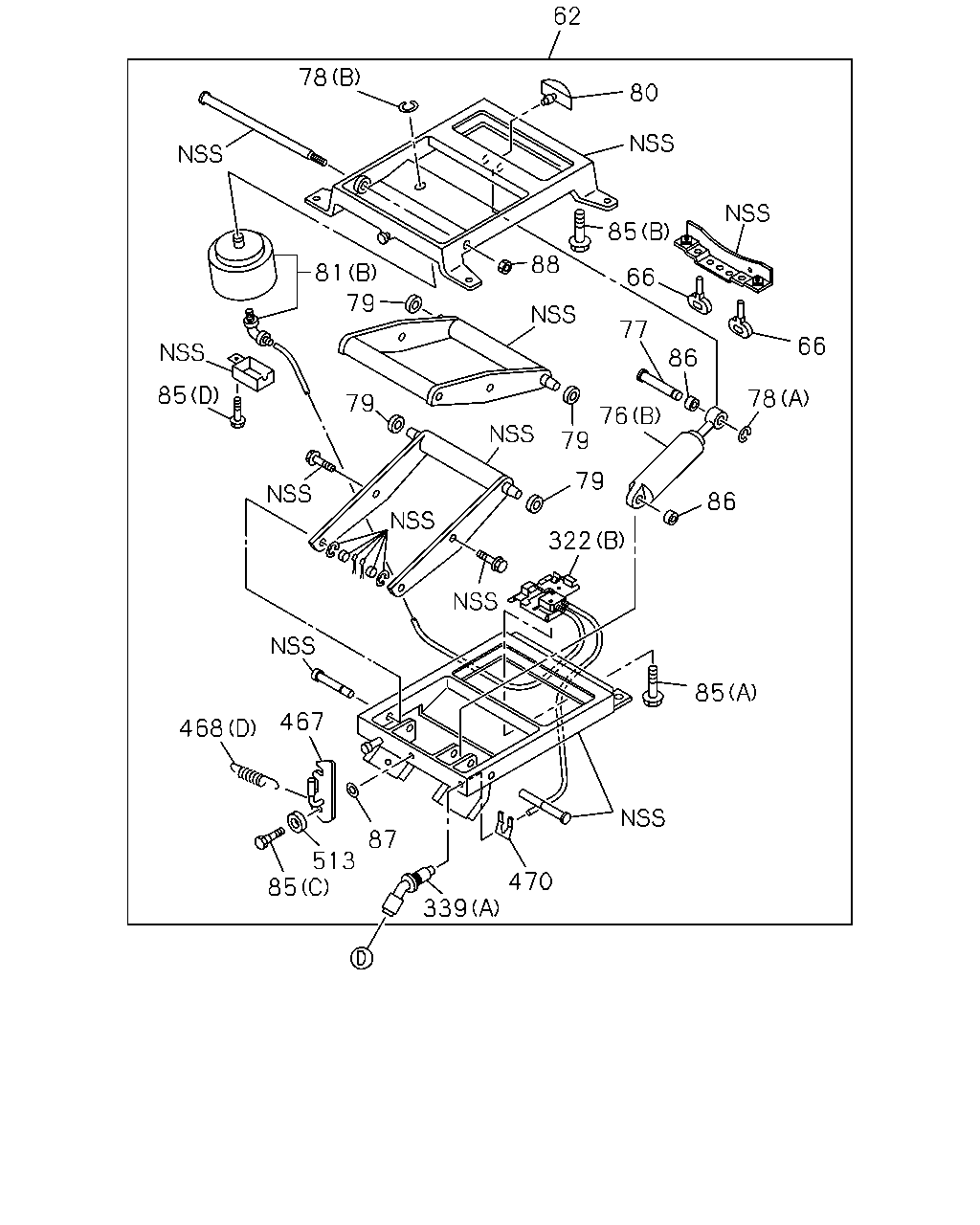

78 62 80 81 85 79 79 468 467 85 87 339 85 470 322 86 79 79 76 78 66 86 77 66 85 88 513

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-183-8	01	1	1001-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-448-0	01	1	1404-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-448-0	01	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-145-0	02	1	1001-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75538-139-0	01	1	1001-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-999-0	01	1	1001-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-138-2	01	1	1001-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-138-2	01	1	1510-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98101-900-0	02	1	1001-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1001-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1001-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-159-0	04	1	1001-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-489-0	04	1	1404-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-09987-123-0	01	1	1001-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-09987-123-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75538-151-2	01	1	1001-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	8-98242-816-0	01	1	1401-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	8-98242-816-0	01	1	1510-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-000-0	01	1	1001-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-09980-577-1	01	1	1001-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12	1-75538-208-1	02	1	1001-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER SOU	1-75538-209-0	03	1	1001-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER SOU	1-75538-209-0	02	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER SOU	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY SOU	1-09983-173-1	02	1	1001-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY SOU	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 SOU	0-91510-508-0	01	1	1001-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 SOU	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 SOU	1-75537-273-1	01	1	1001-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 SOU	1-75537-273-1	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-186-3	01	1	1001-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-186-3	01	1	1510-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-001-0	01	1	1001-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98331-314-0	01	1	1509-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1001-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98014-971-0	01	1	1001-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-134-0	01	1	1001-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-134-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-206-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-207-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) SOU	1-75518-208-0	02	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) SOU	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) SOU	1-75538-132-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) SOU	1-75538-132-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-137-0	01	1	1001-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-137-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-133-0	01	1	1001-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75538-133-0	01	1	1510-

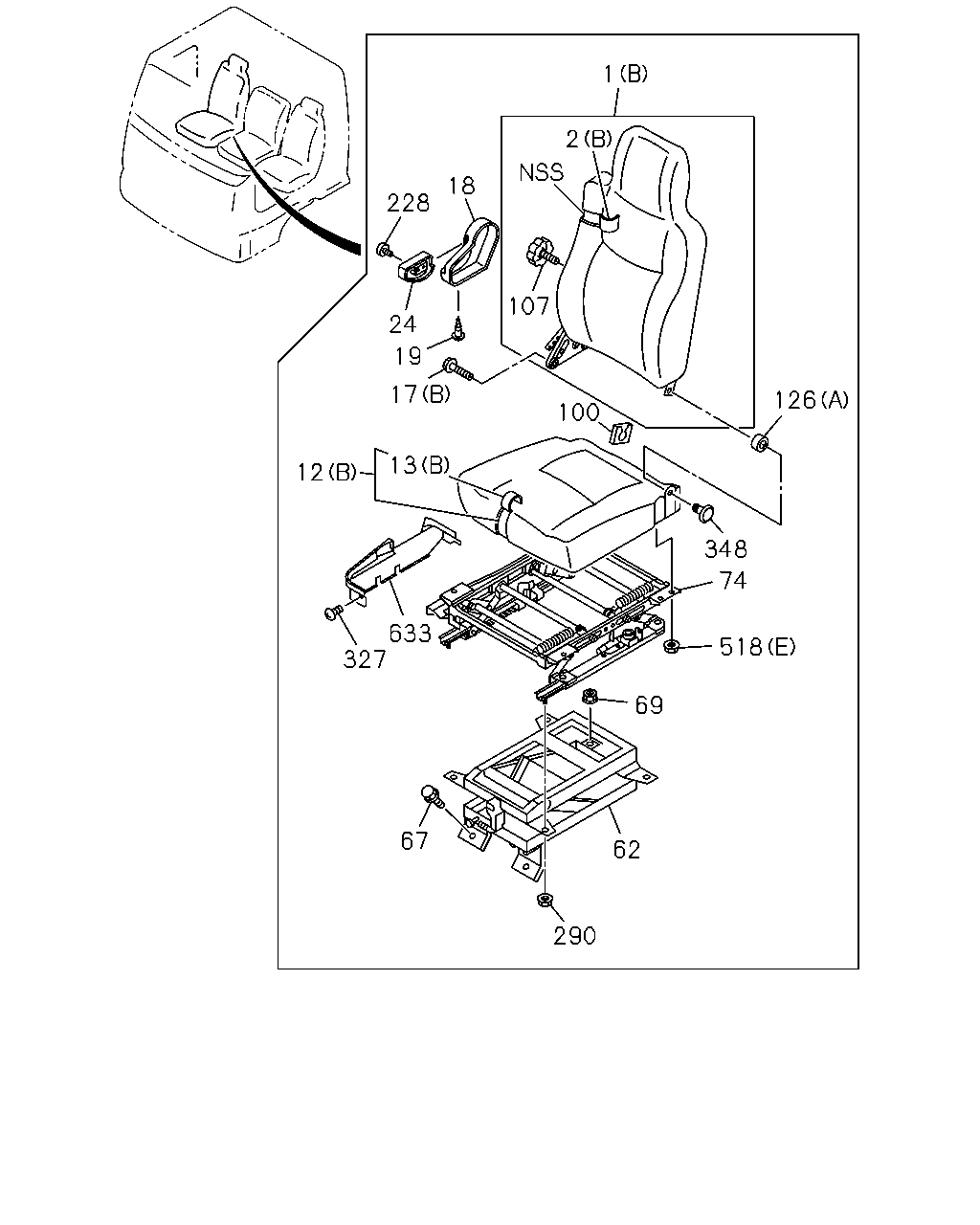

1 2 107 18 228 24 19 17 12 13 100 126 348 633 327 74 518 69 62 280 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-1506
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-202-0	01	1	1001-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-407-1	01	1	1010-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-622-0	01	1	1601-

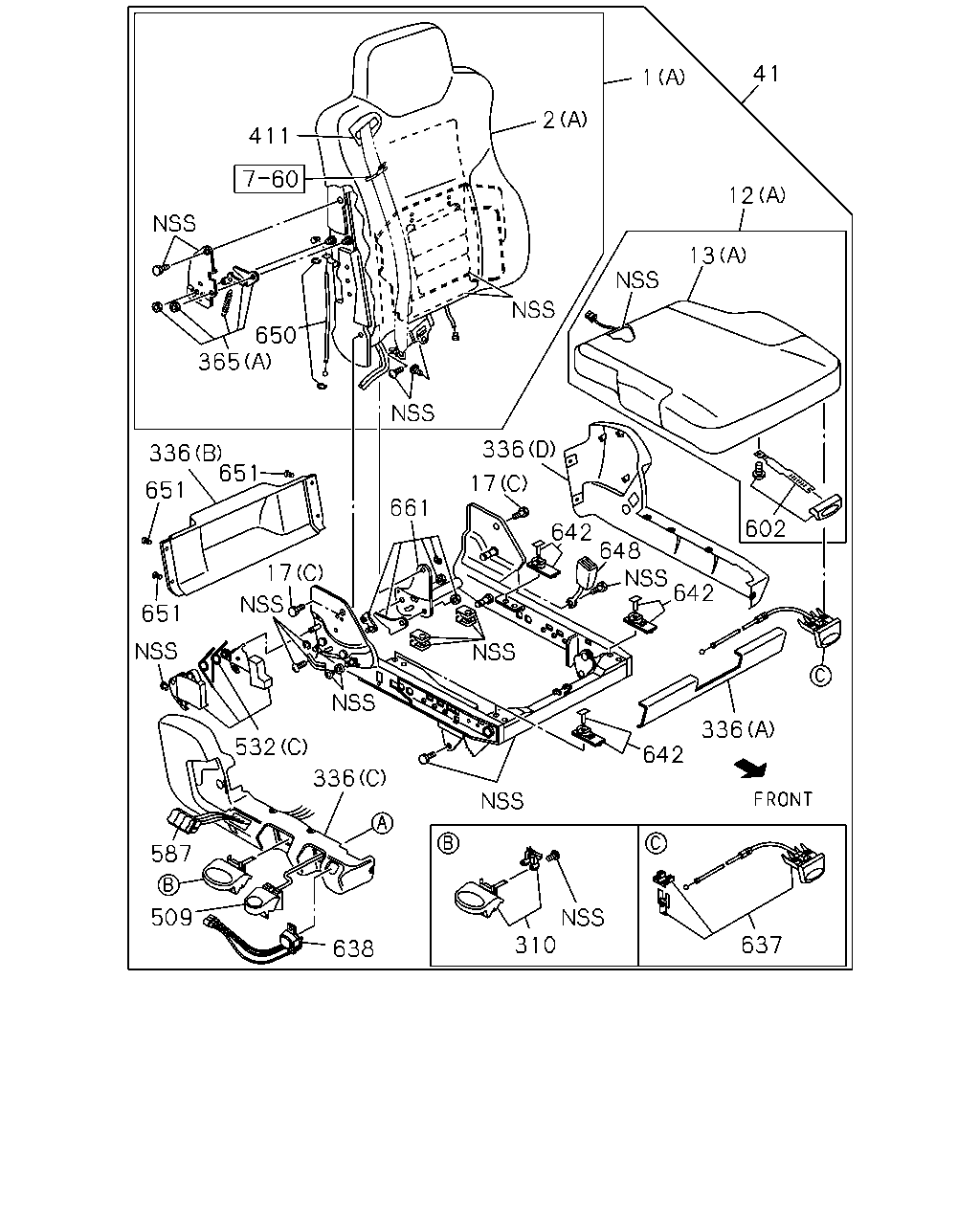

1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1001-1502
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-618-0	01	1	1601-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	1001-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	1001-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-207-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-412-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1001-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	1001-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-1	01	1	1010-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1507-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-611-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1001-1502
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-608-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1001-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1507-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1001-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1001-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1001-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1510-
18	COVER; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1001-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1001-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1503-1506
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1507-1509
18	COVER; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1510-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1001-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1001-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1503-1506
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1001-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1001-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1503-1506
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1507-1509
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	1-75538-183-8	01	1	1001-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-448-0	01	1	1404-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98261-448-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE SOU	0-28451-020-0	02	1	1001-
69	NUT; FRT SEAT M10 FLANGE SOU	0-91180-110-0	02	1	1001-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98003-678-0	01	1	1001-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-640-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-640-0	01	1	1510-
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1110-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1110-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1506
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98286-009-0	01	1	1601-
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1001-1506
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98063-174-0	01	1	1510-
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1001-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	8-97854-900-0	01	1	1105-1109
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1001-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1001-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1503-1506
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1510-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-09987-273-0	01	1	1001-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-004-0	01	1	1001-
348	BOLT; HINGE,SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98286-008-0	01	1	1601-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98286-008-0	01	1	1601-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 SOU	1-75518-264-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 SOU	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1510-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-956-0	01	1	1001-

468 468 512 51 51 51 512 51 532 278 532 302 278 518 518 278 518 302 518 543 543 543 518 471 158 158 551 468 529 468 302 302 551 72 543 302 543 518 518 302 302 518 302 551 72 518 518 201 551 201 63 306 63 306 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

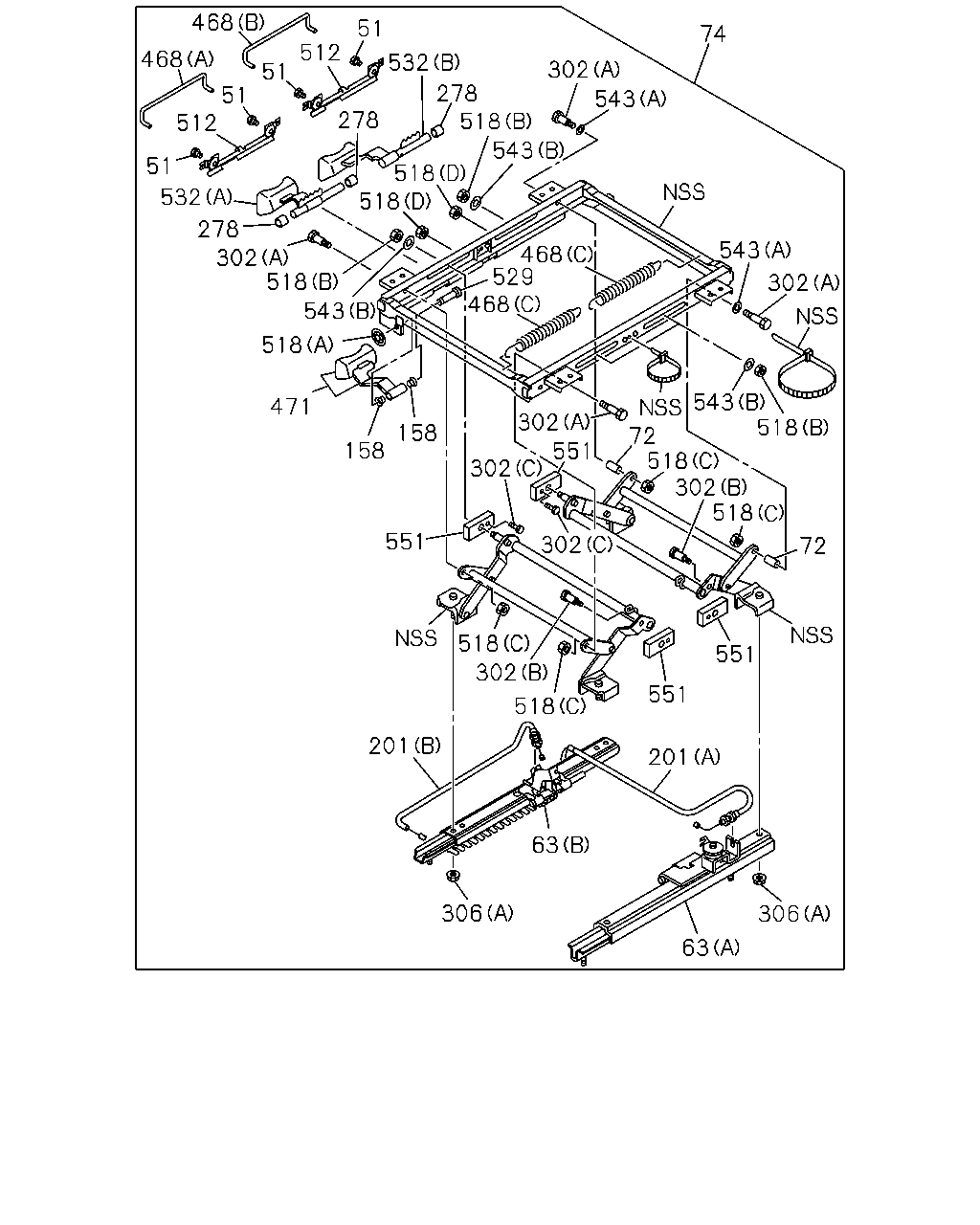

51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-325-1	04	1	1001-1506
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-325-1	04	1	1510-

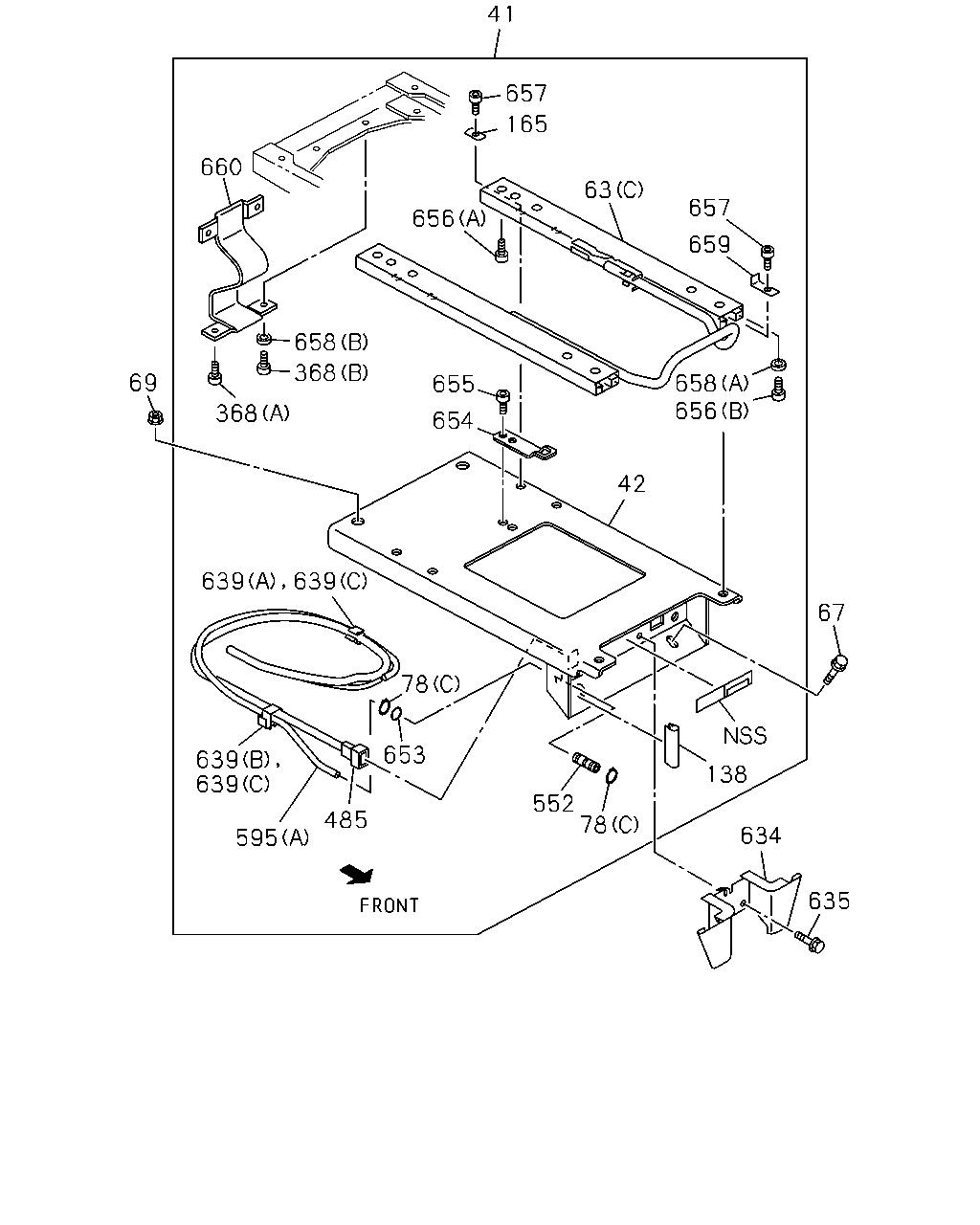

63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-199-1	01	1	1001-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-323-0	01	1	1001-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-323-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98098-005-0	01	1	1001-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-334-1	02	1	1001-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-668-0	02	1	1503-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98003-678-0	01	1	1001-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-640-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL>	8-98291-640-0	01	1	1510-
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-209-0	02	1	1001-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-209-0	02	1	1001-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-209-0	02	1	1503-1506
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-209-0	02	1	1510-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-209-0	02	1	1510-

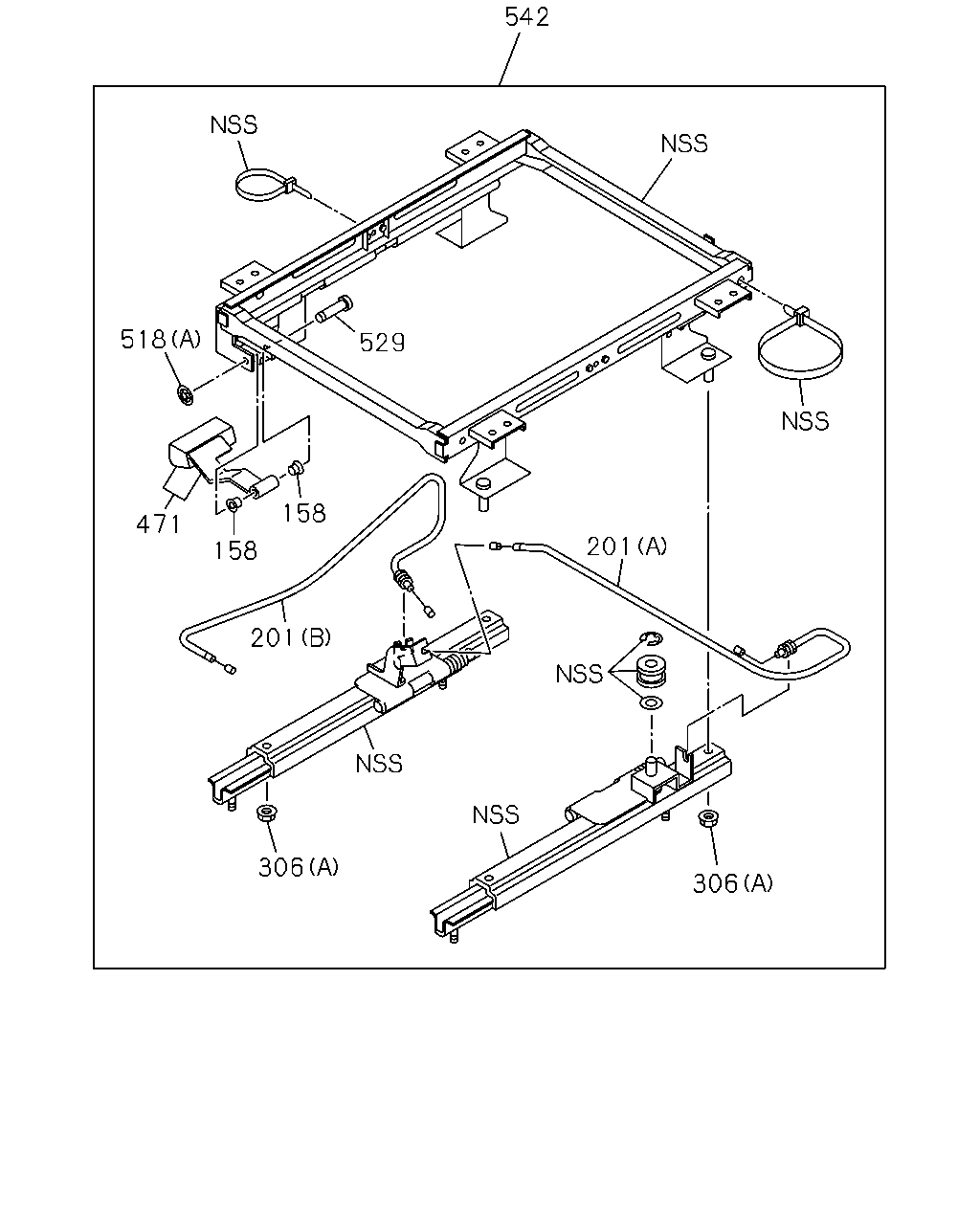

201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 SOU	1-75518-288-0	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 SOU	1-75518-288-0	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 SOU	1-75518-288-0	01	1	1503-1506
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 SOU	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 SOU	1-75518-288-0	01	1	1510-
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 SOU	1-75518-289-1	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 SOU	1-75518-289-1	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 SOU	1-75518-289-1	01	1	1503-1506
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 SOU	1-75518-289-1	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 SOU	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-244-0	03	1	1001-1506
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-244-0	03	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-266-2	02	1	1001-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-270-1	04	1	1001-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) SOU	1-75518-336-1	02	1	1001-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) SOU	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE SOU	0-91180-110-0	02	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1001-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1001-1502
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1510-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-206-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-207-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) SOU	1-75518-208-0	02	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) SOU	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) SOU	1-75538-132-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) SOU	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1001-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1001-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1503-1506
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1510-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-243-1	02	1	1001-1506
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-243-1	02	1	1510-
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 SOU	1-75518-264-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 SOU	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1510-
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-262-0	01	1	1001-1502
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-262-0	01	1	1001-1502
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-262-0	01	1	1503-1506
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-262-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-203-0	01	1	1001-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-204-1	01	1	1001-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-204-1	01	1	1510-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-982-0	01	1	1001-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-335-0	02	1	1001-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	1001-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-265-0	04	1	1001-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-75518-265-0	04	1	1510-

359 533 365 537 360 360 534 360 534 538 359 536 360 536 537 360 360 535 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	1001-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1001-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1010-1104
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1001-1104
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER SOU	0-74360-516-0	04	1	1001-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 SOU	9-09829-324-1	02	1	1001-1009
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-972-0	01	1	1001-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1001-1104
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1105-1109
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1110-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	1-72538-312-0	01	1	1105-1109
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	1001-1006
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A) SOU	1-72538-181-0	01	1	1001-1009
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-190-0	01	1	1010-1104
534	STRIKER; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-190-0	01	1	1105-1109
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-190-0	01	1	1110-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	1-72538-190-0	01	1	1105-1109
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-72447-391-1	01	1	1001-1104
535	HINGE; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-72447-391-1	01	1	1105-1109
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-72447-391-1	01	1	1110-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> SOU	1-72447-391-1	01	1	1105-1109
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A) SOU	5-09983-002-1	02	1	1001-1009
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-187-0	02	1	1010-1104
536	RUBBER; CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-187-0	02	1	1105-1109
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-187-0	02	1	1110-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	1-72538-187-0	02	1	1105-1109
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-72548-057-1	02	1	1001-1009
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-09983-165-0	02	1	1001-1009

228 18 1 2 24 19 17 12 13 67 398 42 69 306 542 348 100 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-1506
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-202-0	01	1	1001-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-407-1	01	1	1010-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-622-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1001-1502
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-618-0	01	1	1601-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	1001-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	1001-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-207-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-412-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1001-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	1001-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-1	01	1	1010-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1507-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-611-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1001-1502
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-608-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1001-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1507-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1001-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1001-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1001-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1510-
18	COVER; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1001-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1001-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1503-1506
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1507-1509
18	COVER; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1510-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1001-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1001-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1503-1506
19	SCREW; COVER VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1001-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1001-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1503-1506
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1507-1509
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1510-
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-346-0	01	1	1001-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL>	1-75558-604-2	01	1	1001-1502
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	1-75558-604-2	01	1	1503-1506
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL>	1-75558-604-2	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE SOU	0-28451-020-0	02	1	1001-
69	NUT; FRT SEAT M10 FLANGE SOU	0-91180-110-0	02	1	1001-
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1110-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1110-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1506
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98286-009-0	01	1	1601-
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1001-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	8-97854-900-0	01	1	1105-1109
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1001-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1001-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1503-1506
228	SCREW; KNOB VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1510-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE SOU	0-91180-110-0	02	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1001-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1001-1502
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1510-
348	BOLT; HINGE,SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98286-008-0	01	1	1601-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98286-008-0	01	1	1601-
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1502
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1503-1506
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL>	8-98093-310-0	01	1	1001-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98291-653-0	01	1	1503-1506
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL>	8-98291-653-0	01	1	1510-

542 529 518 158 158 471 201 306 201 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-209-0	02	1	1001-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-209-0	02	1	1001-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-209-0	02	1	1503-1506
158	BUSHING; LINK ARM VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-209-0	02	1	1510-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-209-0	02	1	1510-
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 SOU	1-75518-288-0	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 SOU	1-75518-288-0	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 SOU	1-75518-288-0	01	1	1503-1506
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 SOU	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 SOU	1-75518-288-0	01	1	1510-
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 SOU	1-75518-289-1	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 SOU	1-75518-289-1	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 SOU	1-75518-289-1	01	1	1503-1506
201	CABLE; ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 SOU	1-75518-289-1	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 SOU	1-75518-289-1	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE SOU	0-91180-110-0	02	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1001-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1001-1502
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1510-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1001-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1001-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1503-1506
471	LEVER; SEAT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1510-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1510-
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 SOU	1-75518-264-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 SOU	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1510-
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-262-0	01	1	1001-1502
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-262-0	01	1	1001-1502
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-262-0	01	1	1503-1506
529	PIN; LINK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-262-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL>	8-98093-310-0	01	1	1001-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98291-653-0	01	1	1503-1506
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL>	8-98291-653-0	01	1	1510-

637 310 638 509 587 336 532 642 336 642 602 648 642 17 661 17 336 651 651 336 365 650 13 12 41 1 2 411 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-201-0	01	1	1001-1009
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-1506
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-202-0	01	1	1001-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-407-1	01	1	1010-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-622-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1001-1502
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-618-0	01	1	1601-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	1001-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	1001-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-206-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-207-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-412-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1001-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	1001-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-1	01	1	1010-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1507-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-611-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1001-1502
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-608-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1001-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1507-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1001-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1001-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1001-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1510-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-1	01	1	1301-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-992-0	01	1	1001-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D)	8-98097-978-0	01	1	1001-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D)	8-98331-313-0	01	1	1509-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-984-0	01	1	1001-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-995-0	01	1	1001-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98097-996-0	01	1	1001-
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-972-0	01	1	1001-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1001-1104
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1105-1109
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1110-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	1-72538-312-0	01	1	1105-1109
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-967-0	01	1	1001-
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-988-0	01	1	1001-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-203-0	01	1	1001-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-204-1	01	1	1001-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-204-1	01	1	1510-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-982-0	01	1	1001-
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-986-0	01	1	1001-
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-008-0	01	1	1001-
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-989-0	01	1	1001-
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-994-0	01	1	1001-
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98192-932-0	04	1	1001-
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-976-0	01	1	1001-
650	CABLE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-973-0	01	1	1001-1212
650	CABLE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98232-354-0	01	1	1301-
651	RIVET DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98194-075-0	04	1	1001-
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-980-0	01	1	1001-

41 325 76 652 322 81 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-1	01	1	1301-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75538-139-0	01	1	1001-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-999-0	01	1	1001-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75538-151-2	01	1	1001-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	8-98242-816-0	01	1	1401-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	8-98242-816-0	01	1	1510-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-000-0	01	1	1001-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-186-3	01	1	1001-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B)	1-75538-186-3	01	1	1510-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-001-0	01	1	1001-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98331-314-0	01	1	1509-
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-003-0	01	1	1001-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> SOU	1-09987-273-0	01	1	1001-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-004-0	01	1	1001-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-002-0	01	1	1001-

41 657 165 660 69 658 368 368 656 63 657 659 658 656 655 654 42 639 369 639 639 595 485 653 78 552 78 138 634 635 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-1	01	1	1301-
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-346-0	01	1	1001-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL>	1-75558-604-2	01	1	1001-1502
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	1-75558-604-2	01	1	1503-1506
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> VINYL SEAT<A83>,SEAT CLOTH<7FL>	1-75558-604-2	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-199-1	01	1	1001-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) SOU	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-323-0	01	1	1001-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) SOU	1-75518-323-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98098-005-0	01	1	1001-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE SOU	0-28451-020-0	02	1	1001-
69	NUT; FRT SEAT M10 FLANGE SOU	0-91180-110-0	02	1	1001-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98101-900-0	02	1	1001-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1001-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1001-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15	9-09185-415-0	01	1	1510-
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-351-0	01	1	1001-
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	1-75590-086-0	04	1	1001-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-353-0	03	1	1001-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-358-0	01	1	1001-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	1001-
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	1001-
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98101-902-0	01	1	1001-1508
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98308-101-0	01	1	1509-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-348-0	01	1	1001-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98067-762-0	01	1	1001-
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98088-279-0	01	1	1001-
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 SOU	0-52000-616-0	02	1	1001-
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-350-0	01	1	1001-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-349-0	01	1	1001-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98308-100-0	02	1	1509-
653	GASKET DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98101-901-0	01	1	1001-
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-352-0	01	1	1001-
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-353-0	02	1	1001-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	1-75590-085-0	04	1	1001-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-354-0	02	1	1001-
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	1-75590-085-0	06	1	1001-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-355-0	02	1	1001-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-359-0	01	1	1001-
659	STOPPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-356-0	02	1	1001-
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-357-0	01	1	1001-

595 339 632 400 641 581 400 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1001-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98014-971-0	01	1	1001-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98098-996-0	02	1	1001-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-97589-692-3	01	1	1001-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-348-0	01	1	1001-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98067-762-0	01	1	1001-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1001-
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98099-007-0	02	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
