7-40 — INSTRUMENT PANEL AND BOX (#63445) — 147 parça

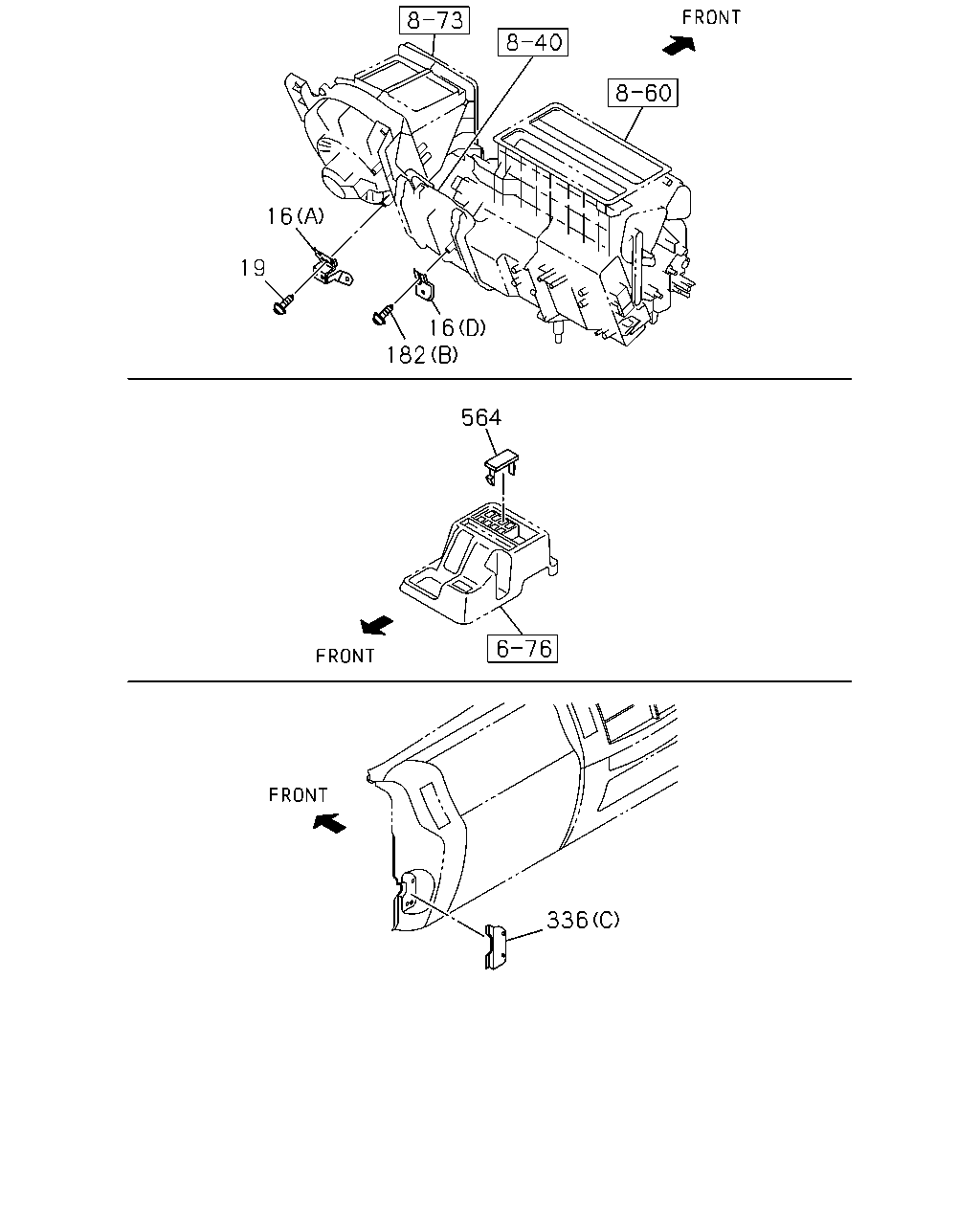

çizim 162077
16 19 16 182 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1001-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1001-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1001-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1001-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 1001-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1001-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1001-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1001-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1001-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1001-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1001-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1001-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1001-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1001-
564 COVER; SW
SOU 		8-97043-732-1 06 1 1001-

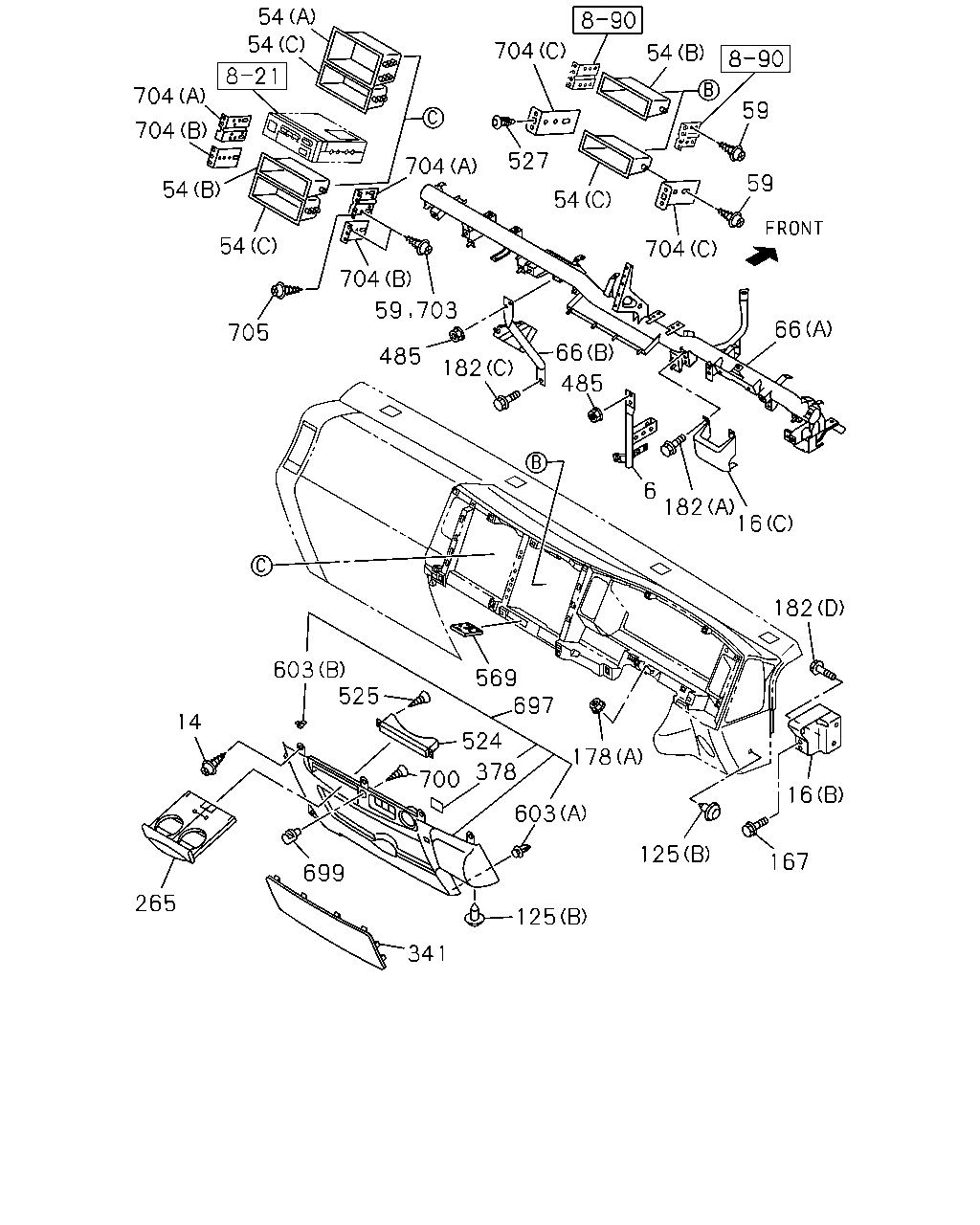

çizim 162180
54 54 704 704 54 54 705 704 485 182 66 485 54 527 704 704 54 59 59 66 59 703 6 182 16 182 704 14 265 699 341 378 700 525 903 569 603 125 125 167 16 524 178 697
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 1001-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1001-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1001-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1001-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1001-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1001-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98010-154-0 01 1 1001-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1001-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1001-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1001-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1001-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1001-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1001-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1001-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1001-
66 REINFORCEMENT; INST PANEL
(A) 		8-98009-970-9 01 1 1001-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98170-401-0 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-605-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (B) 		8-97585-580-2 01 1 1001-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3) (B) 		8-98151-167-0 01 1 1001-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1001-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1001-
167 BOLT; REINF TO INST
M8X23 FLANGE SOU 		8-97264-766-0 04 1 1001-
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1001-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1001-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1001-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1001-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1001-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1001-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1001-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 1001-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE SOU 		0-91180-106-0 04 1 1001-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1001-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1001-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1001-
569 HOLDER; CARD 8-97410-276-1 01 1 1001-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1001-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1001-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1001-
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 1001-1010
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1001-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1001-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1001-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1001-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1001-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1001-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1001-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1001-

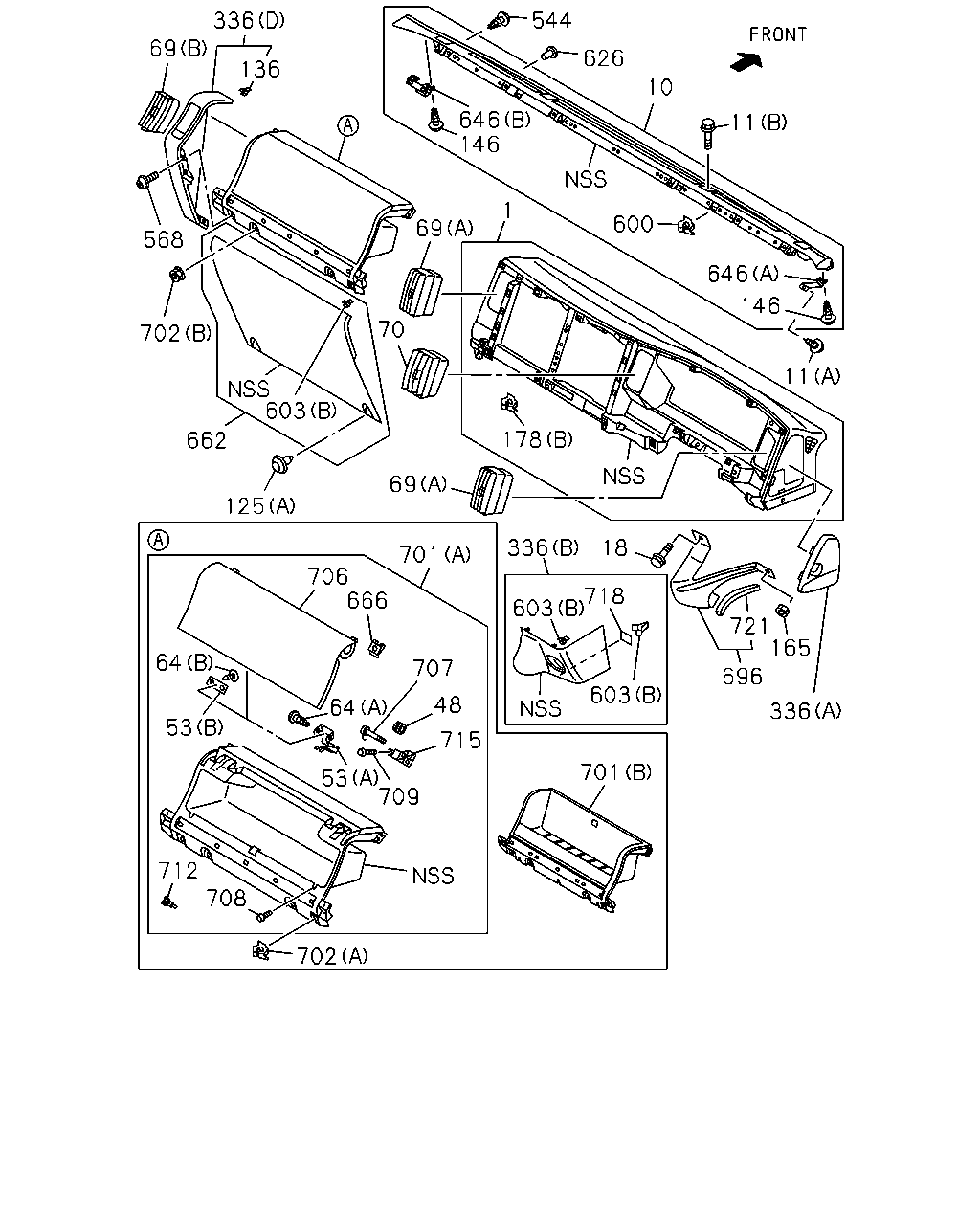

çizim 162203
69 336 136 568 702 603 662 125 69 70 1 69 646 146 544 626 10 11 600 646 146 11 178 721 165 696 336 603 18 336 701 706 666 707 48 715 64 64 53 53 709 603 718 701 712 708 702
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1001-
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 1001-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1009-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1001-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1001-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1001-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1001-1011
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1012-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1001-1011
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1012-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1001-1011
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1012-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1001-1011
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1012-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1001-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1001-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1001-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1001-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1001-
136 CLIP; INST COVER 8-98076-254-0 02 1 1001-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1001-
165 NUT; BRKT KNEE PAD
M6 FLANGE SOU 		0-91180-106-0 01 1 1001-
178 NUT; INST PANEL
(A) M6 FLANGE SOU 		0-91180-106-0 01 1 1001-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1001-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 1001-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1001-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1001-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1001-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1001-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1001-
600 NUT; PANEL 8-98037-629-0 02 1 1001-1008
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1001-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 1001-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1001-
626 RETAINER
OD=15 BLACK SOU 		8-94279-804-0 02 1 1001-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1001-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1001-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 1001-
666 INSERT; INST PANEL 8-98038-450-0 04 1 1001-1011
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1012-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 1001-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1012-
701 TRAY; INST
(A) GRAY 		8-97415-540-6 01 1 1001-1011
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1012-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE SOU 		0-91180-106-0 02 1 1001-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1001-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1001-1011
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1012-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1001-1011
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1012-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1001-1011
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1012-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1001-1011
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1012-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1001-1011
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1012-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1001-1011
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1012-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1001-1011
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1012-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1001-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1001-
