◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#6344) — 65 parça

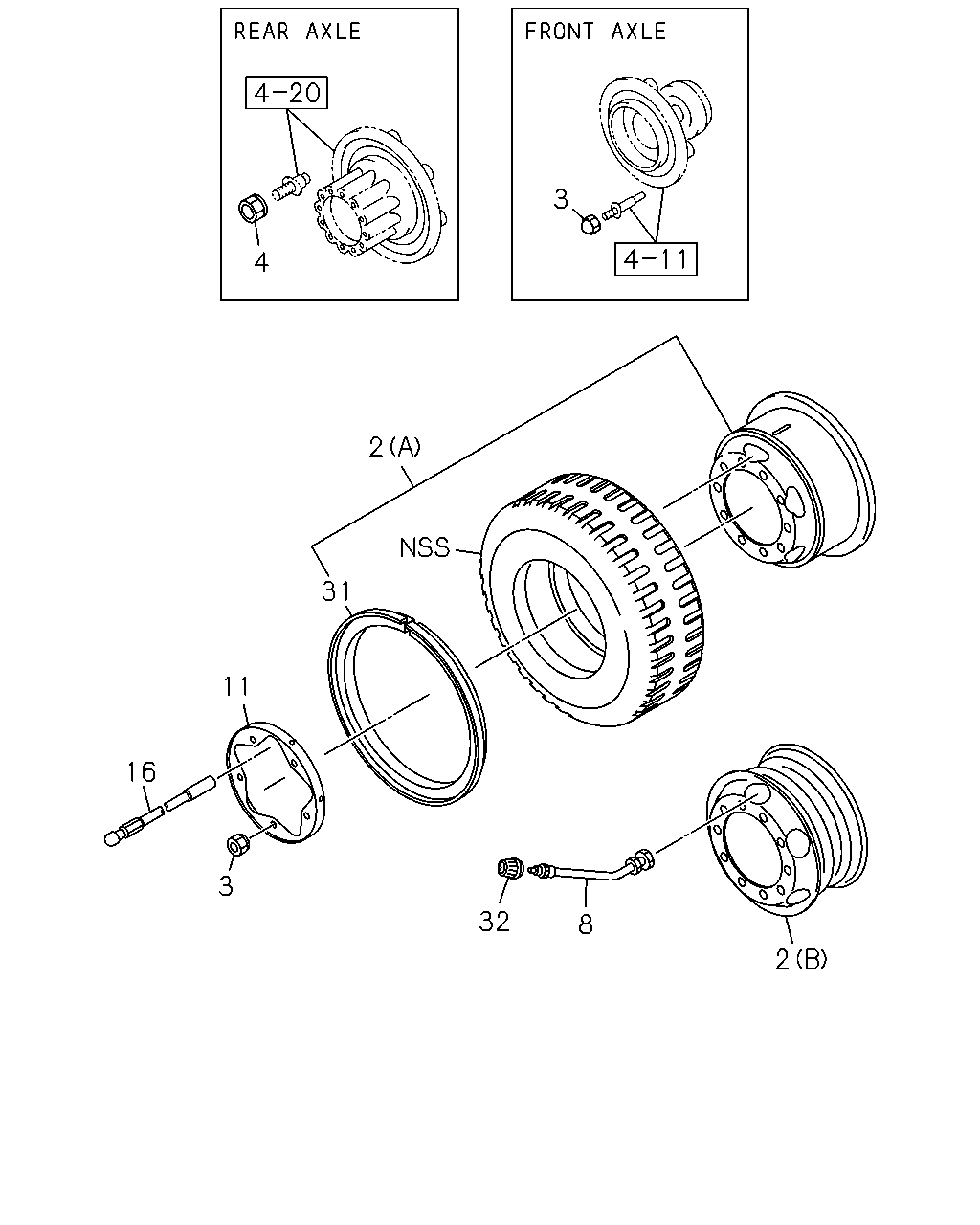

çizim 41297
3 4 2 31 11 16 3 32 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-471-0 01 1 9604-9904
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> (B) 		1-42350-471-0 01 1 9604-9904
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-470-1 01 1 9905-0001
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> (B) 		1-42350-470-1 01 1 9905-0001
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42350-470-1 01 1 0002-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL SPARE<N79> (B) 		1-42350-470-1 01 1 0002-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-496-0 01 1 9604-9904
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-496-0 01 1 9604-9904
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-590-0 01 1 9905-0001
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-590-0 01 1 9905-0001
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-590-0 01 1 0002-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-590-0 01 1 0002-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-471-0 06 1 9604-9904
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (B) 		1-42350-470-1 06 1 9905-0001
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42350-470-1 06 1 0002-
2 WHEEL; DISC
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-496-0 06 1 9604-9904
2 WHEEL; DISC
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-590-0 06 1 9905-0001
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-590-0 06 1 0002-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-538-0 01 1 0002-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> (B) 		1-42350-538-0 01 1 0002-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-450-1 01 1 0002-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-450-1 01 1 0002-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> (B) 		1-42350-538-0 06 1 0002-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> (A) 		1-42350-450-1 06 1 0002-
3 NUT; WHEEL,FRT AXLE
M22 		1-42333-040-0 20 1 9604-9704
3 NUT; WHEEL,FRT AXLE
M22 		1-42333-047-0 20 1 9705-9807
3 NUT; WHEEL,FRT AXLE
M22 RH THREAD 		1-42333-048-1 20 1 9808-0001
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 RH THREAD 		1-42333-048-1 20 1 0002-
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-043-0 20 1 0002-
4 NUT; WHEEL,RR AXLE
M22 		1-42333-040-0 20 1 9604-9704
4 NUT; WHEEL,RR AXLE
M22 		1-42333-047-0 20 1 9705-9807
4 NUT; WHEEL,RR AXLE
M22 RH THREAD 		1-42333-048-1 20 1 9808-0001
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 RH THREAD 		1-42333-048-1 20 1 0002-
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-043-0 20 1 0002-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 01 1 9604-9904
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46> 		1-42370-020-3 01 1 9604-9904
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 01 1 9905-0001
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 9905-0001
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 01 1 0002-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 0002-
8 VALVE; TIRE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 01 1 0002-
8 VALVE; TIRE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> EXC. DISC WHEEL SPARE<N79> 		1-42370-020-3 01 1 0002-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 06 1 9604-0001
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42370-020-3 06 1 0002-
8 VALVE; TIRE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> DISC WHEEL SPECIAL PAINTED LEMMERZ WHITE<THU> 		1-42370-020-3 06 1 0002-
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> 		1-43139-012-2 02 1 9604-9704
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> 		1-43139-034-0 02 1 9705-0001
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-43139-034-0 02 1 0002-
11 STEP; DISC WHEEL SIDE
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEP<W66> 		1-43139-012-2 02 1 0002-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9604-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-004-1 01 1 9604-9904
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-004-1 01 1 9604-9904
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-044-0 01 1 9905-0001
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-044-0 01 1 9905-0001
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-044-0 01 1 0002-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-044-0 01 1 0002-
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-004-1 06 1 9604-9904
31 RING; SIDE,DISC WHEEL
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-044-0 06 1 9905-0001
31 RING; SIDE,DISC WHEEL
WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-044-0 06 1 0002-
31 RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-033-1 01 1 0002-
31 RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-033-1 01 1 0002-
31 RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V> WHEEL PAINTED LIGHT ARGENT<SKD> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13<QM8> 		1-42355-033-1 06 1 0002-
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9604-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 9604-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 9604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
