Isuzu WW
▶
TRUCKS
▶
FRR
▶
11160 - FRR SCAB S.AFRICA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶
6-76 — FLOOR EQUIPMENT AND SEALING
(#63435) — 21 parça
◀
[676A] NO.2 (2 parça)

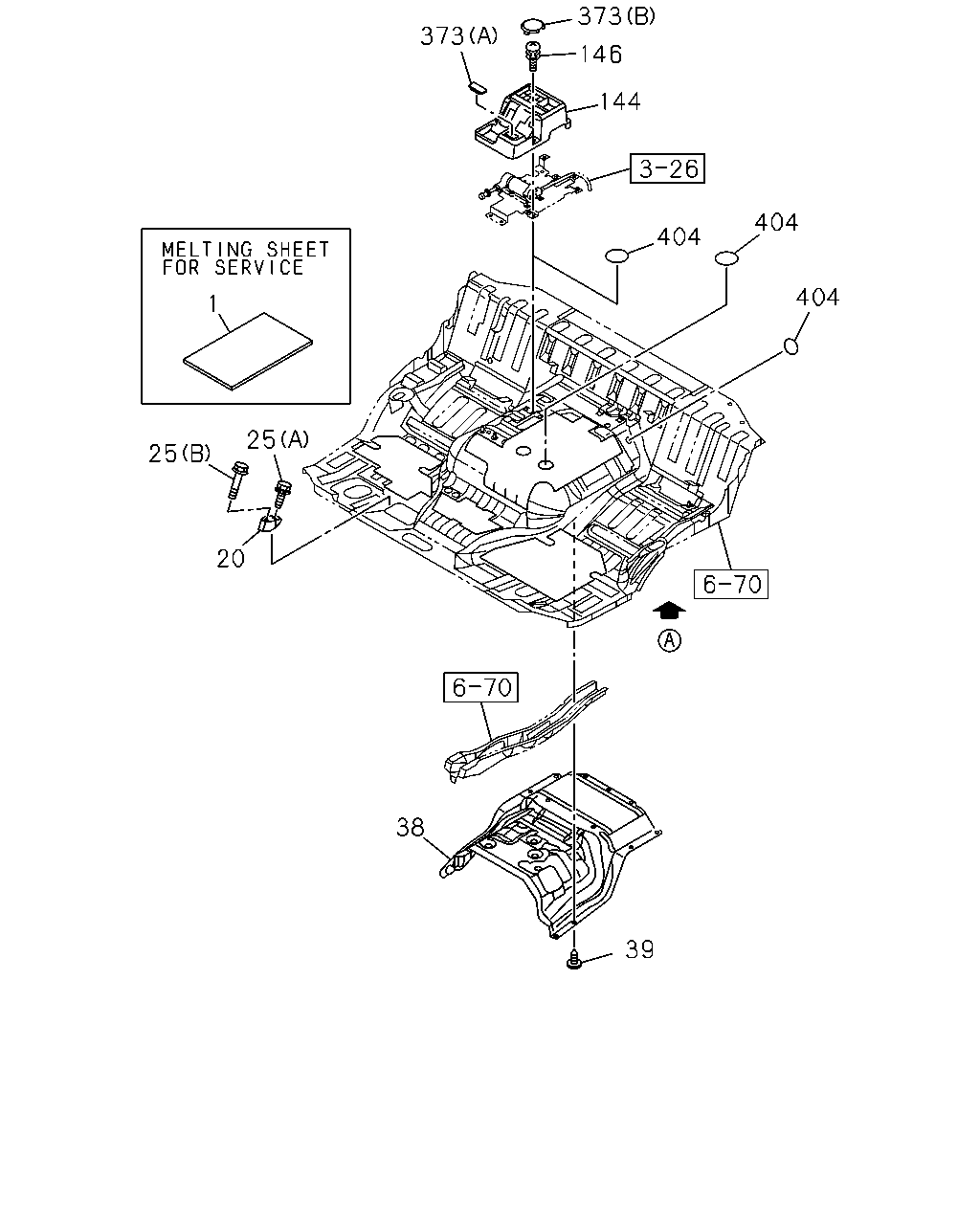

[676A] NO.1 (19 parça)
▶
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
1001-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
373
373
146
144
404
404
404
1
25
25
20
38
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY SOU
8-94262-093-0
AR
1
1001-
20
REST; FOOT
SOU
1-73907-176-1
01
1
1001-
25
SCREW; FOOT REST
(A) BOLT M6X19.5 W/LK&PL WASHER SOU
8-94279-201-0
01
1
1001-
25
SCREW; FOOT REST
(B) BOLT M6X47 SOU
8-94407-876-1
01
1
1001-
38
INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98180-258-0
01
1
1012-1310
38
INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98248-305-0
01
1
1311-
38
INSULATOR; ENG COVER
8-97586-181-6
01
1
1001-1011
38
INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>
8-97586-181-6
01
1
1012-1310
38
INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98240-136-1
01
1
1311-
39
CLIP; INSULATOR,COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4
8-97808-623-0
19
1
1012-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
19
1
1001-1011
39
CLIP; INSULATOR,COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4
8-97808-623-0
17
1
1012-
144
COVER; HAND BRK VLV
GRAY
8-97407-974-0
01
1
1001-
146
BOLT; COVER BRKT
SCREW M6X16
0-38050-616-0
04
1
1001-
373
COVER; HOLE
(B) GRAY
8-97407-951-0
04
1
1001-
373
COVER; HOLE
(A) GRAY
8-97409-339-0
01
1
1001-
404
SEAL; FLOOR,HOLE
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> OD=25 BLACK SOU
1-76798-019-0
01
1
1005-
404
SEAL; FLOOR,HOLE
OD=25 BLACK SOU
1-76798-019-0
12
1
1001-
404
SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK SOU
1-76798-019-0
02
1
1001-
