◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#63432) — 13 parça

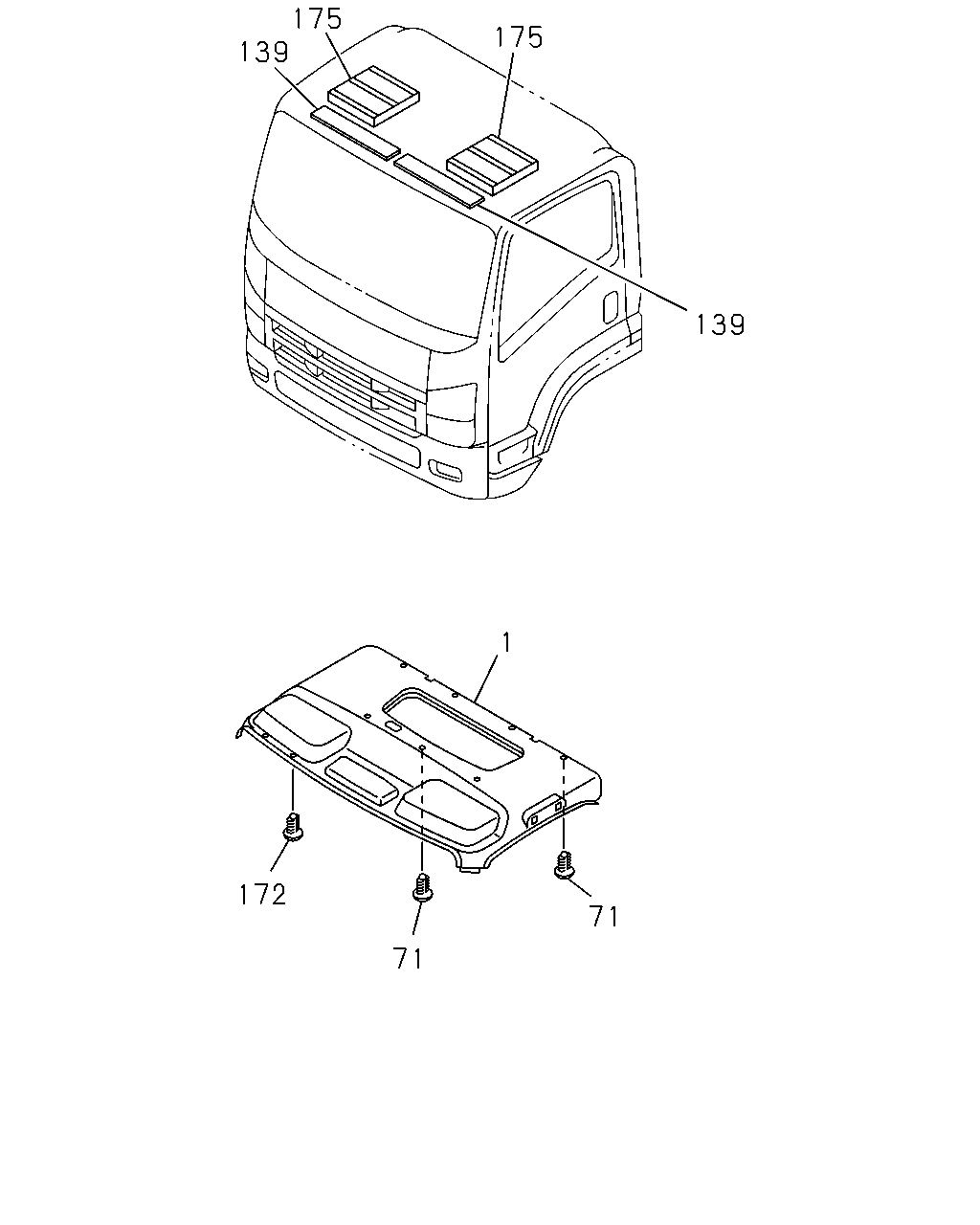

çizim 162015
175 139 175 139 1 172 71 71
BalonParca AdiParca NoAdetTipApplied Date
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31> DARK GRAY 		8-97411-888-1 01 1 1001-1306
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31> DARK GRAY 		8-97426-658-0 01 1 1307-
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-897-1 01 1 1001-1306
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-659-0 01 1 1307-
1 LINING; HD
RR VIEW MIRROR<D31> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-896-1 01 1 1001-1306
1 LINING; HD
RR VIEW MIRROR<D31> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-657-0 01 1 1307-
1 LINING; HD
EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97411-887-1 01 1 1001-1306
1 LINING; HD
EXC. RR VIEW MIRROR<D31>,HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-656-0 01 1 1307-
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1001-
139 SEAL; ROOF 8-98076-274-0 02 1 1001-1009
139 SEAL; ROOF 8-98169-116-0 02 1 1010-
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 14 1 1001-
175 CUSHION; HEAD LINING 8-98030-965-2 02 1 1001-
