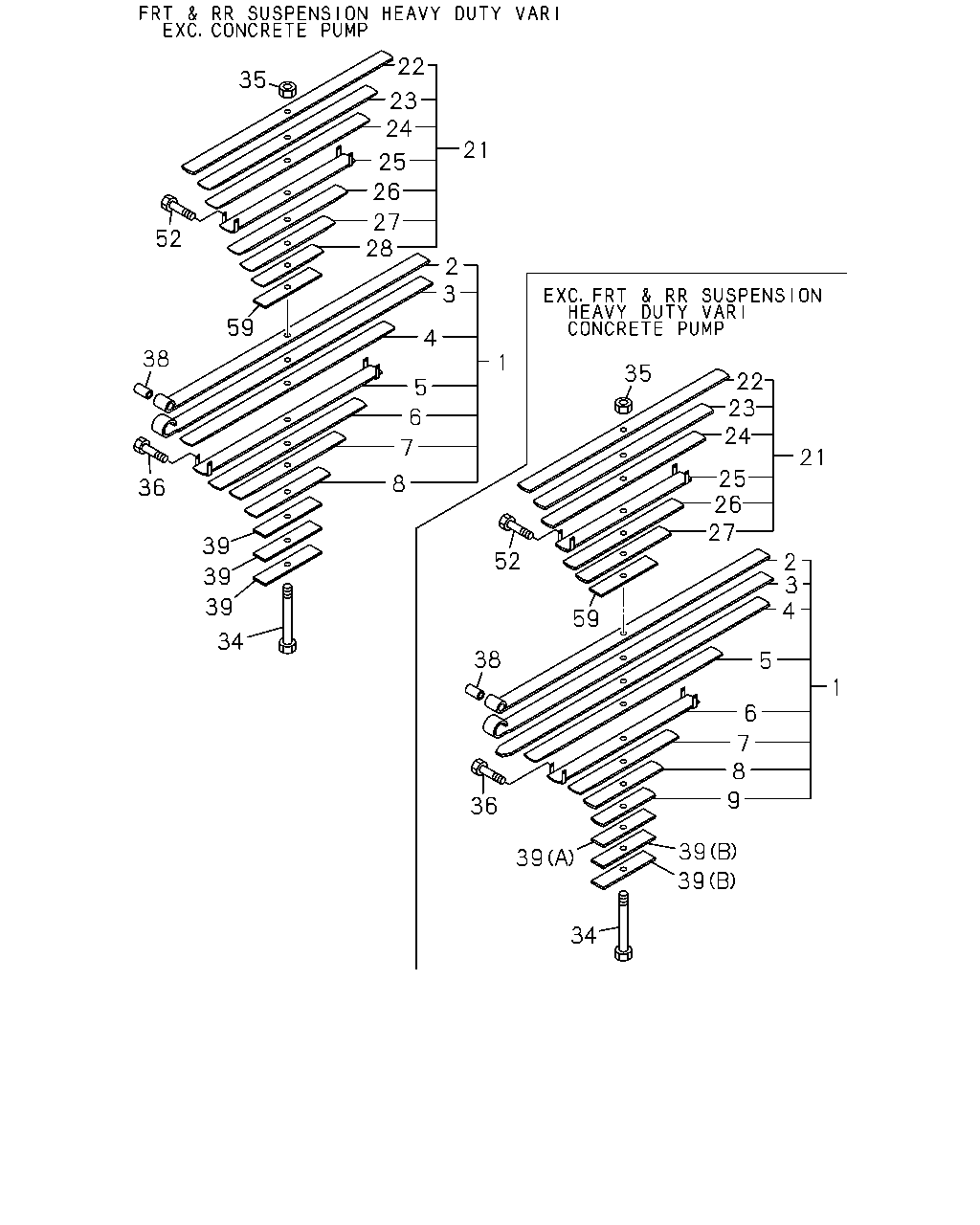

4-65 — REAR LEAF SPRING (#6343) — 119 parça

22 35 23 24 21 25 26 27 28 52 2 3 59 4 38 1 35 22 23 24 5 6 7 21 25 26 27 8 36 39 52 2 3 4 39 39 59 34 38 5 1 6 7 8 9 36 39 39 39 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-165-5	1-51310-449-3	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 1-51300-236-1	1-51310-507-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 1-51300-267-1	1-51310-568-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-165-5	1-51311-449-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51300-236-1	1-51311-507-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51300-267-1	1-51311-568-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-165-5	1-51312-449-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51300-236-1	1-51312-507-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51300-267-1	1-51312-568-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51300-165-5	1-51313-449-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51300-236-1	1-51313-507-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51300-267-1	1-51313-568-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-165-5	1-51314-449-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51300-236-1	1-51314-507-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51300-267-1	1-51314-568-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-165-5	1-51315-449-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51300-236-1	1-51315-507-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51300-267-1	1-51315-568-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51300-165-5	1-51316-449-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51300-236-1	1-51316-507-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51300-267-1	1-51316-568-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51300-165-5	1-51317-449-1	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51300-236-1	1-51317-507-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51300-236-1	1-51318-507-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-165-5	1-51340-337-2	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 1-51300-236-1	1-51340-362-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 1-51300-267-1	1-51340-389-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-165-5	1-51341-337-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 1-51300-236-1	1-51341-362-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 1-51300-267-1	1-51341-389-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-165-5	1-51342-337-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 1-51300-236-1	1-51342-362-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 1-51300-267-1	1-51342-389-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 1-51300-165-5	1-51343-337-1	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: B = 1-51300-236-1	1-51343-362-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 1-51300-267-1	1-51343-389-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-165-5	1-51344-337-2	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: B = 1-51300-236-1	1-51344-362-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 1-51300-267-1	1-51344-389-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-165-5	1-51345-337-1	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: B = 1-51300-236-1	1-51345-362-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 1-51300-267-1	1-51345-389-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: A = 1-51300-165-5	1-51346-337-1	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: B = 1-51300-236-1	1-51346-362-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: C = 1-51300-267-1	1-51346-389-0	01	1	-
28	SPRING; LEAF,NO 7,RR SUB ASM PART: A = 1-51300-165-5	1-51347-337-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=225 ASM PART: B = 1-51300-236-1	1-51356-096-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: A = 1-51300-165-5	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=190 ASM PART: C = 1-51300-267-1	1-51356-153-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-165-5	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: B = 1-51300-236-1, C = 1-51300-267-1	9-99110-116-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: B = 1-51300-236-1	1-09000-296-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-165-5, C = 1-51300-267-1	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-165-5, B = 1-51300-236-1, C = 1-51300-267-1	1-51351-010-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=12 ASM PART: B = 1-51300-236-1	1-51377-092-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN (B) ASM PART: B = 1-51300-236-1	1-51377-102-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=10 ASM PART: A = 1-51300-165-5	1-51377-118-0	03	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB ASM PART: B = 1-51300-236-1	1-09000-296-0	01	1	0207-
52	BOLT; CLIP,LEAF SPR,RR SUB ASM PART: B = 1-51300-236-1	1-09000-296-0	02	1	-0206
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-165-5, C = 1-51300-267-1	1-09000-334-0	01	1	0207-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-165-5, C = 1-51300-267-1	1-09000-334-0	02	1	-0206
59	SEAT; RR SPRING,SUB T=10 ASM PART: B = 1-51300-236-1	1-51359-018-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-165-5, C = 1-51300-267-1	1-51377-118-0	01	1	-

35 22 23 21 24 25 26 52 27 59 2 3 4 38 1 5 6 7 36 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-165-5	1-51310-449-3	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: B = 1-51300-236-1	1-51310-507-0	01	1	-
1	SPRING ASM; LEAF,RR MAIN ASM PART: C = 1-51300-267-1	1-51310-568-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-165-5	1-51311-449-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 1-51300-236-1	1-51311-507-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51300-267-1	1-51311-568-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-165-5	1-51312-449-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 1-51300-236-1	1-51312-507-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51300-267-1	1-51312-568-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51300-165-5	1-51313-449-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 1-51300-236-1	1-51313-507-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51300-267-1	1-51313-568-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-165-5	1-51314-449-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51300-236-1	1-51314-507-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51300-267-1	1-51314-568-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-165-5	1-51315-449-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 1-51300-236-1	1-51315-507-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51300-267-1	1-51315-568-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51300-165-5	1-51316-449-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51300-236-1	1-51316-507-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51300-267-1	1-51316-568-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-165-5	1-51340-337-2	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: B = 1-51300-236-1	1-51340-362-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: C = 1-51300-267-1	1-51340-389-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-165-5	1-51341-337-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: B = 1-51300-236-1	1-51341-362-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: C = 1-51300-267-1	1-51341-389-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-165-5	1-51342-337-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: B = 1-51300-236-1	1-51342-362-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: C = 1-51300-267-1	1-51342-389-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 1-51300-165-5	1-51343-337-1	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: B = 1-51300-236-1	1-51343-362-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: C = 1-51300-267-1	1-51343-389-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: A = 1-51300-165-5	1-51344-337-2	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: B = 1-51300-236-1	1-51344-362-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB ASM PART: C = 1-51300-267-1	1-51344-389-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-165-5	1-51345-337-1	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: B = 1-51300-236-1	1-51345-362-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: C = 1-51300-267-1	1-51345-389-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: A = 1-51300-165-5	1-51346-337-1	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: B = 1-51300-236-1	1-51346-362-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: C = 1-51300-267-1	1-51346-389-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=225 ASM PART: B = 1-51300-236-1	1-51356-096-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=235 ASM PART: A = 1-51300-165-5	1-51356-140-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=190 ASM PART: C = 1-51300-267-1	1-51356-153-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: A = 1-51300-165-5	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M16 ASM PART: B = 1-51300-236-1, C = 1-51300-267-1	9-99110-116-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: B = 1-51300-236-1	1-09000-296-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X117 ASM PART: A = 1-51300-165-5, C = 1-51300-267-1	1-09000-334-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 1-51300-165-5, B = 1-51300-236-1, C = 1-51300-267-1	1-51351-010-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB ASM PART: B = 1-51300-236-1	1-09000-296-0	01	1	0207-
52	BOLT; CLIP,LEAF SPR,RR SUB ASM PART: B = 1-51300-236-1	1-09000-296-0	02	1	-0206
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-165-5, C = 1-51300-267-1	1-09000-334-0	01	1	0207-
52	BOLT; CLIP,LEAF SPR,RR SUB M10X117 ASM PART: A = 1-51300-165-5, C = 1-51300-267-1	1-09000-334-0	02	1	-0206
59	SEAT; RR SPRING,SUB T=10 ASM PART: B = 1-51300-236-1	1-51359-018-0	01	1	-
59	SEAT; RR SPRING,SUB T=10 ASM PART: A = 1-51300-165-5, C = 1-51300-267-1	1-51377-118-0	01	1	-
