4-80 — ROAD WHEEL (#63414) — 30 parça

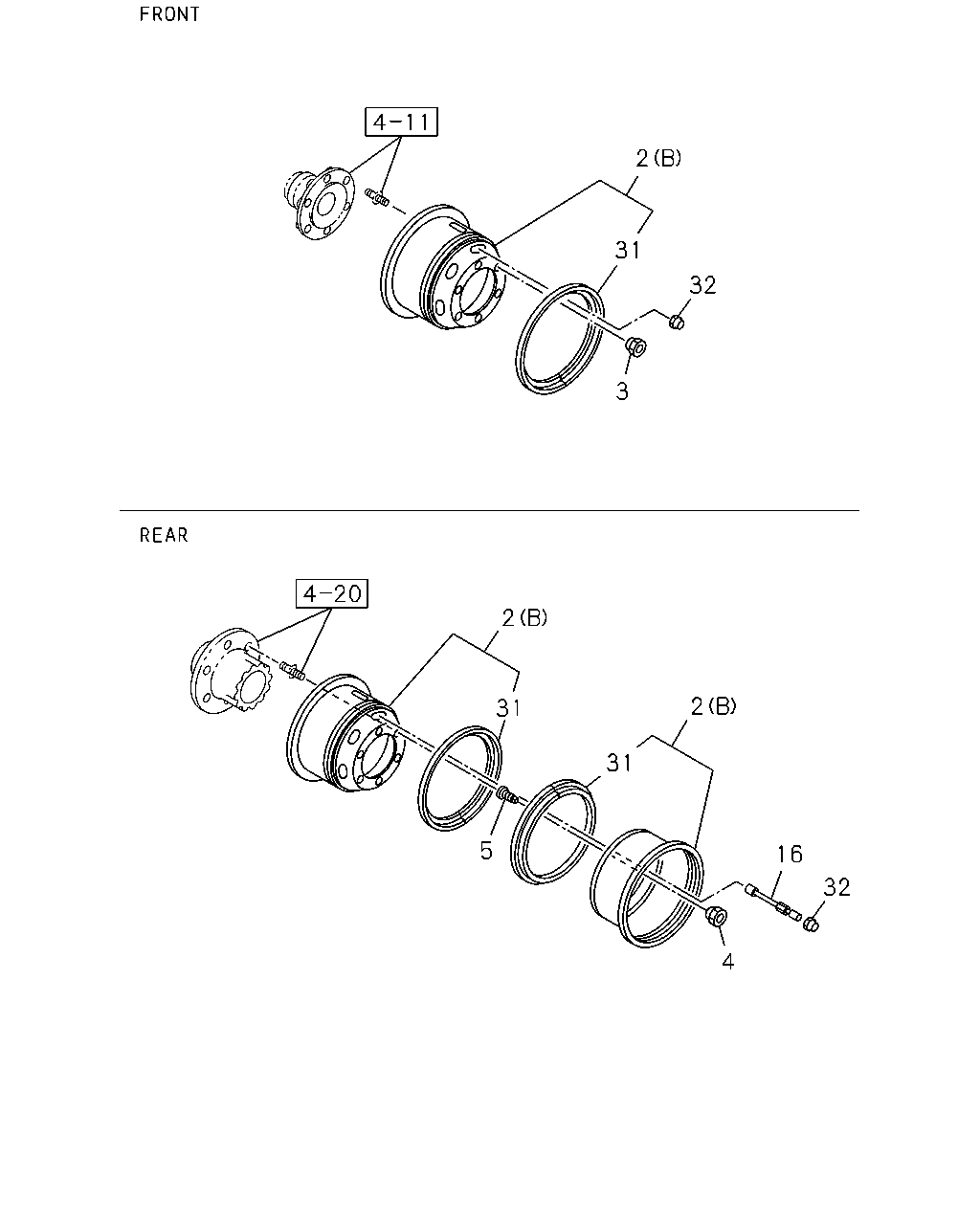

2 31 32 3 2 2 31 31 5 16 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE SOU	1-42350-417-0	01	1	1001-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) SPARE	1-42350-767-0	01	1	1001-
2	WHEEL; DISC DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE SOU	1-42350-417-0	06	1	1001-
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) FRONT,REAR	1-42350-767-0	06	1	1001-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) M24 LH THREAD SOU	1-42334-022-3	06	1	1001-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) M24 SOU	1-42333-022-3	06	1	1001-
4	NUT; WHEEL,RR AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) M30 LH THREAD SOU	8-97359-810-0	06	1	1001-
4	NUT; WHEEL,RR AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) M30 RH THREAD SOU	8-97359-809-0	06	1	1001-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) OUTER M30,INNER M20 LH THREAD SOU	8-97359-806-0	06	1	1001-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) OUTER M30,INNER M20 RH THREAD SOU	8-97359-805-0	06	1	1001-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) L=115	1-42370-015-2	02	1	1001-1003
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) L=115	8-98167-051-0	02	1	1004-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) SPARE 16X6.00GS STAMP, BLACK	1-42355-015-2	01	1	1001-
31	RING; SIDE,DISC WHEEL DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) FRONT,REAR 16X6.00GS STAMP, BLACK	1-42355-015-2	06	1	1001-
32	CAP; VALVE DISC WHEEL SPARE<N79> SOU	1-42374-001-0	07	1	1001-
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79> SOU	1-42374-001-0	06	1	1001-

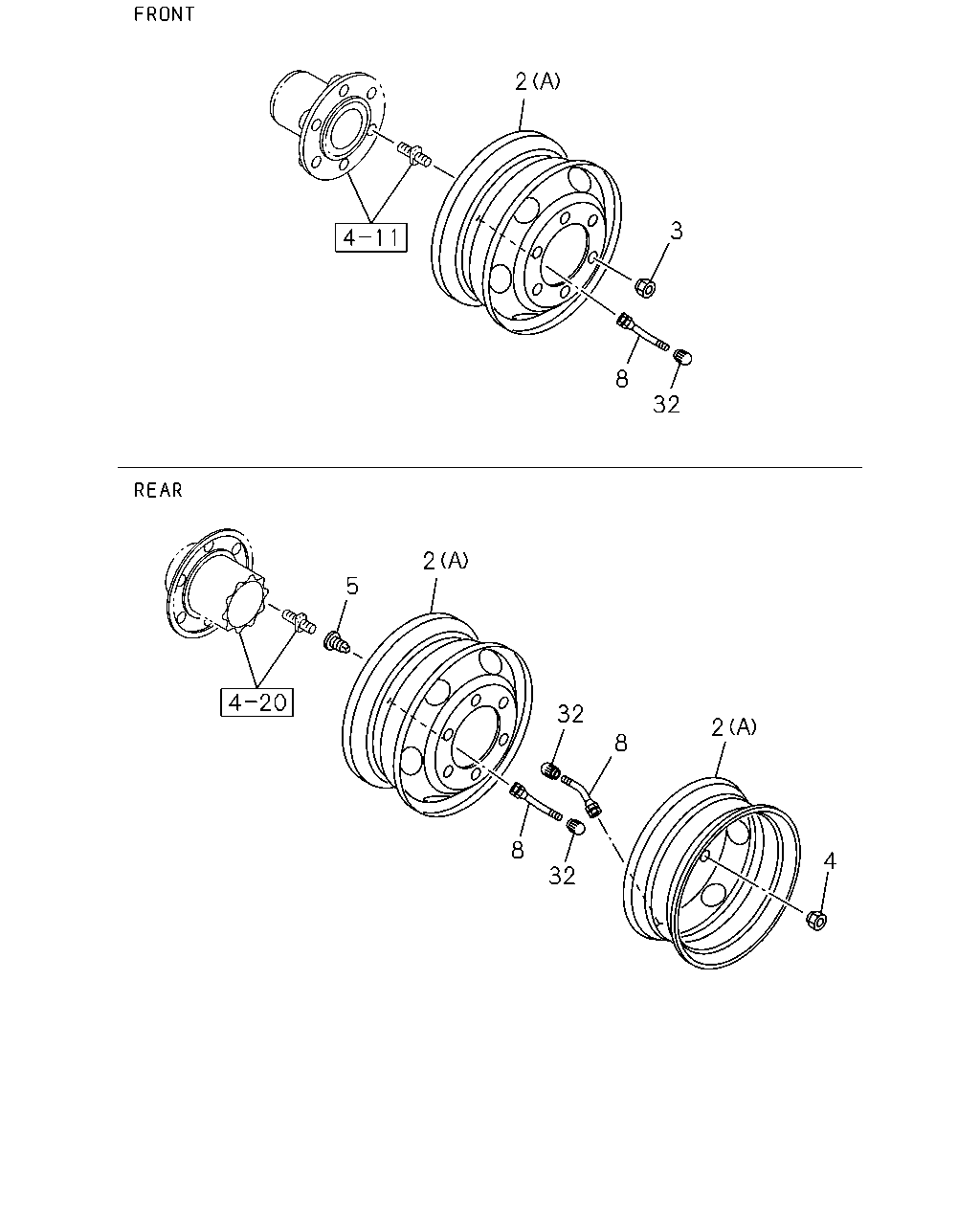

2 3 8 32 2 5 32 2 8 8 4 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE SOU	1-42350-417-0	01	1	1001-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) SPARE	1-42350-767-0	01	1	1001-
2	WHEEL; DISC DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) (B) FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE SOU	1-42350-417-0	06	1	1001-
2	WHEEL; DISC DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) (A) FRONT,REAR	1-42350-767-0	06	1	1001-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) M24 LH THREAD SOU	1-42334-022-3	06	1	1001-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) M24 SOU	1-42333-022-3	06	1	1001-
4	NUT; WHEEL,RR AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) M30 LH THREAD SOU	8-97359-810-0	06	1	1001-
4	NUT; WHEEL,RR AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) M30 RH THREAD SOU	8-97359-809-0	06	1	1001-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) OUTER M30,INNER M20 LH THREAD SOU	8-97359-806-0	06	1	1001-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC),DISC WHEEL 6STUD 6.00GSX16 135-9(SG7) OUTER M30,INNER M20 RH THREAD SOU	8-97359-805-0	06	1	1001-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE	1-42370-007-1	01	1	1001-
8	VALVE; TIRE DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR	1-42370-007-1	06	1	1001-
32	CAP; VALVE DISC WHEEL SPARE<N79> SOU	1-42374-001-0	07	1	1001-
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79> SOU	1-42374-001-0	06	1	1001-
