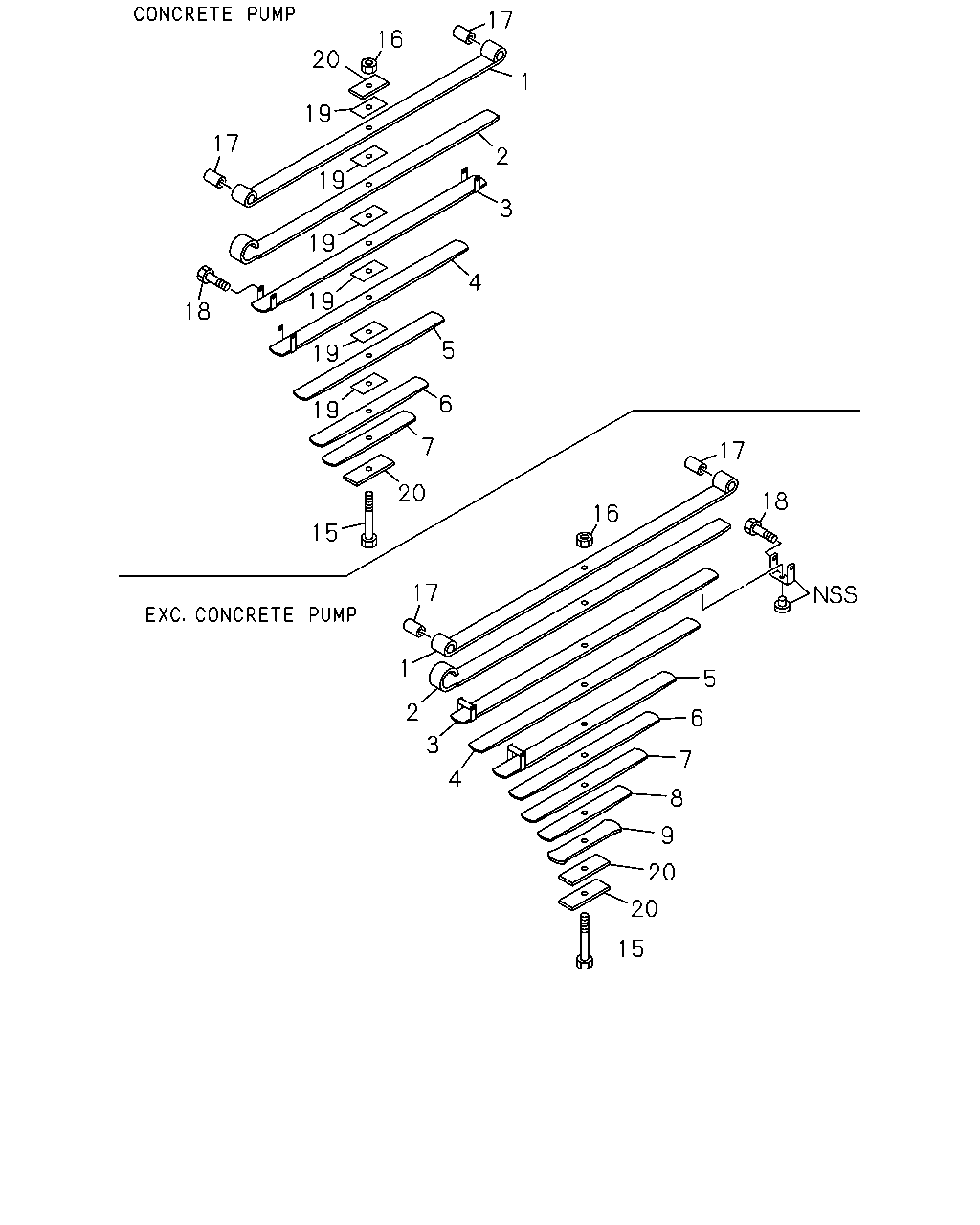

4-55 — FRONT LEAF SPRING (#6341) — 36 parça

17 16 20 1 19 17 2 19 3 19 4 19 18 5 19 6 19 7 17 20 18 16 15 17 1 5 2 6 3 7 4 8 9 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-202-0	1-51131-202-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-207-0	1-51131-207-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-245-0	1-51131-245-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-202-0	1-51132-202-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-207-0	1-51132-207-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-245-0	1-51132-245-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-202-0	1-51133-202-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-207-0	1-51133-207-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-245-0	1-51133-245-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-202-0	1-51134-202-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-207-0	1-51134-207-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-245-0	1-51134-245-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51130-202-0	1-51135-202-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: B = 1-51130-207-0	1-51135-207-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-245-0	1-51135-245-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-202-0	1-51136-202-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-207-0	1-51136-207-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-245-0	1-51136-245-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-202-0	1-51137-202-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-207-0	1-51137-207-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-245-0	1-51137-245-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51130-207-0	1-51138-207-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51130-245-0	1-51138-245-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51130-207-0	1-51139-207-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51130-245-0	1-51139-245-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=150 ASM PART: A = 1-51130-202-0	1-51156-328-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: B = 1-51130-207-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: C = 1-51130-245-0	1-51156-357-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-202-0, B = 1-51130-207-0, C = 1-51130-245-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: A = 1-51130-202-0, B = 1-51130-207-0, C = 1-51130-245-0	1-51351-009-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X97 ASM PART: B = 1-51130-207-0, C = 1-51130-245-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT M10X99 ASM PART: A = 1-51130-202-0	1-09000-328-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-202-0	1-51177-071-0	06	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: B = 1-51130-207-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: C = 1-51130-245-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT T=12 ASM PART: A = 1-51130-202-0	1-51177-107-0	02	1	-
