0-52 — OIL AND VACUUM PIPING; ENGINE (#634) — 14 parça

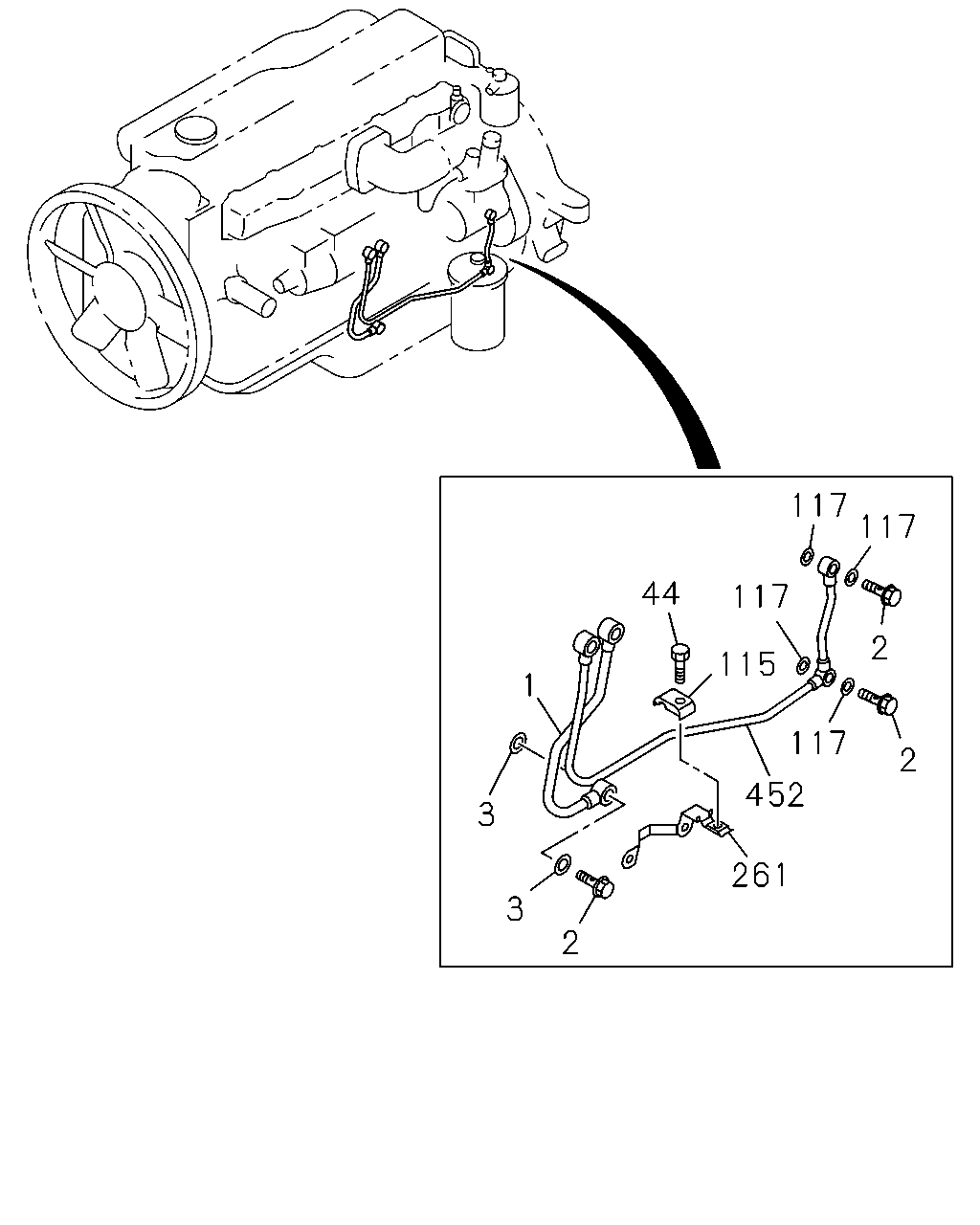

çizim 92814
117 117 44 117 2 115 1 117 2 452 3 261 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 8-94399-415-0 01 1 9202-9307 ● ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9308- ● ●
2 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 9202- ● ●
2 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 9202- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 9202- ● ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28210-622-0 01 1 9202-9204 ● ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28280-622-0 01 1 9205-9305 ● ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 01 1 9306- ● ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9202- ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9202- ● ●
261 BRACKET; CLIP,OIL PIPE 8-94396-695-0 01 1 9202- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94399-472-0 01 1 9202-9501 ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9502- ● ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
EXC. PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94397-462-0 01 1 9202- ● ●
