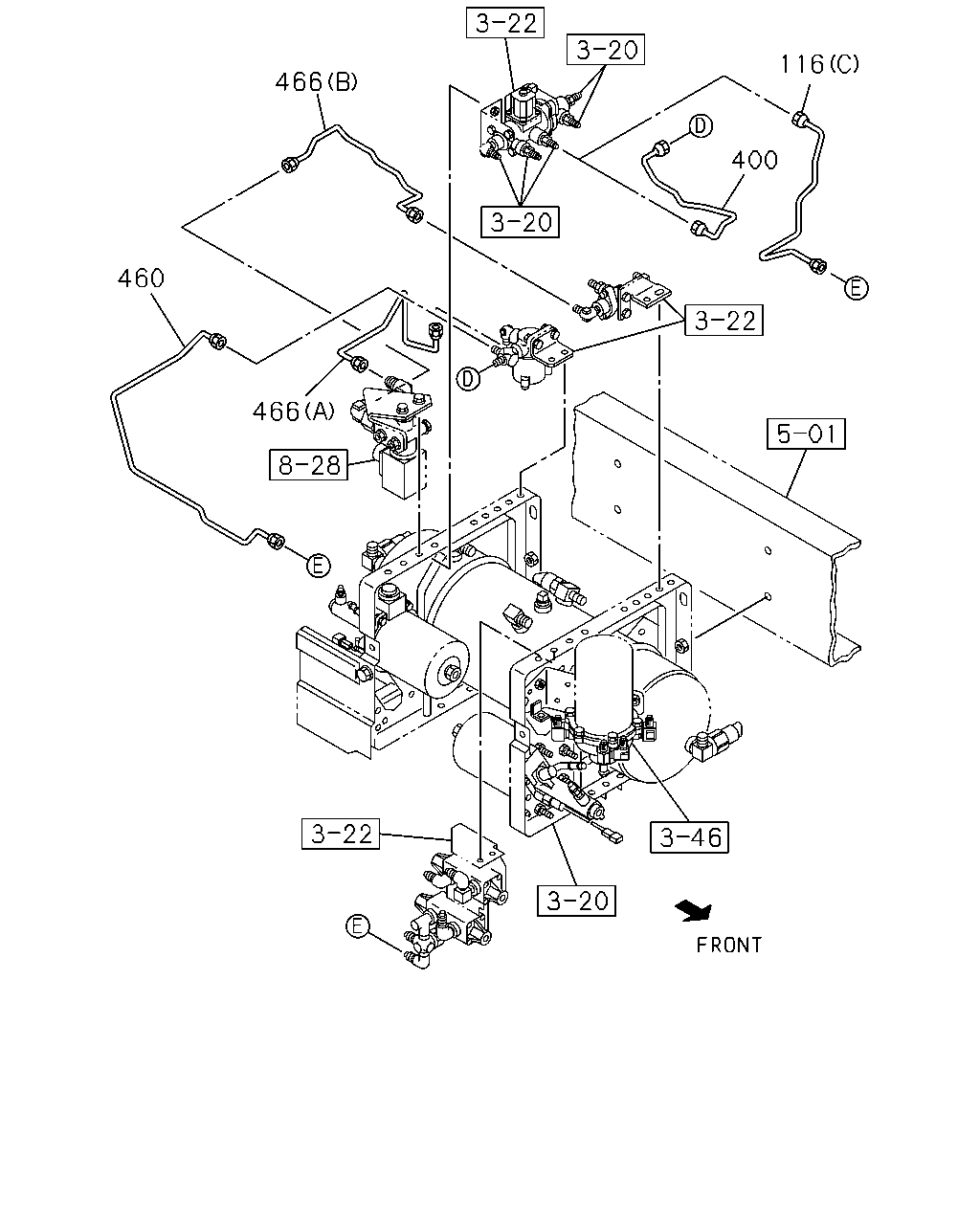

3-70 — BRAKE PIPING; AIR,AIR MASTER (#63394) — 79 parça

116 466 400 460 466

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	PIPE; AIR,PROTECTION VLV (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1001-
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1001-
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1001-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1001-
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1001-
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	1001-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	1001-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1001-

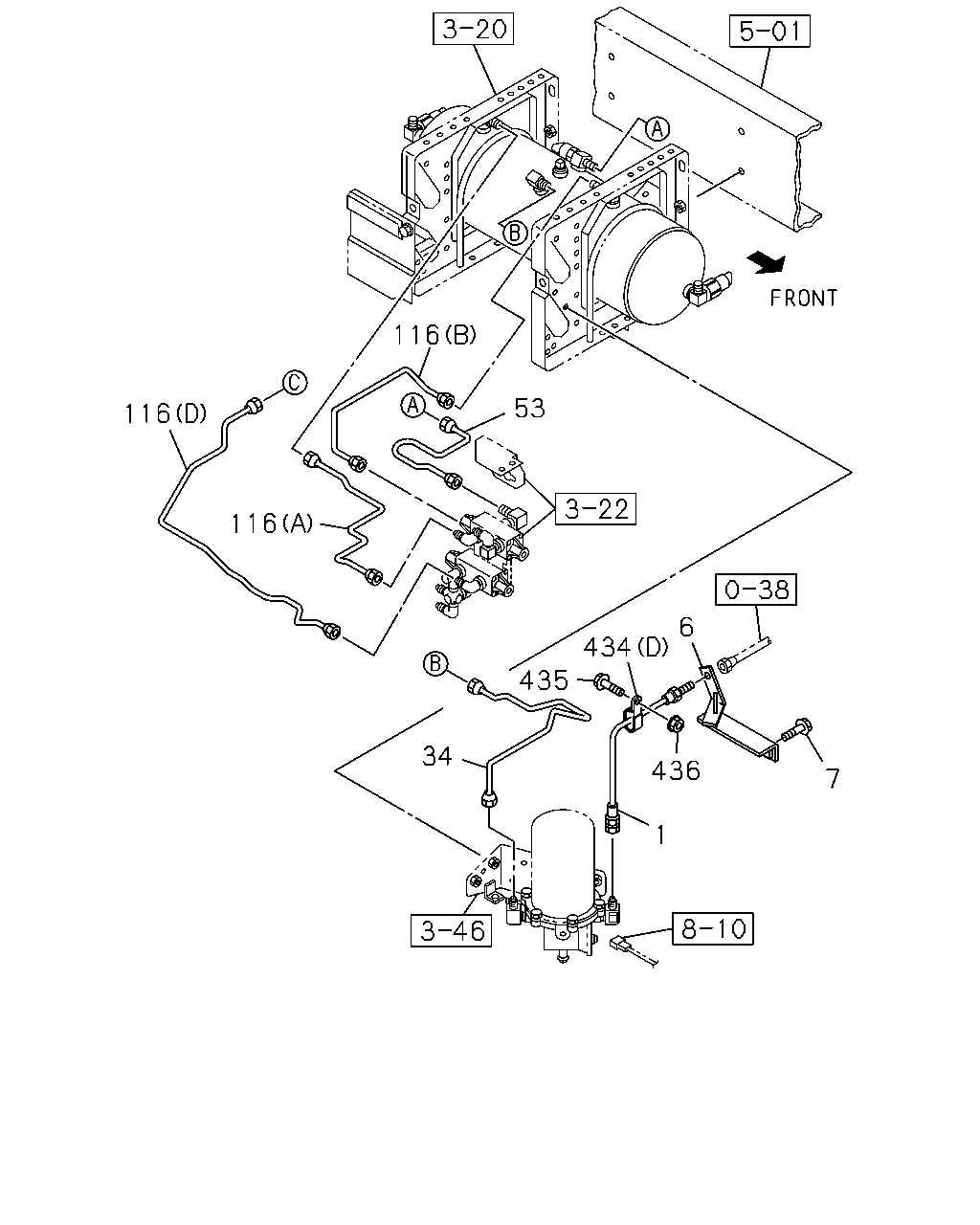

116 53 116 116 6 434 435 34 436 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	1001-
6	BRACKET; FLEX HOSE,AIR TANK	8-98066-733-1	01	1	1001-1205
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1206-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	1001-
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	1001-
116	PIPE; AIR,PROTECTION VLV (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1001-
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1001-
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1001-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1001-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1001-
434	CLIP (A) L=350	1-09707-183-0	01	1	1001-1011
434	CLIP (A) L=350	1-09707-183-0	08	1	1012-
434	CLIP (A) L=350	1-09707-183-0	05	1	1001-1011
434	CLIP (A) L=350	1-09707-183-0	01	1	1012-
434	CLIP (A) L=350	1-09707-183-0	08	1	1001-1011
434	CLIP (A) L=350	1-09707-183-0	05	1	1012-1202
434	CLIP (A) L=350	1-09707-183-0	04	1	1203-
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	1001-
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1001-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-

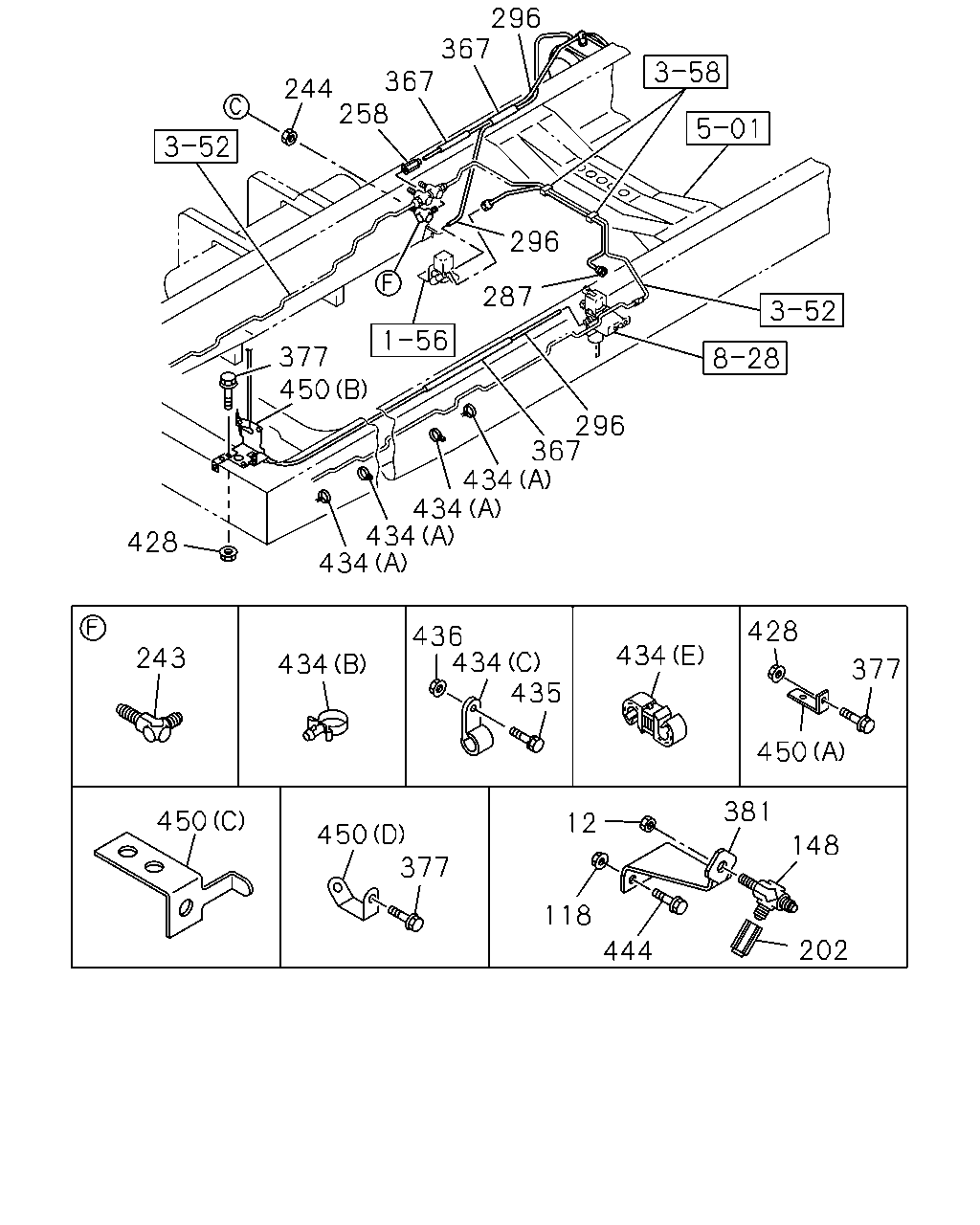

296 367 367 244 258 296 287 377 450 296 367 434 434 434 434 428 428 436 434 435 434 243 434 377 450 381 450 12 450 377 148 118 202 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12	0-91111-512-0	01	1	1001-
118	NUT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE SOU	0-91180-210-0	02	1	1001-
148	CONNECTOR; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY SOU	1-09654-059-2	01	1	1001-
202	ADAPTER EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1001-
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	1001-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1001-
258	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1001-
287	PIPE; AIR,MAG VLV PTO CONTROL<SV6> L=830 SERVICED BY L=900	1-47428-813-0	01	1	1001-
287	PIPE; AIR,MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=830 SERVICED BY L=900	1-47428-813-0	01	1	1001-
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1001-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1001-
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	1001-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1001-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1001-
377	BOLT; BRKT FIX M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
377	BOLT; BRKT FIX M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
377	BOLT; BRKT FIX M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-
377	BOLT; BRKT FIX M10X30 FLANGE SOU	0-28651-030-0	03	1	1001-1011
377	BOLT; BRKT FIX PTO CONTROL<SV6> M10X30 FLANGE SOU	0-28651-030-0	03	1	1012-
377	BOLT; BRKT FIX EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE SOU	0-28651-030-0	03	1	1012-
381	BRACKET EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> SOU	8-98119-700-0	01	1	1001-
428	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
428	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	03	1	1001-1011
428	NUT; BRKT PTO CONTROL<SV6> M10 FLANGE SOU	0-91180-210-0	03	1	1012-
428	NUT; BRKT EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE SOU	0-91180-210-0	03	1	1012-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1001-
434	CLIP (A) L=350	1-09707-183-0	01	1	1001-1011
434	CLIP (A) L=350	1-09707-183-0	08	1	1012-
434	CLIP (A) L=350	1-09707-183-0	05	1	1001-1011
434	CLIP (A) L=350	1-09707-183-0	01	1	1012-
434	CLIP (A) L=350	1-09707-183-0	08	1	1001-1011
434	CLIP (A) L=350	1-09707-183-0	05	1	1012-1202
434	CLIP (A) L=350	1-09707-183-0	04	1	1203-
434	CLIP (E) ID=10 & 15	1-09709-279-1	01	1	1001-
434	CLIP (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1001-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
444	BOLT; UNION EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-
450	BRACKET; CLIP (A)	1-47477-694-0	01	1	1001-
450	BRACKET; CLIP 4HK1-TCS ENG(RJS) (B)	8-98070-479-0	01	1	1001-1011
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1012-
450	BRACKET; CLIP (C)	8-98100-216-1	03	1	1001-
450	BRACKET; CLIP (D)	8-98117-686-0	02	1	1001-
