Isuzu WW
▶
TRUCKS
▶
FRR
▶
11160 - FRR SCAB S.AFRICA
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#63392) — 29 parça
◀

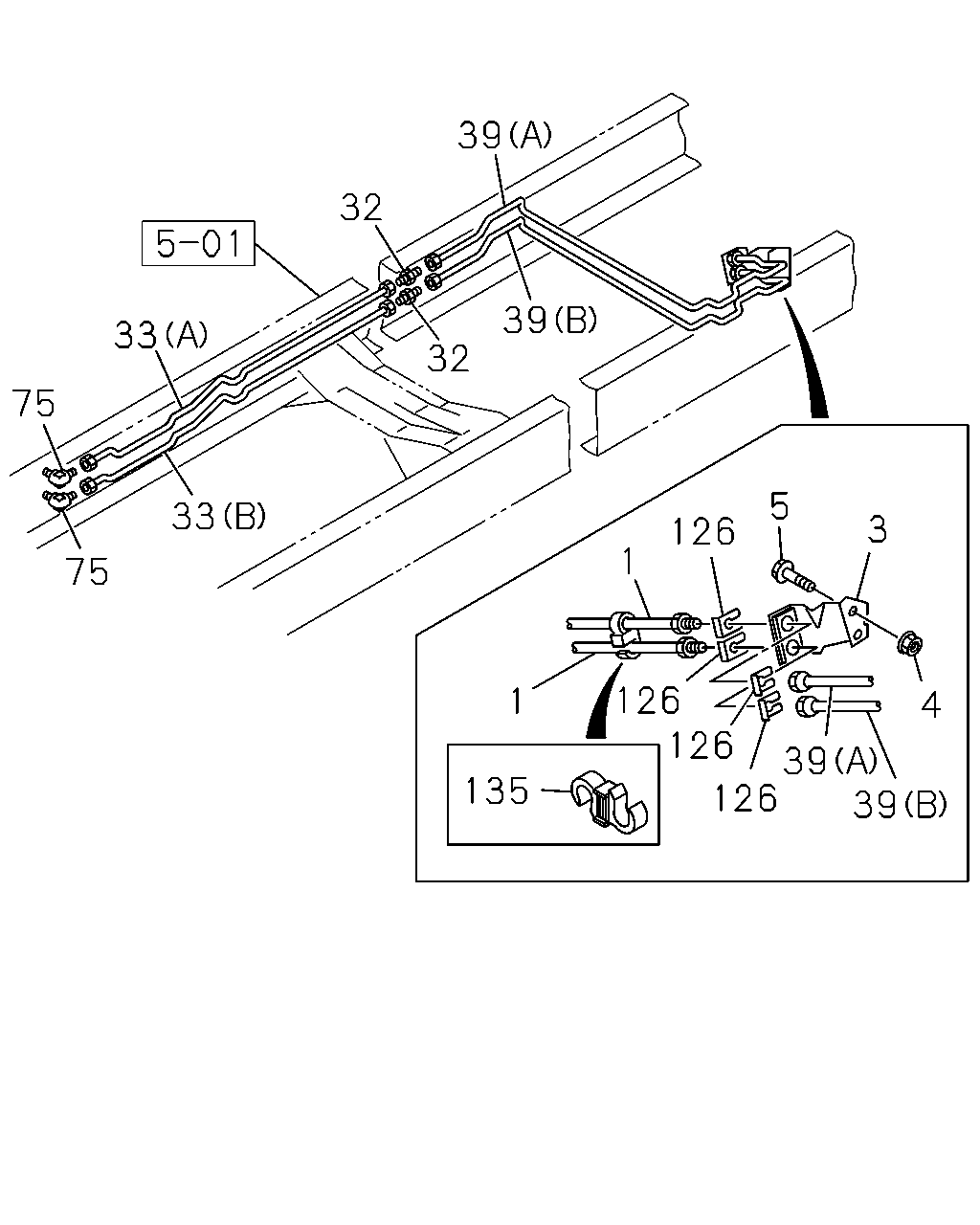

[355A] FRAME SIDE (14 parça)
[355A] AIR TANK SIDE (9 parça)

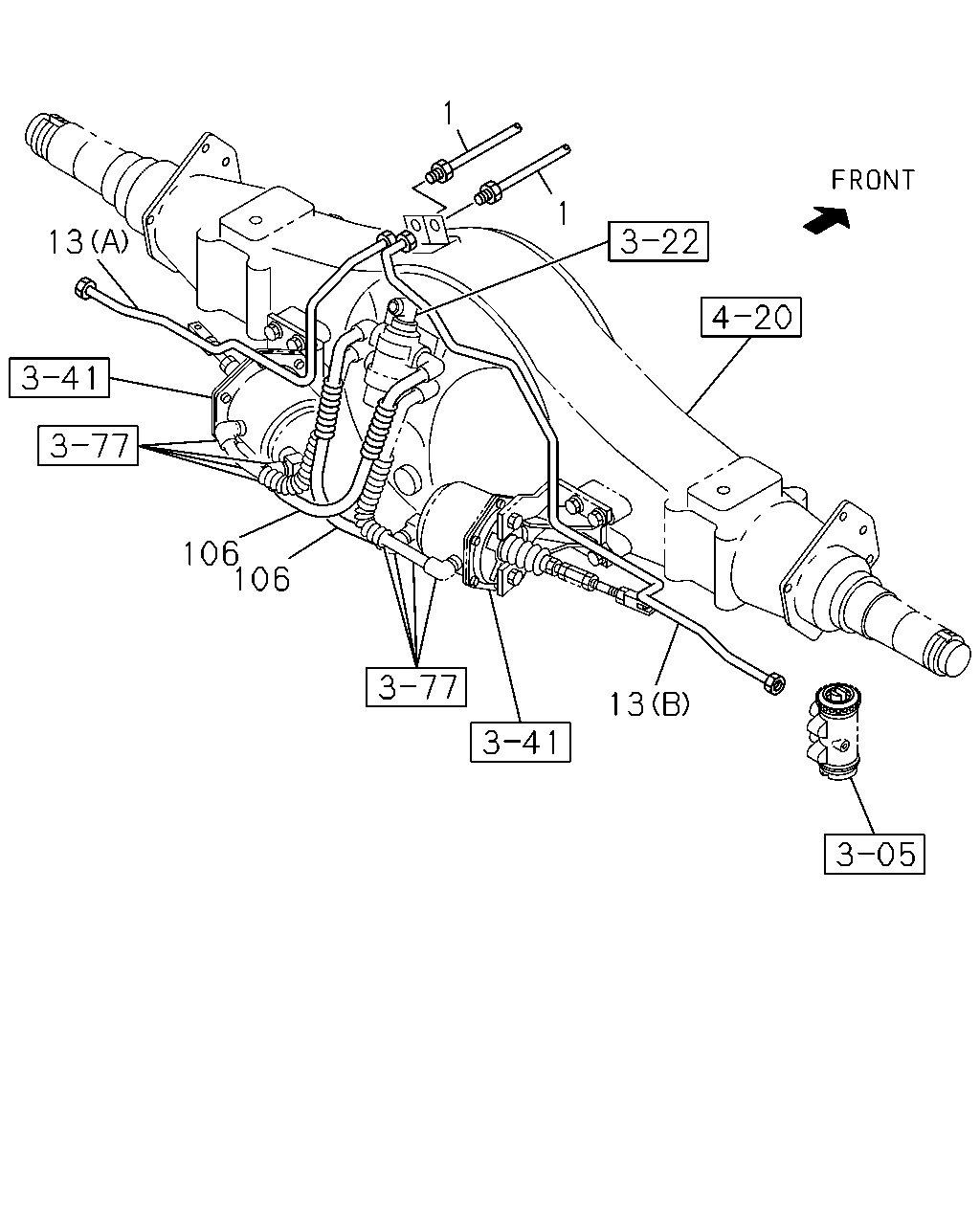

[355A] REAR AXLE SIDE (6 parça)
▶
39
32
39
33
32
75
5
33
3
126
1
75
126
126
1
4
39
126
39
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1001-
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1001-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1001-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1001-
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=1970
8-98071-244-0
01
1
1001-1107
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=1963
8-98183-298-0
01
1
1108-
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=1906
8-98071-245-0
01
1
1001-1107
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=1903
8-98183-299-0
01
1
1108-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710
8-98106-485-0
01
1
1001-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772
8-98106-486-0
01
1
1001-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1001-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1001-
135
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1001-
33
75
33
46
75
46
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=1970
8-98071-244-0
01
1
1001-1107
33
PIPE; OIL,UNION TO UNION
(A) LH LINE L=1963
8-98183-298-0
01
1
1108-
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=1906
8-98071-245-0
01
1
1001-1107
33
PIPE; OIL,UNION TO UNION
(B) RH LINE L=1903
8-98183-299-0
01
1
1108-
46
NUT; UNION,OIL PIPE
M10 H=8 SOU
1-09400-029-0
02
1
1001-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1001-
138
PIPE; HYDRAULIC UNIT
(C) L=296
8-98066-107-0
01
1
1001-
138
PIPE; HYDRAULIC UNIT
(A) LH LINE L=657
8-98012-129-0
01
1
1001-
138
PIPE; HYDRAULIC UNIT
(B) RH LINE L=703
8-98012-146-0
01
1
1001-
1
1
13
106
106
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1001-
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98107-929-0
01
1
1001-1409
13
PIPE; BRK,RR AXLE
(A) LH LINE
8-98281-558-0
01
1
1410-
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98107-928-0
01
1
1001-1409
13
PIPE; BRK,RR AXLE
(B) RH LINE
8-98281-557-0
01
1
1410-
106
TUBE; NYLON
8-98061-971-0
02
1
1001-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
