Isuzu WW
▶
TRUCKS
▶
FRR
▶
11160 - FRR SCAB S.AFRICA
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#63390) — 44 parça
◀

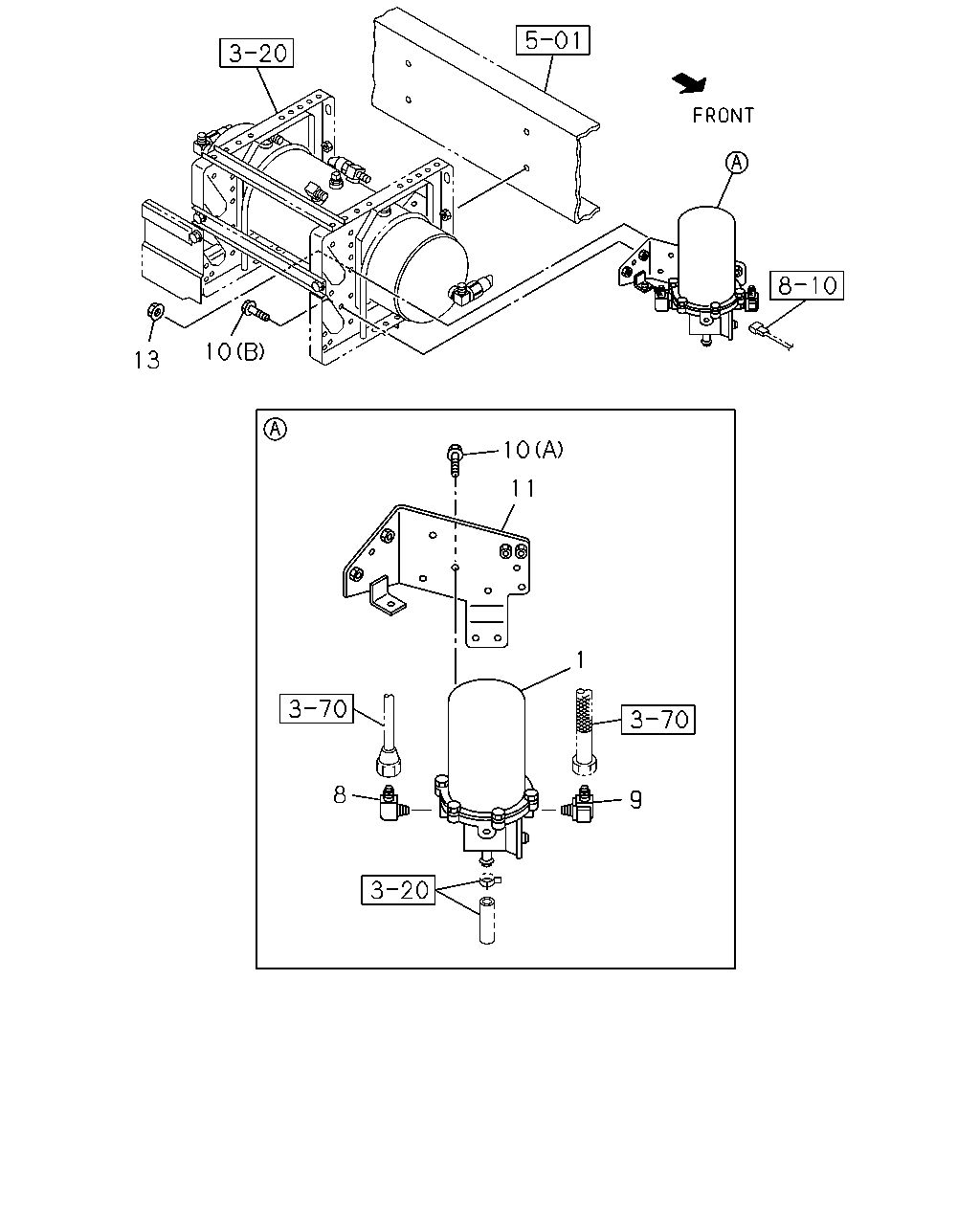

[346A] FIXING (8 parça)

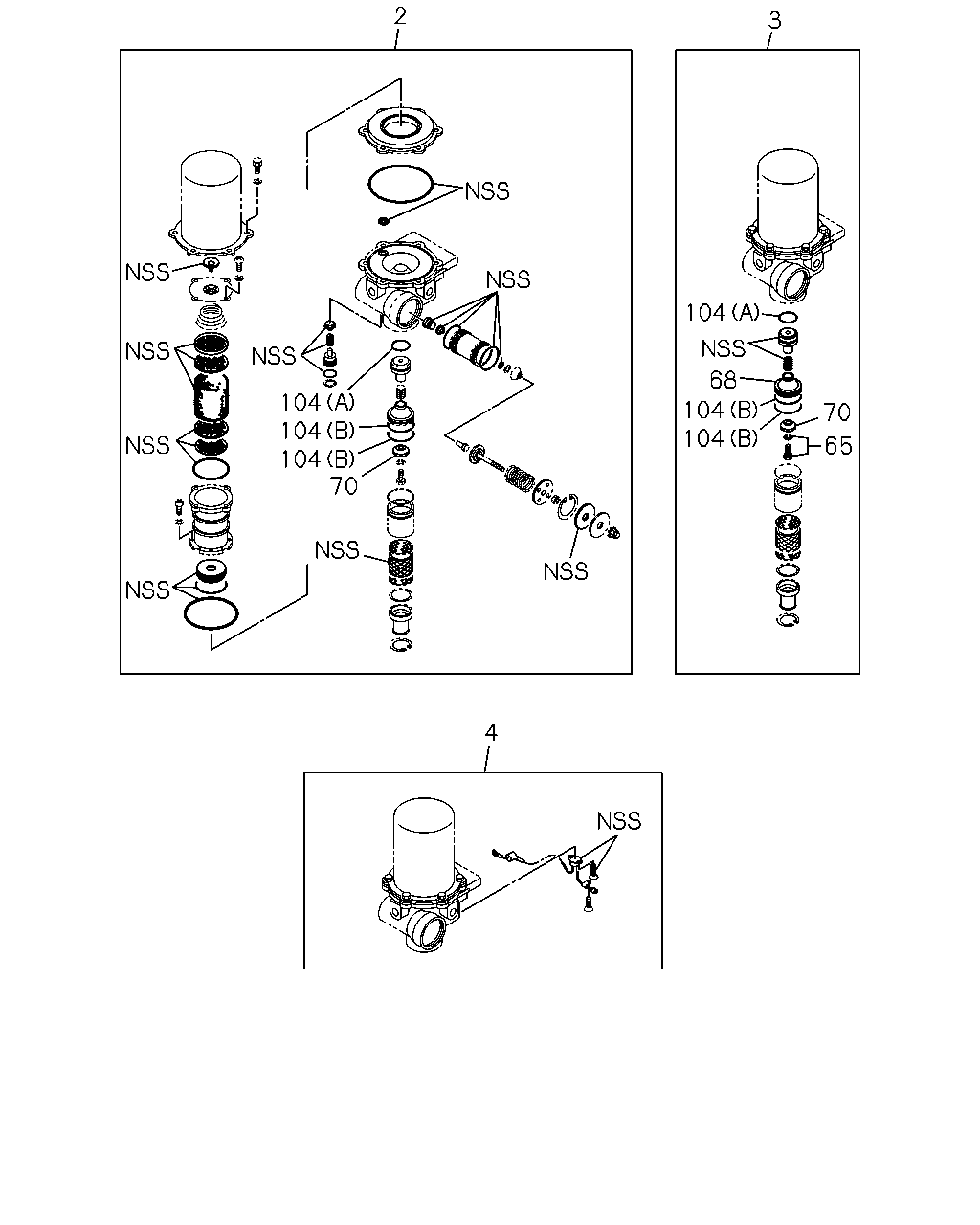

[346A] THERMOSTAT,PISTON AND REPAIR KIT (11 parça)

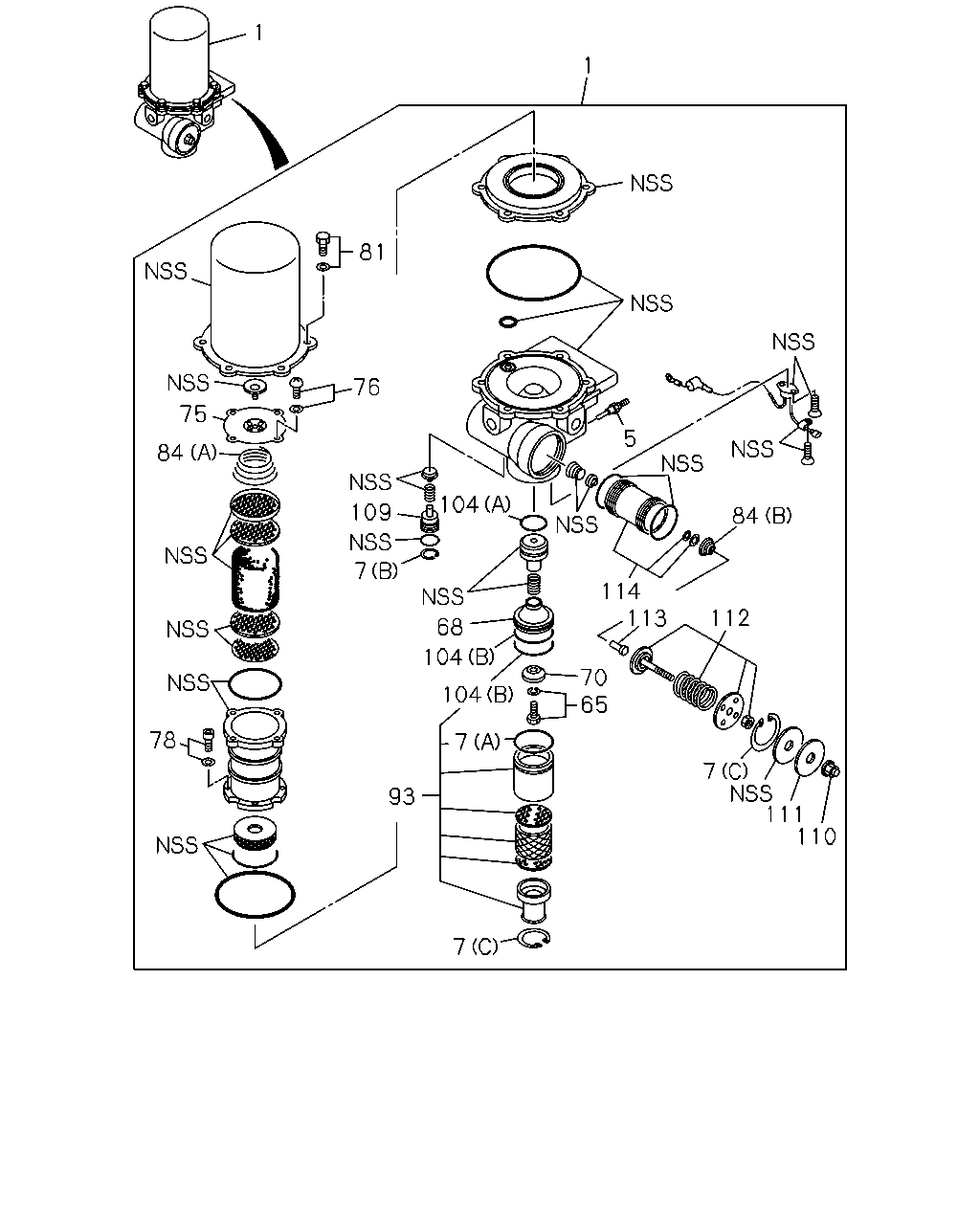

[346A] COMPONENT (25 parça)
▶
10
13
10
11
1
8
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-370-2
01
1
1001-1211
1
DRYER; AIR
8-98225-285-0
01
1
1212-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW SOU
1-09650-443-0
01
1
1001-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1001-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1001-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE
0-28051-025-0
03
1
1001-
11
BRACKET; AIR DRYER
SOU
8-98044-548-4
01
1
1001-
13
NUT; AIR DRYER
M8 FLANGE SOU
0-91180-108-0
02
1
1001-
2
3
104
104
104
70
104
68
104
70
104
65
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
SOU
1-85576-457-0
01
1
1001-1211
2
REPAIR KIT; AIR DRYER
SOU
8-98226-323-0
01
1
1212-
3
PISTON KIT; AIR DRYER
SOU
1-85576-383-0
01
1
1001-1211
3
PISTON KIT; AIR DRYER
SOU
8-98226-322-0
01
1
1212-
4
THERMOSTAT KIT; AIR DRYER
SOU
1-85576-443-0
01
1
1001-
65
BOLT; PURGE VLV
SOU
1-48199-517-0
01
1
1001-
68
BODY; VALVE
SOU
1-48199-515-0
01
1
1001-
70
VALVE; AIR DRYER
SOU
1-48199-504-0
01
1
1001-
104
GASKET
(A) SOU
1-48199-495-0
01
1
1001-1211
104
GASKET
(A) SOU
8-98226-321-0
01
1
1212-
104
GASKET
(B) SOU
1-48199-496-0
02
1
1001-
7
93
78
84
75
1
81
76
109
7
68
104
104
7
65
113
70
114
104
5
84
112
7
111
110
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-370-2
01
1
1001-1211
1
DRYER; AIR
8-98225-285-0
01
1
1212-
5
HEATER ASM; AIR DRYER
SOU
1-48199-530-0
01
1
1001-
7
RING; SNAP,AIR DRYER
(C) SOU
1-48199-520-0
02
1
1001-
7
RING; SNAP,AIR DRYER
(B) SOU
1-48199-529-0
01
1
1001-
7
RING; SNAP,AIR DRYER
(A) SOU
1-48199-579-0
01
1
1001-
65
BOLT; PURGE VLV
SOU
1-48199-517-0
01
1
1001-
68
BODY; VALVE
SOU
1-48199-515-0
01
1
1001-
70
VALVE; AIR DRYER
SOU
1-48199-504-0
01
1
1001-
75
COVER; CASE,AIR DRYER
SOU
1-48199-427-0
01
1
1001-
76
BOLT; COVER,AIR DRYER
SOU
1-48199-412-0
04
1
1001-
78
BOLT; OIL FILTER,AIR DRYER
SOU
1-48199-417-0
04
1
1001-
81
BOLT; CASE,AIR DRYER
SOU
1-48199-436-0
06
1
1001-
84
SPRING; AIR DRYER
(A) SOU
1-48199-425-0
01
1
1001-
84
SPRING; AIR DRYER
(B) SOU
1-48199-523-0
01
1
1001-
93
SILENCER; AIR DRYER
SOU
1-48199-619-0
01
1
1001-
104
GASKET
(A) SOU
1-48199-495-0
01
1
1001-1211
104
GASKET
(A) SOU
8-98226-321-0
01
1
1212-
104
GASKET
(B) SOU
1-48199-496-0
02
1
1001-
109
STOPPER; CHECK VALVE
SOU
1-48199-539-0
01
1
1001-
110
NUT; CAP
SOU
1-48199-527-0
01
1
1001-
111
PLATE; GOVERNOR
SOU
1-48199-526-0
01
1
1001-
112
SCREW & SPRING ASM; AIR DRYER
SOU
1-48199-524-0
01
1
1001-
113
STEM; EXHAUST
SOU
1-48199-522-0
01
1
1001-
114
PISTON ASM; GOVERNOR
SOU
1-48199-521-0
01
1
1001-
