Isuzu WW
▶
TRUCKS
▶
FRR
▶
11160 - FRR SCAB S.AFRICA
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#63386) — 34 parça
◀

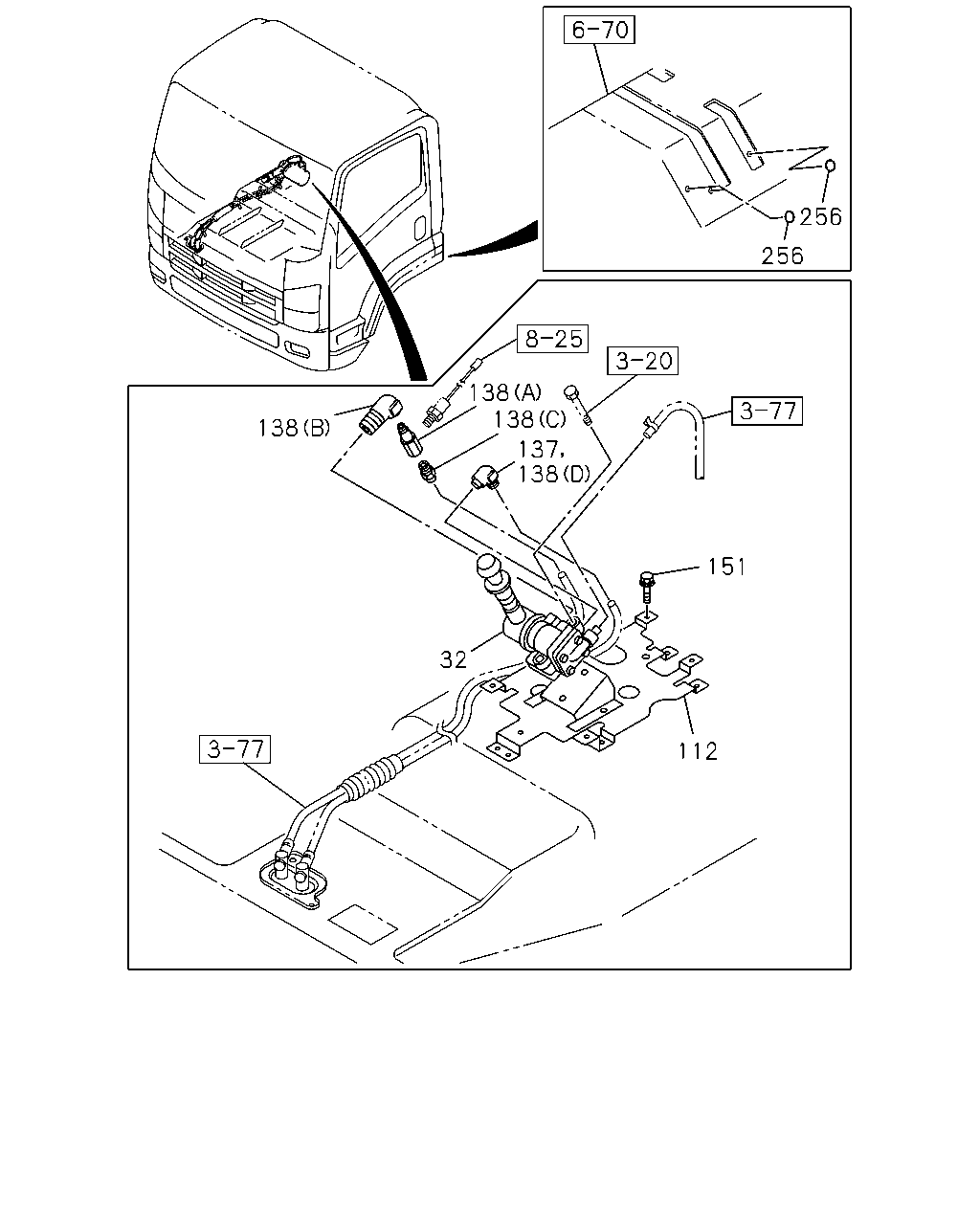

[326A] FIXING (9 parça)

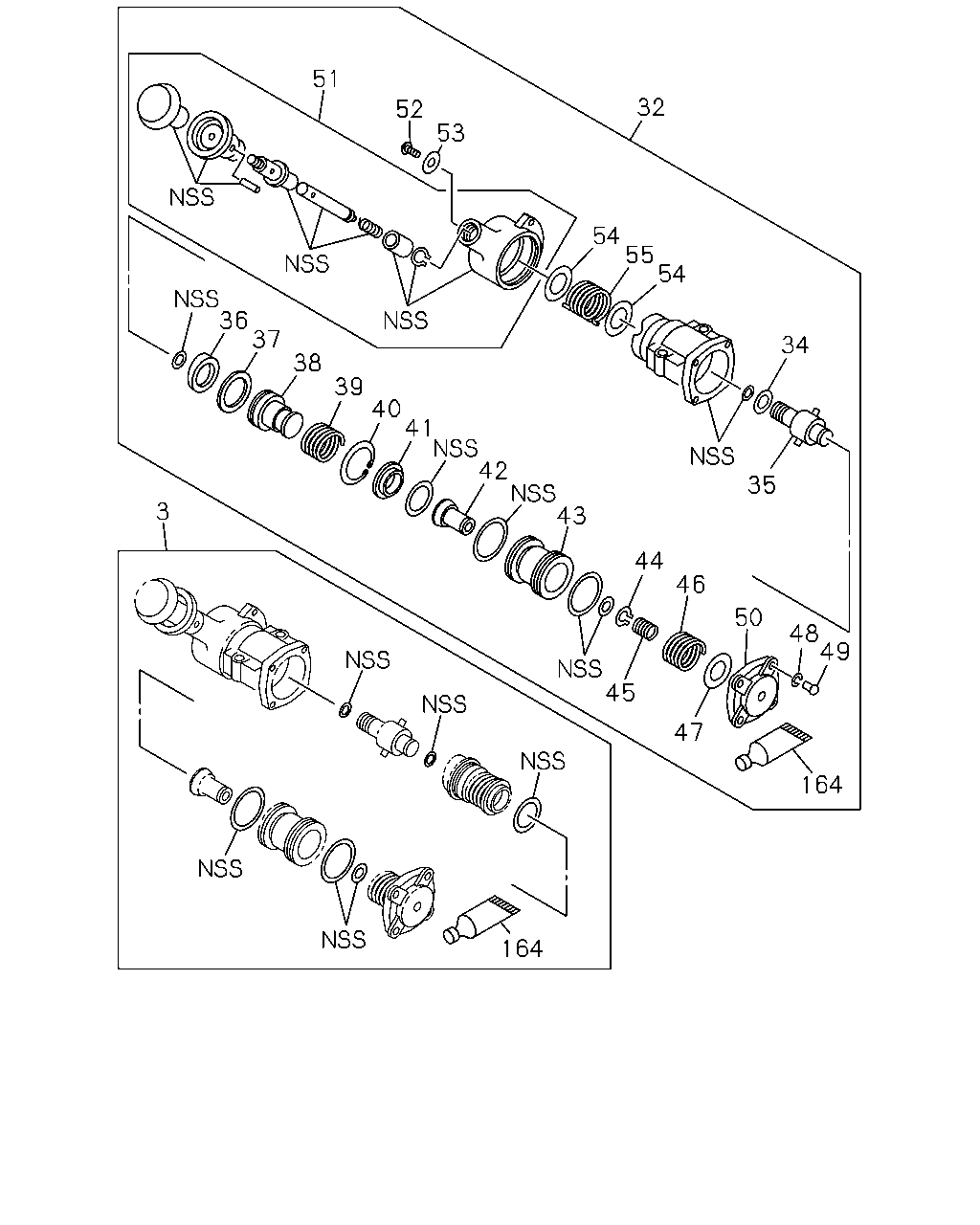

[326A] COMPONENT AND REPAIR KIT (25 parça)
▶
256
256
138
138
138
137
138
151
32
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
SOU
1-48460-306-0
01
1
1001-
112
BRACKET; CONT VLV
SOU
1-73908-054-7
01
1
1001-
137
CONNECTOR; SUPPLY
DIN8 & R1/4 ELBOW SOU
1-09660-956-0
01
1
1001-1101
138
CONNECTOR; DELIVERY
(D) DIN8 & R1/4 ELBOW SOU
1-09660-956-0
01
1
1102-
138
CONNECTOR; DELIVERY
(A) PT1/4X3 3WAY
1-09660-335-1
01
1
1001-
138
CONNECTOR; DELIVERY
(B) PT1/4 & PT1/4 2WAY SOU
1-09660-693-0
01
1
1001-
138
CONNECTOR; DELIVERY
(C) DIN8 R1/4 STRAIGHT SOU
1-09660-963-0
01
1
1001-
151
BOLT; VLV BRKT
M6X16 SOU
0-52000-616-0
04
1
1001-
256
SEAL
OD=25 BLACK SOU
1-76798-019-0
08
1
1001-
51
32
52
53
54
55
54
36
37
34
38
39
40
41
42
43
35
3
44
46
50
48
49
45
47
164
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
W/GREASE SOU
1-48469-096-0
01
1
1001-
32
VALVE; BRK,HAND CONT
SOU
1-48460-306-0
01
1
1001-
34
SHIM; CAM HOLDER
SOU
1-48469-055-0
AR
1
1001-
35
HOLDER; CAM
SOU
1-48469-054-0
01
1
1001-
36
RING; CAM
SOU
1-48469-056-0
01
1
1001-
37
GUIDE; CAM RING
SOU
1-48469-058-0
01
1
1001-
38
SEAT; EXH VLV
SOU
1-48469-057-0
01
1
1001-
39
SPRING; RETURN,CAM RING
SOU
1-48469-063-0
01
1
1001-
40
RING; SNAP
SOU
1-48469-067-0
01
1
1001-
41
SEAT; FEED VLV
SOU
1-48469-066-0
01
1
1001-
42
VALVE; FEED
SOU
1-48469-065-0
01
1
1001-
43
PISTON; HAND BRK VLV
SOU
1-48469-064-0
01
1
1001-
44
RING; SNAP,FEED VLV
SOU
1-48469-068-0
02
1
1001-
45
SPRING; FEED VLV
SOU
1-48469-070-0
01
1
1001-
46
SPRING; MAIN,PISTON
SOU
1-48469-089-0
01
1
1001-
47
SHIM; MAIN SPRING
SOU
1-48469-072-0
AR
1
1001-
48
WASHER; COVER
SOU
1-48469-091-0
04
1
1001-
49
SCREW; COVER
SOU
1-48469-092-0
04
1
1001-
50
COVER; HAND BRK VLV
SOU
1-48469-090-0
01
1
1001-
51
HANDLE ASM; HAND BRK VLV
SOU
1-48469-122-0
01
1
1001-
52
SCREW; HANDLE
SOU
1-48469-062-0
01
1
1001-
53
WASHER; HANDLE
SOU
1-48469-061-0
01
1
1001-
54
SEAT; SPRING
SOU
1-48469-082-0
02
1
1001-
55
SPRING; RETURN,HANDLE
SOU
1-48469-059-0
01
1
1001-
164
GREASE; HAND BRK VLV
SOU
1-48469-084-0
01
1
1001-
