◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10723 - CVR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#6338) — 64 parça

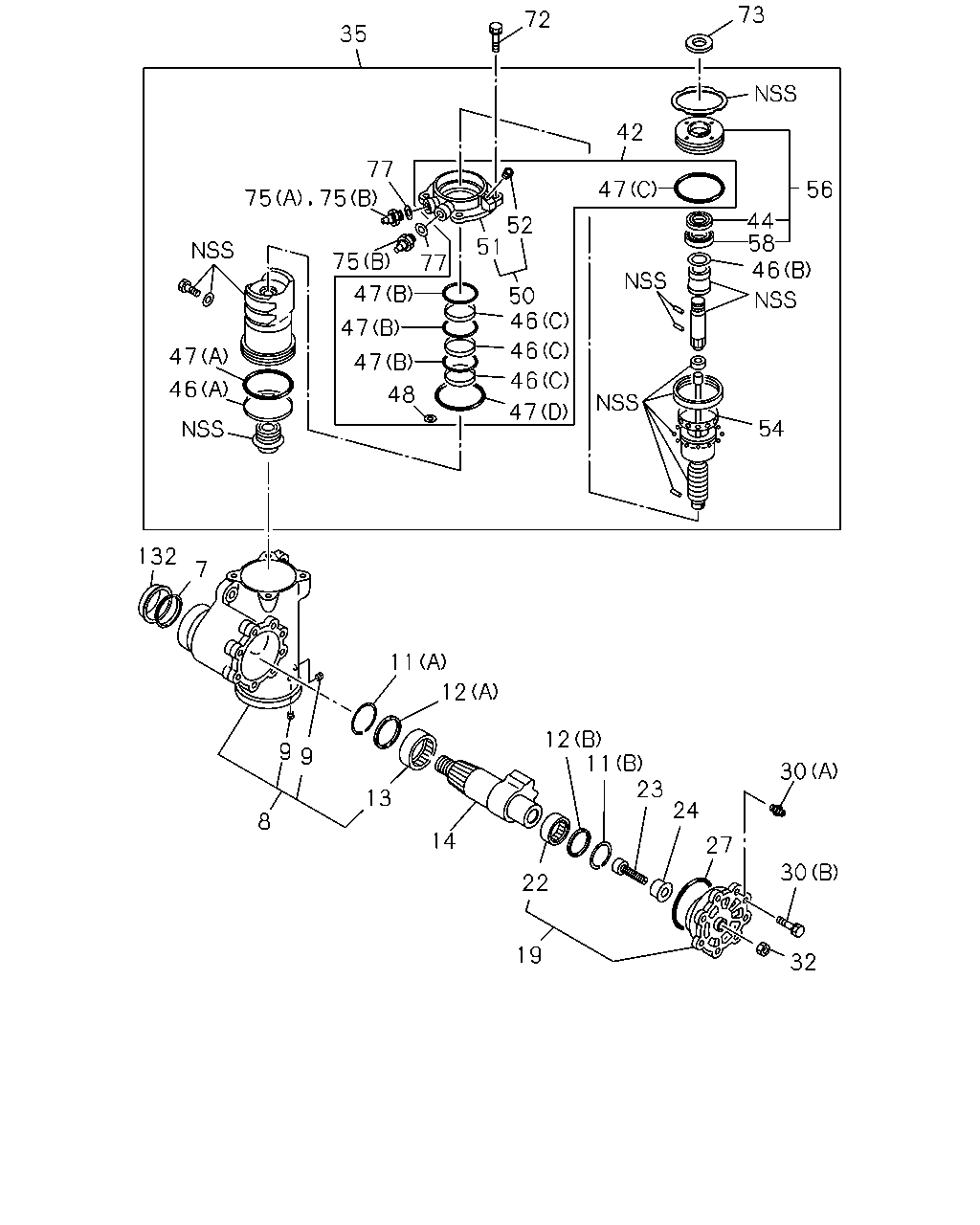

çizim 10884
73 72 35 42 77 47 56 75 75 44 58 46 52 51 75 77 47 50 46 47 46 47 47 46 46 48 47 54 132 7 11 12 12 11 23 24 9 9 30 13 8 14 27 30 22 19 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44240-114-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-845-0, C = 1-44000-866-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-861-2 		1-44519-071-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-845-0, C = 1-44000-866-1 		1-44321-032-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-861-2 		1-44321-035-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-845-0, C = 1-44000-866-1 		1-44279-012-0 05 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-861-2 		1-44279-012-0 05 1 0202-
30 BOLT; COVER STRG UNIT
(B) ASM PART: B = 1-44000-861-2 		1-44569-103-0 05 1 -0201
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-845-0, C = 1-44000-866-1 		1-44150-073-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-861-2 		1-44150-084-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-845-0 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-035-1 02 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-845-0 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-227-0 01 1 -

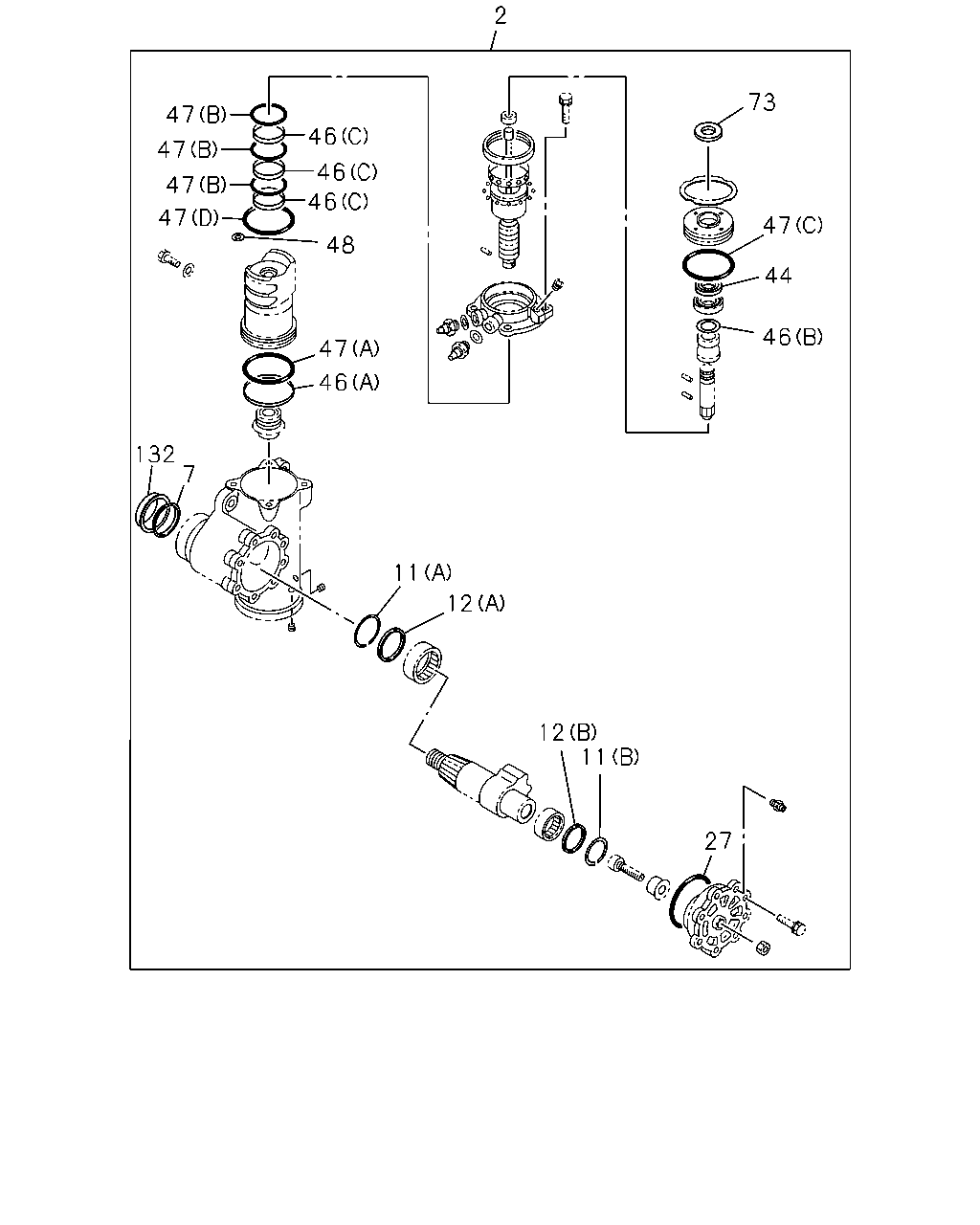

çizim 42149
2 73 47 46 47 46 47 46 47 47 48 44 46 47 46 132 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-845-0, B = 1-44000-861-2, C = 1-44000-866-1 		1-44519-227-0 01 1 -
