◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#63378) — 17 parça

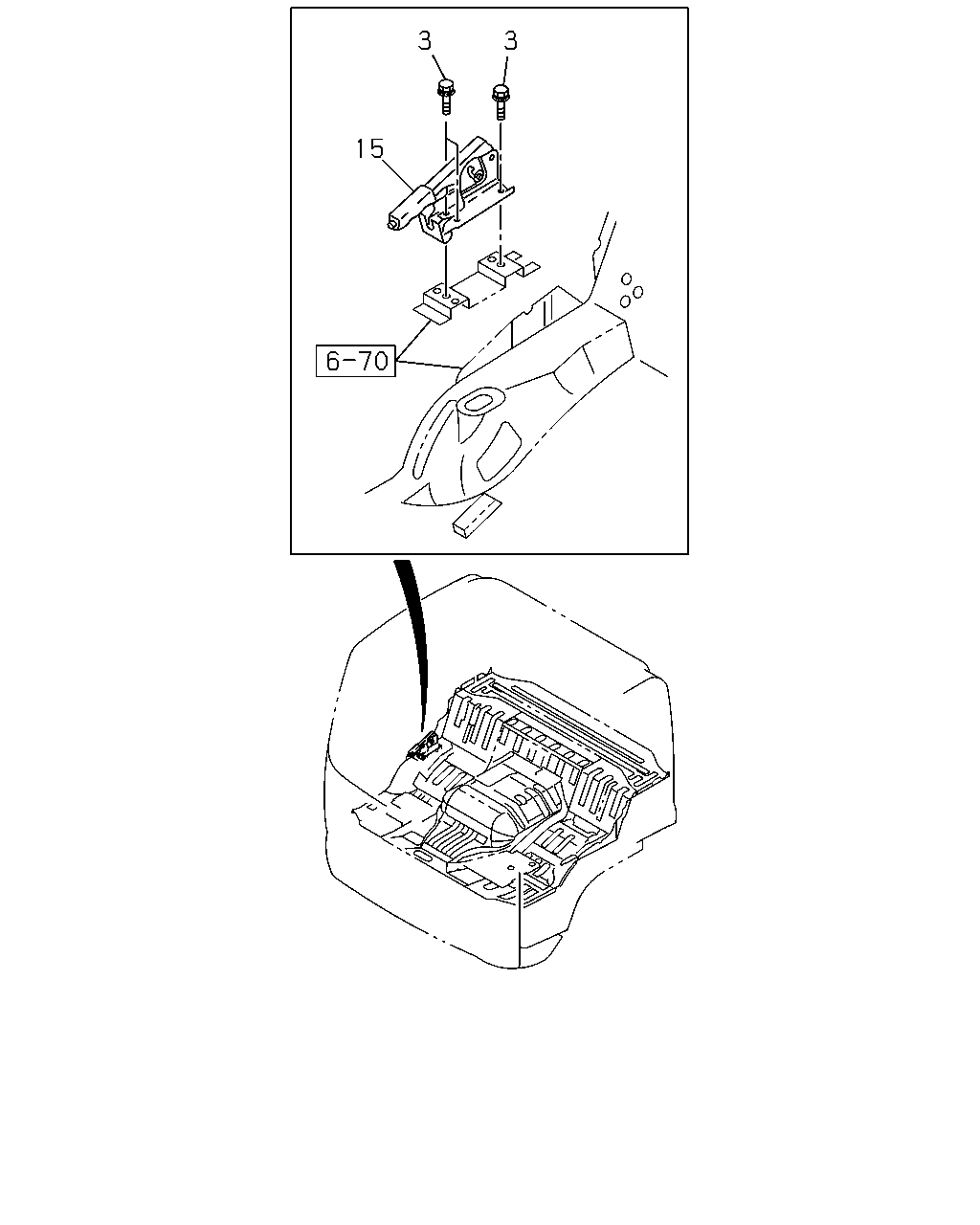

çizim 162037
3 3 15
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER SOU 		8-94279-207-0 03 1 1001-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> SOU 		1-79996-092-0 01 1 1001-

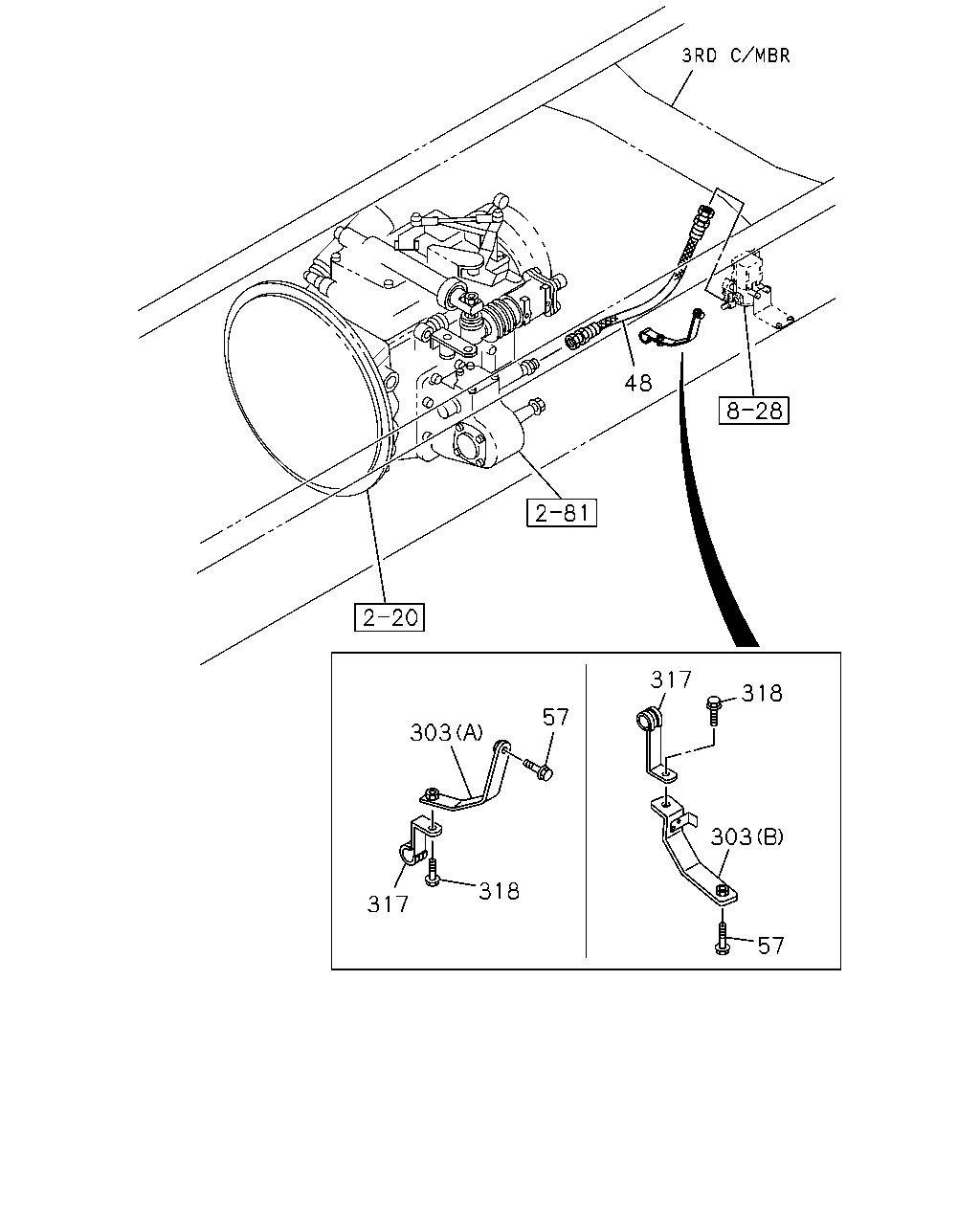

çizim 162327
48 317 318 57 303 303 318 317 57
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=450 		1-09363-965-0 01 1 1201-
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=470 		1-09363-714-0 01 1 1201-
48 HOSE; FLEX,PTO
MLD6S M/T(X7W) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=580 		1-09363-613-1 01 1 1001-1011
48 HOSE; FLEX,PTO
MZZ6W M/T(RSA),MLD6S M/T(X7W) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=580 		1-09363-613-1 01 1 1012-
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=560 		1-09363-914-0 01 1 1001-1112
48 HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=560 		1-09363-914-0 01 1 1201-
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=540 		1-09363-612-1 01 1 1001-1112
48 HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=540 		1-09363-612-1 01 1 1201-
57 BOLT; BRKT
PTO CONTROL<SV6> M10X25 FLANGE SOU 		0-28651-025-0 01 1 1001-
303 BRACKET; CLIP
MZZ6W M/T(RSA) PTO CONTROL<SV6> (B) 		8-98136-975-0 01 1 1012-
303 BRACKET; CLIP
MLD6S M/T(X7W) PTO CONTROL<SV6> (A) 		8-98136-977-0 01 1 1001-
303 BRACKET; CLIP
MZW6P M/T(RSZ) PTO CONTROL<SV6> (A) 		8-98136-973-0 01 1 1001-
303 BRACKET; CLIP
MZX6P M/T(RSW) PTO CONTROL<SV6> (A) 		8-98136-974-0 01 1 1001-
317 CLIP; NYLON TUBE
PTO CONTROL<SV6> ID=15 L=22 H=30 		1-09701-215-1 01 1 1001-
318 BOLT; CLIP
PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 01 1 1001-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
