1 |

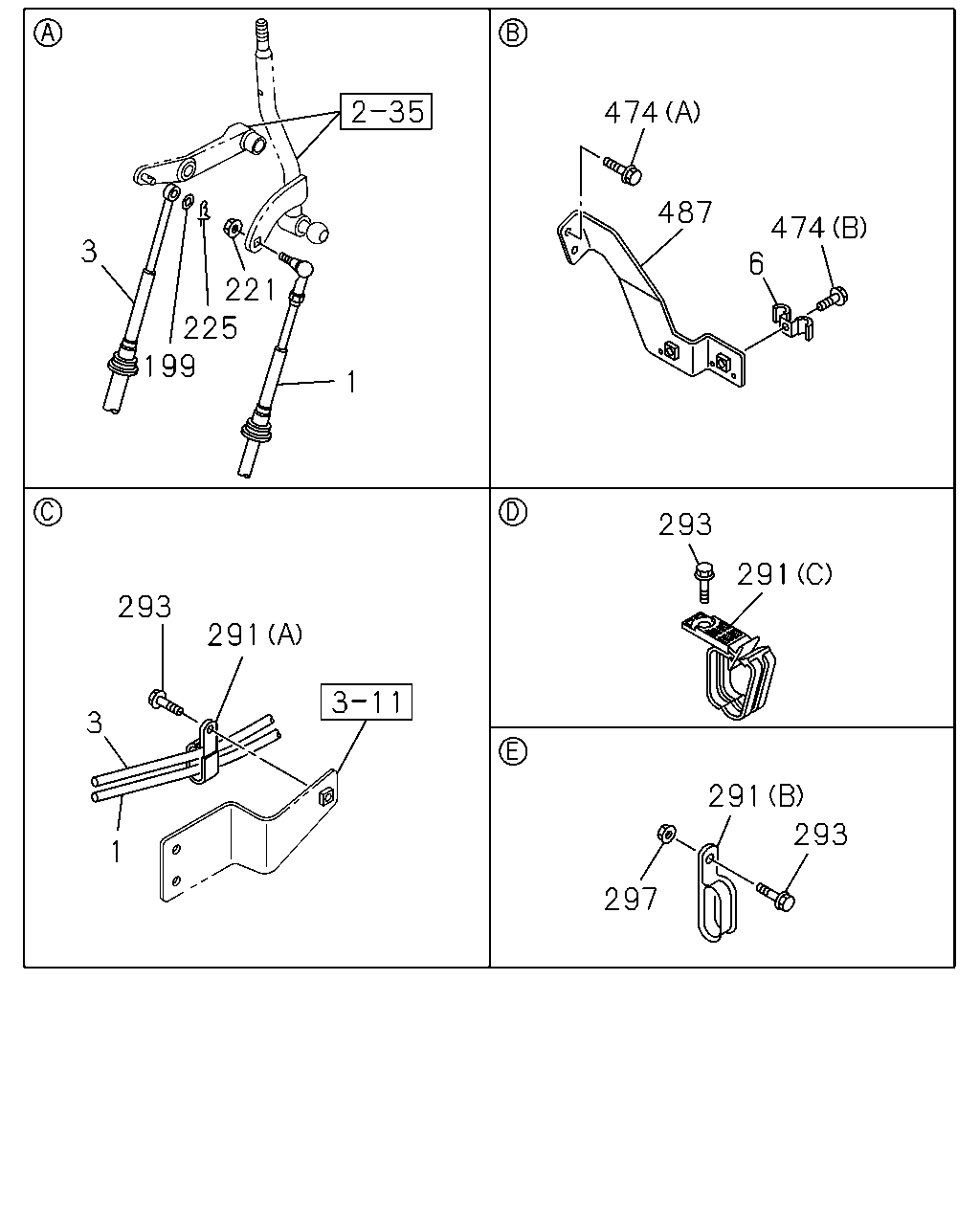

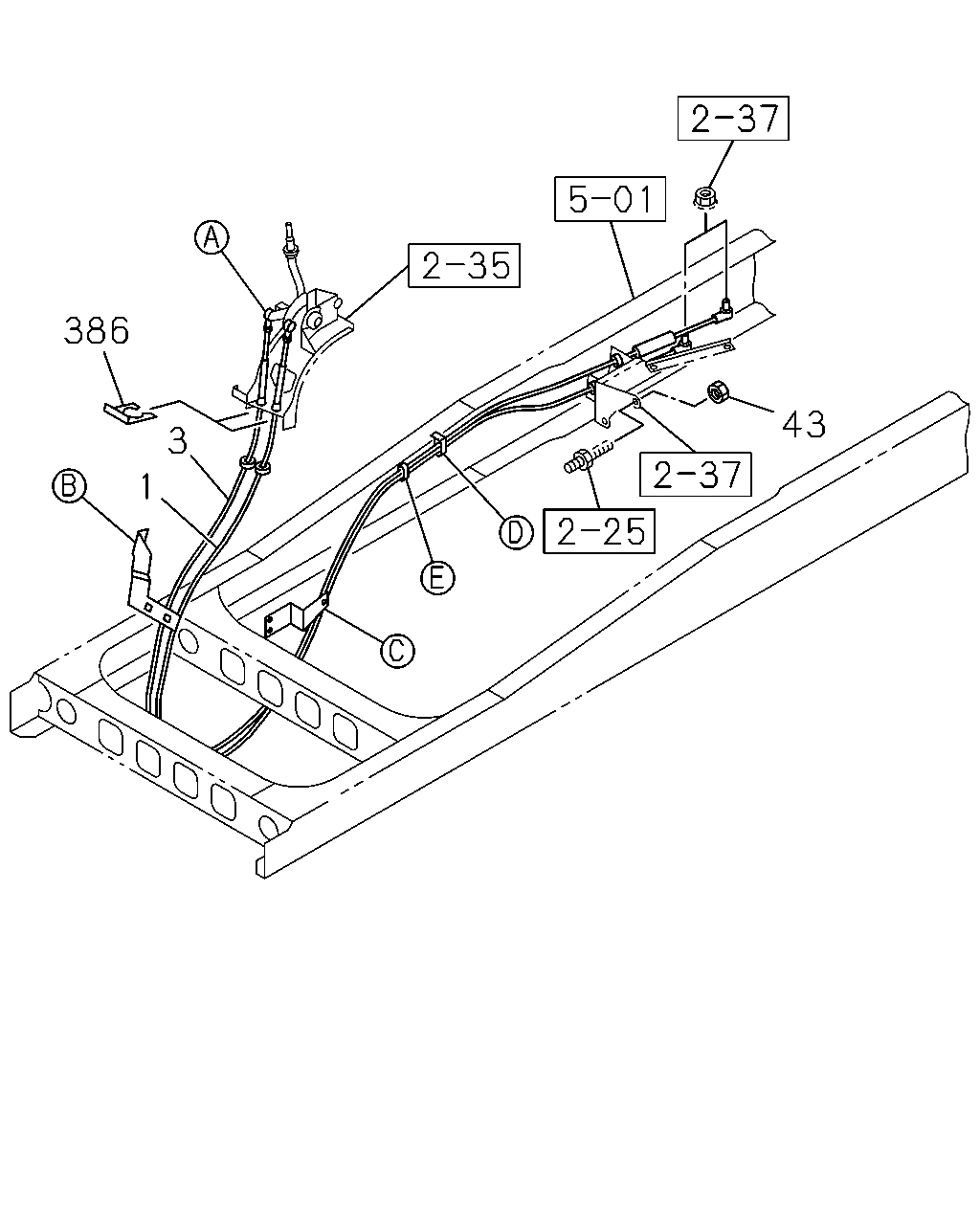

CABLE; SHIFT,TRANS CONT
MZZ6W M/T(RSA)
ASSISTOR SHIFT CONTROL<WX8>
L=2930
|
8-98041-379-4 |
01 |
1 |
1012- |
| |
1 |
CABLE; SHIFT,TRANS CONT
MZZ6W M/T(RSA)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=2935
|
8-98169-839-2 |
01 |
1 |
1012- |
| |
1 |
CABLE; SHIFT,TRANS CONT
MLD6S M/T(X7W)
ASSISTOR SHIFT CONTROL<WX8>
L=2995
|
8-98114-375-3 |
01 |
1 |
1001- |
| |
1 |
CABLE; SHIFT,TRANS CONT
MLD6S M/T(X7W)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=3030
|
8-98121-021-5 |
01 |
1 |
1001- |
| |
1 |
CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ)
ASSISTOR SHIFT CONTROL<WX8>
L=2950
|
8-98010-422-4 |
01 |
1 |
1001-1112 |
| |
1 |
CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ)
ASSISTOR SHIFT CONTROL<WX8>
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=2950
|
8-98010-422-4 |
01 |
1 |
1201- |
| |
1 |
CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=3000
|
8-98041-380-5 |
01 |
1 |
1001-1112 |
| |
1 |
CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=3000
|
8-98041-380-5 |
01 |
1 |
1201- |
| |
3 |
CABLE; SELECT,TRANS CONT
MZZ6W M/T(RSA)
L=3055
|
8-98041-384-4 |
01 |
1 |
1012- |
| |
3 |
CABLE; SELECT,TRANS CONT
MLD6S M/T(X7W)
ASSISTOR SHIFT CONTROL<WX8>
L=3195
|
8-98114-380-3 |
01 |
1 |
1001- |
| |
3 |
CABLE; SELECT,TRANS CONT
MLD6S M/T(X7W)
EXC. ASSISTOR SHIFT CONTROL<WX8>
L=2970
|
8-98121-022-5 |
01 |
1 |
1001- |
| |
3 |
CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ)
L=3085
|
8-98010-462-5 |
01 |
1 |
1001-1112 |
| |
3 |
CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ)
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=3085
|
8-98010-462-5 |
01 |
1 |
1201- |
| |
6 |
CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5
SOU
|
1-09700-739-0 |
01 |
1 |
1001-1112 |
| |
6 |
CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
ID=11 & 11 L=17.5 & 17.5
SOU
|
1-09700-739-0 |
01 |
1 |
1201- |
| |
199 |
WASHER; PL,SELECT
ID=8.4 OD=16
SOU
|
0-91614-508-0 |
01 |
1 |
1001-1112 |
| |
199 |
WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
ID=8.4 OD=16
SOU
|
0-91614-508-0 |
01 |
1 |
1201- |
| |
221 |
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
SOU
|
1-09440-049-0 |
01 |
1 |
1001-1011 |
| |
221 |
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
SOU
|
1-09440-062-1 |
01 |
1 |
1012-1112 |
| |
221 |
NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
SOU
|
1-09440-062-1 |
01 |
1 |
1201- |
| |
225 |
PIN; SELECT CABLE
L=27.7
SOU
|
8-94111-137-0 |
01 |
1 |
1001-1112 |
| |
225 |
PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
L=27.7
SOU
|
8-94111-137-0 |
01 |
1 |
1201- |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
(A)
ID=11X2 L=16
|
0-95325-026-0 |
01 |
1 |
1001-1112 |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
ID=11X2 L=16
|
0-95325-026-0 |
01 |
1 |
1201- |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
(B)
ID=13 & 13 L=32
|
8-97389-264-0 |
01 |
1 |
1001-1112 |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(B)
ID=13 & 13 L=32
|
8-97389-264-0 |
01 |
1 |
1201- |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
(C)
ID=13 & 10 & 10 L=35.5
|
8-98023-991-0 |
01 |
1 |
1001-1112 |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(C)
ID=13 & 10 & 10 L=35.5
|
8-98023-991-0 |
01 |
1 |
1201-1504 |
| |
291 |
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(C)
ID=13 & 10 & 10 L=43.5
|
8-98292-921-0 |
01 |
1 |
1505- |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE
SOU
|
0-28050-816-0 |
01 |
1 |
1001-1112 |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8X16 FLANGE
SOU
|
0-28050-816-0 |
01 |
1 |
1201- |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
M8X25 FLANGE
SOU
|
0-28650-825-0 |
02 |
1 |
1001-1112 |
| |
293 |
BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8X25 FLANGE
SOU
|
0-28650-825-0 |
02 |
1 |
1201- |
| |
297 |
NUT; CLIP
M8 FLANGE
SOU
|
0-91180-108-0 |
01 |
1 |
1001-1112 |
| |
297 |
NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
M8 FLANGE
SOU
|
0-91180-108-0 |
01 |
1 |
1201- |
| |
474 |
BOLT; BRKT
(B)
M8X25 W/WASHER
|
0-51640-825-0 |
01 |
1 |
1001-1112 |
| |
474 |
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(B)
M8X25 W/WASHER
|
0-51640-825-0 |
01 |
1 |
1201- |
| |
474 |
BOLT; BRKT
(A)
M8X25 W/WASHER
|
0-51640-825-0 |
02 |
1 |
1001-1112 |
| |
474 |
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
(A)
M8X25 W/WASHER
|
0-51640-825-0 |
02 |
1 |
1201- |
| |
487 |
BRACKET; CONT CABLE
|
8-98021-920-2 |
01 |
1 |
1001-1012 |
| |
487 |
BRACKET; CONT CABLE
|
8-98183-009-0 |
01 |
1 |
1101-1112 |
| |
487 |
BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
|
8-98183-009-0 |
01 |
1 |
1201- |
