Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#63369) — 579 parça

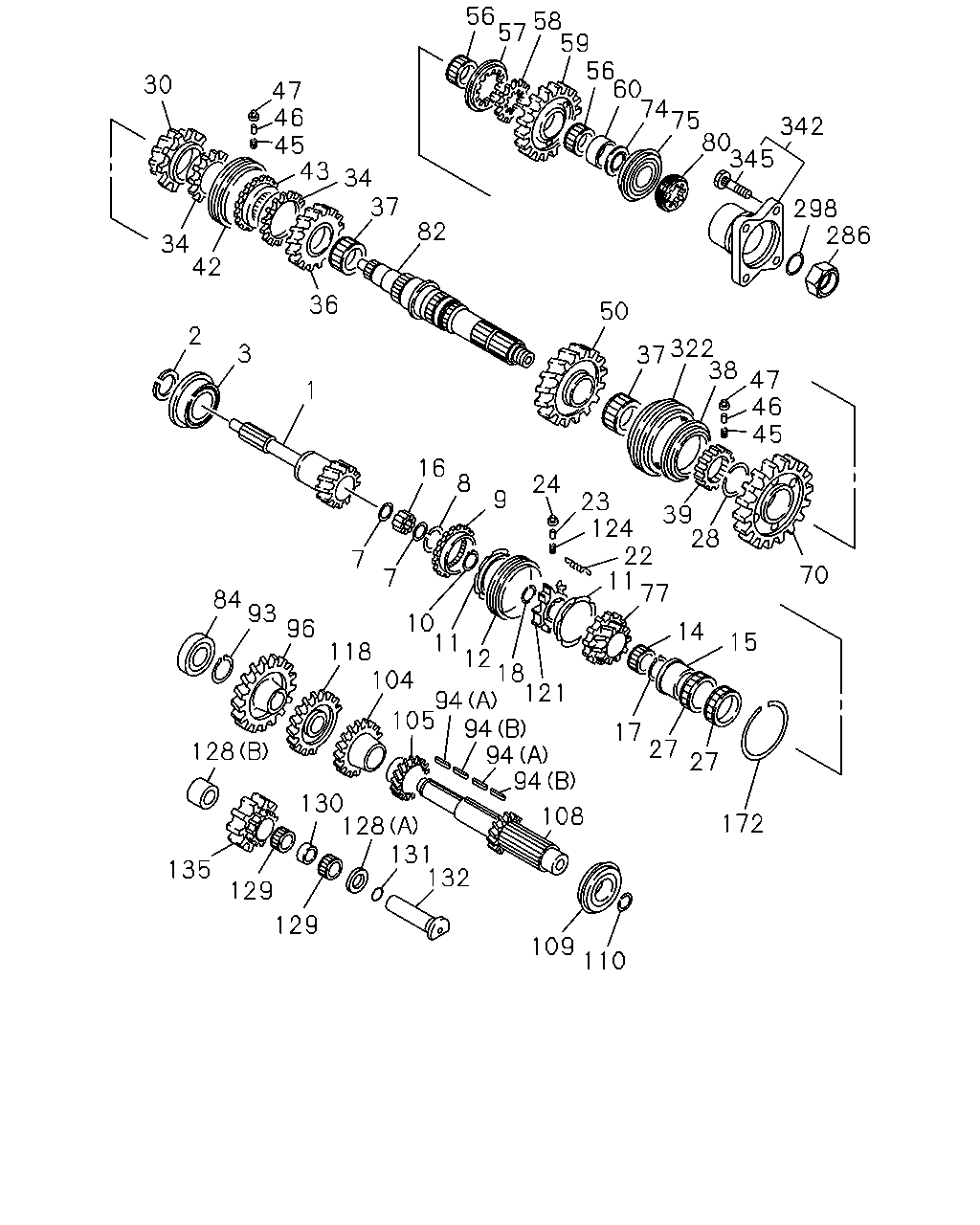

56 58 57 59 56 60 74 75 80 345 30 47 46 45 43 342 34 37 298 286 82 34 42 36 50 2 322 37 38 3 47 46 45 1 16 8 24 9 23 124 22 11 77 39 28 7 70 7 84 93 96 10 11 12 18 121 94 105 94 94 94 14 15 118 104 17 27 128 27 130 128 131 132 108 172 135 129 129 109 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-089-0	01	1	1012-	●
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-789-0	01	1	1001-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	1001-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	1001-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	1001-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	1001-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1012-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	1001-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	1001-		●
8	CLIP; DOG CLU	1-33219-020-0	01	1	1001-		●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	1001-		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	1001-		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	1001-		●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1001-			●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	1001-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	1001-		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	1001-		●
15	COLLAR; 4TH GEAR	8-97380-022-0	01	1	1001-1004			●	●
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1005-			●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	1001-		●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	1001-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1001-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1001-1011			●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1012-	●		●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	1001-		●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	1001-		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1001-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1001-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-	●		●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	1001-		●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1012-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	1001-		●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1012-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	1001-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	1001-		●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1012-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1001-		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	1001-1010			●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-			●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	1001-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	1001-		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	1001-		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	1001-		●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1001-1501			●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507			●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-			●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	1001-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	1001-		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	1001-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1001-		●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1001-		●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1012-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	1001-		●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	1001-		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	1001-		●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1001-			●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	1001-		●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1001-			●	●
59	GEAR; REV MAINSHAFT Z=45	8-97254-182-0	01	1	1012-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	1001-		●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	1001-		●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97254-889-0	01	1	1012-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	1001-		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	1001-		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	1001-		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	1001-		●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1012-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	1001-1203			●	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-			●	●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	1001-		●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1012-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1001-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1001-			●	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98140-881-0	01	1	1201-1308				●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98245-058-0	01	1	1309-1507				●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98292-396-0	01	1	1508-				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	1001-		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1001-1112			●	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98140-880-0	01	1	1201-1308				●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1201-1308			●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98245-057-0	01	1	1309-				●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-			●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	1001-		●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1001-			●	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1001-		●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1001-			●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	1001-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	1001-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-216-1	01	1	1001-		●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	1001-1010			●	●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203			●	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-			●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	1001-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	1001-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	1001-1010			●	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-			●	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1012-1308	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-			●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	1001-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	1001-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	1001-		●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	1001-		●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1012-	●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	1001-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1001-			●	●
121	HUB; CLU,6TH	8-97241-301-2	01	1	1012-	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	1001-		●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	1001-		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=42	1-33239-079-1	01	1	1001-		●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=2	1-33363-024-1	01	1	1001-		●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	1001-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	1001-		●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	1001-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	1001-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1001-			●	●
132	SHAFT; REV	8-97252-655-0	01	1	1012-	●
132	SHAFT; REV	1-33351-017-0	01	1	1001-		●
132	SHAFT; REV	8-98009-372-0	01	1	1001-			●	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1012-	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	1001-		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1001-			●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	1001-		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	1001-		●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1001-			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1012-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1001-		●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	1001-		●
342	FLANGE; OUTPUT	8-98044-770-0	01	1	1001-1001			●	●
342	FLANGE; OUTPUT	8-98155-334-0	01	1	1001-			●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	1001-		●
345	BOLT; FLANGE TO YOKE M14X43 KNURL	8-98014-003-0	04	1	1001-		●

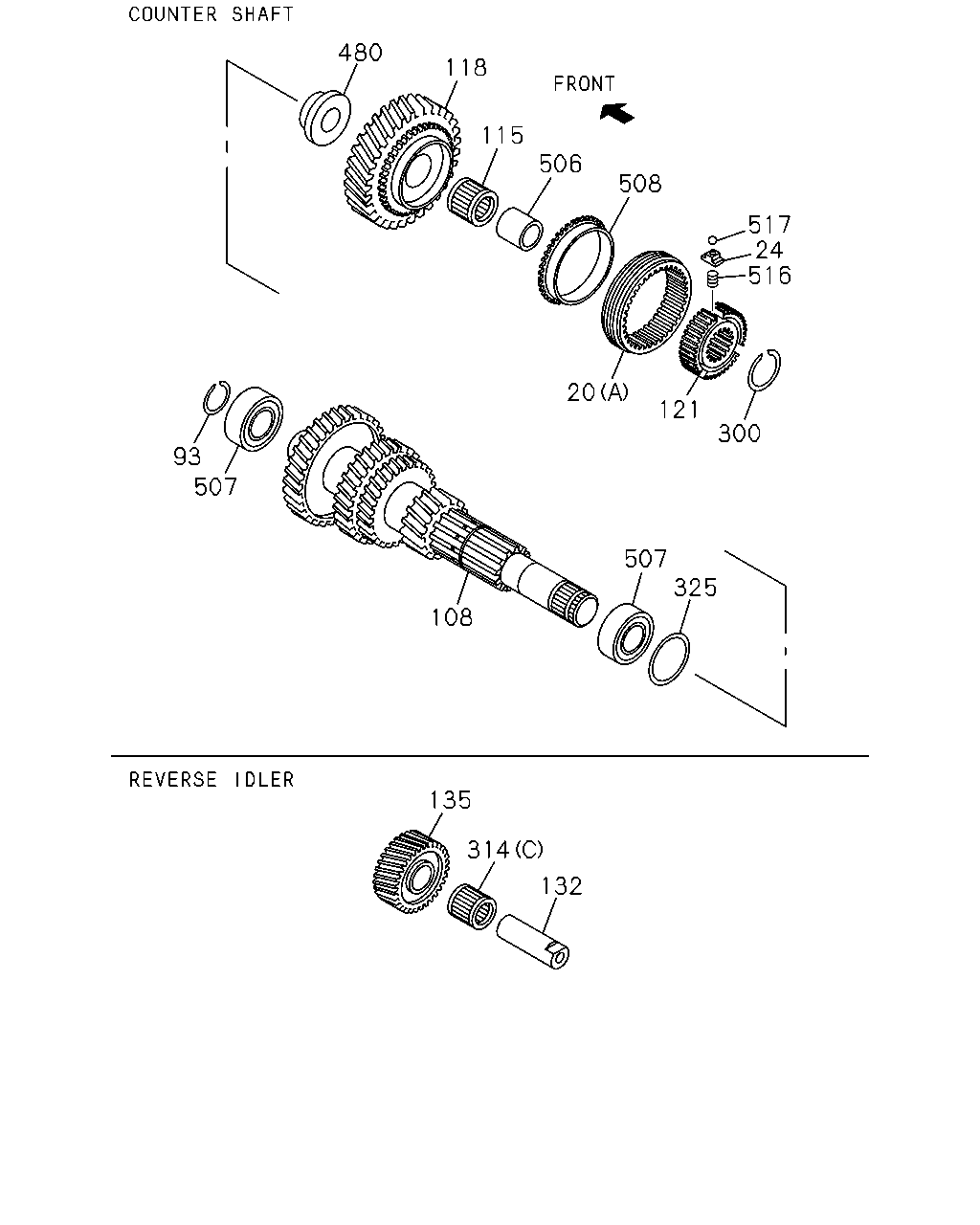

480 118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) Z=45	8-98258-279-0	03	1	1509-				●
20	SLEEVE (D) Z=45	8-98258-279-0	03	1	1509-			●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) Z=45	8-97241-296-1	03	1	1211-1308				●
20	SLEEVE (D) Z=45	8-97241-296-1	03	1	1211-1308			●
20	SLEEVE (C) Z=54	8-97241-295-2	01	1	1012-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1001-1011			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1210	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-97241-296-1	02	1	1211-1308				●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1211-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●		●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-				●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1001-1210			●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1211-1308				●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508			●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-				●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1001-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1001-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-	●		●	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1001-		●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1001-			●	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1012-1308	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-			●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	1001-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1012-	●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1012-	●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	1001-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1001-			●	●
121	HUB; CLU,6TH	8-97241-301-2	01	1	1012-	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	1001-		●
132	SHAFT; REV	8-97252-655-0	01	1	1012-	●
132	SHAFT; REV	1-33351-017-0	01	1	1001-		●
132	SHAFT; REV	8-98009-372-0	01	1	1001-			●	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1012-	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	1001-		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1001-			●	●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1001-			●	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	1012-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	1012-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	1012-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6	8-97365-616-0	01	1	1012-	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1012-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1001-			●	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1001-			●	●
480	WASHER; THRUST,6TH	8-97253-122-1	01	1	1012-	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1012-	●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1001-			●	●
507	BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	1012-	●
508	RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	1012-	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1201-				●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1012-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1001-1112			●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1201-				●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1201-			●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1201-				●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1001-1011			●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1012-1112	●		●	●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1201-				●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1201-	●		●

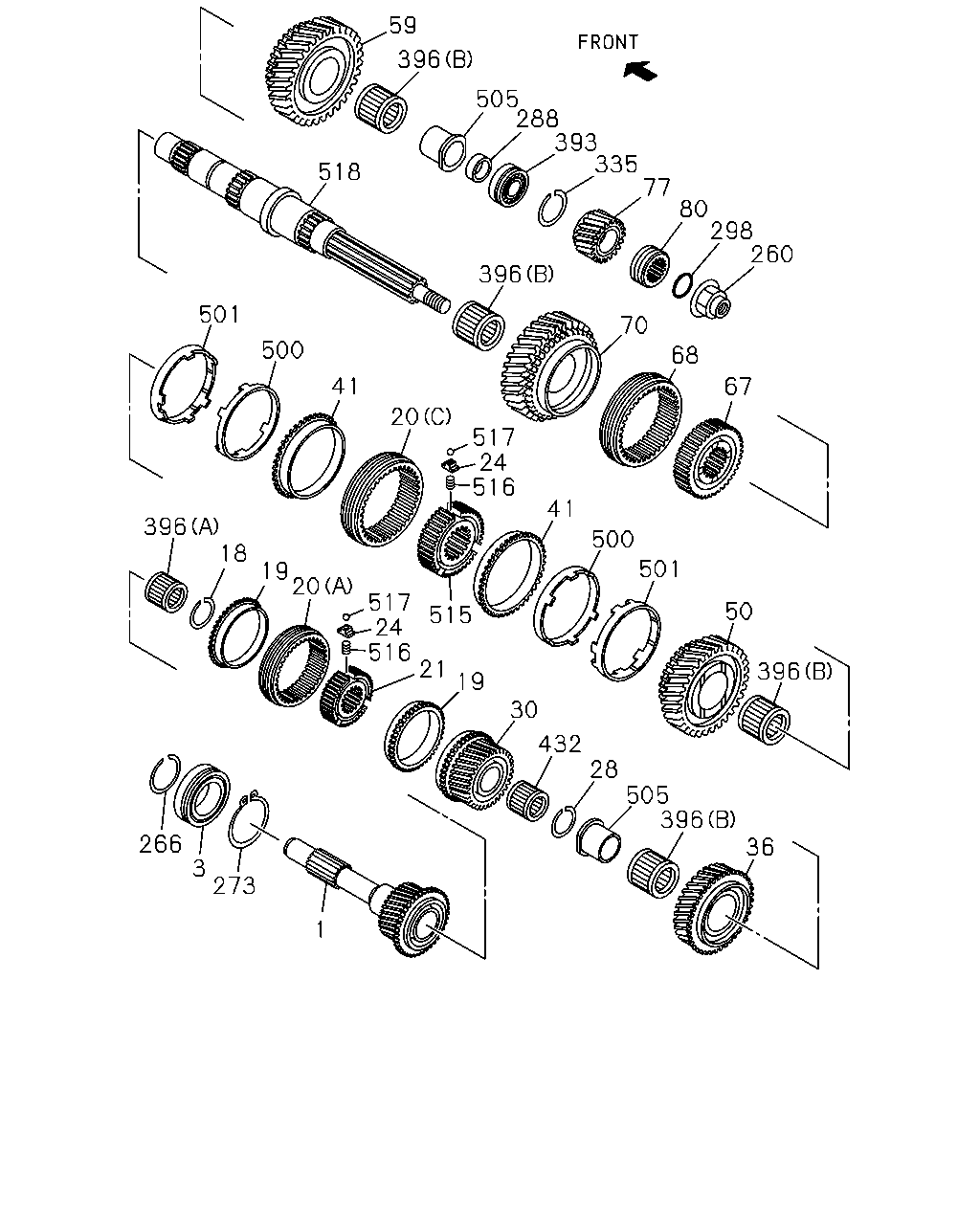

59 396 505 288 393 335 77 80 298 260 518 396 501 70 500 68 41 67 20 517 24 516 41 396 18 500 501 19 20 517 24 516 21 50 515 396 19 30 432 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; TOP GEAR,TRANS Z=25	8-97371-089-0	01	1	1012-	●
1	SHAFT; TOP GEAR,TRANS Z=26	1-33211-789-0	01	1	1001-		●
3	BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	1012-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	1001-		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1001-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1001-1011			●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1012-	●		●	●
19	RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	1012-	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) Z=45	8-98258-279-0	03	1	1509-				●
20	SLEEVE (D) Z=45	8-98258-279-0	03	1	1509-			●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) Z=45	8-97241-296-1	03	1	1211-1308				●
20	SLEEVE (D) Z=45	8-97241-296-1	03	1	1211-1308			●
20	SLEEVE (C) Z=54	8-97241-295-2	01	1	1012-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1001-1011			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1210	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-97241-296-1	02	1	1211-1308				●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1211-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●		●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-				●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1001-1210			●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1211-1308				●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508			●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-				●
21	HUB; CLU,4TH & 5TH	8-97241-299-3	01	1	1012-	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1001-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1001-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-	●		●	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1012-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	1001-		●
30	GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	1012-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	1001-1107		●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-		●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1012-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1001-		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	1001-1010			●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-			●	●
41	RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	1012-	●
50	GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	1012-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	1001-		●
59	GEAR; REV MAINSHAFT Z=45	8-97254-182-0	01	1	1012-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	1001-		●
67	HUB; CLU,1ST TO REV	8-97255-184-1	01	1	1012-	●
68	SLEEVE; 1ST TO REV	1-33262-175-1	01	1	1012-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97254-889-0	01	1	1012-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	1001-		●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1012-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	1001-1203			●	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-			●	●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	1001-		●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1012-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1001-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1001-			●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1012-	●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1001-			●	●
266	RING; SNAP,BRG INNER	8-97286-915-0	01	1	1012-	●
273	RING; SNAP,BRG OUTER	8-97254-609-0	01	1	1012-	●
288	SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	1012-	●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1001-			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1012-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1001-		●	●	●
335	RING; SNAP,BEARING	8-97254-720-0	01	1	1012-	●
393	BEARING; MAINSHAFT END	8-97253-104-0	01	1	1012-	●
396	BEARING; NEEDLE,MAINSHAFT (A)	8-97253-099-1	01	1	1012-	●
396	BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1012-	●
432	BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	1012-	●
500	RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	1012-	●
501	RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	1012-	●
505	COLLAR; 3RD & REV	8-97253-119-2	02	1	1012-	●
515	HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	01	1	1012-	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1201-				●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1012-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1001-1112			●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1201-				●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1201-			●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1201-				●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1001-1011			●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1012-1112	●		●	●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1201-				●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1201-	●		●
518	SHAFT; MAIN,5TH & 6TH SPEED Z=26-42-23	8-97253-115-3	01	1	1012-	●

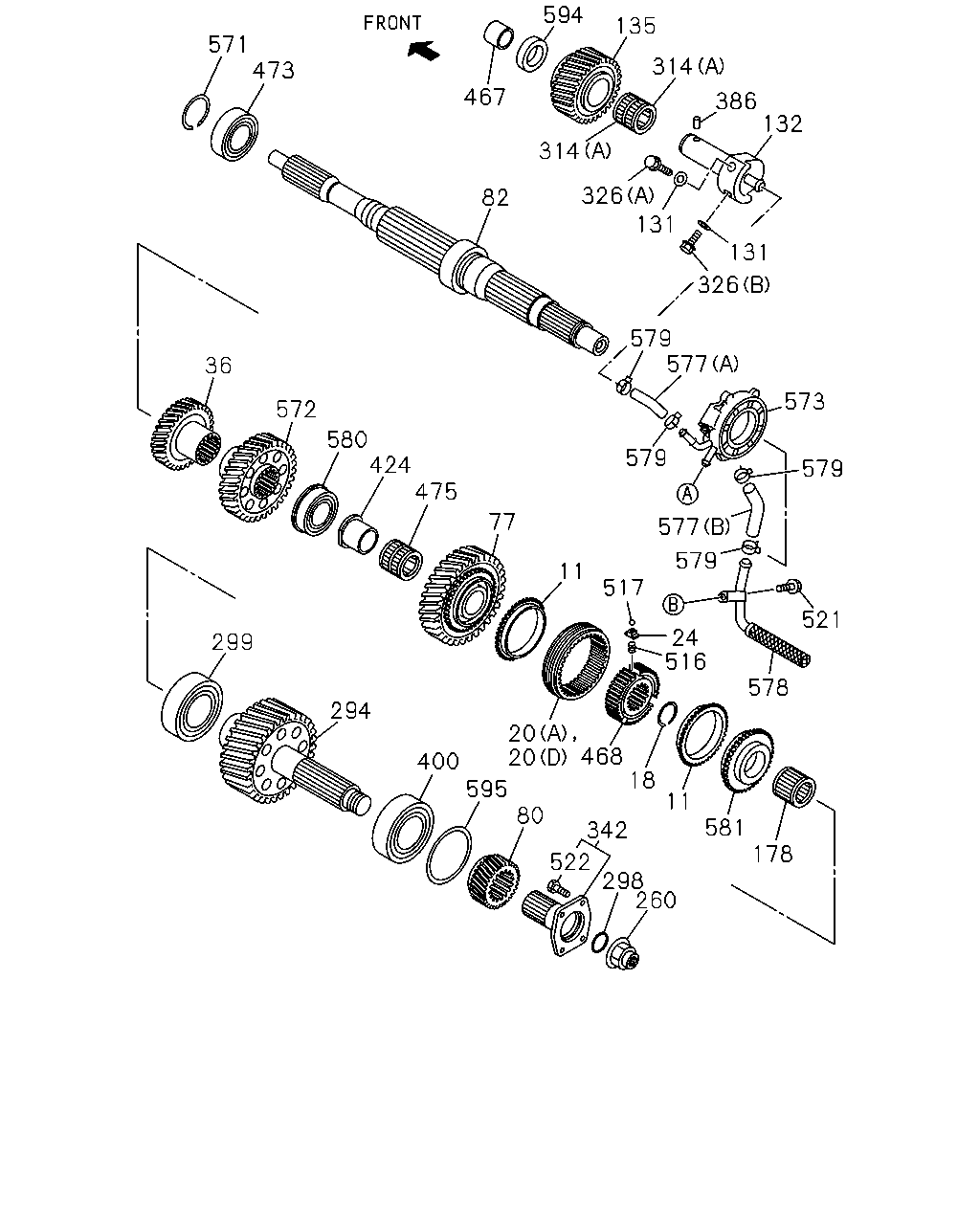

571 594 467 314 314 132 386 326 131 326 579 573 577 579 579 577 579 521 578 516 517 24 178 260 298 522 80 18 11 581 468 20 400 595 20 94 299 11 77 475 424 580 572 36 82 131 135 473 342

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	1001-		●
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1001-			●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	1001-		●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1001-1011			●	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1012-	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) Z=45	8-98258-279-0	03	1	1509-				●
20	SLEEVE (D) Z=45	8-98258-279-0	03	1	1509-			●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) Z=45	8-97241-296-1	03	1	1211-1308				●
20	SLEEVE (D) Z=45	8-97241-296-1	03	1	1211-1308			●
20	SLEEVE (C) Z=54	8-97241-295-2	01	1	1012-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1001-1011			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1210	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-97241-296-1	02	1	1211-1308				●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1211-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●		●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-				●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1001-1210			●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1211-1308				●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508			●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-				●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1001-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1001-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-	●		●	●
36	GEAR; 3RD,MAINSHAFT Z=35	8-98168-524-0	01	1	1012-	●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	1001-		●
36	GEAR; 3RD,MAINSHAFT Z=29	8-97377-696-0	01	1	1001-1010			●	●
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1011-			●	●
77	GEAR; 6TH,MAINSHAFT Z=18	8-97241-264-0	01	1	1012-	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98049-406-1	01	1	1001-1203			●	●
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1204-			●	●
77	GEAR; 6TH,MAINSHAFT Z=26	1-33253-518-0	01	1	1001-		●
80	GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	1012-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	1001-		●
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1001-			●	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98140-881-0	01	1	1201-1308				●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98245-058-0	01	1	1309-1507				●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98292-396-0	01	1	1508-				●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	1001-		●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1001-1112			●	●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98140-880-0	01	1	1201-1308				●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98140-880-0	01	1	1201-1308			●
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98245-057-0	01	1	1309-				●
82	SHAFT; MAIN,TRANS Z=13-21-19-26	8-98245-057-0	01	1	1309-			●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	1001-		●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	1001-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	1001-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1001-			●	●
132	SHAFT; REV	8-97252-655-0	01	1	1012-	●
132	SHAFT; REV	1-33351-017-0	01	1	1001-		●
132	SHAFT; REV	8-98009-372-0	01	1	1001-			●	●
135	GEAR; REV IDLER Z=26	8-97241-292-2	01	1	1012-	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	1001-		●
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1001-			●	●
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1001-			●	●
260	NUT; MAINSHAFT END M27 H=25	8-97360-410-0	01	1	1012-	●
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1001-			●	●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1001-			●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5	1-09623-379-0	01	1	1012-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1001-		●	●	●
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1001-			●	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1012-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1001-			●	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1001-			●	●
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1001-			●	●
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1001-			●	●
342	FLANGE; OUTPUT	8-98044-770-0	01	1	1001-1001			●	●
342	FLANGE; OUTPUT	8-98155-334-0	01	1	1001-			●	●
342	FLANGE; OUTPUT	1-37243-307-1	01	1	1001-		●
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1001-			●	●
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1001-			●	●
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1001-			●	●
467	COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1201-				●
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1001-			●	●
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1001-			●	●
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1001-			●	●
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1001-			●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1201-				●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1012-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1001-1112			●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1201-				●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1201-			●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1201-				●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1001-1011			●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1012-1112	●		●	●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1201-				●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1201-	●		●
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	1001-			●	●
522	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	1001-			●	●
571	RING; SNAP,BRG	8-97377-951-0	01	1	1001-			●	●
572	GEAR; 4TH,INPUT Z=37	8-97377-697-0	01	1	1001-1010			●	●
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1011-			●	●
573	PUMP ASM; OIL	8-98044-683-0	01	1	1001-1205			●	●
573	PUMP ASM; OIL	8-98212-241-0	01	1	1206-			●	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1001-			●	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1001-			●	●
578	SCREEN; OIL PUMP	8-98009-345-0	01	1	1001-			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	1001-1205			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1206-			●	●
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1001-			●	●
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1001-			●	●
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1001-			●	●
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1001-			●	●

57 314 95 241 563 561 582 106 582 586 585 584 58 517 24 516 39 20 20 241 84 93 174 579 577 108 590 582 105 589 588 579 587 517 24 516 592 320 596 223 398 506 325 593 5 174 582 104 118 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) Z=45	8-98258-279-0	03	1	1509-				●
20	SLEEVE (D) Z=45	8-98258-279-0	03	1	1509-			●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) Z=45	8-97241-296-1	03	1	1211-1308				●
20	SLEEVE (D) Z=45	8-97241-296-1	03	1	1211-1308			●
20	SLEEVE (C) Z=54	8-97241-295-2	01	1	1012-	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1001-1011			●	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1210	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-97241-296-1	02	1	1211-1308				●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1211-1308	●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1309-1311	●		●	●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-1508	●		●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-				●
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1509-	●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1001-1210			●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1211-1308				●
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1309-1508			●	●
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-				●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	1001-		●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1001-1011			●	●
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1012-	●		●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	1001-		●
39	HUB; CLU,LOW & 2ND Z=45	8-98075-732-0	01	1	1001-1501			●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1502-1507			●	●
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-			●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	1001-		●
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1001-			●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	1001-		●
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1001-			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	1001-		●
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1001-			●	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	1012-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	1001-		●
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1001-			●	●
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1001-			●	●
104	GEAR; 4TH,COUNTER Z=29	8-97377-682-0	01	1	1001-1010			●	●
104	GEAR; 4TH,COUNTER Z=29	8-98168-502-0	01	1	1011-1203			●	●
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1204-			●	●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	1001-1107		●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311		●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	1001-1311		●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-		●
105	GEAR; 3RD,COUNTER Z=35	8-97377-704-0	01	1	1001-1010			●	●
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1011-			●	●
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1001-			●	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98168-526-0	01	1	1012-1308	●
108	SHAFT; COUNTER Z=46-37-27-21	8-98249-483-0	01	1	1309-	●
108	SHAFT; COUNTER Z=27-42-26	8-98160-120-0	01	1	1001-1209			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98223-607-0	01	1	1210-1501			●	●
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1502-			●	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	1001-		●
118	GEAR; 6TH,COUNTER Z=46	8-97241-245-0	01	1	1012-	●
118	GEAR; 6TH,COUNTER Z=54	1-33332-104-1	01	1	1001-		●
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1001-			●	●
174	SYNCHRONIZER ASM; 2ND-3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98315-823-2	02	1	1509-				●
174	SYNCHRONIZER ASM; 2ND-3RD	8-98315-823-2	02	1	1509-			●
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1001-			●	●
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1001-			●	●
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1001-			●	●
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1001-			●	●
314	BEARING; NEEDLE,REV GEAR (C) NSK	8-97253-114-0	01	1	1012-	●
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1001-			●	●
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1001-			●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98075-733-0	01	1	1001-1501			●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1502-1507			●	●
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-			●	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	1012-	●
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1001-			●	●
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1001-			●	●
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1001-			●	●
506	COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	1012-	●
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1001-			●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1201-				●
516	SPRING; SYNCHRO,INDEX	8-97305-803-1	09	1	1012-	●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1001-1112			●	●
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1201-				●
516	SPRING; SYNCHRO,INDEX	8-98032-197-0	09	1	1201-			●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1201-				●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1001-1011			●	●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1012-1112	●		●	●
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1201-				●
517	BALL; SYNCHRO,INDEX	8-97252-935-0	09	1	1201-	●		●
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1001-			●	●
563	COLLAR; 1ST GEAR	8-97380-022-0	01	1	1001-1004			●	●
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1005-			●	●
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1001-			●	●
577	HOSE; OIL PUMP (B)	8-98033-982-0	01	1	1001-			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	06	1	1001-1205			●	●
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1206-			●	●
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1001-			●	●
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-98223-605-1	01	1	1211-1308				●
584	RING; BLOCK,2ND Z=45	8-98223-605-1	01	1	1211-1308			●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1001-1210			●	●
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-98034-770-0	01	1	1211-1308				●
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1309-1508			●	●
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-98034-770-0	01	1	1509-				●
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1001-1508			●	●
585	RING; OUTSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-				●
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-606-1	01	1	1211-1308				●
586	RING; INSIDE,2ND	8-98223-606-1	01	1	1211-1308			●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1001-1210			●	●
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1211-1308				●
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1309-1508			●	●
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-				●
587	CASE; PUMP,COUNTER	8-97377-959-0	01	1	1001-1205			●	●
587	CASE; PUMP,COUNTER	8-98212-196-0	01	1	1206-1501			●	●
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1502-			●	●
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45	8-98223-605-1	01	1	1210-1308				●
588	RING; BLOCK,3RD Z=45	8-98223-605-1	01	1	1210-1308			●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1001-1209			●	●
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	1210-1308				●
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1309-1508			●	●
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	1509-				●
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1001-1508			●	●
589	RING; OUTSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-				●
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98223-606-1	01	1	1210-1308				●
590	RING; INSIDE,3RD	8-98223-606-1	01	1	1210-1308			●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1001-1209			●	●
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1210-1308				●
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1309-1508			●	●
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-				●
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1001-			●	●
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1001-			●	●
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1001-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
