2-20 — MANUAL TRANSMISSION ASM AND CASE (#63367) — 411 parça

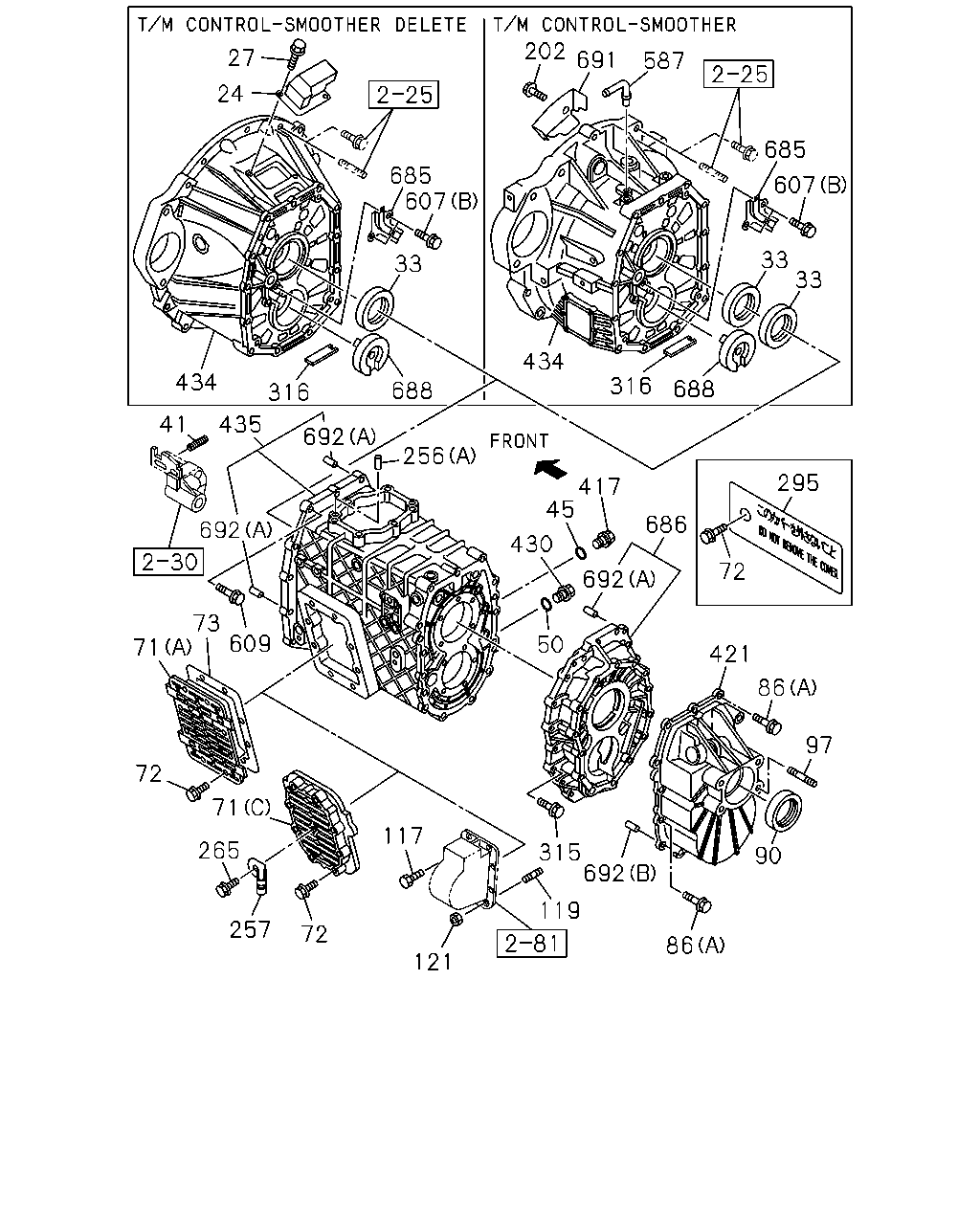

202 27 691 587 24 685 685 607 607 33 33 33 434 434 316 688 688 316 41 435 692 256 295 417 45 686 692 430 72 692 73 609 50 71 421 86 97 72 71 117 265 315 692 90 119 257 72 86 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1001-1011	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1012-1112	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1201-1410	●		●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	1201-1410		●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●		●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1410			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE SOU	0-28050-816-0	02	1	1411-	●		●	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE SOU	0-28050-816-0	02	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1001-1011	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1012-1112	●	●		●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	1201-1410		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1201-1410	●			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1201-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1001-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1001-1112	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ).	8-97377-947-0	01	1	1201-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1201-	●
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	1201-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1001-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1011	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1001-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1011	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-1404	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	1001-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1001-1011	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1012-	●			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	1001-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	1001-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1001-		●
72	BOLT; SIDE COVER TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	1012-				●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	1001-	●		●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1012-				●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1012-				●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1001-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1001-			●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1001-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1012-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1001-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1001-	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1001-1011			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1012-			●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	1001-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1001-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	1001-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1001-1011	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1012-	●			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011	●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●		●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	06	1	1001-		●
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1201-		●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1012-				●
256	PIN; KNOCK (C) ID=6 L=12	9-08160-612-0	02	1	1012-				●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1001-	●	●
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	1201-		●
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	1201-		●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	1001-	●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1001-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1001-1011	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1012-	●	●		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1001-			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1001-1011	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1012-	●	●		●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1012-				●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1001-			●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1001-	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1001-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1001-1011	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-1404	●	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●			●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-981-1	01	1	1201-		●
434	HOUSING; CLU	8-97382-931-1	01	1	1012-				●
434	HOUSING; CLU	8-98114-530-2	01	1	1001-			●
434	HOUSING; CLU	8-98004-507-2	01	1	1001-1112	●	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-507-2	01	1	1201-		●
434	HOUSING; CLU	8-98004-507-2	01	1	1201-	●
435	CASE; TRANS	8-97382-868-1	01	1	1012-				●
435	CASE; TRANS	8-98113-243-0	01	1	1001-			●
435	CASE; TRANS	8-97388-872-4	01	1	1001-	●
435	CASE; TRANS	8-98123-098-1	01	1	1001-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	1201-		●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1201-		●
607	BOLT; COVER (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●	●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1012-				●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1001-	●	●
685	COVER; OIL PORT	8-98018-864-1	01	1	1001-	●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	1001-	●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	1001-1110	●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508	●	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-	●	●
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	1201-		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1001-	●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1001-	●	●

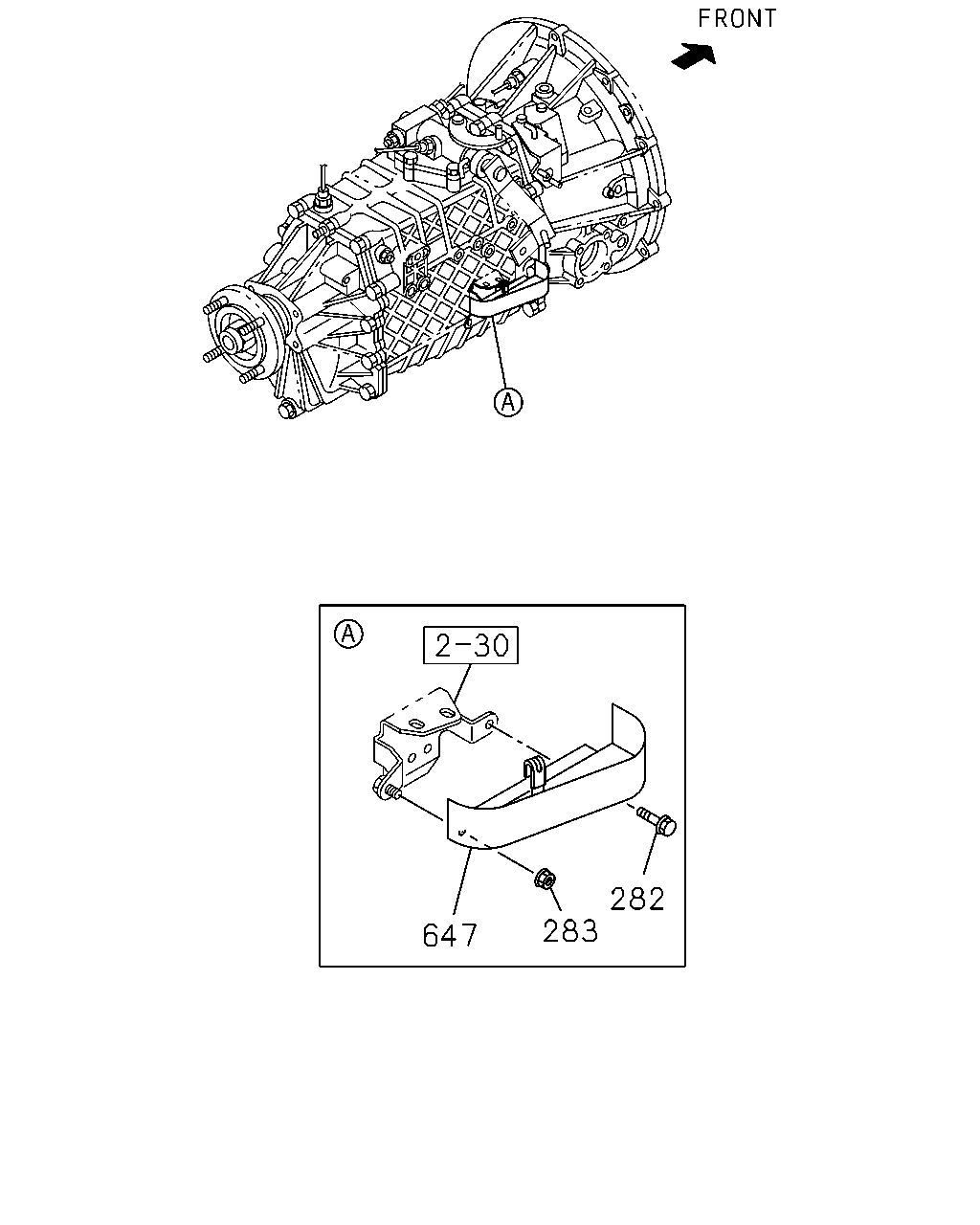

282 283 647

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1201-	●
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU	0-91180-108-0	01	1	1201-	●
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1201-	●

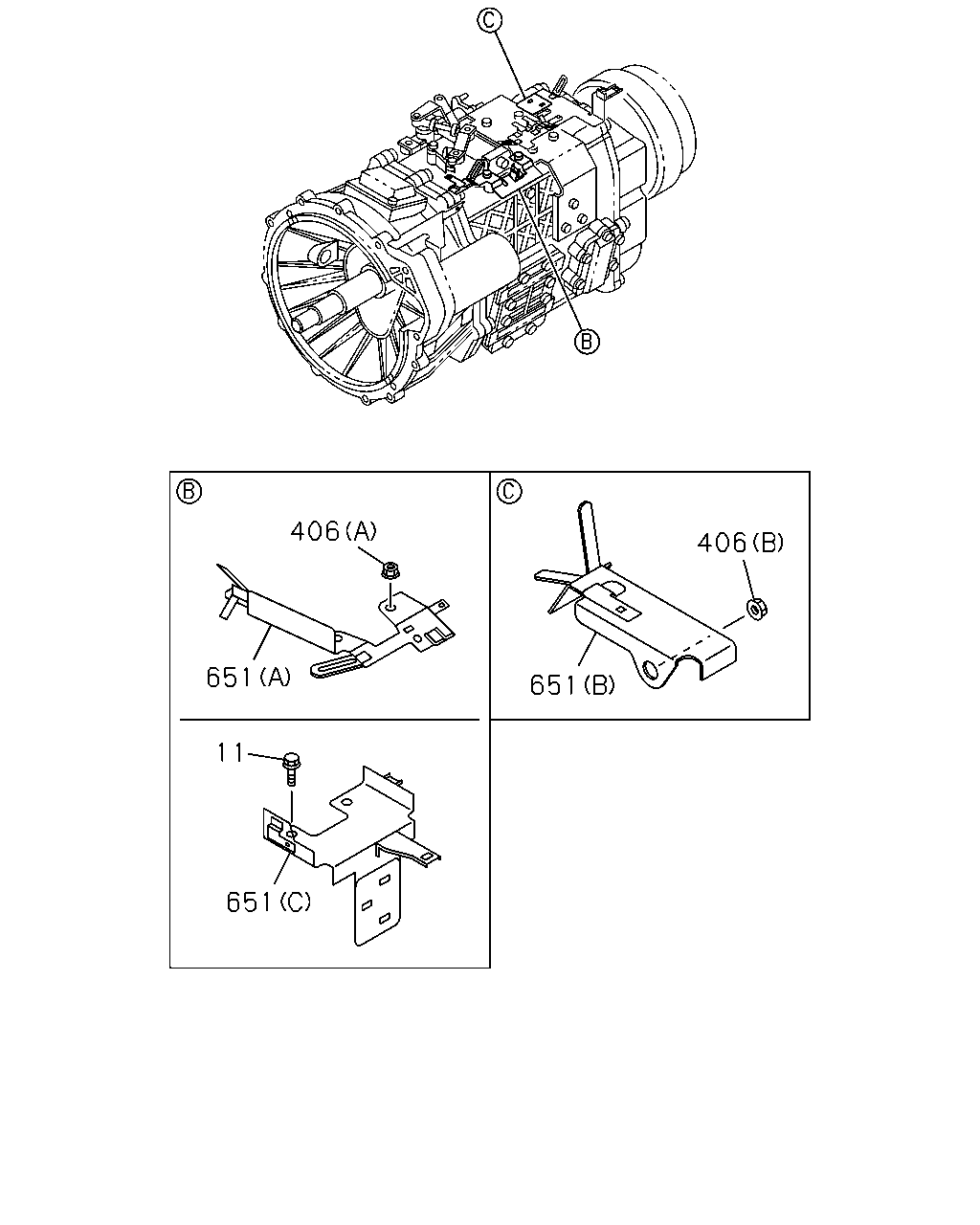

406 406 651 651 11 651

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
11	BOLT; BRKT EURO2 SPECIFICATION<NT2> M12X25 FLANGE	0-28151-225-0	01	1	1309-	●	●	●	●
11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE SOU	0-28650-835-0	02	1	1201-		●
406	NUT; BRKT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1012-				●
406	NUT; BRKT (A) M8 FLANGE SOU	0-91180-108-0	02	1	1001-1011	●	●
406	NUT; BRKT (A) M8 FLANGE SOU	0-91180-108-0	02	1	1012-1112	●	●		●
406	NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8 FLANGE SOU	0-91180-108-0	02	1	1201-		●
406	NUT; BRKT (A) M8 FLANGE SOU	0-91180-108-0	02	1	1201-	●			●
651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97610-090-3	01	1	1201-		●
651	BRACKET; T/M HARNESS (B)	8-98044-568-1	01	1	1012-				●
651	BRACKET; T/M HARNESS (A)	8-97609-800-3	01	1	1001-1011	●	●
651	BRACKET; T/M HARNESS (A)	8-97609-800-3	01	1	1012-1112	●	●		●
651	BRACKET; T/M HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97609-800-3	01	1	1201-		●
651	BRACKET; T/M HARNESS (A)	8-97609-800-3	01	1	1201-	●			●

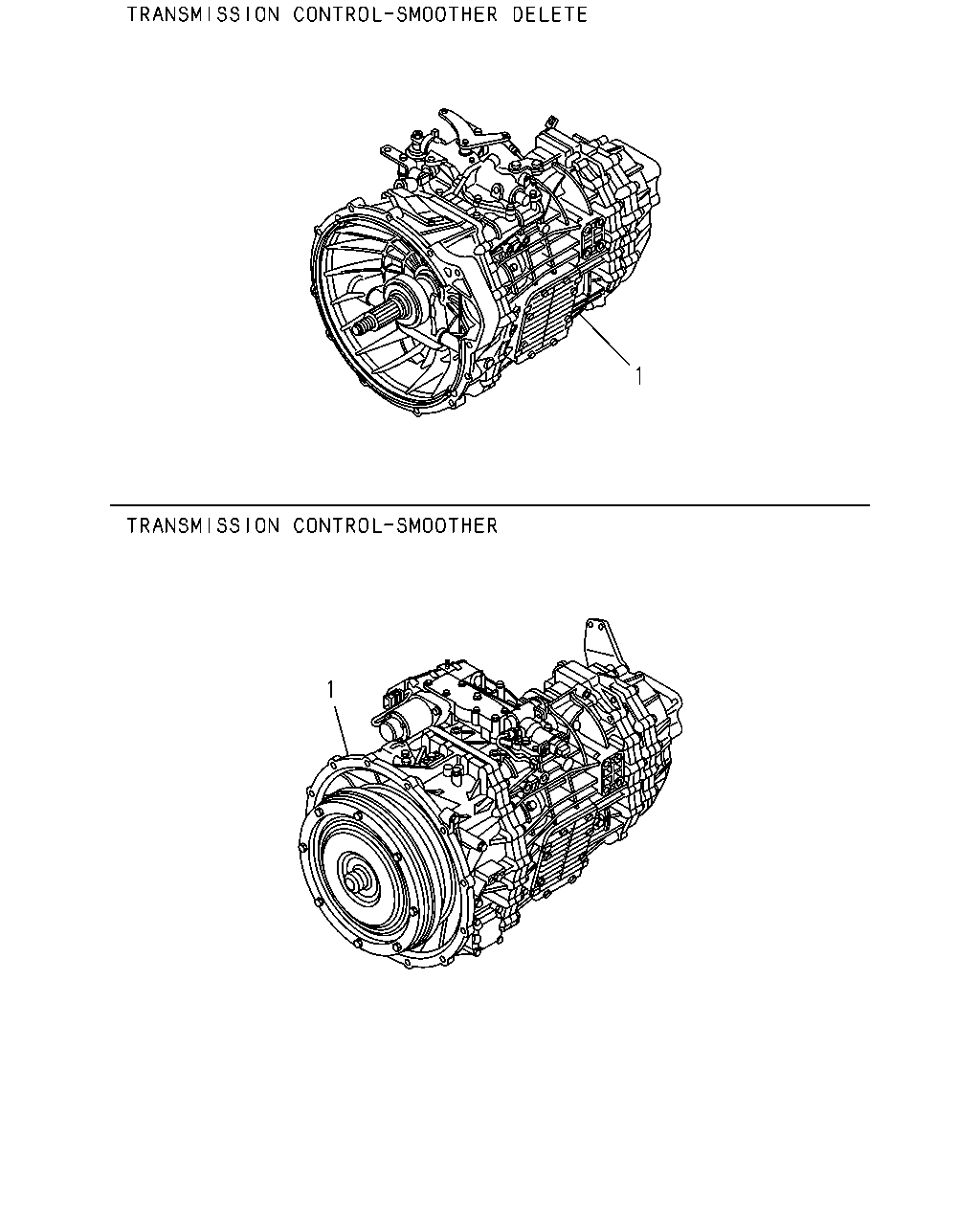

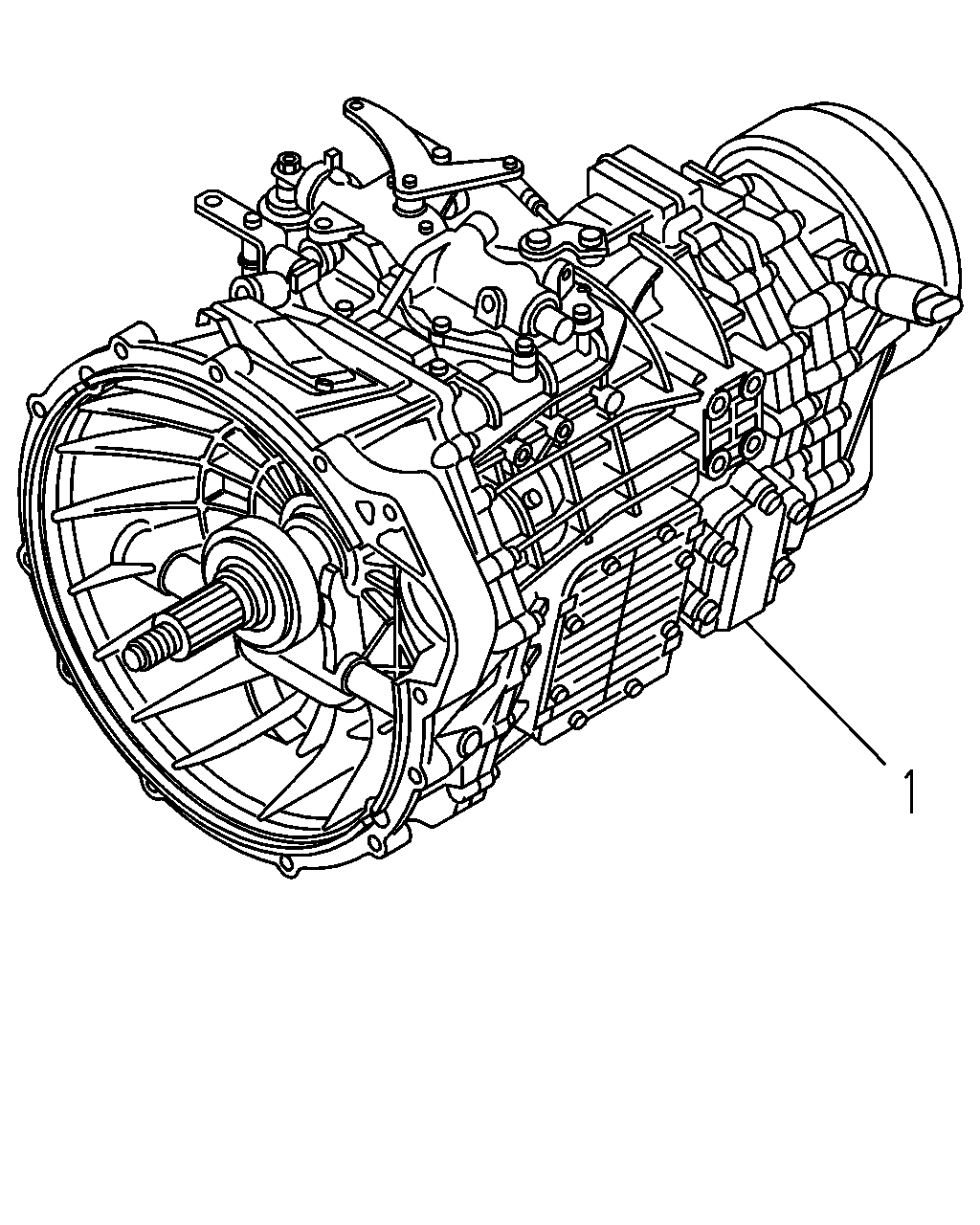

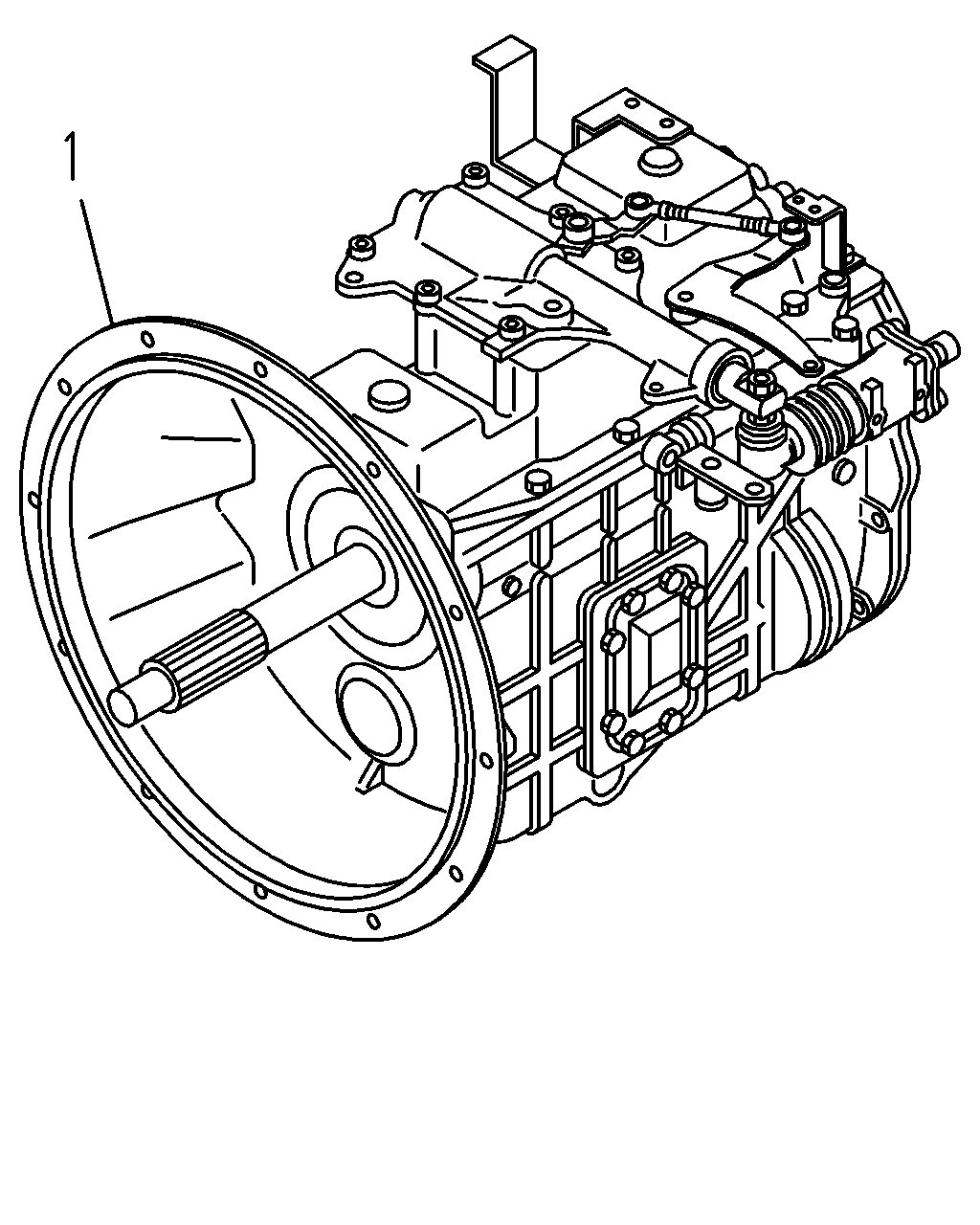

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-633-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-633-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-394-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-394-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-178-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-178-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1201-		●

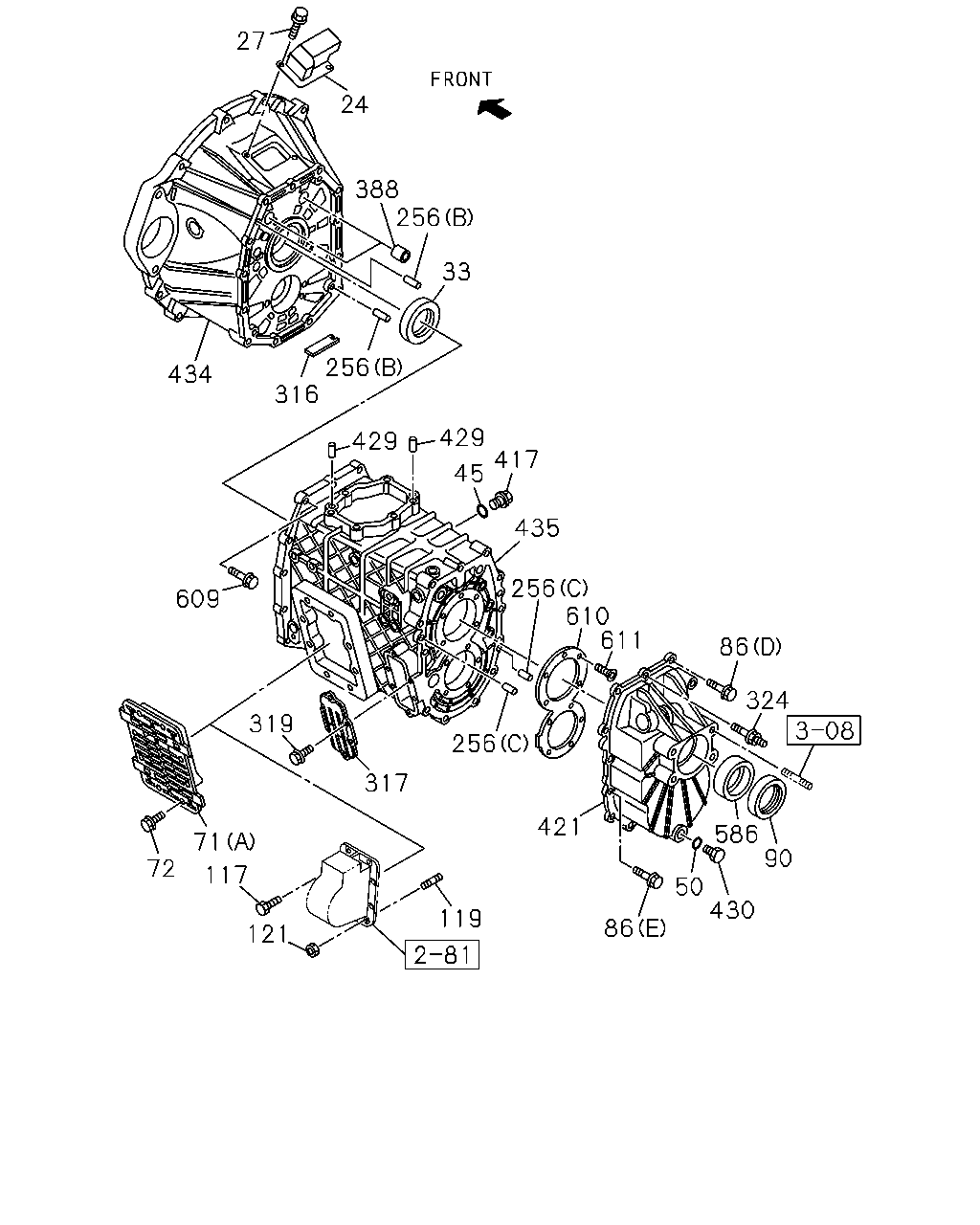

27 24 388 256 33 256 316 434 429 417 45 429 435 256 610 611 609 86 256 324 319 317 421 586 90 71 72 117 50 430 119 86 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1001-1011	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1012-1112	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1201-1410	●		●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	1201-1410		●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●		●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1410			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE SOU	0-28050-816-0	02	1	1411-	●		●	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE SOU	0-28050-816-0	02	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1001-1011	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1012-1112	●	●		●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	1201-1410		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1201-1410	●			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1201-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1001-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1001-1112	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ).	8-97377-947-0	01	1	1201-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1201-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1001-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1011	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1001-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1011	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-1404	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	1001-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1001-1011	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1012-	●			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	1001-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	1001-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1001-		●
72	BOLT; SIDE COVER TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	1012-				●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1012-				●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1012-				●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1001-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1001-			●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1001-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1012-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1001-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1001-1011			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1012-			●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	1001-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1001-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	1001-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1001-1011	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1012-	●			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011	●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●		●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	06	1	1001-		●
256	PIN; KNOCK (B) OD=10 L=20	8-97135-423-0	02	1	1012-				●
256	PIN; KNOCK (C) ID=6 L=12	9-08160-612-0	02	1	1012-				●
256	PIN; KNOCK (A) OD=6 L=12	9-08150-612-0	02	1	1001-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1001-1011	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1012-	●	●		●
317	COVER; CASE	8-97252-626-0	01	1	1012-				●
319	BOLT; COVER M8X20 FLANGE	0-28050-820-0	06	1	1012-				●
324	STUD; RR COVER M10X15,M10X40 L=65	8-97365-379-0	01	1	1012-				●
388	BUSHING; CLU HSG	8-97241-326-2	02	1	1012-				●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1001-			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1001-1011	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1012-	●	●		●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1012-				●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1001-			●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1001-	●	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1012-				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	1001-			●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1001-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1001-1011	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-1404	●	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●			●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-981-1	01	1	1201-		●
434	HOUSING; CLU	8-97382-931-1	01	1	1012-				●
434	HOUSING; CLU	8-98114-530-2	01	1	1001-			●
434	HOUSING; CLU	8-98004-507-2	01	1	1001-1112	●	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-507-2	01	1	1201-		●
434	HOUSING; CLU	8-98004-507-2	01	1	1201-	●
435	CASE; TRANS	8-97382-868-1	01	1	1012-				●
435	CASE; TRANS	8-98113-243-0	01	1	1001-			●
435	CASE; TRANS	8-97388-872-4	01	1	1001-	●
435	CASE; TRANS	8-98123-098-1	01	1	1001-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●
586	BEARING; NEEDLE	8-97253-108-0	01	1	1012-				●
609	BOLT; HSG TO CASE M10X40 FLANGE	0-28151-040-0	13	1	1012-				●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1001-	●	●
610	RETAINER; BRG	8-97241-314-2	01	1	1012-				●
611	SCREW M10X27 TORQUES	8-97365-354-0	10	1	1012-				●

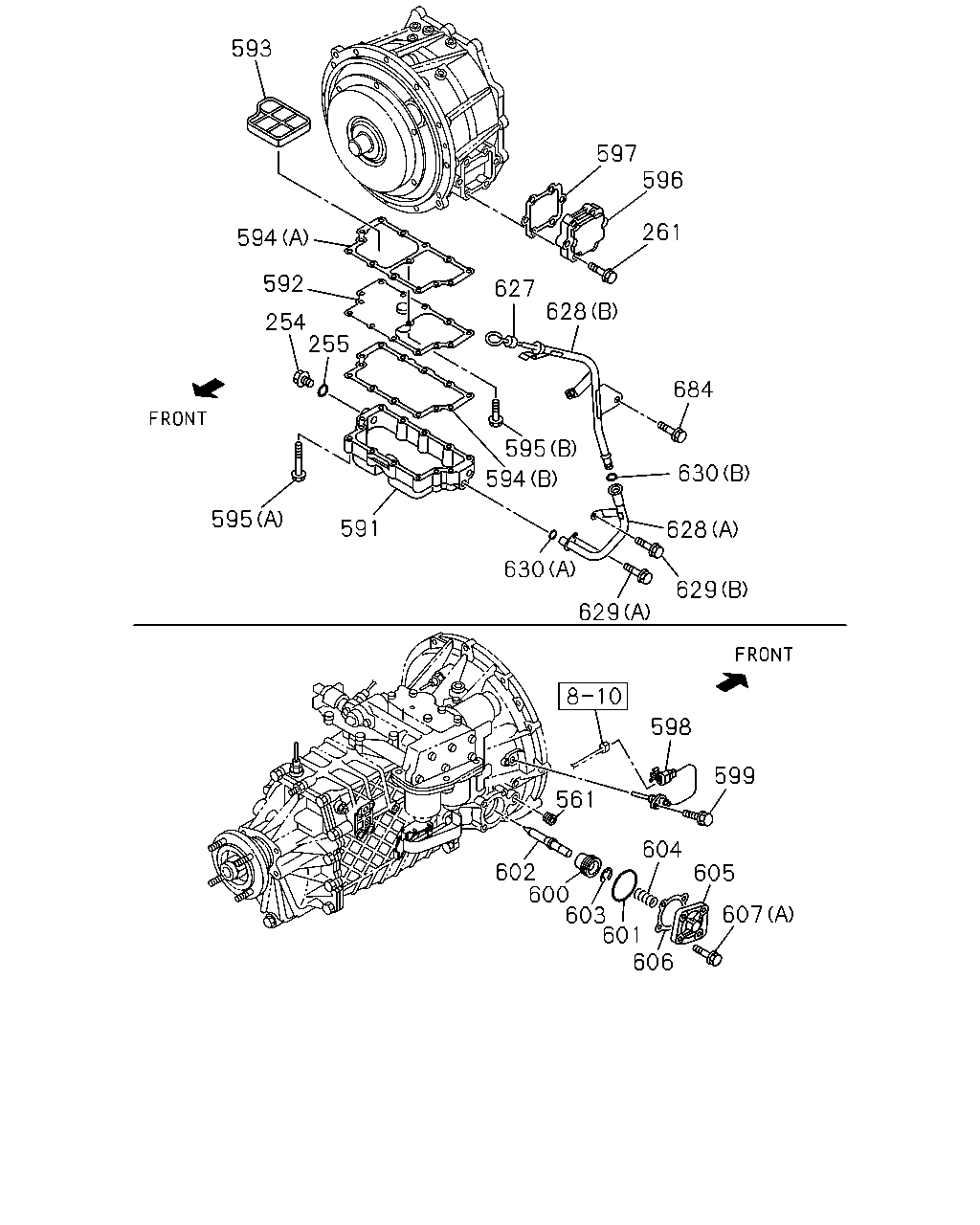

593 597 596 261 594 592 627 628 254 255 684 595 630 594 595 591 628 630 629 629 598 561 599 604 602 600 603 601 606 605 607

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	1201-		●
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	1201-		●
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	1201-		●
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	1201-		●
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	1201-		●
592	COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	1201-		●
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	1201-		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	1201-		●
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	1201-		●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1201-		●
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	1201-		●
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	1201-		●
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	1201-		●
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	1201-		●
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE SOU	0-28650-616-0	01	1	1201-		●
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	1201-		●
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	1201-		●
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	1201-		●
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	1201-		●
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	1201-		●
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	1201-		●
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	1201-		●
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1201-		●
607	BOLT; COVER (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-	●	●
627	GAUGE; OIL LEVEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-423-2	01	1	1201-		●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	1201-		●
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-326-2	01	1	1201-		●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X16 FLANGE	0-28151-016-0	01	1	1201-		●
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE SOU	0-28650-616-0	01	1	1201-		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	1201-		●
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	1201-		●
684	BOLT; OIL FILLER TUBE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	01	1	1201-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-633-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-633-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-394-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-394-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-178-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-178-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1201-		●

27 24 29 32 429 435 36 37 417 45 33 51 430 434 28 50 62 421 97 90 117 119 301 86 86 121 73 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1001-1011	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1012-1112	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	1201-1410	●		●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31131-041-0	01	1	1201-1410		●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-	●		●	●
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98284-107-0	01	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-1410			●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE SOU	0-28050-816-0	02	1	1411-	●		●	●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE SOU	0-28050-816-0	02	1	1411-		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1001-1011	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1012-1112	●	●		●
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	1201-1410		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	1201-1410	●			●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	1001-			●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	1001-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	1001-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1201-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1012-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	1001-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1001-1112	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ).	8-97377-947-0	01	1	1201-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	1201-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	1001-			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1001-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1001-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1011	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	1001-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1001-1011	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1012-1404	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-	●			●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	1001-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	1001-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	1001-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1001-1011	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	1012-	●			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	1001-1408		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	1001-			●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	1001-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1001-		●
72	BOLT; SIDE COVER TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	08	1	1012-				●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	1001-	●		●
86	BOLT; RR COVER (D) M10X40 FLANGE	0-28151-040-0	10	1	1012-				●
86	BOLT; RR COVER (E) M10X40 FLANGE	8-97365-377-0	02	1	1012-				●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	1001-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	1001-			●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	1001-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1012-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1001-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-			●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1001-	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1001-1011			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	1012-			●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	1001-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1001-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	1001-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1001-1011	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	1012-	●			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1001-		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011	●		●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	02	1	1012-	●		●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE SOU	0-91180-210-0	06	1	1001-		●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	1001-			●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	1001-			●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1001-1011	●	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1012-	●	●		●
421	COVER; RR,TRANS	8-97238-934-5	01	1	1012-				●
421	COVER; RR,TRANS	1-33131-177-1	01	1	1001-			●
421	COVER; RR,TRANS	8-98051-477-0	01	1	1001-	●	●
429	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	02	1	1012-				●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	1001-			●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	1001-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1001-1011	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1012-1404	●	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-	●			●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-981-1	01	1	1201-		●
434	HOUSING; CLU	8-97382-931-1	01	1	1012-				●
434	HOUSING; CLU	8-98114-530-2	01	1	1001-			●
434	HOUSING; CLU	8-98004-507-2	01	1	1001-1112	●	●
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98004-507-2	01	1	1201-		●
434	HOUSING; CLU	8-98004-507-2	01	1	1201-	●
435	CASE; TRANS	8-97382-868-1	01	1	1012-				●
435	CASE; TRANS	8-98113-243-0	01	1	1001-			●
435	CASE; TRANS	8-97388-872-4	01	1	1001-	●
435	CASE; TRANS	8-98123-098-1	01	1	1001-1108		●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404		●
435	CASE; TRANS	8-98236-421-1	01	1	1405-		●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-633-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-633-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98171-394-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98171-394-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98171-398-0	01	1	1012-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-178-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-178-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33044-286-0	01	1	1001-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-537-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-830-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-379-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98115-546-0	01	1	1001-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-586-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-586-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1201-		●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1001-1112		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-596-0	01	1	1201-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
