◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#63366) — 44 parça

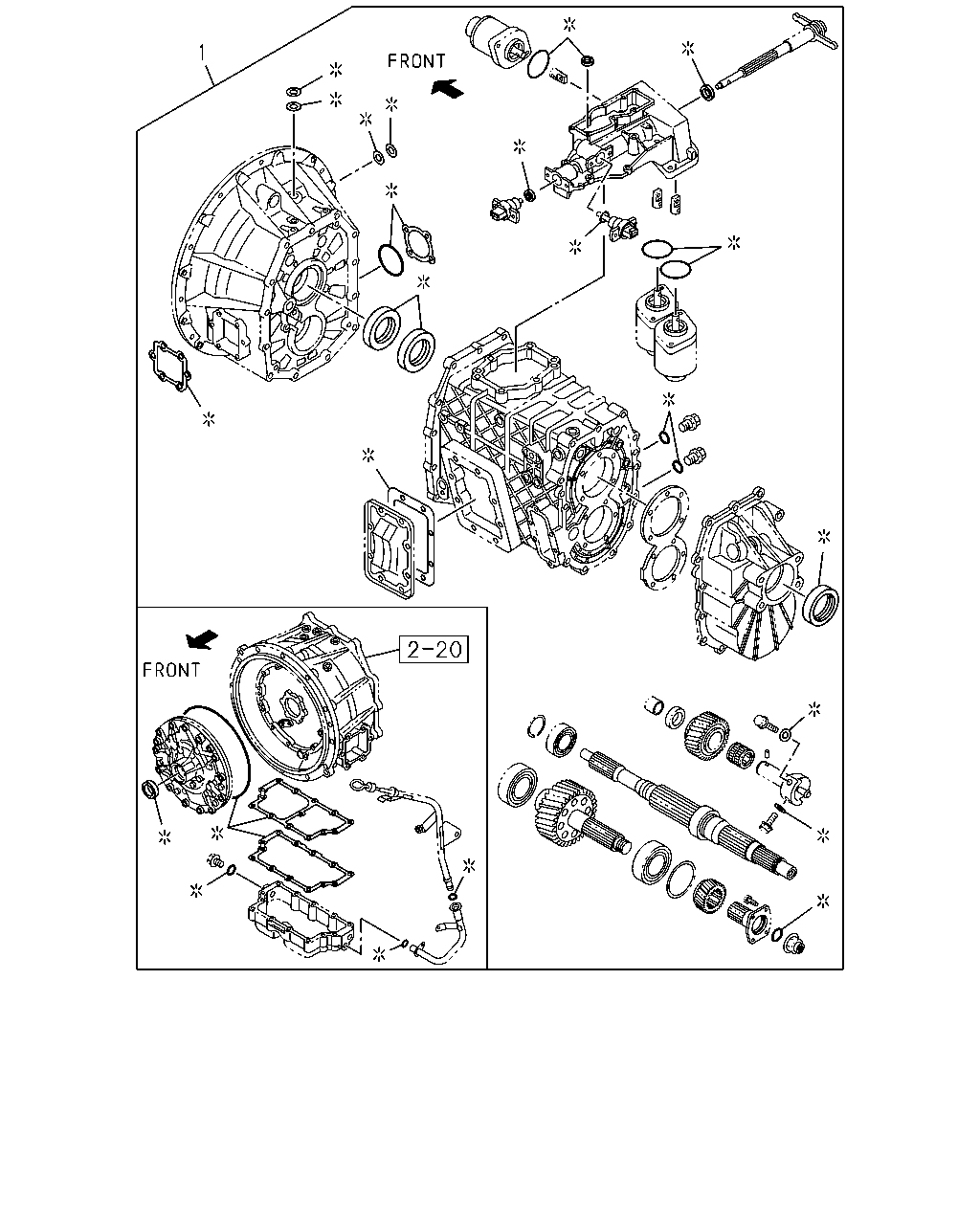

çizim 162158
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1201-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-126-1 01 1 1012- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1112 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1201-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001- ●

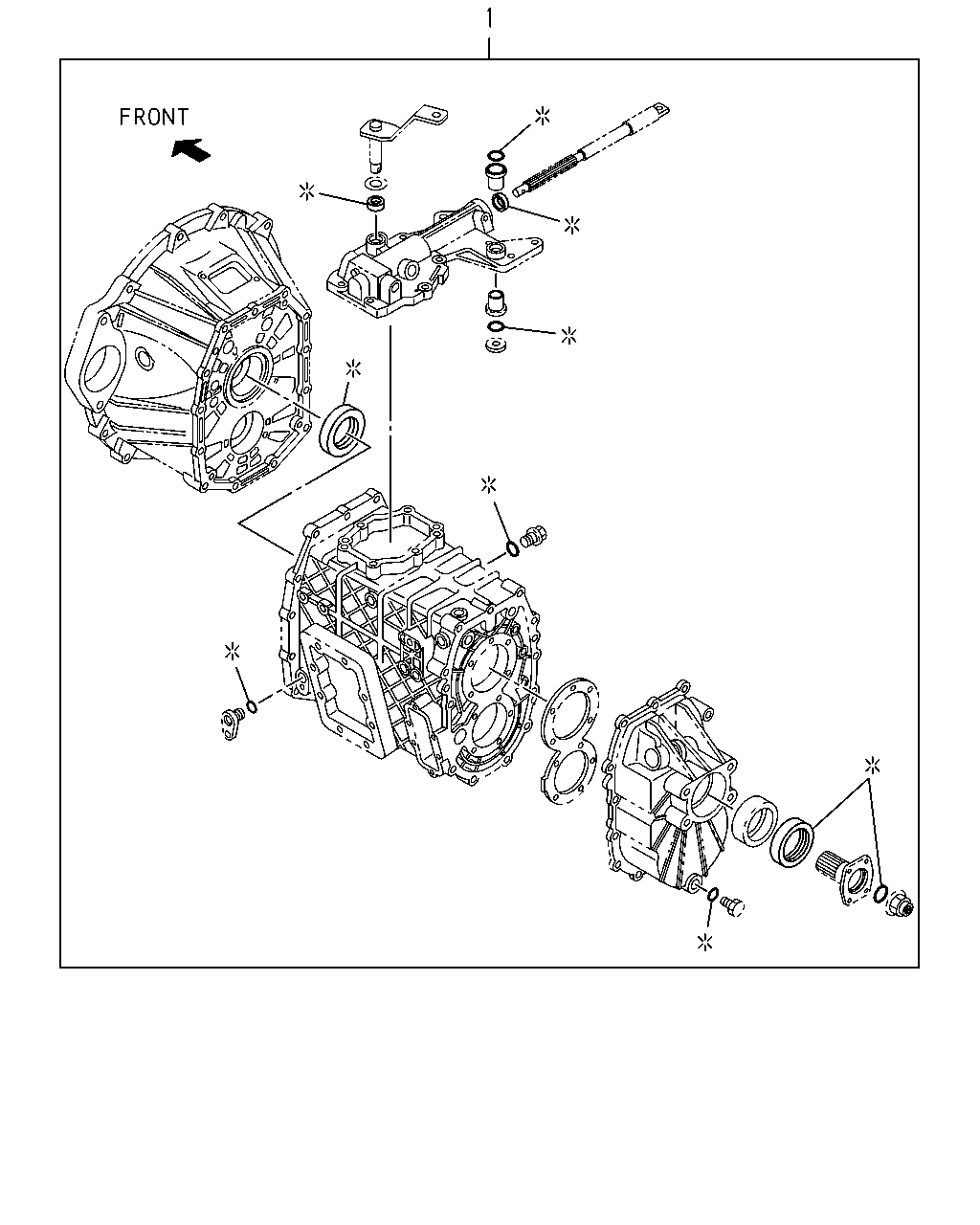

çizim 162201
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1201-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-126-1 01 1 1012- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1112 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1201-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001- ●

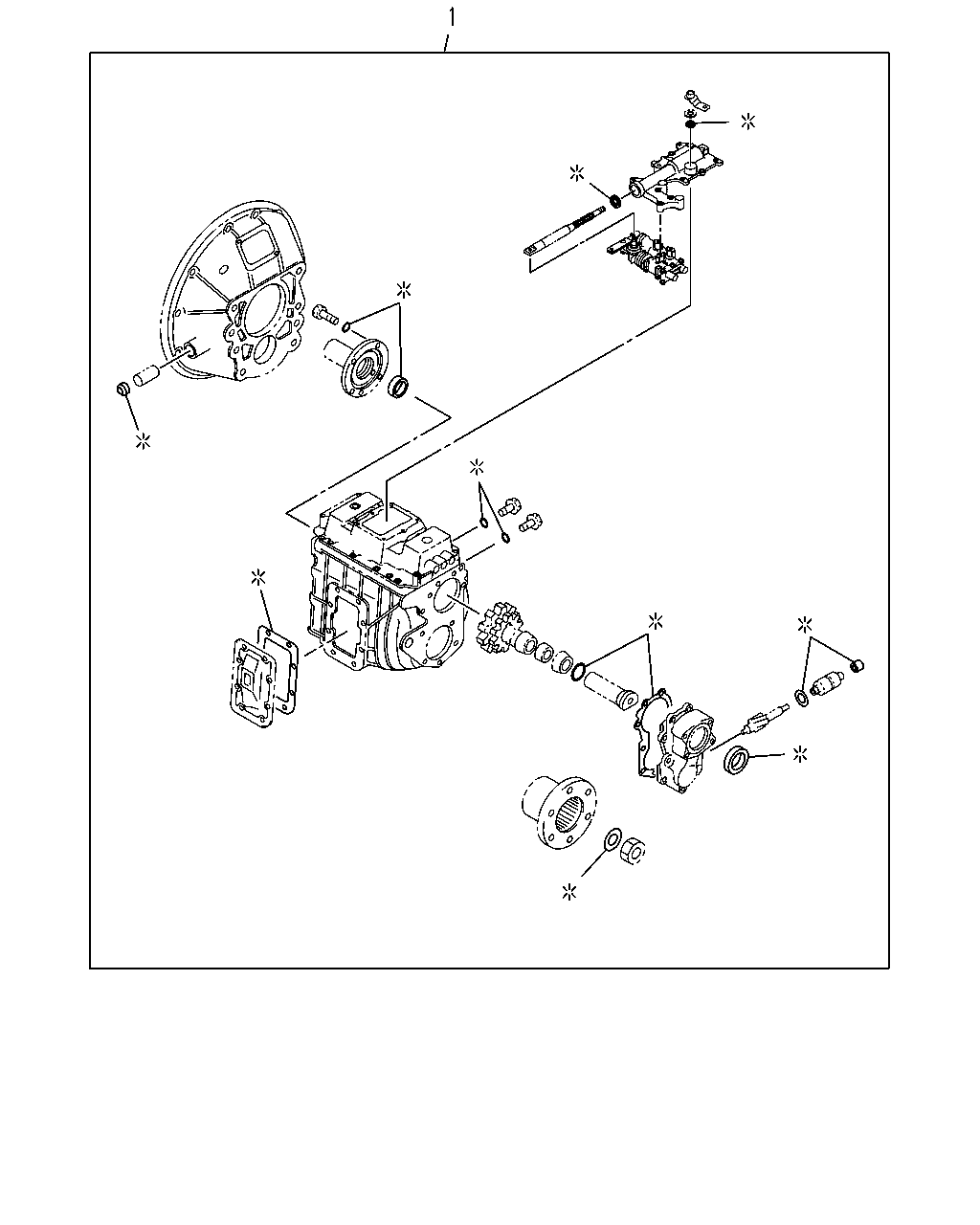

çizim 162318
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1201-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-126-1 01 1 1012- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1112 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1201-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001- ●

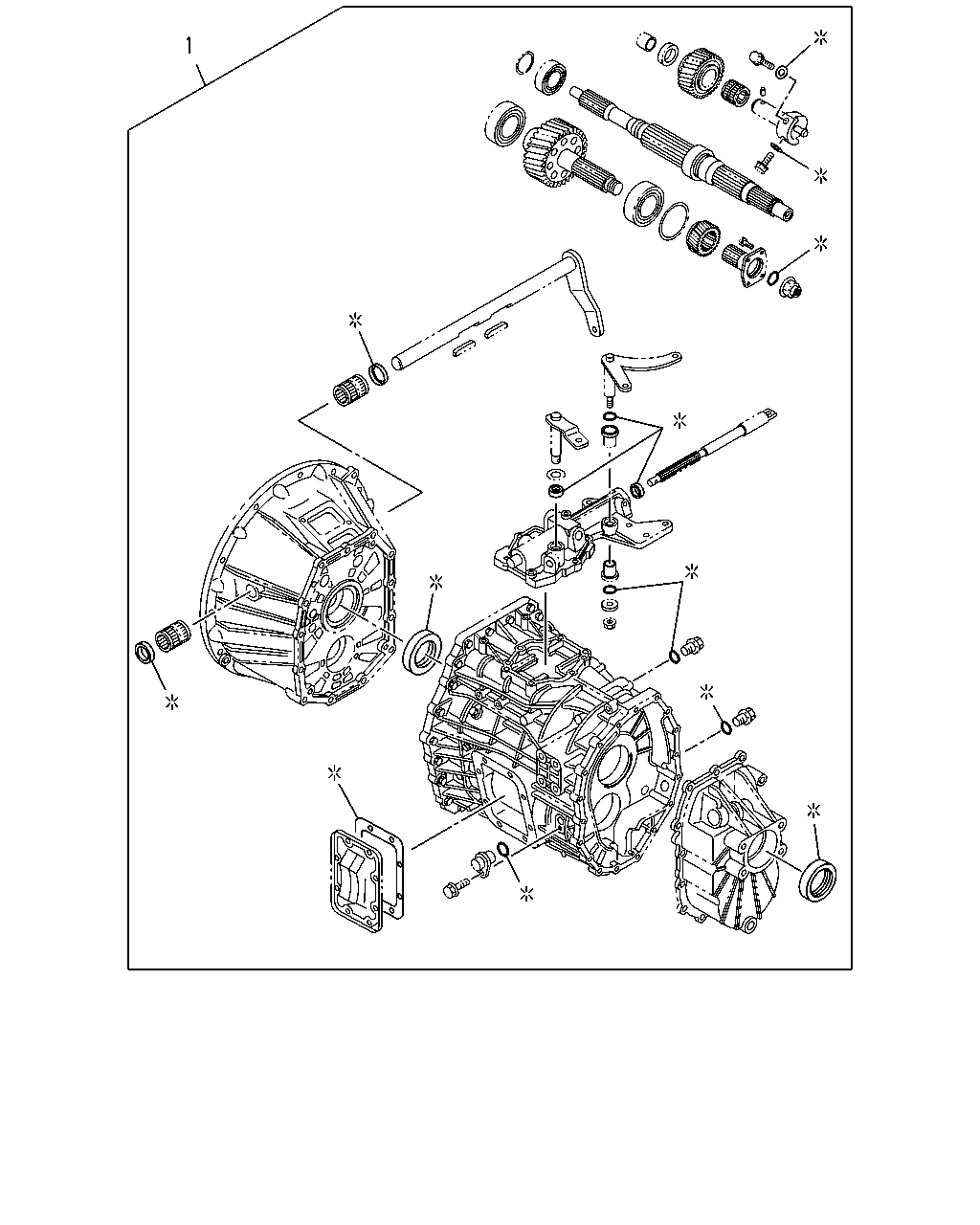

çizim 162323
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1201-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-126-1 01 1 1012- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1112 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1201-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
