◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶

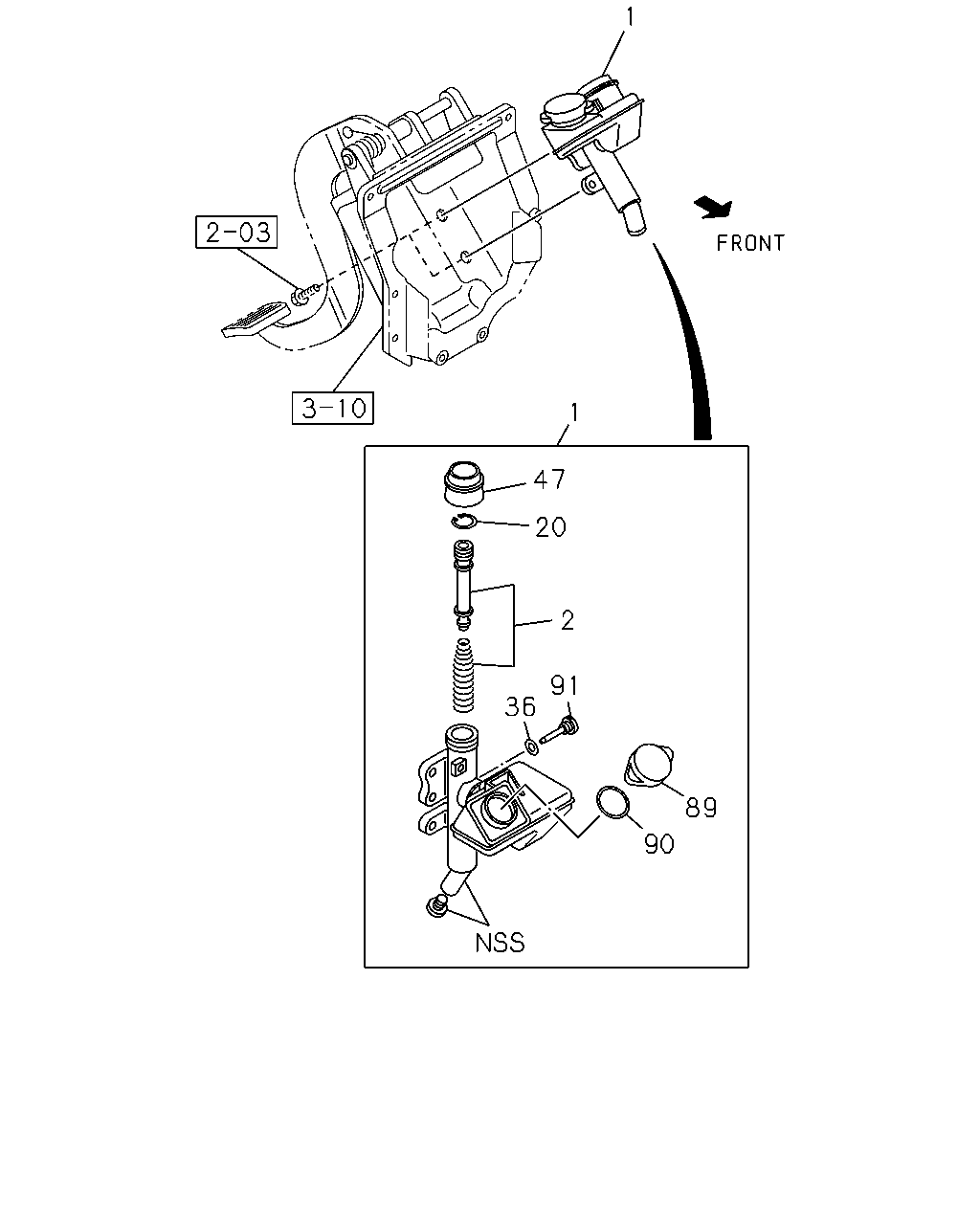

2-08 — CLUTCH MASTER CYLINDER (#63365) — 16 parça
çizim 162252
1 1 47 20 2 91 36 89 90
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1001-1112
1 CYLINDER ASM; CLUTCH MASTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47500-250-2 01 1 1201-
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1001-1112
2 REPAIR KIT; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-85576-461-0 01 1 1201-
20 RING; SNAP,BODY 1-47519-013-0 01 1 1001-1112
20 RING; SNAP,BODY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-013-0 01 1 1201-
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1001-1112
36 GASKET; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-014-0 01 1 1201-
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1001-1112
47 COVER; DUST,PUSH ROD
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-018-0 01 1 1201-
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1001-1112
89 CAP; OIL FILLER,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-017-0 01 1 1201-
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1001-1112
90 GASKET; OIL FILLER,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-016-0 01 1 1201-
91 BOLT; STOPPER 1-47519-015-0 01 1 1001-1112
91 BOLT; STOPPER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-015-0 01 1 1201-
