◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11160 - FRR SCAB S.AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#63363) — 97 parça
çizim 162239
48 16 28 101 28 50 23 239 207 16 104 50 104 106 184
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 1001-
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (A) ID=10 & 12 		1-09709-278-1 02 1 1001-
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=10 & 12 		1-09709-278-1 01 1 1001-1011
16 CLIP; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=10 & 12 		1-09709-278-1 01 1 1012-1112
16 CLIP; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1201-
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1001-1112
23 GROMMET; CLU PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1201-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1001-1112
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.35 		1-09701-247-1 01 1 1201-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1001-1112
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1201-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1001-1112
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1201-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1001-1006
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 		0-91111-512-0 01 1 1007-1009
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-1112
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1201-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1001-1112
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1001-1112
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1201-
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1201-
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1201-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1001-1112
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 1201-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) (A) L=2683 		8-98162-742-1 01 1 1012-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1001-1112
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 1201-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6S M/T(X7W) (A) L=2214 		8-98115-607-1 01 1 1001-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=2039 		8-98078-086-1 01 1 1001-1112
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 1201-
106 UNION; OIL PIPE
4HK1-TCC ENG(RDV) (C) M12 2WAY SOU 		1-09654-059-2 01 1 1012-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1001-1112
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1201-
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) M12 ELBOW 		0-92125-206-0 01 1 1001-1112
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 1201-
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1001-1112
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1201-
207 BOLT; CLIP
MLD6S M/T(X7W) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1001-
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1001-1112
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 L=66.5 		0-92113-306-0 01 1 1201-

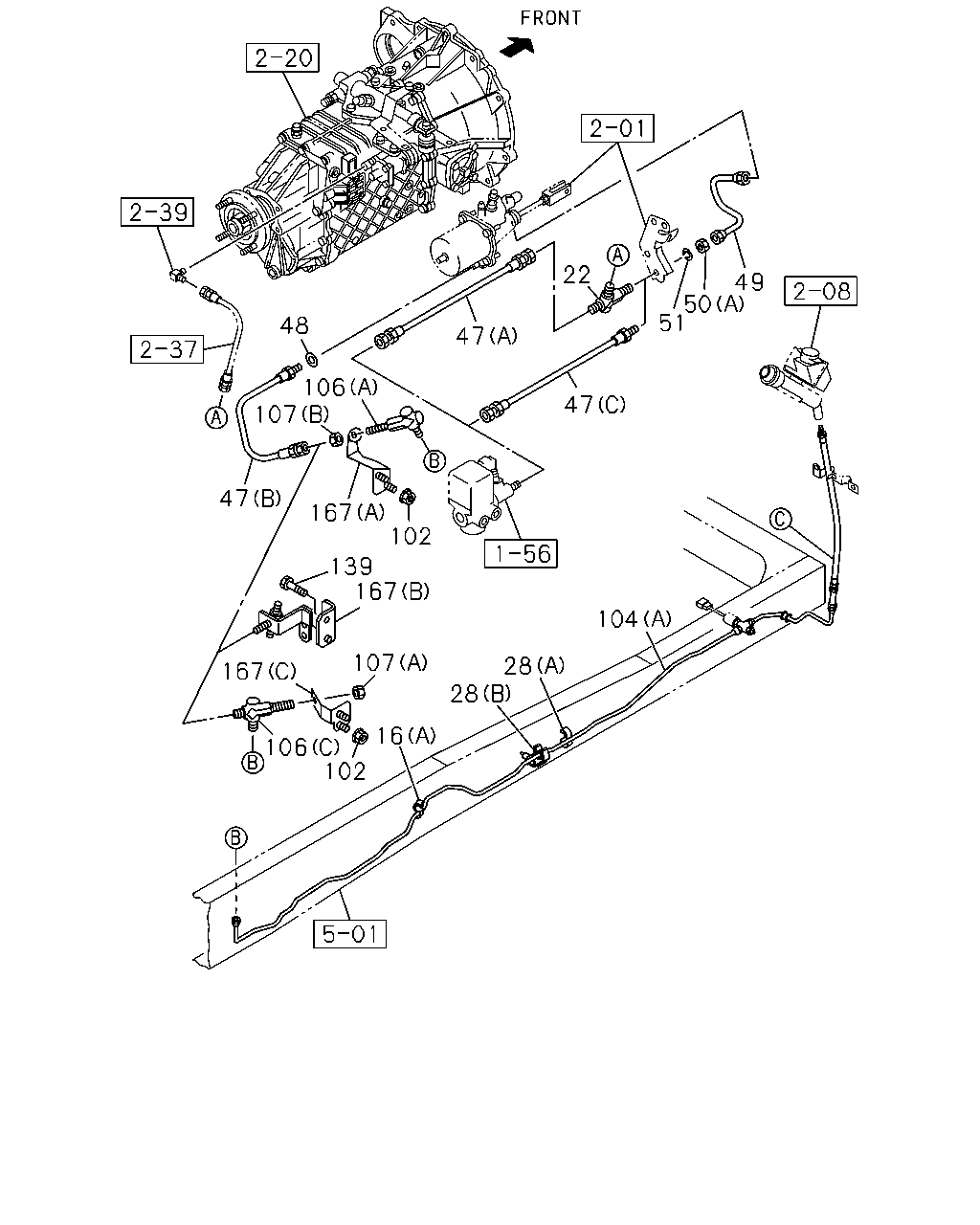

çizim 162248
22 49 50 51 48 47 106 107 47 47 167 102 139 167 104 107 28 28 167 16 106 102
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (B) ID=11 H=45 L=25 		1-09700-866-0 01 1 1001-
16 CLIP; FLEX HOSE
MLD6S M/T(X7W) (A) ID=10 & 12 		1-09709-278-1 02 1 1001-
16 CLIP; FLEX HOSE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=10 & 12 		1-09709-278-1 01 1 1001-1011
16 CLIP; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) ID=10 & 12 		1-09709-278-1 01 1 1012-1112
16 CLIP; FLEX HOSE
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=10 & 12 		1-09709-278-1 01 1 1201-
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1001-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1001-1112
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=6.35 		1-09701-247-1 01 1 1201-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1001-1112
28 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1201-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) (B) L=440 		8-98072-346-0 01 1 1012-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) ASSISTOR SHIFT CONTROL<WX8> (A) L=720 		1-09363-970-0 01 1 1012-
47 HOSE; FLEX,CLU CONT
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=720 		1-09363-801-0 01 1 1012-
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) ASSISTOR SHIFT CONTROL<WX8> (A) L=660 		1-09363-971-0 01 1 1001-
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=740 		1-09363-674-0 01 1 1001-1112
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6S M/T(X7W) EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=740 		1-09363-674-0 01 1 1201-
47 HOSE; FLEX,CLU CONT
MLD6S M/T(X7W) (B) L=550 		8-98122-509-0 01 1 1001-
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=390 		8-98080-980-0 01 1 1001-1112
47 HOSE; FLEX,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=390 		8-98080-980-0 01 1 1201-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1001-1112
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1201-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
MZZ6W M/T(RSA) EXC. ASSISTOR SHIFT CONTROL<WX8> L=207 		1-49124-782-0 01 1 1012-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
4HK1-TCS ENG(RJS) L=204 		1-49117-400-0 01 1 1001-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1001-1006
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M12 		0-91111-512-0 01 1 1007-1009
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1010-1112
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1201-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1001-1112
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1001-1112
50 NUT; UNION
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1201-
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1201-
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1201-
51 WASHER; LK
ID=12.2 SOU 		0-91510-512-0 01 1 1001-1112
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 SOU 		0-91510-512-0 01 1 1201-
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 SOU 		0-91510-512-0 01 1 1201-
102 NUT; FLEX HOSE,CLU CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-1011
102 NUT; FLEX HOSE,CLU CONT
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) M10 FLANGE SOU 		0-91180-210-0 02 1 1012-1112
102 NUT; FLEX HOSE,CLU CONT
MZZ6W M/T(RSA),MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE SOU 		0-91180-210-0 02 1 1201-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZZ6W M/T(RSA) (A) L=2683 		8-98162-742-1 01 1 1012-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 		8-98067-058-0 01 1 1001-1112
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=336 		8-98067-058-0 01 1 1201-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MLD6S M/T(X7W) (A) L=2214 		8-98115-607-1 01 1 1001-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) L=2039 		8-98078-086-1 01 1 1001-1112
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=2039 		8-98078-086-1 01 1 1201-
106 UNION; OIL PIPE
4HK1-TCC ENG(RDV) (C) M12 2WAY SOU 		1-09654-059-2 01 1 1012-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1001-1112
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 3WAY 		8-98051-113-0 01 1 1201-
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) M12 ELBOW 		0-92125-206-0 01 1 1001-1112
106 UNION; OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 ELBOW 		0-92125-206-0 01 1 1201-
107 NUT; UNION,OIL PIPE
4HK1-TCC ENG(RDV) (A) M12 		0-91111-512-0 01 1 1012-
107 NUT; UNION,OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) M12 		9-09840-280-0 01 1 1001-1112
107 NUT; UNION,OIL PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		9-09840-280-0 01 1 1201-
139 BOLT; BRKT
MLD6S M/T(X7W) M10X30 FLANGE 		0-28051-030-0 01 1 1001-
167 BRACKET; UNION
MZZ6W M/T(RSA) (C) 		8-98086-811-1 01 1 1012-
167 BRACKET; UNION
MLD6S M/T(X7W) (B) 		8-98132-086-0 01 1 1001-
167 BRACKET; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98078-147-0 01 1 1001-1112
167 BRACKET; UNION
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98078-147-0 01 1 1201-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
