4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#6336) — 142 parça

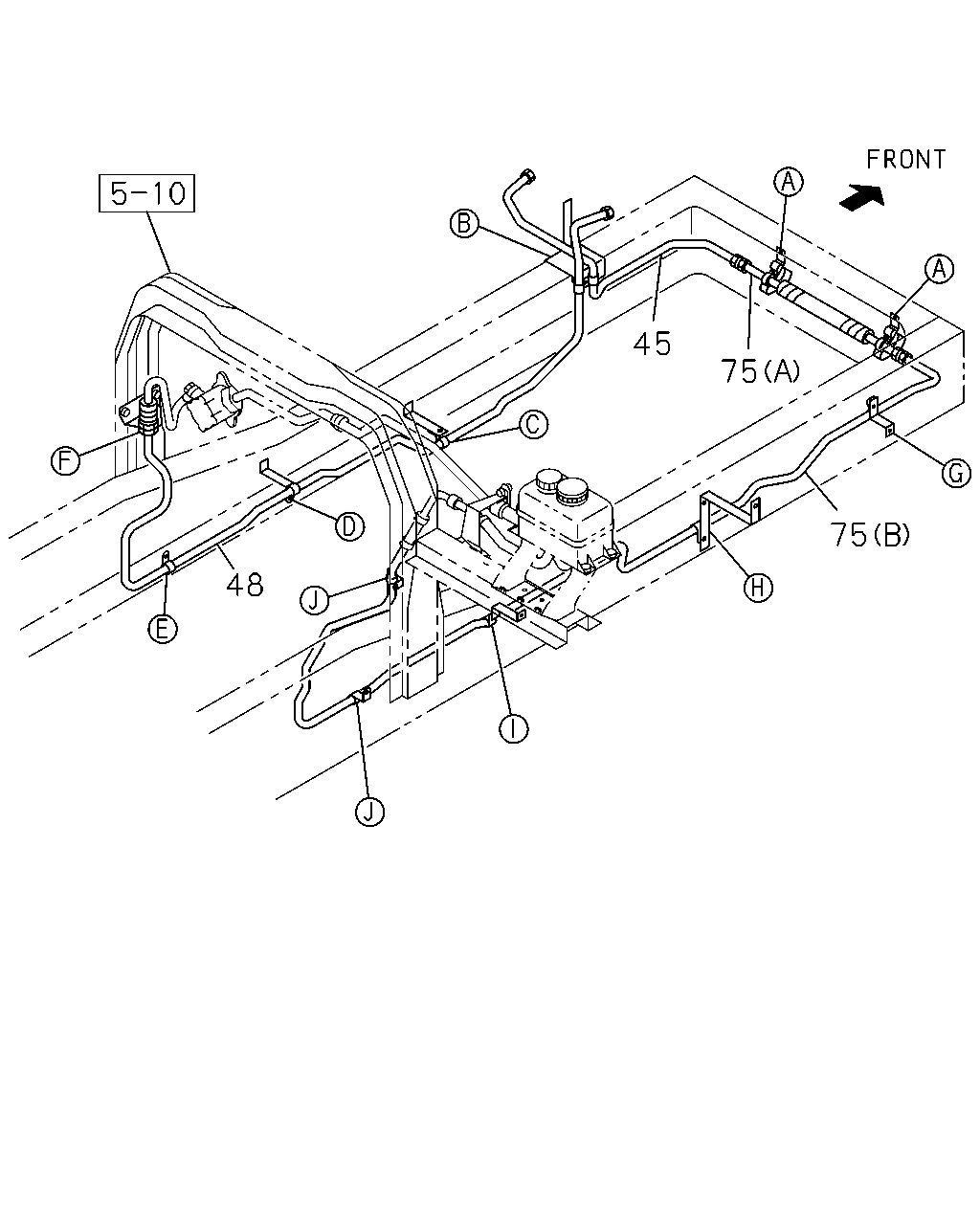

45 75 75 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION	1-21115-570-0	01	1	9604-0006
45	PIPE; OIL,P/S UNIT TO UNION	1-21116-847-0	01	1	0007-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-381-0	01	1	9604-9608
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-753-0	01	1	9609-9904
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21116-349-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-450-0	01	1	9604-0006
75	PIPE; OIL,P/S,UNION TO UNION (B)	1-21115-493-0	01	1	9604-9904
75	PIPE; OIL,P/S,UNION TO UNION 8PE1S(59L) (B)	1-21115-493-0	01	1	9905-
75	PIPE; OIL,P/S,UNION TO UNION 10PE1N(61L) (B)	1-21115-533-0	01	1	9905-

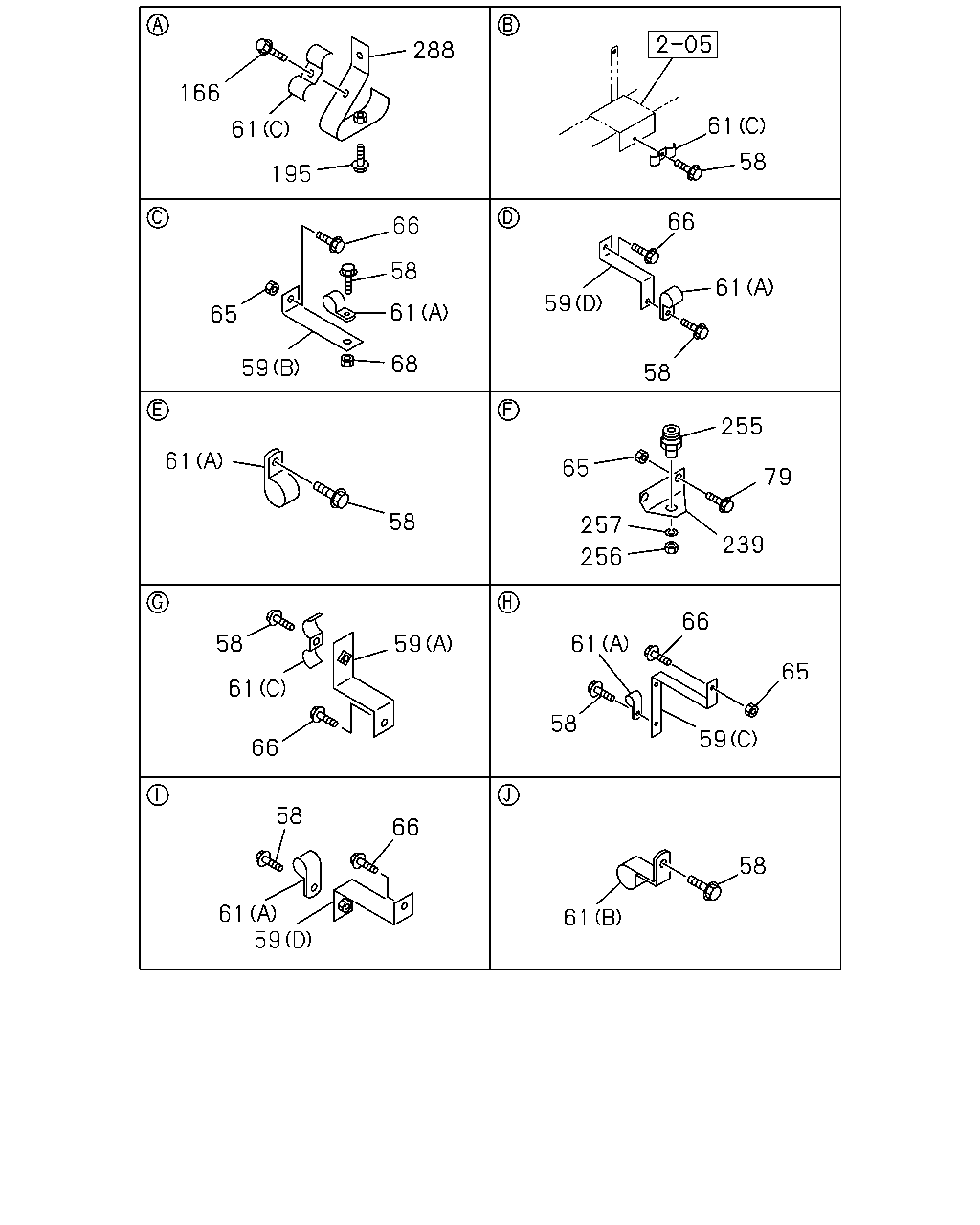

288 166 61 61 58 195 66 66 58 61 59 61 65 68 59 58 255 61 65 79 58 257 239 256 66 58 61 59 65 61 58 59 66 58 66 58 61 59 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9604-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9905-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	9604-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9905-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9604-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9905-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9604-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	9607-
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	02	1	9604-9606
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9607-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-881-0	01	1	9604-
59	BRACKET; CLIP,OIL PIPE (B)	1-47476-712-0	01	1	9604-9608
59	BRACKET; CLIP,OIL PIPE (B)	1-34656-009-0	01	1	9609-
59	BRACKET; CLIP,OIL PIPE (C)	1-47477-434-0	01	1	9604-
59	BRACKET; CLIP,OIL PIPE (D) L=90	1-82699-856-0	02	1	9604-
61	CLIP; OIL PIPE (A) ID=12 H=24 L=20	1-09700-605-0	02	1	9604-9608
61	CLIP; OIL PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9609-9904
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9604-
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9604-9904
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	9905-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9604-9904
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9604-
61	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9604-
61	CLIP; OIL PIPE (A) ID=13 L=20	9-09525-235-0	01	1	9604-9608
61	CLIP; OIL PIPE (A) ID=13 L=20	9-09525-235-0	02	1	9609-9904
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-536-0	02	1	9604-9702
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	01	1	9703-9904
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	03	1	9905-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
65	NUT; BRKT M8	9-09110-508-0	08	1	9604-9606
65	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9607-9904
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	9905-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	04	1	9604-9606
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	9607-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28080-830-0	02	1	9604-9606
66	BOLT; BRKT,OIL PIPE M8X35 FLANGE	0-28680-835-0	02	1	9607-
68	NUT; CLIP,OIL PIPE M8	9-09110-508-0	01	1	9604-9606
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE M8	9-09110-508-0	03	1	9604-9606
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-
68	NUT; CLIP,OIL PIPE M10	9-09110-510-0	01	1	9604-9606
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91150-210-0	01	1	9607-
79	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9604-9606
79	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-
166	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9604-9606
166	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-
195	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9604-9606
195	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-
239	BRACKET; FLEX HOSE	1-47477-336-0	01	1	9604-9904
239	BRACKET; FLEX HOSE	1-47478-471-0	01	1	9905-
255	UNION; FLEX HOSE M20 & M22 STRAIGHT	1-09654-167-1	01	1	9604-9904
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-
256	NUT; UNION M22	9-09111-422-0	01	1	9604-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9604-
288	BRACKET; CLIP,P/S	1-47477-621-1	02	1	9604-

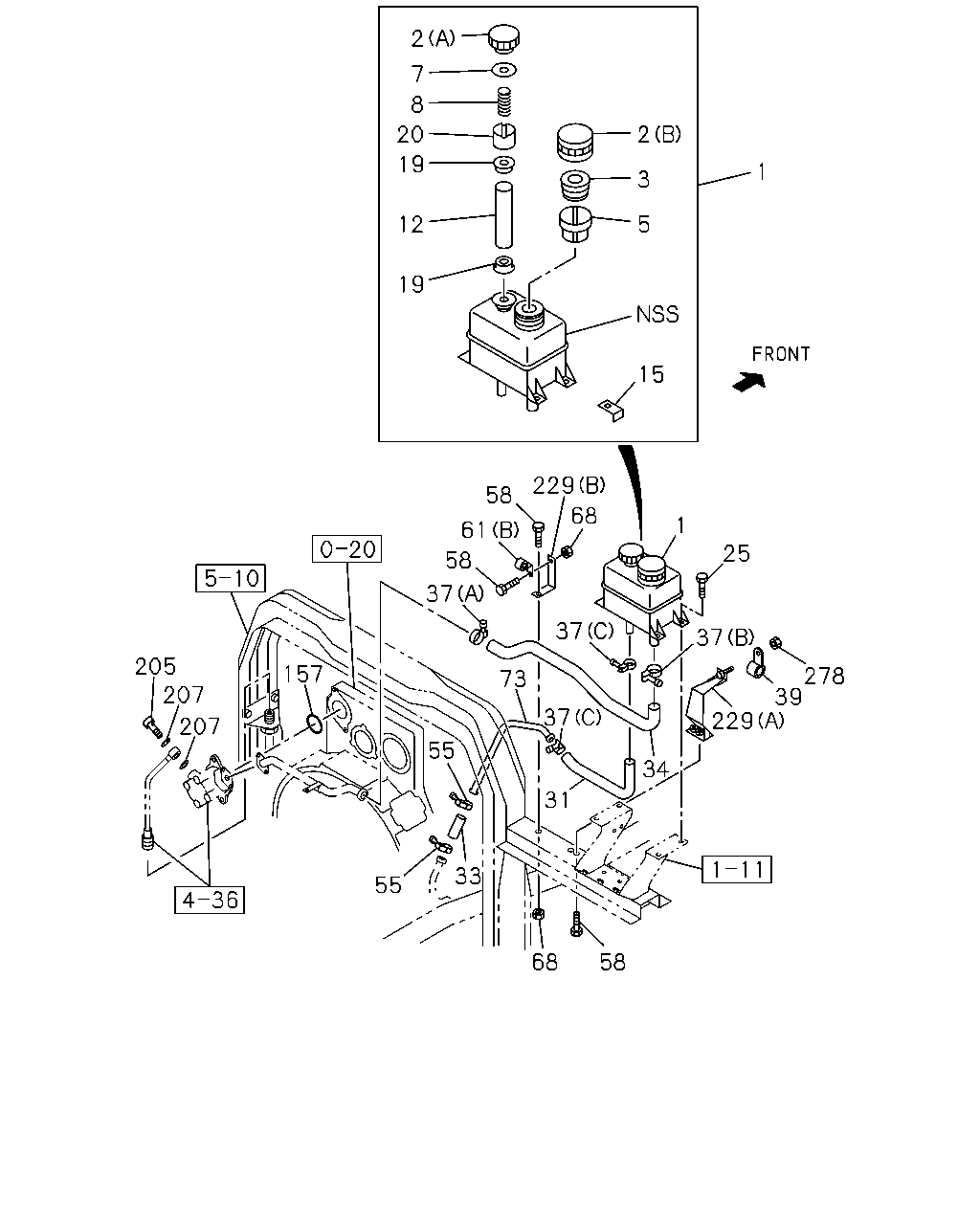

2 7 8 20 2 19 1 3 12 5 19 15 229 58 68 1 61 25 58 37 37 37 205 157 278 39 73 207 37 229 207 55 34 31 33 55 68 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9604-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9604-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9604-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9604-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9604-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9604-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9604-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9604-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9604-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9604-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9604-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9604-9606
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-
31	HOSE; P/S OIL TANK,INL	1-21114-262-0	01	1	9604-
33	HOSE; RUBBER,POWER STRG L=80	1-09360-570-0	01	1	9604-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-254-1	01	1	9604-
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	01	1	9604-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-666-1	01	1	9604-9806
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	01	1	9807-
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9604-9806
37	CLIP; HOSE,P/S (C) ID=30	9-09915-315-1	02	1	9807-9807
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9808-
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	9604-
55	CLIP; P/S RUBBER HOSE ID=28	9-09915-672-1	02	1	9604-9806
55	CLIP; P/S RUBBER HOSE ID=30	9-09915-315-1	02	1	9807-9807
55	CLIP; P/S RUBBER HOSE ID=28	9-09915-672-1	02	1	9808-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	02	1	9604-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9607-9904
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9905-
58	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	03	1	9604-9606
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9905-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9604-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9905-
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9604-9606
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	04	1	9607-
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	02	1	9604-9606
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9607-
61	CLIP; OIL PIPE (A) ID=12 H=24 L=20	1-09700-605-0	02	1	9604-9608
61	CLIP; OIL PIPE (A) ID=12 H=24 L=20	1-09700-605-0	01	1	9609-9904
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9604-
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9604-9904
61	CLIP; OIL PIPE (B) ID=15 H=24 L=20	1-09700-606-0	03	1	9905-
61	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9604-9904
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-
61	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9604-
61	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	9604-
61	CLIP; OIL PIPE (A) ID=13 L=20	9-09525-235-0	01	1	9604-9608
61	CLIP; OIL PIPE (A) ID=13 L=20	9-09525-235-0	02	1	9609-9904
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	01	1	9905-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-536-0	02	1	9604-9702
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	01	1	9703-9904
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	03	1	9905-
61	CLIP; OIL PIPE (A) ID=16 L=20	9-09525-535-0	02	1	9703-9904
61	CLIP; OIL PIPE (C) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-
68	NUT; CLIP,OIL PIPE M8	9-09110-508-0	01	1	9604-9606
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9607-
68	NUT; CLIP,OIL PIPE M8	9-09110-508-0	03	1	9604-9606
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-
68	NUT; CLIP,OIL PIPE M10	9-09110-510-0	01	1	9604-9606
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91150-210-0	01	1	9607-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE	1-21115-014-1	01	1	9604-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9604-
205	BOLT; EYE,FLEX HOSE,P/S M18X40	1-09675-153-0	01	1	9604-
207	GASKET; FLEX HOSE,P/S PUMP ID=18.2 OD=24.4	1-09630-087-0	02	1	9604-
229	BRACKET; HOSE,POWER STRG (A)	1-21464-480-0	01	1	9604-
229	BRACKET; HOSE,POWER STRG (B)	1-21464-481-0	01	1	9604-
278	NUT; HOSE CLIP M8	9-09110-508-0	01	1	9604-9606
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	9607-
