1-50 — EXHAUST PIPE AND SILENCER (#63358) — 65 parça

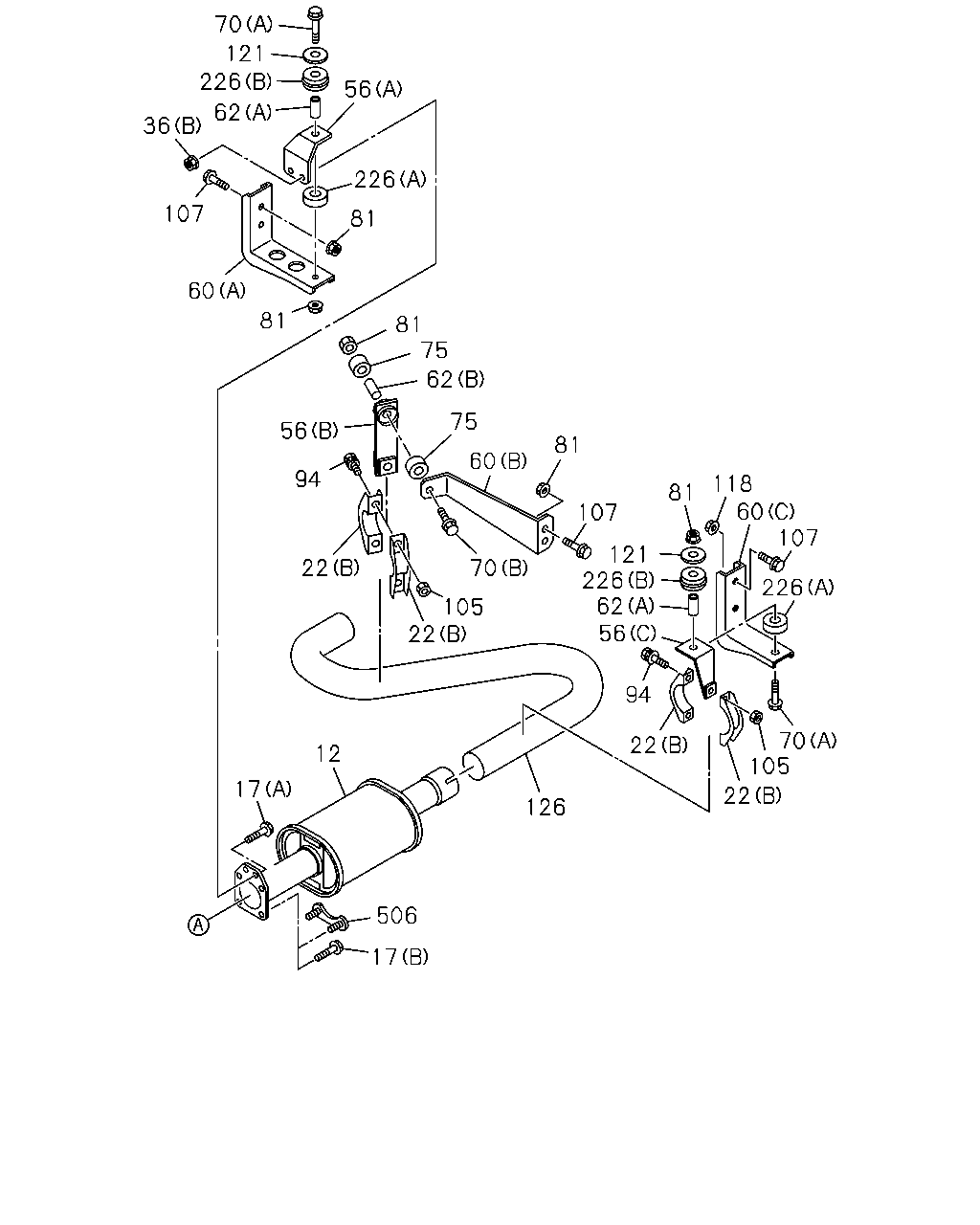

70 121 226 56 62 36 226 107 81 60 81 81 75 62 75 56 81 60 94 118 60 107 81 107 121 226 62 56 22 70 226 105 22 94 70 105 22 12 17 22 126 506 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH	8-98090-389-2	01	1	1001-
17	BOLT; EXH PIPE (B) M12X35 FLANGE	0-28051-235-0	04	1	1204-
17	BOLT; EXH PIPE (A) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
22	CLAMP; EXH PIPE (B) ID=80-84 SOU	1-22133-233-0	02	1	1001-
22	CLAMP; EXH PIPE (B) ID=80-84 SOU	1-22133-233-0	02	1	1001-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1001-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
36	NUT; EXH PIPE (B) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
36	NUT; EXH PIPE (A) M10 FLANGE SOU	8-97096-192-1	03	1	1001-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-584-0	01	1	1001-1309
56	BRACKET; CLAMP,EXH PIPE (B)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1001-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98086-352-0	01	1	1001-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1001-
60	BRACKET; FRAME TO BRKT (C)	8-98059-753-1	01	1	1001-1309
60	BRACKET; FRAME TO BRKT (C)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT (B)	8-98090-167-0	01	1	1001-
62	TUBE; DIST,BRKT (A) L=39 SOU	8-98060-852-0	02	1	1001-
62	TUBE; DIST,BRKT (B) L=22 SOU	9-22159-024-0	01	1	1001-
70	BOLT; BRKT (B) M10X50 FLANGE SOU	0-28051-050-0	01	1	1001-
70	BOLT; BRKT (A) M10X70 FLANGE SOU	0-28051-070-0	02	1	1001-
75	RUBBER; SUPPORT,BRKT OD=40 SOU	1-22159-193-0	02	1	1001-
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1001-1112
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1201-
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1201-
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1201-
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1011
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1012-1112
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1012-1112
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1012-1112
81	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	01	1	1201-
94	BOLT; CLAMP M10X40 FLANGE SOU	0-28651-040-0	02	1	1001-
94	BOLT; CLAMP M10X40 FLANGE SOU	0-28651-040-0	02	1	1001-
105	NUT; CLAMP M10 FLANGE SOU	0-91180-210-0	02	1	1001-
105	NUT; CLAMP M10 FLANGE SOU	0-91180-210-0	02	1	1001-
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
107	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
118	NUT; SILENCER MTG BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1001-
126	PIPE; EXH,RR	8-98073-427-0	01	1	1001-
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1001-
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1001-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1001-1203

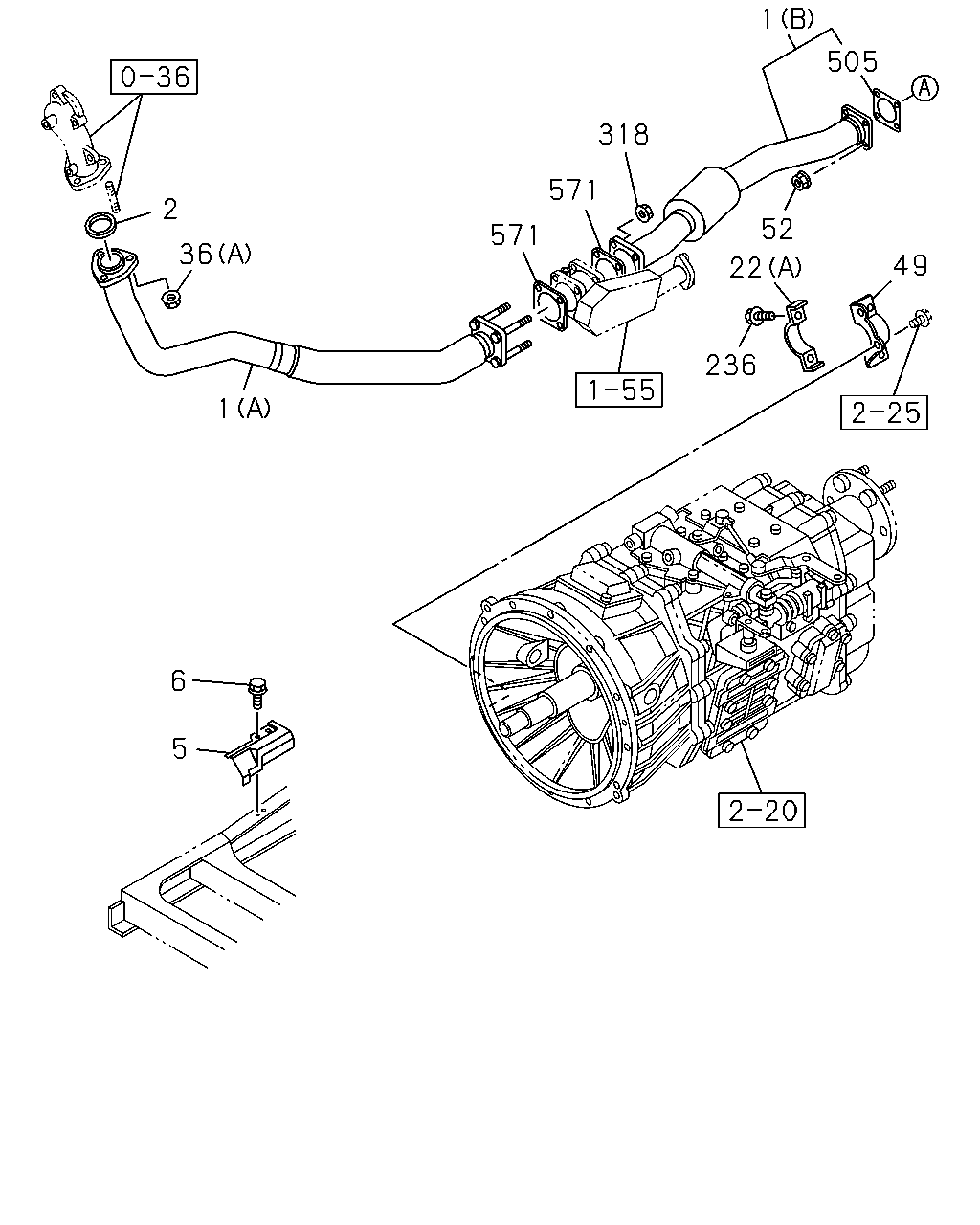

1 505 36 318 571 2 52 571 36 49 22 236 1 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH (B)	8-98096-347-0	01	1	1001-
1	PIPE; EXH (A)	8-98082-498-0	01	1	1001-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	1001-
5	PROTECTOR; HEAT EXC. EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-122-0	01	1	1201-
5	PROTECTOR; HEAT	8-98089-287-1	01	1	1001-1112
5	PROTECTOR; HEAT EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-287-1	01	1	1201-
6	BOLT; HEAT PROTECTOR M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-1112
6	BOLT; HEAT PROTECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE SOU	0-28650-825-0	02	1	1201-
22	CLAMP; EXH PIPE (B) ID=80-84 SOU	1-22133-233-0	02	1	1001-
22	CLAMP; EXH PIPE (B) ID=80-84 SOU	1-22133-233-0	02	1	1001-
22	CLAMP; EXH PIPE (A)	1-22133-295-0	01	1	1001-1309
22	CLAMP; EXH PIPE (A)	8-97646-674-0	01	1	1310-
36	NUT; EXH PIPE (B) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
36	NUT; EXH PIPE (A) M10 FLANGE SOU	8-97096-192-1	03	1	1001-
49	BRACKET; EXH PIPE TO TRANS	8-98042-786-0	01	1	1001-1301
49	BRACKET; EXH PIPE TO TRANS	8-98234-530-0	01	1	1302-
52	NUT; BRKT M12 FLANGE SOU	0-91180-212-0	04	1	1001-
236	BOLT; PIPE CLAMP TO BRKT M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-
318	NUT; EXH PIPE,FRT M8 W/LK WASHER	8-97581-234-0	04	1	1001-
505	GASKET; CONV TO EXH PIPE	8-98096-305-0	01	1	1001-
571	GASKET ID=64	8-97373-108-0	02	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
